N89-UW604EUSB 2.0 802.11g/b Wireless Network Adapter

USB 2.0 802.11g Wireless Network Adapter User’s Manual Rev 1.0 USB Wireless Network Adapter User’s Manual Regulatory compliance FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. IMPORTANT NOTE: Federal Communications Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This transmitter must not be co-located or operation in conjunction with any other antenna or transmitter. 2 USB Wireless Network Adapter User’s Manual About this manual This User’s Manual describes how to install and operate your USB Wireless Network Adapter. Please read this manual before you install the product. This manual includes the following topics: ¾ Product description and features. ¾ Hardware installation procedure. ¾ Software installation procedure. ¾ FAQ 3 USB Wireless Network Adapter User’s Manual Table of Contents Regulatory compliance..............................................................................2 About this manual......................................................................................3 Chapter 1 - Introduction...................................................5 Features..............................................................................................5 What is Wireless LAN?........................................................................6 Wireless LAN Modes...........................................................................6 Notes on Wireless LAN Configuration.................................................7 Chapter 2 - Hardware Installation....................................8 Package Contents...............................................................................8 System Requirements for the Adapter.................................................8 Connecting the USB Adapter...............................................................8 LED Indicators.....................................................................................9 Disconnecting the USB Adapter........................................................10 Chapter 3 – Driver Installation for Windows..................11 Driver installation for Windows 2000.................................................11 Driver installation for Windows ME....................................................14 Driver installation for Windows XP....................! Chapter 4 – Installing and Using the Wireless Utility.....14 Installation in Windows......................................................................14 Using Wireless Utility In Windows XP...............................................17 Use Windows Wireless Network Configuration...........................................17 Use Wireless LAN Utility..............................................................................21 Use Wireless LAN Utility In Windows 98, 2000 and ME....................24 Configuring the USB Wireless Network Adapter...............................25 Chapter 5 – Installing Network Protocols......................29 Installing the Network Protocols for Windows 98 and ME.................29 Appendix A – FAQ.........................................................32 Appendix B – Specifications..........................................33 4 USB Wireless Network Adapter User’s Manual Chapter 1 - Introduction Thank you for purchasing the USB 2.0 802.11g Wireless Network Adapter. This high-speed USB 2.0 802.11g Wireless Network Adapter provides you with an innovative wireless networking solution. The Adapter is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! Now you can carry the LAN in your pocket! The adapter is a WLAN network adapter with a rate of 1, 2, 5.5, and 11 Mbps (802.11b CCK mode), and 6, 9, 12, 18, 24, 36, 48, and 54 Mbps (802.11g OFDM mode) operating as well in the 2.4 GHz ISM band using Direct Sequence Spread Spectrum (DSSS) transmission implementing the IEEE 802.11b/g standards. This adapter provides Device Drivers for Windows ME, 2000 and Windows XP. It also provides graphic based tools for the configuration of the adapter. The tool, as well as the installation steps of the plug-and-play procedure for the Microsoft Windows ME, Windows 2000 and Windows XP operating systems, is described in this document. Features The USB 2.0 802.11g Wireless Network Adapter offers compliance with the IEEE 802.11b/g specification. This feature allows them to communicate wit…

Text truncated - open the document above for the full version.

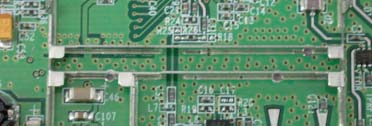

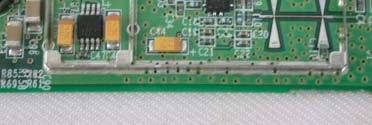

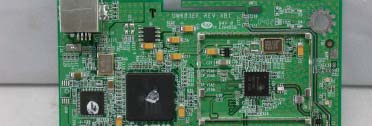

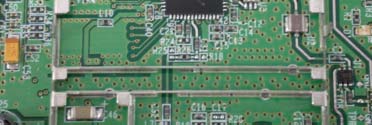

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: N89-UW604E FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

21.50 45.50 UW604-E LABEL : 100+() USB 2.0 802.11g/b Wireless Network Adapter FCC ID: N89-UW604E This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received including interference that cause undesired operations.

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: N89-UW604E Report No. 930127H01A Operational Description This device is a USB 2.0 802.11g/b Wireless Network Adapter, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (USB 2.0 802.11g/b Wireless Network Adapter) is powered by from host equipment. The antenna type used in this product is Printed PCB Antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: N89-UW604E Report No. 930127H01A 1 RF EXPOSURE REPORT REPORT NO.:RF930127H01A MODEL NO.:UW604-E ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CYBERTAN TECHNOLOGY INC ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: N89-UW604E Report No. 930127H01A 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: N89-UW604E Report No. 930127H01A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: N89-UW604E Report No. 930127H01A 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2.0dBi or 1.58 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: FOR DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.50870.010251.0 6243754.32500.017131.0 11246253.70320.016931.0 FOR OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241220.94110.00661.0 6243719.63360.00621.0 11246220.94110.00661.0

Report No. 930127H01A 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100037May. 06, 2004 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930127H01A 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930127H01A 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930127H01A 4 Ch1 Report No. 930127H01A 5 Ch11 Report No. 930127H01A 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930127H01A 7 Ch1 Report No. 930127H01A 8 Ch11

FCC ID: N89-UW604E Report No.: RF930127H01A1 Issued: Mar. 08, 2004 FCC TEST REPORT REPORT NO.: RF930127H01A MODEL NO.: UW604-E RECEIVED: Jan. 27, 2004 TESTED: Jan. 28 to 30, 2004 APPLICANT:CYBERTAN TECHNOLOGY INC ADDRESS:No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: N89-UW604E Report No.: RF930127H01A2 Issued: Mar. 08, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST SETUP .............................................................................................. 10 4.1.4EUT OPERATING CONDITIONS.................................................................11 4.1.5TEST RESULTS.......................................................................................... 12 4.2Radiated Emission Measurement ............................................................... 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 14 4.2.2TEST INSTRUMENTS ................................................................................ 15 4.2.3TEST PROCEDURES................................................................................. 16 4.2.4TEST SETUP .............................................................................................. 17 4.2.5EUT OPERATING CONDITIONS................................................................ 17 4.2.6TEST RESULTS.......................................................................................... 18 4.2.7TEST RESULTS - DSSS............................................................................. 19 4.2.8TEST RESULTS -OFDM ............................................................................. 23 4.36dB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 26 4.3.2TEST INSTRUMENTS ................................................................................ 26 4.3.3TEST PROCEDURE ................................................................................... 27 4.3.4TEST SETUP .............................................................................................. 27 4.3.5EUT OPERATING CONDITIONS................................................................ 27 4.3.6TEST RESULTS-DSSS............................................................................... 28 4.3.7TEST RESULTS-OFDM .............................................................................. 32 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 36 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 36 4.4.2TEST INSTRUMENTS ................................................................................ 36 4.4.3TEST PROCEDURES................................................................................. 37 FCC ID: N89-UW604E Report No.: RF930127H01A3 Issued: Mar. 08, 2004 4.4.4TEST SETUP .............................................................................................. 37 4.4.5EUT OPERATING CONDITIONS................................................................ 37 4.4.6TEST RESULTS- DSSS.............................................................................. 38 4.4.7TEST RESULTS- OFDM ............................................................................. 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS-DSSS............................................................................... 41 4.5.7TEST RESULTS-OFDM .............................................................................. 45 4.6BAND EDGES MEASUREMENT ................................................................ 49 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 49 4.6.2TEST INSTRUMENTS ................................................................................ 49 4.6.3TEST PROCEDURE ................................................................................... 49 4.6.4EUT OPERATING CONDITION ......…

Text truncated - open the document above for the full version.

FCC ID: N89-UW604E Report No.: RF930127H01A57 Issued: Mar. 08, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: N89-UW604E Report No.: RF930127H01A58 Issued: Mar. 08, 2004 RADIATED EMISSION TEST
