N89-UW620Z802.11g USB2.0 Pen Stick

w w w.cyber t ant ech.com UW620-Z 802.11g Wireless USB Stick Quick Installation Guide Version 0.3 UW620-Z Quick Installation Guide FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: „ Reorient or relocate the receiving antenna. „ Increase the separation between the equipment and receiver. „ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. „ Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This equipment must not be co-located or operating in conjunction with any other antenna or transmitter. CE Marking Warning This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. 2 UW620-Z Quick Installation Guide About your UW620-Z The UW620-Z is an 802.11g compliant wireless USB stick that is to be plugged to the USB port of a notebook or desktop computer. It connects to an AP or a wireless router at data rates up to 54Mbps. This makes it suitable for applications that need speeds comparable to the widely available 100T-base Ethernet speed and is ideal for SOHO or home uses. Features • USB v2.0 compatible. • IEEE 802.11g compliant. • Backward compatible to the IEEE 802.11b standard. • Delivers data rates up to 54 Mbps. • Dynamically shifts between 54, 48, 36, 24, 18, 12, 9 and 6 Mbps network speeds based on signal strength, for maximum availability and reliability of connection. • 802.11b: Dynamically shifts between 11M, 5.5M, 2M, and 1 Mbps network speeds based on signal strength, for maximum availability and reliability of connection. • Allows users to move between Access Points without resetting their connection configuration. • Support 64/128 bit WEP • WPA support Installation Requirement Before installation, make sure your notebook or PC meet the following requirements: • Pentium II 266 CPU or above • A minimum of 32MB RAM • A minimum of 4X-Speed CD-ROM drive • A USB 2.0 Port (a USB 1.1 port is also supported) • Windows 98/ME/2000/XP • Windows 98SE users may need Windows 98SE CD 3 UW620-Z Quick Installation Guide Hardware and Utility Installation 1. Insert Driver CD into the CD-ROM drive of your computer. The will run automatically. If not, locate and double-click on setup.exe. A Welcome screen shows up. Click Next. 2. Click Next to accept the default file location or click Browse to select an alternative folder. 3. After confirming the settings by pressing Next, it will start copying files to 4 UW620-Z Quick Installation Guide the computer. 4. Press Finish to complete the Installation. 5. Locate an available USB port on your computer. 6. Remove the protective cap to expose the USB connector. Insert the UW620-Z to USB port on the computer. The LED turns on if the UW620-Z is properly inserted. 5 UW620-Z Quick Installation Guide 6 7. Windows XP: A Found New Hardware Wizard displays, select Install the software automatically (Recommend) and click Next. 8. Windows XP: Click Finish to complete the installation process. After installing UW620-Z utility and inserting UW602-Z to the computer, an icon appears in the system tray. The definitions of the LINK LEDs on the front panel of UW620-Z are as follows: COLOR STATUS DESCRIPTION On The UW620-Z is connected to a wireless LAN Blink (Slow) The UW620-Z is ready but not connected to a wireless LAN BLUE Blink (Fast) The UW620-Z is sending or receiving data Troubleshooting Q: Windows does not auto-detect the UW620-Z A: Make sure the UW620-Z USB connector is inserted to USB port properly and than reboot your computer and check the LED of UW620-Z. Q: The utility logo does not appear on the system tray when installation finished A: Reboot your computer and check it again. Q: Plug & Play function failed on my computer when I plugged UW620-Z into the USB port. A: Perform the hardware scan by clicking Start, Settings, Control Panel and double-clicking Add/Remove Hardware (Steps may very depending on the version of Windows). Follow the instruction on the screen, to search the UW620-Z and install driver. Q: Windows shows a warning message for device setting or resource conflict. A: Use the Device Manager window to check for possible hardware conflict. Click Start, Settings, Control Panel, System, Hardware and than click Device Manager. Verify the status under the Network Adapter. Q: The device error still persists and cannot be solved. A: If the error persists, you may have hardware problem. In this case, you should contact your local vendor.

UW620-Z (1890x2820x256 jpeg)

UW620-Z-1 (1932x2640x256 jpeg)

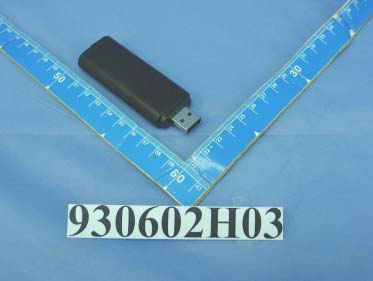

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: N89-UW620Z FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

40.0 mm 1 4 . 0 m m

Page 3 Page 4 Page 5

FCC ID: N89-UW620Z Report No. 930602H03 Operational Description This device is a 802.11g USB2.0 Pen Stick, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11g USB2.0 Pen Stick) is powered by 5Vdc from host equipment. The antenna type used in this product are Chip Antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: N89-UW620Z Report No.: SA930602H031Issued: July 2, 2004 SAR TEST REPORT REPORT NO.: SA930602H03 MODEL NO.: UW620-Z RECEIVED: June 2, 2004 TESTED: June 30, 2004 APPLICANT: CYBERTAN TECHNOLOGY INC. ADDRESS: N0. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 32 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: N89-UW620Z Report No.: SA930602H032Issued: July 2, 2004 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................14 5.TEST RESULTS ........................................................................................................15 5.1 TEST PROCEDURES ...............................................................................................15 5.2 MEASURED SAR RESULT .......................................................................................16 5.3 SAR LIMITS...............................................................................................................18 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................18 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................20 6.SYSTEM VALIDATION ..............................................................................................21 6.1 TEST EQUIPMENT ...................................................................................................21 6.2 TEST PROCEDURE .................................................................................................22 6.3 VALIDATION RESULT...............................................................................................24 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................25 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................26 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................26 7.2 ISOTROPY UNCERTAINTY......................................................................................26 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................27 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................27 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................27 7.6 RESPONSE TIME UNCERTAINTY...........................................................................28 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................29 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................29 7.9 PROBE POSITIONING .............................................................................................30 7.10 PHANTOM UNCERTAINTY ......................................................................................30 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................31 8.INFORMATION ON THE TESTING LABORATORIES ..............................................32 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: N89-UW620Z Report No.: SA930602H033Issued: July 2, 2004 1. CERTIFICATION PRODUCT : 802.11g USB2.0 Pen Stick MODEL NO. : UW620-Z BRAND NAME : CyberTAN APPLICANT : CYBERTAN TECHNOLOGY INC. TESTED: June 30, 2004 TEST ITEM : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. FCC ID: N89-UW620Z Report No.: SA930602H034Issued: July 2, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT 802.11g USB2.0 Pen Stick MODEL NO. UW620-Z POWER SUPPLY 5.0Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps FREQUENCY RANGE 2412MHz ~ 2472MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER (FOR CCK) 15.72dBm MAXIMUN CONDUCTED OUTPUT POWER (FOR OFDM) 13.98dBm ANTENNA TYPE Chip antenna with 0dBi gain AVERAGE SAR(1g) (FOR CCK) 1.520W/kg AVERAGE SAR(1g) (FOR OFDM) 0.244W/kg DATA CABLE NA I/O PORTS USB ASSOCIATED DEVICES NA NOTE: 1. Normal operating condition of the EUT shall be plugged into the laptop PC. Then the prop…

Text truncated - open the document above for the full version.

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

Report No. 930602H03 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G-1 0SS SN4 Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930602H03 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930602H03 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930602H03 4 Ch1 Report No. 930602H03 5 Ch11 Report No. 930602H03 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930602H03 7 Ch1 Report No. 930602H03 8 Ch11

FCC ID: N89-UW620Z Report No.: RF930602H03 1 Issued: Jul. 01, 2004 FCC TEST REPORT REPORT NO.: RF930602H03 MODEL NO.: UW620-Z RECEIVED: Jun. 02, 2004 TESTED: Jun. 09 to 15, 2004 APPLICANT: CYBERTAN TECHNOLOGY INC ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: N89-UW620Z Report No.: RF930602H03 2 Issued: Jul. 01, 2004 Table of Contents 1 CERTIFICATION ........................................................................................... 4 2 SUMMARY OF TEST RESULTS................................................................... 5 3 GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2 DESCRIPTION OF TEST MODES................................................................ 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4 TEST TYPES AND RESULTS..................................................................... 10 4.1 CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2 TEST INSTRUMENTS ................................................................................ 10 4.1.3 TEST SETUP ...............................................................................................11 4.1.4 EUT OPERATING CONDITIONS................................................................ 12 4.1.5 TEST RESULTS.......................................................................................... 13 4.2 RADIATED EMISSION MEASUREMENT ................................................... 15 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 15 4.2.2 TEST INSTRUMENTS ................................................................................ 16 4.2.3 TEST PROCEDURES................................................................................. 17 4.2.4 TEST SETUP .............................................................................................. 18 4.2.5 EUT OPERATING CONDITIONS................................................................ 18 4.2.6 TEST RESULTS.......................................................................................... 19 4.2.7 TEST RESULTS –DSSS ............................................................................. 20 4.2.8 TEST RESULTS - OFDM ............................................................................ 23 4.3 6dB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 26 4.3.2 TEST INSTRUMENTS ................................................................................ 26 4.3.3 TEST PROCEDURE ................................................................................... 27 4.3.4 TEST SETUP .............................................................................................. 27 4.3.5 EUT OPERATING CONDITIONS................................................................ 27 4.3.6 TEST RESULTS-DSSS ............................................................................... 28 4.3.7 TEST RESULTS-OFDM .............................................................................. 32 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................... 36 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 36 4.4.2 TEST INSTRUMENTS ................................................................................ 36 FCC ID: N89-UW620Z Report No.: RF930602H03 3 Issued: Jul. 01, 2004 4.4.3 TEST PROCEDURES................................................................................. 37 4.4.4 TEST SETUP .............................................................................................. 37 4.4.5 EUT OPERATING CONDITIONS................................................................ 37 4.4.6 TEST RESULTS- DSSS .............................................................................. 38 4.4.7 TEST RESULTS- OFDM ............................................................................. 39 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................... 40 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 40 4.5.2 TEST INSTRUMENTS ................................................................................ 40 4.5.3 TEST PROCEDURE ................................................................................... 41 4.5.4 TEST SETUP .............................................................................................. 41 4.5.5 EUT OPERATING CONDITIONS................................................................ 41 4.5.6 TEST RESULTS-DSSS ............................................................................... 42 4.5.7 TEST RESULTS-OFDM .............................................................................. 46 4.6 BAND EDGES MEASUREMENT ................................................................ 50 4.6.1 LIMITS OF BAND EDGES MEASUREMENT ............................................. 50 4.6.2 TEST INSTRUMENTS ....…

Text truncated - open the document above for the full version.

FCC ID: N89-UW620Z Report No.: RF930602H03 58 Issued: Jul. 01, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: N89-UW620Z Report No.: RF930602H03 59 Issued: Jul. 01, 2004 RADIATED EMISSION TEST
