N89-VEN501Wireless Access Point

Cisco Model VEN401 Video Over Wireless Solution Quick Reference Guide Cisco Systems, Inc. 678 277-1120 5030 Sugarloaf Parkway, Box 465447 800 722-2009 Lawrenceville, GA 30042 www.cisco.com Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affi liates in the U.S. and other countries. A listing of Cisco’s trademarks can be found at www.cisco.com/go/trademarks . The Wi-Fi Protected Setup mark is a mark of the Wi-Fi Alliance. Wi-Fi Protected Setup is a trademark of the Wi-Fi Alliance. Other third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1009R)Product and service availability are subject to change without notice.© 2011 Cisco and/or its affi liates. All rights reserved. May 2011 P art Number 40 39027 Rev A IMPORTANT SAFETY INSTRUCTIONSNotice to InstallersThe servicing instructions in this notice are for use by qualifi ed service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are qualifi ed to do so. 20080814_Installer800 Note to System InstallerFor this apparatus, the cable shield/screen shall be grounded as close as practical to the point of entry of the cable into the building. For products sold in the US and Canada, this reminder is provided to call the system installer's attention to Article 800-93 and Article 800-100 of the NEC (or Canadian Electrical Code Pa rt 1), which provides guidelines for proper grounding of the cable shield.This symbol is intended to alert you that uninsulated voltage within this product may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this product.Ce symbole a pour but d’alerter toute personne qu’un contact avec une pièce interne de ce produit, sous tension et non isolée, pourrait être suffisant pour provoquer un choc électrique. Il est donc dangereux d’être en contact avec toute pièce interne de ce produit. This symbol is intended to alert you of the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product. Ce symbole a pour but de vous avertir qu’une documentation importante sur le fonctionnement et l’entretien accompagne ce produit. CAUTION: To reduce the risk of electric shock, do not remove cover (or ba ck). No user-serviceable parts inside. Refer servicing to qualified service personnel. WARNING TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. 1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as a power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Power Source WarningA label on this product indicates the correct power source for this product. Operate this product only from an electrical outlet with the voltage and frequency indicated on the product label. If you are uncertain of the type of power supply to your home or business, consult your service provider or your local power company.The AC inlet on the unit must remain accessible and operable at all times.Ground the Product WARNING: Avoid electric shock and fi re hazard! If this product connects to coaxial cable wiring, be sure the cable system is grounded (earthed). Grounding provides some protection against voltage surges and built-up static charges. Protect the Product from LightningIn addition to disconnecting the AC power from the wall outlet, disconnect the signal inputs.Verify the Power Source from the On/Off Power LightWhen the on/off power light is not illuminated, the apparatus may still be connected to the power source. The light may go out when the apparatus is turned off , regardless of whether it is still plugged into an AC power source. Eliminate AC Power/Mains Overloads WARNING: Avoid electric shock and fi re hazard! Do not overload AC power/mains, outlets, extension cords, or integral convenience receptacles. For products that require battery power or other power sources to operate them, refer to the operating instructions for those products. Provide Ventilation and Select a Location• Remove all packaging material before applying power to the product. • Do not place this apparatus on a bed, sofa, rug, or similar surface. • Do not place this apparatus on an unstable surface. • Do not install th…

Text truncated - open the document above for the full version.

CyberTAN Technology, Inc. 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. Tel: 886-3-5777777 / Fax: 886-3-5777788 Ad Hoc Mode Function Declaration Date: 2012/10/4 FCC ID：N89-VEN501 To whom it may concern: We, CyberTAN Technology, Inc., declare that the EUT (Model Name: VEN501) doesn’t have Ad Hoc function on “non-US frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Sincerely, FCC Grantee contact person information. Applicant’s company name : CyberTAN Technology, Inc. Applicant’s company address : 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Amy Wu / Manager E-Mail : [email protected] Tel. : 886-3-5777777

CyberTAN Technology, Inc. 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. Tel: 886-3-5777777 / Fax: 886-3-5777788 Date: 2012/10/4 Confidential Letter Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：N89-VEN501 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent CyberTAN Technology, Inc. requests that the material in the following files be withheld from public disclosure in accordance with Section 0.459 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : CyberTAN Technology, Inc. Applicant’s company address : 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Amy Wu / Manager E-Mail : [email protected] Tel. : 886-3-5777777

CyberTAN Technology, Inc. 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. Tel: 886-3-5777777 / Fax: 886-3-5777788 Power of Attorney Date: 2012/10/4 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Cisco / VEN501 FCC ID: N89-VEN501 Product name: Wireless Access Point FCC Grantee contact person information. Applicant’s company name : CyberTAN Technology, Inc. Applicant’s company address : 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Amy Wu / Manager E-Mail : [email protected] Tel. : 886-3-5777777

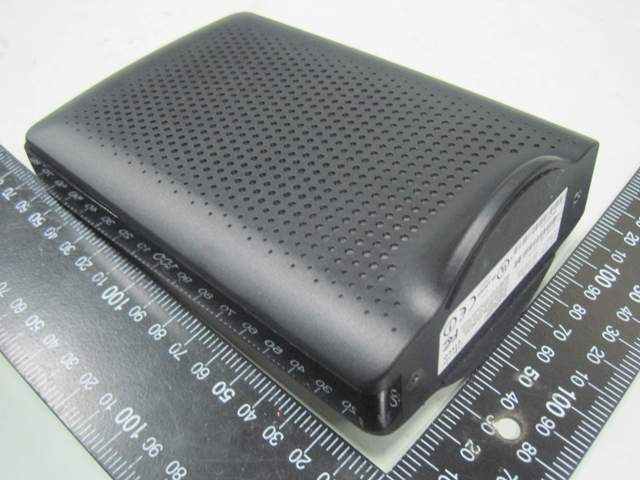

Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255

Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 1 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 2 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 3 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 4 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 5 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 6 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 7 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255 Report No.: 211241 SPORTON International Inc. PAGE NUMBER : 8 OF 8 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 04, 2012 FAX : 886-2-2696-2255

Report No.: FR211241 FCC ID: N89-VEN501 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR211241 FCC ID: N89-VEN501 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR211241 FCC ID: N89-VEN501 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : Embedded Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz: 23.99dBm Antenna Gain (dBi) Antenna Gain (numeric) Conducted Output Power (dBm) Conducted Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 23.9876 250.4730 0.079015 1 Complies For 5GHz ISM Band: Antenna Type : Embedded Antenna Max Conducted Power for IEEE 802.11n MCS0 20MHz: 27.05dBm Antenna Gain (dBi) Antenna Gain (numeric) Conducted Output Power (dBm) Conducted Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 27.0464 506.5649 0.159803 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC Dynamic Frequency Selection Test Report Applicant’s company CyberTAN Technology, Inc. Applicant Address 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. FCC ID N89-VEN501 Manufacturer’s company CyberTAN Technology, Inc. Manufacturer Address 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. Product Name Wireless Access Point Brand Name Cisco Model Name VEN501 Test Standard(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5250~5350 / 5470~5725 MHz Received Date Jan. 12, 2012 Final Test Date Apr. 14, 2012 Submission Type Original Equipment Operating Mode Client (without radar detection function) Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in FCC OET Order 06-96A (2006) and 47 CFR FCC Part 15 Subpart E § 15.407. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FZ211241 Report Format Version: 01 Page No. : i of ii FCC ID: N89-VEN501 Issued Date :Oct. 04, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Standard Requirement.............................................................................................................................................................................. 3 3.2. Product Specification Table ..................................................................................................................................................................... 3 3.3. Accessories ................................................................................................................................................................................................. 5 3.4. Table for DFS Band Carrier Frequencies ................................................................................................................................................. 5 3.5. Antenna Information on DFS Band.......................................................................................................................................................... 6 4. DFS DETECTION THRESHOLDS AND RADAR TEST WAVEFORMS.......................................................................... 7 4.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring .................................................................... 7 4.2. DFS Response requirement values .......................................................................................................................................................... 7 4.3. Radar Test Waveforms Minimum Step .................................................................................................................................................... 8 4.4. Short Pulse Radar Test Waveforms........................................................................................................................................................... 9 4.5. Long Pulse Radar Test Waveform .......................................................................................................................................................... 10 4.6. Frequency Hopping Radar Test Waveform ......................................................................................................................................... 13 4.7. Radiated Calibration Setup ................................................................................................................................................................... 15 4.8. Radar Waveform Calibration Procedure ............................................................................................................................................. 16 4.9. Calibration Deviation .............................................................................................................................................................................. 16 4.10. Radar Waveform Calibration Result ..................................................................................................................................................... 17 5. TEST SETUP AND TEST RESULT .............................................................................................................................. 18 5.1. Test setup ................................................................................................................................................................................................... 18 5.2. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period Measurement 23 6. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 33 7. TEST LOCATION.................................................................................................................................................. 34 8. TAF CERTIFICATE OF ACCREDITATION.............................................................................................................. 35 APPENDIX A. TEST PHOTOS........................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company CyberTAN Technology, Inc. Applicant Address 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. FCC ID N89-VEN501 Manufacturer’s company CyberTAN Technology, Inc. Manufacturer Address 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. Product Name Wireless Access Point Brand Name Cisco Model Name VEN501 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 5725 ~ 5850MHz Received Date Jan. 12, 2012 Final Test Date Apr. 25, 2012 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 – 20120118 and KDB662911 D01-20110404. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR211241AB Report Format Version: 01 Page No. : i of ii FCC ID: N89-VEN501 Issued Date :Oct. 04, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 4 3.3. Table for Filed Antenna ............................................................................................................................................................................. 5 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 5 3.5. Table for Test Modes .................................................................................................................................................................................. 6 3.6. Table for Testing Locations........................................................................................................................................................................ 6 3.7. Table for Supporting Units ......................................................................................................................................................................... 6 3.8. Table for Parameters of Test Software Setting ....................................................................................................................................... 7 3.9. Test Configurations..................................................................................................................................................................................... 8 4. TEST RESULT......................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 10 4.2. Conducted Output Power Measurement ........................................................................................................................................... 14 4.3. Power Spectral Density Measurement.................................................................................................................................................. 20 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 27 4.5. Radiated Emissions Measurement......................................................................................................................................................... 30 4.6. Band Edge Emissions Measurement...................................................................................................................................................... 41 4.7. Antenna Requirements ........................................................................................................................................................................... 44 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 45 6. TEST LOCATION.................................................................................................................................................. 47 7. TAF CERTIFICATE OF ACCREDITATION.............................................................................................................. 48 APPENDIX A. TEST PHOTOS........................................................................................................................... A1 ~ A6 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSURE ..............................................…

Text truncated - open the document above for the full version.

Report No.: FZ211241 FCC ID: N89-VEN501 Page No. : 1 of 2 Appendix A. Test Photos Report No.: FZ211241 FCC ID: N89-VEN501 Page No. : 2 of 2 1. Photographs of Test Configuration FRONT VIEW

Report No.: FR211241 FCC ID: N89-VEN501 Page No. : 1 of 6 Appendix A. Test Photos Report No.: FR211241 FCC ID: N89-VEN501 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR211241 FCC ID: N89-VEN501 Page No. : 3 of 6 SIDE VIEW Report No.: FR211241 FCC ID: N89-VEN501 Page No. : 4 of 6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR211241 FCC ID: N89-VEN501 Page No. : 5 of 6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR211241 FCC ID: N89-VEN501 Page No. : 6 of 6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
