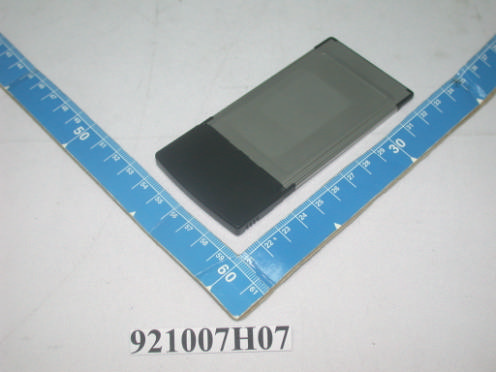

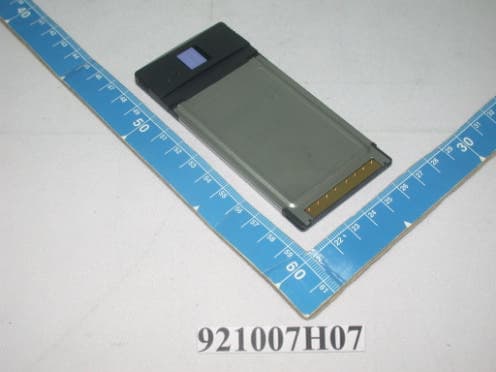

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: N89-WE603B ADT No. 921007H07 Operational Description This device is a 54Mbps WLAN CardBus Card, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (54Mbps WLAN CardBus Card) is powered by from host equipment. The antenna type used in this product is Chip Antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: N89-WE603B Report No.: SA921007H07 1 Issued: Oct. 24 2003 SAR TEST REPORT REPORT NO.: SA921007H07 MODEL NO.: WE603-B RECEIVED: Oct. 21 2003 TESTED: Oct. 22 2003 APPLICANT: CYBERTAN TECHNOLOGY INC ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 31 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: N89-WE603B Report No.: SA921007H07 2 Issued: Oct. 24 2003 Table of Contents 1. CERTIFICATION...............................................................................................................3 2. GENERAL INFORMATION................................................................................................4 2.1 GENERAL DESCRIPTION OF EUT...................................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM.............................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .............................9 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS............................................13 4. DESCRIPTION OF SUPPORT UNITS..............................................................................14 5. TEST RESULTS.............................................................................................................15 5.1 TEST PROCEDURES.....................................................................................................15 5.2 MEASURED SAR RESULT.............................................................................................16 5.3 SAR LIMITS...................................................................................................................18 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS...............................................................18 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY.................................................................20 6. SYSTEM VALIDATION....................................................................................................21 6.1 TEST EQUIPMENT.........................................................................................................21 6.2 TEST PROCEDURE.......................................................................................................21 6.3 VALIDATION RESULT.....................................................................................................23 6.4 SYSTEM VALIDATION UNCERTAINTIES........................................................................24 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES..................................................25 7.1 PROBE CALIBRATION UNCERTAINTY...........................................................................25 7.2 ISOTROPY UNCERTAINTY............................................................................................25 7.3 BOUNDARY EFFECT UNCERTAINTY.............................................................................26 7.4 PROBE LINEARITY UNCERTAINTY................................................................................26 7.5 READOUT ELECTRONICS UNCERTAINTY.....................................................................26 7.6 RESPONSE TIME UNCERTAINTY..................................................................................27 7.7 INTEGRATION TIME UNCERTAINTY..............................................................................28 7.8 PROBE POSITIONER MECHANICAL TOLERANCE.........................................................28 7.9 PROBE POSITIONING...................................................................................................29 7.10 PHANTOM UNCERTAINTY.............................................................................................29 7.11 DASY4 UNCERTAINTY BUDGET....................................................................................30 8. INFORMATION ON THE TESTING LABORATORIES.......................................................31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: N89-WE603B Report No.: SA921007H07 3 Issued: Oct. 24 2003 1. CERTIFICATION PRODUCT : 54Mbps WLAN CardBus Card MODEL NO. : WE603-B BRAND NAME : CyberTAN APPLICANT : CYBERTAN TECHNOLOGY INC TEST ITEM : Engineering sample STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Oct. 22, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: N89-WE603B Report No.: SA921007H07 4 Issued: Oct. 24 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT 54Mbps WLAN CardBus Card MODEL NO. WE603-B POWER SUPPLY 3.3VDC powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS/OFDM TRANSFER RATE UP TO 54Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 CONDUCTED OUTPUT POWER 18.29dBm for 802.11b 17.31dBm for …

Text truncated - open the document above for the full version.

Page 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Mode 1 The bottom of the EUT to the phantom distance is 13mm Page 2 Mode 2 The Front of the EUT to the phantom distance is 10mm Page 3 Mode 3 The tip of the EUT to the phantom distance is 0mm Page 4 Mode 4 The tip of the EUT to the phantom distance is 0mm Page 5 EUT Photo Page 6 Liquid Level Photo 2450MHz D=152mm Date/Time: 10/22/03 10:24:10 Test Laboratory: Advance Data Technology WE603-B Mode 1 DUT: 54Mbps WLAN Cardbus Card ; Type: WE603-B ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.881 mho/m, ε r = 52.937, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 13mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibrated: 2002/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn541; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 11.3 V/m Power Drift = 0.06 dB Maximum value of SAR = 0.691 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.569 mW/g; SAR(10 g) = 0.306 mW/g Reference Value = 11.3 V/m Power Drift = 0.06 dB Maximum value of SAR = 0.611 mW/g Date/Time: 10/22/03 10:53:22 Test Laboratory: Advance Data Technology WE603-B Mode 1 DUT: 54Mbps WLAN Cardbus Card ; Type: WE603-B ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.927 mho/m, ε r = 52.876, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 13mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibrated: 2002/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn541; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 6/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 11.3 V/m Power Drift = -0.3 dB Maximum value of SAR = 0.615 mW/g Channel 6/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.535 mW/g; SAR(10 g) = 0.279 mW/g Reference Value = 11.3 V/m Power Drift = -0.3 dB Maximum value of SAR = 0.572 mW/g Date/Time: 10/22/03 11:11:26 Test Laboratory: Advance Data Technology WE603-B Mode 1 DUT: 54Mbps WLAN Cardbus Card ; Type: WE603-B ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.971 mho/m, ε r = 52.783, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 13mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23.0 degrees ; Liquid temp. : 22.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibrated: 2002/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn541; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 11/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 9.85 V/m Power Drift = 0.3 dB Maximum value of SAR = 0.505 mW/g Channel 11/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.05 W/kg SAR(1 g) = 0.453 mW/g; SAR(10 g) = 0.222 mW/g Reference Value = 9.85 V/m Power Drift = 0.3 dB Maximum value of SAR = 0.51 mW/g Date/Time: 10/22/03 12:07:40 Test Laboratory: Advance Data Technology WE603-B Mode 2 DUT: 54Mbps WLAN Cardbus Card ; Type: WE603-B ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.881 mho/m, ε r = 52.937, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 10 mm(The front of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23 degrees ; Liquid temp. : 22 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibrated: 2002/9/28 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn541; Calibrated: 2003/1/14 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (41x71x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 11.8 V/m Power Drift = -0.3 dB Maximum value of SAR = 0.633 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.521 mW/g; SAR(10 g) = 0.283 mW/g Reference Value = 11.8 V/m Power Drift = -0.3 dB Maximum value of SAR = 0.548 mW/g Date/Time: 10/22/03 12:26:00 Test Laboratory: Advance Data Technology WE603-B Mode 2 DUT: 54Mbps WLAN Cardbus Card ; Type: WE603-B ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.927 mho/m, ε r = 52.876, ρ = 1000 kg/m 3 ) ; Liquid level : 152mm Phantom section: Flat Section ; Separation distance : 10 mm(The front of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 23 degrees ; Liquid temp. : 22 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.4, 4.4, 4.4); Calibra…

Text truncated - open the document above for the full version.

APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

FCC ID: N89-WE603B Report No.: RF921007H07 1 Issued: Oct. 27, 2003 ADT No.: 921007H07 FCC TEST REPORT REPORT NO.: RF921007H07 MODEL NO.: WE603-B RECEIVED: Oct. 08, 2003 TESTED: Oct. 17 to 22, 2003 APPLICANT: CYBERTAN TECHNOLOGY INC ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: N89-WE603B Report No.: RF921007H07 2 Issued: Oct. 27, 2003 ADT No.: 921007H07 Table of Contents 1 CERTIFICATION.......................................................................................................4 2 SUMMARY OF TEST RESULTS...........................................................................5 3 GENERAL INFORMATION.....................................................................................6 3.1 GENERAL DESCRIPTION OF EUT......................................................................6 3.2 DESCRIPTION OF TEST MODES........................................................................7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4 DESCRIPTION OF SUPPORT UNITS.................................................................8 4 TEST TYPES AND RESULTS................................................................................9 4.1 CONDUCTED EMISSION MEASUREMENT......................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2 TEST INSTRUMENTS.............................................................................................9 4.1.3 TEST SETUP..........................................................................................................10 4.1.4 EUT OPERATING CONDITIONS........................................................................11 4.1.5 TEST RESULTS.....................................................................................................12 4.2 Radiated Emission Measurement........................................................................14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.....................................14 4.2.2 TEST INSTRUMENTS...........................................................................................15 4.2.3 TEST PROCEDURES...........................................................................................16 4.2.4 TEST SETUP..........................................................................................................17 4.2.5 EUT OPERATING CONDITIONS........................................................................17 4.2.6 TEST RESULTS.....................................................................................................18 4.2.7 TEST RESULTS - DSSS.......................................................................................19 4.2.8 TEST RESULTS -OFDM.......................................................................................22 4.3 6dB BANDWIDTH MEASUREMENT..................................................................25 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.............................................25 4.3.2 TEST INSTRUMENTS...........................................................................................25 4.3.3 TEST PROCEDURE..............................................................................................26 4.3.4 TEST SETUP..........................................................................................................26 4.3.5 EUT OPERATING CONDITIONS........................................................................26 4.3.6 TEST RESULTS-DSSS.........................................................................................27 4.3.7 TEST RESULTS-OFDM........................................................................................31 4.4 MAXIMUM PEAK OUTPUT POWER..................................................................35 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............35 FCC ID: N89-WE603B Report No.: RF921007H07 3 Issued: Oct. 27, 2003 ADT No.: 921007H07 4.4.2 TEST INSTRUMENTS...........................................................................................35 4.4.3 TEST PROCEDURES...........................................................................................36 4.4.4 TEST SETUP..........................................................................................................36 4.4.5 EUT OPERATING CONDITIONS........................................................................36 4.4.6 TEST RESULTS- DSSS........................................................................................37 4.4.7 TEST RESULTS- OFDM.......................................................................................37 4.5 POWER SPECTRAL DENSITY MEASUREMENT...........................................38 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................38 4.5.2 TEST INSTRUMENTS...........................................................................................38 4.5.3 TEST PROCEDURE..............................................................................................39 4.5.4 TEST SETUP..........................................................................................................39 4.5.5 EUT OPERATING CONDITIONS........................................................................39 4.5.6 TEST RESULTS-DSSS.............................................................…

Text truncated - open the document above for the full version.

Report No. 921007H07 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 921007H07 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 921007H07 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 921007H07 4 Ch1 Report No. 921007H07 5 Ch11 Report No. 921007H07 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 921007H07 7 Ch1 Report No. 921007H07 8 Ch11

FCC ID: N89-WE603B Report No.: RF921007H07 56 Issued: Oct. 27, 2003 ADT No.: 921007H07 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: N89-WE603B Report No.: RF921007H07 57 Issued: Oct. 27, 2003 ADT No.: 921007H07 RADIATED EMISSION TEST
