11a/g Wireless LAN CardBus Card User’s Manual Rev 0.1 54M Wireless LAN CardBus Card User’s Manual 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device is intended only for OEM integrators under the following conditions: 1) The antenna should be integral if the end device is intended to be operated in 5.15 ~ 5.25GHz frequency range. As long as 1 condition above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: N89-WE701I”. 54M Wireless LAN CardBus Card User’s Manual 3 Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators end users must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements. The antenna must not be co-located or operating in conjunction with any other antenna or transmitter”. If the end product integrating this module is going to be operated in 5.15 ~ 5.25GHz frequency range, the warning statement in the user manual of the end product should include the restriction of operating this device in indoor could void the user’s authority to operate the equipment. About this manual This User’s Manual describes how to install and operate your CardBus Wireless LAN Card. Please read this manual before you install the product. This manual includes the following topics: ÿ Product description and features. ÿ Hardware installation procedure. ÿ Software installation procedure. ÿ FAQ 54M Wireless LAN CardBus Card User’s Manual 4 Table of Contents Regulatory compliance..................................................................................2 About this manual..........................................................................................3 Chapter 1 - Introduction.................................................1 Features..................................................................................................1 What is Wireless LAN?...........................................................................2 Wireless LAN Modes..............................................................................2 Notes on Wireless LAN Configuration...................................................3 Chapter 2 - Hardware Installation...................................4 Package Contents...................................................................................4 System Requirements for the Adapter...................................................4 Hardware description..............................................................................4 Inserting the Wireless LAN Card............................................................4 LED Indicators.........................................................................................5 Ejecting the Wireless LAN card..............................................................5 Chapter 3 – Driver Installation for Windows....................7 Driver installation for Windows XP.........................................................7 Chapter 4 – Installing and Using the Wireless Utility.....10 Installation in Windows........................................................................10 Using Wireless Utility In Windows XP.................................................13 Use Windows Wireless Network Configuration..........................................13 Use Wireless LAN Utility.............................…

Text truncated - open the document above for the full version.

11a/g Wireless LAN CardBus Card User’s Manual Rev 0.1 54M Wireless LAN CardBus Card User’s Manual 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment, and the antenna of this device must be integral. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with FCC RF Exposure limits set forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2). This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment version marketed in US is restricted to usage of the channels 1-11 only 54M Wireless LAN CardBus Card User’s Manual 3 About this manual This User’s Manual describes how to install and operate your CardBus Wireless LAN Card. Please read this manual before you install the product. This manual includes the following topics: ÿ Product description and features. ÿ Hardware installation procedure. ÿ Software installation procedure. ÿ FAQ 54M Wireless LAN CardBus Card User’s Manual 4 Table of Contents Regulatory compliance..................................................................................2 About this manual..........................................................................................3 Chapter 1 - Introduction.................................................1 Features..................................................................................................1 What is Wireless LAN?...........................................................................2 Wireless LAN Modes..............................................................................2 Notes on Wireless LAN Configuration...................................................3 Chapter 2 - Hardware Installation...................................4 Package Contents...................................................................................4 System Requirements for the Adapter...................................................4 Hardware description..............................................................................4 Inserting the Wireless LAN Card............................................................4 LED Indicators.........................................................................................5 Ejecting the Wireless LAN card..............................................................5 Chapter 3 – Driver Installation for Windows....................7 Driver installation for Windows XP.........................................................7 Chapter 4 – Installing and Using the Wireless Utility.....10 Installation in Windows........................................................................10 Using Wireless Utility In Windows XP.................................................13 Use Windows Wireless Network Configuration..........................................13 Use Wireless LAN Utility................................................................................16 Configuring the CardBus Wireless LAN Card.....................................19 Chapter 1 - Introduction Thank you for purchasing the CardBus Wireless LAN Card. This high-speed CardBus Wireless LAN Card provides you with an innovative wireless networking solution. The Adapter is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! The Adapter is a network Adapter with a rate of 1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48 and 54 Mbps operating in the ISM band using Direct Sequence Spread Spectrum (DSSS) transmission implementing the IEEE 802.11a/g draft standard. This Adapter provides Device Drivers for Windows Operating Systems. It also provides tools for the configuration of the Adapter. The tool, as well as the installation steps of the plug-and-play procedure for the Windows operating systems, is described in this document. Features The CardBus Wireless LAN Card offers compliance with the IEEE 802.11a/g draft specification. This feature allows them to communicate with other wireless devices that support the standard. Features of the Adapter are: l Uses 2.4GHz and 5GHz frequency band, which complies with worldwide requirement l Wireless interface following the IEEE 802.11a/g standard l Using CardBus interface l Security support WPA l Wire-free access to network…

Text truncated - open the document above for the full version.

CyberTAN Technology, Inc. FCC ID: N89-WE701I Confirmation Number: EA548504 Response for RT 27064 1. Please explain or revise user manual portions about OEM install only and labeling - OEM installation only may not be appropriate for integral-antenna PCMCIA card. OEM Information has been removed and new manual provided.

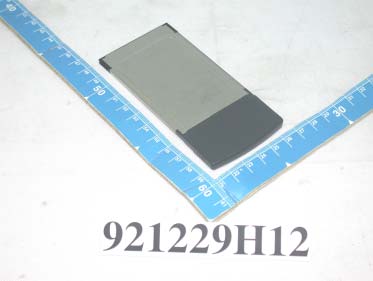

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: H9PLA5030 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 Page 4 Page 5

FCC ID: N89-WE701I Report No. RF921229H12B Technical Description This device is an IEEE 802.11a/b/g Wireless LAN CardBus operates in both the 5GHz and 2.4GHz bands with DSSS and OFDM technique. The transmitter rate could be 1/2/5.5/6/9/11/12/18/24/36/48/54Mbps, and the maximum data rate could be up to 108Mbps in turbo mode. The transmitter of the EUT is powered by host equipment r. The antenna is Chip Antenna without connector. For more detailed instruction, please refer to the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: N89-WE701I Report No.: SA921229H12BIssued: April 8, 2004 1 SAR TEST REPORT REPORT NO.: SA921229H12B MODEL NO.: WE701-I RECEIVED: NA TESTED: January 31, 2004 APPLICANT: CYBERTAN TECHNOLOGY INC. ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 31 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: N89-WE701I Report No.: SA921229H12BIssued: April 8, 2004 2 Table of Contents 1.CERTIFICATION........................................................................................................................ 3 2.GENERAL INFORMATION........................................................................................................ 4 2.1GENERAL DESCRIPTION OF EUT.......................................................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM ................................................................. 5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ............................... 9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS................................................ 13 4.DESCRIPTION OF SUPPORT UNITS .................................................................................... 14 5.TEST RESULTS ...................................................................................................................... 15 5.1TEST PROCEDURES .............................................................................................................15 5.2MEASURED SAR RESULT ..................................................................................................... 16 5.3SAR LIMITS ............................................................................................................................. 17 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS .................................................................... 18 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................... 20 6.SYSTEM VALIDATION ............................................................................................................21 6.1TEST EQUIPMENT ................................................................................................................. 21 6.2TEST PROCEDURE................................................................................................................ 21 6.3VALIDATION RESULT............................................................................................................. 23 6.4SYSTEM VALIDATION UNCERTAINTIES .............................................................................. 24 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES ...................................................... 25 7.1PROBE CALIBRATION UNCERTAINTY ................................................................................. 25 7.2ISOTROPY UNCERTAINTY .................................................................................................... 25 7.3BOUNDARY EFFECT UNCERTAINTY ................................................................................... 26 7.4PROBE LINEARITY UNCERTAINTY ...................................................................................... 26 7.5READOUT ELECTRONICS UNCERTAINTY .......................................................................... 26 7.6RESPONSE TIME UNCERTAINTY ......................................................................................... 27 7.7INTEGRATION TIME UNCERTAINTY .................................................................................... 28 7.8PROBE POSITIONER MECHANICAL TOLERANCE ............................................................. 28 7.9PROBE POSITIONING............................................................................................................29 7.10 PHANTOM UNCERTAINTY..................................................................................................... 29 7.11 DASY4 UNCERTAINTY BUDGET........................................................................................... 30 8.INFORMATION ON THE TESTING LABORATORIES............................................................ 31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: N89-WE701I Report No.: SA921229H12BIssued: April 8, 2004 3 1. CERTIFICATION PRODUCT : IEEE 802.11a/b/g Wireless LAN CardBus MODEL NO. : WE701-I BRAND NAME : CyberTAN APPLICANT : CYBERTAN TECHNOLOGY INC. TEST ITEM : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on January 31, 2004. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. PREPARED BY:, DATE: April 8, 2004 APPROVED BY: Suntee Liu , DATE: April 8, 2004 Cody Chang / Supervisor FCC ID: N89-WE701I Report No.: SA921229H12BIssued: April 8, 2004 4 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION O…

Text truncated - open the document above for the full version.

FCC ID: N89-WE701I Report No.: RF921229H12B 1 Issued: Apr. 05, 2004 FCC TEST REPORT REPORT NO.: RF921229H12B MODEL NO.: WE701-I RECEIVED: Dec. 29, 2003 TESTED: Jan. 09 to 16, 2004 APPLICANT: CYBERTAN TECHNOLOGY INC ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 119 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: N89-WE701I Report No.: RF921229H12B 2 Issued: Apr. 05, 2004 Table of Contents 1. CERTIFICATION .................................................................................................................... 5 2. SUMMARY OF TEST RESULTS............................................................................................ 6 3. GENERAL INFORMATION .................................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT....................................................................................... 8 3.2 DESCRIPTION OF TEST MODES......................................................................................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS................................................................................. 11 4. TEST TYPES AND RESULTS (For Part 802.11b)................................................................ 12 4.1 CONDUCTED EMISSION MEASUREMENT....................................................................... 12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 12 4.1.2 TEST INSTRUMENTS .........................................................................................................12 4.1.3 TEST PROCEDURES ..........................................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD ................................................................................ 13 4.1.5 TEST SETUP ....................................................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS......................................................................................... 14 4.1.7 TEST RESULTS ................................................................................................................... 15 4.2 Radiated Emission Measurement ........................................................................................ 17 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 17 4.2.2 TEST INSTRUMENTS .........................................................................................................18 4.2.3 TEST PROCEDURES ..........................................................................................................19 4.2.4 DEVIATION FROM TEST STANDARD ................................................................................ 19 4.2.5 TEST SETUP ....................................................................................................................... 20 4.2.6 EUT OPERATING CONDITIONS......................................................................................... 20 4.2.7 TEST RESULTS ................................................................................................................... 21 4.3 6dB BANDWIDTH MEASUREMENT ................................................................................... 28 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 28 4.3.2 TEST INSTRUMENTS .........................................................................................................28 4.3.3 TEST PROCEDURE ............................................................................................................ 29 4.3.4 DEVIATION FROM TEST STANDARD ................................................................................ 29 4.3.5 TEST SETUP ....................................................................................................................... 29 4.3.6 EUT OPERATING CONDITIONS......................................................................................... 29 4.3.7 TEST RESULTS (A) ............................................................................................................. 30 4.3.8 TEST RESULTS (B) ............................................................................................................. 34 4.4 MAXIMUM PEAK OUTPUT POWER ................................................................................... 38 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 38 4.4.2 INSTRUMENTS.................................................................................................................... 38 4.4.3 TEST PROCEDURES ..........................................................................................................39 4.4.4 TEST SETUP ....................................................................................................................... 39 4.4.5 EUT OPERATING CONDITIONS......................................................................................... 39 4.4.6 TEST RESULTS (A) ............................................................................................................. 40 4.4.7 TEST RESULTS (B) ............................................................................................................. 40 FCC ID: N89-WE701I Report N…

Text truncated - open the document above for the full version.

FCC ID: N89-WE701I Report No.: RF921229H12B 117 Issued: Apr. 05, 2004 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: N89-WE701I Report No.: RF921229H12B 118 Issued: Apr. 05, 2004 RADIATED EMISSION TEST
