N89-WM601I54G Wireless LAN module

54M Wireless LAN Module User’s Manual Rev Draft 54M Wireless LAN Module User’s Manual 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 54M Wireless LAN Module User’s Manual 3 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re- evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example :Wireless Access Point and Wireless Router). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: N89-WM601I”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. 54M Wireless LAN Module User’s Manual 4 About this manual This User’s Manual describes how to install and operate your 54M Wireless LAN Module. Please read this manual before you install the product. This manual includes the following topics: ¾ Product description and features. ¾ Software installation procedure. 54M Wireless LAN Module User’s Manual 5 Table of Contents About this manual............................................................... 4 Chapter 1 - Introduction .......................................... 6 Features ............................................................................................ 6 What is Wireless LAN? .................................................................. 7 Wireless LAN Modes ...................................................................... 7 Notes on Wireless LAN Configuration ........................................ 8 Chapter 2 – Driver Installation for Windows ..... 9 Driver installation for Windows 98....................................................... 9 Driver installation for Windows 2000................................................. 12 Driver installation for Windows ME.................................................... 15 Driver installation for Windows XP.................................................... 17 54M Wireless LAN Module User’s Manual 6 Chapter 1 - Introduction Thank you for purchasing the 54M Wireless LAN Module. This high-speed Wireless LAN Module provides you with an innovative wireless networking solution. The Adapter is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! The Module is a network Module with a rate of 1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48 and 54 Mbps operating in the ISM band using Direct Sequence Spread Spectrum (DSSS) transmission implementing the IEEE 802.11g draft standard. This Module provides Device Drivers for Windows …

Text truncated - open the document above for the full version.

FCC ID: N89-WM601I ADT No.920529R01 Limited Modular Approval Request Letter Advance Data Technology July 10, 2003 Dear Application Examiner, CYBERTAN TECHNOLOGY INC’s 54G Wireless LAN module, FCC ID: N89-WM601I, would like to have your authorization as a limited modular approval specific to specific to the Access Point and Router. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip ISL3880IK. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.84V DC powered. The interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is ISL6411IR. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCIMCIA adapter card. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: N89-WM601I ADT No.920529R01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

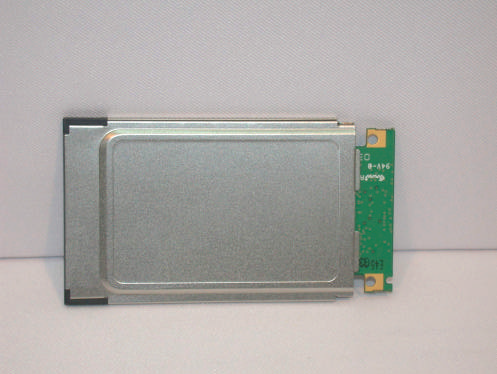

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Antenna: C120-510053-A Page 5 Page 6 Antenna: MCF-003A-163-05 Page 7 Antenna: C034-510242-A Page 8

FCC ID: N89-WM601I ADT No. RF920529R01 Operational Description This device is a 54G Wireless LAN module which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. This project is seeking the authorization of limited module approval specific to the mobile device such as access point and router. The transmitter of the EUT (54G Wireless LAN module) is powered by from host equipment. The antenna types used in this product are dipole antenna with UFL connector (Internal) Reversed TNC connector (External). The other instruction, please have a look at the users manual.

FCC ID: N89-WM601I ADT No.: 920529R01 RF EXPOSURE REPORT REPORT NO.: RF920527R02A MODEL NO.: WM601-I ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CYBERTAN TECHNOLOGY INC ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: N89-WM601I ADT No.: 920529R01 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: N89-WM601I ADT No.: 920529R01 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: N89-WM601I ADT No.: 920529R01 6 Test Results 6.1 Antenna Gain Antenna 1 , 2 and 3 : The maximum Gain measured in Fully Anechoic Chamber is 2Bi or 1.58 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241244.0550.0138911.0 6243746.3450.0146131.0 11246243.2510.0136371.0 (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241226.6690.0084091.0 6243727.5420.0086841.0 11246227.6690.0087241.0

FCC ID: N89-WM601I Report No.: RF920527R02A1Issued: Jul. 08, 2003 ADT No.: 920529R01 FCC TEST REPORT REPORT NO.: RF920527R02A MODEL NO.: WM601-I RECEIVED: May 29, 2003 TESTED: Jun. 12 to 16, 2003 APPLICANT: CYBERTAN TECHNOLOGY INC ADDRESS: No.99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan 308,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: N89-WM601I Report No.: RF920527R02A2Issued: Jul. 08, 2003 ADT No.: 920529R01 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................18 4.2.2TEST INSTRUMENTS...........................................................................................19 4.2.3TEST PROCEDURES...........................................................................................20 4.2.4TEST SETUP..........................................................................................................21 4.2.5EUT OPERATING CONDITIONS........................................................................21 4.2.6TEST RESULTS......................................................................................................22 4.2.7TEST RESULTS - DSSS.......................................................................................23 4.2.8TEST RESULTS -OFDM.......................................................................................26 4.36dB BANDWIDTH MEASUREMENT..................................................................29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................29 4.3.2TEST INSTRUMENTS...........................................................................................29 4.3.3TEST PROCEDURE..............................................................................................30 4.3.4TEST SETUP..........................................................................................................30 4.3.5EUT OPERATING CONDITIONS........................................................................30 4.3.6TEST RESULTS-DSSS.........................................................................................31 4.3.7TEST RESULTS-OFDM........................................................................................35 4.4MAXIMUM PEAK OUTPUT POWER..................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............39 4.4.2TEST INSTRUMENTS...........................................................................................39 4.4.3TEST PROCEDURES...........................................................................................40 FCC ID: N89-WM601I Report No.: RF920527R02A3Issued: Jul. 08, 2003 ADT No.: 920529R01 4.4.4TEST SETUP..........................................................................................................40 4.4.5EUT OPERATING CONDITIONS........................................................................40 4.4.6TEST RESULTS-DSSS.........................................................................................41 4.4.7TEST RESULTS-OFDM........................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................42 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................42 4.5.2TEST INSTRUMENTS...........................................................................................42 4.5.3TEST PROCEDURE..............................................................................................43 4.5.4TEST SETUP..........................................................................................................43 4.5.5EUT OPERATING CONDITIONS........................................................................43 4.5.6TEST RESULTS-DSSS.........................................................................................44 4.5.7TEST RESULTS-OFDM................…

Text truncated - open the document above for the full version.

FCC ID: N89-WM601I Report No.: RF920527R02A31Issued: Jul. 08, 2003 ADT No.: 920529R01 4.3.6 TEST RESULTS-DSSS EUT 54G Wireless LAN module MODEL WM601-I INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 968 hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241211.560.5PASS 6243711.080.5PASS 1124629.920.5PASS FCC ID: N89-WM601I Report No.: RF920527R02A32Issued: Jul. 08, 2003 ADT No.: 920529R01 CH1 FCC ID: N89-WM601I Report No.: RF920527R02A33Issued: Jul. 08, 2003 ADT No.: 920529R01 CH6 FCC ID: N89-WM601I Report No.: RF920527R02A34Issued: Jul. 08, 2003 ADT No.: 920529R01 CH11 FCC ID: N89-WM601I Report No.: RF920527R02A35Issued: Jul. 08, 2003 ADT No.: 920529R01 4.3.7 TEST RESULTS-OFDM EUT 54G Wireless LAN module MODELWM601-I INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 968 hPa TESTED BY Tony Chen CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241216.40.5PASS 6243716.40.5PASS 11246216.440.5PASS FCC ID: N89-WM601I Report No.: RF920527R02A36Issued: Jul. 08, 2003 ADT No.: 920529R01 CH1 FCC ID: N89-WM601I Report No.: RF920527R02A37Issued: Jul. 08, 2003 ADT No.: 920529R01 CH6 FCC ID: N89-WM601I Report No.: RF920527R02A38Issued: Jul. 08, 2003 ADT No.: 920529R01 CH11 FCC ID: N89-WM601I Report No.: RF920527R02A39Issued: Jul. 08, 2003 ADT No.: 920529R01 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until POWER METERE4416AGB41291118July 30, 2003 PEAK POWER SENSORE9327AUS40440722July 30, 2003 NOTE: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: N89-WM601I Report No.: RF920527R02A40Issued: Jul. 08, 2003 ADT No.: 920529R01 4.4.3 TEST PROCEDURES The transmitter output was connected to the peak power meter. 4.4.4 TEST SETUP 4.4.5 EUT OPERATING CONDITIONS Same as Item 4.3.5 EUTPEAK POWER METER FCC ID: N89-WM601I Report No.: RF920527R02A41Issued: Jul. 08, 2003 ADT No.: 920529R01 4.4.6 TEST RESULTS-DSSS EUT 54G Wireless LAN module MODELWM601-I INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 968 hPa TESTED BYTony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241216.4430PASS 6243716.6630PASS 11246216.3630PASS 4.4.7 TEST RESULTS-OFDM EUT 54G Wireless LAN module MODELWM601-I INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 968 hPa TESTED BYTony Chen CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241214.2630PASS 6243714.4030PASS 11246214.4230PASS FCC ID: N89-WM601I Report No.: RF920527R02A42Issued: Jul. 08, 2003 ADT No.: 920529R01 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: N89-WM601I Report No.: RF920527R02A43Issued: Jul. 08, 2003 ADT No.: 920529R01 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 TEST SETUP 4.5.5 EUT OPERATING CONDITIONS Same as 4.3.5 EUTSPECTRUM ANALYZER FCC ID: N89-WM601I Report No.: RF920527R02A44Issued: Jul. 08, 2003 ADT No.: 920529R01 4.5.6 TEST RESULTS-DSSS EUT 54G Wireless LAN module MODELWM601-I INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 968 hPa TESTED BYTony Chen CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-7.558PASS 62437-8.328PASS 112462-8.368PASS FCC ID: N89-WM601I Report No.: RF920527R02A45Issued: Jul. 08, 2003 ADT No.: 920529R01 CH1 FCC ID: N89-WM601I Report No.: RF920527R02A46Issued: Jul. 08, 2003 ADT No.: 920529R01 CH6 FCC ID: N89-WM601I Report No.: RF920527R02A47Issued: Jul. 08, 2003 ADT No.: 920529R01 CH11 FCC ID: N89-WM601I Report No.: RF920527R02A48Issued: Jul. 08, 2003 ADT No.: 920529R01 4.5.7 TEST RESULTS-OFDM EUT 54G Wireless LAN module MODELWM601-I INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27 deg. C, 56 %RH, 968 hPa TESTED BYTony Chen CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-18.238PASS 62437-17.858PASS 112462-17.878PASS FCC ID: N89-WM601I Report No.: RF920527R02A49Issued: Jul. 08, 2003 ADT No.: 920529R01 CH1 FCC ID: N89-WM601I Report No.: RF920527R02A50Issued: Jul. 08, 2003 ADT No.: 920529R01 CH6 FCC ID: N89-WM601I Report No.: RF920527R02A51Issued: Jul. 08, 2003 ADT No.: 920529R01 CH11 FCC ID: N89-WM601I Report No.: RF920527R02A52Issued: Jul. 08, 2003 ADT No.: 920529R01 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The ca…

Text truncated - open the document above for the full version.

Report No. RF920527R02A 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 HIGH PASS FILTER WHK3.1/18G- 10SS SN4Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. RF920527R02A 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No. RF920527R02A 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 4 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF920527R02A 4 Ch1 Report No. RF920527R02A 5 Report No. RF920527R02A 6 Ch11 Report No. RF920527R02A 7 Report No. RF920527R02A 8 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 4 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. RF920527R02A 9 h1 Report No. RF920527R02A 10 Report No. RF920527R02A 11 Ch11 Report No. RF920527R02A 12

FCC ID: N89-WM601I Report No.: RF920527R02A60Issued: Jul. 08, 2003 ADT No.: 920529R01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: N89-WM601I Report No.: RF920527R02A61Issued: Jul. 08, 2003 ADT No.: 920529R01 RADIATED EMISSION TEST
