N89-WM610P54M WLAN Mini PCI Module

54M WLAN MiniPCI Module User Manual Rev 0.9 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. ii IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CyberTAN declares that WM610-P (FCC ID: N89-WM610P) is limited in CH1~CH11 for 2.4 GHz by specified firmware controlled in U.S.A. Preface iii This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example: Access point, Router...etc). The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: N89-WM610P”. iv Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Preface v Table of contents CHAPTER 1....................................................................................................1 Introduction 1 Features...............................................................................................1 What is Wireless LAN?.........................................................................2 LAN Modes...........................................................................................3 Notes on wireless LAN configuration...................................................4 CHAPTER 2....................................................................................................5 Hardware installation 5 Hardware description..........................................................................5 Product Outlook.................................................................................5 CHAPTER 3....................................................................................................7 Using the Wireless Utility 7 Configuration Utility............................................................................7 APPENDIX A................................................................................................10 Specifications.....................................................................................10 1 Chapter 1 Introduction Thank you for using the Wireless MiniPCI Module. This high-speed 54Mbps Wireless MiniPCI Module provides you with an innovative wireless networking solution for your embedded system. The module is easy to set up and use. With this innovative wireless technology, you can share files and printers on the network—without inconvenient wires! Now you can carry the LAN in your pocket! This module is designed for 1. Wireless LAN Printer Server 2. Wireless LAN Ethernet Adapter 3. Wireless LAN Access Point 4. Wireless LAN Router / Gateway / Cable Modem 5. Wirel…

Text truncated - open the document above for the full version.

From: [email protected] [mailto:[email protected]] Sent: Thursday, May 11, 2006 3:20 AM To: steve.cheng Cc: [email protected]; [email protected]; [email protected] Subject: Re : TCB Review Comments for (B06-0511a- N89-WM610P,950503L22- CyberTAN 11g MPCI Module) Dear Steve, Thank you for your comments on this application! The following items are our replies for your comments: q1: Document revised. q2: It's a change in ID application for marketing purpose. It only changed the applicant, product name, model. Thanks! Best Regards, Amanda Chu / 朱芳誼 Certification Specialist / ADT Corp. (Hsin Chu Office) Tel: 03-5935343 ext. 1737 Fax: 03-5934728 "steve.cheng" <[email protected]> 2006/05/11 下午 01:00 收件 人 [email protected] 副本 抄送 [email protected], [email protected], [email protected] 主旨 TCB Review Comments for (B06-0511a- N89-WM610P,950503L22- CyberTAN 11g MPCI Module) TCB Review Comments for (B06-0511a- N89-WM610P, 950503L22- CyberTAN 11g MPCI Module) -EMC- Question #1: Operation description stated antenna without connector, however there is a connector at the end of antenna extension cable. Question #2: Test report was done on 2004, please explain why and if test data is still valid. Best regards, Steve Cheng Curtis-Straus LLC

FCC ID: N89-WM610P ADT No. 950503L22 Mobile Modular Approval Request Letter Advance Data Technology May. 11, 2006 Dear Application Examiner, CyberTAN Technology, Inc.’s 54M WLAN Mini PCI Module, FCC ID: N89-WM610P, would like to have your authorization as a mobile modular approval specific to the Notebook Computer Access Point...etc. The requirements of Public Notice DA00- 1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip IPN2220. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 3.0V DC powered. The miniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AME8801BEEV. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: N89-WM610P ADT No. 950503L22 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

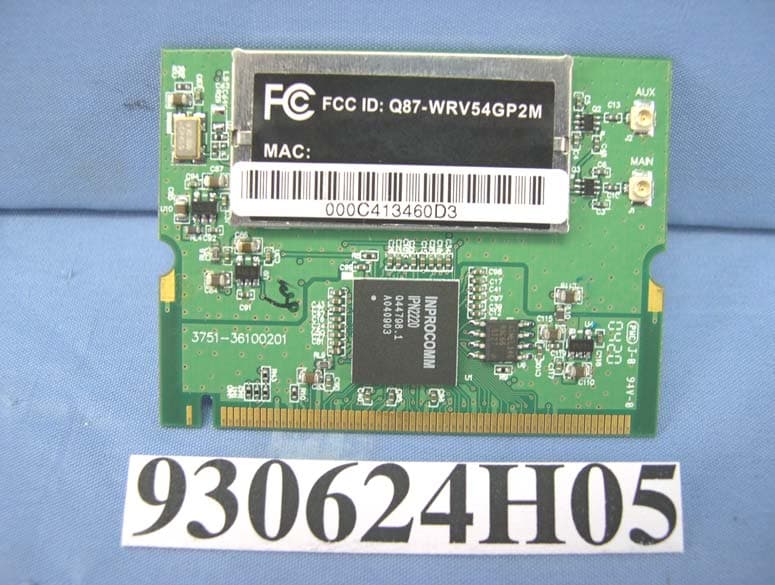

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6

FCC ID: N89-WM610P Report No. 930624H05A Operational Description This device is a 54M WLAN Mini PCI Module, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (54M WLAN Mini PCI Module) is powered by host equipment. The antenna type used in this product is Dipole antenna (Antenna cable with one core) with UFL connector. The other instruction, please have a look at the users manual.

FCC ID: N89-WM610P Report No.: 930624H05A 1 RF EXPOSURE REPORT REPORT NO.: SA930624H05A MODEL NO.: WM610-P ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:CyberTAN Technology, Inc. ADDRESS: 7F., No.35, Lane 188, Rueiguang Rd., Neihu District, Taipei City 114, Taiwan (R.O.C.) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: N89-WM610P Report No.: 930624H05A 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: N89-WM610P Report No.: 930624H05A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. FCC ID: N89-WM610P Report No.: 930624H05A 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 3.3dBi or 2.13796(numeric) 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241234.99451670.0148843241.0 6243734.83373150.0148159371.0 11246235.07518740.0149186361.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241244.66835920.0189989291.0 6243740.73802780.017327231.0 11246239.81071710.0169328141.0

FCC ID: N89-WM610P Report No.: RF930624H05A1 Issued: May 10, 2006 Reference No.950503L22 FCC TEST REPORT REPORT NO.:RF930624H05A MODEL NO.:WM610-P RECEIVED:Jun. 24, 2004 TESTED:Jun. 28 to Jul. 05, 2004 APPLICANT: CyberTAN Technology, Inc. ADDRESS: 7F., No.35, Lane 188, Rueiguang Rd., Neihu District, Taipei City 114, Taiwan (R.O.C.) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 FCC ID: N89-WM610P Report No.: RF930624H05A2 Issued: May 10, 2006 Reference No.950503L22 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................. 10 3.5DESCRIPTION OF SUPPORT UNITS.........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST ......................................... 12 4TEST TYPES AND RESULTS..................................................................... 13 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 13 4.1.2TEST INSTRUMENTS ................................................................................ 13 4.1.3TEST SETUP .............................................................................................. 14 4.1.4EUT OPERATING CONDITIONS................................................................ 15 4.1.5TEST RESULTS.......................................................................................... 16 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.2.7TEST RESULTS –DSSS ............................................................................. 23 4.2.8TEST RESULTS - OFDM ............................................................................ 26 4.36dB BANDWIDTH MEASUREMENT .......................................................... 29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 29 4.3.2TEST INSTRUMENTS ................................................................................ 29 4.3.3TEST PROCEDURE ................................................................................... 30 4.3.4TEST SETUP .............................................................................................. 30 4.3.5EUT OPERATING CONDITIONS................................................................ 30 4.3.6TEST RESULTS-DSSS............................................................................... 31 4.3.7TEST RESULTS-OFDM .............................................................................. 35 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 39 FCC ID: N89-WM610P Report No.: RF930624H05A3 Issued: May 10, 2006 Reference No.950503L22 4.4.2TEST INSTRUMENTS ................................................................................ 39 4.4.3TEST PROCEDURES................................................................................. 40 4.4.4TEST SETUP .............................................................................................. 40 4.4.5EUT OPERATING CONDITIONS................................................................ 40 4.4.6TEST RESULTS- DSSS.............................................................................. 41 4.4.7TEST RESULTS- OFDM ............................................................................. 42 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 43 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 43 4.5.2TEST INSTRUMENTS ................................................................................ 43 4.5.3TEST PROCEDURE ................................................................................... 44 4.5.4TEST SETUP .............................................................................................. 44 4.5.5EUT OPERATING CONDITIONS................................................................ 44 4.5.6TEST RESULTS-DSSS............................................................................... 45 4.5.7TEST RESULTS-OFDM .............................................................................. 49 4.6BAND EDGES MEASUREMENT ...…

Text truncated - open the document above for the full version.

FCC ID: N89-WM610P Report No.: RF930624H05A53 Issued: May 10, 2006 Reference No.950503L22 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2004 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 EUT OPERATING CONDITION Same as Item 4.3.5 FCC ID: N89-WM610P Report No.: RF930624H05A54 Issued: May 10, 2006 Reference No.950503L22 4.6.5 TEST RESULTS –DSSS The spectrum plots are attached on the following page. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (Peak): The band edge emission plot of DSSS technique on the following page 55 show 51.7dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 113.0dBuV/m, so the maximum field strength in restrict band is 113.0-51.7=61.3dBuV/m which is under 74 dBuV/m limit. The band edge emission plot of DSSS technique on the following page 56 shows 53.37dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 112.1dBuV/m, so the maximum field strength in restrict band is 112.1-53.37=58.73dBuV/m which is under 74 dBuV/m limit. NOTE (Average): The band edge emission plot of DSSS technique on the following page 57 shows 54.09dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 104.9dBuV/m, so the maximum field strength in restrict band is 104.9-54.09=50.81dBuV/m which is under 54 dBuV/m limit. The band edge emission plot of DSSS technique on the following page 58 shows 55.07dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 104.4dBuV/m, so the maximum field strength in restrict band is 104.4-55.07=49.33dBuV/m which is under 54 dBuV/m limit. FCC ID: N89-WM610P Report No.: RF930624H05A55 Issued: May 10, 2006 Reference No.950503L22 FCC ID: N89-WM610P Report No.: RF930624H05A56 Issued: May 10, 2006 Reference No.950503L22 FCC ID: N89-WM610P Report No.: RF930624H05A57 Issued: May 10, 2006 Reference No.950503L22 FCC ID: N89-WM610P Report No.: RF930624H05A58 Issued: May 10, 2006 Reference No.950503L22 FCC ID: N89-WM610P Report No.: RF930624H05A59 Issued: May 10, 2006 Reference No.950503L22 4.6.6 TEST RESULTS- OFDM The spectrum plots are attached on the following page. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (Peak): The band edge emission plot of OFDM technique on the following page 60 show 45.06dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 111.6dBuV/m, so the maximum field strength in restrict band is 111.6-45.06=66.54dBuV/m which is under 74 dBuV/m limit. The band edge emission plot of OFDM technique on the following page 61 shows 47.01dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 110.9dBuV/m, so the maximum field strength in restrict band is 110.9-47.01=63.89dBuV/m which is under 74 dBuV/m limit. NOTE (Average): The band edge emission plot of OFDM technique on the following page 62 shows 49.06dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 100.9dBuV/m, so the maximum field strength in restrict band is 100.9-49.06=51.84dBuV/m which is under 54 dBuV/m limit. The band edge emission plot of OFDM technique on the following page 63 shows 49.92dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2 is 100.7dBuV/m, so the maximum field strength in restrict band is 100.7-49.92=50.78dBuV/m which is under 54 dBuV/m limit. FCC ID: N89-WM610P Report No.: RF930624H05A60 Issued: May 10, 2006 Reference No.950503L22 FCC ID: N89-WM610P Report No.: RF930624H05A61 Issued: May 10, 2006 Reference No.950503L22 FCC ID: N89-WM610P Report No.: RF930624H05A62 Issued: May 10, 2006 Reference No.950503L22 FCC ID: N89-WM610P Report No.: RF930624H05A63 Issued: May 10, 2006 Reference No.950503L22 FCC ID: N89-WM610P Report No.: RF930624H05A64 Issued: May 10, 2006 Reference No.950503L22 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR S…

Text truncated - open the document above for the full version.

Report No. 930624H05A 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930624H05A 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930624H05A 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930624H05A 4 Ch1 Report No. 930624H05A 5 Ch11 Report No. 930624H05A 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930624H05A 7 Ch1 Report No. 930624H05A 8 Ch11

FCC ID: N89-WM610P Report No.: RF930624H05A65 Issued: May 10, 2006 Reference No.950503L22 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: N89-WM610P Report No.: RF930624H05A66 Issued: May 10, 2006 Reference No.950503L22 FCC ID: N89-WM610P Report No.: RF930624H05A67 Issued: May 10, 2006 Reference No.950503L22 RADIATED EMISSION TEST FCC ID: N89-WM610P Report No.: RF930624H05A68 Issued: May 10, 2006 Reference No.950503L22
