N89-WM610TWLAN 802.11g MiniPCI Card

Configuration Utility User’s Guide Revision 0.1 1 1 Introduction...........................................................................................................................3 1.1 List of abbreviations and Terms............................................................................................3 2 Installation.............................................................................................................................4 3 Using the TI WLAN CU....................................................................................................... 5 3.1 The Main (Status) Screen.......................................................................................................6 3.2 The Modify Property Sheet....................................................................................................9 3.2.1 The New Connection tab............................................................................9 3.2.2 Advanced tab............................................................................................11 3.3 The Advanced Properties Screen......................................................................................... 12 3.4 The Privacy Screen................................................................................................................ 14 3.4.1 The WEP Screen.......................................................................................15 3.4.2 The CCX Configuration Screen................................................................16 3.5 The Statistics Screen..............................................................................................................17 3.6 The About Screen...................................................................................................................18 3.7 Debug Screen..........................................................................................................................19 3.7.1 Debug Tab activation................................................................................19 3.7.2 Debug Screen options...............................................................................20 Revi si on 0.1 2 Technology,Inc. 1 Introduction The configuration utility provides displaying and changing parameters of the TI WLAN driver. 1.1 List of abbreviations and Terms AES - Advanced Encryption Standard AP - Access Point BSS - Basic Service Set BSSID - Basic Service Set Identifier CU - Configuration Utility FCS - Frame Check Sequence GUI - Graphical User Interface IBSS - Independent Basic Service Set LEAP - Lightweight Extensible Authentication Protocol MAC - Medium Access Control MSDU - MAC Service Data Unit PBCC - Packet Broadcast Control Channel PRS - Product Requirements Specification RSSI - Received Signal Strength Indication SSID - Service Set Identifier SSN - Sub System Number TI - Texas Instruments Inc. TKIP - Temporal Key Integrity Protocol WEP - Wired Equivalent Privacy WiFi - Wireless Fidelity WPA - WiFi Protected Access WLAN - Wireless Local Area Network Revision 0.1 3 2 Installation Revision 0.1 4 3 Using the TI WLAN CU Important Notes: • In case that the device was not installed properly or that it is disconnected, all buttons, combo boxes, edit boxes etc. will be disabled. Also the status text in the main window will be set to Driver not loaded. • To save any changes – press the Apply button. Changes will not be saved if changed focus to another tab without previously clicking the Apply button. • Pressing the OK / Cancel button from the main property sheet will minimize the application to the task bar. In case that there were changes, clicking the Cancel button will return the displayed data to the one stored on the driver. Another click will minimize the application to the task bar. Left click the application icon on the task bar, or right click and choose Restore to restore it. Choose Exit to exit the application. Revision 0.1 5 3.1 The Main (Status) Screen The Main Screen is the main page for the CU. It contains the available 802.11 networks and the current configuration basic data. It enables rescanning the network, modifying the current configuration parameters and connecting to each one of the listed SSIDs. It also enables activating and deactivating of using an external configuration. Revision 0.1 6 Getting Started: In order to connect to a network, do the following: 1) In the Available Networks Window the currently available networks are displayed. In order to connect to a specific network – select the appropriate raw (will be highlighted as a result) 2) Click on the Connect button (another option is to double click the appropriate raw). After doing so, the CU will attempt associating with the chosen network. If there are no available networks on the available networks window, you can choose to rescan for currently available networks by pressing the Rescan button. After choosing a network, a basic connection data will be displayed on the screen. See Displayed data section for details . If no network is available or refreshing the available networks list is desired – click on the Rescan button. Displayed data: Status – can be one the following: • Driver not loaded – driver not installed or not inserted. • Disconnected from network – disconnected from current configured SSID. • Connecting to network – while in the process of connecting. • Connected to network – connected to current configured SSID. • Scanning network – scanning network for available SSIDs. • Not connected to network – sidle status Current configuration - provides read-only status information of the current active connection. • Pref: SSID - Preferred Service Set Identifier. • BSS Type - Basic Service Set Type. • BSSID - Basic Service Set Identifier. • Channe - the channel number through which we are connected. • Tx Rate - current rate used for transmitting frames. For more information, see section 3.2.1 Signal quality – displays the Received Signal Streng…

Text truncated - open the document above for the full version.

FCC ID: N89-WM610T Report No.: RF930503L01 Modular Approval Request Letter Advance Data Technology May 14, 2004 Dear Application Examiner, CyberTAN Technology, Inc., It’s WLAN 802.11g MiniPCI Card, FCC ID: N89-WM610T, would like to have your authorization as a limited modular approval specific to the mobile device such as Access Point or Router. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip TNETW/130-GHV. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.85V DC powered. The mini-pci interface provides 3.3Vdc, so there are regulators in front of these chips, the part number of this regulator is TPS793285DBVR. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: N89-WM610T Report No.: RF930503L01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Ellis Wu Manager Advance Data Technology

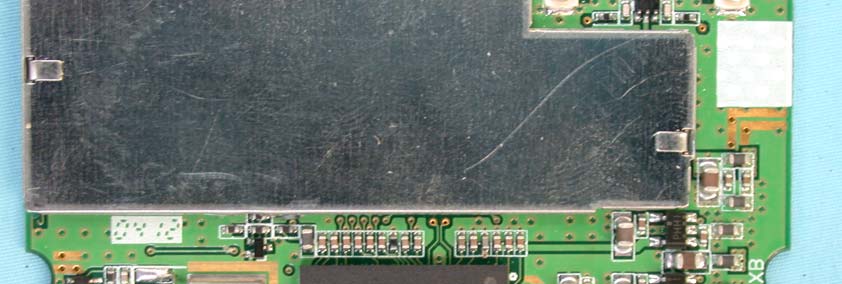

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Label Location

Page 7 Page 8

FCC ID: N89-WM610T Report No. RF930503L01 Operational Description This device is a WLAN 802.11g MiniPCI Card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a MiniPCI interface. The antenna is dipole antenna with UFL connector. The other instruction, please have a look at the users manual.

FCC ID: N89-WM610T Report No.: SA930503L01 1 RF EXPOSURE REPORT REPORT NO.: SA930503L01 MODEL NO.: WM610-T ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CyberTAN Technology, Inc. ADDRESS: No. 99, Park Avenue III Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: N89-WM610T Report No.: SA930503L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz FCC ID: N89-WM610T Report No.: SA930503L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 2.5cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: N89-WM610T Report No.: SA930503L01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.162 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.8110.0251.0 6243739.8110.0251.0 11246239.8110.0251.0 For 802.11g Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0201.0 6243731.6230.0201.0 11246231.6230.0201.0

FCC ID: N89-WM610T Report No.: RF930503L011 Issued: May 12, 2004 FCC TEST REPORT REPORT NO.: RF930503L01 MODEL NO.: WM610-T RECEIVED: May 02, 2004 TESTED: May 10 ~ May 11, 2004 APPLICANT: CyberTAN Technology, Inc. ADDRESS: No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: N89-WM610T Report No.: RF930503L012 Issued: May 12, 2004 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2DESCRIPTION OF TEST MODES ............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................................8 4TEST TYPES AND RESULTS ...................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ............................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................9 4.1.2TEST INSTRUMENTS...............................................................................................9 4.1.3TEST PROCEDURES .............................................................................................10 4.1.4DEVIATION FROM TEST STANDARD ...................................................................10 4.1.5TEST SETUP........................................................................................................... 11 4.1.6EUT OPERATING CONDITIONS ............................................................................12 4.1.7TEST RESULTS ......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT ...............................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................19 4.2.2TEST INSTRUMENTS.............................................................................................20 4.2.3TEST PROCEDURES .............................................................................................21 4.2.4DEVIATION FROM TEST STANDARD ...................................................................21 4.2.5TEST SETUP...........................................................................................................22 4.2.6EUT OPERATING CONDITIONS ............................................................................22 4.2.7TEST RESULTS ......................................................................................................23 4.2.8TEST RESULTS (A) ................................................................................................24 4.2.9TEST RESULTS (B) ................................................................................................27 4.36dB BANDWIDTH MEASUREMENT.......................................................................30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................30 4.3.2TEST INSTRUMENTS.............................................................................................30 4.3.3TEST PROCEDURE................................................................................................31 4.3.4DEVIATION FROM TEST STANDARD ...................................................................31 4.3.5TEST SETUP...........................................................................................................31 4.3.6EUT OPERATING CONDITIONS ............................................................................31 4.3.7TEST RESULTS (A) ................................................................................................32 4.3.8TEST RESULTS (B) ................................................................................................36 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................40 FCC ID: N89-WM610T Report No.: RF930503L013 Issued: May 12, 2004 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................40 4.4.2TEST INSTRUMENTS.............................................................................................40 4.4.3TEST PROCEDURES .............................................................................................41 4.4.4DEVIATION FROM TEST STANDARD ...................................................................41 4.4.5TEST SETUP...........................................................................................................41 4.4.6EUT OPERATING CONDITIONS ............................................................................41 4.4.7TEST RESULTS (A) ................................................................................................42 4.4.8TEST RESULTS (B) ................................................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT.......................…

Text truncated - open the document above for the full version.

FCC ID: N89-WM610T Report No.: RF930503L0166 Issued: May 12, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: N89-WM610T Report No.: RF930503L0167 Issued: May 12, 2004 FCC ID: N89-WM610T Report No.: RF930503L0168 Issued: May 12, 2004 RADIATED EMISSION TEST FCC ID: N89-WM610T Report No.: RF930503L0169 Issued: May 12, 2004
