N89-WR114Wireless Broadband Router

B B r r o o a a d d b b a a n n d d W W i i r r e e l l e e s s s s R R o o u u t t e e r r U U s s e e r r G G u u i i d d e e Broadband Wireless Router User Guide - ii - ii FCC Interference Statement This device complies with Part 15 of FCC rule. Operation is subject to the following two conditions: y This device may not cause harmful interference. y This device must accept any interference received, including interference that may cause undesired operation. This Broadband Wireless Router has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment or device. y Connect the equipment to an outlet other than the receiver’s. y Consult a dealer or an experienced radio/TV technician for assistance. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled anvironment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. CE Declaration of Conformity: This equipment complies with the specifications relating to electromagnetic compatibility, EN 55022/A1 Class B, and EN 50082-1. This meets the reasonable protection requirements set out in the European Council Directive on the approximation of the laws of the member states relating to Electromagnetic Compatibility Directive (89/336/EEC). Broadband Wireless Router User Guide - iii - iii Manufacturer’s Disclaimer State The information in this document is subject to change without notice and does not represent a commitment on the part of vendor. No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular prupose of this document. The manufacturer reserves the right to make change to the content of this document and/or the products associated with it at any time without obligation to notify any person or organization. In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages. This document contains materials protected by copyright. All rights are reserved. No part of this manual may be reproduced or transmitted in any form, by any means or for any purpose without expressed written consent of its authors. Product names appearing in this document are mentioned for identification purchases only. All trademarks, product names or brand names appearing in this document are registered property of their respective owners. Broadband Wireless Router User Guide - iv - iv Table of Contents FCC INTERFERENCE STATEMENT ............................................................................................................. II CE DECLARATION OF CONFORMITY: ....................................................................................................... II MANUFACTURER’S DISCLAIMER STATE.................................................................................................III INTRODUCTION................................................................................................................................................. 1 CHAPTER 1: GETTING TO KNOW YOUR BROADBAND WIRELESS ROUTER .................................. 3 1-1 ABOUT THE BROADBAND WIRELESS ROUTER.............................................................................................. 3 1-2 CONTENTS OF THE BROADBAND WIRELESS ROUTER PACKAGE.................................................................... 4 1-3 FEATURES OF THE BROADBAND WIRELESS ROUTER..................................................................................... 4 CHAPTER 2: HARDWARE INSTALLATION & SETUP ............................................................................... 6 2-1 REAR PANEL & CONNECTIONS...................................................................................................................... 6 2-2 FRONT PANEL LEDS..................................................................................................................................... 6 2-3 SYSTEM REQUIREMENTS AND SETUP............................................................................................................ 7 CHAPTER 3: INTERNET ACCESS................................................................................................................. 13 3-1 PREPARE YOUR NETWORK INFORMATION.................................................................................................... 13 3-2 WEB-BASED USER INTERFACE.................................................................................................................... 13 3-3 INITIAL CONFIGURATION – SETUP............................................................................................................... 14 CHAPTER 4: ADVANCED APPLICATIONS ................................................................................................. 19 4-1 DHCP CONFIGURATION.............................................................................................................................. 19 4-2 ACCESS CONTROL.................................................................…

Text truncated - open the document above for the full version.

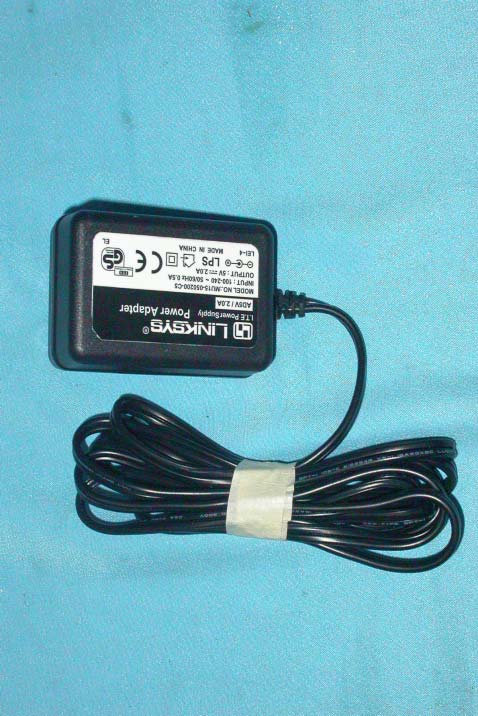

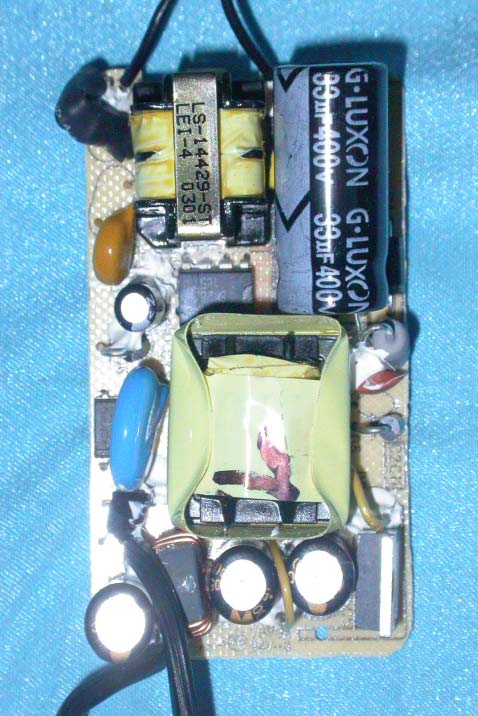

ompany : CyberTAN Technology Inc. Page : 1 of 7 Product : Wireless Broadband Router Model : WR-114 Company : CyberTAN Technology Inc. Page : 2 of 7 Product : Wireless Broadband Router Model : WR-114 Company : CyberTAN Technology Inc. Page : 3 of 7 Product : Wireless Broadband Router Model : WR-114 Company : LEADER ELELCTRONICS INC. Page : 4 of 7 Product : Wireless Broadband Router Adapter Model : MU15-050250-C5 Company : CyberTAN Technology Inc. Page : 5 of 7 Product : Wireless Broadband Router Adapter Model : MU15-050250-C5 Company : CyberTAN Technology Inc. Page : 6 of 7 Product : Wireless Broadband Router Adapter Model : MU15-050250-C5 Company : CyberTAN Technology Inc. Page : 7 of 7 Product : Wireless Broadband Router Adapter Model : MU15-050250-C5

Company : CyberTAN Technology Inc Model: WR-114 Product : Wireless Broadband Router Wireless Broadband Router Model No: WR-114 FCC IDN89-WR114 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

ompany : CyberTAN Technology Inc. Page : 1 of 8 Product : Wireless Broadband Router Model : WR-114 Company : CyberTAN Technology Inc. Page : 2 of 8 Product : Wireless Broadband Router Model : WR-114 Company : CyberTAN Technology Inc. Page : 3 of 8 Product : Wireless Broadband Router Model : WR-114 Company : CyberTAN Technology Inc. Page : 4 of 8 Product : Wireless Broadband Router Model : WR-114 Company : CyberTAN Technology Inc. Page : 5 of 8 Product : Wireless Broadband Router Model : WR-114 Company : CyberTAN Technology Inc. Page : 6 of 8 Product : Wireless Broadband Router Model : WR-114 Company : CyberTAN Technology Inc. Page : 7 of 8 Product : Wireless Broadband Router Model : WR-114 Company : CyberTAN Technology Inc. Page :8 of 8 Product : Wireless Broadband Router Model : WR-114

Description of Operation EUT is a Wireless Broadband Router with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK.The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function.This Wireless Broadband Router is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) radio transmission, the Wireless Broadband Router transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：N89-WR114 Report No. ：ER03-05-032FRF Page 1 of 2 RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 Friis Formula Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. EUT Operating Condition A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：N89-WR114 Report No. ：ER03-05-032FRF Page 2 of 2 Test Result of Rf Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation Antenna Gain Antenna Gain：The maximum Gain measured in fully anechoic chamber is 2dBi linear scale. Output Power Into Antenna & Rf Exposure Evaluation Distance Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH1 2412.00 15.18 0.028822 1 CH6 2437.00 15.17 0.031098 1 CH11 2462.00 15.06 0.030742 1 The power density Pd (4 th column) at a distance of 20cm calculated from the Friis transmission formula is far belowthe limit of 1 mW/cm 2 . So, RF exposure limit warning or SAR test are not required.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：N89-WR114 Report No.：ER03-05-032FRF Page 1 of 43 TEST REPORT Product Name ： Wireless Broadband Router Model Number ： WR-114 Applicant ： CyberTAN Technology Inc. Address ： No. 99, PARK AVE. III, Science Industrial Park, Hsinchu, Taiwan 308, R.O.C. Received Date ： May. 15, 2003 Tested Date ： May. 15~Jun. 20, 2003 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：N89-WR114 Report No.：ER03-05-032FRF Page 2 of 43 Test Report Certification Product Name : Wireless Broadband Router Model Number : WR-114 Applicant : CyberTAN Technology Inc. Measurement Standard : 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：N89-WR114 Report No.：ER03-05-032FRF Page 3 of 43 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION..................................................................................................................5 1.1 General Statement .................................................................................................................................5 1.2 General Description of EUT & Power ..................................................................................................5 1.3 Description of Peripherals.....................................................................................................................6-7 1.4 EUT & Peripherals Setup Diagram.......................................................................................................8 1.5 EUT Operating Condition.....................................................................................................................8 1.6 Description of Test Site ........................................................................................................................9 1.7 Summary of Test Results ......................................................................................................................9 2. CONDUCTED POWERLINE TEST .....................................................................................................10 2.1 Test Equipments ...................................................................................................................................10 2.2 Test Setup .............................................................................................................................................10 2.3 Conducted Power Line Emission Limit ................................................................................................11 2.4 Test Procedure ......................................................................................................................................11 2.5 Uncertainty of Conducted Emission .....................................................................................................11 2.6 Conducted Power Line Emission..........................................................................................................12-13 2.7 Photos of Conduction Test....................................................................................................................14 3. RADIATED EMISSION TEST...............................................................................................................15 3.1 Test Equipments ...................................................................................................................................15 3.2 Test Setup .............................................................................................................................................15 3.3 Radiation Limit .....................................................................................................................................16 3.4 Test Procedures.....................................................................................................................................17 3.5 Uncertainty of Radiated Emission ........................................................................................................17 3.6 Radiated Rf Noise Measurement ..........................................................................................................18-27 3.7 Photos of Open Site ..............................................................................................................................28-29 4. 6dB BANDWIDTH MEASUREMENT..................................................................................................30 4.1 Test Equipments ...................................................................................................................................30 4.2 Test Setup .............................................................................................................................................3…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：N89-WR114 Report No. ：ER03-05-032FRF Page 14 of 43 2.7 Photos of Conduction Test Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：N89-WR114 Report No. ：ER03-05-032FRF Page 28 of 43 3.7 Photos of Open Site Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：N89-WR114 Report No. ：ER03-05-032FRF Page 29 of 43
