N89-WU1632.4GHz 802.11n 1x1 MIMO WLAN USB Module

Product Specification of the WU163-AM No.99 PARK AVE. III, Science-based Industrial Park, Hsin-Chu 308 Taiwan R.O.C Phone : 886-3-577-7777 CyberTAN Technology inc. Proprietary & Confidential Information 1 CyberTAN Product Specification WU163-AM 2.4GHz 802.11n 1x1 MIMO WLAN USB Module Preliminary Release 0.1 Date: June 10, 2010 Author: JC Liou Product Specification of the WU163-AM No.99 PARK AVE. III, Science-based Industrial Park, Hsin-Chu 308 Taiwan R.O.C Phone : 886-3-577-7777 CyberTAN Technology inc. Proprietary & Confidential Information 2 Table of Contents 1. Revision History..........................................................................................3 2. Related Documents......................................................................................3 3. Introduction.................................................................................................4 4. Features......................................................................................................4 5. Specification................................................................................................5 6. Drivers Release Plan.....................................................................................6 7. Compliant Approvals.....................................................................................6 7.1 Compliant Approvals 7.2 Compliant PTT approvals 8. Packaging Specifications..............................................................................6 9. Warranty......................................................................................................6 Product Specification of the WU163-AM No.99 PARK AVE. III, Science-based Industrial Park, Hsin-Chu 308 Taiwan R.O.C Phone : 886-3-577-7777 CyberTAN Technology inc. Proprietary & Confidential Information 3 1. Revision History Date Release Author Description June 10, 2010 0.1 JC Liou First Release 2. Related Documents Date Author Document IEEE.org IEEE 802.11n specification Product Specification of the WU163-AM No.99 PARK AVE. III, Science-based Industrial Park, Hsin-Chu 308 Taiwan R.O.C Phone : 886-3-577-7777 CyberTAN Technology inc. Proprietary & Confidential Information 4 3. Introduction The WU163-AM is an IEEE802.11n-compatible USB module in a 1x1 MIMO configuration and operating in the 2.4 ISM band. This module allows an embedded host to use its USB 1.1 or 2.0 interface to connect to the IEEE802.11n compatible access point at unprecedented speeds. The WU163-AM USB module is based on Broadcom’s BCM4319 65nm chipset with internal PAs. It provides greater than 50Mbps real world throughput. Configuration and testing of this module must be done on the host via Broadcom provided software tools. 4. Features z USB v2.0 compatible. z Board-to-Board connector to the host PCB’s needs. z Backward compatible with USB v1.1. z IEEE 802.11n version 2.0 compatible. z Backward compatible with IEEE 802.11b/g standards. z Wire-free access to networked resources from anywhere beyond the TV. z Delivers data rate up to 150 Mbps. z 802.11n: Dynamically shifts for data rates up to 135Mbps in a 40MHz bandwidth, based on signal strength, for maximum availability and reliability of connection. z 802.11g: Dynamically shifts among 54, 48, 36, 24, 18, 12, 9 and 6 Mbps network speed, based on signal strength, for maximum availability and reliability of connection. z 802.11b: Dynamically shifts among 11M, 5.5M, 2M, and 1 Mbps network speed, based on signal strength, for maximum availability and reliability of connection. z Uses 2.4GHz frequency band, which complies with worldwide non-license bands. z Ensures great security by providing the 64/128 bits Wired Equivalent Privacy (WEP) and WiFi Protected Access. z Protected Access (WPA) defined in the IEEE standard. Product Specification of the WU163-AM No.99 PARK AVE. III, Science-based Industrial Park, Hsin-Chu 308 Taiwan R.O.C Phone : 886-3-577-7777 CyberTAN Technology inc. Proprietary & Confidential Information 5 5. Specification Specifications Product Name IEEE802.11n -Compatible WLAN USB module Interface USB ver 2.0 compatible ROHS 4P header Network Standards IEEE802.11n and 11b/g -compliant Data Rate 11b/g: 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2,1 Mbps 11n: 40MHz BW: up to 135Mbps Modulation 802.11g/n: 64QAM (135/121.5/108/65/58.5/54/52/48Mbps), 16QAM (81/54/39/36/26/24Mbps) QPSK (40.5/27/19.5/18/12/13Mbps), BPSK (13.5/9/6.5/6Mbps) 802.11b: CCK (11/5.5Mbps), DQPSK (2Mbps) and DBPSK (1Mbps) Network Architecture Infrastructure and ad hoc Operating Frequency 2.4G 11b/g/n: 2.412 ~ 2.462 GHz: North America Operating Channels 11b/g: 1~11 for America 2.4GHz 11 n: 3~9 for America RF Output Power 18dBm (11b) 12dBm (11g) 11dBm (11n_HT20) 10dBm (11n_HT40) Antenna I-PEX connector * 1 LED Indicators N/A Receive Sensitivity -85 dBm @ 11M (CCK, 8% PER) -70 dBm @ 54M (11g OFDM, 10% PER) -64 dBm @ 135M (11n) Bluetooth Coexistence 4 pins reserved Power Consumption TX Power consumption: < 280 mA RX Power consumption: < 130 mA ( Test conditions: DC 5V) Operating Temperature 0 to 70 °C Humidity 20% to 95% Non-condensing Storage Temperature -20 to 80 °C Dimensions (W) 37mm × (L) 56mm × (H) 3.5mm with shielding cover Weight (g) 7.0 g Voltage 5.0V Product Specification of the WU163-AM No.99 PARK AVE. III, Science-based Industrial Park, Hsin-Chu 308 Taiwan R.O.C Phone : 886-3-577-7777 CyberTAN Technology inc. Proprietary & Confidential Information 6 6. Drivers Release Plan Driver Release time Utility Tools Release time Windows 2000 Windows XP n/a Linux 7. Compliant Approvals 7.1 Compliant Approvals FCC Part 15 Class B, C 7.2 Compliant PTT approvals Supported by customer request: USA 8. Packaging Specifications The following items will be required for the complete packaging of the WU163-AM USB module： Item Comments WU163-AM USB module YES Protective bag Bubble bag Carton Bulk packing QIG N/A CD-ROM N/A 9. Warranty One year limited warranty. Product Specification of the WU163-AM No.99 PARK AVE. II…

Text truncated - open the document above for the full version.

Page No. : 18 Module Approval Request Letter Subject: Module Approval Date: 2010/10/5 FCC ID: N89-WU163 Dear Reviewer, We, Sporton International Inc., are authorized by CyberTAN Technology, Inc to have their state-of-the-art 2.4GHz 802.11n 1x1 MIMO WLAN USB Module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip BCM4319. 3. The requirement of power supply regulation: The part number of the power regulator is AME5258-BEVADJ. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

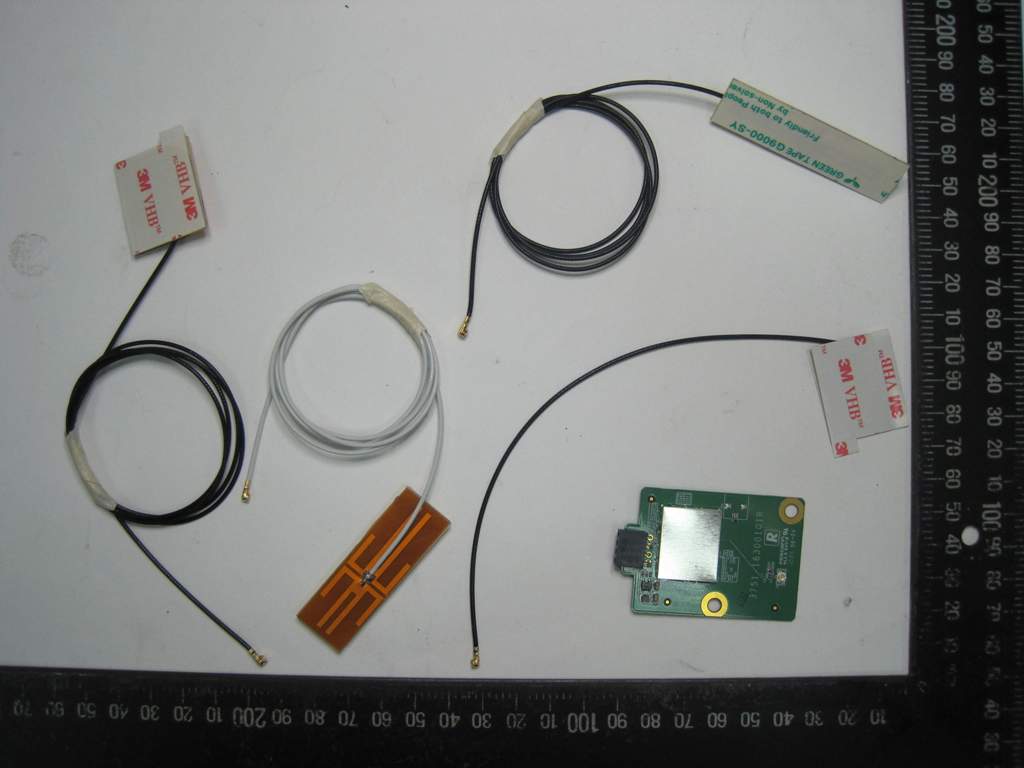

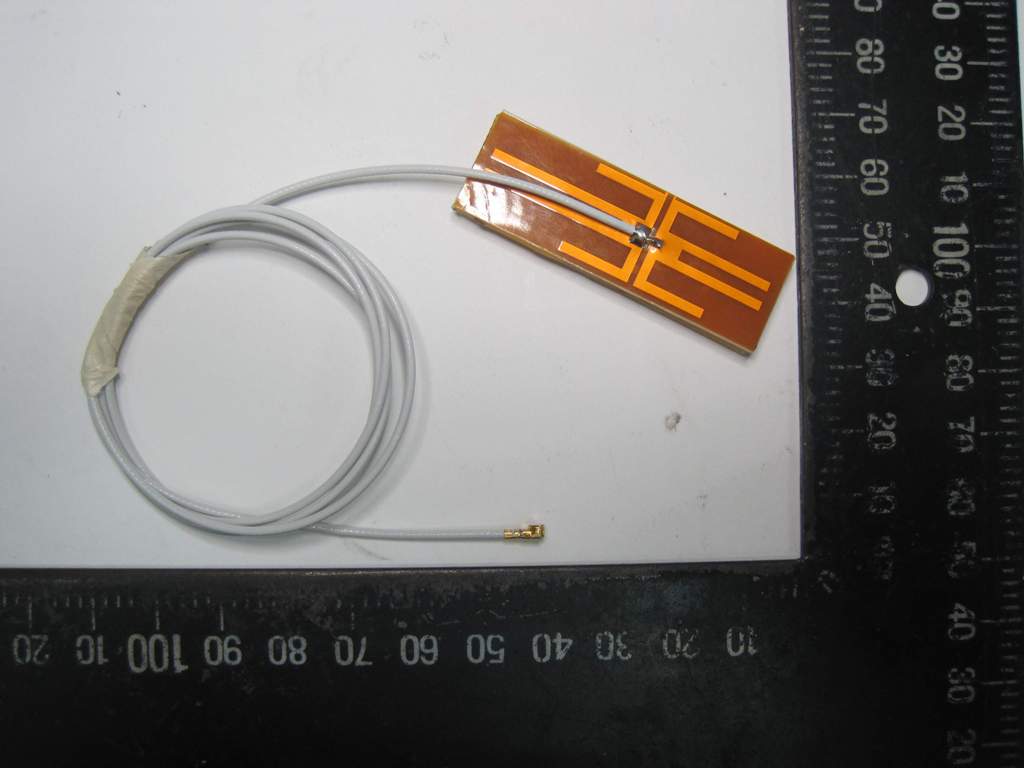

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 Ant. 1 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 Ant. 2 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 Ant. 3 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 Ant. 4 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255

Label Here CyberTAN Model name: WU163-AM FCC ID: N89-WU163

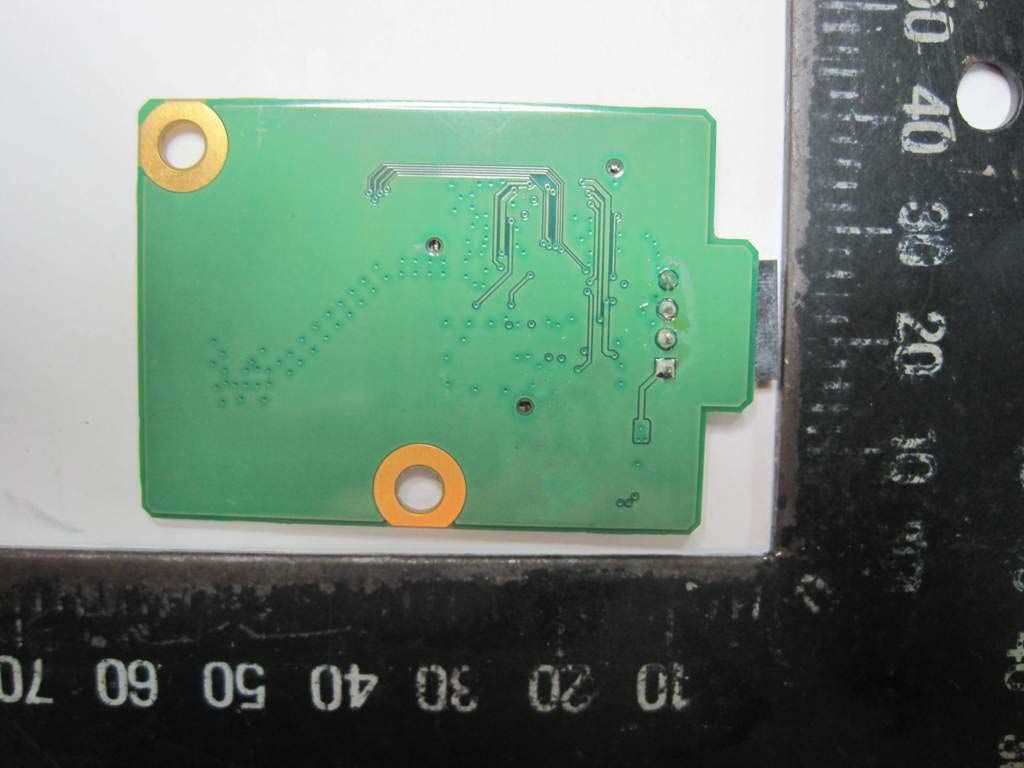

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2010 FAX : 886-2-2696-2255

Report No.: FR0O0506 FCC ID: N89-WU163 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR0O0506 FCC ID: N89-WU163 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR0O0506 FCC ID: N89-WU163 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : PIFA antenna Max Conducted Power for IEEE 802.11b : 22.40dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.24 1.6749 22.4000 173.7801 0.057936 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company CyberTAN Technology, Inc. Applicant Address 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. FCC ID N89-WU163 Manufacturer’s company CyberTAN Technology, Inc. Manufacturer Address 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C. Product Name 2.4GHz 802.11n 1x1 MIMO WLAN USB Module Brand Name CyberTAN Model Name WU163-AM Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Oct. 05, 2010 Final Test Date Oct. 08, 2010 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR0O0506 Report Format Version: 01 Page No. : iof ii FCC ID: N89-WU163 Issued Date : Oct. 11, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details .................................................................................................................................................................................... 3 3.2. Accessories ......................................................................................................................................................................................... 5 3.3. Table for Filed Antenna....................................................................................................................................................................... 5 3.4. Table for Carrier Frequencies ............................................................................................................................................................. 5 3.5. Table for Test Modes ........................................................................................................................................................................... 6 3.6. Table for Testing Locations .................................................................................................................................................................. 6 3.7. Table for Supporting Units ................................................................................................................................................................... 7 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 7 3.9. Test Configurations ............................................................................................................................................................................. 8 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 9 4.2. Peak Output Power Measurement .................................................................................................................................................... 13 4.3. Power Spectral Density Measurement .............................................................................................................................................. 17 4.4. 6dB Spectrum Bandwidth Measurement .......................................................................................................................................... 27 4.5. Radiated Emissions Measurement .................................................................................................................................................... 36 4.6. Band Edge Emissions Measurement ................................................................................................................................................. 48 4.7. Antenna Requirements ..................................................................................................................................................................... 57 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 58 6. TEST LOCATION.............................................................................................................................................. 58 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 61 APPENDIX A. PHOTOGRAPHS OF EUT .......................................................................................................... A1 ~ A9 APPENDIX B. TEST PHOTOS .......................................................................................................................... B1 ~ B5 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE ...…

Text truncated - open the document above for the full version.

Report No.: FR0O0506 FCC ID: N89-WU163 Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR0O0506 FCC ID: N89-WU163 Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR0O0506 FCC ID: N89-WU163 Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR0O0506 FCC ID: N89-WU163 Page No. : 4 of 5 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR0O0506 FCC ID: N89-WU163 Page No. : 5 of 5 Above 1GHz FRONT VIEW REAR VIEW
