N89-WU172HSWLAN Module

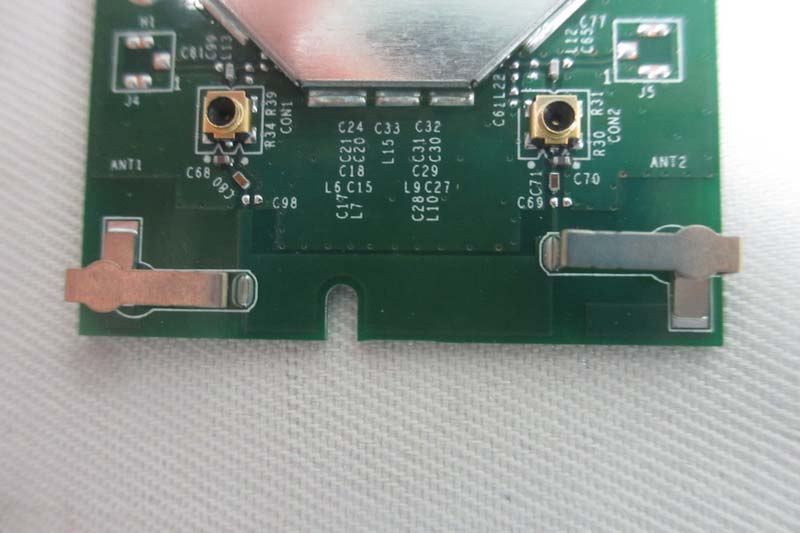

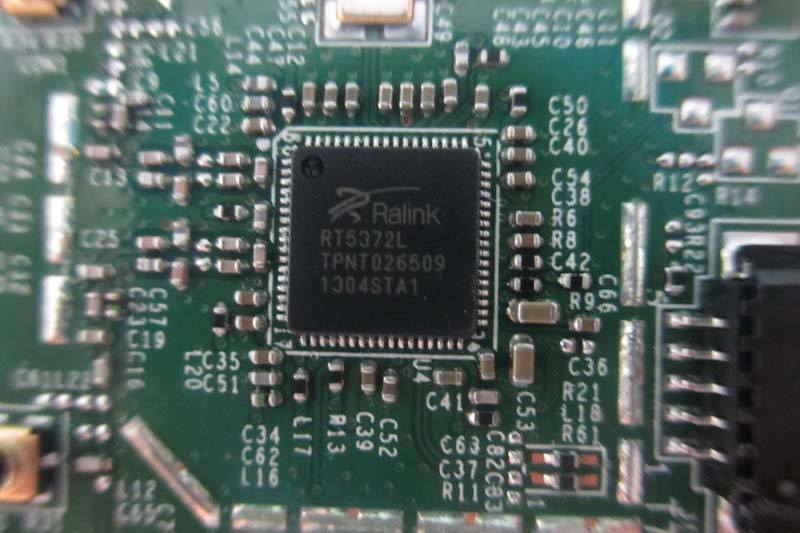

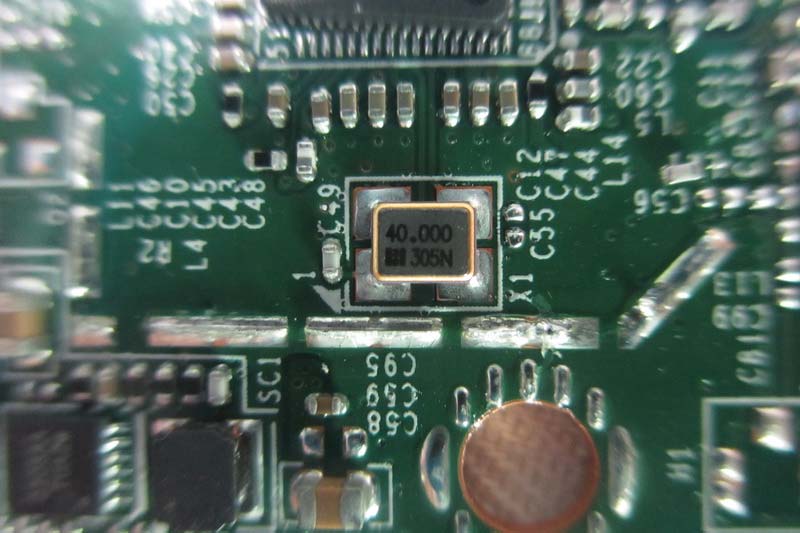

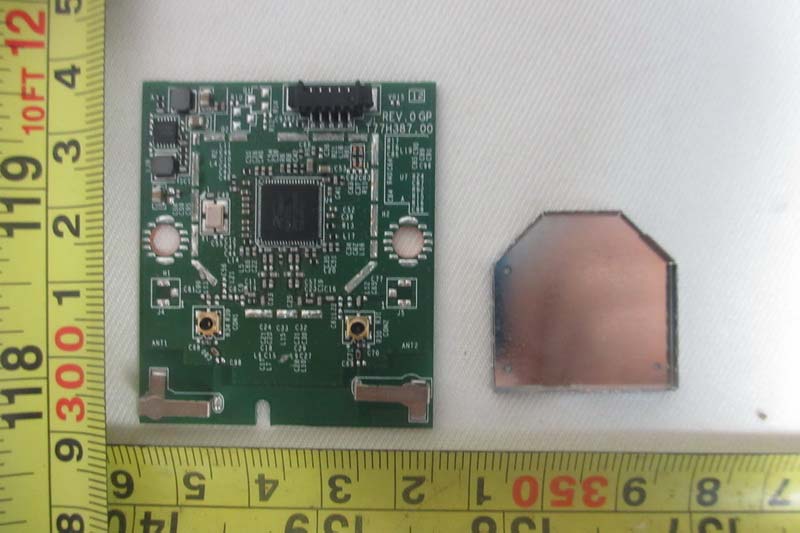

COMPANY CONFIDENTIAL 1 IEEE 802.11b/g/n 2T2R USB WiFi Module Project Name 11n USB WiFi Module with RT5372L CyberTan Part No T77H387.00 Customer Hisense Customer Part No. 1127000 CyberTan Model Name WU172HS Product Specification CyberTAN Technology, Inc 99 Park Avenue III, Science Park Hsin chu 308, Taiwan. TEL:+886-3-577-7777 Fax:+886-3-577-77880 COMPANY CONFIDENTIAL 2 Content 0. REVISION HISTORY ........................................................................ 3 1. INTRODUCTION ........................................................................... 4 1.1 RF MODULE OVERVIEW ..................................................................... 4 1.2 SPECIFICATION REFERENCE .................................................................. 4 1.3 SYSTEM FUNCTIONS ........................................................................ 5 2. MECHANICAL SPECIFICATION ............................................................. 6 2.1 MECHANICAL OUTLINE DRAWING .............................................................. 6 2.2 WTB CONNECTOR PIN DEFINITION .......................................................... 6 3. ELECTRICAL SPECIFICATION .............................................................. 7 3.1 OPERATING CONDITION ..................................................................... 7 3.2 WIFI RF SPECIFICATION(@5V/25°C) .......................................................... 7 3.2.1 802.11b Mode ........................................................................ 7 3.2.2 802.11g Mode ........................................................................ 8 3.2.3 802.11n HT20 Mode .................................................................. 8 3.2.4 802.11n HT40 Mode .................................................................. 9 3.3 ON-BOARD ANTENNA SPECIFICATION .......................................................... 10 4. QUALITY ................................................................................. 11 5. APPENDIX ............................................................................... 12 APPENDIX A-LABEL INFORMATION ............................................................... 12 APPENDIX B-HOW TO GET FW VERSION OF YOUR MODULE ............................................ 13 APPENDIX C-PACKAGE INFORMATION ............................................................ 14 APPENDIX D-FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT ........................ 15 COMPANY CONFIDENTIAL 3 0. Revision History Date Document revision Product revision Change Description 2013/01/28 00 005 1. Initial release(preliminary), 2013/02/18 01 005 1. Remove I-PEX RF connector 2013/03/01 02 005 1. Update the power consumption and RF performance at section3. 2. Add package information at section5 2013/03/20 03 015 1. Update the sample picture. 2. Add the antenna’s performance 2013/06/03 04 015 1. Change 11b power from 16dBm to 13dBm to pass CE and C-tick certification 2. Change FW ver to V2.0 2013/08/05 05 015 1. Add customer PN 2. Update Label information(add CE and C-tick logo) 3. Update sample photo 2014/01/14 06 015 1. Add FCC Federal Communication Commission Interference Statement 2. Update working frequency to meet FCC Regulation COMPANY CONFIDENTIAL 4 1. Introduction Project Name: 11n USB WiFi Module with RT5372L Project Number: T77H387.00 This documentation describes the engineering requirements specification of WiFi module with RT5372. It is a confidential document of CyberTan. 1.1 RF module Overview The general HW architecture for the module is shown in Figure 1. This WLAN Module design is based on Ralink RT5372L. It is a highly integrated single-chip MIMO (Multiple In Multiple Out) Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11n specification. It combines a MAC, a 2T2R capable baseband, and RF in a single chip. The RT5372 provides a complete solution for a high throughput performance wireless client. Figure 1 Module Block Diagram 1.2 Specification reference This specification is based on additional references listed below. z IEEE Std. 802.11b z IEEE Std. 802.11g z IEEE Std. 802.11n COMPANY CONFIDENTIAL 5 1.3 System Functions Table1: General Specification as below: Main Chipset Mediatek RT5372L Operating Frequency 2.412~2.462GHz WiFi Standard 802.11b/g/n(2x2) FW version V2.0 (To read this version, refer to Appendix B) Modulation 11b: DBPSK, DQPSK and CCK and DSSS 11g: BPSK, QPSK, 16QAM, 64QAM and OFDM 11n: MCS0~15 OFDM PHY Data rates 11b:1, 2, 5.5 and 11Mbps 11g:6, 9, 12, 18, 24, 36, 48 and 54 Mbps 11n: MCS0~15, up to 300Mbps Form factor 5pin side entry type WTB CONN, 1.25mm pitch, Host Interface USB 2.0 PCBA Dimension Typical，40mm(W)*46.45mm(L)*5mm(T) (The height including WTB connector and antenna) Antenna Two Metal Antennas on-board design Sample picture as bellow TOP VIEW BOTTOM VIEW * note1, the sample picture is just for reference only. COMPANY CONFIDENTIAL 6 2. Mechanical Specification 2.1 Mechanical Outline Drawing Typical Dimension (W x L): 40.00mmx 46.45mm. 2.2 WTB CONNECTOR Pin definition z 5Pin, 1.25mm pitch, SMD, side entry type. z Pin No. of WTB connector is remarked in PCBA ME drawing on above item2.1. Pin # Name Description 1 VBUS 5V DC power supply input 2 D- USB Data DN 3 D+ USB Data DP 4 GND Ground 5 CTR WLAN Radio on/off control LowÆDisable module. HighÆNormal working mode. (Module internally pull-high to 3.3V,no need for external pull-high) Unit: mm COMPANY CONFIDENTIAL 7 3. Electrical Specification 3.1 Operating Condition Parameter Condition Min. Typ. Max. Unit DC power input --- 4.5 5.0 5.5 V DC Current (Average.) @5V power input 11b TX throughput mode - 300 500 mA 11b RX throughput mode - 159 500 11g TX throughput mode - 276 500 11g RX throughput mode - 156 500 11n-HT20 TX throughput mode - 358 500 11n-HT20 RX throughput mode - 164 500 11n-HT40 TX throughput mode - 350 500 11n-HT40 RX throughput mode - 203 500 Power down mode(CTR pull-low)- 35 500 Standby mode , not connected …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1312C191 Page 2 of 4 Neutron Engineering Inc. Project No.: 1312C191 Page 3 of 4 Neutron Engineering Inc. Project No.: 1312C191 Page 4 of 4

Human readable(可讀部分)： B.MAC ID:XXXXXXXXXXXX MAC ID Barcode,follow Foxconn standard.(MAC ID區間參考Foxconn標準,一個產品一個Mac) C.MO:MO-VVSS a.第一個MO:為文字 b.第二個MO is Foxconn MO,follow Foxconn standard(為工單號，參考Foxconn標準) c.VV:the engineering version(refer to Foxconn label Rev column in the cover of the MFG document) VV為工程版本（參考製造文件封面Foxconn Label Rev.欄位） d.SS:the version of A300/A400 product(refer to Doc Rev.in the cover of MFG document) SS為A300/A400產品之版本（參考製造文件封面Doc Rev.之主版本) Scannable(掃描部分)： A.XXXXXXXXXXXX MAC ID Barcode,follow Foxconn standard(MAC ID 區間參考Foxconn標準) Barcode type: code 39 Barcode height:2.5mm 13/05/18 Taim Taim Sunny wu v MAC ID label 50# mylar T77H387.00 500.01625.005 size:18mm*13mm label stick position MAC ID:XXXXXXXXXXXX FCC ID:N89-WU172HS MO-VVSS All font:Arial 2 pt 5mm 3mm FW VER:V2.0 T77H387.00 R=1 Hisense PN:1127000 A B C

Neutron Engineering Inc. Project No.: 1312C191 Page 2 of 4 Neutron Engineering Inc. Project No.: 1312C191 Page 3 of 4 Neutron Engineering Inc. Project No.: 1312C191 Page 4 of 4

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: N89-WU172HS Project No. : 1312C191 Equipment : WLAN Module Model : T77H387.00 Applicant : CyberTAN Technology Inc. Address : 99 Park Avenue III, Science Park, Hsinchu 308 Taiwan, R.O.C According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Field Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 Foxconn 425.00210.005 Intergral N/A 2.05 TX/RX 2 Foxconn 425.00210.005 Intergra N/A 2.05 TX/RX Neutron Engineering Inc. TEST RESULTS EUT： WLAN Module Model Name T77H387.00 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE/CH01, CH06, CH11/ ANT 1 + ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.05 1.6032 22.18 165.1962 0.052716961 Complies 2.05 1.6032 22.21 166.3413 0.053082381 Complies 2.05 1.6032 22.23 167.1091 0.053327401 Complies EUT： WLAN Module Model Name T77H387.00 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE/CH01, CH06, CH11/ANT 1 + ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.05 1.6032 26.41 437.5221 0.139620881 Complies 2.05 1.6032 26.48 444.6313 0.141889541 Complies 2.05 1.6032 26.39 435.5119 0.138979381 Complies Neutron Engineering Inc. EUT： WLAN Module Model Name T77H387.00 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE/CH01, CH06, CH11/ANT 1 + ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.05 1.6032 26.72 469.8941 0.149951351 Complies 2.05 1.6032 26.71 468.8134 0.149606471 Complies 2.05 1.6032 26.80 478.6301 0.152739151 Complies EUT： WLAN Module Model Name T77H387.00 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE/CH01, CH06, CH09/ANT 1 + ANT 2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.05 1.6032 25.74 374.9730 0.119660381 Complies 2.05 1.6032 25.73 374.1106 0.119385171 Complies 2.05 1.6032 25.76 376.7038 0.120212701 Complies Note: The calculation distance is 20 cm.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 1 of 167 FCC Radio Test Report FCC ID: N89-WU172HS This report concerns (check one): Original Grant Class II Change Issued Date : Jan. 07, 2014 Project No. : 1312C191 Equipment : WLAN Module Model Name : T77H387.00 Applicant : CyberTAN Technology, Inc. Address : 99 Park Avenue lll,Science park, Hsinchu 308 Taiwan ,R.O.C Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Dec. 18, 2013 Date of Test: Dec. 18, 2013 ~ Jan. 06, 2014 Testing Engineer : ( David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 2 of 167 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 3 of 167 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (BELOW 30MHZ) 24 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 32 5 . BANDWIDTH TEST 80 5.1 APPLIED PROCEDURES / LIMIT 80 5.1.1 MEASUREMENT INSTRUMENTS LIST 80 5.1.2 TEST PROCEDURE 80 5.1.3 DEVIATION FROM STANDARD 80 5.1.4 TEST SETUP 80 5.1.5 EUT OPERATION CONDITIONS 80 5.1.6 TEST RESULTS 81 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 4 of 167 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 97 6.1 APPLIED PROCEDURES / LIMIT 97 6.1.1 MEASUREMENT INSTRUMENTS LIST 97 6.1.2 TEST PROCEDURE 97 6.1.3 DEVIATION FROM STANDARD 97 6.1.4 TEST SETUP 97 6.1.5 EUT OPERATION CONDITIONS 97 6.1.6 TEST RESULTS 98 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 102 7.1 APPLIED PROCEDURES / LIMIT 102 7.1.1 MEASUREMENT INSTRUMENTS LIST 102 7.1.2 TEST PROCEDURE 102 7.1.3 DEVIATION FROM STANDARD 102 7.1.4 TEST SETUP 102 7.1.5 EUT OPERATION CONDITIONS 102 7.1.6 TEST RESULTS 103 8 . POWER SPECTRAL DENSITY TEST 143 8.1 APPLIED PROCEDURES / LIMIT 143 8.1.1 MEASUREMENT INSTRUMENTS LIST 143 8.1.2 TEST PROCEDURE 143 8.1.3 DEVIATION FROM STANDARD 143 8.1.4 TEST SETUP 143 8.1.5 EUT OPERATION CONDITIONS 143 8.1.6 TEST RESULTS 144 9 . EUT TEST PHOTO 164 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 5 of 167 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1312C191 Original Issue. Jan. 07, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 6 of 167 1. CERTIFICATION Equipment : WLAN Module Brand Name : FOXCONN Model Name : T77H387.00 Applicant : CyberTAN Technology, Inc. Manufacture : CyberTAN Technology, Inc. Address : 99 Park Avenue lll,Science park, Hsinchu 308 Taiwan ,R.O.C Factory : CyberTAN Technology, Inc. Address 99 Park Avenue lll,Science park, Hsinchu 308 Taiwan ,R.O.C Date of Test : Dec. 18, 2013 ~ Jan. 06, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15(2012), Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1312C191) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 7 of 167 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Ban…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 99 of 167 EUT: WLAN Module Model Name : T77H387.00 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX G MODE /CH01, CH06, CH11 ANT 1 Frequency (MHz) Peak Output Power (dBm) LIMIT (dBm) LIMIT (W) 2412 23.25 30 1 2437 23.47 30 1 2462 23.34 30 1 ANT 2 Frequency (MHz) Peak Output Power (dBm) LIMIT (dBm) LIMIT (W) 2412 23.54 30 1 2437 23.47 30 1 2462 23.41 30 1 ANT 1 + ANT 2 Frequency (MHz) Peak Output Power (dBm) LIMIT (dBm) LIMIT (W) 2412 26.41 30 1 2437 26.48 30 1 2462 26.39 30 1 Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 100 of 167 EUT: WLAN Module Model Name : T77H387.00 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE /CH01, CH06, CH11 ANT 1 Frequency (MHz) Peak Output Power (dBm) LIMIT (dBm) LIMIT (W) 2412 23.67 30 1 2437 23.61 30 1 2462 23.73 30 1 ANT 2 Frequency (MHz) Peak Output Power (dBm) LIMIT (dBm) LIMIT (W) 2412 23.74 30 1 2437 23.79 30 1 2462 23.84 30 1 ANT 1 + ANT 2 Frequency (MHz) Peak Output Power (dBm) LIMIT (dBm) LIMIT (W) 2412 26.72 30 1 2437 26.71 30 1 2462 26.80 30 1 Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 101 of 167 EUT: WLAN Module Model Name : T77H387.00 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH03, CH06, CH09 ANT 1 Frequency (MHz) Peak Output Power (dBm) LIMIT (dBm) LIMIT (W) 2422 22.75 30 1 2437 22.79 30 1 2452 22.63 30 1 ANT 2 Frequency (MHz) Peak Output Power (dBm) LIMIT (dBm) LIMIT (W) 2422 22.71 30 1 2437 22.64 30 1 2452 22.86 30 1 ANT 1 + ANT 2 Frequency (MHz) Peak Output Power (dBm) LIMIT (dBm) LIMIT (W) 2422 25.74 30 1 2437 25.73 30 1 2452 25.76 30 1 Note: The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 102 of 167 7. ANTENNA CONDUCTED SPURIOUS EMISSION 7.1 Applied procedures / limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 960~1000 500 3 7.1.1 MEASUREMENT INSTRUMENTS LIST Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Spectrum Analyzer R&S FSP_40 100129 Nov. 09, 2014 Remark: “N/A” denotes no model name, serial no. or calibration specified. All calibration period of equipment list is one year. 7.1.2 TEST PROCEDURE a. The EUT was directly connected to the spectrum analyzer and antenna output port as show in the block diagram below, b. Spectrum Setting : RBW= 100KHz, VBW=300KHz, Sweep time = Auto. 7.1.3 DEVIATION FROM STANDARD No deviation. 7.1.4 TEST SETUP 7.1.5 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 4.1.6 Unless otherwise a special operating condition is specified in the follows during the testing. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 103 of 167 7.1.6 TEST RESULTS EUT: WLAN Module Model Name : T77H387.00 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX B MODE /CH01, CH06 , CH11-ANT 1 Channel of Worst Data: CH01 The max. radio frequency power in any 100kHz bandwidth outside the frequency band The max. radio frequency power in any 100 kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 2398.20 -23.03 2488.00 -34.24 Result In any 100kHz bandwidth outside the frequency band, the radio frequency power is at least 20dB below that in the 100kHz bandwidth within the band that contains the highest lever of the desired power. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 104 of 167 TX B mode CH01 TX B mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 105 of 167 TX B mode CH01 (30M~1000MHz) TX B mode CH01 (1000MHz~10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 106 of 167 TX B mode CH06 (30M~1000MHz) TX B mode CH06 (1000MHz~10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 107 of 167 TX B mode CH11 (30M~1000MHz) TX B mode CH11 (1000MHz~10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 108 of 167 EUT: WLAN Module Model Name : T77H387.00 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX B MODE /CH01, CH06 , CH11-ANT 2 Channel of Worst Data: CH01 The max. radio frequency power in any 100kHz bandwidth outside the frequency band The max. radio frequency power in any 100 kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 2400.00 -31.02 2488.00 -34.60 Result In any 100kHz bandwidth outside the frequency band, the radio frequency power is at least 20dB below that in the 100kHz bandwidth within the band that contains the highest lever of the desired power. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 109 of 167 TX B mode CH01 TX B mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 110 of 167 TX B mode CH01 (30M~1000MHz) TX B mode CH01 (1000MHz~10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 111 of 167 TX B mode CH06 (30M~1000MHz) TX B mode CH06 (1000MHz~10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 112 of 167 TX B mode CH11 (30M~1000MHz) TX B …

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 164 of 167 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 165 of 167 Radiated Measurement Photos 9KHz~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 166 of 167 Radiated Measurement Photos 300MHz~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1312C191 Page 167 of 167 Radiated Measurement Photos Above 1000MHz
