Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
i CyberTAN User Manual WU182- LO 802.11 b/g/n USB Module Release 0.1 Date: December 23, 2014 Author: Cindy Fan ii Table of Contents 1. REVISION HISTORY ......................................................................................................................... 1 2. RELATED DOCUMENTS .................................................................................................................. 1 3. INTRODUCTION ................................................................................................................................ 2 4. SPECIFICATION ................................................................................................................................. 3 5. REGULATORY INFORMATION ......................................................................................................... 4 5.1 FCC NOTICE (USA) ............................................................................................................................. 4 1 1. Revision History Date Release Author Description December 23, 2014 0.1 Cindy Fan First Release 2. Related Documents Date Author Document IEEE.org IEEE 802.11 b/g/n specification Datasheet for MediaTek MT7603U 2 3. Introduction The WU182-LO is a module based on a highly integrated Wi-Fi single chip which supports 300 Mbps PHY rate. It fully complies with IEEE 802.11n and IEEE 802.11 b/g standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads the host processor. The WU182-LO is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance. Features and Benefits IEEE 802.11 b/g/n compliant Embedded high-performance 32-bit RISC microprocessor Highly integrated RF with 55nm CMOS technology 2T2R mode with support of 300Mbps PHY rate Integrate high efficiency switching regulator Best-in-class power consumption performance 6-pin header interface for USB signal and power 1/2/3/4-wire PTA Wi-Fi / Bluetooth coexistence support 802.11 d/h/k support Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI Supports 802.11w protected managed frames QoS support of WFA WMM, WMM PS Supports Wi-Fi Direct Fully compliance with USB v2.0 High-speed mode Per packet transmit power control Antenna Detection 3 4. Specification Specifications Product Name IEEE802.11 b/g/n USB Module Interface USB2.0 in a ROHS 6P header Network Standards IEEE802.11n and 11b/g -compliant Data Rate 11b/g: 54, 48, 36, 24, 18, 12, 9, 6, 11, 5.5, 2,1 Mbps 11n: 20MHz and 40 MHz BW: up to 150 Mbps Modulation 802.11g/n---- OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11b---- CCK (11Mbps, 5.5Mbps), QPSK (2Mbps), BPSK (1Mbps) Network Architecture Infrastructure and ad hoc Operating Frequency 2.4GHz 11b/g/n: 2.412 ~ 2.462 GHz: North America Operating Channels 11b: 1~11 for America 2.4GHz 11g/n: 1~11 for America Antenna Two Metal Antennas on-board design LED Indicators N/A Coverage Area Indoor: 20M@54Mbps, 35M@24Mbps, 60M@6Mbps, 100M@11Mbps Operating Temperature 0 to 55 °C Humidity 20% to 95% Non-condensing Dimensions (mm) 40 x 46.45 x5.1 mm (typical) (The height including WTB connector and antenna) Weight (g) 7.3g Voltage 3.3 V 4 5. Regulatory Information 5 .1 FCC Notice (USA) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device and its antenna(s) must not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. Referring to the multi-transmitter policy, multiple-transmitter(s) and module(s) can be operated simultaneously without C2PC. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 5 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-…
Text truncated - open the document above for the full version.
Page No. : 26 Module Approval Request Letter Subject: Module Approval Date: 2014/12/31 FCC ID: N89-WU182 Dear Reviewer, We, Sporton International Inc., are authorized by CyberTAN Technology, Inc. to have their state-of-the-art 802.11 b/g/n USB Module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip MT7603. 3. The requirement of power supply regulation: The part number of the power regulator is AP3417. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

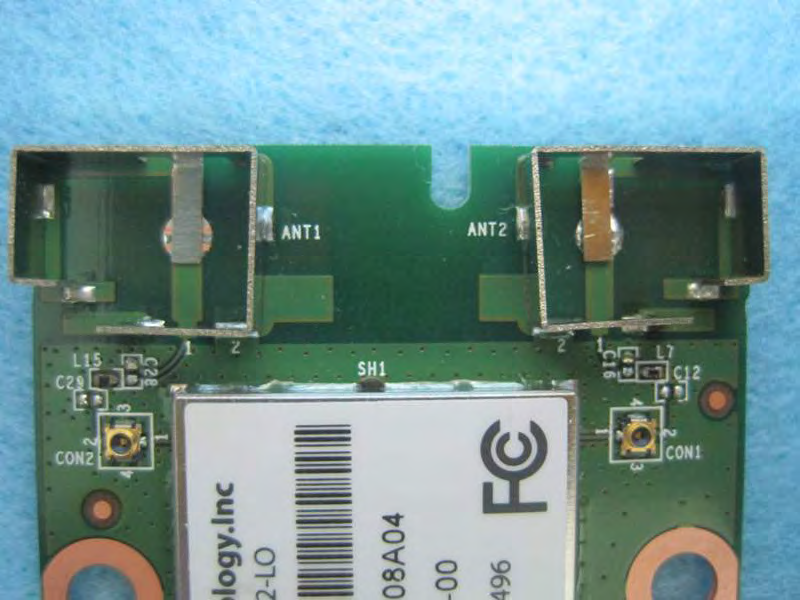

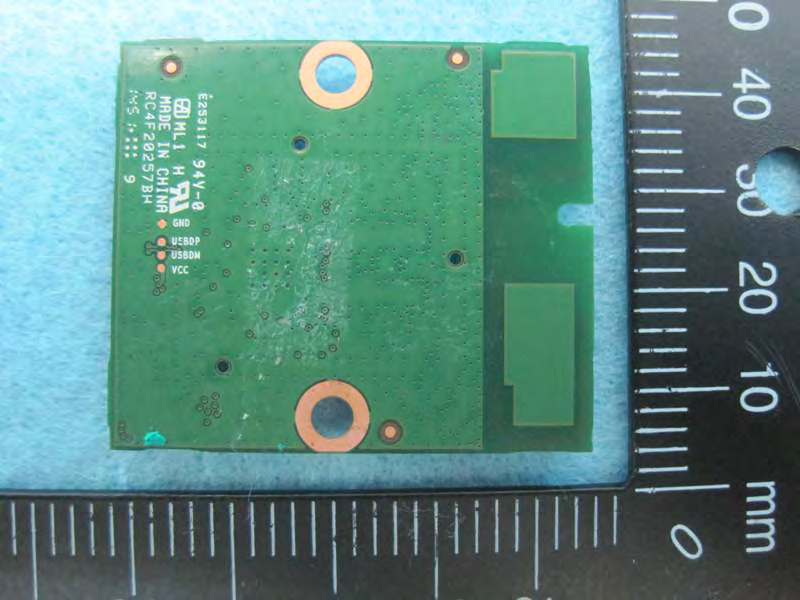

Report No.:4N2077 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Dec. 31, 2014 FAX : 886-3-327-0973 Photographs of EUT Report No.:4N2077 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-3-327-3456 ISSUED DATE : Dec. 31, 2014 FAX : 886-3-327-0973
Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Average RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : B3 of B3 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure Antenna Type : Metal Antenna Conducted Power for IEEE 802.11g: 24.24 dBm The maximum combined Average Output Power Distance (m) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.2 1.22 1.3243 24.2445 265.7330 0.070048 1 Complies
Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : A1 of A8 Appendix A. Test Photos Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : A2 of A8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : A3 of A8 CLOSE-UP VIEW Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : A4 of A8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : A5 of A8 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : A6 of A8 CLOSE-UP VIEW Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : A7 of A8 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR4N2077 FCC ID: N89-WU182 Page No. : A8 of A8 CLOSE-UP VIEW
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 266.00 mW |
