Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
COMPANY CONFIDENTIAL 1 IEEE 802.11 b/g/a/n 2T2R WLAN Module (Project Name) WLAN Module (Foxconn Part No.) T77H479.00 (Customer Part No.) 1130577 Foxconn reserves the right to make changes to any product or data herein to improve reliability, function, design,or to pass regulations.Critical date or product changes will be presented in newer version Revision Notes for customer. Product Specification COMPANY CONFIDENTIAL 2 Content 0. REVISION HISTORY ............................................................................ 3 1. INTRODUCTION ............................................................................... 4 1.1 RF MODULE OVERVIEW......................................................................... 4 1.2 SPECIFICATION REFERENCE ..................................................................... 4 1.3 SYSTEM FUNCTIONS ........................................................................... 5 2. MECHANICAL SPECIFICATION ................................................................. 6 2.1 MECHANICAL OUTLINE DRAWING ................................................................. 6 2.2 WTB CONNECTOR PIN DEFINITION ............................................................. 6 3. ELECTRICAL SPECIFICATION .................................................................. 7 3.1 802.11B MODE ............................................................................... 7 3.2 802.11G MODE ............................................................................... 8 3.3 802.11N 2.4G HT20 MODE ..................................................................... 9 3.4 802.11N 2.4G HT40 MODE .................................................................... 10 3.5 802.11A MODE .............................................................................. 11 3.6 802.11N 5G HT20 MODE ...................................................................... 12 3.7 802.11N 5G HT40 MODE ...................................................................... 13 4 SOFTWARE REQUIREMENTS .................................................................. 14 5. QUALITY ..................................................................................... 14 6. APPENDIX ................................................................................... 14 6.1 LABEL INFORMATION [6] ........................................................................ 14 6.2 PACKAGE INFORMATION ....................................................................... 15 6.3 FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT .................................. 16 COMPANY CONFIDENTIAL 3 0. Revision History Date Document revision Product revision Change Description 2013/05/02 00 015 Initial release(preliminary) 2013/06/04 01 015 1. Add customer part number 2. Update label design 3. Remove i-pex connector 2013/07/14 02 015 1. Change 11b power from 16dBm to 13dBm for each chain to pass CE and C-tick 2. Add power consumption 2013/08/10 03 025 1. Update label design 2013/9/25 04 025 1. Change 11n 2.4G band HT40 power from 13dBm to 11dBm to pass FCC band-edge 2. Update Label design(add FCC logo) 3. Update Block Diagram to module level COMPANY CONFIDENTIAL 4 1. Introduction Project Name: WLAN Module Project Number: T77H479.00 This documentation describes the engineering requirements specification of WiFi module with T77H479.00. It is a confidential document of Foxconn. 1.1 RF module Overview The general HW architecture for this module is shown in Figure 1. This WLAN Module design is based on MTK RT5572N. It is a highly integrated MAC/BBP and 2.4/5 GHz RF/PA/LNA single chip which supports a 300Mbps PHY rate. It fully complies with IEEE 802.11n and IEEE 802.11a/ b/g standards, offering feature-rich wireless connectivity at a high standard, and delivering reliable, cost-effective throughput from an extended distance. Optimized RF architecture and base-band algorithms provide superb performance and low power consumption. This module is designed to support standard-based features in the areas of security, QoS and international regulations, giving end users the greatest performance anytime and in any circumstance. Figure 1 Module Block Diagram 1.2 Specification reference This specification is based on additional references listed below. IEEE Std. 802.11a IEEE Std. 802.11b IEEE Std. 802.11g IEEE Std. 802.11n Working Frequency: 2.4GHz~2.5GHz,5.15GHz~5.85GHZ (Actual working frequency is defined by driver) 5V 3.3V USB Interface USB siginal D+\D- 5G TX1 / RX1 2.4G TX1 / RX1 2.4G TX0 / RX0 5G TX0 / RX0 1.5V 40MHz XTAL Antenna 1 Antenna 0 Diplexer Diplexer Switch Regulator RT5572N COMPANY CONFIDENTIAL 5 1.3 System Functions Table1: General Specification as below: Main Chipset MTK RT5572N Operating Frequency [1] 2.412 GHz ~2.472GHz 5.180 GHz ~5.825 GHz WiFi Standard 802.11 a/b/g/n(2x2) Modulation 11b: DBPSK, DQPSK and CCK and DSSS 11g: BPSK, QPSK, 16QAM, 64QAM and OFDM 11n: MCS0~15 OFDM 11a: BPSK, QPSK, 16QAM, 64QAM and OFDM Data rates 11b:1, 2, 5.5 and 11Mbps 11g:6, 9, 12, 18, 24, 36, 48 and 54 Mbps 11n(2.4G&5G): MCS0~15, up to 300Mbps 11a:6,9,12,18,24,36,48,54Mbps Form factor 5pin side entry type WTB CONN, 1.25mm pitch, Host Interface USB 2.0 PCB Stack 4-layers design PCBA Dimension Typical,40mm(W)*46.45mm(L)*5.0mm(T) (The height including WTB connector and metal antennas) Antenna type Two metal antennas on-board Operation Temperature 0°C to +60°C Storage Temperature -40°C to +85°C Operation Voltage 5V +/-10% Sample picture as bellow [2] TOP view BOT view *[1] Actual operating frequency may differ base on country code setting (Read from driver setting) *[2] Above sample pictures are just for reference, may differ for different version 1 5 COMPANY CONFIDENTIAL 6 2. Mechanical Specification 2.1 Mechanical Outline Drawing Typical PCBA Dimension (W x L x H): 40mmx46.45mmx5.00mm. Unit: mm 2.2 WTB CONNECTOR Pin definition 5pin, side entry type WTB CONN, 1.25mm pitch Pin No. of WTB connector is marked in sample …
Text truncated - open the document above for the full version.

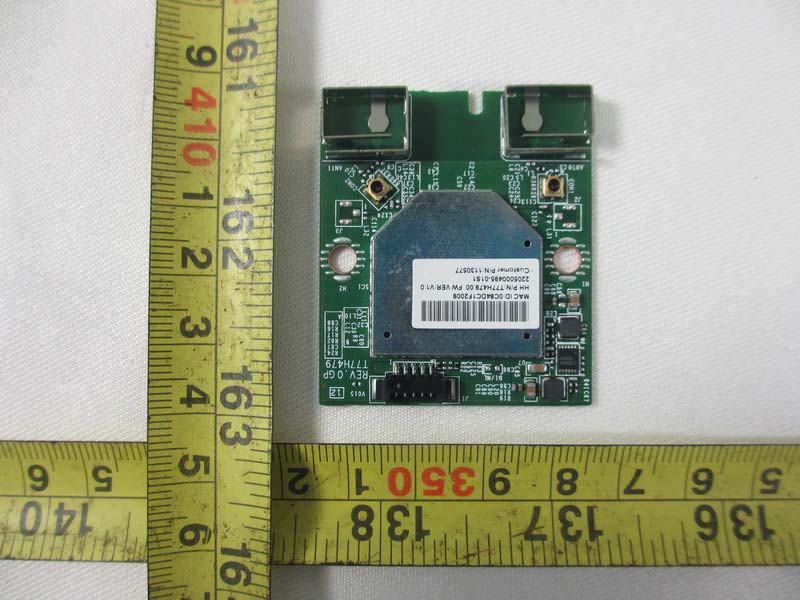

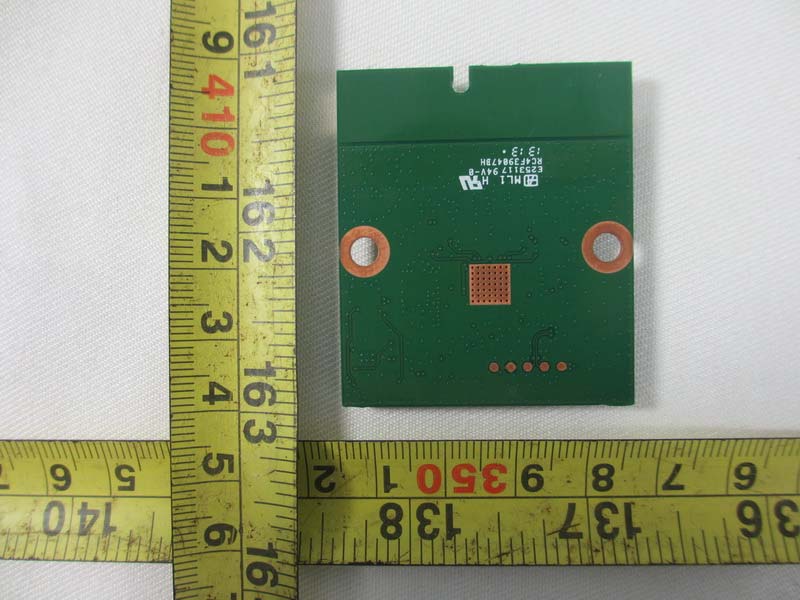

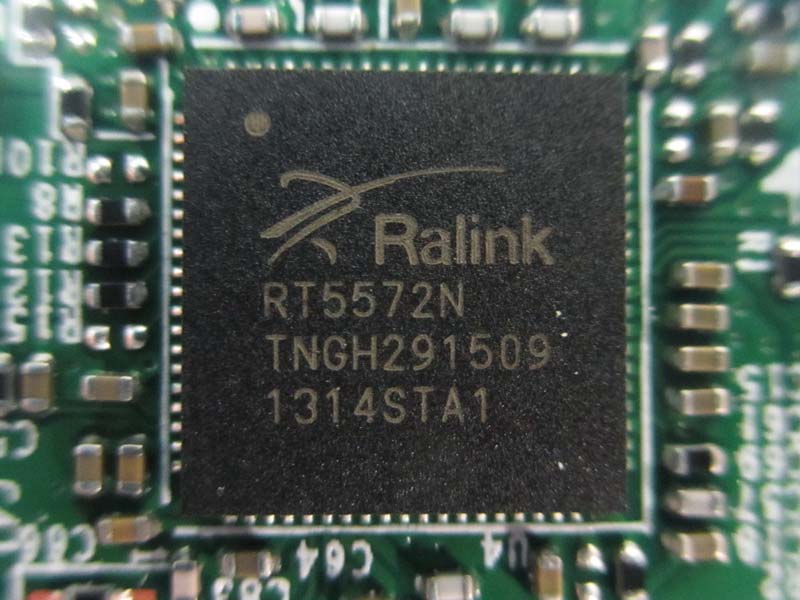

Neutron Engineering Inc. Project No.: 1310C077 Page 1 of 4 ATTACHMENT PHOTOGRAPHS OF EUT Neutron Engineering Inc. Project No.: 1310C077 Page 2 of 4 Neutron Engineering Inc. Project No.: 1310C077 Page 3 of 4 Neutron Engineering Inc. Project No.: 1310C077 Page 4 of 4
Human readable(可讀部分): B.MAC ID:XXXXXXXXXXXX MAC ID Barcode,follow Foxconn standard.(MAC ID區間參考Foxconn標準) C.MO:MO-VVSS a.第一個MO:為文字 b.第二個MO is Foxconn MO,follow Foxconn standard(為工單號,參考Foxconn標準) c.VV:the engineering version(refer to Foxconn label Rev column in the cover of the MFG document) VV為工程版本(參考製造文件封面Foxconn Label Rev.欄位) d.SS:the version of A300/A400 product(refer to Doc Rev.in the cover of MFG document) SS為A300/A400產品之版本(參考製造文件封面Doc Rev.之主版本) Scannable(掃描部分): A.XXXXXXXXXXXX MAC ID Barcode,follow Foxconn standard(MAC ID 區間參考Foxconn標準) Barcode type: code 39 Barcode height:2.5mm 13/05/18 Taim Taim Sunny wu v MAC ID label 50# mylar T77H479.00 500.01625.025 size:18mm*13mm label stick position A B C MAC ID:XXXXXXXXXXXX ROHS MO-VVSS All font:Arial 3pt 5 mm FW VER:V2.0 HH P/N T77H479.00 FCC ID:N89-WU322HS R=1 Hisense PN:1130577 T
Neutron Engineering Inc. Project No.: 1310C077 Page 1 of 4 ATTACHMENT PHOTOGRAPHS OF EUT Neutron Engineering Inc. Project No.: 1310C077 Page 2 of 4 Neutron Engineering Inc. Project No.: 1310C077 Page 3 of 4 Neutron Engineering Inc. Project No.: 1310C077 Page 4 of 4
Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: N89-WU322HS Project No. : 1310C077 Equipment : WLAN Module Model : T77H479.00 Applicant : CyberTAN Technology Inc. Address : No. 99, Park Avenue III, Science-based Industrial Park, Hsinchu, Taiwan According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Field Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 0 Foxconn 425.00179.015 Integral N/A 1.7 TX/RX 1 Foxconn 425.00178.015 Integral N/A 1.7 TX/RX Note: (1) The EUT incorporates a MIMO function. Physically, the EUT provides two completed transmitters and two receivers (2T2R). Neutron Engineering Inc. TEST RESULTS EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 1/TX A Mode/CH36, CH40, CH48 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 15.14 32.6588 0.009615021 Complies 1.7 1.4791 15.18 32.9610 0.009703991 Complies 1.7 1.4791 15.17 32.8852 0.009681671 Complies EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 1/TX N20 Mode/CH36, CH40, CH48 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 15.77 37.7572 0.011116051 Complies 1.7 1.4791 15.92 39.0841 0.011506691 Complies 1.7 1.4791 15.84 38.3707 0.011296671 Complies EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 1/TX N40 Mode/CH38, CH46 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 15.42 34.8337 0.010255351 Complies 1.7 1.4791 15.65 36.7282 0.010813101 Complies Neutron Engineering Inc. EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 2/TX A Mode/CH52, CH56, CH64 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 15.27 33.6512 0.009907191 Complies 1.7 1.4791 15.28 33.7287 0.009930031 Complies 1.7 1.4791 15.27 33.6512 0.009907191 Complies EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 2/TX N20 Mode/CH52, CH56, CH64 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 15.69 37.0681 0.010913161 Complies 1.7 1.4791 15.74 37.4973 0.011039521 Complies 1.7 1.4791 15.77 37.7572 0.011116051 Complies EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 2/TX N40 Mode/CH54, CH62 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 15.57 36.0579 0.010615741 Complies 1.7 1.4791 15.45 35.0752 0.010326431 Complies Neutron Engineering Inc. EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 3/TX A Mode/CH100, CH116, CH140 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 15.29 33.8065 0.009952921 Complies 1.7 1.4791 15.26 33.5738 0.009884401 Complies 1.7 1.4791 15.24 33.4195 0.009838991 Complies EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 3/TX N20 Mode/CH100, CH116, CH140 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 15.79 37.9315 0.011167361 Complies 1.7 1.4791 15.77 37.7572 0.011116051 Complies 1.7 1.4791 15.81 38.1066 0.011218901 Complies EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 3/TX N40 Mode/CH102, CH110,CH134 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 15.69 37.0681 0.010913161 Complies 1.7 1.4791 15.71 37.2392 0.010963531 Complies 1.7 1.4791 15.64 36.6438 0.010788231 Complies Neutron Engineering Inc. EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : Band 4/TX A Mode /CH149, CH157, CH165 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.7 1.4791 23.25 211.3489 0.062222921 Complies 1.7 1.4791 23.60 229.0868 0.067445091 Complies 1.7 1.4791 23.54 225.9436 0.066519711 Complies EUT: WLAN Module Model Name T77H479.00 Temperature: 25 °C Relative Humidity: 58 %…
Text truncated - open the document above for the full version.
Report No.: NEI-FCCP-3-1310C077 Page 1 of 273 Neutron Engineering Inc. FCC Radio Test Report FCC ID: N89-WU322HS This report concerns (check one) : Original Grant Class I Change Issued Date : Nov. 13, 2013 Project No. : 1310C077 Equipment : WLAN Module Model Name : T77H479.00 Applicant : CyberTAN Technology, Inc. Address : 99 Park Avenue lll,Science park, Hsinchu 308 Taiwan ,R.O.C Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 16, 2013 Date of Test: Oct. 16, 2013 ~ Nov. 12, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Report No.: NEI-FCCP-3-1310C077 Page 2 of 273 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: NEI-FCCP-3-1310C077 Page 3 of 273 Neutron Engineering Inc. Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION 15 4.1.2 MEASUREMENT INSTRUMENTS LIST 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST 22 4.2.3 TEST PROCEDURE 22 4.2.4 DEVIATION FROM TEST STANDARD 23 4.2.5 TEST SETUP 23 4.2.6 EUT OPERATING CONDITIONS 24 4.2.7 TEST RESULTS-BETWEEN 30MHZ - 1000MHZ 25 4.2.8 TEST RESULTS - ABOVE 1000MHZ 32 5 . 26dB SPECTRUM BANDWIDTH 132 5.1 APPLIED PROCEDURES / LIMIT 132 5.1.1 MEASUREMENT INSTRUMENTS LIST 132 5.1.2 TEST PROCEDURE 132 5.1.3 DEVIATION FROM STANDARD 132 5.1.4 TEST SETUP 132 5.1.5 EUT OPERATION CONDITIONS 133 5.1.6 TEST RESULTS 134 6 . MAXIMUM CONDUCTED OUTPUT POWER 152 Report No.: NEI-FCCP-3-1310C077 Page 4 of 273 Neutron Engineering Inc. Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 152 6.1.1 MEASUREMENT INSTRUMENTS LIST 152 6.1.2 TEST PROCEDURE 152 6.1.3 DEVIATION FROM STANDARD 153 6.1.4 TEST SETUP 153 6.1.5 EUT OPERATION CONDITIONS 153 6.1.6 TEST RESULTS 154 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 163 7.1 APPLIED PROCEDURES / LIMIT 163 7.1.1 MEASUREMENT INSTRUMENTS LIST 163 7.1.2 TEST PROCEDURE 163 7.1.3 DEVIATION FROM STANDARD 163 7.1.4 TEST SETUP 163 7.1.5 EUT OPERATION CONDITIONS 163 7.1.6 TEST RESULTS 164 8 . POWER SPECTRAL DENSITY TEST 200 8.1 APPLIED PROCEDURES / LIMIT 200 8.1.1 MEASUREMENT INSTRUMENTS LIST 200 8.1.2 TEST PROCEDURE 200 8.1.3 DEVIATION FROM STANDARD 200 8.1.4 TEST SETUP 200 8.1.5 EUT OPERATION CONDITIONS 200 9 . PEAK EXCURSION MEASUREMENT 246 9.1 APPLIED PROCEDURES / LIMIT 246 9.1.1 MEASUREMENT INSTRUMENTS LIST 246 9.1.2 TEST PROCEDURE 246 9.1.3 DEVIATION FROM STANDARD 246 9.1.4 TEST SETUP 247 9.1.5 EUT OPERATION CONDITIONS 247 9.1.6 TEST RESULTS 248 10 . FREQUENCY STABILITY MEASUREMENT 266 10.1 APPLIED PROCEDURES / LIMIT 266 10.1.1 MEASUREMENT INSTRUMENTS LIST 266 10.1.2 TEST PROCEDURE 266 10.1.3 DEVIATION FROM STANDARD 266 10.1.4 TEST SETUP 267 10.1.5 EUT OPERATION CONDITIONS 267 10.1.6 TEST RESULTS 268 11. EUT TEST PHOTO 271 Report No.: NEI-FCCP-3-1310C077 Page 5 of 273 Neutron Engineering Inc. REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-3-1310C077 Original Issue. Nov. 13, 2013 Report No.: NEI-FCCP-3-1310C077 Page 6 of 273 Neutron Engineering Inc. 1. CERTIFICATION Equipment : WLAN Module Brand Name : CyberTAN Technology Model Name : T77H479.00 Applicant : CyberTAN Technology, Inc. Manufacturer : CyberTAN Technology, Inc. Address : 99 Park Avenue lll,Science park, Hsinchu 308 Taiwan ,R.O.C Factory : CyberTAN Technology, Inc. Address : 99 Park Avenue lll,Science park, Hsinchu 308 Taiwan ,R.O.C Date of Test : Oct. 16, 2013 ~ Nov. 12, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart E(15.407) / ANSI C63.4 : 2009; FCC KDB 789033 D01 General UNII Test Procedures v01r03 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-3-1310C077) were obtained utilizing t…
Text truncated - open the document above for the full version.
Report No.: NEI-FCCP-3-1310C077 Page 180 of 273 Neutron Engineering Inc. EUT: WLAN Module Model Name : T77H479.00 Temperature: 25°C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 2/TX N20 Mode/ CH52, CH56 , CH64 – ANT 1 Channel of Worst Data: CH52 The max. radio frequency power in any 1000kHz bandwidth outside the frequency band The max. radio frequency power in any 1000kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 5138.00 -45.01 5372.40 -45.03 Limit: -27 dBm/1MHz Result:PASS Measurement method: S.A Read value+Ant gain+cable loss Report No.: NEI-FCCP-3-1310C077 Page 181 of 273 Neutron Engineering Inc. TX mode CH52 TX mode CH64 Report No.: NEI-FCCP-3-1310C077 Page 182 of 273 Neutron Engineering Inc. EUT: WLAN Module Model Name : T77H479.00 Temperature: 25°C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 2/TX N20 Mode/ CH52, CH56 , CH64 – ANT 2 Channel of Worst Data: CH52 The max. radio frequency power in any 1000kHz bandwidth outside the frequency band The max. radio frequency power in any 1000kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 5148.00 -44.02 5370.80 -44.12 Limit: -27 dBm/1MHz Result:PASS Measurement method: S.A Read value+Ant gain+cable loss Report No.: NEI-FCCP-3-1310C077 Page 183 of 273 Neutron Engineering Inc. TX mode CH52 TX mode CH64 Report No.: NEI-FCCP-3-1310C077 Page 184 of 273 Neutron Engineering Inc. EUT: WLAN Module Model Name : T77H479.00 Temperature: 25°C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 2/TX N40 Mode/ CH64, CH62 –ANT 1 Channel of Worst Data: CH54 The max. radio frequency power in any 1000kHz bandwidth outside the frequency band The max. radio frequency power in any 1000kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 5130.80 -45.24 5354.80 -33.43 Limit: -27 dBm/1MHz Result:PASS Measurement method: S.A Read value+Ant gain+cable loss Report No.: NEI-FCCP-3-1310C077 Page 185 of 273 Neutron Engineering Inc. TX mode CH54 TX mode CH62 Report No.: NEI-FCCP-3-1310C077 Page 186 of 273 Neutron Engineering Inc. EUT: WLAN Module Model Name : T77H479.00 Temperature: 25°C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 2/TX N40 Mode/ CH64, CH62 –ANT 2 Channel of Worst Data: CH54 The max. radio frequency power in any 1000kHz bandwidth outside the frequency band The max. radio frequency power in any 1000kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 5130.00 -43.72 5352.80 -33.77 Limit: -27 dBm/1MHz Result:PASS Measurement method: S.A Read value+Ant gain+cable loss Report No.: NEI-FCCP-3-1310C077 Page 187 of 273 Neutron Engineering Inc. TX mode CH54 TX mode CH62 Report No.: NEI-FCCP-3-1310C077 Page 188 of 273 Neutron Engineering Inc. EUT: WLAN Module Model Name : T77H479.00 Temperature: 25°C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 3/TX A Mode/ CH100, CH116 , CH140 – ANT 1 Channel of Worst Data: CH140 The max. radio frequency power in any 1000kHz bandwidth outside the frequency band The max. radio frequency power in any 1000kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 5467.20 -34.43 5726.40 -32.75 Limit: -27 dBm/1MHz Result:PASS Measurement method: S.A Read value+Ant gain+cable loss Report No.: NEI-FCCP-3-1310C077 Page 189 of 273 Neutron Engineering Inc. TX mode CH100 TX mode CH140 Report No.: NEI-FCCP-3-1310C077 Page 190 of 273 Neutron Engineering Inc. EUT: WLAN Module Model Name : T77H479.00 Temperature: 25°C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 3/TX A Mode/ CH100, CH116 , CH140 – ANT 2 Channel of Worst Data: CH140 The max. radio frequency power in any 1000kHz bandwidth outside the frequency band The max. radio frequency power in any 1000kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 5467.20 -33.42 5725.00 -34.17 Limit: -27 dBm/1MHz Result:PASS Measurement method: S.A Read value+Ant gain+cable loss Report No.: NEI-FCCP-3-1310C077 Page 191 of 273 Neutron Engineering Inc. TX mode CH100 TX mode CH140 Report No.: NEI-FCCP-3-1310C077 Page 192 of 273 Neutron Engineering Inc. EUT: WLAN Module Model Name : T77H479.00 Temperature: 25°C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 3/TX N20 Mode/ CH100, CH116 , CH140 – ANT 1 Channel of Worst Data: CH140 The max. radio frequency power in any 1000kHz bandwidth outside the frequency band The max. radio frequency power in any 1000kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 5447.60 -48.19 5751.60 -48.41 Limit: -27 dBm/1MHz Result:PASS Measurement method: S.A Read value+Ant gain+cable loss Report No.: NEI-FCCP-3-1310C077 Page 193 of 273 Neutron Engineering Inc. TX mode CH100 TX mode CH140 Report No.: NEI-FCCP-3-1310C077 Page 194 of 273 Neutron Engineering Inc. EUT: WLAN Module Model Name : T77H479.00 Temperature: 25°C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 3/TX N20 Mode/ CH100, CH116 , CH140 – ANT 2 Channel of Worst Data: CH140 The max. radio frequency power in any 1000kHz bandwidth outside the frequency band The max. radio frequency power in any 1000kHz bandwidth within the frequency band. FREQUENCY(MHz) POWER(dBm) FREQUENCY(MHz) POWER(dBm) 5448.40 -48.27 5751.60 -47.12 Limit: -27 dBm/1MHz Result:PASS Measurement method: S.A Read value+Ant gain+cable loss Report No.: NEI-FCCP-3-1310C077 Page 195 of 273 Neutron Engineering Inc. TX mode CH100 TX mode CH140 Report No.: NEI-FCCP-3-1310C077 Page 196 of 273 Neutron Engineering Inc. EUT: WLAN Module Model Name : T77H479.00 Temperature: 25°C Relative Humidity: 58 % Test Voltage: AC 120V/60Hz Test Mode : Band 3/TX N40 Mode/ CH102, CH110,CH134 – ANT 1 Channel of Worst Data: CH102 The max. radio frequency power in any 1000kHz bandwidth outside the frequency band The max. radio fre…
Text truncated - open the document above for the full version.
Neutron Engineering Inc. Report No.: NEI-FCCP-4-1310C077 Page 1 of 29 FCC DFS Test Report Issued Date : Nov. 15, 2013 Project No. : 1310C077 Equipment : WLAN Module Model Name : T77H479.00 Applicant : CyberTAN Technology, Inc. Address : 99 Park Avenue lll,Science park, Hsinchu 308 Taiwan ,R.O.C Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 16, 2013 Date of Test: Oct. 16, 2013 ~ Nov. 14, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-4-1310C077 Page 2 of 29 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) o f U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-4-1310C077 Page 3 of 29 Table of Contents Page 1 . CERTIFICATION 5 2 . EUT INFORMATION 6 2.1 EUT SPECIFICATION TABLE 6 2.4 EUT MAXIMUM AND MINIMUM E.I.R.P. POWER 7 3 . U-NII DFS RULE REQUIREMENTS 8 3.1 WORKING MODES AND REQUIRED TEST ITEMS 8 3.2 TEST LIMITS AND RADAR SIGNAL PARAMETERS 9 4 . TEST INSTRUMENTS 11 5 . EMC EMISSION TEST 12 5.1 DFS MEASUREMENT SYSTEM: 12 5.2 CALIBRATION OF DFS DETECTION THRESHOLD LEVEL: 14 5.3 DEVIATION FROM TEST STANDARD 14 6 . TEST RESULTS 15 6.1 SUMMARY OF TEST RESULT 15 6.2.1 TEST MODE: DEVICE OPERATING IN SLAVE MODE. 16 6.2.2 DFS DETECTION THRESHOLD 16 6.2.3 CHANNEL CLOSING TRANSMISSION AND CHANNEL MOVE TIME WLAN TRAFFIC 17 7. TEST SETUP PHOTOS 29 Neutron Engineering Inc. Report No.: NEI-FCCP-4-1310C077 Page 4 of 29 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-4-1310C077 Original Issue. Nov. 15, 2013 Neutron Engineering Inc. Report No.: NEI-FCCP-4-1310C077 Page 5 of 29 1. CERTIFICATION Equipment : WLAN Module Trade Name : CyberTAN Technology Model Name. : T77H479.00 Applicant : CyberTAN Technology, Inc. Manufacturer : CyberTAN Technology, Inc. Address : 99 Park Avenue lll,Science park, Hsinchu 308 Taiwan ,R.O.C Factory : CyberTAN Technology, Inc. Address : 99 Park Avenue lll,Science park, Hsinchu 308 Taiwan ,R.O.C Date of Test: : Oct. 16, 2013 ~ Nov. 14, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part 15, Subpart E (Section 15.407) FCC 06-96 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-4-1310C077) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-4-1310C077 Page 6 of 29 2. EUT INFORMATION 2.1 EUT SPECIFICATION TABLE Table 1: Specification of EUT Product name WLAN Module Brand Name CyberTAN Technology Model T77H479.00 FCC ID N89-WU322HS Software Version V3.0 Firmware Version 025 Operational Mode Slave Operating Frequency Range 5250~5350&5470~5725 Modulation OFDM . Note: This device was functioned as a □Master ■Slave device without during the DFS 2.2 DESCRIPTION OF AVAILABLE ANTEN…
Text truncated - open the document above for the full version.
No.3 Jinshagang 1st Rd, Shixia, Dalang · China
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 3 | 15E | 5.50 GHz - 5.70 GHz | 38.00 mW |
