N8N-DLPDONGLEDLP� Interactive Projector Communication Dongle

LSD SCIENCE & TECHNOLOGY CO., LTD. 利尔达科技有限公司 WWW.LIERDA.COM Address: Lierda Building, 425 Dengyun Road, Hangzhou Tel: +86-571-88256222 Fax: +86-571-89908543 LSD SCIENCE & TECHNOLOGY CO., LTD. DLP® Interactive Projector Communication Dongle User Manual Product Name:DLP® Interactive Projector Communication Dongle P/N: DLP1S001/DLP2C001 Version: V1.0 Installing the Dongle: To install the dongle, plug the dongle into the 10 pin socket of DLP® Interactive Projector. Please see the LSD SCIENCE & TECHNOLOGY CO., LTD. 利尔达科技有限公司 WWW.LIERDA.COM Address: Lierda Building, 425 Dengyun Road, Hangzhou Tel: +86-571-88256222 Fax: +86-571-89908543 projector operation manual for details. Enclosure design drawing: -Horizontal version: -Vertical version: Synchronizing the Dongle with Interactivity Devices: Please see the projector operation manual for details. LSD SCIENCE & TECHNOLOGY CO., LTD. 利尔达科技有限公司 WWW.LIERDA.COM Address: Lierda Building, 425 Dengyun Road, Hangzhou Tel: +86-571-88256222 Fax: +86-571-89908543 LED Status Signals Defination: LED Behavior Status Blinks blue every 1.5 seconds Wireless channel search OR Dongle is synchronizing with interactivity device(s) Blinks blue every 3 seconds Wireless channel selected to use for synchronization with interactivity device(s) Blinks blue every 6 seconds Dongle successfully synchronized with interactivity device(s) Blinks blue every 10 seconds Wireless channel selected to use for synchronization with interactivity device(s) is noisy LSD SCIENCE & TECHNOLOGY CO., LTD. 利尔达科技有限公司 WWW.LIERDA.COM Address: Lierda Building, 425 Dengyun Road, Hangzhou Tel: +86-571-88256222 Fax: +86-571-89908543 Federal Communications Commission (FCC) Interference Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

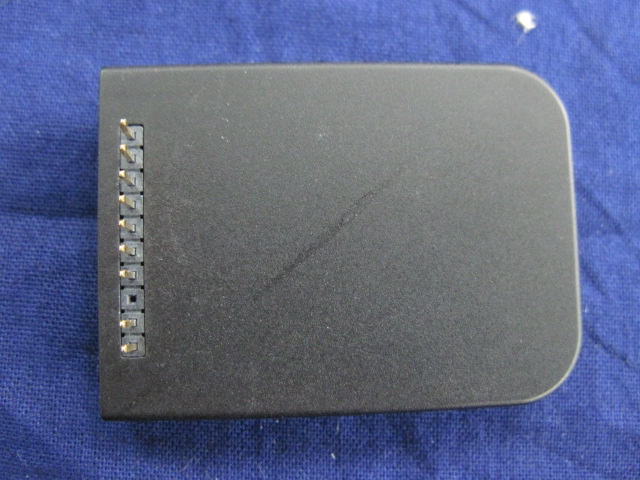

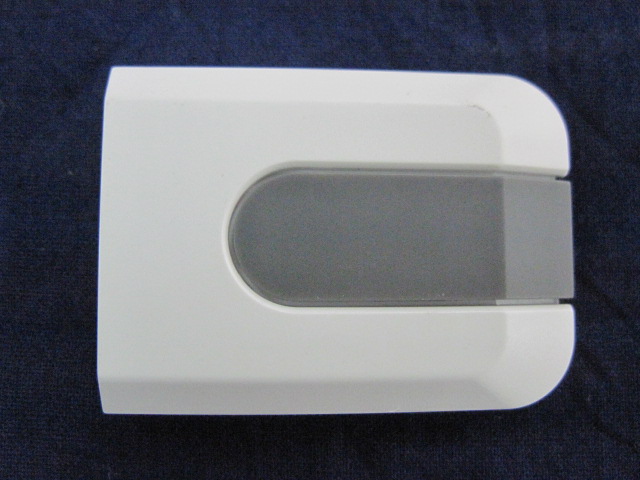

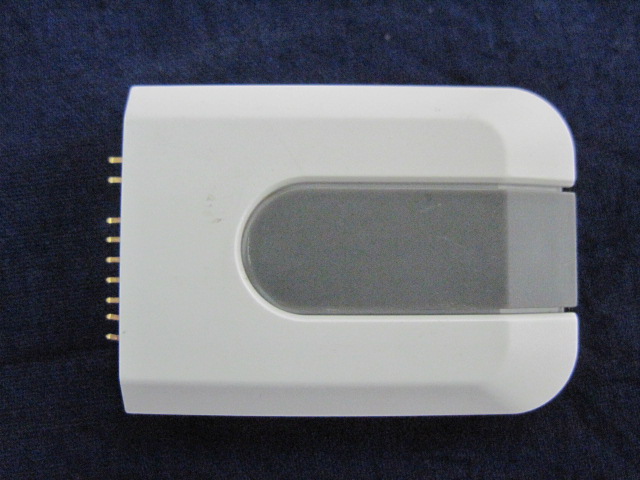

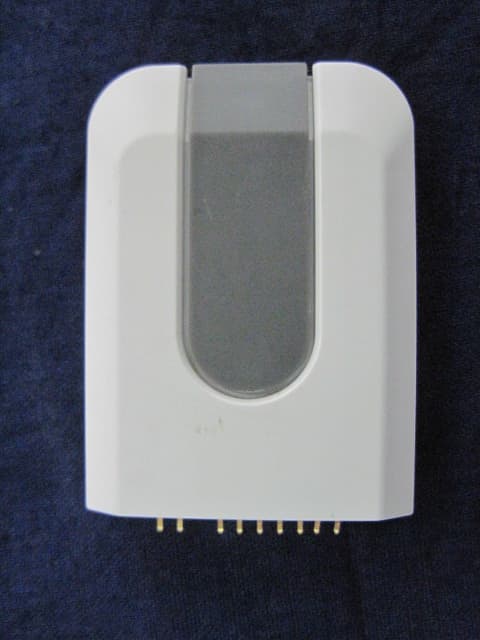

1. EUT Photograph (1) EUT Photo (Vertical) (2) EUT Photo (Vertical) Report No： 124S056R-RF-US-P06V01 Page: 2 of 2 (3) EUT Photo (Horizontal) (4) EUT Photo (Horizontal)

DLP®InteractiveProjectorCommunicationDongle ModelNo.:DLP2C001 FCCID:N8NDLPDONGLE DLP®InteractiveProjectorCommunicationDongle ModelNo.:DLP1S001 FCCID:N8NDLPDONGLE Label location

(1) EUT Photo (Vertical) (2) EUT Photo (Vertical) (3) EUT Photo (Horizontal) (4) EUT Photo (Horizontal) (5) EUT Photo

RF Exposure Evaluation Declaration Product Name : DLP® Interactive Projector Communication Dongle Model No. : DLP1S001/DLP2C001 FCC ID : N8N-DLPDONGLE Applicant : LSD Science & Technology Co., Ltd. Address : 11F, Lierda Building, No.425 Dengyun Road, Hangzhou, China(310011) Date of Receipt : 25/04/2012 Issued Date : 16/05/2012 Report No. : 124S056R-RF-US Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No.: 124S056R-RF-US Page: 2 of 5 Test Report Certification Issued Date : 16/05/2012 Report No. : 124S056R-RF-US Product Name : DLP® Interactive Projector Communication Dongle Applicant : LSD Science & Technology Co., Ltd. Address : 11F, Lierda Building, No.425 Dengyun Road, Hangzhou, China(310011) Manufacturer : Zhejiang Xianxin Science & Technology Co., Ltd. Address : ZHEN ZHU BAN DAO, QIANDAOHU TOWN, CHUN'AN COUNTY, ZHEJIANG, CHINA Model No. : DLP1S001/DLP2C001 FCC ID : N8N-DLPDONGLE EUT Voltage : DC: 5V Trade Name : LSD Applicable Standard : FCC OET 65 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : (Engineering Manger: Marlin Chen) Report No.: 124S056R-RF-US Page: 3 of 5 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No.: 124S056R-RF-US Page: 4 of 5 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 124S056R-RF-US Page: 5 of 5 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : DLP® Interactive Projector Communication Dongle Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Gain: Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.97dBi in logarithm scale. Output Power into Antenna & RF Exposure Evaluation Distance: Frequency Band (MHz) Maximum Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 2401.249725 – 2481.229965 MHz 1.2106 0.000601

Test Report FCC Part15.249 Product Name : DLP® Interactive Projector Communication Dongle Model No. : DLP1S001/DLP2C001 FCC ID : N8N-DLPDONGLE Applicant : LSD Science & Technology Co., Ltd. Address : 11F, Lierda Building, No.425 Dengyun Road, Hangzhou, China(310011) Date of Receipt : 25/04/2012 Test Date : 26/04/2012 ~ 08/05/2012 Issued Date : 15/05/2012 Report No. : 124S056R-RF-US-P06V01 Report Version : V2.0 Report No： 124S056R-RF-US-P06V01 Page: 2 of 35 Test Report Certification Issued Date : 15/05/2012 Report No. : 124S056R-RF-US-P06V01 Product Name : DLP® Interactive Projector Communication Dongle Applicant : LSD Science & Technology Co., Ltd. Address : 11F, Lierda Building, No.425 Dengyun Road, Hangzhou, China(310011) Manufacturer : Zhejiang Xianxin Science & Technology Co., Ltd. Address : ZHEN ZHU BAN DAO, QIANDAOHU TOWN, CHUN'AN COUNTY, ZHEJIANG, CHINA Model No. : DLP1S001/DLP2C001 FCC ID : N8N-DLPDONGLE EUT Voltage : DC: 5V Trade Name : LSD Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2008 ANSI C63.4: 2009 Test Result : Complied Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Jame Yuan) Approved By : The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF, CNAS or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 124S056R-RF-US-P06V01 Page: 3 of 35 (Engineering Manager: Marlin Chen) Report No： 124S056R-RF-US-P06V01 Page: 4 of 35 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site :http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI China :CNAS Report No： 124S056R-RF-US-P06V01 Page: 5 of 35 TABLE OF CONTENTS Description Page 1. General Information....................................................................................................6 1.1. EUT Description .........................................................................................................6 1.2. Mode of Operation .....................................................................................................8 1.3. Tested System Details................................................................................................9 1.4. Configuration of Tested System ...............................................................................10 1.5. EUT Exercise Software ............................................................................................10 2. Technical Test...........................................................................................................12 2.1. Summary of Test Result ...........................................................................................12 2.2. Test Environment.....................................................................................................13 3. Conducted Emission................................................................................................14 3.1. Test Equipment ........................................................................................................14 3.2. Test Setup ................................................................................................................14 3.3. Limit..........................................................................................................................15 3.4. Test Procedure.........................................................................................................15 3.5. Uncertainty ...............................................................................................................15 3.6. Test Result...............................................................................................................15 4. Radiated Emission...................................................................................................16 4.1. Test Equipment ........................................................................................................16 4.2. Test Setup ................................................................................................................17 4.3. Limit..........................................................................................................................18 4.4. T…

Text truncated - open the document above for the full version.

Test Setup Photograph Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for Below 1GHz Description: Radiated Emission Test Setup for Above 1GHz Description: Radiated Emission Test Setup for Above 18GHz
