N8WLUXTEKRF Lamp

SUPER TREND LIGHTING LTD. Room304-306, 3/F., Hewlett Centre, 54 Hoi Yuen Road, Kwun Tong, Kln.,Hong Kong. Tel: (852) 2345 2772 (6 Lines) Fax: (852) 2357 4860, 2345 2871 E-mail Address: [email protected] Web Site: http://www.stll.com DIN EN ISO 9002 ZN: 09 100 99401 R INSTRUCTIONS n Handling l Never drop or strike the lamp] l The lamp should not be disassembled or modified. l Never hold the glass tube by hand when installing. n Fixture l Never use with a dimming circuit or an emergency light fixture. l Never use with a closed fixture such as the one shown below. n Electric Source l Use only at the rated voltage indicated on the lamp. If the source voltage rises by 6%, the lamp life may be shortened. If the source voltage drops by 10%,the lamp may not light up. The light output will be lower even after it can light up. l Never use with a diroot ourrent. Otherwise, the lamp will stop working. n Ambience l Use indoors at a room temperature ranging from 5 to 35 l Never use where water may drop on the lamp. Never use in a humid atmosphere. This is extremely dangerous because it may cause an electric leak. l Never use in front of or over a room heater. Do not switch on and off frequently. Switching on and off may shorten the lamp service life. l Make sure that the lamp is firmly screwed into the socket. Otherwise, the lamp may drop or result in an electric disconnection. n Notes l It takes the lamp about 1 second before it begins to light up. Output rapidly increases and the light fully lights within 30 seconds. The color of the light stabilizes in about 20 minutes. l In a cold room below 0, it may not light up or take even more time to light up. The light output will also be low even after the lamp performance stabilizes. l The lamp may produce interference in a radio, or interfer with the operation of a wireless remote control. Keep the lamp away from radio, and the electric apparatus (TV, VTR, audio products, airconditioner ) that are equipped with wireless remote control. l When the lamp is switched on first, darkening and specks of mercury may be observed around the tubeend (the base-side and top ends). But, this is only a normal phenomenon of the lamp, and does not indicate a malfunction. l To prevent risk of a burn, never touch with bare hands or face while operating. SUPER TREND LIGHTING LTD. Room304-306, 3/F., Hewlett Centre, 54 Hoi Yuen Road, Kwun Tong, Kln.,Hong Kong. Tel: (852) 2345 2772 (6 Lines) Fax: (852) 2357 4860, 2345 2871 E-mail Address: [email protected] Web Site: http://www.stll.com DIN EN ISO 9002 ZN: 09 100 99401 R n important l A short circuit fuse is built into this lamp. This prevents serious accidents from occurring if the lamp is used incorrectly. l No internal parts are available form the lamp manufacturer for repair. If damaged, do not attempt to disassemble or repair the lamp. Serious accidents may occur if a repaired lamp is installed. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 18 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not install and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC ID: N8WLUXTEK This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received Including interference that may cause undesired operation.

A 123 4 5678 A B C D E FF D E B C Resp. ModificationDate Date Name Name Application Field Allowance Surface Edited Check Norm OriginRepl. ForRepl. by Scale Weight (Material, Semi-finished Product) (Raw Part No.) (Model or Die No.) Title Drawing Number Page Pg. 01.07.98 15W, 20W, 25W ~120V/60Hz SUPER TREND LIGHTING LTD. FCC/ST-618 Luxtek TM ~120V/60Hz F C1 L1 C2 D3 D4 C3 D1 D2 C4 R2 D6 D5 R4 T2 R6 D8 R5 RK L2 C6 R1 C5 R3 T1 D7 C8 C7 PTC FLUORESCENT TUBE

Federal Communications CommissionDate: May 25, 2000 Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD. 21046 Attention: Authorization and Evaluation Division Subject: Application for Certification on ENERGY SAVING LAMPS (EUT) with FCC ID: N8WLUXTEK Dear Sir: We would like to apply for FCC certification of the EUT. Enclosed please find all required documents of the EUT listed below: 1. Exhibit 1 : The Authorization Letter signed by the applicant 2. Exhibit 2 : The FCC Label of EUT 3. Exhibit 3 : The modification List Letter signed by the applicant 4. Exhibit 4 : The RFI/EMI Test Report issued by ADT Corp. 5. Exhibit 5 : The photographs of EUT 6. Exhibit 6 : The Block Diagram & Schematic Diagram of EUT 7. Exhibit 7 : The User’s Manual of EUT Please review the information we submitted and issue us a grant for the EUT. If you have any questions or comments, please do not hesitate to contact Mr. Mike Su of ADT Lab. at fax no.: 886-2-2602-2943 or e-mail: [email protected] Sincerely yours, Cc. Mr. Harris W. Lai / Advance Data Technology Corporation

(Fig. 1) FCC ID: N8WLUXTEK SAMPLE OF FCC LABEL FCC ID: N8WLUXTEK The label will be permanently affixed at a conspicuous location on the device. (Please refer to Fig. 1) Note: Due to limited space, the following FCC Statements are printed on the User's Manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label

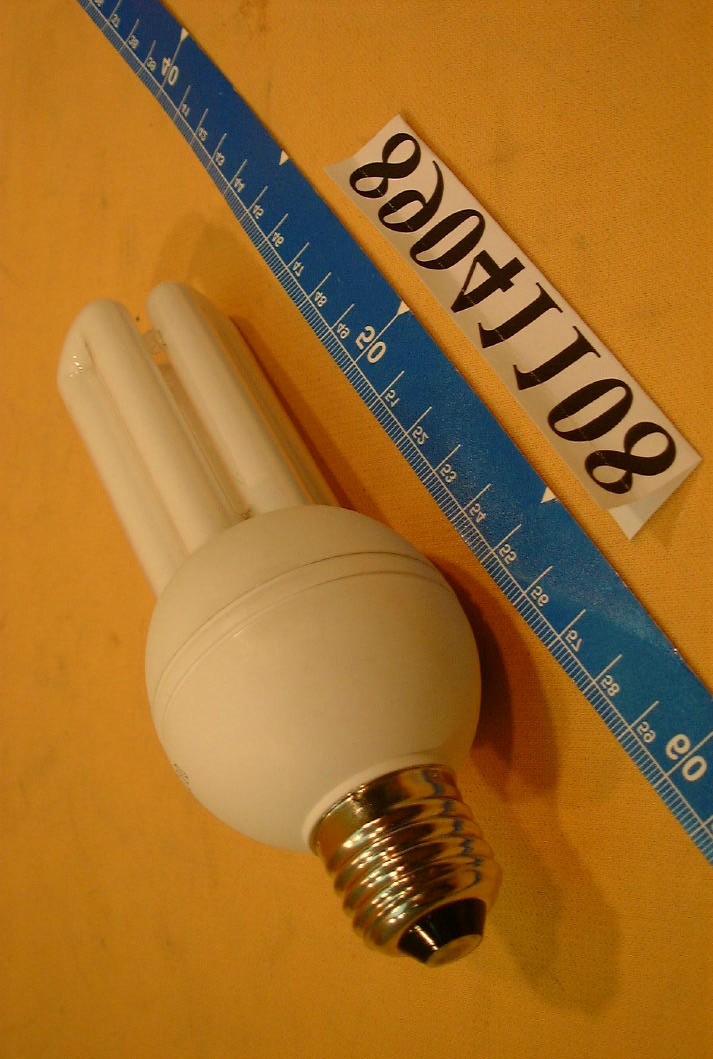

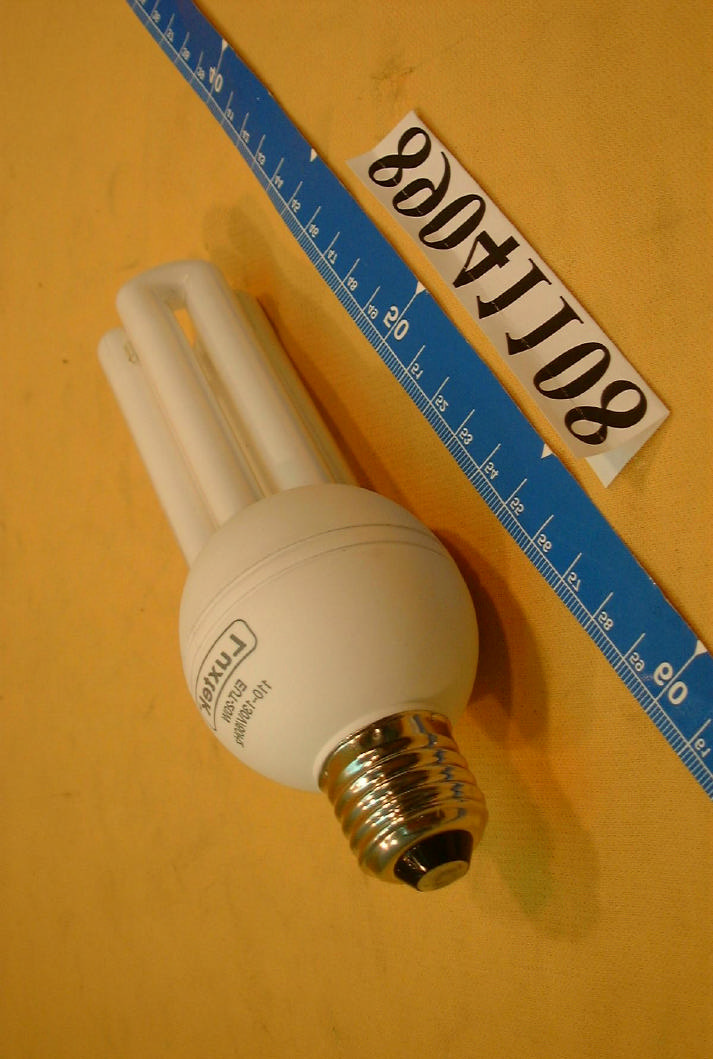

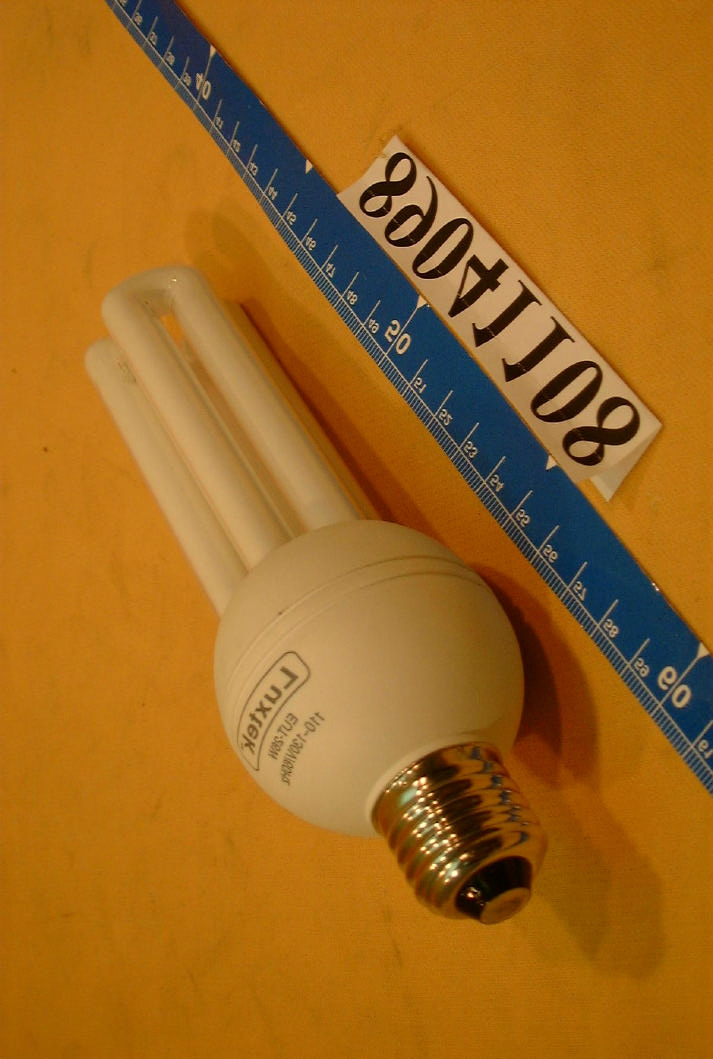

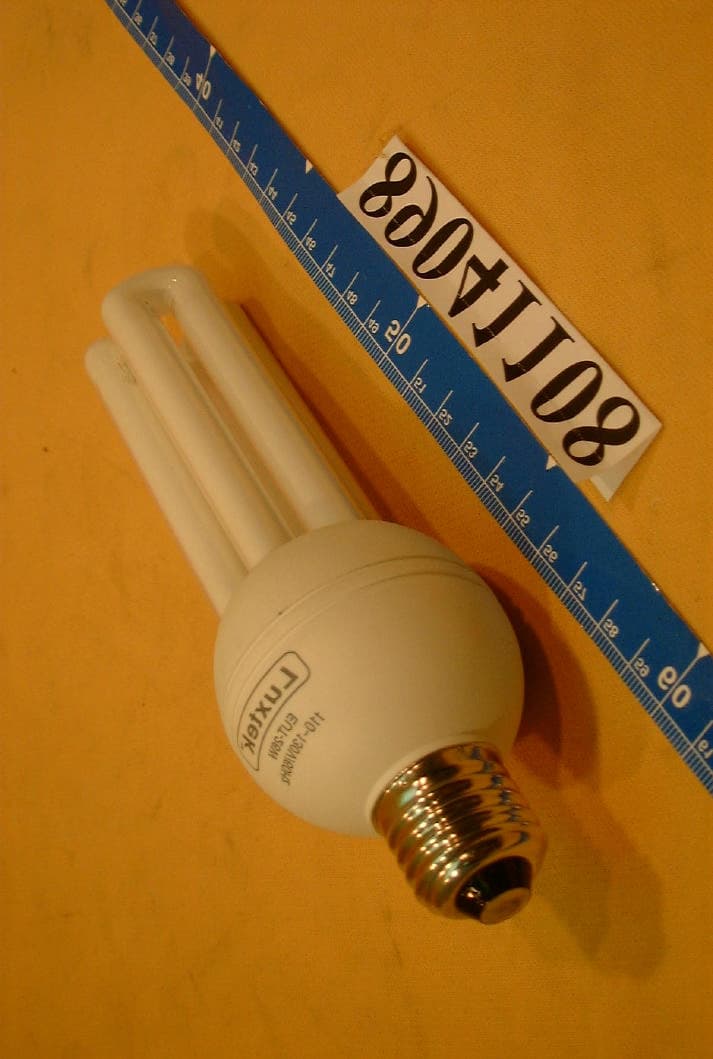

(Photo 1) FCC ID: N8WLUXTEK (Photo 2) FCC ID: N8WLUXTEK (Photo 3) FCC ID: N8WLUXTEK (Photo 4) FCC ID: N8WLUXTEK (Photo 5) FCC ID: N8WLUXTEK (Photo 6) FCC ID: N8WLUXTEK (Photo 7) FCC ID: N8WLUXTEK (Photo 8) FCC ID: N8WLUXTEK (Photo 9) FCC ID: N8WLUXTEK

SUPER TREND LIGHTING LTD. Room304-306, 3/F., Hewlett Centre, 54 Hoi Yuen Road, Kwun Tong, Kln.,Hong Kong. Tel: (852) 2345 2772 (6 Lines) Fax: (852) 2357 4860, 2345 2871 E-mail Address: [email protected] Web Site: http://www.stll.com ] 1 / 1 ] DIN EN ISO 9002 ZN: 09 100 99401 R Federal Communications Commission Date: May 25, 2000 Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD. 21046 Attention: Authorization and Evaluation Division Subject: RFI related modifications incorporated into unit with ENERGY SAVING LAMPS - FCC ID: N8WLUXTEK Dear Sirs: This letter serves as our declaration that no modifications were implemented in the sample submitted for testing. We further declare that the same will be implemented into all production units to enhance compliance of the units to FCC limits. If you have any further questions or comments regarding the above, please don't hesitate to contact Mr. Mike Su of ADT Lab. at fax no.: 886-2-6022943 or e-mail: [email protected] Sincerely yours, Cc. Mr Harris W. Lai - Advance Data Technology Corporation

ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89041108 Page 1 FCC ID: N8WLUXTEK EMC TEST REPORT REPORT NO.: F89041108 MODEL NO.: EUT-15W, EUT-20W, EUT-25W DATE OF TEST: April 14, 2000 MULTIPLE LISTING MODELS: Please refer to pg. 4. PREPARED FOR : SUPER TREND LIGHTING LTD. ADDRESS : ROOM 304-306, HEWLETT CENTRE, 54 HOI YUEN ROAD, KWUN TONG, KLN., HONG KONG. PREPARED BY:ADVANCE DATA TECHNOLOGY CORPORATION 11F, NO.1, SEC.4, NAN-KING EAST RD., TAIPEI, TAIWAN, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of our laboratory. It should not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. government. The test result in the report only applies to the tested sample. Accredited Laboratory ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89041108 Page 2 FCC ID: N8WLUXTEK TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION.................................................................................................4 2.1GENERAL DESCRIPTION OF EUT.........................................................................4 2.2DESCRIPTION OF SUPPORT UNITS.....................................................................5 2.3TEST METHODOLOGY AND CONFIGURATION................................................5 3.TEST INSTRUMENTS..........................................................................................................6 3.1TEST INSTRUMENTS (EMISSION)........................................................................6 3.2LIMITS OF CONDUCTED AND RADIATED EMISSION......................................7 4.TEST RESULTS (EMISSION)............................................................................................8 4.1RADIO DISTURBANCE...........................................................................................8 4.2EUT OPERATION CONDITION..............................................................................8 4.3TEST DATA OF CONDUCTED EMISSION............................................................9 4.4TEST DATA OF RADIATED EMISSION...............................................................11 5.PHOTOGRAPHS OF THE TEST CONFIGURATION WITH MINIMUM MARGIN........13 6.APPENDIX - INFORMATION OF THE TESTING LABORATORY................................15 ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89041108 Page 3 FCC ID: N8WLUXTEK 1. CERTIFICATION Issue Date: April 17, 2000 Product:ENERGY SAVING LAMPS Trade Name:LUXTEK Model No.:EUT-15W, EUT-20W, EUT-25W Applicant:SUPERTREND TREND LIGHTING LTD. Standard:FCC Part 18 (RF Lighting device) We hereby certify that one sample of the designation has been tested in our facility on April 14, 2000. The test record, data evaluation and Equipment Under Test (EUT) configurations represent herein are true and accurate representation of the measurements of the sample's EMC characteristics under the conditions herein specified. The test results show that the EUT as described in this report is in compliance with the Class B limits of conducted and radiated emission of applicable standards. ADVANCE DATA TECHNOLOGY CORPORATION Accredited Laboratory ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89041108 Page 4 FCC ID: N8WLUXTEK 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product:ENERGY SAVING LAMPS Model No.:EUT-15W, EUT-20W, EUT-25W Power Rating : 110-130Vac, 60 Hz Model: EUT-15W (15W) Model: EUT-20W (20W) Model: EUT-25W (25W) Note:The EUT is a Energy Saving Lamp which has the following features: l Over-current protector l Radio-interference suppressed l High Efficiency - upto 80% energy saving l Ten times lamp life of incandescence l Flicker-free instant start and operation l Nominal operating frequency: on/over 40 kHz The EUT was pretested with the following model names which differ in their wattage and the outer appearance: Model NameWattage (W) EUT-15W, EUS-15W, EB-15W, EG-15W, EU-15W, EF-15W, EC-15W 15 EUT-20W, EUS-20W, EB-20W, EG-20W, EU-20W, EF-20W, EC-20W 20 EUT-25W, EB-25W, EG-25W, EU-25WEF-25W, EC-25W 25 From the above models, model: EUT-25W had the highest emission levels and therefore the data of only this model is recorded in this report. For more detailed features description, please refer to Manufacturer’s Specification or User's Manual. ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89041108 Page 5 FCC ID: N8WLUXTEK 2.2 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit. 2.3 TEST METHODOLOGY AND CONFIGURATION Both conducted and radiated testing were performed according to the procedures in ANSI C63.4: 1992. Radiated testing was performed at an antenna to EUT distance of 3 m on an open area test site. Please refer to the photos of test configuration in Item 5. ADVANCE DATA TECHNOLOGY CORPORATION REPORT NO.: F89041108 Page 6 FCC ID: N8WLUXTEK 3. TEST INSTRUMENTS 3.1 TEST INSTRUMENTS (EMISSION) CONDUCTED EMISSION MEASUREMENT Description & ManufacturerModel No.Serial No.Calibrated Until ROHDE & SCHWARZ Test Receiver ESHS30828109/007July 13, 2000 ROHDE & SCHWARZ Artificial Mains Network ESH3-Z5839135/006July 7, 2000 EMCO-L.I.S.N.3825/29204-1964July 7, 2000 Shielded RoomSite 2ADT-C02NA Note: 1. The measurement uncertainty is less than +/- 2.6dB, which is calculated as per NAMAS document NIS81. 2. The calibration interval of the above test instruments is 12 months. And the calibrations are traceable to NML/ROC and NIST/USA. RADIATED EMISSION MEASUREMENT Description & ManufacturerModel No.Serial No.Calibrated Until HP Spectrum Analyzer8590L3544A01042April 6, 2001 HP Preamplifier8447D2944A08313Sept. 19, 2000 HP Preamplifier8347A3307A01088Aug. 30, 2000 HP Preamplifier8449B3008A01201Dec. 14, 2000 ROHDE & SCHWARZ TEST RECEIVER ESVS 30841977/008Oct. 5, 2000 SCHWARZBECK Tu…
