N96-U1-2HOUVWElectronic Ballast

E LECTRONIC B ALLAST I NSTALLATION I NSTRUCTION Model : U1-2HOUVW CAUTIONARY NOTES: Do not use this equipment for other than intended use. 1. Verify that the line voltage matches the ballast voltage. 2. Installation to be made by a qualified person in accordance with applicable codes. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. Features z 120V- 230V AC input z High power factor: > 0.95 z 2 lamps in parallel. z Flexibility in different size of HO lamp. z Class P z Sound rating A z UL, cUL recognized. File E177888 z Indoor use. Lamp type & power consumption : Before installation 1. Disconnect line voltage before installing or replacing lamp. t be grounded. . Please connect the lamp with ballast according to the label on the ballast. Ballast only the same type lamps specified on the product label. 2. Ballast case mus 3. Place the ballast to a stable support and fix it. Installation 1 supports 2. Connect the AC power line. Connect the black wire to L terminal and white wire to N terminal of the AC source. 3. The both connection of black and white power wire must be fully insulated. S UNPARK E LECTRONICS C ORP .

ELECTRONIC BALLAST INSTALLATION INSTRUCTION SUNPARK ELECTRONICS CORP. Grantee Code: N96 FCC ID: N96-Ul-2HOUVW Model Nr.: Ul-2HOUVW Circuit Block Diagram EMI Filter AC rectifier Power Factor Controller Lamp Lamp Driver (46 +/-1 K Hz) Open , EoL Protection AC Main input

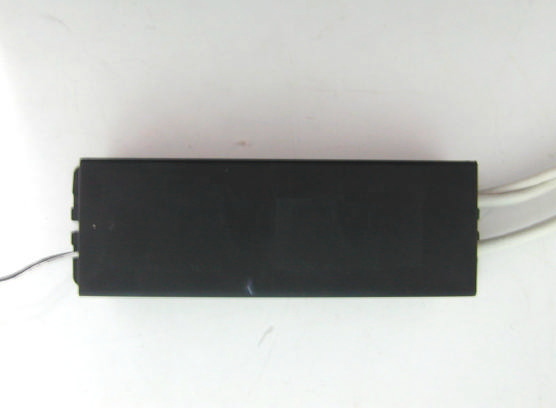

NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 24/29 Photo # 1

NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 29/29 -- FCC ID label -- The remained portion of label statement required by FCC is attached in the user’s manual. -- Location of Label on EUT -- 2.5 mm 21 mm FCC ID:N96-U1-2HOUVW

NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 25/29 Photo # 2 NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 26/29 Photo # 3

1.5 Product Descriptions(Application/Features/Specification) ISM Equipment Category : RF Lighting Devices(Ballast) Norminal Operating Frequency : 46 +/- 1 KHz Electrical Power : 120V-230V AC input Power Cord : non-shielded type wire More details of EUT technical specification, please refer to the User's Manual.

NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 2/29 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations , inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 3/29 Table of Contents Page 1 General Information 5 1.1 Applicant 5 1.2 Manufacturer 5 1.3 Equipment Under Tested 5 1.4 OEM Brand/Model 5 1.5 Product Description 5 1.6 Products Covered 5 1.7 Model Difference (Series, Versions, if any) 5 1.8 EUT Modifications 5 1.9 Photos of EUT 5 2 RFI Emissions Measurement 6 2.1 Test Facility 6 2.2 Standard Compliance 6 2.3 Test Methodology 6 2.4 Deviations from Standard Test Method 6 2.5 Sample(s) Tested 6 2.6 Measurement Instruments 6 2.7 Environmental Condition 6 2.8 Tested System Set-Up/Configuration Details 6 Table -1 Equipments Used in Tested System 7 Diagram -1 Block diagram showing the configuration of system tested 8 Table - 2 Equipments Used in Tested System 9 Table - 3 Information of Interface Cable 9 2.9 Max.(Worst Case) RF Emission Evaluation 10 2.10 EUT Operation 10 3 Justification 11 3.1 Frequency Range of Measurement 11 3.1.1 Power Line Conducted Emission 11 3.1.2 Radiated Emission 11 3.2 Limitations 11 3.2.1 Power Line Conducted Emission Limits 11 3.2.2 Radiated Emission Limits 11 3.3 Measurement Justification 13 3.3.1 Conducted Emission 13 3.3.2 Radiated Emission 13 3.4 Measurement Data 13 Table 4 Conducted Emission Data 14 Table 5 Radiated Emission Data 16 NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 4/29 Table of Contents Page 4 Attachment 18 A. EUT Modification Description 19 B. EUT Test Photos 20 C. EUT Photos 23 D. User’s Manual 27 E. Product Labeling 28 NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 5/29 1. General Information 1.1 Applicant Name SUNPARK ELECTRONICS CORP. Address 6F-2, No.135, Sec.4, Pa-Teh Rd., Taipei, Taiwan, R.O.C. 1.2 Manufacturer Name N/A Address N/A 1.3 Equipment Under Tested Name: ELECTRONIC BALLAST Trade Name: SUNPARK Model No.: U1-2HOUVW 1.4 OEM Brand/Model (if applicable) OEM Brand(s)/Model(s) except the basic model in sub-clause 1.3 is(are) the follow(s): OEM Brand: STERIL-AIRE Model No.: N/A 1.5 Product Descriptions(Application/Features/Specification) ISM Equipment Category : RF Lighting Devices(Ballast) Norminal Operating Frequency : 46 +/- 1 KHz Electrical Power : 120V-230V AC input Power Cord : non-shielded type wire More details of EUT technical specification, please refer to the User's Manual. 1.6 Products Covered (if applicable) The sample tested including the following sub-system/module/accessory : Sub-system/ Module/ Accessory Model/Type No. Int. Inst./ Ext. Cont. N/A N/A N/A 1.7 Model Difference (Series, Versions, if any) Except the basic model no. (model designation of the sample tested in this test report), additional model no. covered is(are) : N/A 1.8 EUT Modifications (if applicable) Please refer to the Attachment – A. 1.9 Photos of EUT Please refer to the Attachment – C. NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 6/29 2. RFI Emissions Measurement 2.1Test Facility The test facilities used to collect the test data in this report located at No.132-1, Lane 329, Sec. 2, Palain Road, Shijr City, Taipei, Taiwan. A description of this test facilities is already on file with the FCC as registration number of 95335. 2.2 Standard Compliance The test Standard contained in this report relate only to the item(s) listed below : FCC Part 18 , Section 18.305(C) and 18.307(C) , Consumer Equipment Limits 2.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4 (1992) / MP-5 (1986). Radiated testing was performed at an antenna to EUT distance 1 meter by loop antenna used. Test procedures according to the technical standards of : FCC Rules Part 18, Subpart C. 2.4 Deviations from Standard Test Method FCC Part 15, Subpart B, Section 15.209 Radiated Emission Limits ; General Requirement is adopted 2.5 Sample(s) Tested The representative sample tested in this reports is(are): U1-2HOUVW Test results in this test report relate only to the sample(s) tested. 2.6 Measurement Instruments Valid measurement instruments used in this report refer to Table-1 enclosed. 2.7 Environmental Condition Temperature 25 Relative Humidity 57 2.8 Tested System Set-Up/Configuration Details The system was configured for testing in a typical fashion (as a user would normally use) or in-accordance with the operating configuration specified in the user's manual. A Block Diagram(please refer to the Diagram - 1) and Photos(please refer to the attachment - B) showing the set-up/configuration of system tested. In addition, Table-2 and Table-3 provid…

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 21/29 Conducted Measurement Photos NEUTRON EMC LAB. Report No.NEI- FCC-E-03105 22/29 Radiated Measurement Photos
