N9Z001A21Air Quality Sensor

RF Wireless Air Quality Sensor Model: 001A21 USER’S MANUAL Congratulations on your purchasing this New Air Quality Sensor. This unique product was designed for everyday use at home or office and it is a definite asset of great use. To fully benefit from all the features and understand the correct operation of this product, please read this manual thoroughly. MAIN FEATURES DESCRIPTION OF BUTTONS A. RED LED INDICATOR: blinks when RF transmitting. B. [MODE] BUTTON C. BATTERY DOOR D. STAND E. AC/DC ADAPTOR SOCKET F. [RESET] BUTTON G. SENSOR COVER (for cleaning) H. SENSOR LENS Functions of the wireless Air Quality sensor This Air Quality sensor is a precision instrument that displays Air Quality Index (which help to understand what local air quality means to health, and the table below shows the detailed information), color indicator, health level and comfortable face icon. And the device transmits the data continuously to the receiving unit to bring you the latest information. This product adopts wireless 433 MHz technology, which can transmit data at the maximum distance of 30 meters (100 feet) in an open area. Power supply The user can select battery supply (just for spare use), and/or the special adaptor for continuous power supply. For battery installation: 1. First pull the stand out of the device, and remove the battery door. 2. And then insert 4 AAA size batteries according to “+”, “-” polarity marks inside the battery compartment. 3. Close the battery door and install the stand To enable the continuous power supply: 1. First plug the adaptor into the socket at the bottom side of the device. 2. Plug the power adaptor into the electrical socket. Getting Started At power on, LCD full display for 3 seconds. Then the remote sensor will automatically transmit registration codes to the receiving unit, together with LED indicator blinking and the ) ) ) icon flashing. And the face icon, color indicator, AQI, and health level will be displayed on the LCD of the sensor unit. If the transmission is sucessful, the display of the receiving unit will show a new channel number, AQI, face icon, and color indicator. If not, you can also press and hold “MODE” button for 2 seconds to send the signal manually to the receiving unit. Installation of the Air Quality Sensor Locating the remote sensor in an open area can attain a maximum 30-meter transmission distance. Actual transmission distance can be reduced by interference from building, obstruction or a screen between the remote sensor and the receiving unit. The user can use the stand to enable the horizontal surface mounting. Note: In order to get good air convection, the front panel of the device should be cleared of obstructions. To reset the device The RESET button allows you to return all settings to factory set values. The button is required only when the device is not operating in a good way, such as in rare case of malfunction. Slide to open the battery door of the device, and use a pointer to press the RESET button. The device will be reset and all data will initiate with default values. Sensor cover In normal operation, the user cannot slide open the cover and doing so will have bad effects on the testing values. If the device operates with the lower sensitivity, please slide open the cover, and clean the lens with a clean swab and ethyl (denatured) alcohol. Do not use rubbing alcohol. Generally, the user just needs to clean the lens once a year. Battery replacement The device is equipped with the low battery detection. And when the low battery icon is displayed on the LCD, please replace the batteries as necessary. Note: In order to protect our environment, please dispose of the used batteries properly. Do not burn or bury them. And do not mix new and old batteries, as the latter may leak. Maintenance 1. In view of safe operation, alterations to this device are strictly prohibited. 2. Do not immerse the device into water. If the device comes in contact with water, dry it immediately with a soft lint-free cloth. 3. Do not clean the device with abrasive or corrosive compounds, which may scratch the plastic parts and corrode the electric circuit. 4. Do not subject the device to excessive force, shock, dust, temperature or humidity, which may result in malfunction, a shorter electronic life span, damaged batteries or distorted parts. 5. Do not temper with the device’s internal components, which will terminate the device’s warranty and may cause unnecessary damage. The device contains no user-serviceable parts. 6. Do not leave used-up batteries in the device (even leak- proof batteries) as they may corrode and release chemicals that may damage this product and also be dangerous to health. 7. This product is not to be used for medical purposes or for public information. Specifications AQI range:0~1023 Transmission range:30 meters (100 feet) in open area Adaptor:DC 6V, 300mA Battery:DC 1.5V size AAA x 4 pieces Note: During the electrostatic discharge, the device may malfunction. Please press the Reset button to return to normal operation. “Modifications not authorized by the manufacturer may void users authority to operate this device” Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does not cause harmful interference to ra…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

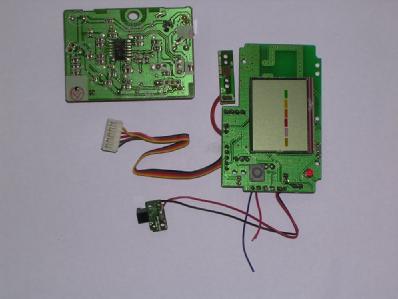

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Date: 2004-04-08 TEST REPORT Page 1 of 24 No.: HM150102 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香 港 標 準 及 檢 定 ㆗ 心 Hong Kong Standards and Testing Centre 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Ewig Industries Co., Ltd. Description of Samples: Model name: Air Quality Sensor Model no.: 001A21 Brand name: Ewig FCC ID: N9Z001A21 IC: 4351A-001A21 Date Samples Received: 2004-02-25 Date Tested: 2004-03-10 to 2003-03-11 Investigation Requested: FCC Part 15 Subpart C Conclusions: See the attached sheets for details Remarks: ---- Patrick Wong, EMC DAR Approved Signatory Date: 2004-04-08 TEST REPORT Page 2 of 24 No.: HM150102 香 港 標 準 及 檢 定 ㆗ 心 Hong Kong Standards and Testing Centre 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 24 Content Page 2-3 of 24 Conclusions Page 4 of 24 1.0 General Details 1.1 Test Laboratory Page 5 of 24 1.2 Applicant Details Page 5 of 24 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 6 of 24 Description of EUT operation 1.4 Date of Order Page 6 of 24 1.5 Submitted Samples Page 6 of 24 1.6 Test Duration Page 6 of 24 1.7 Country of Origin Page 6 of 24 1.8 Additional Information of EUT Page 7 of 24 2.0 Technical Details 2.1 Investigations Requested Page 8 of 24 2.2 Test Standards and Results Summary Page 8 of 24 3.0 Test Results 3.1 Emission Page 9-14 of 24 3.2 Bandwidth Measurement Page 15-16 of 24 Date: 2004-04-08 TEST REPORT Page 3 of 24 No.: HM150102 香 港 標 準 及 檢 定 ㆗ 心 Hong Kong Standards and Testing Centre 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 17 of 24 Appendix B Duty Cycle Correction During 100 msec Page 18-19 of 24 Appendix C Periodic Operation Page 20-21 of 24 Appendix D Photographs Page 23-24 of 24 Date: 2004-04-08 TEST REPORT Page 4 of 24 No.: HM150102 香 港 標 準 及 檢 定 ㆗ 心 Hong Kong Standards and Testing Centre 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONCLUSIONS The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Date: 2004-04-08 TEST REPORT Page 5 of 24 No.: HM150102 香 港 標 準 及 檢 定 ㆗ 心 Hong Kong Standards and Testing Centre 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant EWIG INDUSTRIES CO., LTD. 13/F., Houtex Ind’l Bldg., 16 Hung To Road, Kwun Tong, Kowloon, Hong Kong. HKSTC Code Number for Applicant EWI001 Manufacturer Q & S MANUFACTURING CO., LTD. Yin Shan Industrial District, Fu Gang Village, Xiang Mang West Road, Qing Xi Town, Dongguan City, Guang Dong Province, China Date: 2004-04-08 TEST REPORT Page 6 of 24 No.: HM150102 香 港 標 準 及 檢 定 ㆗ 心 Hong Kong Standards and Testing Centre 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Product: Air Quality Sensor Manufacturer: Q & S Manufacturing Co., Ltd. Brand Name: Ewig Model Number: 001A21 Input Voltage: 6Vd.c (“AAA” size battery x 4) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an Ewig Industries Co., Ltd., Air Quality Sensor. The transmitter is an automatic transmitter. The EUT is to transmit RF signal while temperature measurement is changed. The EUT is for data transmission, Modulation by Data Code. Tape is pulses modulation. 1.4 Date of Order 2004-02-25 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2004-03-10 to 2003-03-11 1.7 Country of Origin China Date: 2004-04-08 TEST REPORT Page 7 of 24 No.: HM150102 香 港 標 準 及 檢 定 ㆗ 心 Hong Kong Standards and Testing Centre 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of …

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
