N9ZGRP002Door/Window Sensor

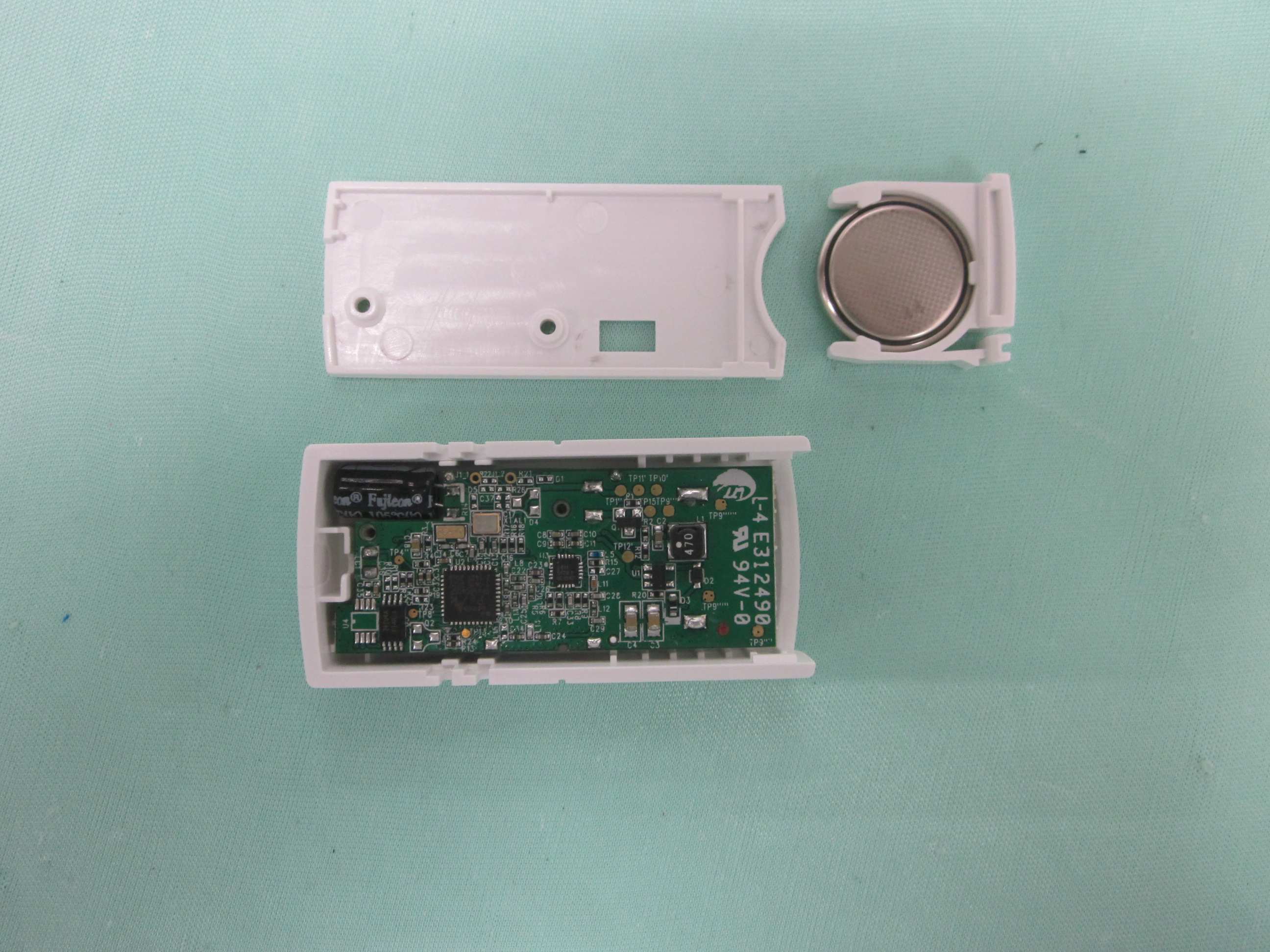

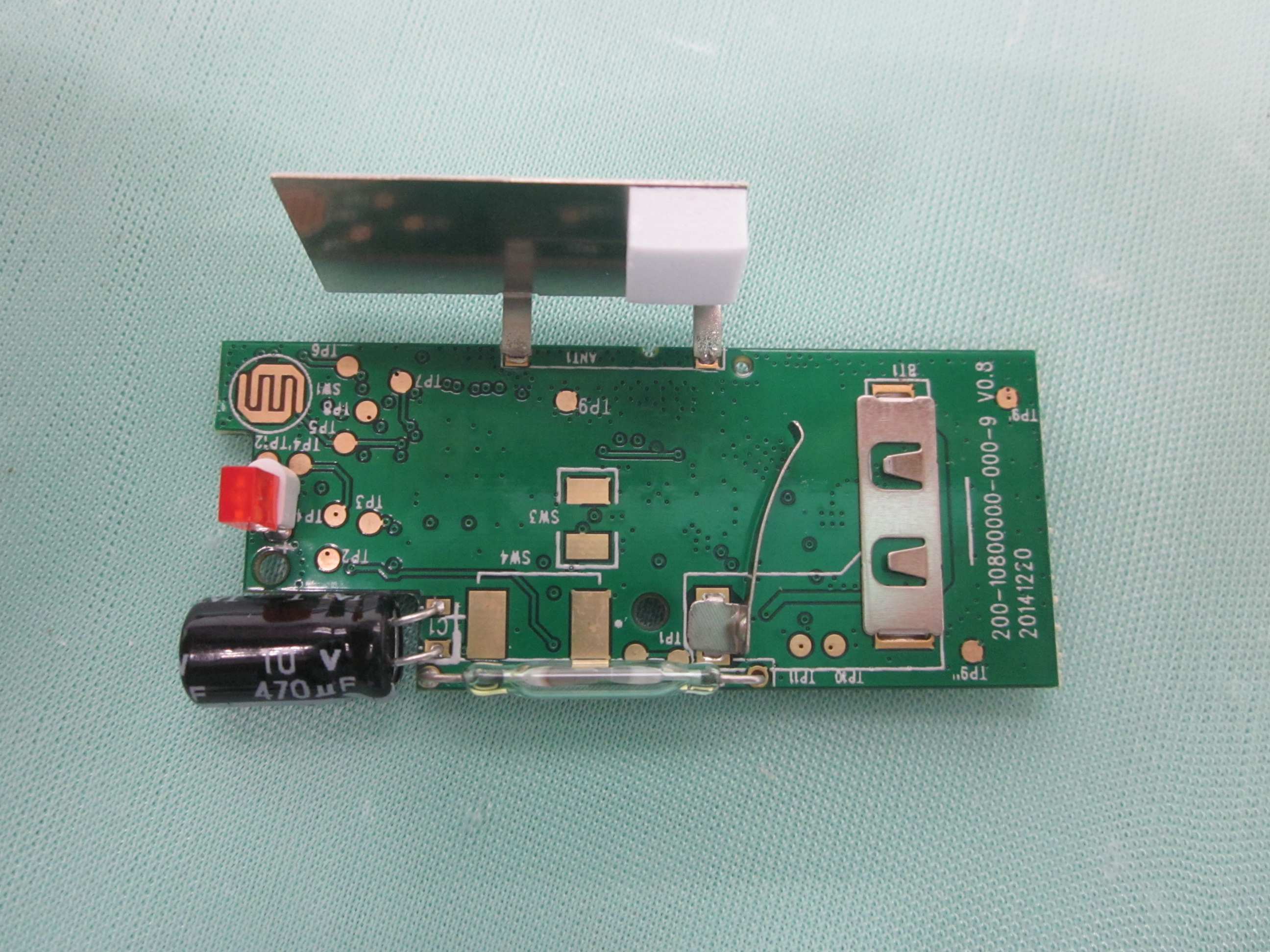

FCC ID: N9ZGRP002 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW FCC ID: N9ZGRP002 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW FCC ID: N9ZGRP002 PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2015-09-06 Page 1 of 31 No.: DM120817 Applicant: Ewig Industries Macao Commercial Offshore Limited Avenida Da Praia Grande No.619, EDF. Comercial Si Toi L6, Macau Manufacturer: Dong Guan Q&S Electronic Manufacturing Company Limited Yin Shan Industrial District, Fu Gang Village, Xiang Mang West Road, Qing Xi Town, Dongguan City, Guang Dong Province, China Description of Sample(s): Submitted sample(s) said to be Product: Door/Window Sensor Brand Name: EWIG Model Number: GRP002 FCC ID: N9ZGRP002 Date Sample(s) Received: 2015-08-26 Date Tested: 2015-08-28 to 2015-09-06 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.4:2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2015-09-06 Page 2 of 31 No.: DM120817 CONTENT: Cover Page 1 of 31 Content Page 2 of 31 1.0 General Details 1.1 Test Laboratory Page 3 of 31 1.2 Equipment Under Test [EUT] Page 3 of 31 Description of EUT operation 1.3 Date of Order Page 3 of 31 1.4 Submitted Sample(s) Page 3 of 31 1.5 Test Duration Page 3 of 31 1.6 Country of Origin Page 3 of 31 2.0 Technical Details 2.1 Investigations Requested Page 4 of 31 2.2 Test Standards and Results Summary Page 4 of 31 3.0 Test Results 3.1 Emission Page 5-27 of 31 Appendix A List of Measurement Equipment Page 28 of 31 Appendix B Photographs of EUT Page 29-31 of 31 STC Test Report Date: 2015-09-06 Page 3 of 31 No.: DM120817 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Door/Window Sensor Manufacturer: Dong Guan Q&S Electronic Manufacturing Company Limited Yin Shan Industrial District, Fu Gang Village, Xiang Mang West Road, Qing Xi Town, Dongguan City, Guang Dong Province, China Brand Name: EWIG Model Number: GRP002 Rating: 3.0Vd.c. (CR2430 battery x 1) 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Door/Window Sensor of Ewig Industries Macao Commercial Offshore Limited. the transmission signal is digital modulated with channel frequency range 2405-2475MHz. 1.3 Date of Order 2015-08-26 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2015-08-28 to 2015-09-06 1.6 Country of Origin China STC Test Report Date: 2015-09-06 Page 4 of 31 No.: DM120817 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 Regulations and ANSI C63.4:2009 for FCC Certification. According FCC KDB 558074 DTS Measurement Guidance, Duty cycle ≧98%. The device was realized by test software. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Output Power of Fundamental Emissions FCC 47CFR 15.247(b)(3) ANSI C63.4:2009 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2009 N/A Power Spectral Density FCC 47CFR 15.247(e) N/A N/A 6dB Bandwidth FCC 47CFR 15.247(a)(2) N/A N/A Band Edge Emissions FCC 47CFR 15.247(d) N/A N/A RF Exposure FCC 47CFR 15.247(i) N/A N/A Note: N/A - Not Applicable STC Test Report Date: 2015-09-06 Page 5 of 31 No.: DM120817 3.0 Test Results 3.1 Emission 3.1.1 Maximum Peak Output Power Test Requirement: FCC 47CFR 15.247(b)(3) Test Method: N/A Test Date: 2015-08-31 Mode of Operation: TX mode Test Method: The RF output of the EUT was connected to the peak power meter. All the attenuation or cable loss will be added to the measured maximum output power. The results are recorded in mW. Test Setup: Note: a temporary antenna connector was soldered to the RF output. EUT Peak Power Meter STC Test Report Date: 2015-09-06 Page 6 of 31 No.: DM120817 Limits for Peak Output Power of Fundamental & Harmonics Emissions [FCC 47CFR 15.247]: For Digital Transmission systems in 2400-2483.5 MHz Band: 1 Watt (30dBm) Results of Tx ModeGFSK (2405MHz to 2475MHz) : Pass (TX Unit) Maximum conducted output power Channel Frequency(MHz) Output Power(Watt) Low 2405 0.0628 Middle 2440 0.0632 High 2475 0.0659 Calculated measurement uncertainty : 30MHz to 1GHz 1.7dB 1GHz to 26GHz 1.7dB STC Test Report Date: 2015-09-06 Page 7 of 31 No.: DM120817 3.1.2 Radiated Emissions Test Requirement: FCC 47CFR 15.209 Test Method: ANSI C63.4:2009 Test Date: 2015-08-28 to 2015-09-01 Mode of Operation: Tx mode Test Method: The sample was placed 0.8m above the ground plane of semi-anechoic Chamber*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. * Semi-anechoic chamber located on the G/F of “STC (Dongguan) Company Limited” with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 629686. Test Setup: Measurement Receiver Computer Ground Plane Absorbers Absorbers placed on top of the ground plane are for measurements above 1000MHz only. Turn-table Distance = 3m Semi-Anechoic Chamber EUT STC Test Report Date: 2…

Text truncated - open the document above for the full version.

FCC ID: N9ZGRP002 PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP FCC ID: N9ZGRP002 PHOTOGRAPH OF THE PRODUCT
