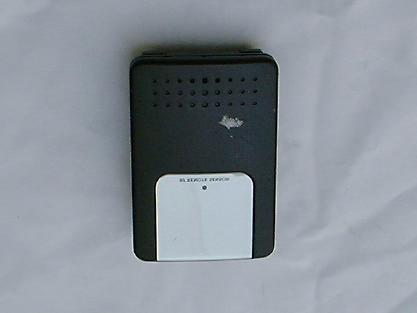

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: N9Z217S13 Circuit Description The 433MHz crystal oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by IC (W741E260). The output of Q3 has the matching network consisting of L3 and C21 and C19 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 4.5 Volt (“AAA” size battery x 3) primary battery

Date: 2002-08-27 TEST REPORT Page 1 of 23 No.: HM108644 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM108644 Equipment Under Test [EUT]:Remote Control Model Number:217S13 Applicant:Ewig Industries Co., Ltd. FCC ID :N9Z217S13 Date: 2002-08-27 TEST REPORT Page 2 of 23 No.: HM108644 CONTENT: Cover Page 1 of 23 Content Page 2-3 of 23 Conclusion Page 4 of 23 1.0General Details 1.1Test Laboratory Page 5 of 23 1.2Applicant Details Page 5 of 23 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 23 Description of EUT operation 1.4Date of Order Page 6 of 23 1.5Submitted Sample Page 6 of 23 1.6Test Duration Page 6 of 23 1.7Country of Origin Page 6 of 23 1.8 Additional Information of EUT Page 7 of 23 2.0Technical Details 2.1Investigations Requested Page 8 of 23 2.2Test Standards and Results Summary Page 8 of 23 3.0Test Results 3.1Emission Page 9-14 of 23 3.2Bandwidth Measurement Page 15-16 of 23 Date: 2002-08-27 TEST REPORT Page 3 of 23 No.: HM108644 Appendix A List of Measurement Equipment Page 17 of 23 Appendix B Duty Cycle Correction During 100 msec Page 18-19 of 23 Appendix C Periodic Operation Page 20-21 of 23 Appendix D Photographs Page 22-23 of 23 Date: 2002-08-27 TEST REPORT Page 4 of 23 No.: HM108644 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2002-08-27 TEST REPORT Page 5 of 23 No.: HM108644 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant EWIG INDUSTRIES CO., LTD. 13/F., Houtex Ind’l Bldg., 16 Hung To Road, Kwun Tong, Kowloon, Hong Kong. Telephone:852 2951 6881 Fax:852 2343 5799 HKSTC Code Number for ApplicantEWI001 Manufacturer EWIG INDUSTRIES CO., LTD. 13/F., Houtex Ind’l Bldg., 16 Hung To Road, Kwun Tong, Kowloon, Hong Kong. Telephone:852 2951 6881 Fax:852 2343 5799 Date: 2002-08-27 TEST REPORT Page 6 of 23 No.: HM108644 1.3Equipment Under Test [EUT] Description of Sample Product:Remote Control Manufacturer:Ewig Industries Co., Ltd. Brand Name:Ewig Industries Co., Ltd. Model Number:217S13 Input Voltage:4.5Vd.c (“AAA” size battery x 3) 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is an Ewig Industries Co., Ltd., 433.85MHz remote control. The transmitter is an automatic transmitter. The EUT is to transmit RF signal while temperature measurement is changed. The EUT is for data transmission, Modulation by Data Code. Tape is pulses modulation. 1.4Date of Order 2002-08-19 1.5Submitted Sample(s): 2 Sample per model 1.6Test Duration 2002-08-26 1.7Country of Origin China Date: 2002-08-27 TEST REPORT Page 7 of 23 No.: HM108644 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2002-08-27 TEST REPORT Page 8 of 23 No.: HM108644 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.231eANSI C63.4:2000N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2002-08-27 TEST REPORT Page 9 of 23 No.: HM108644 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.231e Test Method:ANSI C63.4:2000 Test Date:2002-08-26 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarization. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2002-08-27 TEST REPORT Page 10 of 23 No.: HM108644 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.231e]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz][μV/m][μV/m] 40.66-40.701,000100 70-13050050 130-174500 to 1,500 *50 to 150 * 174-2601,500150 260-4701,500 to 5,000 *150 to 500 * Above 4705,000500 ** Linear interpolations Where F is the frequency in MHz, the formula for calculating the maximum permitted fundamental field strengths are as follows: for the band 130-174 MHz, μV/m at meters=22.72727(F)-2454.545; for the band 260-470 MHz, μV/m at 3 meters =16.6667(F)-2833.3333. The maximum permissible unwanted emission level is 20dB below the maximum fundamental level. Results: CorrectionLimit **Antenna Factor @3mPolarity dB μ V/m μ V/m 433.8553.720.774.45248.143,975.1Vertical Field Strength Measured dB μ V/m μ V/m Field Strength of Fundamental Emissions Peak Value Frequency Level @3m Field Strength MHzdB μ V/m According to FCC 47CFR15.35, the limit on the radio frequ…

Text truncated - open the document above for the full version.

1 Marianne Bosley From: Greg Czumak Sent: Thursday, September 05, 2002 10:55 AM To: Marianne Bosley Cc: Chris Harvey Subject: RE: New Application apply FCC cert. (ID: N9Z217S13) Technical review complete, RT question below. I saved the checklist in H/Emi/METrak Folders/FCC ID N9Z217S13. RT question; 1. Please confirm compliance with Sections 15.231(a)(1) (for manual registration mode) and 15.231(a)(2) for normal operation mode. -----Original Message----- From:Marianne Bosley Sent:Tuesday, September 03, 2002 9:24 PM To:Greg Czumak Cc:Marianne Bosley Subject:FW: New Application apply FCC cert. (ID: N9Z217S13) << File: N9Z217S13.zip >> Hi Greg, The next new HKSTC I was talking about. If you can get to this one first since its the oldest, just dump it into a folder like you did before, and I'll setup metrak job when I get there Thursday. The other two new ones that came today, I'll setup properly on Thursday and refer them to you then. Thanks. Marianne -----Original Message----- From: Alice Wong To: [email protected] Cc: EED - Choy, Kitty; [email protected] Sent: 8/31/2002 1:25 AM Subject: New Application apply FCC cert. (ID: N9Z217S13) Hi Marianne, I have a new application apply FCC cert. (FCC ID: N9Z217S13) please see attached file for details. Another, would you help me check the status of LU9261490. Thanks. Best Regards Alice <<N9Z217S13.zip>>

* Normal operate shown in test report page 20.

Date: 2002-08-27 TEST REPORT Page 1 of 23 No.: HM108644 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM108644 Equipment Under Test [EUT]:Remote Control Model Number:217S13 Applicant:Ewig Industries Co., Ltd. FCC ID :N9Z217S13 Date: 2002-08-27 TEST REPORT Page 2 of 23 No.: HM108644 CONTENT: Cover Page 1 of 23 Content Page 2-3 of 23 Conclusion Page 4 of 23 1.0General Details 1.1Test Laboratory Page 5 of 23 1.2Applicant Details Page 5 of 23 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 23 Description of EUT operation 1.4Date of Order Page 6 of 23 1.5Submitted Sample Page 6 of 23 1.6Test Duration Page 6 of 23 1.7Country of Origin Page 6 of 23 1.8 Additional Information of EUT Page 7 of 23 2.0Technical Details 2.1Investigations Requested Page 8 of 23 2.2Test Standards and Results Summary Page 8 of 23 3.0Test Results 3.1Emission Page 9-14 of 23 3.2Bandwidth Measurement Page 15-16 of 23 Date: 2002-08-27 TEST REPORT Page 3 of 23 No.: HM108644 Appendix A List of Measurement Equipment Page 17 of 23 Appendix B Duty Cycle Correction During 100 msec Page 18-19 of 23 Appendix C Periodic Operation Page 20-21 of 23 Appendix D Photographs Page 22-23 of 23 Date: 2002-08-27 TEST REPORT Page 4 of 23 No.: HM108644 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2002-08-27 TEST REPORT Page 5 of 23 No.: HM108644 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant EWIG INDUSTRIES CO., LTD. 13/F., Houtex Ind’l Bldg., 16 Hung To Road, Kwun Tong, Kowloon, Hong Kong. Telephone:852 2951 6881 Fax:852 2343 5799 HKSTC Code Number for ApplicantEWI001 Manufacturer EWIG INDUSTRIES CO., LTD. 13/F., Houtex Ind’l Bldg., 16 Hung To Road, Kwun Tong, Kowloon, Hong Kong. Telephone:852 2951 6881 Fax:852 2343 5799 Date: 2002-08-27 TEST REPORT Page 6 of 23 No.: HM108644 1.3Equipment Under Test [EUT] Description of Sample Product:Remote Control Manufacturer:Ewig Industries Co., Ltd. Brand Name:Ewig Industries Co., Ltd. Model Number:217S13 Input Voltage:4.5Vd.c (“AAA” size battery x 3) 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is an Ewig Industries Co., Ltd., 433.85MHz remote control. The transmitter is an automatic transmitter. The EUT is to transmit RF signal while temperature measurement is changed. The EUT is for data transmission, Modulation by Data Code. Tape is pulses modulation. 1.4Date of Order 2002-08-19 1.5Submitted Sample(s): 2 Sample per model 1.6Test Duration 2002-08-26 1.7Country of Origin China Date: 2002-08-27 TEST REPORT Page 7 of 23 No.: HM108644 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2002-08-27 TEST REPORT Page 8 of 23 No.: HM108644 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.231eANSI C63.4:2000N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2002-08-27 TEST REPORT Page 9 of 23 No.: HM108644 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.231e Test Method:ANSI C63.4:2000 Test Date:2002-08-26 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarization. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2002-08-27 TEST REPORT Page 10 of 23 No.: HM108644 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.231e]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz][μV/m][μV/m] 40.66-40.701,000100 70-13050050 130-174500 to 1,500 *50 to 150 * 174-2601,500150 260-4701,500 to 5,000 *150 to 500 * Above 4705,000500 ** Linear interpolations Where F is the frequency in MHz, the formula for calculating the maximum permitted fundamental field strengths are as follows: for the band 130-174 MHz, μV/m at meters=22.72727(F)-2454.545; for the band 260-470 MHz, μV/m at 3 meters =16.6667(F)-2833.3333. The maximum permissible unwanted emission level is 20dB below the maximum fundamental level. Results: CorrectionLimit **Antenna Factor @3mPolarity dB μ V/m μ V/m 433.8553.720.774.45248.143,975.1Vertical Field Strength Measured dB μ V/m μ V/m Field Strength of Fundamental Emissions Peak Value Frequency Level @3m Field Strength MHzdB μ V/m According to FCC 47CFR15.35, the limit on the radio frequ…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
