N9Z6741DIGITAL WIRELESS THERM 2 PROBE WS

1 INSTRUCTION MANUAL Model #6741 DIGITAL WIRELESS THERM 2 PROBE WS Congratulations on your purchase of the new Weber Digital Wireless Grill thermometer, This unit will allow you to see the temperature of your food cooking in the oven or on the grill from anywhere in your home. The unit allows you to be alerted by telling you when your food is ready by beeping. Components 1. 1– Receiver unit 2. 1– Transmitter unit 3. 2– Detachable stainless steel FOOD probe 4. 2– AA batteries for Receiver unit 5. 2– AAA batteries for Transmitter unit. Receiver Features: 2 Wire Stand – Swings out and allow you to have the receiver hang or stand on tabletop Battery Compartment – Holds 2 AA batteries LCD (Liquid Crystal Display) – Displays all icons, temperature and timer . Buttons: 3 1. POWER – Press and hold for 2 seconds to turn the receiver unit ON or OFF. 2. [1] –  Press to scroll through setting meat type and doneness and target temp associated with “probe 1” .  Hold and press key "1" + "2" at normal mode 2 seconds to enter pairing mode 3. [2] –  Press to scroll through setting meat type and doneness and target temp associated with “probe 2”.  Hold and press key "1" + "2" at normal mode 2 seconds to enter pairing mode 4. [UP] –  Add target temp under probe1 or 2 temp setting mode (long press for quick scroll)  Select meat type and doneness under setting meat type and doneness  Add timer minute value under timer setting mode(long press for quick scroll) 5. [DOWN] –  Decrease target temp under probe1 or 2 temp setting mode(long press for quick scroll)  Select meat type and doneness under setting meat type and doneness  Decrease timer minute value under timer setting mode (long press for quick scroll) 6. [C/F] – Press to toggle between Centigrade and Fahrenheit 7. [TIMER] –  Toggle timer start and stop(short press)  Clear timer setting back to 0:00 at timer stop mode (long press for 2 seconds) 4 1 . Hi/Lo Toggle hi and low volume of beep sound 2. Reset Press once to trigger system reset and restore all setting to factory default. Transmitter Features 5 Battery Compartment – holds 2 AAA batteries. 2 Plug-in for stainless steel food probe. Button: Power –  In transmitter ON mode, press and hold for 2 seconds to turn the transmitter OFF, RED LED will stay ON 1 second and then OFF.  In transmitter ON mode, short press to reset transmitter to active paring process, RED LED will has 7 blinks in 3 seconds and then send RF signal (4 quick blinks)  In transmitter OFF mode, press and hold for 2 seconds to turn the transmitter ON, RED LED will has 3 blinks in 2 seconds. Installing the batteries: Firstly, open the battery compartment of the receiver by removing the screw and insert two “AA” batteries with correct polarity. Secondly, open the battery compartment of the transmitter by removing the screw and insert two “AAA” batteries with correct polarity. Registering (Pairing) Receiver & Transmitter: The Wireless Thermometer needs the receiver to register and lock in the radio frequency signal from the transmitter. You must register the Receiver unit with the Transmitter unit, you can register at power on mode or at normal mode. Register at Power ON mode: 1. Firstly, insert 2 x AA batteries in battery compartment on receiver unit, the unit will reset and then the icon of “---“ flashing. 2. Secondly, insert 2 x AAA batteries in battery compartment on transmitter unit, the RED LED blinks 3 times,this needs to be done within 60 seconds of turning on the receiver in order for the receiver to receive the Registration Code from the transmitter. 3. Registration is completed when the unit display the probe temperatures on LCD, If Receiver unit solid displays the icon of “---” on LCD after 1 minutes, the registration is not completed successfully at Power ON mode, you can proceed registration at normal mode as below: 1. Hold and press key “1” + “2” on receiver unit until you hear the BEEP sound and the icon of “---“ flashing on LCD. 2. Short press Power key on transmitter unit, this needs to be done within 12 seconds after hold and press key “1” + “2” on the receiver in order for the receiver to receive the Registration Code from the transmitter. 6 3. Registration is completed when the unit display the probe temperatures on LCD. NOTE: THE PROBE MUST BE PLUGGED INTO THE TRANSMITTER FOR THE UNIT TO WORK . Loss link alert: HOW TO KNOW THE SIGNAL IS LOST: The receiver unit will normally work within 76 meter (open area) of the transmitter. If the receiver is taken out of range or there is abnormal external interference the receiver may not be able to receive the transmission from the transmitter. One minutes after this happens the unit will alert you by beeping 3 short beeps and then stop 10 seconds and repeat, meanwhile, the“---“shown on the display to tell you to re-sync the signal. Pressing any button on Receiver will stop the Loss Link beep. To regain transmission signal you need to Move the Receiver unit close to the Transmitter to see if the Receiver can re-gain signal or not, if not, please ● Press and hold power button for 2 seconds to turn OFF the Receiver and then turn back ON with the “--- “ flashing on the LCD. ● Press and hold POWER button for 2 seconds to turn OFF the transmitter and then turn back ON. This has to be done within 60 seconds. ● If the Receiver is registered successfully; the Receiver will display the probe temperature. If Registration is not succeeded, wait for 12 seconds, and then repeat the above processes once. SETTING THE SELECTED FOOD TEMPERATURE: The unit is programmed with selected pre-set temperatures for all types of meats. These temperatures are recommended by both major cookbooks and the USDA for food safety. The chart of the selected temperatures is as follows: 7 MEAT TASTE WELL DONE MEDIUM MEDIUM RARE RARE Bee BEEF 170ºF /77ºC 160ºF /71ºC 145ºF /63ºC N/A Veal VEAL 170ºF /77ºC 160ºF /71ºC 145ºF /63ºC N/A Lamb LAMB 170ºF /77ºC 160ºF /71ºC 145ºF /63ºC N/A Pork PORK 170ºF /77ºC N…

Text truncated - open the document above for the full version.

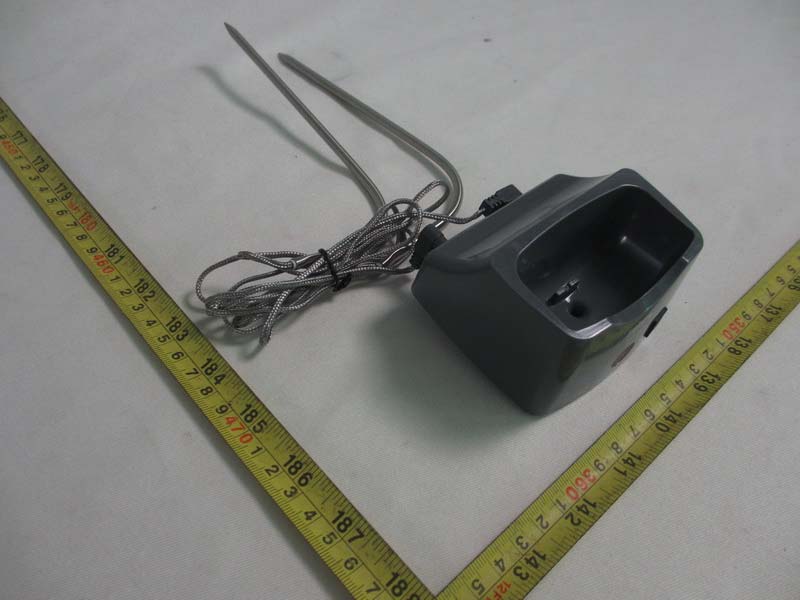

Neutron Engineering Inc. Project No.: 1306C159 Page 2 of 13 TX Sample

FCC ID: N9Z6741 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: N9Z6741 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Neutron Engineering Inc. Project No.: 1306C159 Page 4 of 13 Neutron Engineering Inc. Project No.: 1306C159 Page 5 of 13 Neutron Engineering Inc. Project No.: 1306C159 Page 6 of 13 Neutron Engineering Inc. Project No.: 1306C159 Page 7 of 13

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 1 of 38 FCC Radio Test Report FCC ID: N9Z6741 This report concerns (check one): Original Grant Copy Report Issued Date : Jul. 08, 2013 Project No. : 1306C159 Equipment : DIGITAL WIRELESS THERM 2 PROBE WS Model Name : 6741 Applicant : Ewing Industries Macao Commercial Offshore Limited Address : Rua de pequim Macau Finance Centre 14E, Macus Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jun. 21, 2013 Date of Test: Jun. 21, 2013 ~ Jul. 05, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 2 of 38 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 3 of 38 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 3.4 DESCRIPTION OF SUPPORT UNITS 11 4 . EMC EMISSION TEST 12 4.1 CONDUCTED EMISSION MEASUREMENT 12 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 12 4.1.2 MEASUREMENT INSTRUMENTS LIST 12 4.1.3 TEST PROCEDURE 13 4.1.4 DEVIATION FROM TEST STANDARD 13 4.1.5 TEST SETUP 13 4.1.6 EUT OPERATING CONDITIONS 13 4.1.7 TEST RESULTS 14 4.2 RADIATED EMISSION MEASUREMENT 15 4.2.1. FIELD STRENGTH OF FUNDAMENTAL EMISSIONS MEASUREMENT LIMIT 15 4.2.2. MEASURING INSTRUMENTS AND SETTING (FIELD STRENGTH OF FUNDAMENTAL 15 EMISSIONS) 15 4.2.3 RADIATED EMISSIONS MEASUREMENT 16 4.2.4. DWELL TIME OF PERIODIC OPERATION MEASUREMENT 18 4.2.5. MEASUREMENT INSTRUMENTS LIST 19 4.2.6. TEST PROCEDURE 19 4.2.7. DEVIATION FROM TEST STANDARD 19 4.2.8. TEST SETUP 20 4.2.9. EUT OPERATING CONDITIONS 21 4.3.0 TEST RESULTS (9K~ 30MHz) 22 4.3.1 TEST RESULTS (BETWEEN 30 – 1000 MHz) 23 4.3.2 TEST RESULTS (ABOVE 1000 MHz) 27 5. 20dB SPECTRUM BANDWIDTH MEASUREMENT 31 5.1.MEASURING INSTRUMENTS AND SETTING 31 5.2.TEST PROCEDURES 31 5.3. TEST SETUP LAYOUT 31 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 4 of 38 Table of Contents Page 5.4. TEST DEVIATION 31 5.5. EUT OPERATION DURING TEST 31 5.6. TEST RESULT 32 6. TIMING TESTING 33 6.1.MEASURING INSTRUMENTS AND SETTING 33 6.2.TEST PROCEDURES 33 6.3. TEST SETUP LAYOUT 33 6.4. TEST DEVIATION 33 6.5. EUT OPERATION DURING TEST 33 6.6. TEST RESULT 34 7. EUT TEST PHOTO 36 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 5 of 38 1. CERTIFICATION Equipment : DIGITAL WIRELESS THERM 2 PROBE WS Trade Name : Weber-Stephen Products LLC Model Name. : 6741 Applicant : Ewig Industries Macao Commercial Offshore Limited Manufacturer : Q&S Manufacturing Co., Ltd. Address : Yin Shan Industrial District, Fu Gang Village, Xiang Mang West Road, Qing Xi Town, Dongguan City, Guang Dong Province Factory : Q&S Manufacturing Co., Ltd. Address : Yin Shan Industrial District, Fu Gang Village, Xiang Mang West Road, Qing Xi Town, Dongguan City, Guang Dong Province Date of Test : Jun. 21, 2013 ~ Jul. 05, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.231)/ ANSI C63.4 : 2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1306C159) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 6 of 38 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard(s) Test Item Judgment Remark 15.207 Conducted Emission N/A NOTE(1) 15.209 & 15.231(e) Radiated Spurious EmissionPASS 15.231(c) 20dB Occupied Bandwidth Measurement PASS NOTE: (1)” N/A” denotes test is not applicable in this test report. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 7 of 38 2.1 TEST FACILITY The test facilities used to collect the test data in this report is DG-CB03 at the location of No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China.523792 Neutron's test firm number for FCC 319330 2.2 MEASUREMENT UNC…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 36 of 38 7. EUT TEST PHOTO Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 37 of 38 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1306C159 Page 38 of 38 Radiated Measurement Photos Above 1000MHz
