N9ZNS-DP8CH8-inch Internet Media Display

User Guide Infocast Internet Media Player NS-DP8CH Infocast Internet Media Display NS-DP8CH 2 www.insigniaproducts.com Infocast Internet Media Display Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Setting up your Infocast . . . . . . . . . . . . . . . . . . . . . . . . 10 Using your Infocast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Using channels and apps . . . . . . . . . . . . . . . . . . . . . . . . 15 Managing friends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Viewing photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Listening to music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Playing video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Software licensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Acknowledgements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Infocast Internet Media Display 3 www.insigniaproducts.com Welcome Congratulations on your new Infocast! Your Infocast is a convenient and compact way to view or play your favorite media—music, photos, video, or a mix of all of these. Because the Infocast connects to the Internet, it's always on and the content is always fresh. Internet-based content is free. There are no subscription fees. Even if you don't have an Internet connection, you can still insert a memory card or USB flash drive and view your favorite photos and videos or listen to your music. This guide and the Quick Setup Guide walk you through connecting, setting up, and customizing your Infocast. Most questions you’ll have answered in these pages as you get acquainted your new Internet media display. Safety information Always follow these basic safety precautions when using your Infocast. This will reduce the risk of fire, electric shock, and injury. Warning • To reduce the risk of fire or shock hazard, do not expose your Infocast to rain or moisture and unplug it during lightning storms. • To prevent the risk of electric shock, do not remove the cover. There are no user-serviceable parts inside. Refer all servicing to qualified personnel. • There is a risk of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type of battery. 4 NS-DP8CH www.insigniaproducts.com Placement—To prevent fire or electric shock, do not expose your Infocast to rain or moisture. To prevent it from falling, do not place it on an unstable cart, stand, tripod, bracket, or table. Keep your Infocast away from strong magnets, heat sources, direct sunlight, and excessive dust. Installation—Make sure that your Infocast is used in accordance with the instructions and illustrations provided in this manual. Objects and liquids—Do not push objects of any kind into your Infocast through openings. Do not spill or spray liquid of any kind on or in your Infocast (this may result in a fire or electric shock). Do not place anything heavy on your Infocast. To ensure proper ventilation and proper operation, never cover or block the slots and openings with a cloth or other material. Disassembly—Do not attempt to disassemble your Infocast. There is a risk of electric shock. Contact qualified service personnel if your Infocast is in need of repair. Cleaning your Infocast—When cleaning, make sure your Infocast is unplugged from the power source. Use the supplied cleaning cloth, or a cloth slightly dampened with water for cleaning the exterior of your Infocast only. Features •8-inch touchscreen display with 800 × 600 resolution •2 GB of internal memory (approximately 1.5 GB is available for content storage) •Touchscreen menus •Easy drag-and-drop interface •Internet-enabled apps and updates from chumby •Share apps, photos, and videos with other users of chumby-enabled devices •Create an unlimited number of channels using any of over 1,500 apps and configure your apps the way you want to see them Infocast Internet Media Display 5 www.insigniaproducts.com •Photo, music and video playback from internal memory or inserted memory cards and USB flash drives •Clock, alarm clock, and calendar •Night mode •Dimmable backlight •Headphone jack, stereo speakers built in •Memory card slots support SD, SDHC, MMC, Memory Stick, xD, CF formats, and MD Pro Duo (using the included adapter) •Dual USB ports support USB flash drives and more •UPnP 6 NS-DP8CH www.insigniaproducts.com Insignia button Infocast Internet Media Display 7 www.insigniaproducts.com Power button 8 NS-DP8CH www.insigniaproducts.com Battery compartment Power connector USB ports Infocast Internet Media Display 9 www.insigniaproducts.com Package contents •Infocast Internet media display (1) •AC power adapter (1) •Quick Setup Guide (1) •User Guide (1) •MS Pro Duo adapter •Cleaning cloth CF card slot Headphone jackSD/SDHC/MMC/MS/xD card slot 10 NS-DP8CH www.insigniaproducts.com System requirements •Broadband Internet connection (such as cable or DSL). The Infocast won’t work with a dialup connection. •Wireless router (802.11b/802.11g compatible). Most routers currently sold support these requirements. Routers supporting 802.11n may work with the Infocast as long as they properly suppor t 802.11g or 802.11b. •Computer with Internet access. This is required to activate your Infocast and to configure the apps you want to show on it. After your Infocast is set up, you’ll only need a computer to configure certain apps. Setting up your Infocast See the…

Text truncated - open the document above for the full version.

26, February of 2010 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification FCC ID: N9ZNS-DP8CH Authority to Act as Agent On our behalf, I appoint Alan Laudani of Nemko USA Inc., 11696 Sorrento Valley Rd, San Diego, CA, USA to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communication Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Ewig Industries Macao Commercial Offshore Limited Rua de Pequim Macau Finance Centre 10E, Macau . Dated this 26 Day of February 20 10 Agency agreement expiration date: 12 Months Title: Product Manager On behalf of : Ewig Industries Macao Commercial Offshore Limited Telephone: 86 (0769)87733008 Ext: 1383

26, February of 2010 Nemko 11696 Sorrento Valley Rd. San Diego CA, 92121 USA Re: Request of Confidentiality for FCC ID#: N9ZNS-DP8CH Pursuant to Sections 0.457(d)(I)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Parts List, Operating Description, Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(I)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Product Manager Ewig Industries Macao Commercial Offshore Limited

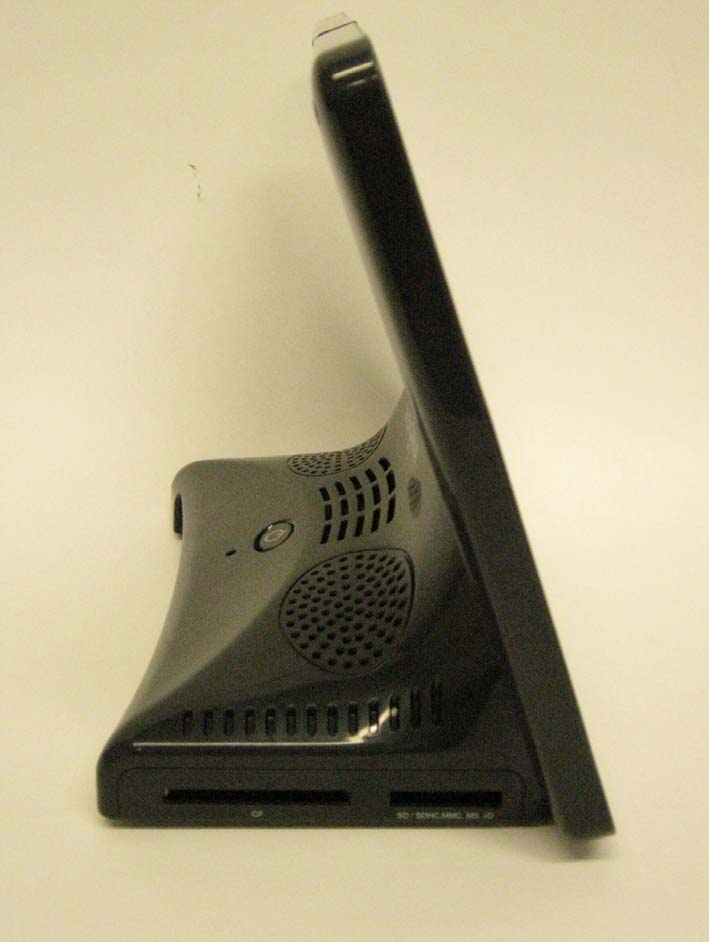

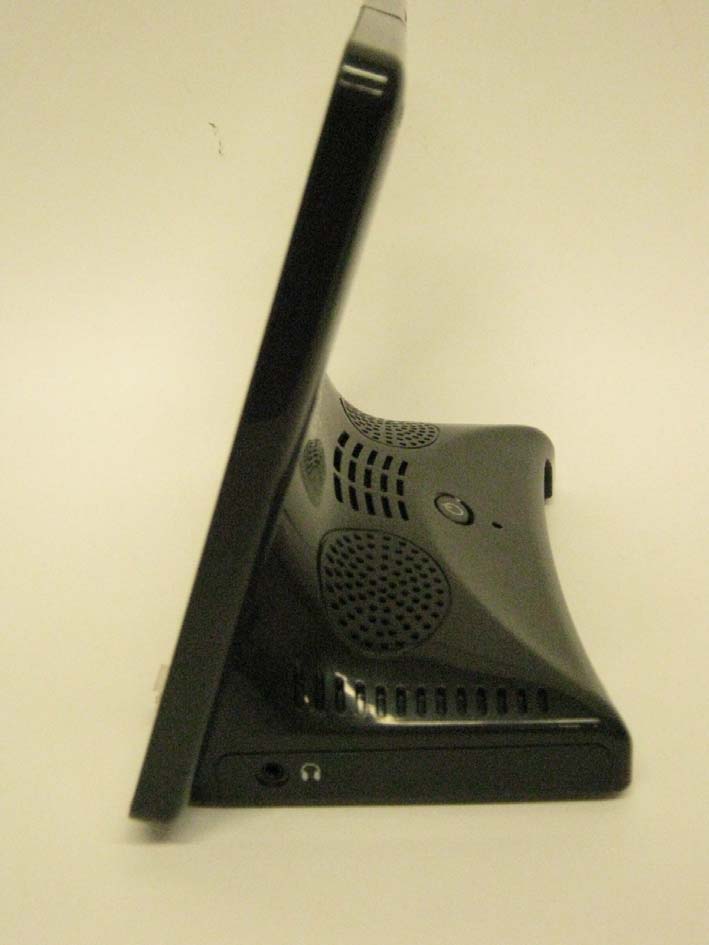

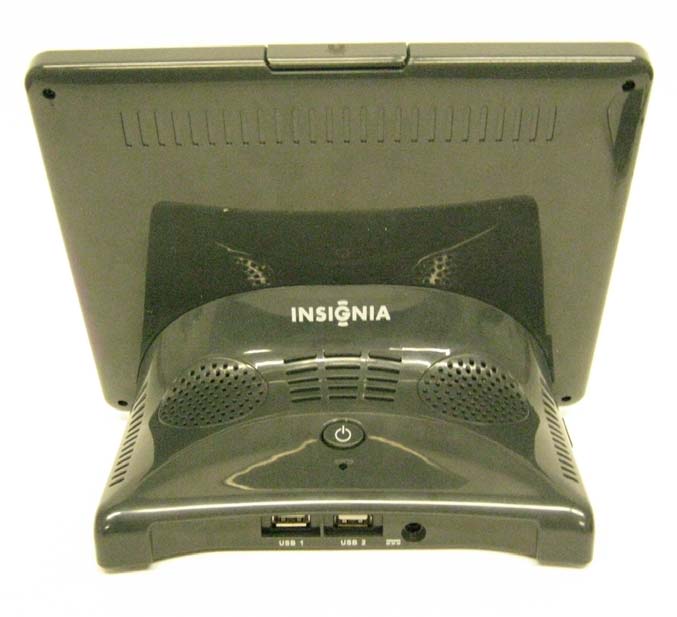

CHB801 Mar. 03, 2010 Dark Gray Back cabinet Gray 425 C Gray 425 C Gray 425 C Gray 425 C Gray 425 C No spray No spray N/A Part DescriptionInjection colorFinishingSpraySilkscreenTool Rubber Foot No spray Transparent No spray Power Button No spray Front cabinetBlack N/A No spray Top Cabinet No spray Bottom Cabinet Home Button Best Buy N/A C F S1 Battery Door Gray 425 C No spray S1 Cool Gray 3C N/A N/A Glossy Glossy Fine sand texture Glossy Glossy Glossy N/A S1 S1 S1 S1 Cool Gray 3C Gray 421 C Cool Gray 3C 20100303-1 S1 Label xxxxxxxxxxxxx S1 S2 S2 Fine sand texture N9ZNS-DP8CH 10B04B

RF chip Antenna connector RF chip Antenna connector antenna

Evaluation of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power --Conducted 21.09 dBm 0.1285 (W) Antenna gain(typical): 2.15 (dBi) Maximum antenna gain: 1.64 (numeric) Evaluation distance: 20.00 (cm) Evaluation frequency: 2412.00 (MHz) Limit from table below: 1 (mW/cm^2) Power density at Evaluation frequency: 0.042 (mW/cm^2) EUT complies FCC/LSGAC Local Official’s Guide to RFA LOCAL GOVERNMENT OFFICIAL'S GUIDE TO TRANSMITTING ANTENNA RFEMISSION SAFETY: RULES, PROCEDURES, AND PRACTICAL GUIDANCE 2 4 R PG S π =

Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Phone (858) 755-5525 Fax (858) 452-1810 CERTIFICATION TEST REPORT Report Number: 2010 02144343 FCCTX FCC P ART 15.247C For The Wireless Internet Appliance Model: EWIG CHB801 FCC ID: N9ZNS-DP8CH PREPARED FOR: Chumby Industries, Inc. 12264 El Camino Real, Suite 203 San Diego, CA 92130 Prepared on: February 20, 2010 Project Number: 41446 NEx Number: 144343 Total Pages: 45 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 DATE DOCUMENT NAME DOCUMENT # PAGE February 20, 2010 EWIG CHB801 Certification Test Report FCC ID: N9ZNS-DP8CH Error! Cannot open file. 2 of 45 DOCUMENT HISTORY REVISION DATE COMMENTS - February 20, 2010 Prepared By: Alan Laudani - February 20, 2010 Initial Release: Alan Laudani NOTE: Nemko USA, Inc. hereby makes the following statements so as to conform to Chapter 10 (Test Reports) Requirements of ANSI C63.4 (2003) “Methods and Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”: o The unit described in this report was received at Nemko USA, Inc.'s facilities on February 12, 20. o Testing was performed on the unit described in this report on February 12, 2010 to February 20, 20. o The Test Results reported herein apply only to the Unit actually tested, and to substantially identical Units. o This report does not imply the endorsement of the Federal Communications Commission (FCC), Industry Canada, NVLAP or any other government agency. This Report is the property of Nemko USA, Inc., and shall not be reproduced, except in full, without prior written approval of Nemko USA, Inc. However, all ownership rights are hereby returned unconditionally to Chumby Industries, Inc., and approval is hereby granted to Chumby Industries, Inc., and its employees and agents to reproduce all or part of this report for any legitimate business purpose without further reference to Nemko USA, Inc. Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 DATE DOCUMENT NAME DOCUMENT # PAGE February 20, 2010 EWIG CHB801 Certification Test Report FCC ID: N9ZNS-DP8CH Error! Cannot open file. 3 of 45 TABLE OF CONTENTS DOCUMENT HISTORY...................................................................................................................................2 CERTIFICATION .............................................................................................................................................4 1. ADMINISTRATIVE DATA AND TEST SUMMARY..........................................................................5 1.1. ADMINISTRATIVE DATA............................................................................................................................5 1.2. TEST SUMMARY........................................................................................................................................5 2. SYSTEM CONFIGURATION.................................................................................................................6 2.1. DESCRIPTION AND METHOD OF EXERCISING THE EUT..............................................................................6 2.2. SYSTEM COMPONENTS AND POWER CABLES.............................................................................................6 2.3. DEVICE INTERCONNECTION AND I/O CABLES...........................................................................................7 2.4. DESIGN MODIFICATIONS FOR COMPLIANCE..............................................................................................7 2.5. TECHNICAL SPECIFICATIONS OF THE EUT.................................................................................................7 3. DESCRIPTION OF TEST SITE AND ENVIRONMENT ....................................................................8 3.1. DESCRIPTION OF TEST SITE.......................................................................................................................8 3.2. TEST ENVIRONMENT.................................................................................................................................8 4. DESCRIPTION OF TESTING METHODS...........................................................................................9 4.1. INTRODUCTION..........................................................................................................................................9 4.2. CONFIGURATION AND METHODS OF MEASUREMENTS FOR CONDUCTED EMISSIONS.................................9 4.3. CONFIGURATION AND METHODS OF MEASUREMENTS FOR FREQUENCY IDENTIFICATION.........................9 4.4. CONFIGURATION AND METHODS OF MEASUREMENTS FOR RADIATED EMISSIONS..................................10 5. TEST RESULTS......................................................................................................................................11 5.1. CONDUCTED EMISSIONS – TRANSCEIVER MODE....................................................................................11 5.2. BANDWIDTH............................................................................................................................................19 5.3. OUT-OF-BAND CONDUCTED EMISSIONS..................................................................................................22 5.4. OUT-OF-BAND EMISSIONS / RADIATED EMISSIONS WITHIN RESTRICTED BANDS.....................................26 5.5. DUTY CYCLE CORRECTION FACTOR........................................................................................................28 5.6. MINIMUM 6DB RF BANDWIDTH.............................................................................................................35 5.7. MAXIMUM PEAK OUTPUT POWER.............................................................................................................39 5.8. POWER SPECTRAL DENSITY...........…

Text truncated - open the document above for the full version.
