N9ZTTX201MRF WIRELESS TRANSMITTER / LONG RANGE THERMO SENSOR

Thermo sensor Model: TTX201 Instruction Manual Congratulations on your purchasing of our new outdoor thermo senor which can cover up to 50m range in an open area. This sensor is designed for everyday use for the home or office and used to monitor the temperature change of outdoor sites. Description of buttons The remote sensor has 2 function buttons inside the battery compartment 1. [CH] button After the battery installation, the LED blinks slowly every 1.5 seconds and channel number shows ‘1’ to indicate it is now under channel setting mode and is set to channel 1 by default. If the user presses no key within ten seconds, the unit will auto-exit the channel setting. If the user press [CH] button once during the channel setting, the channel number is changed to ‘2’ to indicate the unit is set to channel 2. If the user press [CH] button again, the channel number will be advanced to channel ‘3’ and so on. The maximum channel number is ‘5’ and the unit will be scrolled back to channel ‘1’ at the 5 th press of the [CH] button. 2. [ RESET ] Button Press to hardware reset the unit to factory setting LED indicator Setting procedure to link up with a receiving unit This device is designed for easy set up with no wire installation. The following steps are required to be done in proper sequence to link up with a receiving unit. Please insert batteries for the receiving unit before doing so for the remote unit. 1. Lift off the bracket stand of the RF remote sensor, use a small screw driver to remove the battery cover screws. 2. Insert 2 pieces AAA size batteries according to polarity marking on the battery compartment. 3. The LED blinks slowly to indicate it is under the channel setting mode and the user can set it to other channel by press [CH] key. 4. The temperature of the sensor will appear on the selected channel of the receiving unit if it is linked up with the receiving unit successfully. 5. Screw the battery cover back to the Rf remote sensor. Follow the same procedure (1 to 5) to register other remote sensors. Note: For the user purchasing more than one remote sensor, he must set the sensors to different channel in the start up to avoid conflicts. Precautions a. Do not clean the unit with abrasive or corrosive compound. It may scratch the plastic parts and corrode the electronic circuits. b. Do not subject the unit to excessive force shock, dust, temperature or humidity, which may result in malfunctioning, shorter electronic life span, damaged battery and distorted parts. c. Do not tamper with these units’ internal components. Doing so will invalidate the warranty on the unit and may cause unnecessary damage battery and distorted parts. d. Do not subject the unit to excessive exposure to direct sunlight. The remote sensor is splash proof. Never immerse it in water or expose to heavy rain. e. Always read the users manual thoroughly before operating the unit. Specification Displayed temperature range : -50.0°C to +70.0°C (-58.0°F to +158.0°F) Proposed operating range : -20.0°C to +60.0°C (-4.0°F to +140.0°F) Temperature resolution : 0.1°C (0.2°F) RF transmission frequency : 433MHz RF transmission range : Maximum 75 meters in open area Batteries : Use 2 pieces UM-4 AAA size 1.5V alkaline battery Caution This device could be sensitive to electrostatic discharge, If electrostatic discharge or malfunctioning occurs please reset this unit. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help.

DOC-FCC009 4/14/2005 Page 1 of 2 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: Ewig Industries Macao Commercial Offshore Limited Item 2. Applicant's mailing address Line 1: Rua de Pequim Macau Finance Centre 10E, Line 2: P.O.Box: City: Macau State: Country (if foreign address): CHINA Zip/Postal Code: Item 3. FCC ID: Grantee code: N9Z Equipment Product Code (14 characters maximum): TTX201M Item 4. Person at the applicant's address to receive grant or for contact: First Name: KC Mail Stop: Last Name: Lee Telephone: 852 26661807 Ext: Title: Manager E-mail: [email protected] Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Tai Po Industrial Estate, N.T., Hong Kong. Contact: KC Lee E-mail: [email protected] Item 6. Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) x No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: DSC * Description of Product as it is Marketed: Part 15 Security / Remote Control Transmitter (NOTE: RF WIRELESS TRANSMITTER / LONG RANGE THERMO SENSOR (NO LCD)) Item 11. * Application is for: (please mark as appropriate) x Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes x No Ο Yes x No DOC-FCC009 4/14/2005 Page 2 of 2 (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: The Hong Kong Standards & Testing Centre Ltd. Last Name: KC Telephone 26661852 Ext Fax No. 26650848 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 15 433.9MHz IC WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? x Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves th…

Text truncated - open the document above for the full version.

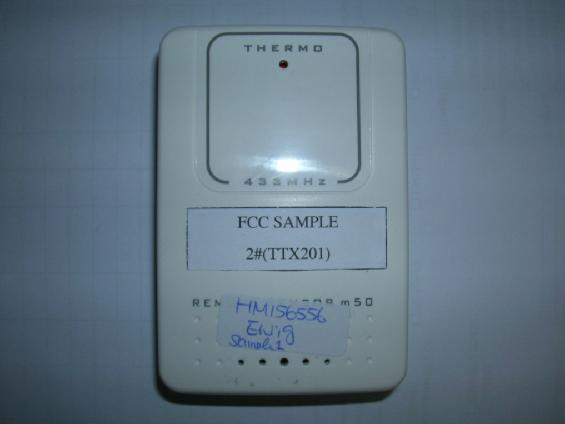

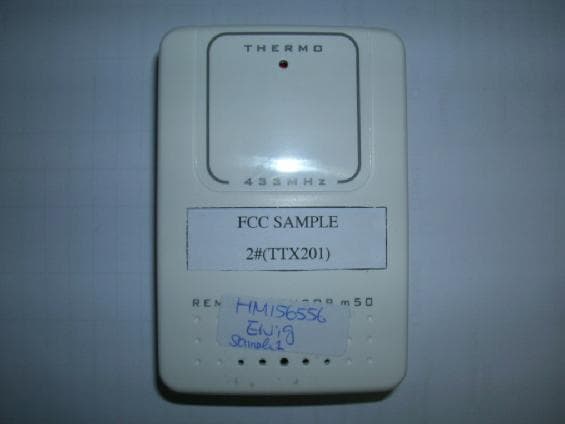

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

MODEL TTX201 DC 3V

TTX201 SILKSCREEN CONFIRMATION EWIG INDUSTRIES MCO . LTD LONG RANGE REMOTE SENSOR 18 MAY, 2006 Prepared by Ethan FCC ID: N9ZTTX201M Made in China FCC

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Application No.: HM156556 Date: 5 June 2006 FCC ID: N9ZTTX201M Circuit Description The 433.9 MHz crystal oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IC. The output of Q2 has the matching network consisting of L5, L6, L7 and C17 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“AA” size battery x 2) primary battery. Operation Descriptions The transmitter is a wireless thermo sensor operating at 433.9MHz band. The transmitter is powered by a 3Vd.c. battery (AAA x 2) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 433.92MHz carrier frequency. Remarks: The transmitter is a Trigger transmitter. The EUT continues to transmit while Trigger is being pressed. It is Pluses transmitter, Modulation by Data Code; and type is Pulse modulation.

STC Test Report Date : 2006-05-12 Page 1 of 20 No. : HM156556 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: Ewig Industries Macao Commercial Offshore Limited. Rua de Pequim Macau Finance Centre 10E, Macau Description of Samples: Model name: RF WIRELESS TRANSMITTER / LONG RANGE THERMO SENSOR (NO LCD) Model no.: TTX201 Brand name: N/A FCC ID: N9ZTTX201M Date Samples Received: 2006-04-28 Date Tested: 2006-05-09 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2006-05-12 Page 2 of 20 No. : HM156556 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 1.0 General Details 1.1 Test Laboratory Page 4 of 20 1.2 Applicant Details Page 4 of 20 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 20 Description of EUT operation 1.4 Date of Order Page 5 of 20 1.5 Submitted Sample Page 5 of 20 1.6 Test Duration Page 5 of 20 1.7 Country of Origin Page 5 of 20 2.0 Technical Details 2.1 Investigations Requested Page 6 of 20 2.2 Test Standards and Results Summary Page 6 of 20 3.0 Test Results 3.1 Emission Page 7-11 of 20 3.2 Bandwidth Measurement Page 12-13 of 20 STC Test Report Date : 2006-05-12 Page 3 of 20 No. : HM156556 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 14 of 20 Appendix B Duty Cycle Correction During 100 msec Page 15-16 of 20 Appendix C Periodic Operation Page 17-18 of 20 Appendix D Photographs Page 19-20 of 20 STC Test Report Date : 2006-05-12 Page 4 of 20 No. : HM156556 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Ewig Industries Macao Commercial Offshore Limited. Rua de Pequim Macau Finance Centre 10E, Macau Manufacturer Q & S Manufacturing Co., Ltd. Yin Shan District, Fu Gang Village, Xiang Mang West Road, Qing Xi Town, Dong Guan City, China STC Test Report Date : 2006-05-12 Page 5 of 20 No. : HM156556 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Product: RF WIRELESS TRANSMITTER / LONG RANGE THERMO SENSOR (NO LCD) Manufacturer: Q & S Manufacturing Co., Ltd. Brand Name: N/A Model Number: TTX201 Rating: 3Vd.c (“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Ewig Industries Macao Commercial Offshore Limited., RF WIRELESS TRANSMITTER / LONG RANGE THERMO SENSOR (NO LCD). The transmitter is a trigger transmitter. It is Pulse transmitter, Modulation by data code; and type is pulses modulation. 1.4 Date of Order 2006-04-28 1.5 Submitted Sample(s): 1 Sample per model 1.6 Test Duration 2006-05-09 1.7 Country of Origin N/A STC Test Report Date : 2006-05-12 Page 6 of 20 No. : HM156556 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissio…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
