NBF-M9130802.11B/G SDIO Module with Antenna Connectors

IEEE802.11 b/g standard. It also supports WPA/WPA2/ WEP 64-bit & 128-bit encryption and external FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF exposure warning · This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. ʳ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SCS-F26 Modular Approval Letter Page 1 of 2 Rev 3.0 Argox Information Co., Ltd July 28 2010 (Product name) 802.11B/G SDIO Module with Antenna Connectors FCC ID : NBF-M9130 , is seeking FCC Authorization as a Modular transmitter / Limited Modular Approval (Please check one). The EUT meets the requirements for Modular approval / Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: 1. “The modular transmitter must have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No 3. “The modular transmitter must have its own power supply regulation.” Yes / No 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No

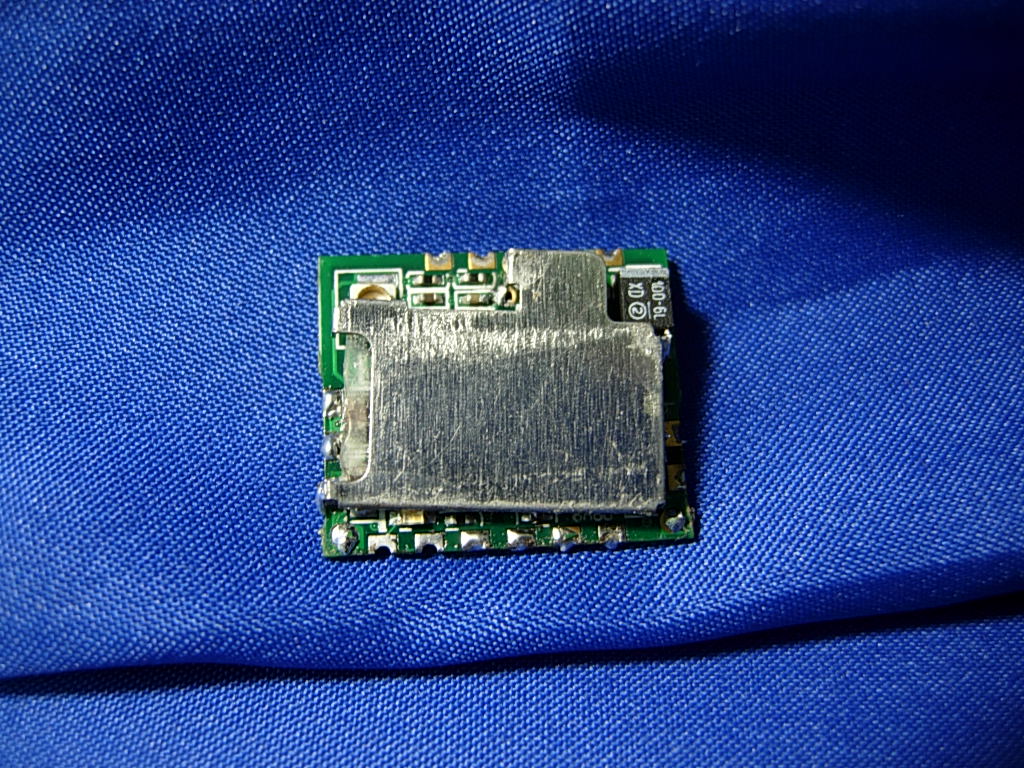

Report No.: 106202R-RFUSP28V01 Page : 1 of 4 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Argox Information Co.,Ltd. FCC ID.: NBF-M9130 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien , Taipei, Taiwan.Tel : 886-2-8912-1121 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 106202R-RFUSP28V01 Page : 2 of 4 Version:1.0 (3) EUT Photo (4) EUT Photo (Antenna- JI-HAW / 69-70003-001) Report No.: 106202R-RFUSP28V01 Page : 3 of 4 Version:1.0 (5) EUT Photo (Antenna- JI-HAW / 69-70002-001 ) (6) EUT Photo (Antenna- JI-HAW / 69-70003-002 ) Report No.: 106202R-RFUSP28V01 Page : 4 of 4 Version:1.0 (7) EUT Photo

Report No. 106202R-RFUSP28V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : 802.11B/G SDIO Module with Antenna Connectors Model No. : SDM-11BG FCC ID : NBF-M9130 Applicant : Argox Information Co.,Ltd. Address : 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien , Taipei, Taiwan Date of Receipt : June. 10, 2010 Date of Declaration: July. 05, 2010 Report No. : 106202R-RFUSP28V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 106202R-RFUSP28V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 106202R-RFUSP28V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : 802.11B/G SDIO Module with Antenna Connectors Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.54 dBi in logarithm scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (3.54 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 46.1318 0.020736 6 2437.00 43.8531 0.019712 11 2462.00 42.6580 0.019175 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (3.54 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 104.9542 0.047177 6 2437.00 110.1539 0.049514 11 2462.00 109.6478 0.049287 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 106202R-RFUSP28V01 Page : 1 of 63 Test Report Product Name 802.11B/G SDIO Module with Antenna Connectors Model No SDM-11BG FCC ID. NBF-M9130 Applicant Argox Information Co.,Ltd. Address 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien , Taipei, Taiwan Date of Receipt June. 10, 2010 Issue Date July. 05, 2010 Report No. 106202R-RFUSP28V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 106202R-RFUSP28V01 Page : 2 of 63 Test Report Certification Issue Date: July. 05, 2010 Report No.: 106202R-RFUSP28V01 Product Name 802.11B/G SDIO Module with Antenna Connectors Applicant Argox Information Co.,Ltd. Address 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien , Taipei, Taiwan Manufacturer Argox Information Co.,Ltd. Model No. SDM-11BG EUT Rated Voltage DC 3.3V EUT Test Voltage DC 3.3V Trade Name ARGOX Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : (Senior Adm. Specialist / Leven Huang) Tested By : (Engineer / Joe Guo ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 106202R-RFUSP28V01 Page : 3 of 63 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................17 4.1. Test Equipment............................................................................................................................17 4.2. Test Setup ....................................................................................................................................18 4.3. Limits ..........................................................................................................................................19 4.4. Test Procedure .............................................................................................................................20 4.5. Uncertainty ..................................................................................................................................20 4.6. Test Result of Radiated Emission................................................................................................21 5. RF antenna conducted test........................................................................................................29 5.1. Test Equipment.........................................................................................................................…
