User’s Manual PA-6030 Mobile Computer DOC NO. UM-PA605-01 Feb. 2013 Version 1.0 Em p ower the Bar Code User’s Manual II NOTICE: This user’s manual may be revised or withdrawn at any time without prior notice. Copyright 2012, Argox Information Co., Ltd. All rights reserved. This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic or machine readable form without the prior written consent of Argox. Limited warranty and disclaimers By opening the package of this product you agree to become bound by the liability and warranty conditions as described below. Under all circumstances this manual should be read attentively before installing and or using the product. In no event, will Argox be liable for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Argox has been informed about the possibility of such damages. A serial number appears on all Argox products. This official registration number is strictly related to the device purchased. Make sure that the serial number appearing on your Argox device has not been removed. Servicing by our service department can only be carried out under warranty. All Argox products are warranted for the legal warranty period after purchase, covering defects in material and workmanship. Argox will repair or, at its opinion, replace products that prove to be defective in material or workmanship under proper use during the warranty period. Argox will not be liable in case modifications are made by the customer. In such case the standard repair charge will be applicable. The standard charge for repair will also be applicable in case no defect is found at all. These rules also apply for products that are still under warranty. Therefore, you are advised to have the product specifications always at hand. Trademarks used are property of their respective owners. FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface, and (2) This device must accept any interface received, including interface that may cause undesirable operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. There limits are designed to provide reasonable protection against harmful interface when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. FCC WARMING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. User’s Manual III RF exposure warning This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End- users and installers must be providing with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. SAR Value: 0.797 W/kg User’s Manual I Table of Contents 1 INTRODUCTION............................................................................................................. 1 1.1 ABOUT THIS MANUAL................................................................................................ 1 1.2 USER AND PRODUCT SAFETY..................................................................................... 2 1.3 SPECIFICATIONS......................................................................................................... 4 2 GETTING STARTED ...................................................................................................... 6 2.1 CHECK THE PACKAGE................................................................................................ 6 2.1.1 PDT Package .................................................................................................. 6 2.1.2 Cradle Package............................................................................................... 7 2.2 DETAILED VIEW......................................................................................................... 8 2.2.1 PA-60 Mobile Computer ................................................................................. 8 2.2.2 Cradle ............................................................................................................. 9 2.3 ASSEMBLY................................................................................................................ 10 2.3.1 Terminal ........................................................................................................ 10 2.3.2 Cradle ........................................................................................................... 11 2.4 INSTALLING, REPLACING AND CHARGING BATTERIES.......................................... 12 2.4.1 Installing / Replacing the Battery Pack......................................................... 13 2.4.2 Charging the Battery Pack with Cradle ........................................................ 15 2.5 INSTALLING IN A SYSTEM........................................................................................ 16 2.5.1 Via CRD-22 Cradle....................................................................................... 16 3 OPERATION OF THE MOBILE COMPUTER ......................................................... 17 3.1 KEYPAD DESCRIPTION............................................................................................. 17 3.2 INSTALLING SD CARD............…

Text truncated - open the document above for the full version.

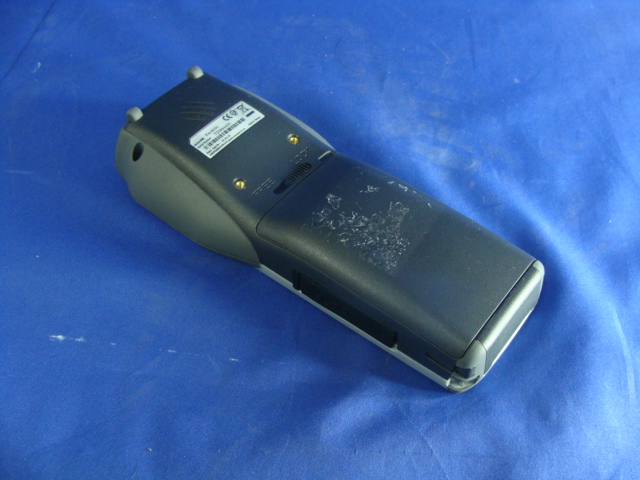

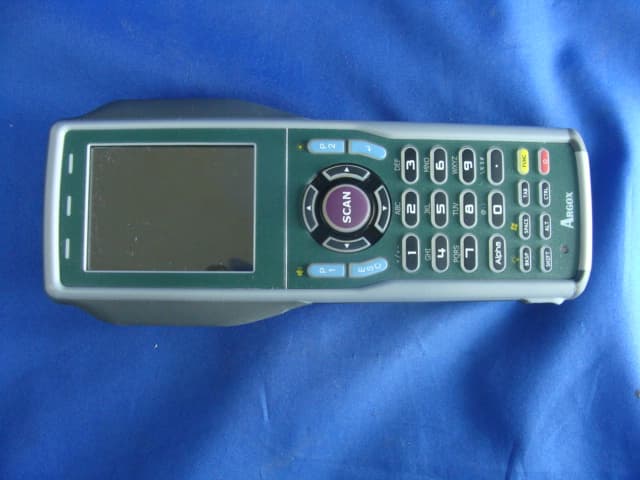

Report No.: 12C331R-RFUSP29V01 Page : 1 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 12C331R-RFUSP29V01 Page : 2 (3) EUT Photo (4) EUT Photo

Argox Information Co.,Ltd. FCC ID.: NBF-PA6030 7F., No.126, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel : 886-2-8912-1121 The FCC ID and DoC will be placed on the equipment as shown in the photograph below.

Argox Information Co.,Ltd. FCC ID.: NBF-PA6030 7F., No.126, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel : 886-2-8912-1121 FCC ID Label

Report No.: 12C331R-RFUSP29V01 Page : 3 (5) EUT Photo (6) EUT Photo Report No.: 12C331R-RFUSP29V01 Page : 4 (7) EUT Photo (8) EUT Photo Report No.: 12C331R-RFUSP29V01 Page : 5 (9) EUT Photo (10) EUT Photo BT Antenna WLAN Antenna BT Module WLAN Module Report No.: 12C331R-RFUSP29V01 Page : 6 (11) EUT Photo (WLAN Antenna) (12) EUT Photo (WLAN Antenna) Report No.: 12C331R-RFUSP29V01 Page : 7 (13) EUT Photo (BT Module) (14) EUT Photo (BT Antenna) Report No.: 12C331R-RFUSP29V01 Page : 8 (15) EUT Photo (WLAN Module) (16) EUT Photo (WLAN Module) Report No.: 12C331R-RFUSP29V01 Page : 9 (17) EUT Photo (WLAN Module) (18) EUT Photo Report No.: 12C331R-RFUSP29V01 Page : 10 (19) EUT Photo (20) EUT Photo Report No.: 12C331R-RFUSP29V01 Page : 11 (21) EUT Photo (22) EUT Photo Report No.: 12C331R-RFUSP29V01 Page : 12 (23) EUT Photo

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Measurement Result: According to KDB 447498 D01 Mobile Portable RF Exposure v05, Operation frequency = 2450MHz and antenna separation distance = 5mm, SAR Test Exclusion Threshold = 10mW The Device max peak output power = -2.14dBm, Equivalent to 0.61mW and less than 10mW The SAR/MPE measurement is not necessary.

Report No：131012R-HPUSP09V01 Page: 1 of 26 FCC Test Report Product Name ： 802.11B/G/N SDIO Module with Antenna Connectors Model No. ： ARGOX-SDM-802.11 BGN Applicant ： Argox Information Co.,Ltd. Address ： 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien, Taipei, Taiwan Date of Receipt ：2012/12/20 Issued Date ：2013/03/06 Report No. ：131012R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：131012R-HPUSP09V01 Page: 2 of 26 Test Report Certification Issued Date: 2013/03/06 Report No.: 131012R-HPUSP09V01 Product Name ： 802.11B/G/N SDIO Module with Antenna Connectors Applicant ： Argox Information Co.,Ltd. Address ： 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien, Taipei, Taiwan Manufacturer ： Argox Information Co.,Ltd. Model No. ： ARGOX-SDM-802.11 BGN Trade Name ： ARGOX FCC ID ： NBF-SDMN Applicable Standard： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 D01 & D02 , KDB 248227, KDB 865664 Test Result ： Max. SAR Measurement (1g) 0.797 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Assistant / April Chen) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：131012R-HPUSP09V01 Page: 3 of 26 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 6 1.3 Maximum output power and tolerance allowed for production units ............................ 6 1.4 Test Environment ...........................................................................................................7 2. SAR Measurement System .................................................................. 8 2.1 DASY5 System Description .......................................................................................... 8 2.1.1 Applications ................................................................................................................ 9 2.1.2 Area Scans................................................................................................................... 9 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 9 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 9 2.2 DASY5 E-Field Probe ................................................................................................. 10 2.2.1 Isotropic E-Field Probe Specification ....................................................................... 10 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 11 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 11 2.5 Robot ............................................................................................................................ 12 2.6 Light Beam Unit........................................................................................................... 12 2.7 Device Holder ..............................................................................................................13 2.8 SAM Twin Phantom .................................................................................................... 13 3. Tissue Simulating Liquid ................................................................... 14 3.1 The composition of the tissue simulating liquid .......................................................... 14 3.2 Tissue Calibration Result ............................................................................................. 14 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure ........................................................... 16 4.1 SAR System Check ...................................................................................................... 16 4.1.1 Dipoles ...................................................................................................................... 16 4.1.2 System Check Result ................................................................................................ 16 4.2 SAR Measurement Procedure ...................................................................................... 17 5. SAR Exposure Limits ......................................................................... 18 6. Test Equipment List............................................................................ 19 7. Measurement Uncertainty .................................................................. 20 8. Conducted Power Measurement ....................................................... 21 9. Test Results......................................................................................... 22 9.1 SAR Test Results Summary ......................................................................................... 22 10. SAR measurement variability ............................................................ 25 Report No：131012R-HPUSP09V01 Page: 4 of 26 Appendix ............................................................................................................................ 26 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：131012R-HPUSP09V01 Page: 5 of 26 1. General …

Text truncated - open the document above for the full version.

Report No. 12C331R-RFUSP29V01 Page: 1 of 74 FCC Test Report Product Name Mobile Computer Model No. PA-6030 FCC ID. NBF-PA6030 Applicant Argox Information Co.,Ltd. Address 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien , Taipei, Taiwan Date of Receipt Dec. 20, 2012 Issued Date Jan. 23, 2013 Report No. 12C331R-RFUSP29V01 Report Version V1.0 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 12C331R-RFUSP29V01 Page: 2 of 74 Test Report Certification Issued Date: Jan. 23, 2013 Report No.: 12C331R-RFUSP29V01 Product Name Mobile Computer Applicant Argox Information Co.,Ltd. Address 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien , Taipei, Taiwan Manufacturer Argox Information Co.,Ltd. Model No. PA-6030 FCC ID. NBF-PA6030 EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/ 60Hz Trade Name ARGOX Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Assistant Engineer / Nowal Kuo ) Approved By : ( Manager / Vincent Lin ) Report No. 12C331R-RFUSP29V01 Page: 3 of 74 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................8 1.6. Test Facility .............................................................................................................................................9 2. CONDUCTED EMISSION ................................................................................................................10 2.1. Test Equipment ......................................................................................................................................10 2.2. Test Setup ..............................................................................................................................................10 2.3. Limits.....................................................................................................................................................11 2.4. Test Procedure .......................................................................................................................................11 2.5. Uncertainty ............................................................................................................................................11 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................14 3.1. Test Equipment ......................................................................................................................................14 3.2. Test Setup ..............................................................................................................................................14 3.3. Limit .....................................................................................................................................................14 3.4. Test Procedure .......................................................................................................................................14 3.5. Uncertainty ............................................................................................................................................14 3.6. Test Result of Peak Power Output .........................................................................................................15 4. RADIATED EMISSION .....................................................................................................................17 4.1. Test Equipment ......................................................................................................................................17 4.2. Test Setup ..............................................................................................................................................17 4.3. Limits.....................................................................................................................................................18 4.4. Test Procedure .......................................................................................................................................19 4.5. Uncertainty ............................................................................................................................................19 4.6. Test Result of Radiated Emission ..........................................................................................................20 5. RF ANTENNA CONDUCTED TEST................................…

Text truncated - open the document above for the full version.

Report No. 12C331R-RFUSP29V01 Page: 57 of 74 Channel 39 2441MHz Channel 78 2480 MHz Report No. 12C331R-RFUSP29V01 Page: 58 of 74 Limit Limit of (2/3)*20dB Channel No. Frequency (MHz) Measurement Level (kHz) (kHz) Bandwidth (kHz) Result 00 2402 1000 >25 kHz 940.0 Pass 39 2441 1000 >25 kHz 946.7 Pass 78 2480 1000 >25 kHz 940.0 Pass NOTE: The 20dB Bandwidth is refer to section 10. Channel 00 2402MHz Product : Mobile Computer Test Item : Channel Separation Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) Report No. 12C331R-RFUSP29V01 Page: 59 of 74 Channel 39 2441MHz Channel 78 2480 MHz Report No. 12C331R-RFUSP29V01 Page: 60 of 74 9. Dwell Time 9.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. 9.2. Test Setup 9.3. Limit The dwell time shall be the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a 30 second period. 9.4. Test Procedure The EUT was setup to ANSI C63.10: 2009; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 9.5. Uncertainty ± 25msec SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 12C331R-RFUSP29V01 Page: 61 of 74 9.6. Test Result of Dwell Time Product : Mobile Computer Test Item : Dwell Time Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK) (Channel 00,39,78 –DH5) Frequency (MHz) Time slot length (ms) Hopping of Number Sweep time (ms) Duty cycle Dwell Time (Sec) Limit (Sec) Result 2402 2.900 13 50 0.75 0.302 0.4 Pass 2441 2.900 13 50 0.75 0.302 0.4 Pass 2480 2.900 13 50 0.75 0.302 0.4 Pass Duty cycle =((Time slot length(ms)*Hopping of Number) / Sweep time (ms) Dwell time = (Duty cycle /79) * (79*0.4) CH 00 Time Interval between hops CH 00 Transmission Time CH39 Time Interval between hops CH 39Transmission Time Report No. 12C331R-RFUSP29V01 Page: 62 of 74 CH 78 Time Interval between hops CH 78 Transmission Time Note: The dwell times of the packet type of DH1, DH3, and DH5 are tested. Only the worst case is shown on the report. Report No. 12C331R-RFUSP29V01 Page: 63 of 74 Product : Mobile Computer Test Item : Dwell Time Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) (Channel 00,39,78 –DH5) Frequency (MHz) Time slot length (ms) Hopping of Number Sweep time (ms) Duty cycle Dwell Time (Sec) Limit (Sec) Result 2402 2.890 13 50 0.75 0.301 0.4 Pass 2441 2.900 13 50 0.75 0.302 0.4 Pass 2480 2.910 13 50 0.76 0.303 0.4 Pass Duty cycle =((Time slot length(ms)*Hopping of Number) / Sweep time (ms) Dwell time = (Duty cycle /79) * (79*0.4) CH 00 Time Interval between hops CH 00 Transmission Time CH39 Time Interval between hops CH 39Transmission Time Report No. 12C331R-RFUSP29V01 Page: 64 of 74 CH 78 Time Interval between hops CH 78 Transmission Time Note: The dwell times of the packet type of DH1, DH3, and DH5 are tested. Only the worst case is shown on the report. Report No. 12C331R-RFUSP29V01 Page: 65 of 74 10. Occupied Bandwidth 10.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. 10.2. Test Setup 10.3. Limits N/A 10.4. Test Procedure The EUT was setup to ANSI C63.10: 2009; tested to FHSS test procedure of FCC Public Notice DA 00-705 for compliance to FCC 47CFR 15.247 requirements. 10.5. Uncertainty ± 150Hz SMA Connecter EUT Spectrum Analyzer RF Cable Report No. 12C331R-RFUSP29V01 Page: 66 of 74 10.6. Test Result of Occupied Bandwidth Product : Mobile Computer Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK)(2402MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 00 2402 1150 -- NA Figure Channel 00: Report No. 12C331R-RFUSP29V01 Page: 67 of 74 Product : Mobile Computer Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK)(2441MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 39 2441 1140 -- NA Figure Channel 39: Report No. 12C331R-RFUSP29V01 Page: 68 of 74 Product : Mobile Computer Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit - 1Mbps (GFSK)(2480MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 78 2480 1150 -- NA Figure Channel 78: Report No. 12C331R-RFUSP29V01 Page: 69 of 74 Product : Mobile Computer Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) (2402MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 00 2402 1390 -- NA Figure Channel 00: Report No. 12C331R-RFUSP29V01 Page: 70 of 74 Product : Mobile Computer Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK) (2441MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 39 2441 1390 -- NA Figure Channel 39: Report No. 12C331R-RFUSP29V01 Page: 71 of 74 Product : Mobile Computer Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit - 3Mbps (8DPSK)(2480MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 78 2480 1390 -- NA Figure Channel 78: Report No. 12C331R-RFUSP29V01 Page: 72 of 74 11. EMI Reduction Method During Compliance Testing No modification was made during testing.

Report No.: 12C331R-RFUSP29V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 12C331R-RFUSP29V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 12C331R-RFUSP29V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)

Report No：131012R-HPUSP09V01 Page: 1 of 23 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs PA-6030 : EUT Top EUT Front Distance 0.5cm Distance 0.5cm Report No：131012R-HPUSP09V01 Page: 2 of 23 EUT Back EUT L-Side Distance 0.5cm Distance 0.5cm Report No：131012R-HPUSP09V01 Page: 3 of 23 EUT R-Side Distance 0.5cm Report No：131012R-HPUSP09V01 Page: 4 of 23 PT-9130-1-1, PT-9230-1-1 : EUT R-Side EUT Front Distance 1cm Distance 1cm Report No：131012R-HPUSP09V01 Page: 5 of 23 EUT Back EUT Bottom Distance 1cm Distance 1cm Report No：131012R-HPUSP09V01 Page: 6 of 23 PT-9132-0-0、PT-9232-0-0: EUT Top EUT Front Touch Touch Report No：131012R-HPUSP09V01 Page: 7 of 23 EUT R-Side EUT L-Side Touch Touch Report No：131012R-HPUSP09V01 Page: 8 of 23 Depth of the liquid in the phantom-Zoom In Note: The positions used in the measurements were according to IEEE 1528-2003.
