NBF-SDMN802.11B/G/N SDIO Module with Antenna Connectors

1 802.11B/G/N SDIO Module with Antenna Connectors ARGOX­SDM­802.11 BGN WLAN Module User Manual 2 ARGOX­SDM­802.11 BGN WLAN Module Product Specification Model#: ARGOX­SDM­802.11 BGN WLAN Module IEEE802.11b/g/n compliant Features: ‐ Core IC: Summit SSD‐40L ‐ IEEE 802.11b/g/n compliant ‐ designed for mobile devices ‐ supports WPA/WPA2/WEP 64‐bit & 128‐bit encryption ‐ w/o Antenna ‐ Dimension: 19.5 x 18.4 x 3.5 mm ‐ SDIO interface 3 Contents Pin Definition ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4 Specification ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5~8 Block Diagram ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 9 Description ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 9 4 Pin Definition Pin No. Pin Name Pin No. Pin Name 1 V3P3 11 BT_STATE 2 SD_DATA0 12 WLAN_ACTIVE 3 SD2_DATA1 13 BT_FREQ 4 SD2_DATA2 14 GND 5 SD2_DATA3 15 LED_IN 6 V3P3 16 LED_IN 7 GND 17 SD2_CMD 8 GND 18 SD2_CLK 9 NC 10 BT_PRIORITY 5 Specifications Table Feature Description Physical Interface 0.62 mm pitch LGA (land grid array) (0.62 GSP) Wi-Fi Interface 1-bit or 4-bit Secure Digital I/O Antenna Interface Single antenna port (when mounted on an MSD40L board) Chip Set Broadcom BCM4319 Input Voltage Requirements 3.3 VDC ± 10% (core) I/O Signaling Voltage 1.8/3.3 VDC ± 10% Current Consumption (At maximum transmit power setting) 802.11b (16 dBm output power) Transmit: 294 mA (970 mW) Receive: 40 mA (132 mW) Standby: TBD mA (TBD mW) 802.11g (13 dBm output power) Transmit:275 mA (908 mW) Receive: 40 mA (132 mW) Standby: TBD mA (TBD mW) 802.11n (12 dBm output power) (20-MHz channel) Transmit: 255 mA (842 mW) Receive: 40 mA (132 mW) TBD mA (TBD mW) Operating Temperature -20° to 70°C (-4° to 158°F) (SDIO) Operating Humidity 10 to 90% (non-condensing) Storage Temperature -30° to 85°C (-22° to 185°F) Storage Humidity 10 to 90% (non-condensing) Maximum Electrostatic Discharge ± 2 kV Length Note: Length, width, and thickness measurements include the metal shielding. 10 mm (0.39”) Width 10 mm (0.39”) Thickness 1.3 mm (0.05”) Mounting See “Mounting” section for more information Wireless Media Direct Sequence-Spread Spectrum (DSSS) Orthogonal Frequency Divisional Multiplexing (OFDM) Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA) 6 Network Architecture Types Infrastructure and ad hoc Network Standards IEEE 802.11b, 802.11d, 802.11e, 802.11g, 802.11i, 802.11n Data Rates Supported 802.11b (DSSS) 1, 2, 5.5, 11 Mbps 802.11g (OFDM) 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (OFDM, MCS 0-7) 6.5, 7.2, 13.0, 14.4, 19.5, 21.7, 26.0, 28.9, 39.0, 43.3, 52.0, 57.8, 58.5, 65.0, 72.2 Mbps Modulation BPSK @ 1, 6, 6.5, 7.2 and 9 Mbps QPSK @ 2, 12, 13, 14.4,18, 19.5 and 21.7 Mbps CCK @ 5.5 and 11 Mbps 16-QAM @ 24, 26, 28.9, 36, 39 and 43.3 Mbps 64-QAM @ 48, 52, 54, 57.8, 58.5, 65, and 72.2 Mbps 802.11n Spatial Streams 1 (Single Input, Single Output) 2.4 GHz Frequency Bands ETSI 2.4 GHz to 2.483 GHz FCC 2.4 to 2.483 GHz MIC (Japan) (formerly TELEC) 2.4 GHz to 2.495 GHz KCC 2.4 GHz to 2.483 GHz 2.4 GHz Operating Channels ETSI: 13 (3 non-overlapping) FCC: 11 (3 non-overlapping) MIC (Japan): 14 (4 non-overlapping) KCC: 13 (3 non-overlapping) Transmit Power Settings Note: Maximum transmit power varies according to individual country regulations. All values nominal, +/-2 dBm 802.11b 16 dBm (40 mW) 802.11g 13 dBm (20 mW) 802.11n 12 dBm (16 mW) 7 Typical Receiver Sensitivity Operating Systems Supported Windows Mobile 6.5 Windows Mobile 6.1 Windows Mobile 6.0 Windows Mobile 5.0 Windows Embedded CE 6.0 R3 Windows Embedded CE 6.0 R2 Windows Embedded CE 6.0 Windows Embedded CE 5.0 Security Standards Wireless Equivalent Privacy (WEP) Wi-Fi Protected Access (WPA) IEEE 802.11i (WPA2) Encryption Wireless Equivalent Privacy (WEP, RC4 Algorithm) Temporal Key Integrity Protocol (TKIP, RC4 Algorithm) Advanced Encryption Standard (AES, Rijndael Algorithm) Encryption Key Provisioning Static (40-bit and 128-bit lengths) Pre-Shared (PSK) Dynamic 802.1X Extensible Authentication Protocol Types EAP-FAST EAP-TLS EAP-TTLS 8 PEAP-GTC PEAP-MSCHAPv2 PEAP-TLS LEAP Compliance Note: These agency approvals are pending. ETSI Regulatory Domain EN 300 328 EN 301 489-1 EN 301 489-17 EN 301 893 EN 60950-1 EU 2002/95/EC (RoHS) FCC Regulatory Domain FCC 15.247 DTS – 802.11b/g/n (Wi-Fi) – 2.4 GHz & 5.8 GHz FCC 15.407 UNII – 802.11a (Wi-Fi) – 2.4 GHz & 5.4 GHz Industry Canada RSS-210 – 802.11a/b/g/n/n (Wi-Fi) – 2.4 GHz, 5.8 GHz, 5.2 GHz, and 5.4 GHz Certifications Summit will be pursuing Wi-Fi Alliance and CCX certifications for this radio in the near term. Warranty One-Year Warranty All specifications are subject to change without notice lectrical Specifications 9 Description ARGOX‐SDM‐802.11 BGN WLAN module is designed with Summit SSD‐40L wireless LAN module IC which compliant with IEEE802.11 b/g/n standard. It also supports WPA/WPA2/WEP 64‐bit & 128‐bit encryption and external antenna must be applied to the module via J1 connector. It communicates with host device by SDIO interface and external 3.3V dc power must be supplied to the module. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following me…

Text truncated - open the document above for the full version.

Argox Information Co.,Ltd. FCC ID.: NBF-SDMN 7F., No.126, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel : 886-2-8912-1121 Argox Information Co.,Ltd. 7F., No.126, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel : 886-2-8912-1121 Fax: 886-2-8912-1124 Gentlemen: Regarding to the FCC Part 15 Section 15.212 Modular transmitters, Argox Information Co.,Ltd..would like to request modular approval for the submission FCC ID: NBF-SDMN. Argox Information Co.,Ltd.. confirms that the product complies with numbered requirements identified below: 1. The modular transmitter have its own RF shielding (Please see the internal photo). 2. The modular transmitter have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation(Please see the Block Diagram chip“BCM4319”). 3. The modular transmitter haven’t its own power supply regulation (No Regulator circuit). 4. The modular transmitter complies with the antenna requirements of Section 15.203 and 15.204(c). 5. The modular transmitter is tested in a stand-alone configuration (This is a limited module approval, installed on the host to be tested, Host Manufacturer: Argox Information Co.,Ltd., Model No: PA-6030, PT-9130-1-1, PT-9230-1-1, PT-9132-0-0, PT-9232-0-0). 6. The modular transmitter is labeled with its own FCC ID number (Please see the Uesr’s manual). 7. The modular transmitter complies with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements (Please see the Uesr’s manual). 8. The modular transmitter complies with any applicable RF exposure requirements. Sincerely, ------------------------------------------------------- Rickly Chou / Program Manager Argox Information Co.,Ltd.

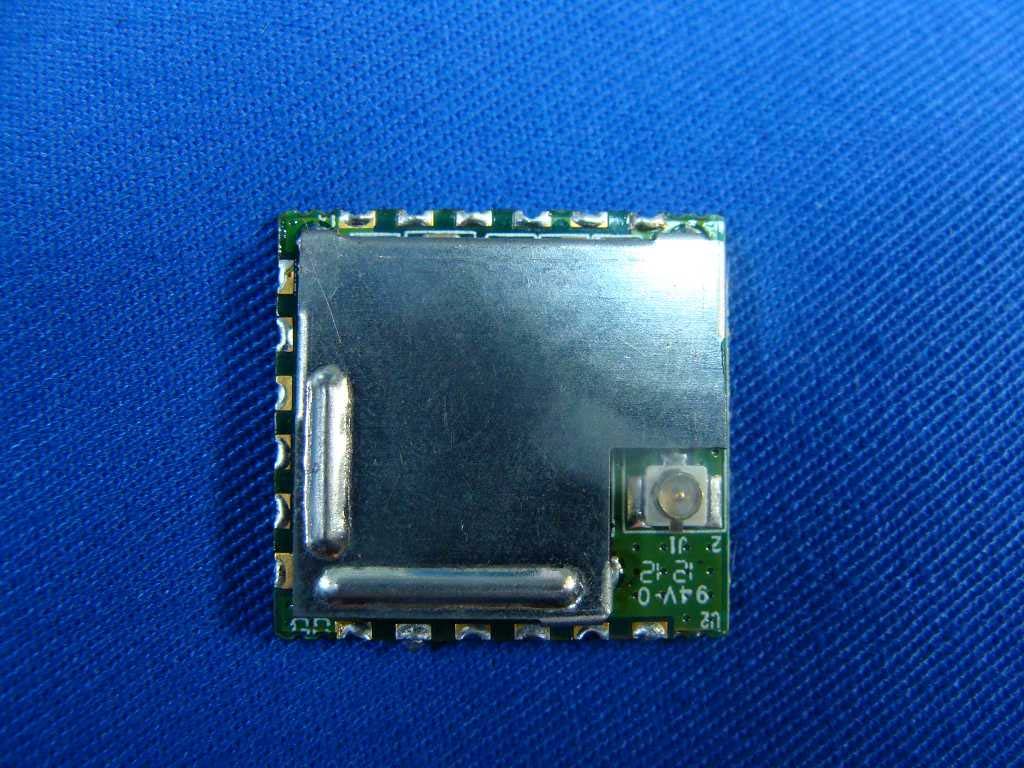

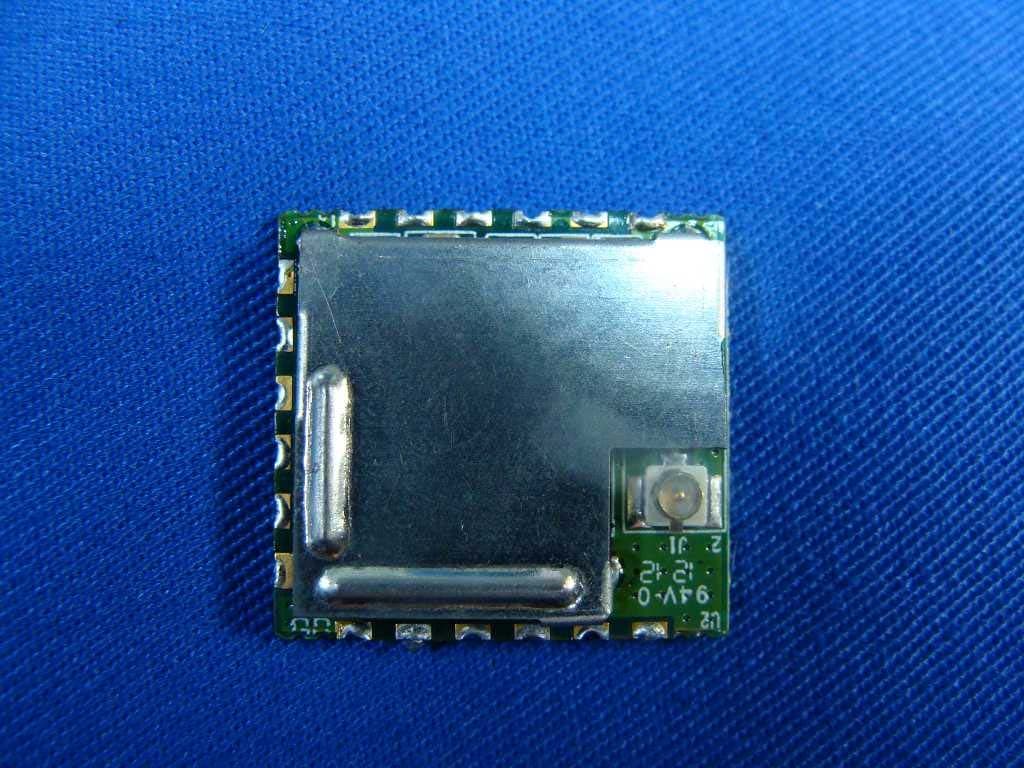

Report No：131012R-HPUSP09V01 Page: 9 of 23 EUT Photographs Report No：131012R-HPUSP09V01 Page: 11 of 23 PA-6030 : Report No：131012R-HPUSP09V01 Page: 15 of 23 PT-9130-1-1, PT-9230-1-1 : Report No：131012R-HPUSP09V01 Page: 19 of 23 PT-9132-0-0, PT-9232-0-0 :

Argox Information Co.,Ltd. FCC ID.: NBF-SDMN 7F., No.126, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel : 886-2-8912-1121 The FCC ID will be placed on the equipment as shown in the photograph below.

Argox Information Co.,Ltd. FCC ID.: NBF-SDMN 7F., No.126, Ln. 235, Baociao Rd., Sindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel : 886-2-8912-1121 FCC ID Label

Report No：131012R-HPUSP09V01 Page: 10 of 23 Report No：131012R-HPUSP09V01 Page: 12 of 23 Report No：131012R-HPUSP09V01 Page: 13 of 23 Wgt Antenna P/N: AQ060WIPI01+A Report No：131012R-HPUSP09V01 Page: 14 of 23 Ji-Haw Antenna P/N: 69-70002-001 Ji-Haw Antenna P/N: 69-70002-001 Report No：131012R-HPUSP09V01 Page: 16 of 23 Report No：131012R-HPUSP09V01 Page: 17 of 23 Aristotle Enterprises Antenna P/N: 69-70003-006 Aristotle Enterprises Antenna P/N: 69-70003-006 Report No：131012R-HPUSP09V01 Page: 18 of 23 Ji-Haw Antenna P/N: 69-70003-001 Ji-Haw Antenna P/N: 69-70003-001 Report No：131012R-HPUSP09V01 Page: 20 of 23 Report No：131012R-HPUSP09V01 Page: 21 of 23 Report No：131012R-HPUSP09V01 Page: 22 of 23 Report No：131012R-HPUSP09V01 Page: 23 of 23 LYNwave Antenna P/N: ALB120-052020-150052 LYNwave Antenna P/N: ALB120-052020-150052

Report No：131012R-HPUSP09V01 Page: 1 of 26 FCC Test Report Product Name ： 802.11B/G/N SDIO Module with Antenna Connectors Model No. ： ARGOX-SDM-802.11 BGN Applicant ： Argox Information Co.,Ltd. Address ： 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien, Taipei, Taiwan Date of Receipt ：2012/12/20 Issued Date ：2013/03/06 Report No. ：131012R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：131012R-HPUSP09V01 Page: 2 of 26 Test Report Certification Issued Date: 2013/03/06 Report No.: 131012R-HPUSP09V01 Product Name ： 802.11B/G/N SDIO Module with Antenna Connectors Applicant ： Argox Information Co.,Ltd. Address ： 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien, Taipei, Taiwan Manufacturer ： Argox Information Co.,Ltd. Model No. ： ARGOX-SDM-802.11 BGN Trade Name ： ARGOX FCC ID ： NBF-SDMN Applicable Standard： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 D01 & D02 , KDB 248227, KDB 865664 Test Result ： Max. SAR Measurement (1g) 0.797 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Assistant / April Chen) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：131012R-HPUSP09V01 Page: 3 of 26 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 6 1.3 Maximum output power and tolerance allowed for production units ............................ 6 1.4 Test Environment ...........................................................................................................7 2. SAR Measurement System .................................................................. 8 2.1 DASY5 System Description .......................................................................................... 8 2.1.1 Applications ................................................................................................................ 9 2.1.2 Area Scans................................................................................................................... 9 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 9 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 9 2.2 DASY5 E-Field Probe ................................................................................................. 10 2.2.1 Isotropic E-Field Probe Specification ....................................................................... 10 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 11 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 11 2.5 Robot ............................................................................................................................ 12 2.6 Light Beam Unit........................................................................................................... 12 2.7 Device Holder ..............................................................................................................13 2.8 SAM Twin Phantom .................................................................................................... 13 3. Tissue Simulating Liquid ................................................................... 14 3.1 The composition of the tissue simulating liquid .......................................................... 14 3.2 Tissue Calibration Result ............................................................................................. 14 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure ........................................................... 16 4.1 SAR System Check ...................................................................................................... 16 4.1.1 Dipoles ...................................................................................................................... 16 4.1.2 System Check Result ................................................................................................ 16 4.2 SAR Measurement Procedure ...................................................................................... 17 5. SAR Exposure Limits ......................................................................... 18 6. Test Equipment List............................................................................ 19 7. Measurement Uncertainty .................................................................. 20 8. Conducted Power Measurement ....................................................... 21 9. Test Results......................................................................................... 22 9.1 SAR Test Results Summary ......................................................................................... 22 10. SAR measurement variability ............................................................ 25 Report No：131012R-HPUSP09V01 Page: 4 of 26 Appendix ............................................................................................................................ 26 Appendix A. SAR System Check Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：131012R-HPUSP09V01 Page: 5 of 26 1. General …

Text truncated - open the document above for the full version.

Report No. 131012R-RFUSP28V01 Page : 1 of 91 Test Report Product Name 802.11B/G/N SDIO Module with Antenna Connectors Model No ARGOX-SDM-802.11 BGN FCC ID. NBF-SDMN Applicant Argox Information Co.,Ltd. Address 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien, Taipei, Taiwan Date of Receipt Dec. 26, 2012 Issue Date Jan. 17, 2013 Report No. 131012R-RFUSP28V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 131012R-RFUSP28V01 Page : 2 of 91 Test Report Certification Issue Date: Jan. 17, 2013 Report No.: 131012R-RFUSP28V01 Product Name 802.11B/G/N SDIO Module with Antenna Connectors Applicant Argox Information Co.,Ltd. Address 7F,NO.126,Lane 235,Pao-Chiao Rd., Hsin Tien, Taipei, Taiwan Manufacturer Argox Information Co.,Ltd. Model No. ARGOX-SDM-802.11 BGN FCC ID. NBF-SDMN EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name ARGOX Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Assistant Engineer / Nowal Kuo ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 131012R-RFUSP28V01 Page : 3 of 91 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. RF antenna conducted test........................................................................................................34 5.1. Test Equipment..........................................…

Text truncated - open the document above for the full version.

Report No. 131012R-RFUSP28V01 Page : 63 of 91 Product : 802.11B/G/N SDIO Module with Antenna Connectors Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 32.019 75.23 107.249 Peak Horizontal 2462 32.019 62.39 94.409 Average Vertical 2462 31.29 72.08 103.37 Peak Vertical 2462 31.29 59.33 90.62 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2483.6 107.249 35.52 71.729 74.000 Peak Horizontal 2483.5 94.409 42.26 52.149 54.000 Average Vertical 2483.6 103.37 35.52 67.85 74.000 Peak Vertical 2483.5 90.62 42.26 48.36 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 131012R-RFUSP28V01 Page : 64 of 91 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 131012R-RFUSP28V01 Page : 65 of 91 Product : 802.11B/G/N SDIO Module with Antenna Connectors Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.639 76.02 107.658 Peak Horizontal 2412 31.639 63.08 94.718 Average Vertical 2412 30.95 74 104.949 Peak Vertical 2412 30.95 61.3 92.249 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2389.9 107.658 34.66 72.998 74.000 Peak Horizontal 2390 94.718 42.05 52.668 54.000 Average Vertical 2389.9 104.949 34.66 70.289 74.000 Peak Vertical 2390 92.249 42.05 50.199 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 131012R-RFUSP28V01 Page : 66 of 91 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 131012R-RFUSP28V01 Page : 67 of 91 Product : 802.11B/G/N SDIO Module with Antenna Connectors Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 3: Transmit (802.11n MCS0 7.2Mbps 20M-BW) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 32.019 73.87 105.889 Peak Horizontal 2462 32.019 60.78 92.799 Average Vertical 2462 31.29 70.55 101.84 Peak Vertical 2462 31.29 57.5 88.79 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) Δ (dB) Band Edge Field Strength (dBuV/m) Limit (dBuV/m) Detector Horizontal 2483.5 105.889 33.46 72.429 74.000 Peak Horizontal 2483.5 92.799 39.31 53.489 54.000 Average Vertical 2483.5 101.84 33.46 68.38 74.000 Peak Vertical 2483.5 88.79 39.31 49.48 54.000 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - Δ F = Fundamental field Strength (Peak or Average) Δ = Conducted Band Edge Delta (Peak or Average) Report No. 131012R-RFUSP28V01 Page : 68 of 91 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 131012R-RFUSP28V01 Page : 69 of 91 7. Occupied Bandwidth 7.1. Test Equipment Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2012 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2012 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2012 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. 7.2. Test Setup 7.3. Limits The minimum bandwidth shall be at least 500 kHz. 7.4. Test Procedure The EUT was setup according to ANSI C63.10: 2009; tested according to DTS test procedure of ANSI C63.10: 2009 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 1-5% of the emission bandwidth, VBW≥3*RBW 7.5. Uncertainty ± 150Hz SMA EUT Spectrum Analyzer RF Cable Report No. 131012R-RFUSP28V01 Page : 70 of 91 7.6. Test Result of Occupied Bandwidth Product : 802.11B/G/N SDIO Module with Antenna Connectors Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2412MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 1 2412 8820 >500 Pass Figure Channel 1: Report No. 131012R-RFUSP28V01 Page : 71 of 91 Product : 802.11B/G/N SDIO Module with Antenna Connectors Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2437MHz) Channel No. Frequency (MHz) Measurement Level (kHz) Required Limit (kHz) Result 6 2437 8200 >500 Pass Figure Channel 6: Report No. 131012R-RFUSP28V01 Page : 72 of 91 Product : 802.11B/G/N SDIO Module with Antenna Connectors Test Item : Occupied Bandwidth Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) (2462MHz) Channel No. Frequency (MHz) …

Text truncated - open the document above for the full version.

Report No.: 131012R-RFUSP28V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 131012R-RFUSP28V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 131012R-RFUSP28V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)

Report No：131012R-HPUSP09V01 Page: 1 of 23 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs PA-6030 : EUT Top EUT Front Distance 0.5cm Distance 0.5cm Report No：131012R-HPUSP09V01 Page: 2 of 23 EUT Back EUT L-Side Distance 0.5cm Distance 0.5cm Report No：131012R-HPUSP09V01 Page: 3 of 23 EUT R-Side Distance 0.5cm Report No：131012R-HPUSP09V01 Page: 4 of 23 PT-9130-1-1, PT-9230-1-1 : EUT R-Side EUT Front Distance 1cm Distance 1cm Report No：131012R-HPUSP09V01 Page: 5 of 23 EUT Back EUT Bottom Distance 1cm Distance 1cm Report No：131012R-HPUSP09V01 Page: 6 of 23 PT-9132-0-0、PT-9232-0-0: EUT Top EUT Front Touch Touch Report No：131012R-HPUSP09V01 Page: 7 of 23 EUT R-Side EUT L-Side Touch Touch Report No：131012R-HPUSP09V01 Page: 8 of 23 Depth of the liquid in the phantom-Zoom In Note: The positions used in the measurements were according to IEEE 1528-2003.
