NC3HUB-300Home comunication unit

Hub 300 and Bracelet 100 Installation and Operation Guide September 2022 2 | Installation and Operation Guide: attentifusion Hub 300 and Bracelet 100 Version Comments Author Date 1.0 Initial release version. Steve Graniewitz 1 September 2022 Information in this documentation is subject to change without notice and does not represent a commitment on part of Attenti Electronic Monitoring. The software described in this document is subject to the license agreement that is included with the product, which specifies the permitted and prohibited uses of the product. Any unauthorized duplication or use of this documentation, in whole or in part, in print, or in any other storage or retrieval system is prohibited. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means for any purpose other than the purchaser’s personal use without the permission of Attenti Electronic Monitoring. © 1995-2022 Attenti Electronic Monitoring. All rights reserved. Unless otherwise noted, all names of companies, products, street addresses, and persons contained herein are part of a completely fictitious scenario and are designed solely to document the use of an Attenti Electronic Monitoring product. Contact Info: Corporate Headquarters: Attenti Electronic Monitoring, 2 Ha-Barzel St., P.O. Box 13236, 61132 Tel Aviv, Israel. T: +972-3-7671800 // F: +972-3-7671801 // U.S.A Customers, call 1-800-313-1483 Visit us at: attentigroup.com Installation and Operation Guide: attentifusion Hub 300 and Bracelet 100 | 3 Safety Information Please read, understand, and follow all safety information contained in these instructions prior to the use of this Attenti Electronic Monitoring device. Retain these instructions for future reference. Intended Use This Attenti Electronic Monitoring device is part of an electronic monitoring system, which performs data transfer using cellular network to a monitoring platform. This device has not been tested for and is not intended for use on airplanes, in hazardous environments, in healthcare facilities, or where cellular phones or other intentional transmitters are restricted. The functional operating temperature of the Hub 300 is -20°C to +55°C. The operating temperature of the Bracelet 100 is -20°C to +55°C. The storage temperature of the Hub 300 is -40°C to +70°C. The storage temperature of the Bracelet 100 is -40°C to +70°C. Explanation of Signal Word Consequences WARNING Indicates a hazardous situation which, if not avoided, could result in serious injury or death. CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury and/or property damage. NOTICE: Indicates a situation which, if not avoided, could result in property damage. Safety information for: ▪ Rechargeable hand-held/wearable devices ▪ Non-rechargeable hand-held/wearable devices ▪ Cradles/receivers/base units WARNING Avoid placing a device next to an implanted electronic device (e.g., don’t carry the device in a shirt or jacket pocket directly near an implanted device). To reduce the risks associated with fire or explosion: ▪ Do not intentionally open or damage the device. ▪ Ensure storage temperature of device is within the range as specified in device manual. ▪ Do not attempt to access or replace battery. Battery is not user-replaceable. The device shall be opened by Attenti authorized service only. ▪ Do not use device outside of the specified operation temperature range. WARNING To reduce the risks associated with hazardous voltage: ▪ Do not modify, decorate, or attempt to service the device. Return to Attenti authorized personnel or location for repair or service. There are no user serviceable parts. ▪ If the device or power cord becomes damaged, contact the agency representative from which you are monitored. 4 | Installation and Operation Guide: attentifusion Hub 300 and Bracelet 100 NOTICE: ▪ Only authorized personnel can turn off or remove the device. Safety information for: ▪ Rechargeable hand-held/wearable devices ▪ Cradles/receivers/base units WARNING To reduce the risks associated with hazardous voltage: ▪ Do not modify AC/DC power adapter plug. ▪ Do not force the power plug into an outlet where it does not fit. ▪ Use only an Attenti provided AC/DC power adapter to recharge or power the device. ▪ Use only a Safety certified LPS AC/DC plug-in adapter with output rating 5 VDC, 2A. ▪ Do not unplug AC/DC adapter by power cord. Handle the adapter by the body only. ▪ Do not attempt to charge the device using an outdoor outlet. Only use the AC/DC adapter indoors. ▪ Do not expose power adapter to rain, steam or wet conditions. ▪ Do not submerge the device, or hold the device under running water, while it is charging. CAUTION To reduce the risks associated with hot surfaces: ▪ Do not touch thermal pads on device or charger if charging is interrupted. ▪ Do not charge the device in temperatures above 45°C. Safety information only for: ▪ Rechargeable Hand-held/wearable Devices ▪ Non-rechargeable Hand-held/wearable Devices WARNING To reduce the risks associated with fire or explosion: ▪ Do not enter areas with potentially explosive atmosphere. Potentially explosive areas are often, but not always, clearly marked. Installation and Operation Guide: attentifusion Hub 300 and Bracelet 100 | 5 CAUTION ▪ Avoid installing the electronic monitoring device in the presence of ulcers, open wounds, blisters, swelling or skin infection over the expected area of contact with the electronic monitoring device. ▪ If the user reports pain, numbness or other symptom over the expected area of contact with the electronic monitoring device, a medical opinion is recommended prior to installation. ▪ If the user reports concerns about an underlying medical condition that could be exacerbated by use of the electronic monitoring device, a medical opinion is recommended prior to installation of device. ▪ If, durin…

Text truncated - open the document above for the full version.

Allied Universal Electronic Monitoring US Inc. Attestation Statements Not Covered Entity Applicant To: Federal Communications Commission Date: 10-01-2024 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: NC3HUB-300 Allied Universal Electronic Monitoring US Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely yours, Applicant Signature Printed Name: Daniel S Williamson Title: Electronics/RF Engineer Tech Address: 1838 Gunn Highway, Odessa, Florida, United States, 33556. Tel.: 8137495474 Email: [email protected]

Allied Universal Electronic Monitoring US Inc. Attestation Statements Not Covered Equipment To: Federal Communications Commission Date: 10-01-2024 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) filing FCC ID: NC3HUB-300 (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Daniel S Williamson Title: Electronics/RF Engineer Tech Address: 1838 Gunn Highway, Odessa, Florida, United States, 33556. Tel.: 8137495474 Email: [email protected] Allied Universal Electronic Monitoring US Inc.

Date: October 16, 2023 Declaration Hub 300, Bluetooth Hereby declare that the Attenti Electronic Monitoring RF device Hub 300’s Bluetooth interface is not active and won’t be operated. Thank you, Signature: _____________________ Josi Grinboju Hardware Director Attenti Electronic Monitoring Ltd.

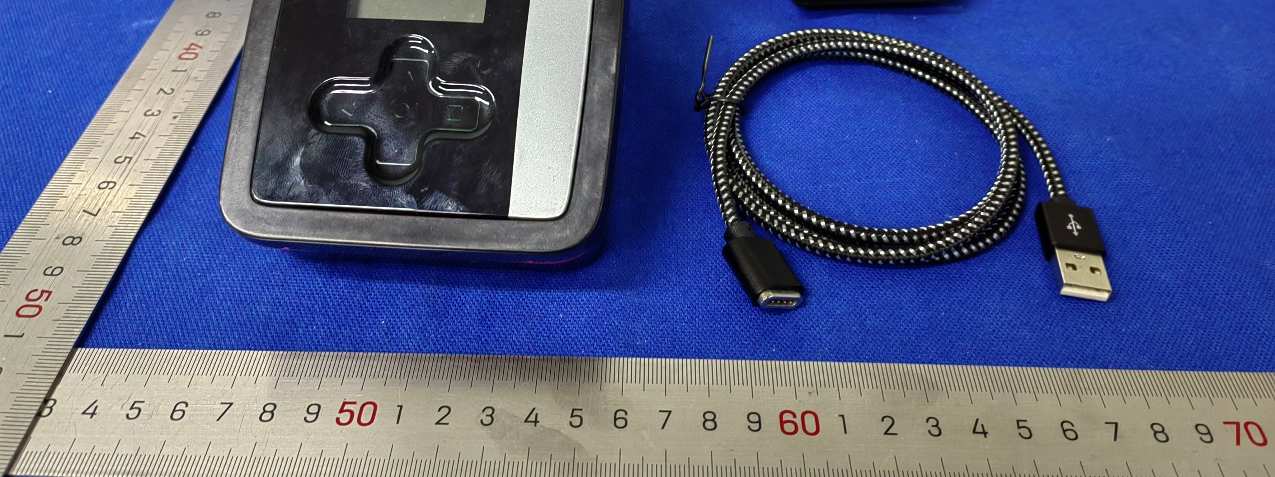

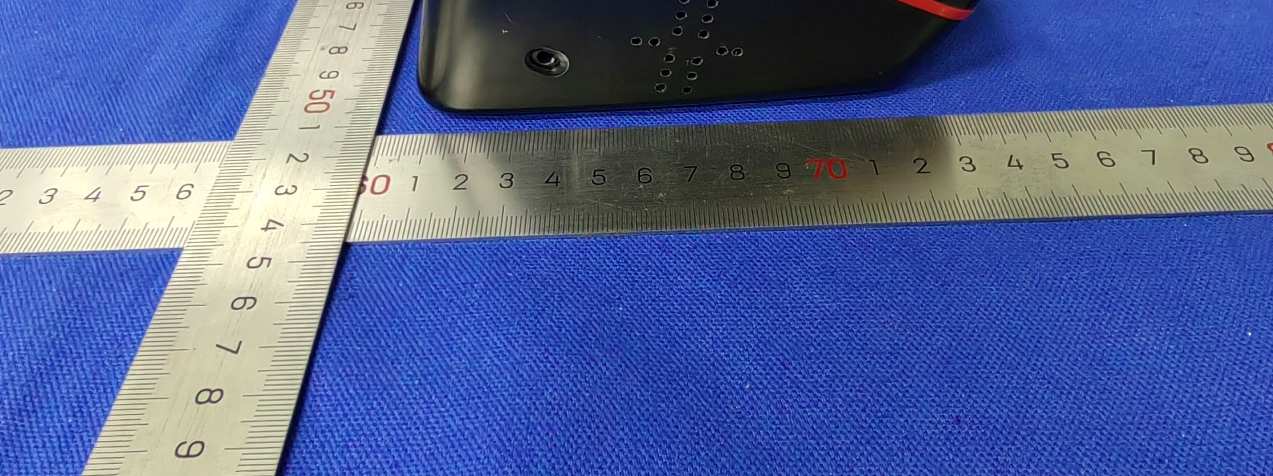

External Photographs

39.50 ±0.20 24.50 ±0.20 Serial number QR Code FONT: Centry Gothic Bold 6 For specific configuration of M/N Per Device Part number, Refer to Attenti SI-075 Document ! FONT: Centry Gothic Regular Bold 6 XXXXXXXX=Country Of Origin FONT: Centry Gothic Regular Bold 6 Adhesive side please notice: QR code content : - 1st line : S/N - 2nd line : Top P/N and revison For QR content and S/N format, Refer to Attenti SI-075 Document ! REVISIONS ECOREV.DESCRIPTIONDATEAPPROVED 010144A00RELEASE TO PRODUCTION09/26/2023Ravid Mor Yosef D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 DIMENSIONS ARE IN MILLIMETERS TOLERANCES (UNLESS OTHERWISE SPECIFIED) 0.5 TO 6 0.1 > 6 TO 30 0.2 > 30 TO 120 0.3 >120 TO 400 0.5 ANGULAR: .5 REVISION ITEM NUMBER (PARTS LIST) INSPECTION DIMENSION CORRESPONDING NOTE SYMBOL KEY: PROJECTION: A00 42120204 PART. NO. INPERPRET PER ASME Y14.5M-1994 SHEET 1 OF 1 WEIGHT (gr): REV DOC. NO. A3 SIZE TITLE: NAMEDATE CHECKED DRAWN SEE NOTES FINISH MATERIAL HUB-300 PRODUCT LABEL-NA Ravid Mor Yosef 09/26/2023 SCALE 42120204 2:1 Ravid Mor Yosef09/26/2023 Released THIS DOCUMENT IS COPYRIGHTED PROPERTY OF ALLIED UNIVERSAL ELECTRONIC MONITORING COMPANY AND MAY NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION OR USED OR DISCLOSED FOR OTHER THAN THE COMPANY AUTHORIZED PURPOSES. Label Location

Internal photos

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23YM2P 004 Auftrags-Nr.: Order no.: 168443071 Seite 1 von 10 Page 1 of 10 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023-09-08 Auftraggeber: Client: Allied Universal Electronic Monitoring US, Inc. 1838 Gunn Hwy, Odessa FL 33556, United States Prüfgegenstand: Test item: Home comunication unit Bezeichnung / Typ-Nr.: Identification / Type no.: HUB-300 (Trademark: Attenti) Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 v06 Wareneingangsdatum: Date of sample receipt: 2023-08-29 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003550494-001~011 Prüfzeitraum: Testing period: 2023-09-15 - 2024-02-01 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Breeze Jiang genehmigt von: authorized by: X Signed by: Bell Hu Datum: Date: 2024-02-05 Ausstellungsdatum: Issue date: 2024-02-05 Stellung / Position: Sachverständige(r)/Expert Stellung / Position: Sachverständige(r)/Expert Sonstiges / Other: FCC ID: NC3HUB-300 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the above mentioned test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shenzhen) Co., Ltd., 1601-1604, 17-18F, Tower A Building 2, Shenzhen International Innovation Valley, Dashi 1st Road, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P. R. China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: CN23YM2P 004 Test report no.: Seite 2 von 10 Page 2 of 10 Anmerkungen Remarks 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen basierend auf numerischen Messergebnisen in diesem Prüfbericht basiert auf der "Null-Grenzwert-Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2021, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. Zu weiteren Informationen bezueglich des Risikos durch diese Entscheidungsregel siehe ILAC G8:2019. The decision rule for statements of conformity, based on numerical measurement results, in this test report is based on the “Zero Guard Band Rule” and “Simple Acceptance” in accordance with ILAC G8:2019 and IEC Guide 115:2021, unless otherwise specified in the applied st…

Text truncated - open the document above for the full version.

antenna specification: 1. Manufacturer.: MOLEX 2. Address: 2222 Wellington Ct Lisle, IL 60532, USA 3. Manufacturer Part Number: 47948-0001 4. RF module/chip: MURATA - LBEE5KL1DX-977 5. Antenna description Antenna type 2.4GHz MID SMT Antenna Antenna manufacturer MOLEX P.N 479480001 Antenna datasheet if exist Frequency range 2400MHz~2500MHz Modulation WIFI: DSSS / CCK (IEEE802.11b), OFDM (IEEE802.11g), OFDM (IEEE802.11n) Antenna gain max (peak) 3.7dBi Cable loss No Cable Connector type No Connector 6. Antenna layout 7. Antenna radiation pattern Please refer to appendix A >>. 8. Antenna photo - 9. RF-auxiliaries – No auxiliary Appendix A - Radiation Pattern

antenna specification: 1. Manufacturer.: TAOGLAS 2. Address: 4851 Paramount Drive, San Diego, CA 92123 3. Manufacturer Part Number: ILA.01 4. RF module/chip: TI CC1352P74T0RGZR 5. Antenna description Antenna type 915 MHz ISM Band Loop SMD Antenna Antenna manufacturer ILA.01 Antenna datasheet if exist Frequency range 902MHz~928MHz Modulation GFSK Antenna gain max (peak) 1.5dBi Cable loss No Cable Connector type No Connector 6. Antenna layout 7. Antenna radiation pattern Please refer to appendix A >>. 8. Antenna photo 9. RF-auxiliaries – No auxiliary. Appendix A - Radiation Pattern

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23YM2P 001 Auftrags-Nr.: Order no.: 168443071 Seite 1 von 23 Page 1 of 23 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023-09-08 Auftraggeber: Client: Allied Universal Electronic Monitoring US, Inc. 1838 Gunn Hwy, Odessa FL 33556, United States Prüfgegenstand: Test item: Home comunication unit Bezeichnung / Typ-Nr.: Identification / Type no.: HUB-300 (Trademark: Attenti) Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 Wareneingangsdatum: Date of sample receipt: 2023-08-29 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003550494-001~011 Prüfzeitraum: Testing period: 2023-09-15 - 2023-10-12 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Breeze Jiang genehmigt von: authorized by: X Signed by: Bell Hu Datum: Date: 2024-02-05 Ausstellungsdatum: Issue date: 2024-02-05 Stellung / Position: Sachverständige(r)/Expert Stellung / Position: Sachverständige(r)/Expert Sonstiges / Other: FCC ID: NC3HUB-300 This report for 915MHz function. Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the above mentioned test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shenzhen) Co., Ltd., 1601-1604, 17-18F, Tower A Building 2, Shenzhen International Innovation Valley, Dashi 1st Road, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P. R. China Mail: [email protected] · Web: www.tuv.com CFR47 FCC Part 15: Subpart C Section 15.209 Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: CN23YM2P 001 Test report no.: Seite 2 von 23 Page 2 of 23 Anmerkungen Remarks 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen basierend auf numerischen Messergebnisen in diesem Prüfbericht basiert auf der "Null-Grenzwert-Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2021, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. Zu weiteren Informationen bezueglich des Risikos durch diese Entscheidungsregel siehe ILAC G8:2019. The decision rule for statements of conformity, based on numerical measurement results, in this test report is based on the “Zero Guard Band Rule” and “Simple Acceptance” in accordance with ILAC G8:2019 …

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix A CN23YM2P 001 Page 1 of 14 Appendix A: Test Results of 915MHz APPENDIX A: TEST RESULTS OF 915MHZ ....................................................................................................................... 1 APPENDIX A.1: TEST RESULTS OF CONDUCTED POWER SPECTRAL DENSITY ................................................................................. 2 APPENDIX A.2: TEST RESULTS OF 6DB BANDWIDTH .............................................................................................................. 3 APPENDIX A.3: TEST RESULTS OF 99% BANDWIDTH ............................................................................................................. 4 APPENDIX A.4: TEST RESULTS OF CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH ...................................... 5 Band Edge ............................................................................................................................................................. 5 Conducted Spurious Emission ................................................................................................................................ 6 APPENDIX A.5: TEST RESULTS OF RADIATED SPURIOUS EMISSIONS ........................................................................................... 7 30 MHz - 1GHz ....................................................................................................................................................... 7 1GHz - 10GHz ........................................................................................................................................................ 9 APPENDIX A.6: TEST RESULTS OF CONDUCTED EMISSION ON AC MAINS ................................................................................. 13 Prüfbericht - Produkte Test Report - Products Appendix A CN23YM2P 001 Page 2 of 14 Appendix A.1: Test Results of Conducted Power Spectral Density Test Frequency (MHz) Result [dBm/3-100kHz] Limit [dBm/3kHz] Verdict 915 7.68 ≤8.00 PASS Prüfbericht - Produkte Test Report - Products Appendix A CN23YM2P 001 Page 3 of 14 Appendix A.2: Test Results of 6dB Bandwidth Test Frequency (MHz) DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 915 0.653 914.6787 915.3321 0.5 PASS Prüfbericht - Produkte Test Report - Products Appendix A CN23YM2P 001 Page 4 of 14 Appendix A.3: Test Results of 99% Bandwidth Test Frequency (MHz) OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 915 0.545 914.731 915.276 --- PASS Prüfbericht - Produkte Test Report - Products Appendix A CN23YM2P 001 Page 5 of 14 Appendix A.4: Test Results of Conducted Spurious Emissions Measured in 100 kHz Bandwidth Band Edge Prüfbericht - Produkte Test Report - Products Appendix A CN23YM2P 001 Page 6 of 14 Conducted Spurious Emission Prüfbericht - Produkte Test Report - Products Appendix A CN23YM2P 001 Page 7 of 14 Appendix A.5: Test Results of Radiated Spurious Emissions Note: 1. Testing was carried out within frequency range 9kHz to the tenth harmonics. The measurement results below 30MHz and above 10GHz were greater than 20dB below the limit, so only the radiated spurious emissions from 30MHz to 10GHz were reported. 2. The highest waveform in the figure is 915MHz Fundamental. 30 MHz - 1GHz EUT Information EUT Name: Home Communication Unit Model: HUB-300 Test Mode: 915MHz Order No/Sample No: 168443071/A003550494-002 Test Voltage: AC 120V/60Hz Remark: Temp 24 Humi:50% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin 0 20 40 60 80 100 110 30M 50 60 80 100M200300400 500 800 1G Level in dBμV/m Frequency in Hz Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 64.920000 35.57 40.00 4.43 100.0 H 342.0 -20.4 158.562308 33.86 43.50 9.64 100.0 H 0.0 -22.1 240.005000 35.02 46.00 10.98 100.0 H 160.0 -18.0 432.065000 24.68 46.00 21.32 100.0 H 324.0 -13.6 960.043462 31.60 54.00 22.40 100.0 H 253.0 -4.7 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix A CN23YM2P 001 Page 8 of 14 EUT Information EUT Name: Home Communication Unit Model: HUB-300 Test Mode: 915MHz Order No/Sample No: 168443071/A003550494-002 Test Voltage: AC 120V/60Hz Remark: Temp 24 Humi:50% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin 0 20 40 60 80 105 30M 50 60 80 100M200300400 500 800 1G Level in dBμV/m Frequency in Hz Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 64.621539 34.82 40.00 5.18 100.0 V 76.0 -20.3 168.001154 20.73 43.50 22.77 100.0 V 84.0 -21.7 252.913462 30.02 46.00 15.98 100.0 V 52.0 -17.6 399.346154 23.74 46.00 22.26 100.0 V 0.0 -14.1 672.028077 25.78 46.00 20.22 100.0 V 108.0 -8.9 Final_Result Frequency (MHz) QuasiPeak (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) --- --- --- --- --- --- --- Prüfbericht - Produkte Test Report - Products Appendix A CN23YM2P 001 Page 9 of 14 1GHz - 10GHz EUT Information EUT Name: Home Communication Unit Model: HUB-300 Test Mode: 915MHz Order No/Sample No: 168443071/A003550494-002 Test Voltage: AC 120V/60Hz Remark: Temp 24 Humi:50% Test Standard: FCC 15.247 Tested By: Kei Zhang Reviewed By: Terry Yin 0 20 40 60 80 100 110 1G2G3G4G5G678G Level in dBμV/m Frequency in Hz Critical_Freqs Frequency (MHz) MaxPeak (dBμV/m) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol Azimuth (deg) Corr. (dB/m) 1829.858333 --- 36.82 54.00 17.18 150.0 H 82.0 4.9 1862.800000 44.80 --- 74.00 29.20 150.0 H 114.0 5.1 2744.408333 --- 45.59 54.00 8.41 150.0 H 1.0 7.8 2745.525000 52.03 --- 74.00 21.97 150.0 H 0.0 7.8 3659.516667 54.68 --- 74.00 19.32 150.0 H 14.0 9.4 3660.075000 --- 48.10 54.00 5.90 150.0 H 265.0 9.4 Final_Result Frequency (MHz) Average (dBμV/m) Limit (dBμV/m) Margin (dB) Height (cm) Pol …

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23YM2P 002 Auftrags-Nr.: Order no.: 168443071 Seite 1 von 23 Page 1 of 23 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023-09-08 Auftraggeber: Client: Allied Universal Electronic Monitoring US, Inc. 1838 Gunn Hwy, Odessa FL 33556, United States Prüfgegenstand: Test item: Home comunication unit Bezeichnung / Typ-Nr.: Identification / Type no.: HUB-300 (Trademark: Attenti) Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 Wareneingangsdatum: Date of sample receipt: 2023-08-29 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003550494-001~011 Prüfzeitraum: Testing period: 2023-10-12 - 2024-01-06 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Breeze Jiang genehmigt von: authorized by: X Signed by: Bell Hu Datum: Date: 2024-02-05 Ausstellungsdatum: Issue date: 2024-02-05 Stellung / Position: Sachverständige(r)/Expert Stellung / Position: Sachverständige(r)/Expert Sonstiges / Other: FCC ID: NC3HUB-300 This report for 2.4G Wi-Fi function. Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundla…

Text truncated - open the document above for the full version.
