Ffirm Atlas5055™ Point-to-Point Wireless Ethernet Bridge USER MANUAL April 16, 2007 Revision 1 Table of Contents Trango Trango Broadband Wireless Atlas5055 page ii Table of Contents Preface ...................................................................................................................................................................iv FCC Information ............................................................................................................................................v Warranty Information .....................................................................................................................................v Contact Information.......................................................................................................................................vi Chapter 1 Overview................................................................................................................................................7 OFDM ............................................................................................................................................................7 Adaptive Modulation......................................................................................................................................7 ARQ ...............................................................................................................................................................7 Dual Polarity Antenna ....................................................................................................................................8 Range vs. Throughput ....................................................................................................................................9 System Contents ...........................................................................................................................................10 Location of Serial Number & MAC Address ...............................................................................................11 Location of RJ-45/LED Port & IP Reset Button ..........................................................................................11 Chapter 2 Getting Started .....................................................................................................................................12 Connections and Power ................................................................................................................................12 Configuration Tools......................................................................................................................................13 Changing Password ......................................................................................................................................13 Troubleshooting Ethernet Connections ........................................................................................................14 System Information (sysinfo) Page ..............................................................................................................14 Chapter 3 Configuration .......................................................................................................................................17 Key Concepts ...............................................................................................................................................17 Essentials to Establish a Wireless Link ........................................................................................................18 Master Unit Configuration............................................................................................................................18 Remote Unit Configuration ..........................................................................................................................19 Establishing a Wireless Link ........................................................................................................................19 Changing IP Address ....................................................................................................................................19 LEDs.............................................................................................................................................................20 RF Link Loopback Test (linktest command) ................................................................................................21 Link Speed & Power Settings.......................................................................................................................22 Command Reference Listing ........................................................................................................................23 Chapter 4 Deployment & Installation...................................................................................................................28 Site Selection ................................................................................................................................................28 Site survey ....................................................................................................................................................28 Channel Planning............................................................................................................... ...........................29 RSSI Command and Antenna Alignment.....................................................................................................29 Mounting Hardware......................................................................................................................................31 Cabling and Weather Considerations ...........................................................................................................32 Weatherizing ..................................................................................................…

Text truncated - open the document above for the full version.

15070 Avenue of Science, Suite 200 San Diego, CA 92128 Ph: 858-653-3900 Fax: 858-621-2725 May 2, 2007 Dear FCC: I attest that the Following model radios do not have Ad Hoc capabilities on non-US frequencies and on DFS frequencies: P5055M-19-US P5055M-23-US P5055M-EXT-US Best Regards, Christopher A. Gustaf Christopher A. Gustaf VP, Engineering Phone – 858-653-3900 Fax – 858-621-2725 Email: [email protected]

15070 Avenue of Science, Suite 200 San Diego, CA 92128 Ph: 858-653-3900 Fax: 858-621-2725 May 1, 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Christopher A. Gustaf Christopher A. Gustaf VP, Engineering Phone – 858-653-3900 Fax – 858-621-2725 Email: [email protected]

15070 Avenue of Science, Suite 200 San Diego, CA 92128 Ph: 858-653-3900 Fax: 858-621-2725 April 24, 2007 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request of Confidentiality In reference to the application under FCCID NCYP5055M, and pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: Schematics, Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Christopher A. Gustaf Christopher A. Gustaf VP, Engineering Ph – 858-653-3900 Fax – 858-621-2725

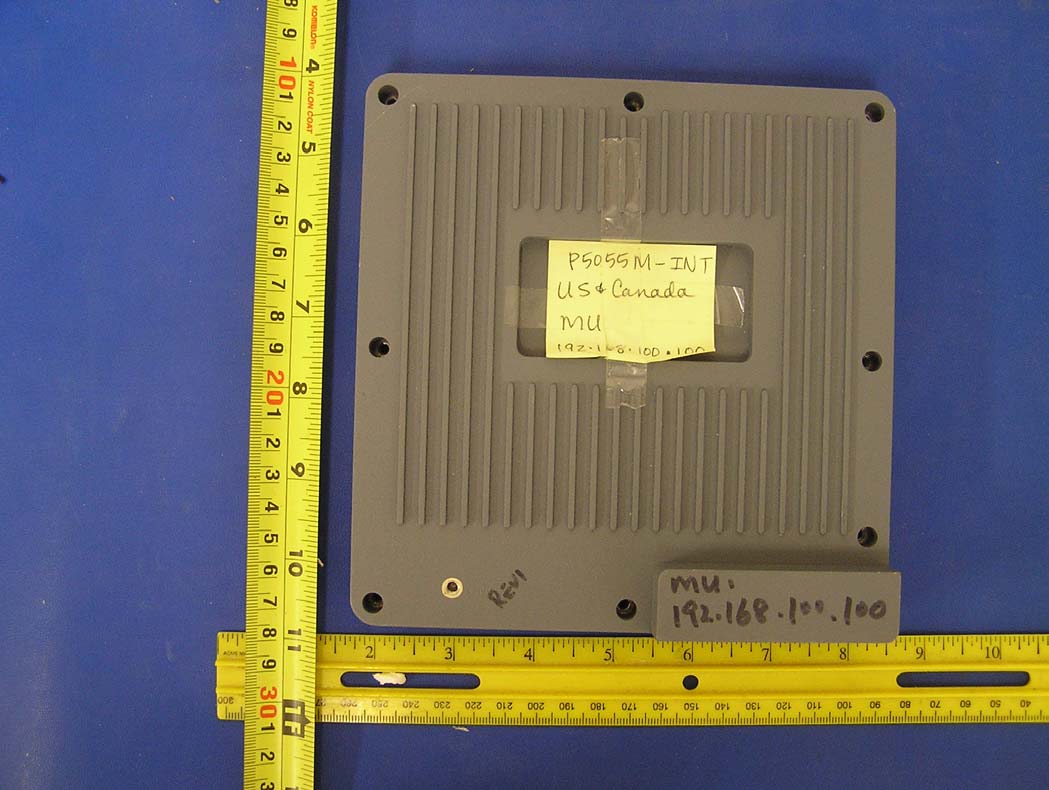

Overview Trango Broadband Wireless — Atlas5055 page 11 Location of Serial Number & MAC Address The serial number and MAC address label can be found on the back of each radio. The serial number and MAC address is also provided within the system information (sysinfo) screen. P5055M-23-US P5055M-EXT-US Location of RJ-45/LED Port & IP Reset Button The RJ-45 connector, diagnostic LEDs, and reset button are located at the bottom of the radio. Functionality of the LEDs is described later in this text. The IP reset button resets IP configuration and password back to factory default. The reset button does not reset any other parameters other than IP configuration and password. Typically a user would only press the reset button when the IP configuration or password in unknown. Reset button must be held down for approximately 10 seconds. Trango Broadband Wireless P5055M- 23-US Rev. A S/N: 000001420 MAC: 00 01 DE 00 02 F2 FCC ID: NCYP5055M IC: 2945AP5055M THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES: OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERANCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. IP Reset Button Trango Broadband Wireless P5055M- EXT-US Rev. A S/N: 000001421 MAC: 00 01 DE 00 02 F3 FCC ID: NCYP5055M ICC: 2945AP5055M THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES: OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERANCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Theory of operation - P5055M family of point to point radios GENERAL DESCRIPTION The P5055M radio system is a point to point wireless link consisting of a Master unit (-MU) and Remote unit (-RU) functioning as a wireless MAC layer ethernet access solution. Each unit accepts full or half duplex Ethernet IEE 802.3 data packets from a 10/100BaseT port formats the packets with error coding, and transmits them at 6 to 54 Mbit/sec rate using the ISL3692 zero –IF modem. The modem formats the raw data into Orthogonal Frequency Division Multiplex (OFDM) symbols and sends the symbols to the power amplifier through either a bandpasss filter or a fixed attenuator, depending on the frequency selected. The radio operates in a Time Division Duplexing (TDD) mode. The CPU and RF sections are clocked by the same 40 MHz oscillator. The Ethernet port is clocked by a 25 MHz oscillator. The DFS section is clocked by the same 40 MHz oscillator as the main section, except for the ADI microcontroller which uses a 32.768 Khz clock crystal. The switching regulator oscillators are about 1MHz. The entire PCB is shielded by a solid cast aluminum housing. The unit acts as a bridge and will transmit all packets it receives on it’s port. The unit utilizes either a +19 or +23 dBi integral patch antenna array or an external dish from +27 to +33 dBi (with 1 dB cable loss) to reduce emissions to just the communications path of interest. The RF power level is automatically controlled by the CPU and will be reduced to the minimum level needed to achieve a target receive strength level at the receiver side. The MU is normally located at the Internet Service Provider's network center (usually mounted on a tower or rooftop) and is connected to the wired Internet via Ethernet cable. The RU is located on the Internet Service Provider AP tower (mounted outside) and is connected to access points or other Ethernet device. DYNAMIC FREQUENCY SELECTION (DFS) The dynamic frequency selection part of the radio is actually a separate receiver that monitors for radar using a threshold detector. This receiver is always active and cannot be turned off by the user. The unit uses simple level detection and a comparator that will trigger if the input radio signal is above a preprogrammed level. The level is different for each of the three models that are available based on the minimum antenna gain for each. After a radar event, the MU will cease transmission on the current channel and move to a randomly selected new channel. That channel is then declared unavailable for 30 minutes. The uniform spreading requirement is met by using a random number generator with a range equal to the number of available channels. Since the number is random, each available channel has the same probability of being selected. The MU will then perform a channel availability check. After the CAC is successfully completed, the MU will begin transmitting packets to the RU. The RU will respond using a low to high power leveling routine that allows the MU to leave it’s radar detector enabled. The radar detector function is not used for the ISM band 5.725 to 5.85 GHz. . HARDWARE/FIRMWARE CONFIGURATION Firmware running on the MU and RU manages the flow of information out to the Ethernet port. The firmware is loaded into the FLASH memory on the unit and runs when the unit is powered on. The only difference between the MU and RU is the firmware. The circuitry and antenna, enclosure is EXACTLY the same, The functioning of the hardware is the same for both models, including RF channel changing, RF power output, TX/RX switching, and anything that can affect emissions. Functionally, the only difference between the units is that the MU is the Master and the RU is the slave. The RU will only transmit AFTER the MU transmits a grant packet to it. The RU cannot establish an ad- hoc network. The MU also maintains the synchronization on the link and coordination of frequency changes. The entire system is grounded via the aluminum enclosure which is directly connected to Earth ground using an 18 AWG wire. The patch antenna system is built in and requires no further grounding.

Radio Waves, Inc. http://www.radiowavesinc.com 25 978-459-8800•978-459-3310 Fax ModelFrequency,PolarizationGainBeamwidth X-Pol.F/B RatioVSWR, Max NumberGHzdBi (nominal) -3dBRejection, dBdB(R.L., dB) DIAMETERS, WEIGHTS ANDELECTRICALSPECIFICATIONS: S TANDARDPARABOLICANTENNAS ANDRADOMES ELECTRICALSPECIFICATIONS(typical performance) 2.4 - 2.7 GHz Range SPD2-2.42.40 - 2.70Dual21.114.028281.5:1 (14.0) SPD3-2.42.40 - 2.70Dual24.19.530301.5:1 (14.0) SPD4-2.42.40 - 2.70Dual27.07.330341.5:1 (14.0) SPD6-2.42.40 - 2.70Dual30.14.830381.5:1 (14.0) SPD8-2.42.40 - 2.70Dual32.53.630391.5:1 (14.0) 5.25 - 5.85 GHz Range SPD2-5.25.25 - 5.85Dual28.16.228381.5:1 (14.0) SPD3-5.25.25 - 5.85Dual31.14.230401.5:1 (14.0) SPD4-5.25.25 - 5.85Dual34.43.130441.5:1 (14.0) SPD6-5.25.25 - 5.85Dual37.52.130461.5:1 (14.0) SPD8-5.25.25 - 5.85Dual39.71.630521.5:1 (14.0) All specifications subject to change without notice. Standard parabolic Antennas - Dual Polarized ANTENNADIAMETERS ANDWEIGHTS: 1 ft (30 cm) - 15 lbs. (6.8 kg) 2 ft (60 cm) - 22 lbs. (9.9 kg) 3 ft (90 cm) - 35 lbs. (15.8 kg) 4 ft(120 cm) - 60 lbs. (27.0 kg) 6 ft(180 cm) - 90 lbs. (40.5 kg) 8 ft(240 cm) - 250 lbs (112.5 kg) ModelDiameterAttenuationAdd to antenna VSWR, Max Numberft. (cm)2 GHz 5 GHz2 GHz5 GHz ELECTRICALSPECIFICATIONS(typical performance) RD22 (60)0.20.40.020.04 RD33 (90)0.20.40.020.04 RD44 (120)0.20.40.020.04 RD6*6 (180)0.20.40.020.04 RD8*8 (240)0.20.40.020.04 *Consult factory for availability radomes RADOMEDIAMETERS ANDWEIGHTS: 2 ft (60 cm) - 4 lbs. (1.8 kg) 3 ft (90 cm) - 8 lbs. (3.6 kg) 4 ft(120 cm) - 20 lbs. (9.0 kg) 6 ft(180 cm) - 30 lbs. (13.5 kg) 8 ft(240 cm) - 70 lbs. (31.5 kg)

STANDARD INTEGRATED ANTENNA (P5055M-19-XX) Frequency range: 4950-5850 MHz Gain: 19 dBi +/- 1 dB from 5700-5850 18 dBi +/- 1 dB from 4950-5700 Front/Back Ratio >30 dB E-Plane Beamwidth: > 18 degrees typical H-Plane Beamwidth: > 18 degrees typical Polarization: Vertical and Horizontal Port/Port Isolation: 20 dB typ Cross Pol Rejection: 20 dB typ VSWR: <1.7:1 Package: Alumininum backplate with plastic radome. Dimensions: 8.5" x 7.75" x 1.25" (216mm x 197mm x 32mm) Weight: 2lbs (.91Kg) Mounting Provisions: Mounting kit supplied for up to 3”diam pole or flat surface Azimuth/El Adjust: +/-30 degrees Sealing: Water tight to 1 meter IEC 529/IP67 Temp Range: -40 deg F to +160 deg F (-40 deg C to +60 deg C) Wind speed operational: 100 mph (160 km/hr) Wind speed survival : 140 mph (220 km/hr) STANDARD ANTENNA (P5055M-23-XX) Frequency range: 4950-5850 MHz Gain: 23 dBi +/- 1 dB dB from 5700-5850 22 dBi +/- 1 dB from 4950-5700 Front/Back Ratio >35 dB E-Plane Beamwidth: > 9 degrees typical H-Plane Beamwidth: > 9 degrees typical Polarization: Vertical and Horizontal Port/Port Isolation: 40 dB typ Cross Pol Rejection: 25 dB typ VSWR: <1.7:1 Package: Alumininum backplate with plastic radome. Dimensions: 14.6”x 14.6”x 1.58” (371mm x 371mm x 40mm) Weight: 5.5 lbs (2.5 kg) Mounting Provisions: Mounting kit supplied for up to 3”diam pole or flat surface Azimuth/El Adjust: +/-30 degrees Sealing: Water tight to 1 meter IEC 529/IP67 Temp Range: -40 deg F to +160 deg F (-40 deg C to +60 deg C) Wind speed operational: 100 mph (160 km/hr) Wind speed survival : 140 mph (220 km/hr) Optional 2 Ft to 4’ DIAM PRIME FOCUS DISH ANTENNA FOR P5010M- EXT, P5010M- EXT Radiowaves model tested: 4 foot – SPD4-5.2 See Radiowaves, Inc. Specification for details . 2 and 3 foot diameter dual polarization antennas from this family may be used as well. NOTE: No antenna with a gain lower than 27 dBi may be used since the DFS threshold will be too high to pass regulatory requirements.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11a POINT TO POINT TRANSCEIVER MODEL NUMBERS: P5055M-INT-19, P5055M-INT-23, P5055M-EXT FCC ID: NCYP5055M REPORT NUMBER: 06U10393-2 ISSUE DATE: APRIL 27, 2007 Prepared for TRANGO SYSTEMS, INC. 15070 AVENUE OF SCIENCE, SUITE 200 SAN DIEGO, CA 92128, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 06U10393-2 DATE: APRIL 27, 2007 EUT: 802.11a POINT TO POINT TRANSCEIVER FCC ID: NCYP5055M Page 2 of 69 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 04/27/07 Initial Issue T. Chan REPORT NO: 06U10393-2 DATE: APRIL 27, 2007 EUT: 802.11a POINT TO POINT TRANSCEIVER FCC ID: NCYP5055M Page 3 of 69 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS FOR THE 5725 TO 5850 MHz BAND ......................................................... 10 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 10 7.1.2. 99% BANDWIDTH............................................................................................................ 14 7.1.3. PEAK OUTPUT POWER .................................................................................................. 18 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 23 7.1.5. AVERAGE POWER........................................................................................................... 26 7.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 27 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 31 7.2. RADIATED EMISSIONS.............................................................................................................38 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 38 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 5725 TO 5850 MHz BAND ................................ 40 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 43 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 55 8. SETUP PHOTOS .............................................................................................................................. 61 REPORT NO: 06U10393-2 DATE: APRIL 27, 2007 EUT: 802.11a POINT TO POINT TRANSCEIVER FCC ID: NCYP5055M Page 4 of 69 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: TRANGO SYSTEMS, INC. 15070 AVENUE OF SCIENCE, SUITE 200 SAN DIEGO, CA 92128 U.S.A. EUT DESCRIPTION: 802.11a POINT TO POINT TRANSCEIVER WITH PATCH AND DISH ANTENNAS MODELS: P5055M-INT-19, P5055M-INT-23, P5055M-EXT SERIAL NUMBER: 06380011 DATE TESTED: JULY 03, 2006 TO JANUARY 04, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all…
