NDAA07TCPUALL-IN-ONE TRANSMITTER(A07TCP/A07CP/A07C)

AL-A07 Pager ALL-in-One Transmitter Product Overview......................................................... 1 Control Buttons............................................................. 2 LCD Display................................................................... 3 Operation........................................................................ 4 System Set Up .................................................................. 4 Manual Programming ........................................................ 4 Calling Pagers .................................................................. 4 Turning Off Pagers ............................................................ 6 Finding Pagers .................................................................. 7 Alert Types......................................................................... 8 Waiting Time ...................................................................... 9 Range Test ...................................................................... 10 Product Specifications.............................................. 11 CONTENTS Page Product Overview LCD Display Control buttons Charging Slots USB programmer To extention charger base, up to 3 charger base DC jack BNC connector (for antenna) Power On / Off switch 1 Control Buttons G1 G2 AC C Fun Read SEND            0LQ [   MSG G1 G2 AC C Fun Read SEND             0LQ [    MSG : The AIO (All In One) transmitter could have an option to receiver messager. When message comes the ”MSG” led will on press “Read” key can read the message. Keys: Number0~9,C,AC,Send,, G1 G2 Fun Read : To enter “function menu”. : To page other staff pagers (optional). : indicates calling time that how long does it take that guest returned after they paged. : indicates the waiting number of guest : indicates the waiting time after the guest place order : indicates guests called the number 2 LCD Display Standby screen Waiting pagers’ numbers Waiting time Indicates the time for the guest to get back after being paged   0LQ [    The number being paged   0LQ [  For example, give pager No.2 to the guest, No.2 will be shown on the display. 3 System set up Perform the following steps to prepare your All-in-One system & AL-A07 pagers for operation: 1. Connect All-in-One transmitter with power adapter. 2. Lock the antenna to the transmitter. 3. Place all AL-A07 pagers into the charging slots. Make sure all the pagers are pushed all the way to the end until you hear “click”. The solid LED red light indicates that the pager is placed in the charger properly. Calling Pagers Manual Programming You can program the pager numbers manually. All the pagers will be assigned with a new number in sequence. 1. Place all the pagers in the charging slots properly. 2. Press and hold key “1” and turn on power. 3. Enter password “456” and press “Send” to enter programming mode. 4. After programming is complete, all the pagers will be assigned with a new number in sequence (depends on the number of pagers placed in the charger). To call a pager, simply press the pager number you would like to call, then press “SEND”. *Once the pager has been taken out the charger, the AIO will send a signal to alert the pager, confirming the pager is working. Operation 4 G1 G2 AC C Fun Read SEND           MSG 1 G1 G2 AC C Fun Read SEND           MSG SENDING MESSAGE... For example, to call pager No.1, press “1 + SEND”. Pager No.1 will alert. “1” will be shown on the “last page number” and the “last paged time” starts counting. After the guest returned the pager, just put the pager back on the charger. The AIO will detect and delete the pager’s number from the display. It will also show how long it took the guest to get back after paging them.  0LQ [  Operation 5 Operation Turning Off Pagers 1. Press “Fun” to enter function menu and select “PAGER OFF”.           “SEND” to enter. G1 G2 AC C Fun Read SEND           MSG Manual Func : 2.Find PAGER 3.ALERT TYPE 1.PAGER OFF      ! G1 G2 AC C Fun Read SEND           MSG G1 G2 AC C Fun Read SEND           MSG 1.PAGER OFF ENABLE 1.PAGER OFF DISABLE 6 Operation 3. When the “PAGER OFF” function is enable, the user can enter “1900 + SEND” to turn off all the pagers. G1 G2 AC C Fun Read SEND           MSG G1 G2 AC C Fun Read SEND           MSG 1900 SENDING MESSAGE... Note: The pagers are automatically turned off when placing in the charging slots. The pagers are also turned off when the AIO is off. Finding Pagers You can use the “FIND PAGER” function to locate pagers. Enter function menu and select “2. FIND PAGER”. Press “SEND” and all the pagers (not on charging) will be paged. Press “AC” to exit. G1 G2 AC C Fun Read SEND           MSG Manual Func : 3.ALERT TYPE 1.PAGER OFF 2.Find PAGER 7 Operation G1 G2 AC C Fun Read SEND           MSG Manual Func : 1.PAGER OFF 2.Find PAGER 3.ALERT TYPE The user can set different alert types when calling pagers. There are 4 types of alert (A, B, C & D) can be set. You can modify and assign different types of alert through our programming software. 1. Press “Fun.” Key to enter function menu. Select “3. ALERT TYPE” then press “SEND”. 2. Move the cursor to select the alert type and press “SEND” to confirm. Press “AC” to exit function menu. The pagers will alert according to the selected alert type. Alert Type 4 types of alert (A, B, C & D) (Programmable) 3.ALERT TYPE A BEEP FLASH 3.ALERT TYPE B Vibrate BEEP 3.ALERT TYPE CVibrate FLASH 3.ALERT TYPE D FLASH FLASH A) B) C) D) 8 Operation G1 G2 AC C Fun Read SEND           MSG Manual Func : 4.WAIT TIME 2.Find PAGER 3.ALERT TYPE G1 G2 AC C Fun Read SEND           MSG 15 MIN 4.WAIT TIME G1 G2 AC C Fun Read SEND …

Text truncated - open the document above for the full version.

Confidentiality request letter To Whom it may concern, This application ,FCC ID : NDAA07TCPU, will include a request for long term and short term confidentiality for any portion(s) of the data contained in this application pursuant to FCC DA 04-1705 (date 06/15/2004). SRT was authorized to have this letter and GOLD APOLLO CO., LTD. will keep in long term and short term confidentiality for any portion(s) of the data contained in this application. short term confidentiality: • PHOTOS OF EUT-External.pdf • PHOTOS OF EUT-Internal.pdf • PHOTOS OF TESTING.pdf • User manual.pdf Long term exhibits can be: • BLOCK DIAGRAM.pdf • SCHEMATIC DIAGRAM.pdf If you have any questions , please feel free to contact Spectrum Research and Testing Laboratory, Inc. (886)34987684 or e-mail:[email protected]. Thank You! Sincerely, ________________ Johnson Ho SRT LAB./President Date : 09/27/2013 PS: Attached is the GOLD APOLLO CO., LTD. POA 律 頻 科 技 股 份 有 限 公 司 SPECTRUM RESEARCH & TESTING LAB., INC. 總公司：中壢市山東里山下八鄰101-10號 TEL: (03)498-7684 FAX: (03)498-6528 No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. New:桃園縣中壢市山東里8鄰山東路780巷167號 No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd. Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Subject: FCC Application for FCC ID: NDAA07TCPU To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Sincerely yours, (Johnson Ho, Director) 2013.9.27 (Date)

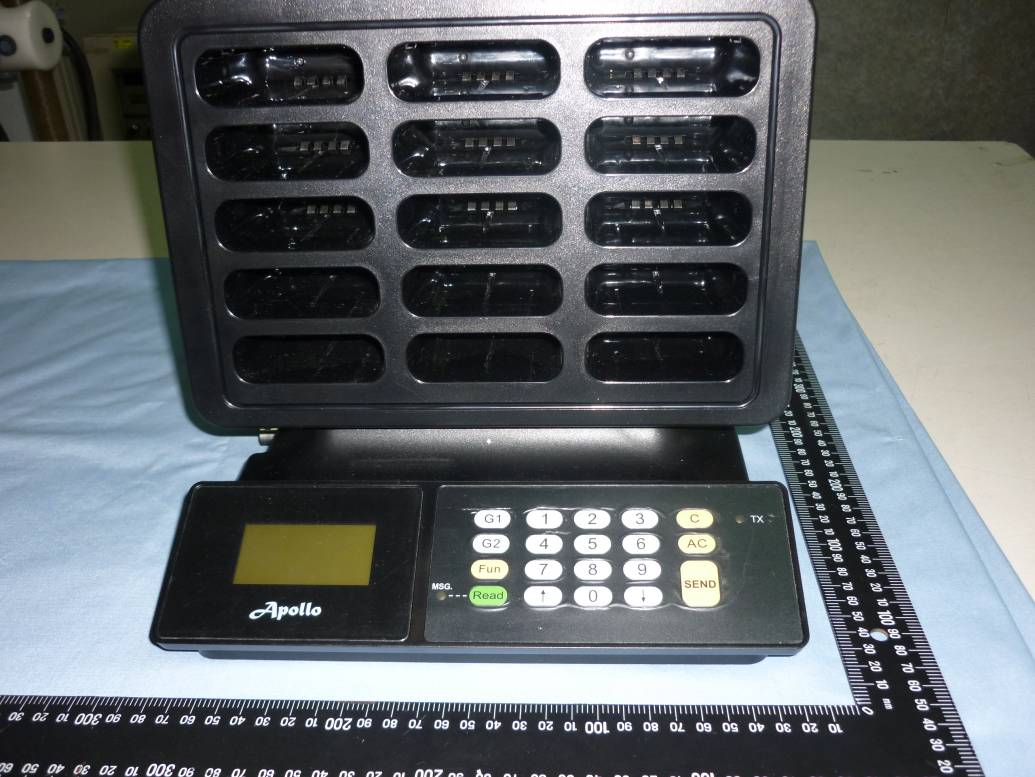

PHOTOS OF EUT Exterior 1 Exterior 2 Exterior 3 Exterior 4 Exterior 5 Antanna

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual.

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual.

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF EUT - Internal TOP Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PCB Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) IC Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) CASE Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.)

TECHNOLOGICAL SPEC. Product Name： All-In-One Transmitter Model：A07TCP/A07CP/A07C 1. Power Source： □ DC 12 V, 1000 mA ; □ AC V, A 2. Frequency Band： 450-454 MHz ,456-470 MHz Carrier Frequency： 3. Channel Spacing： 12.5/25KHZ 4. RF Output Power (ERP or EIRP) ： 29.98dBm = 995mW 5. I.F.： 21.4 MHz; L.O.： 408.6~448.6 MHz 6. Modulation Type： FSK 7. Duty Cycle： % 8. Mode of operation (duplex, simplex, half duplex) ： Simplex 9. Bit Rate of Transmission： 1200 bps 10. Antenna Type： Omni Antenna 11. Antenna gain： 0 dBi 12. Operating Temperature Range： -10°C~+60°C 13. Channel bandwidth ： 25k MHz

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A13062001 Report No.: FCCA13062001 FCC ID : NDAA07TCPU Page: 1 of 49 Date: Aug. 31, 2013 FMNG-059.10 REPORT Product Name: All-In-One Transmitter Model No.: A07TCP/A07CP/A07C Applicant: Rm 1,3rd Fl.,No.77,Sec.1,Hsin Tai Wu Rd.,Hsi-Chih Dist,New Taipei City,Taiwan,R.O.C.221 Date of Receipt: JUL. 05, 2013 Finished date of Test: Aug. 30, 2013 Applicable Standards: 47 CFR Part 90 ANSI C 63.4:2009 TIA/EIA 603 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Te s ted By : , Date: Approved By : (Chi Wu) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A13062001 Report No.: FCCA13062001 FCC ID : NDAA07TCPU Page: 2 of 49 Date: Aug.31, 2013 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT ................................................ 4 1.1 DOCUMENT POLICY........................................................................................ 4 1.2 TEST STATEMENT .......................................................................................... 4 1.3 EUT MODIFICATION ........................................................................................ 4 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 5 2.1 GENERAL DESCRIPTION OF EUT .................................................................. 5 2.2 DESCRIPTION OF EUT INTERNAL DEVICE ................................................... 5 2.3 EUT OPERATING CONDITION ........................................................................ 5 2.4 DESCRIPTION OF TEST MODE ...................................................................... 6 2.5 DESCRIPTION OF SUPPORT UNIT ................................................................ 6 3. DESCRIPTION OF APPLIED STANDARDS ....................................................... 7 3.1 SUMMARY OF TEST RESULTS ...................................................................... 7 4. EMISSIONS DESIGNATOR ................................................................................ 8 5. MODULATION CHARACTERISTICS: (PART 2.1047)......................................... 8 6. RF POWER OUTPUT (PART 2.1046, 90.205) .................................................... 8 6.1 TEST PROCEDURE: ........................................................................................ 8 6.2 TEST EQUIPMENT: .......................................................................................... 8 6.3 ........................................................................................................ TEST RESULT: ................................................................................................................................... 9 7. OCCUPIED BANDWIDTH: (PART 2.1049) ....................................................... 11 7.1 TEST PROCEDURE: ...................................................................................... 11 7.2 TEST EQUIPMENT: ........................................................................................ 11 7.3 LIMIT:............................................................................................................... 11 7.4 TEST RESULT: ................................................................................................ 12 8. TRANSIENT FREQUENCY BEHAVIOR (PART 90.214) ................................... 18 8.1 TEST PROCEDURE: ...................................................................................... 18 8.2 TEST RESULT: ................................................................................................ 18 8.3 TEST EQUIPMENT: ........................................................................................ 18 8.4 Test result ........................................................................................................ 19 8.4.1 Keying criteria when the transmitter output power is switched on ................ 19 8.4.2 Keying criteria when the transmitter output power is switched off ................ 23 9. Field Strength of Spurious Radiation(Part 90.210) ............................................ 27 9.1 TEST SET-UP ................................................................................................. 27 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A13062001 Report No.: FCCA13062001 FCC ID : NDAA07TCPU Page: 3 of 49 Date: Aug.31, 2013 9.2 TEST EQUIPMENT ......................................................................................... 27 9.3 TEST PROCEDURE ....................................................................................... 28 9.4 LIMIT:............................................................................................................... 28 9.5 TEST RESULT ................................................................................................ 29 10. Spurious Emissions at Antenna Terminals (Part 2.1051, 90.210) .................... 33 10.1 TEST EQUIPMENT ....................................................................................... 33 10.2 TEST PROCEDURE ..................................................................................... 33 10.3 TEST RESULT .............................................................................................. 33 11. Frequency Stability (Part 2.1055, 90.213) ....................................................... 36 11.1 Test procedure: (Temperature) ..................................................................... 36 11.2 Test E…

Text truncated - open the document above for the full version.

PHOTOS OF TESTING - Radiated test (below 1G ) - Radiated test (above 1G)
