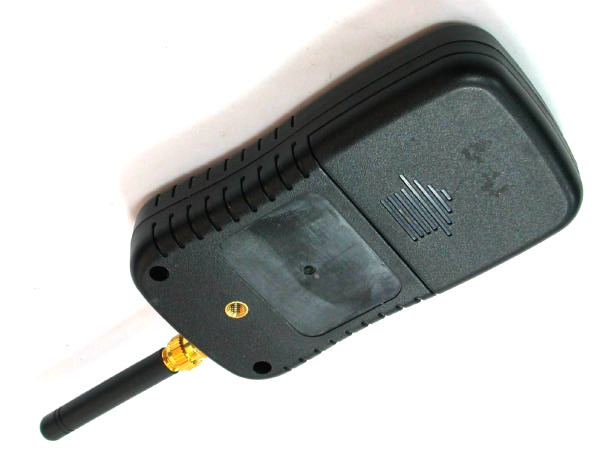

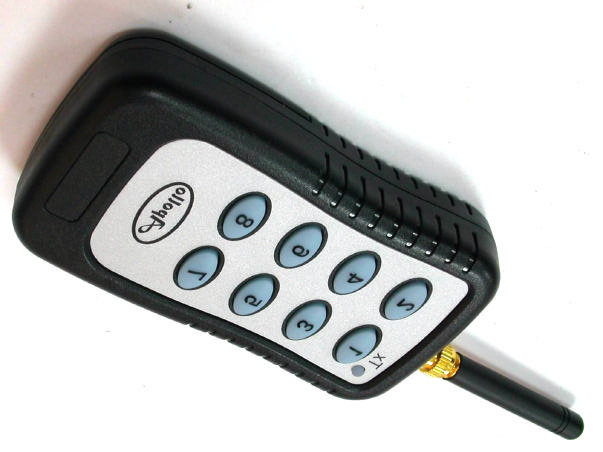

Model - TE-100 Hand-Held or Wall Mount POCSAG Paging Transmitters USER'S MANUAL *TE1000405v01* FCC Radio Frequency Exposure InformationWARNING !!! Read this information before using this productSafety InformationBody-worn OperationIn August 1996 the Federal Communications Commission (FCC) of the United States with its action inReport and Order FCC 96-326 adopted an update safely standard for human exposure to radio frequencyelectromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with thesafety standard previously set by both the U.S. and international standards bodies. The design of thisphone complies with the FCC guidelines and these international standards.Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachmentscould impair call quality, damage the phone, or result in violation of FCC regulations.Do not use the phone with a damaged antenna. IF a damaged antenna comes into contact with the skin, aminor burn may result. Please contact your local dealer for replacement antenna.Your radio contains a low power transmitter. When the button is pushed, it sends out radio frequency (RF)signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, theFederal Communications Commissions (FCC) adopted Therefore exposure guidelines with safety levelsfor hand-held wireless devices.To maintain compliance with FCC's. If you wear the handset on your body while using the headsetaccessory, use only the supplied belt clip for this product and when transmitting, take it out of the belt clipto ensure. The belt clip is for storage purpose only. DO NOT TRANSMIT WHILE USING THE BELT CLIP.POWER AMP Specification : Voltage : 4.5V; Current : 320mA The Gold Apollo TE-100 is a POCSAG paging transmitters suitable for messaging or remote control applications. The units are designed for hand-heldoperation or fixing to a flat surface, such as a wall.Personal and commercial security, medical alert, restaurants, supermarkets andremote machinery control are just a few of the potential applications for this familyof transmitters.The transmitters can be programmed to suit application requirements usingGold Apollo product support software and the accompanying programmingadaptor. A front panel LED indicates the transmitter active. Each transmitter ispowered by 3 AAA alkaline battery, giving an operational life of hundreds oftransmissions. A range of up to 500 meters can be expected from the TE-100transmitter.How to use the TE-100: Where the transmitter is fitted with multiple buttons,each button can be programmed with unique user defined messages forpaging applications, or control character sequences for remote controlapplications. Eight additional digital inputs are provided for use as required. Hand-Held or Wall Mount Transmitters Hand-Held or Wall Mount POCSAG Paging Transmitters TE-100 Series Transmitters

Gold Apollo Co., Ltd. Rm 1, 3th F1., No. 77, Sec. 1, Hsin Tai Wu Rd., His-Chih, Taipei Hsien, Taiwan, R.O.C. Tel: 886-2-2698-8888 Fax: 886-2-2698-1750 Request for Confidentiality Date:05/15/2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: NDATX100XU Please be advised that the following information is to be held confidential and behalf of APPLICANT NAME: • Part List • Circuit schematic The application contains technical information which APPLICANT NAME deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory ______________________ Antony Chen

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 22, 2003 RE: FCC ID: NDATX100XU_ATCB000461 Attention: Jacob Lin I have a few comments on this Application. 1. Please note that the 731 states LMS (Location and Monitoring Service). This service is for the monitoring and location determination of mobile vehicles under Subpart M of Part 90, not personnel nor stationary objects (i.e. your reference to placing the device on a wall). The manual for this device clearly states paging and remote control as primary functions. Please note that this device does not appear to qualify for LMS as you have described. Please provide an accurate 731 and accurate test documentation for the service in which this device is to operate. xxx 2. Please note, this is a Part 90 device. Your label contains a 2-condition statement from 15.21 that is neither necessary nor appropriate. Please explain why the Part 15 statement is on the label. Alternately please remove the Part 15 statement from the part 90 label. xxx 3. Please note, power for handheld Part 90 devices are ERP. Please provide ERP measurements done using the antenna substitution method prescribed in TIA 603. xxx bodyworn 4. Please note that 90.209 (your reference to OBW plots) limits 421-512MHz devices to authorized bandwidths of 12.5kHz and a channel spacing of 6.5kHz (25kHz authorized BW are no longer allowed). Please provide data in relation to th is requirement. xxx 5. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Dennis : (1) Device code corrected . And form731 resubmitted. (2) Corrected label re-submitted. (3) Please refer to the test report page 19,20 the first frequency of each table is the power measured by TIA 603 method. (4) Page 11 of the test report has a little mistakes about the limit. Corrected and resubmitted. TRC Jacob Lin

Test Report -------------------------------------------------------------------------------------------------- Report No.: G1515395 11/29 V. Occupied Bandwidth: (Part 2.1049, 90.209) 5.1 Test procedure: (1) Set the ref level to the RF power output. (2) Connect the EUT as procedure 4.1 (1) (2) (3) For deviation 4.5KHz, Set spectrum, RBW = 300Hz, VBW = 300Hz, SPAN = 1000KHz, OFFSET = 20dB, AT = 50dB. (4) For deviation 2.5KHz, Set spectrum, RBW = 100Hz, VBW = 100Hz, SPAN = 50KHz, OFFSET = 20dB, AT= 50dB. (5) Set the EUT at modulation mode. 5.2 Test Result: Deviation Frequency (MHz) Occupied BW (KHz) Limit (KHz) Figure 4.5KHz 460.0000 12.3 20.00 Fig. 3 2.5KHz 460.0000 7.13 11.25 Fig. 4 5.3 Test Equipment: Instrument Name Model No. Brand Serial No. Last time Next time Spectrum 8594EM HP 3619A00198 03/21/03 03/20/04 The level of confidence of 95% , the uncertainty of measurement is ± 12 Hz .

TE-100 CIRCUIT DESCRIPTION 1.Power Regulator On the Digital board use TOREX XC6201B332P (U3) this is 3.3V Regulator for digital circuit (U1,U2,U4,U5,U6,U7). On the RF board use TOREX XC6204B302P (U2) this is 3.0V Regulator for RF circuit (PLL,BUFFER,PreDrive,Drive) 2.PLL In the PLL section use FUJITSU MB15E07SL PLL IC. Built-in Phase Comparator, reference counter , swallow counter and programmable counter, , Charge pump. (Q1,D3,D4,L1,C20) is ìVCOî section ,(X1,C2,C3,C10,D1,D2,C33) is ìREF OSC and modulationî section, (C8,R2,C6,R3,C7) is ìLOOP Filter î section. 3.BUFFER ìQ2,R18,L4,C28,R20,R19,C29î is BUFFER stage reduce load effect for VCO. 4.Pre Driver ìQ3,C34,R24,C35,R25,C65î amplify signal ,deliver more large signal to ìDriverî stage. 5.Driver ìC36,R28,C37,R27,Q4,L6,L7,C38,C40îamplify signal ,deliver more power to ìPOWERî stage. 6.POWER ìC41,L8,R29,L9,Q5,L10,R49,C43,C46,L12,C47î boost up power, deliver power to antenna. 7.RF LOW PASS FILTER ìC50,C51,C52.C53,L13,L14,L15î is 7 th order ëπí filter filtration output RF signal reduce harmonic level. 8. MODULATOR Digital signal from CPU (U2.Pin15) to a 4rd Bessel filter (R27,R28,R29,R30,C9,C10,C11,C12,U6,U7) filtration MOD signal reduce adjacence channel power. adjacence channel power. Next to REF OSC (C2,C3,C4,C10,C33,D1,D2 ,C11,R5) D1&D2 ,and VCO (L1,L2,D3,D4,C20,C22,C24,C25,C26,C27,R12,R13,R14,R15,R16,R17) D3&D4, D1,D2,D3,D4 is variable capacitance diode,make REF OSC & VCO frequency change. TE100 deviation alignmemt Procedure A.Instrument 1. DC Power supply. 2. Modulation meter or communication tester B. Procedure 1. Make test point short. Reference figure1 “test point position” 2. Turn on power. 2. Press “4” key set modulation wavefrom to becom 600Hz square wave. 3. Tuning R22 to set deviation to 4.0kHz(for 25kHz channel spacing) or 2.0kHz(for 12.5kHz channel spaceing). Reference figure2 “R22 & R23 position” 4. Press “6” key set modulation wavefrom to becom 128Hz square wave. 5. Tuning R23 to set deviation waveform like a ideal square wave. Reference figure2 “R22 & R23 position” 6. Make test point open. Note: After soldering crystal or other components of RF P.C.B must be waiting 10 minutes for RF P.C.B heat stability ",then go to alignment process.",,,,,, figure 1 figure 2 TE-100 SPECIFICATIONS RF .Frequency range TX : 450MHz ~ 470MHz .Modulation type : FSK. .Channel spacing : 12.5kHz or 25KHz .Output power(ERP) : +26dBm .Maximum deviation : ± 2.5kHz or ± 4.5kHz .Harmonic Radiation : less - 25 dBm .Frequency stability : 2.5 ppm at –30°C ~ 60°C .Output Connect : SMA (F) GENERAL .Active Voltage range : 3.45 ~ 4.5V (AAA size battery × 3) .Current consumption : Standby : 30μA Transmit : 350mA .Dimensions : 58(W)×112.8(H)×22.5(D) mm (Without Antenna) .Weight : 85g (Without Battery & Antenna) .1, 4 or 8 buttons provides multiple messaging capability max alpha character : 1200 max numeral : 2000 tone only .Built-in battery check

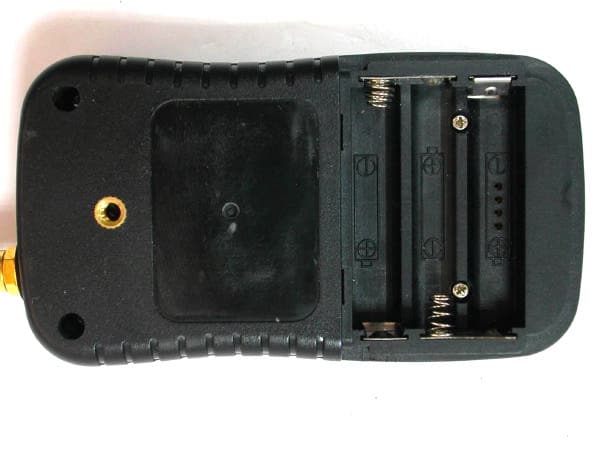

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT EUT : Transmitter Model No. : TE-100 Granted FCC ID : NDATX100XU Frequency Range : 450MHz ~ 470MHz Supported Channel: 1 Channel Modulation Type : FSK Power Type : 3.45 ~ 4.5V (AAA size battery x 3) Applicant : Gold Apollo Co., Ltd. Rm 1, 3th F1., No. 77, Sec. 1, Hsin Tai Wu Rd., His-Chih, Taipei Hsien, Taiwan, R.O.C. Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, equation for predicting RF fields, by the Friis Transmission Formula: Power density at the specific separation (portable): 2 22 /533.1 r4 501.0941.389 4 cmmW R PG S= × == ππ Estimated safe separation: cm S PG R185.3 533.14 501.0941.389 4 = × × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 3.185 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (-3 / 10) = 0.501

Test Report -------------------------------------------------------------------------------------------------- Report No.: G1515395 1/29 FCC Certification Test Report of 450MHz to 470MHz Transmitter Applicant : Gold Apollo Co., Ltd. Rm 1, 3th F1., No. 77, Sec. 1, Hsin Tai Wu Rd., His-Chih, Taipei Hsien, Taiwan, R.O.C. Model No. : TE-100 EUT : Transmitter FCC ID : NDATX100XU Report No. : G1515395 Tested by : Training Research Co., Ltd. TEL : 886-2-26461146 FAX : 886-2-26461778 No. 15, Lane 530, Pa-Lian RD., Sec. 1, Hsichih City, Taipei Hsien, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------------------------- Report No.: G1515395 3/29 Tables of Contents I. GENERAL ........................................................................................................................ 5 1.1 Introduction ................................................................................................................. 5 1.2 Description of EUT ..................................................................................................... 5 1.3 Specification of EUT .................................................................................................. 5 1.4 Configuration of System Under Test .......................................................................... 4 1.5 Location of the Test Site ............................................................................................. 7 1.6 General Test Condition ............................................................................................... 7 II. Emissions Designator: (Part 2.201).................................................................................. 8 III. Modulation Characteristics: (Part 2.1047)...................................................................... 9 IV. RF Power Output (Part 2.1046, 90.205) ............................................................................ 9 4.1 Test Procedure ............................................................................................................ 9 4.2 Test Result .................................................................................................................. 9 4.3 Test Equipment ........................................................................................................... 9 V. Occupied Bandwidth: (Part 2.1049, 90.209)....................................................................... 11 5.1 Test Procedure ........................................................................................................... 11 5.2 Test Result ................................................................................................................. 11 5.3 Test Equipment .......................................................................................................... 11 VI. Spurious Emissions at Antenna Terminals (Part 2.1051, 90.210) .............................. 13 6.1 Test Procedure ........................................................................................................... 13 6.2 Test Result ................................................................................................................. 13 6.3 Test Equipment .......................................................................................................... 13 VII. Filed Strength of Spurious Radiation (Part 90.210) .................................................... 18 7.1 Test Procedure ........................................................................................................... 18 7.2 Test Equipment .......................................................................................................... 18 7.3 Test Result ................................................................................................................. 19 7.4 Test Placement ........................................................................................................... 21 Test Report -------------------------------------------------------------------------------------------------- Report No.: G1515395 4/29 VIII. Frequency Stability (Part 2.1055, 90.213) ................................................................... 22 8.1 Test Procedure (Voltage) ........................................................................................... 22 8.2 Test Result ................................................................................................................. 22 8.3 Test procedure (Temperature) .................................................................................... 23 8.4 Test Result ................................................................................................................. 23 8.5 Test Equipment .......................................................................................................... 24 IX. Transient Frequency Behavior (Part 90.214) ................................................................. 25 9.1 Test Procedure ........................................................................................................... 25 9.2 Test Result................................................................................................................... 25 9.3 Test Equipment .......................................................................................................... 25 Test Report -------------------------------------------------------------------------------------------------- Report No.: G1515395 5/29 . GENERAL 1.1 Introduction The following measurement report is submitted on behalf of applicant in support that the certification in accordance with Part 2 Subpart J and Part 90 of the Commission's Rules and Regulations. 1.2 Description of EUT The Gold Apollo TE-100 is a POCSAG paging transmitters suitable for messaging or remote control applications. The units are designed for hand-held operation or fixing to a flat surface, such as a wall. 1.3 Specificat…
