NDAGPFRS-200Family Radio

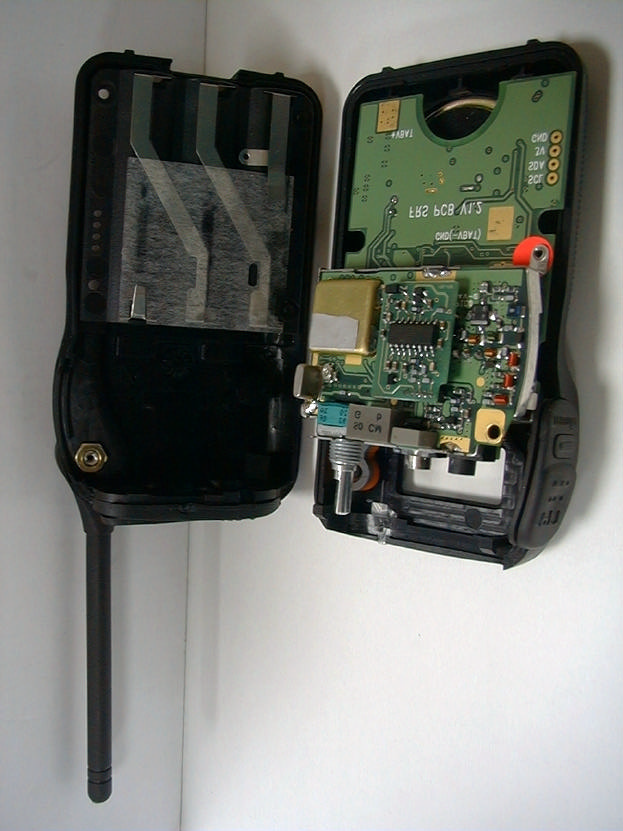

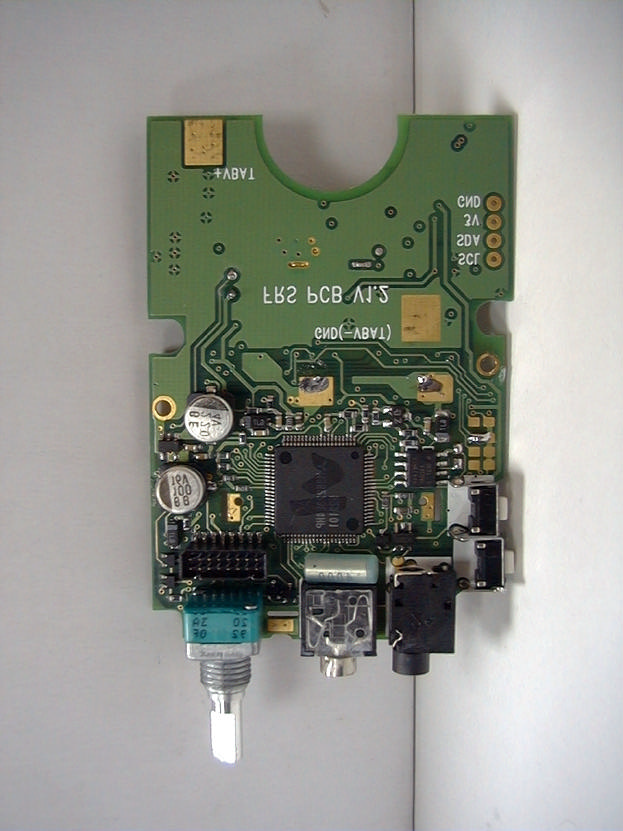

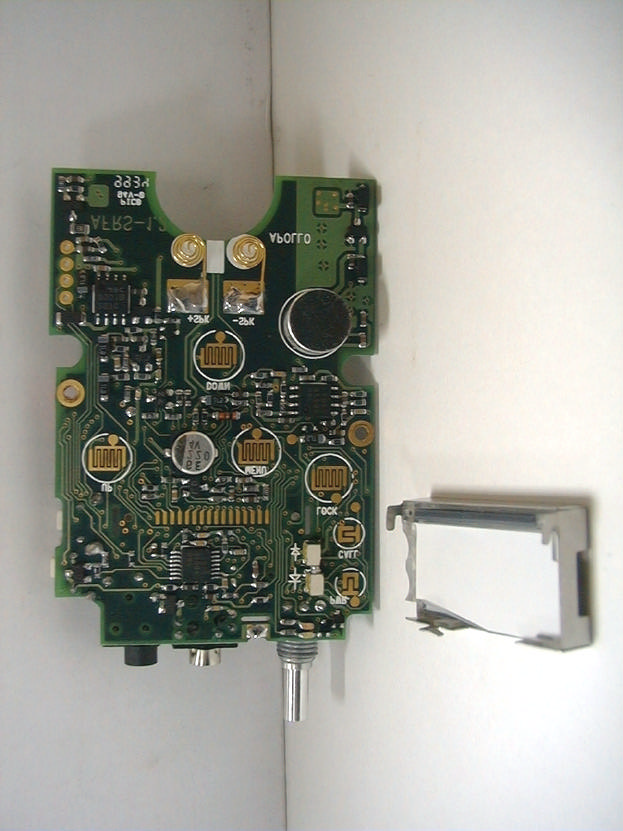

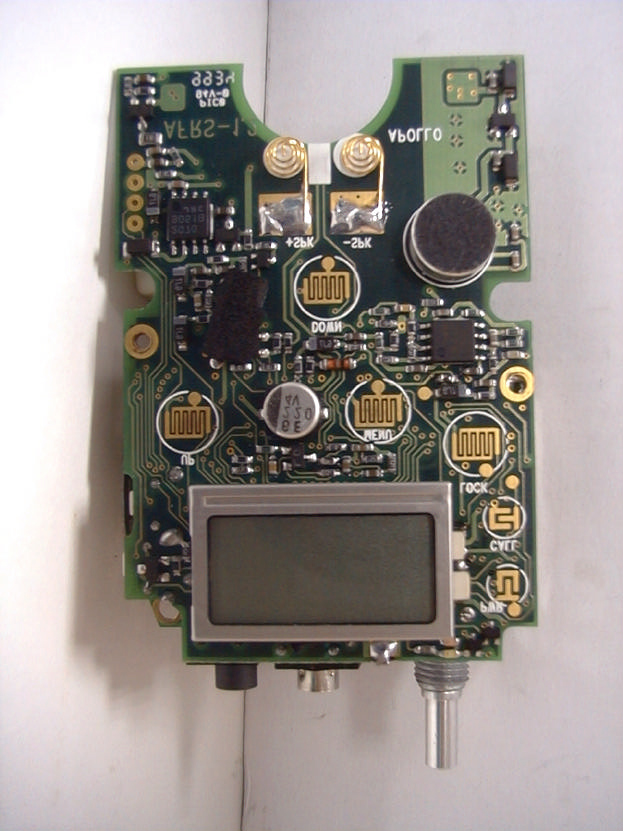

EXHIBIT F Photographs of EUT

List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format : This device complies with Part 95 of the FCC Rules Model No. : GPFRS-200 FCC ID : NDAGPFRS-200 LABEL Size : 24 x 12 mm LABEL Position :

Test Report ------------------------------------------------------------------------------ 5/39 Report No.: G1515923, walkie-talkie, FCC Part 95, Subpart B – Certification Test date: 11/23/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2- 226934440 Chapter 0 Application for Certification 2.983 ( a ):GOLD APOLLO CO., LTD. – applicant and manufacturer 2.983 ( b ):walkie-talkie Model No.: GPFRS-200 2.983 ( c ):Quantity production is planned 2.983 ( d ) (1) : Type of emission – F8E - FM Modulation 2.983 ( d ) (2) : 164 Hz – 3.048 KHz 2.983 ( d ) (3):388.259 mW 2.983 ( d ) (4):No recommendations as to standardized output power levels are made 2.983 ( d ) (5):Final RF amplifier stage current : 400mA, 4.5V DC 2.983 ( d ) (6):Description in the Block Diagram 2.983 ( d ) (7):Complete circuit diagrams are included . No modification was made 2.983 ( d ) (8):Instruction sheet to user included 2.983 ( d ) (9):Tune up procedure follows 2.983 ( d ) (10):Description in the Block Diagram 2.983 ( d ) (11):Description in the Block Diagram Test Report ------------------------------------------------------------------------------ 6/39 Report No.: G1515923, walkie-talkie, FCC Part 95, Subpart B – Certification Test date: 11/23/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2- 226934440 Chapter 1 General 1.1 Introduction: The following measurement report is submitted on behalf of GOLD APOLLO CO., LTD. in support of a FRS radio transceiver certification in accordance FCC Rules. 2.981 through 2.999 and Part 95, Subpart B. Description of EUT: EUT:walkie-talkie Model:GPFRS-200 Carrier Frequency Range:462.5625 – 467.7125 MHz RF Power Output:388.259 mW Supply Voltage:DC 4.5V (1.5V DC * 3 Batteries) Supply Current:400 mA Frequency Response : 164 Hz ~ 3.048 KHz Frequency Stability:0.00025% Operating Temperature:-30 to +50 degree centigrade FRS radio transceiver is a transmitter which operates in the frequency range of 462.5625 – 467.7125 MHz (462.5625 and 467.7125 MHz tested). This transceiver is worn by a performer and other participants in a program, filming, reporting ...etc. 1.2 Description of Support Equipment: Clip of style for Microphone and Speaker: MODEM (Brand name) Model No.:MS-201 Serial No. :N/A Power type:By EUT Power cord :Non-shielded, 230cm long, metal plug, no ferrite core Test Report ------------------------------------------------------------------------------ 22/39 Report No.: G1515923, walkie-talkie, FCC Part 95, Subpart B – Certification Test date: 11/23/99, Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2- 226934440 Pic 1 Front View of Test Configuration Pic 2 Rear View of the Test Configuration
