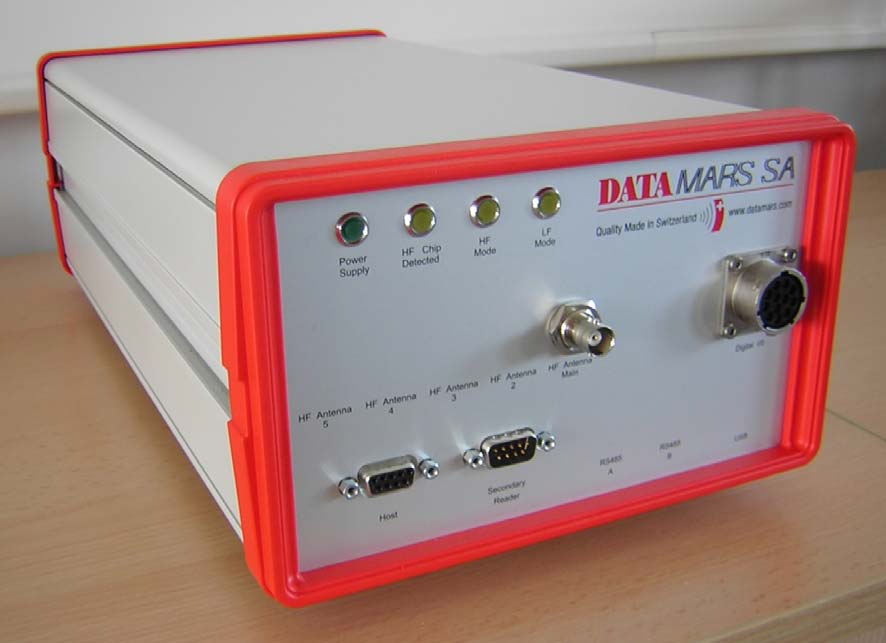

NDX-RIN1300HF Long Range Reader

Installation & Operation Manual V 1.4 2 (23) R-IN1300 HIGH FREQUENCY INSTALLATION & OPERATION MANUAL RFID - Technology V 1.5b / August 2006 VERSION 1.5b R-IN1305 R-IN1301 Installation & Operation Manual V 1.5 2 (23) TABLE OF CONTENTS Table of contents..........................................................................................................................................2 1 Introduction..........................................................................................................................................3 2 Hardware connections...........................................................................................................................4 2.1 Mounting.....................................................................................................................................5 3 Software setup.....................................................................................................................................5 4 Operation.............................................................................................................................................7 4.1 Operation with graphical user interface............................................................................................7 4.2 Options........................................................................................................................................9 4.3 Operation with terminal................................................................................................................13 5 Technical specifications for r-in1300.....................................................................................................18 5.1 Operational characteristics...........................................................................................................18 5.2 Electrical characteristics...............................................................................................................18 6 Regulations........................................................................................................................................20 6.1 Equipment Modification................................................................................................................20 6.2 EN 300330-1/-2 (europe)............................................................................................................20 6.3 FCC (usa)...................................................................................................................................20 6.4 IC (canada).................................................................................................................................20 6.5 CE certification...........................................................................................................................20 6.6 Warranty....................................................................................................................................21 7 Troubleshooting..................................................................................................................................21 appendix a code length.........................................................................................................................22 appendix b I/O Pin Configuration.............................................................................................................23 Installation & Operation Manual V 1.5 3 (23) 1 INTRODUCTION The Datamars R-IN1300 High Frequency (HF) RFID-reader, designed to work in industrial environment, is resistant to vibrations, electromagnetic interferences and is able to detect the following transponder technologies: ƒ T-BT 1320 & T-BT1315 (ISO 15693), HF ƒ I-Code 1, HF ƒ T-BT 7xxx serie, LF (only with Datamars R-IN7500 reader connected externally) ƒ Other types of transponders could be read in “Combo” mode. The reader is able to find simultaneously more than one High Frequency (HF - multi read) transponder 1 and one Low Frequency (LF – single read) chip at the same time if you have a R-IN7500 Low Frequency reader connected externally. 1 the quantity of transponders detected and the accuracy of it can change depending on the used transponder, the environment, the size of the antenna etc. R-IN7500 Interface or secondary reader Host Interface Digital I/O HF Antenna Power Supply HF Chip detected HF Mode LF Mode or Secondary Reader Power Supply ON / OFF Optional: Buzzer Optional: Foot Switch Coxial Cable RS-232 Cable Power Cable Installation & Operation Manual V 1.5 4 (23) 2 HARDWARE CONNECTIONS 1. Antenna: Connect the black coaxial cable from the antenna to the connector marked as “HF Antenna” 2. PC/Terminal Connect the serial white cable from the connector marked “Host interface” to any serial port (COM) on your PC 3. Power Connect the power cable 100 – 240 V AC and be sure that it is well fixed. 4. Turn the reader on an check if the green LED (Power) is on. IMPORTANT: Please place the antenna as far as possible from metallic surfaces to avoid possible reading interferences and avoid mounting in places where a regular ventilation is not granted. After the reader is turned on for some time the temperature might increase. Do not plug/unplug any connectors while the reader is turned ON. Green light on Installation & Operation Manual V 1.5 5 (23) In case you have a R-IN7500 LF reader installed you can keep the same configuration. You just need to unplug the serial cable from the PC and connect it to the R-IN1300 reader to the connector marked as “ Secondary Reader”. If you have a new R-IN7500 NMS: 1. Connect the Low Frequency (LF) Antenna to the connector marked “Ant.1” on the reader 2. Connect a serial cable the connector “RS-232” mentioned on the R-IN7500 to the connector “R-IN7500” mentioned on the R-IN1300 reader . 3. Connect the power cable 4. Turn the reader on Keep a distance between the LF and the HF antenna (min. 1m) in order to not …

Text truncated - open the document above for the full version.

Datamars SA Via ai Prati CH-6930 Bedano-Lugano Switzerland Phone +41 91 935 73 80 Fax +41 91 945 03 30 www.datamars.com [email protected] Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We the undersigned, hereby authorize mikes-testingpartners gmbh, Ohmstrasse 2-4, 94342 Strasskirchen, Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by mikes-testingpartners gmbh on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Datamars SA, CH-6930 Bedano. Sincerely, Rico Malacarne Technical Director Datamars SA Via ai Prati 2 CH-6930 Bedano LETTER OF AUTHORIZATION 30. May 2006 Privileged/Confidential Information may be contained in this message. If you are not the intended recipient or the person responsible for delivering the message to the intended recipient, you are advised that you have received the document in error and that any disclosure, copying, distribution or action taken in reliance on the contents of the document and its attachments is strictly prohibited and may be unlawful. Opinions, conclusions and other information in this message that do not relate to the official business of Datamars shall be understood as neither given nor endorsed by it. Please destroy the document and kindly advise us immediately if you are not the intended recipient. If you contact us by e-mail, we will store your name and address to facilitate communications.

FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 5 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 6 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 7 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1

FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 5 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT

FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 8 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 9 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 10 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 11 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 12 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 13 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 14 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 15 of 43 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1

The Datamars SA A-ST1330 Table Top antenna generation has been especially developed for the identification of textile in manual and semi automated laundries for proximity identification. Thanks to its extended reading range, high reading speed and extreme reliability the antenna can be used in vertical position too, to read textile on the fly on full automated sorting systems. DATAMARS SA, The Inventor of the LaundryChip™, offers a whole range of Radio- Frequency Identification systems (RF-ID) which have been specially developed and tuned together to provide long reading ranges and nearly 100% reading accuracy. From laundries with a high degree of manual intervention to a fully automated handling process, DATAMARS SA has the unmistakable solution that provides the fastest Return on Investment. Antenna: A-ST1330 TT & TTL “Table Top” HF - multi read • ISO 18000-3 / ISO 15693 compatible • Up to 50 cm reading range (with T-BT1320 and A-ST1330TTL) • Read through virtually every non-conductive material • Very high reading speed • Simple design allows easy installation • Rugged housing for long working life • Available in two different sizes or on other dimensions on request A-ST1330 TTL Mechanical Drawing Reading field 700 mm 700 mm 600 mm 435mm 494 mm 36 mm Transponder in Transponder in parallel position perpendicular position 50 cm 33 cm 40 cm 30 cm Reading distance Up to 500 mm with Transponder T-BT1320 (A-ST1330TTL) Up to 400 mm with Transponder T-BT1320 (A-ST1330TT) Ordering information Antenna EU version A-ST1330 TTL (700 x 700 mm) Antenna EU version A-ST1330 TT ( 494 x 435 mm) Technical data Weight 18.3kg / 40.3 lb. (A-ST1330TTL) 3.25kg / 7.17 lb. (A-ST1330TT) Temperature Storage -20°C - + 70°C - 4°F - + 158°F Operating -15°C - + 60°C + 5°F - + 140°F Connection A-ST1330TTL 2m (6.5ft.) RG 58 antenna cable with bnc connector included, other cable length on request Subject to change without notice Warranty 24 months Revision 04/2005 A-ST1330TTL A-ST1330TT

FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 1 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EMI -- T E S T R E P O R T Test Report No. : T30691-00-05HU 24. August 2006 ______________________________________________________________________________________________ Date of issue Type / Model Name : R-IN1301 Product Description : HF Long Range Reader (RFID) Applicant : DATAMARS S.A. Address : Via ai Prati CH-6930 Bedano-Lugano Manufacturer : DATAMARS S.A. Address : Via ai Prati CH-6930 Bedano-Lugano Licence holder : DATAMARS S.A. Address : Via ai Prati CH-6930 Bedano-Lugano Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test DAT-P-207/05-00 laboratory. FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 2 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 19 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 19 4 TEST ENVIRONMENT 20 4.1 ADDRESS OF THE TEST LABORATORY 20 4.2 ENVIRONMENTAL CONDITIONS 20 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 20 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 20 5 TEST CONDITIONS AND RESULTS 22 5.1 CONDUCTED EMISSIONS 22 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 28 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 30 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 32 5.5 FREQUENCY TOLERANCE OF THE CARRIER 35 5.6 EMISSION BANDWIDTH 37 5.7 TRANSMITTER SPECTRUM MASK 39 5.8 RECEIVER RADIATED EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 40 5.9 RECEIVER RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 42 6 USED TEST EQUIPMENT AND ACCESSORIES 44 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 3 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (October 01, 2005) Part 15, Subpart C, Section 15.225 Operation within the band 13.110-14.010 MHz Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements Part 15, Subpart C, Section 15.207(a) AC Line conducted emissions FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 4 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 2 SUMMARY GENERAL REMARKS: The EuT is working at frequency of 13.56 MHz. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 18. April 2006 Testing concluded on : 09. August 2006 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager: Radio Group Markus Huber FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 5 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 6 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 7 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 8 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 9 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 10 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 11 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 12 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 13 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 14 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 15 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 16 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 17 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 18 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN1300 mikes-testingpartners gmbh File No. T30691-00-05HU, page 19 of 44 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3.2 Power supply system utilised Power s…
