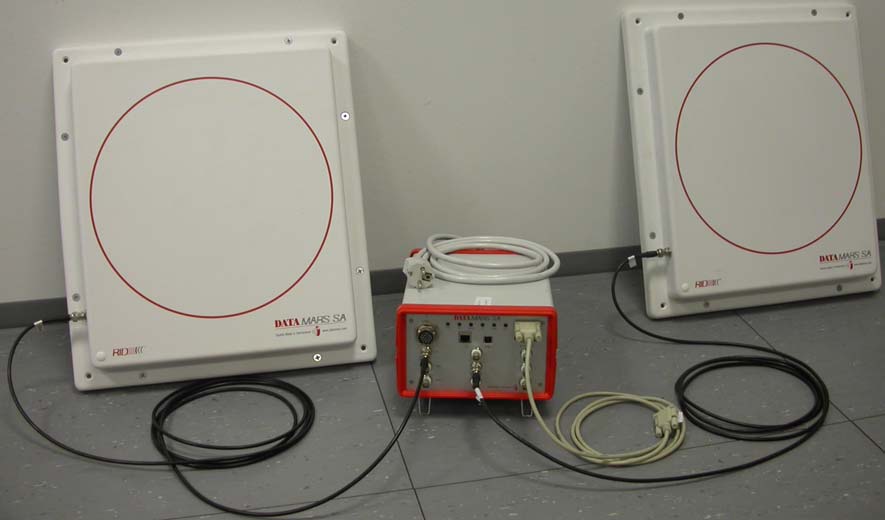

NDX-RIN13002Long Range Industrial RFID HF Reader

Installation & Operation Manual V 1.4 2 (19) TABLE OF CONTENTS R-IN1300 INSTALLATION & OPERATION MANUAL RFID - Technology V1.0/December 2006 preliminary VERSION R-IN1300 MC R-IN1300 SC Installation & Operation Manual V 1.0 3 (19) Table of contents..........................................................................................................................................2 1 Introduction............................................................................................................................................4 2 Hardware connections.........................................................................................................................6 2.1 Mounting........................................................................................................................................7 3 Operation with terminal.......................................................................................................................8 3.1 List of the commands of the reader...........................................................................................8 4 Technical specifications for R-IN1300............................................................................................13 4.1 Operational characteristics.......................................................................................................13 4.2 Electrical characteristics............................................................................................................13 5 Regulations.........................................................................................................................................15 5.1 Equipment Modification.............................................................................................................15 5.2 EN 300330-1/-2 (europe)..........................................................................................................15 5.3 FCC (usa)....................................................................................................................................15 5.4 IC (canada)..................................................................................................................................15 5.5 CE certification............................................................................................................................15 5.6 Warranty......................................................................................................................................16 6 Troubleshooting..................................................................................................................................17 appendix a - code length.........................................................................................................................18 appendix b - I/O Pin Configuration........................................................................................................19 Installation & Operation Manual V 1.0 4 (19) 1 INTRODUCTION The Datamars R-IN1300 High Frequency (HF) RFID-reader, designed to work in industrial environment, is resistant to vibrations, electromagnetic interferences and is able to detect the following transponder technologies: ß T-BT 1320 & T-BT1315 (ISO 15693), HF ß T-BT 7xxx serie, LF (only with Datamars R-IN7500 reader connected externally) ß Other types of transponders could be read in “Combo” mode. The reader is able to find simultaneously more than one High Frequency (HF - multi read) transponder 1 and one Low Frequency (LF – single read) chip at the same time if you have a R- IN7500 Low Frequency reader connected on the Secondary Interface. LEDs Power lights on when the reader is switched on Tag lights on when one or more transponder are detected Antenna lights on when the antenna is not tuned or is near metallic objects or not connected HF High Frequency reading is ON Combo The system is working in Combo mode (see chapter 2) Error General Error Antennas HF Antennas TX/RX antenna channels from 1 to 6 Splitter 2 splitted channels (0° phase shift) RX Antenna RX channel very sensibile! 1 the quantity of transponders detected and the accuracy of it can change depending on the used transponder, the environment, the size of the antenna, etc. Secondary Interface Host Interface Digital I/O HF Antennas Power Tag Antenna RX Antenna Splitter HF Combo Error USB Ethernet Installation & Operation Manual V 1.0 5 (19) Interfaces Digital I/O Digital Inputs and Outputs (see appendix B). Host Connect to any serial port (COM) on your PC with RS-232 cable or to any other RS232 Terminal. Secondary Interface Used in Combo mode (see chapter 2). USB N/A Ethernet (Web Server) connect to LAN with a standard Ethernet cable. For more info in Ethernet communication please request the “R- IN1300 communication manual” to [email protected] Power Switch Turn ON and OFF the reader. Power Supply connect the power supply cable (100-240VAC, 50-60 Hz). Power Supply Power Switch Coxial Cable RS-232 Cable Power Cable Installation & Operation Manual V 1.0 6 (19) 2 HARDWARE CONNECTIONS 1. Antenna: Connect the black coaxial cable from the antenna to the connector marked as “1” You can not use cable other than the 3.66m coaxial 50? cable supplied by Datamars SA. Additional cables at disposal. 2. PC/Terminal Connect the serial white cable from the connector marked “Host” to any serial port (COM) on your PC 3. Power Connect the power cable 110 – 240 V AC and be sure that it is well fixed. 4. Set the Power Switch to ON and check if the green LED (Power) is on. 5. Wait until lights “Tag” and “Antenna” stop flashing (~20 seconds). Green light on Installation & Operation Manual V 1.0 7 (19) IMPORTANT: Please place the antenna as far as possible from metallic surfaces to avoid possible reading interferences and avoid to mount it in places where a regular ventilation is not granted. If the light “Antenna” turns on, the antenna might be too close to met…

Text truncated - open the document above for the full version.

FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 5 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 6 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 7 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 18 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 19 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1

FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 8 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 9 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 10 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 11 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 12 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 13 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 14 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 15 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 16 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 17 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 18 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 20 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 21 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1

FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 1 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EMI -- T E S T R E P O R T Test Report No. : T31400-01-00HU 26. February 2007 ______________________________________________________________________________________________ Date of issue Type / Model Name : R-IN1300MC Product Description : Long Range Industrial RFID High Frequency Reader Applicant : DATAMARS S.A. Address : Via ai Prati CH-6930 Bedano-Lugano Manufacturer : DATAMARS S.A. Address : Via ai Prati CH-6930 Bedano-Lugano Licence holder : DATAMARS S.A. Address : Via ai Prati CH-6930 Bedano-Lugano Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test DAT-P-207/05-00 laboratory. FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 2 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 22 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 22 4 TEST ENVIRONMENT 23 4.1 ADDRESS OF THE TEST LABORATORY 23 4.2 ENVIRONMENTAL CONDITIONS 23 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 23 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 23 5 TEST CONDITIONS AND RESULTS 25 5.1 CONDUCTED EMISSIONS 25 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 31 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 33 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 35 5.5 FREQUENCY TOLERANCE OF THE CARRIER 38 5.6 EMISSION BANDWIDTH 40 5.7 TRANSMITTER SPECTRUM MASK 42 5.8 RECEIVER RADIATED EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 43 5.9 RECEIVER RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 45 6 USED TEST EQUIPMENT AND ACCESSORIES 47 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 3 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (October 01, 2006) Part 15, Subpart C, Section 15.225 Operation within the band 13.110-14.010 MHz Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements Part 15, Subpart C, Section 15.207(a) AC Line conducted emissions FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 4 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 2 SUMMARY GENERAL REMARKS: The EuT is working at frequency of 13.56 MHz. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 18. December 2006 Testing concluded on : 15. February 2007 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Markus Huber FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 5 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 6 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 7 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 8 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 9 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 10 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 11 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 12 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 13 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 14 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 15 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 16 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 17 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 18 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FCC ID: NDX-RIN13002 mikes-testingpartners gmbh File No. T31400-01-00HU, page 19 of 47 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1…
