NDX-WALKBYStationary RFID Reader

1 USER MANUAL WALK BY Universal Scanning Station Walk By Stationary Reader 2 Contents: 1 DESCRIPTION ............................................................................................................................... 4 1.1 FRONT OVERVIEW ......................................................................................................................... 4 1.2 BACK OVERVIEW............................................................................................................................ 5 2 HOW TO SET UP THE SYSTEM ................................................................................................... 6 3 USER INTERFACE......................................................................................................................... 7 3.1 KEYPAD ........................................................................................................................................ 7 3.2 ON BUTTON .................................................................................................................................. 7 3.3 BATTERY LEVEL BAR ...................................................................................................................... 8 3.4 PLAY/PAUSE BUTTON ................................................................................................................. 8 3.5 READ MODE BUTTON .................................................................................................................. 8 3.5.1 Continuous mode .............................................................................................................. 9 3.5.2 Buffered mode ................................................................................................................... 9 3.5.3 Single mode ....................................................................................................................... 9 3.6 STATUS LEDS .............................................................................................................................. 9 3.6.1 Tag Read LED ................................................................................................................... 9 3.6.2 Charge LED ....................................................................................................................... 9 3.6.3 Tuning LED ........................................................................................................................ 9 3.7 AUTOTUNING ................................................................................................................................. 9 3.8 REC BUTTON .............................................................................................................................. 10 3.9 USB MODE BUTTON .................................................................................................................... 10 3.9.1 Mass Storage .................................................................................................................. 10 3.9.2 Virtual Com Port .............................................................................................................. 10 3.9.3 Keyboard Wedge ............................................................................................................. 11 3.10 BLUETOOTH BUTTON ............................................................................................................... 11 3.10.1 Configure the WALK BY for the Bluetooth connection .................................................... 11 3.11 REAL-TIME COMMUNICATION ........................................................................................................ 12 3.12 EXTERNAL DISPLAY...................................................................................................................... 12 4 CONNECTORS ............................................................................................................................ 13 4.1 POWER AC INPUT ........................................................................................................................ 13 4.1.1 AC Fuse ........................................................................................................................... 13 4.2 POWER DC INPUT ....................................................................................................................... 14 4.2.1 DC Fuse .......................................................................................................................... 14 4.3 ANTENNA .................................................................................................................................... 14 4.4 I/O.............................................................................................................................................. 14 4.4.1 Input ................................................................................................................................. 14 4.4.2 Output .............................................................................................................................. 15 4.5 SERIAL COM INTERFACE ............................................................................................................. 15 5 COMMAND INTERFACE ............................................................................................................. 16 5.1 COMMAND OVERVIEW .................................................................................................................. 16 5.2 COMMAND DESCRIPTION .............................................................................................................. 17 5.2.1 Command: .? ................................................................................................................... 17 5.2.2 Command: .v ................................................................................................................... 18 5.2.3 Command: .T ................…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: 08.08.2013 Subject: Confidentiality Request for: FCC ID: NDX-WALKBY ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ DATAMARS SA has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of (0) days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Manager Certification Thomas Ring 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

American Certification Body Inc. 6731 Whittier Ave, Suite C110, McLean, VA 22101, USA ACB: I can see that the antenna has an FCC ID but that certification has not yet been completed. Are these items intended to operate together as a system and be sold together? Why does the antenna have an FCC ID? Applicant: It is a mistake. The antenna does not have an FCC ID. ACB: Please confirm if this device also has an internal antenna? The operation description refers to the Gate Antenna as “additional”. Does this mean there is another option? Applicant: We confirm, this device has only the gate antenna now. ACB: Please describe the antenna connector. I suspect it is a multi-pin connector with pins for power to the antenna and RF connection also. Please confirm the type of connection. Applicant: The connector is a two-pin-connector: 1 pin for ground, 1 pin for RF connection.

ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 External views:

ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 External antenna:

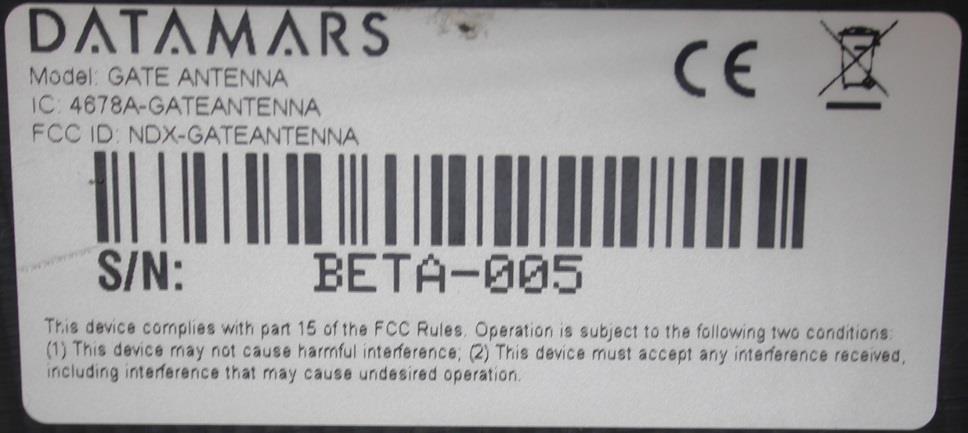

Label Placement

ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Internal Views: ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Bluetooth module:

RF Exposure FCC ID: NDX-WALKBY Bluetooth: Bluetooth output power: 3.9 dBm (0.0025 W) Antenna gain: up to 8 dBi Possible ERP: 11.9 dBm (0.0155W) 134.2 kHz Transmitter: Field strength average: 104.9 dBμV/m @ 3 m Output ERP: 9.7 dBm (0.0093 W) Power levels combined: (BT and 134.2kHz): 0.0248 W Calculation of power density at 20 cm for mobile device: As certification holder of the BT Module declared in the FCC Listing under FCC ID: PVH0925, the max. measured conducted power output is 2.46 mW (3.9 dBm), and the maximum antenna gain is 8.0 dBi. Both, max conducted and radiated output power are well below the low threshold defined as (60/f GHz) mW for d <2.5 cm in the TCB exclusion list. Therefore the device is exempted. Confirmation of safety when carrying by the handle while the device is powered on: a) 2.4 GHz: [ 24.8 / d ] x [ 1.55 ] = 3 24.8 / d = 1.936 d = 24.8 / 1.936 d = 12.8 mm b) 134.2 kHz (0.0001342 GHz): [ 24.8 / d ] x [ 0.0116 ] = 3 24.8 / d = 258.97 d = 24.8 / 258.97 d = 0.096 mm Conclusion: As long as the user is always more than 12.8 mm away from both the RFID and Bluetooth antennas at the same time, it is safe to use the device.

FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 1 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 EMI − T E S T R E P O R T - FCC Part 15.209 - Test Report No. : T36972-00-00HU 06. August 2013 ______________________________________________________________________________________________ Date of issue Type / Model Name : WALK BY Product Description : Stationary RFID Reader Applicant : Datamars S.A. Address : Via ai Prati CH – 6930 BEDANO Manufacturer : Datamars S.A. Address : Via ai Prati CH – 6930 BEDANO Licence holder : Datamars S.A. Address : Via ai Prati CH – 6930 BEDANO Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 2 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 3 E Q U I P M E N T U N D E R T E S T 5 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 5 3.2 Power supply system utilised 5 3.3 Short description of the Equipment under Test (EUT) 5 4 T E S T E N V I R O N M E N T 6 4.1 Address of the test laboratory 6 4.2 Environmental conditions 6 4.3 Statement of the measurement uncertainty 6 4.4 Measurement Protocol for FCC, VCCI and AUSTEL 7 5 T E S T C O N D I T I O N S A N D R E S U L T S 8 5.1 Conducted emissions 8 5.2 Field strength of the fundamental wave 15 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz 17 5.4 Emission Bandwidth 20 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 22 FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 3 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2012) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2012) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 4 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 2 S U M M A R Y GENERAL REMARKS: The carrier frequency is 134.2 kHz FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 20. June 2013 Testing concluded on : 17. July 2013 Checked by: Tested by: Eduard Stangl Dipl.-Ing.(FH) Technical Director Huber Markus FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 5 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EUT – Detailed photos see Attachment A 3.2 Power supply system utilised Power supply voltage: : AC: 115 V / 60 Hz DC: 12 to 14 V / DC 3.3 Short description of the Equipment under Test (EUT) The EuT is a RFID Universal Scanning Station for animal identification. Number of tested samples: 1 Serial number: Beta 006 EUT operation mode: The equipment under test was operated during the measurement under the following conditions: - Tx mode at 134.2 kHz - Accu charging mode - Bluetooth active (open connection) EUT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - USB 2.0 Cable A-B, m-m, 2.0 Model : Supplied by manufacturer Power line DC cable Supplied by manufacturer - Model : Serial cable RS 232 for ext. display Supplied by manufacturer - Model : - Model : - Model : - Model : - customer specific cables - External power supply cable: Eupen IMU 03 (2 x 0.8 mH, 100 nF) - Marking of the cable: LL76227 AWM II A/B 60 °C 300V FT1 EUPEN E137991 AWM STYLE 207040 3G1 mm2 (ICC COLOURS) VW-1 GNLM 05 VDE-REG.NR. 11359372 FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 6 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 4 T E S T E N V I R O N M E N T 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 STRASSKIRCHEN GERMANY 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader may notice that tolerances within the calibration of the equipment and facilities may cause additional uncertainty. The measurement uncertainty is calculated for…

Text truncated - open the document above for the full version.

ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Photo documentation of the EUT Model: WALK BY Test setup: ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 External views: ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Internal Views: ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 Bluetooth module: ATTACHMENT A to File No.: T36972-00 mikes-testingpartners gmbh  Ohmstrasse 2-4  D-94342 Strasskirchen  Tel:+49-9424-9481-0  Fax:+49-9424-9481-240  Rev. No 1.0 External antenna:

FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 8 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 5 T E S T C O N D I T I O N S A N D R E S U L T S 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded Room S2 5.1.2 Photo documentation of the test set-up FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 9 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 15 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.209: The emissions from intentional radiators shall not exceed the effective field strength limits. FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 17 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 5.3 Spurious emissions (magnetic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up 5.3.3 Applicable standard According to FCC Part 15C, Section 15.209: The emissions from intentional radiators shall not exceed the effective field strength limits. FCC ID: NDX-WALKBY mikes-testingpartners gmbh File No. T36972-00-00HU, page 20 of 22 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.2, 4.4.2013 5.4 Emission Bandwidth For test instruments and accessories used see section 6 Part MB. 5.4.1 Description of the test location Test location: AREA4 5.4.2 Photo documentation of the test set-up , Fundamental [kHz] See Plot 1 20dB Bandwidth F1 20dB Bandwidth F2 Measured Bandwidth [kHz] 134.20 133.66 134.72 1.06 Remarks:
