NDXMINIMAXIITag Reader

Datamars SA

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Aug 17, 2003
Application Purpose: Original Equipment
Date of Application: Aug 17, 2003

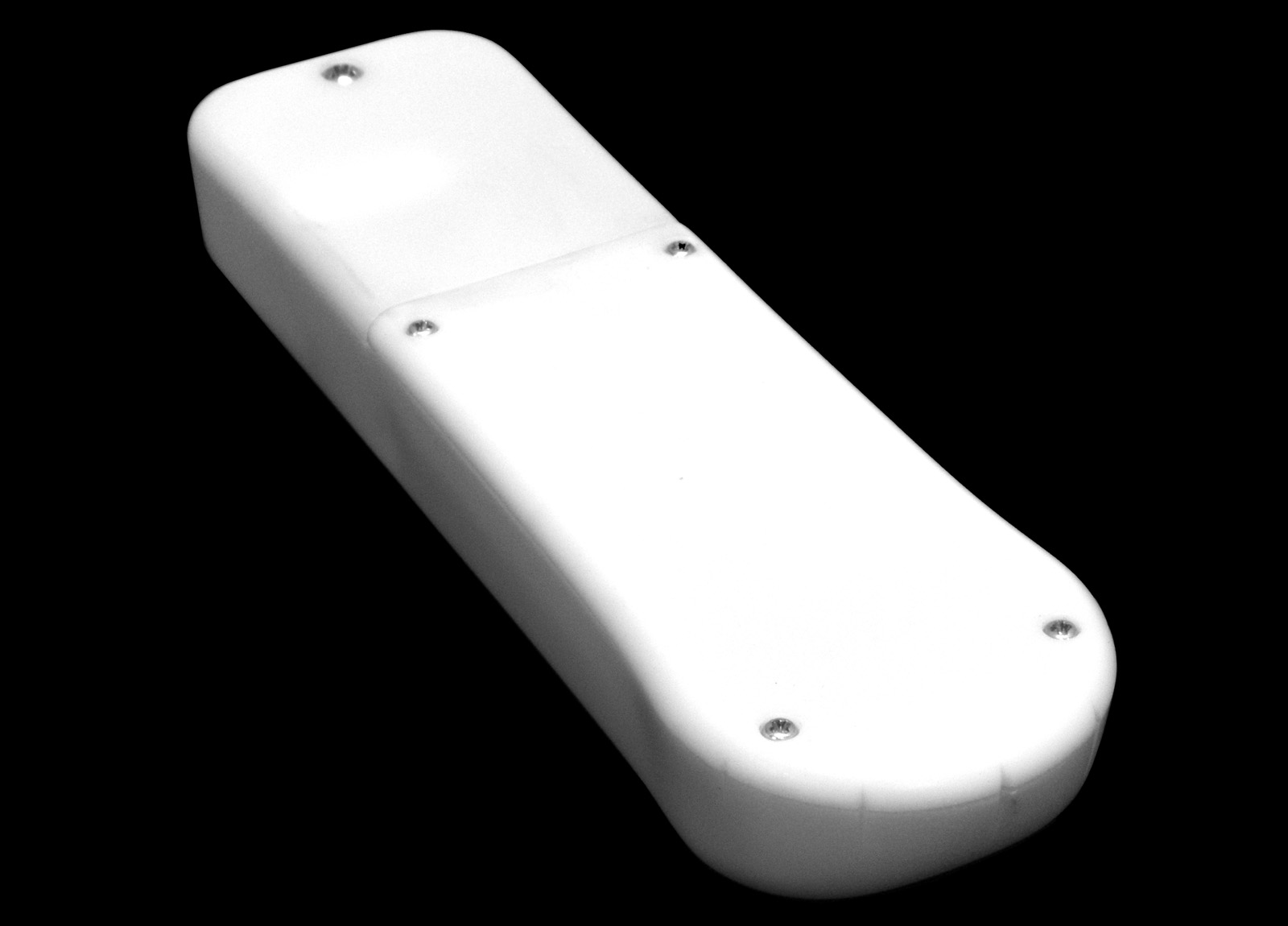

Equipment Note: Tag Reader
Frequency Range: 0.13420000 - 0.13420000
Company: Datamars SA
Country: Switzerland

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MiniMax II Manual Preliminary version Start read button Display 32 characters (2x16) FDX-B Transponde How to operate the MiniMax II : MiniMax II A00 ready Ö Push the start read button once Software version The display indicates : Point the top of the MiniMax II close to the transponder Push the start read button once *reading* The display indicates : Alpha country code according to ISO3166, ISO11784/5 If a Transponder is present The display indicates : Country : CHE 276098101420465 Id code number according to ISO11784/5 If a Transponder is not read The display indicates : Tag not found ready Ö If the MiniMax is left at power on and not used for more than 90 sec. It will beep and indicate a battery sign on the display. When the battery voltage is less than 7 Volts the reader after 3 seconds turn off. If the display indicates: Battery low Replace the battery with a 9 Volts block battery Alkaline or Lithium. Another type of battery will not function properly. INFORMATION TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Cover Letter(s)

RF - Identification Technology attn: Reviewing Engineer Datamars SA via ai Prati CH-6930 Bedano-Lugano Switzerland Phone +41 91 935 73 80 Fax +41 91 945 03 30 www.datamars.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 23 th July 2003 RE: CONFIDENTIALITY REQUEST FOR EUT MiniMax II - FCC ID: NDXMINIMAXII To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams (electrical schematics, layouts, components list, block diagrams, technical informations) required to be submitted with this application be withheld from public review. The documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Pellegrini Simone DATAMARS SA 23.07.2003

Cover Letter(s)

Response to TCB Findings Q1: Have fresh batteries been used for radiated emissions testing? Response: Yes, fresh batteries were used for testing. Q2: Up to what frequency the radiated emission testing was performed? Response: Testing was performed up to 1000 MHz Q3: Please provide a more detailed operational description of the transmitter. Response: Supplied. Q4: Please provide a more detailed block diagram of the transmitter Response: Supplied.

ID Label/Location Info

RF - Identification Technology MINIMAX II LABEL The MINIMAX II label is laser printed on Heavy Duty Label produced by Avery Zweckform. Description: L4774 White label for outdoor use. Waterproof, resistant to UV, oil, dirt and tearing. Temperature resistant from -20°C to +80°C. For more information www.avery-zweckform.com Preliminary version of the label: dimension: 58 x 29 mm

Parts List/Tune Up Info

uMAX_V0.0_CostList Posiz. Componente Outline Q.tà Part Type Outline IC1 T89C51RD2 SOT307-2 1 IC2 74HC373 TSSOP 20 2 IC3 BS62LV256 TSOP28 1 IC4 74HC40103 TSSOP 16 1 IC5 74HC74 TSSOP 14 1 IC6 DS 275 SO8 1 IC7 74HC00 TSSOP 14 1 IC8 74HC08 TSSOP 14 1 IC9 LM358M,Low Power Dual Operational SO8 1 IC10 MAX1614EUA,N-Channel MosFet Switch Driver TSOP8 1 IC11 LT1763-5,LDO Voltage regulator SO8 1 IC12 P4097 SO16 1 TR1 BSP319N,N-Channel MosFet,SipMos SOT223 1 TR2 2N7002,N-Channel MosFet SOT23 2 TR3 2N7002,N-Channel MosFet SOT23 D1 1N4148 D1206 7 D2 1N4148 D1206 D3 1N4148 D1206 D4 1N4148 D1206 D5 1N4148 D1206 D6 1N4148 D1206 D7 1N4148 D1206 R1 33k, ±5%,0.125W,SMD 0805 3 R2 22k, ±5%,0.125W,SMD 0805 1 R3 33k, ±5%,0.125W,SMD 0805 R4 33k, ±5%,0.125W,SMD 0805 R5 1M, ±5%,0.125W,SMD 0805 1 R6 220k, ±5%,0.125W,SMD 0805 1 R7 56R, ±5%,0.125W,SMD 0805 1 R8 10k, ±5%,0.125W,SMD 0805 2 R9 Resistenza di potenza, 3.3R / 2W RESA12 1 R10 10k, ±5%,0.125W,SMD 0805 Page 1 uMAX_V0.0_CostList R11 10k, ±5%,0.125W,SMD Not mounted R12 10k, ±5%,0.125W,SMD Not mounted R13 10k, ±5%,0.125W,SMD Not mounted R14 10k, ±5%,0.125W,SMD Not mounted R15 10k, ±5%,0.125W,SMD Not mounted R16 10k, ±5%,0.125W,SMD Not mounted R17 10k, ±5%,0.125W,SMD Not mounted R18 100k, ±5%,0.125W,SMD 0805 1 R19 2.7k, ±5%,0.125W,SMD 0805 1 R20 1k, ±5%,0.125W,SMD 0805 1 R21 47R, ±5%,0.125W,SMD 0805 1 R22 Resistenza di potenza, 10R / 2W RESA12 1 R23 560k, ±5%,0.125W,SMD 0805 1 C1 100nF,ceramico,50V,±10%,SMD 0805 16 C2 100nF,ceramico,50V,±10%,SMD 0805 C3 100nF,ceramico,50V,±10%,SMD 0805 C4 100nF,ceramico,50V,±10%,SMD 0805 C5 100nF,ceramico,50V,±10%,SMD 0805 C6 100nF,ceramico,50V,±10%,SMD 0805 C7 100nF,ceramico,50V,±10%,SMD 0805 C8 100nF,ceramico,50V,±10%,SMD 0805 C9 100nF,ceramico,50V,±10%,SMD 0805 C10 100nF,ceramico,50V,±10%,SMD 0805 C11 100nF,ceramico,50V,±10%,SMD 0805 C12 100nF,ceramico,50V,±10%,SMD 0805 C13 10nF,ceramic,+/-10%,SMD 0805 4 C14 1.0u,tantalio,16V,±10%,SMD C1206 1 C15 10nF,ceramic,+/-10%,SMD 0805 C16 10.0u,tantalio,16V,±10%,SMD TE/C 1 C17 1000uF,electro,6.3V,+/-10%,SMD CREV/D 1 C18 15pF,ceramic,+/-10%,SMD 0805 2 C19 15pF,ceramic,+/-10%,SMD 0805 C20 10uF,electro,16V,+/-10%,SMD CREV/A 1 C21 1nF,CG,1KV,SMD 1812D 1 C22 330pF,CG,1KV,SMD 1812D 1 C23 220pF,CG,1KV,SMD 1812D 1 Page 2 uMAX_V0.0_CostList C24 150pF,CG,1KV,SMD 1812D 1 C25 100pF,CG,1KV,SMD 1812D 3 C26 100pF,CG,1KV,SMD 1812D C27 100pF,CG,1KV,SMD 1812D C28 100nF,ceramico,50V,±10%,SMD 0805 C29 100nF,ceramico,50V,±10%,SMD 0805 C30 10nF,ceramic,+/-10%,SMD 0805 C31 100nF,ceramico,50V,±10%,SMD 0805 C32 2.2nF,ceramic,+/-10%,SMD 0805 1 C33 10nF,ceramic,+/-10%,SMD 0805 C34 1.5nF,ceramic,+/-10%,SMD 0805 1 C35 100nF,ceramico,50V,±10%,SMD 0805 C36 470pF,CG,1KV,SMD 1812D 1 TP1 Testpiont TP1 4 TP2 Testpiont TP1 TP3 Testpiont TP1 TP4 Testpiont TP1 BP1 Buzzer, HCM1206X BEEPB26 1 K1 P-BUTTON PUSH-SMD 1 JP1 Jumper SMD JUMPER JP2 Jumper SMD JUMPER JP3 Jumper SMD JUMPER JP4 Jumper SMD JUMPER JP5 Jumper SMD JUMPER JP6 Jumper SMD JUMPER JP7 Jumper SMD JUMPER JP8 Jumper SMD JUMPER JP9 Jumper SMD JUMPER JP10 Jumper SIL2 1 JP11 Jumper SMD JUMPER JP12 Jumper SMD JUMPER JP13 Jumper SMD JUMPER JP14 Jumper SMD JUMPER JP15 Jumper SMD JUMPER JP16 Jumper SMD JUMPER Q1 QUARZO,17.360MHz HC18S 1 Page 3 uMAX_V0.0_CostList FC1 FFC/16P FFC/16P 1 BN1 BINDER3 BINDER3 1 D1 Display Graphic P1 Print FCL FlatCable 1 A1 Housing 1 A2 Antenna in ferrite 1 A3 Batteria 9VDC 1 A4 Cavetto connessione 9V to board 1 F1 Folientastatur 1 T1 Tasto in plastica 1 92 Page 4

Parts List/Tune Up Info

Test Report

Master: PT15209 Date: December 12, 2001 Test Report: 3W07125.1 Applicant: DATAMARS SA Via ai Prati Bedano-Lugano Switzerland 6930 Equipment Under Test: MiniMax II (EUT) FCC ID: NDXMINIMAXII In Accordance With: FCC Part 15, Subpart C, 15.209 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Technologist Date: 28 July 2003 Total Number of Pages: 10 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 2 of 10 Table Of Contents Section 1. Summary Of Test Results ..................................................................................... 3 Section 2. General Equipment Specification......................................................................... 5 Section 3. Radiated Emissions ................................................................................................ 6 Section 4. Block Diagrams ......................................................................................................9 Section .5 Test Equipment List ............................................................................................ 10 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 3 of 10 Section 1. Summary Of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. A description of the test facility in on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. Test Performed By: ________________________________ Date: 28 July 2003 Jason Nixon, Telecom Specialist Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 4 of 10 Summary Of Test Data Name Of Test Para. No. Result Powerline Conducted Emissions 15.207 N/A 9V Battery Radiated Emissions 15.209 Complies Test Conditions: Indoor Temperature:21°C Humidity:47% Outdoor Temperature:25°C Humidity:52% Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 5 of 10 Section 2. General Equipment Specification Model No.: MiniMax II Date Received In Laboratory: July 10, 2003 Nemko Identification No.: 1 Transmit Frequency 134.2 kHz Emission Designator N0N (no modulation) Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 6 of 10 Section 3. Radiated Emissions Para. No.: 15.209 Test Performed By: Jason Nixon Date of Test: July 24, 2003 Minimum Standard: Fundamental (MHz) Field Strength (μV/m) Field Strength (dBμV) 0.009 - 0.490 2400/F(kHz) @ 300m — 0.490 - 1.705 24000/F(kHz) @ 30m — 1.705 - 30 30 @ 30m — 30 - 88 100 40.0 88 - 216 150 43.5 216 - 960 200 46.0 Above 960 500 54.0 Test Results: Complies. The worst case emissions is –19.5 dBuV/m @ 300m. This is 44.5 dB below specification limit. Measurement Data: Measured using active loop antenna and test receiver. The equipment was tested on 3 orthogonal axis. Worst case data has been presented. Frequency of Emission (kHz) Received Signal (dBuV@3m) Distance Correction Factor (dB) Field Strength (dBuV/m@300m) Limit (dBuV/m@300m) Margin (dB) 134.2 96.3 -115.8 -19.5 25.0 44.5 268.4 35.0 -80.0 -45.0 19.0 64.0 402.6 49.0 -80.0 -31.0 15.5 46.5 Measured:Test Receiver 10 kHz RBW, Peak Detector 134.2 kHz reading extrapolated to 300 m using measured extrapolation factor of 57.9 dB per decade, see attached 268.4 and 402.6 kHz readings extrapolated using 40 dB per decade Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 7 of 10 Measurement Distance (m) Measured Field Strength (dBuV/m) Predicted Field Strength (dBuV/m) 2.0 105.7 105.7 3.0 96.3 98.7 10.0 65.2 77.7 Measured Extrapolation Factor = 57.9dB/decade This is decadedB/9.57 )2/10log( )2.657.105( = − Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 8 of 10 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 9 of 10 Section 5. Block Diagrams Conducted Emissions EUTL.I.S.N. Spectrum Analyzer Or Test Receiver Radiated Prescan SPECTRUM ANALYZER AND PLOTTER OR TEST RECEIVER COMPUTER ANTENNA EUT SHIELDED ROOM Test Site For Radiated Emissions 3 METERS E.U.T. NON-CONDUCTING TURN-TABLE 0.8 METER VARIABLE SEARCH HEIGHT (1 TO 4 m) TO TEST RECEIVER/SPECTRUM ANALYZER SEARCH ANTENNA Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 10 of 10 Section 6. Test Equipment List R&S ESH3 Test Receiver FA000872 Oct 2003, Oct 2004 R&S HFH-Z2 Loop Antenna FA000631 May 2003, May 2004

Test Setup Photos

Nemko Canada Inc. FCC PART 15, SUBPART C, 15.209 PROJECT NO.:3W07125.1 EQUIPMENT:MiniMax II Page 8 of 10
