NEX-9432M-27TXRC Toy Transmitter

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 2 von 5 Page 2 of 5 Block Diagram Remark: The EUT is using 27.145MHz oscillator only. The other frequency 40.685MHz shown above is for the same model but different frequency.

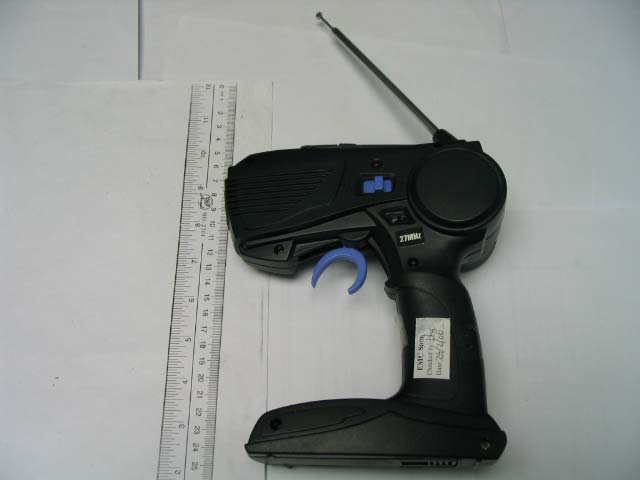

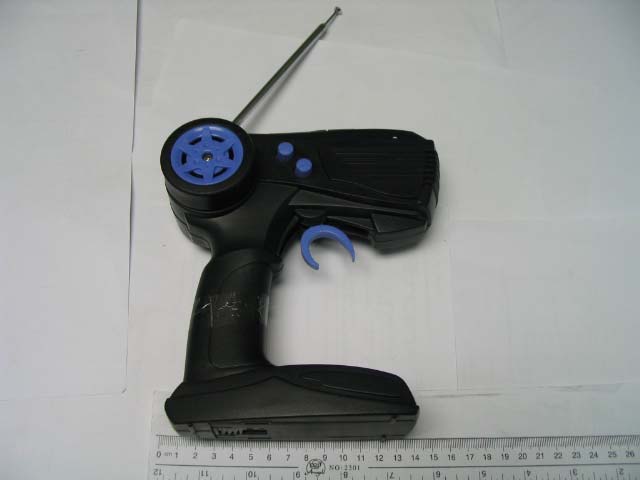

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 1 von 2 Page 1 of 2 Transmitter (External view) Transmitter (External view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 2 von 2 Page 2 of 2 Transmitter (External view)

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 4 von 5 Page 4 of 5 FCC label and location

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 1 von 3 Page 1 of 3 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 2 von 3 Page 2 of 3 Transmitter (Internal view) Transmitter (Internal View) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 3 von 3 Page 3 of 3 Transmitter (Internal view) Transmitter (Internal view)

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 1 von 5 Page 1 of 5 Technical Description The equipment under test (EUT) is a transmitter for a RC toy car operating at 27.145 MHz. The EUT has one control button and one control wheel for commanding the forward, backward, left and right movement of the associated receiver. IC1 and the associated circuit act as AF-Modulator. Q3 and the associated circuit act as a RF- Transmitter. Q4, XTAL and the associated circuit act as an oscillator. The EUT is using surface mount technology (SMT) electronic components on the PCB circuit. Ratings and System Details Transmitter Frequency range : 27.145MHz Number of channels : 1 Type of antenna : External telescopic antenna Power supply : Battery operated 9V Ports : none Protection Class : III

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 3 von 5 Page 3 of 5 Circuit diagram

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 1 von 1 Page 1 of 1 A 27.14496 MHz * 27.14496 MHz RBW 3 kHz 27.14496 MHz * 27.14496 MHzVBW 3 kHz 27.14496 MHz SWT 75 ms 27.14496 MHz 1 PK 27.14496 MHz MAXH 27.14496 MHz 27.14496 MHz 27.14496 MHz 27.14496 MHz 27.14496 MHz 27.14496 MHz 27.14496 MHz 27.14496 MHz 27.14496 MHz 27.14496 MHz Ref -10 dBm 27.14496 MHz Att 20 dB 27.14496 MHz Start 26.96 MHz 27.14496 MHz Stop 27.28 MHz 27.14496 MHz 32 kHz/ 27.14496 MHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 27.14496 MHz 1 Marker 1 [T1 ] -24.50 dBm 27.144960000 MHz 2 Delta 2 [T1 ] -45.08 dB -184.320000000 kHz 3 Delta 3 [T1 ] -42.60 dB 134.400000000 kHz MARKER 1 27.14496 MHz Date: 28.FEB.2006 17:12:45 Bandwidth measurement

www.tuv.com Test Report No.: 14011779 001 Date: 27.05.2006 Page 2 of 12 Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement www.tuv.com Test Report No.: 14011779 001 Date: 27.05.2006 Page 3 of 12 Contents List of Test and Measurement Instruments.........................................................4 General Product Information ................................................................................5 Product Function and Intended Use.............................................................................................5 Circuit Description .........................................................................................................................5 Ratings and System Details ..........................................................................................................5 Independent Operation Modes......................................................................................................6 Submitted Documents ...................................................................................................................6 Related Submittal(s) Grants ..........................................................................................................6 Test Set-up and Operation Mode..........................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ...........................................................................7 Countermeasures to achieve EMC Compliance..........................................................................7 Test Methodology ..................................................................................................8 Radiated Emission .........................................................................................................................8 Field Strength Calculation .............................................................................................................8 Test Results ...........................................................................................................9 Radiated Emission of Carrier Frequency Subclause 15.227(a)............................................9 Spurious Radiated Emissions Subclause 15.227(b)..........................................10 Bandwidth Measurement.............................................................................................................12 Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT External Photo Appendix 4: EUT Internal Photo Appendix 5: FCCID Label, Block Diagram, Schematics and User manual. www.tuv.com Test Report No.: 14011779 001 Date: 27.05.2006 Page 4 of 12 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESVS30 842807/009 Active Loop Antenna EMCO 6502 9107-2651 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Double Ridge Horn Antenna EMCO 3115 9002-3347 Spectrum Analyzer Rohde & Schwarz FSP30 1093.4495K30 www.tuv.com Test Report No.: 14011779 001 Date: 27.05.2006 Page 5 of 12 General Product Information Product Function and Intended Use The equipment under test (EUT) is a transmitter for a RC toy car operating at 27.145 MHz. The EUT has one control button and one control wheel for commanding the forward, backward, left and right movement of the associated receiver. There are another 2 steering control trims for trimming the steering and speed of associated receiver. FCCID: NEX-9432M-27TX Model Product description 9432M Radio Control Toy Transmitter Circuit Description IC and the associated circuit act as AF-Modulator. Q3 and the associated circuit act as a RF-Transmitter. Q4, XTAL and the associated circuit act as an oscillator. The EUT is using surface mount technology (SMT) electronic components on the PCB circuit. Ratings and System Details Transmitter Frequency range : 27.145MHz Number of channels : 3 (same frequencies but different coding schemes) Type of antenna : External telescopic antenna Power supply : Battery operated 9V Ports : none Protection Class : III www.tuv.com Test Report No.: 14011779 001 Date: 27.05.2006 Page 6 of 12 Independent Operation Modes The basic operation modes are: - Remote Control: On and Off For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - Label artwork - User manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14011779 001 Date: 27.05.2006 Page 7 of 12 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance The test sample, which has been tested, contained the noise suppression parts as described in the Circuit Diagram or the Technical Construction File. No additional measures were employed to achieve compliance. www.tuv.com Test Report No.: 14011779 001 Date: 27.05.2006 Page 8 of 12 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle o…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 14011779 001 Seite 1 von 1 Page 1 of 1 Set-up for Radiation Emission (Transmitter) Set-up for Radiation Emission (Transmitter)
