NEX-9498-27TXRadio Control Toy Transmitter

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 5 von 5 Page 5 of 5 User manual

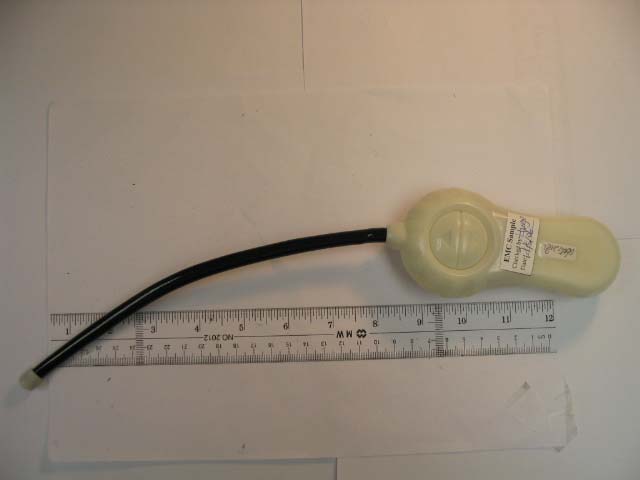

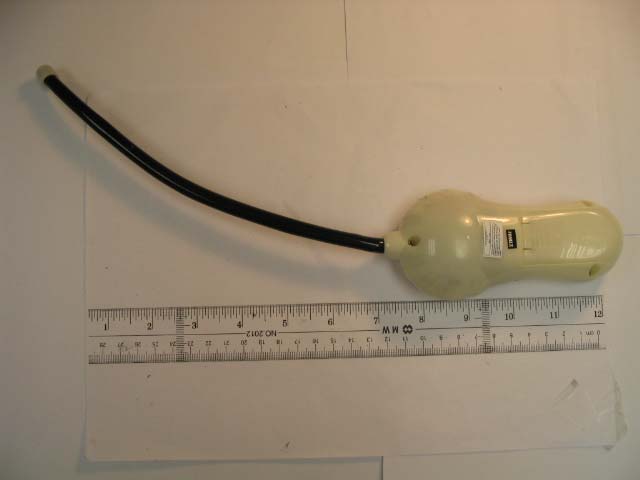

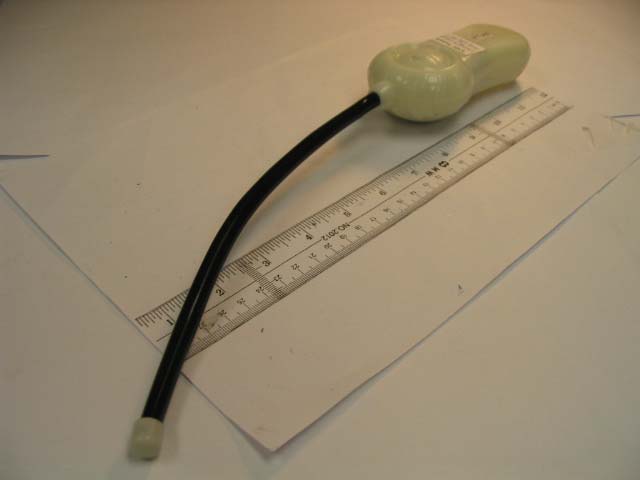

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 1 von 3 Page 1 of 3 Transmitter (External view) Transmitter (External view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 2 von 3 Page 2 of 3 Transmitter (External view) Transmitter (External view) www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 3 von 3 Page 3 of 3 Transmitter (External view)

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 4 von 5 Page 4 of 5 FCC label and location Label location

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 1 von 4 Page 1 of 4 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 2 von 4 Page 2 of 4 Transmitter (Internal view) Transmitter (Internal View) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 3 von 4 Page 3 of 4 Transmitter (Internal view) Transmitter (Internal view) www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 4 von 4 Page 4 of 4 Transmitter (Internal view)

www.tuv.com Test Report No.: 14013078 001 Date: 13.06.2006 Page 2 of 12 Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement www.tuv.com Test Report No.: 14013078 001 Date: 13.06.2006 Page 3 of 12 Contents List of Test and Measurement Instruments.........................................................4 General Product Information ................................................................................5 Product Function and Intended Use.............................................................................................5 Ratings and System Details ..........................................................................................................5 Independent Operation Modes......................................................................................................6 Submitted Documents ...................................................................................................................6 Related Submittal(s) Grants ..........................................................................................................6 Test Set-up and Operation Mode..........................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ...........................................................................7 Countermeasures to achieve EMC Compliance..........................................................................7 Test Methodology ..................................................................................................8 Radiated Emission .........................................................................................................................8 Field Strength Calculation .............................................................................................................8 Test Results ...........................................................................................................9 Radiated Emission of Carrier Frequency Subclause 15.227(a).........................................9 Spurious Radiated Emissions Subclause 15.227(b).......................................10 Bandwidth Measurement.............................................................................................................12 Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT External Photo Appendix 4: EUT Internal Photo Appendix 5: FCCID Label, Block Diagram, Schematics and User manual. www.tuv.com Test Report No.: 14013078 001 Date: 13.06.2006 Page 4 of 12 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESVS30 842807/009 Active Loop Antenna EMCO 6502 9107-2651 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Double Ridge Horn Antenna EMCO 3115 9002-3347 Spectrum Analyzer Rohde & Schwarz FSP30 1093.4495K30 www.tuv.com Test Report No.: 14013078 001 Date: 13.06.2006 Page 5 of 12 General Product Information Product Function and Intended Use The equipment under test (EUT) is a transmitter for a RC toy car operating at 27.145 MHz. The EUT has two control buttons for commanding the forward and backward movement of the associated receiver. FCCID: NEX-9498-27TX Model Product description 9498 Radio Control Toy Transmitter Ratings and System Details Transmitter Frequency range : 27.145MHz Number of channels : 1 Type of antenna : External Fixed Antenna Power supply : Battery operated 9V Ports : none Protection Class : III www.tuv.com Test Report No.: 14013078 001 Date: 13.06.2006 Page 6 of 12 Independent Operation Modes The basic operation modes are: - Remote Control: On and Off For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - Label artwork - User manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14013078 001 Date: 13.06.2006 Page 7 of 12 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance The test sample, which has been tested, contained the noise suppression parts as described in the Circuit Diagram or the Technical Construction File. No additional measures were employed to achieve compliance. www.tuv.com Test Report No.: 14013078 001 Date: 13.06.2006 Page 8 of 12 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle of the 80 cm height turntable, and the turntable is 3 meters far from the measuring antenna. During the testing, the EUT was operated standalone and arranged for maximum emissions. The EUT was tested in three orthogonal planes. The investigation is performed with the EUT rotated 360ﾟ, the antenna height scanned between 1m and 4m, and the antenna rotated to repeat the measurements for both the horizontal and vertical antenna polarizations. Repeat the measurement steps until the maximum emissions were obtained. All radiated tests were performed at an antenna to EUT with 3 meters distance, unless stated otherwis…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 1 von 1 Page 1 of 1 A 10 kHz Ref 0 dBm 10 kHz Att 30 dB 10 kHz 1 PK 10 kHz MAXH 10 kHz 32 kHz/ 10 kHz Start 26.96 MHz 10 kHz Stop 27.28 MHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz * 10 kHz RBW 3 kHz 10 kHz * 10 kHzVBW 10 kHz 10 kHz SWT 40 ms 10 kHz -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 kHz 1 Marker 1 [T1 ] -33.40 dBm 27.146240000 MHz 2 Delta 2 [T1 ] -43.16 dB -186.240000000 kHz 3 Delta 3 [T1 ] -40.42 dB 133.760000000 kHz VIDEO BANDWIDTH 10 kHz Date: 24.MAY.2006 18:12:21 Bandwidth measurement

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 14013078 001 Seite 1 von 1 Page 1 of 1 Set-up for Radiation Emission (Transmitter) Set-up for Radiation Emission (Transmitter) using Loop Antenna
