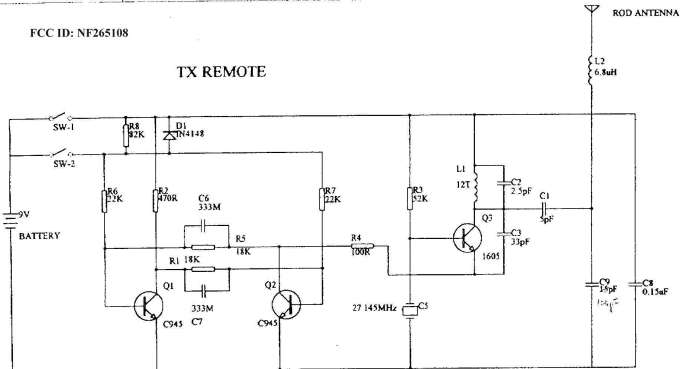

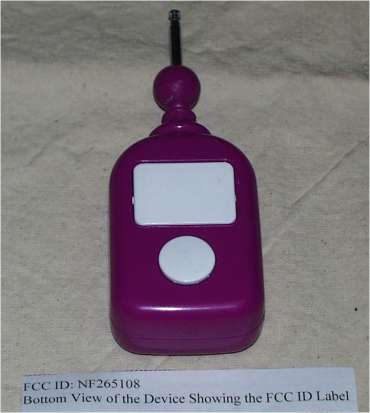

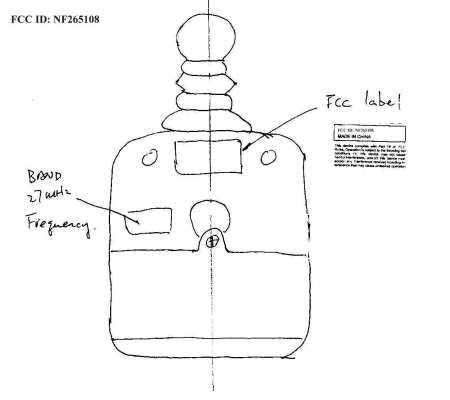

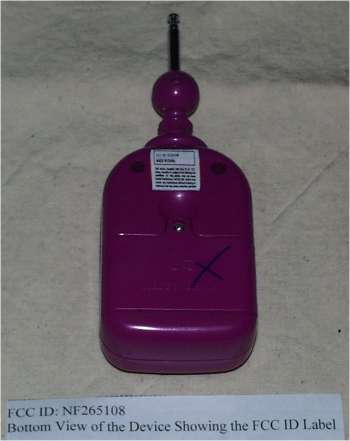

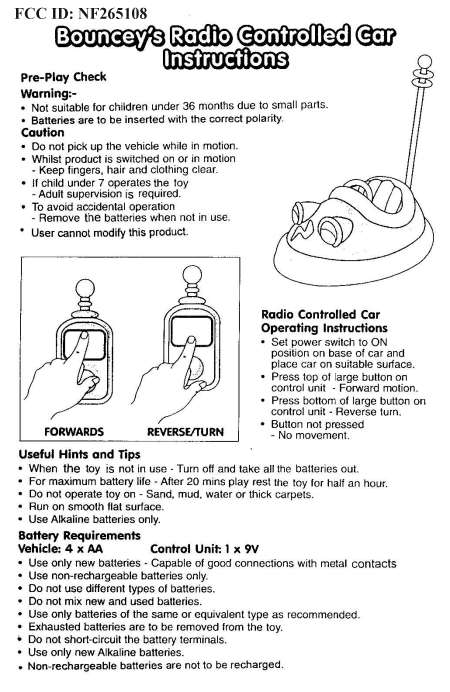

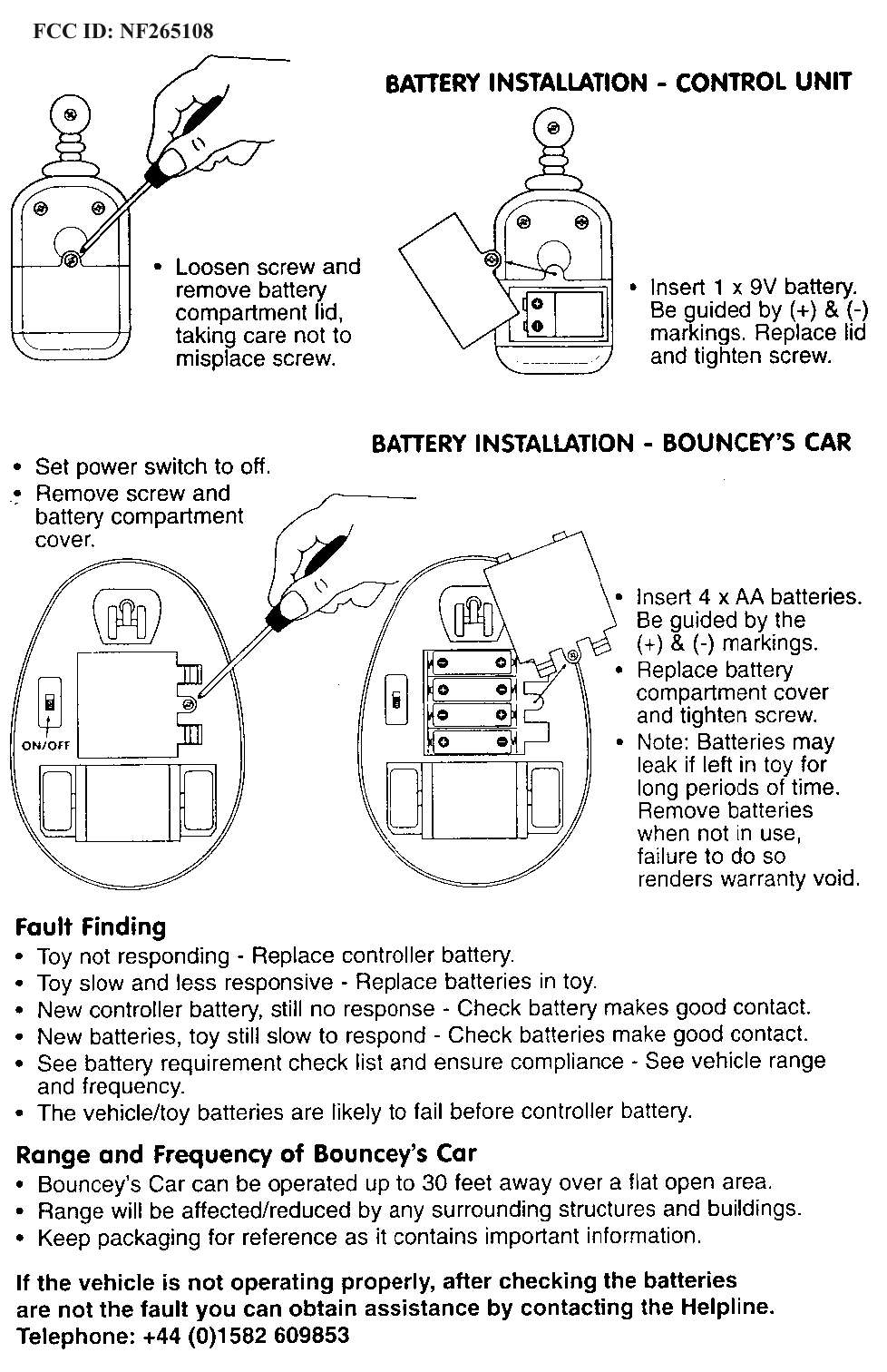

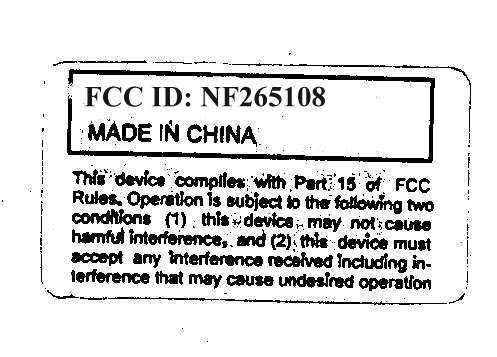

NF265108Security/Remote Control Transmitter

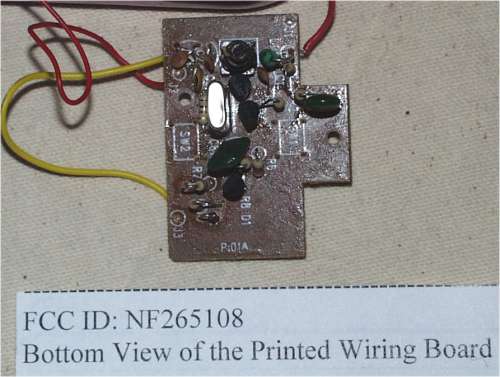

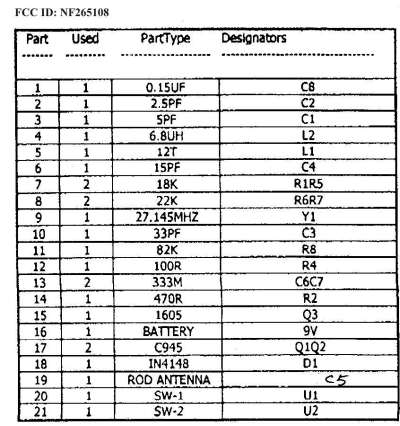

Date: 1999-12-15TEST REPORTPage 1 of 7 No.: WM100277 ____________________________________________________________ Patrick Wong Testing EngineerVerify byfor Managing Director APPLICANT: (Code:HIL002) HITARI LIMITED Braeside House 43, Broomfield Adel, Leeds LS16 6AE, United Kingdom. DATE OF SAMPLES RECEIVED: 1999.11.19. DATE OF TESTING: 1999.12.11 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:Security / Remote Control Transmitter (R/C Toy Transmitter) Manufacturer:CHINA TOY INDUSTRIES Model Number: 65108 Brand Name:Jellabies Rating:9Vd.c. ("6F22" size battery × 1) Origin:China INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED after modification with the clause 15.227 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A MODIFICATION METHODS: 1. Change resistance of resistor R3 to 240kΩ. 2. Change C9 to 100pF. Date: 1999-12-15TEST REPORTPage 2 of 7 No.: WM100277 T E S T S U M M A R Y *** INTENTIONAL RADIATOR *** (1) Measurement of Emission of RF energy on the carrier frequency..............Satisfactory Measurement of the out-of band emissions including harmonics............... Satisfactory (2) Measurement of Emission Within Band Edges...........................................Satisfactory (3)Measurement of Line-Conducted Voltage onto AC Power Line................ Not applicable T E S T D A T A Please refer to the attached result sheets. Date: 1999-12-15TEST REPORTPage 3 of 7 No.: WM100277 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference ================================ TEST REFERENCE: FCC Rules Part 15 Section 15.227(26.96-27.28MHz) TEST CONDITION : Normal TEST DATE : 1999.12.11. Emission of RF energy on the carrier frequency -- 27.145 MHz (PEAK VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m) FCC Limit MHz dB(μV/m) H-VdB dB(μV/m)μV/mμV/m 27.136.4V+18.554.9555.9100000 Emission of RF energy on the carrier frequency -- 27.145 MHz (AVERAGE VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m) FCC Limit MHz dB(μV/m) H-VdB dB(μV/m)μV/mμV/m 27.129.2V+18.547.7242.710000 ... to be continued Date: 1999-12-15TEST REPORTPage 4 of 7 No.: WM100277 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. ============================================ TEST REFERENCE: FCC Rules Part 15 Section 15.227 (26.96-27.28 MHz) TEST CONDITION : Normal TEST DATE : 1999.12.11 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m) FCC Limit MHz dB(μV) H-VdB dB(μV/m)μV/mμV/m 54.320.9V+12.933.849.0100 81.4<1.0+8.9<9.9<3.1100 108.6<1.0+12.2<13.2<4.6150 135.7<1.0+10.8<11.8<3.9150 162.9<1.0+9.5<10.5<3.3150 190.0<1.0+11.1<12.1<4.0150 217.2<1.0+12.2<13.2<4.6200 244.3<1.0+13.5<14.5<5.3200 271.5<1.0+16.0<17.0<7.1200 298.627.7H+16.544.2162.2200 325.724.7H+16.641.3116.1200 352.914.4H+16.731.135.9200 380.011.9H+17.429.329.2200 407.2<1.0+18.2<19.2<9.1200 434.3<1.0+19.5<20.5<10.6200 461.5<1.0+20.1<21.1<11.4200 488.6<1.0+20.3<21.3<11.6200 515.8<1.0+20.9<21.9<12.4200 542.9<1.0+22.1<23.1<14.3200 570.0<1.0+22.8<23.8<15.5200 597.2<1.0+23.3<24.3<16.4200 624.3<1.0+23.4<24.4<16.6200 651.5<1.0+23.6<24.6<17.0200 678.6<1.0+24.9<25.9<19.7200 705.8<1.0+25.1<26.1<20.2200 732.9<1.0+25.4<26.4<20.9200 760.1<1.0+26.4<27.4<23.4200 787.2<1.0+26.8<27.8<24.5200 814.4<1.0+26.7<27.7<24.3200 ... to be continued Date: 1999-12-15TEST REPORTPage 5 of 7 No.: WM100277 *** INTENTIONAL RADIATOR *** (1) Measurement of Radiated Interference . . Continued .. ============================================ TEST REFERENCE: FCC Rules Part 15 Section 15.227 (26.96-27.28 MHz) TEST CONDITION : Normal TEST DATE : 1999.12.11 The out-of-band emissions, including harmonics (25-1000 MHz) (CISPR VALUE) Emission Frequency Meter Reading PolarizationAntenna Factor Field Strength (at 3m) FCC Limit MHz dB(μV) H-VdB dB(μV/m)μV/mμV/m 841.5<1.0+26.1<27.1<22.6200 868.6<1.0+26.8<27.8<24.5200 895.8<1.0+27.1<28.1<25.4200 922.9<1.0+27.5<28.5<26.6200 950.1<1.0+28.1<29.1<28.5200 977.2<1.0+28.2<29.2<28.8200 999.5<1.0+28.5<29.5<29.9200 ====================SUMMARY=================== All data is within limits ============================================= Broad-band Antennas were used both polarizations of emissions were measured. polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================= Date: 1999-12-15TEST REPORTPage 6 of 7 No.: WM100277 *** INTENTIONAL RADIATOR *** (2) Measurement of Emissions Within Band Edges. ==================================== TEST REFERENCE: FCC Rules Part 15 section 15.227(26.96-27.28MHz) TEST CONDITION: Normal TEST DATE : 1999.12.11. Please see the exhibit of bandwidth RESULTS AND NOTES L: FCC Lower Band Edge..............................................................................-> 26.960MHz H: FCC Higher Band Edge.............................................................................-> 27.280MHz C: Unmodulated carrier at frequency...............................................................-> 27.145MHz D: No. of dB from unmodulated carrier...........................................................-> 35.4dB SPECTRUM ANALYZER SETTINGS Resolution bandwidth : 1.0KHz Frequency span: 10.0KHz/div No. of dB/div: 10.0dB/div FCC Limit Minimum No. of dB from unmodulated carrier required : 26.0dB ================SUMMARY================ All data is within limits ====================================== Date: 1999-12-15TEST REPORTPage 7 of 7 No.: WM100277 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground pla…

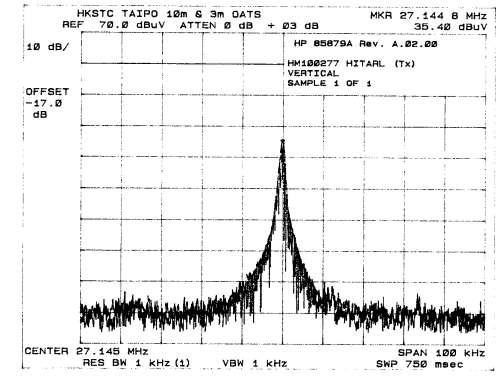

Text truncated - open the document above for the full version.

Date:1999-12-15APPENDIX APage A1 of A1 No.: WM100277 TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM007SPECTRUM ANALYZERH PHP85660B3144A21192 11/06/99 EM008SPECTRUM ANALYZER DISPLAYH PHP85662A3144A20514 11/06/99 EM009QUASI PEAK ADAPTORH PHP85650A3303A01702 11/06/99 EM010RF PRESELECTORH PHP85685A3221A01410 11/06/99 EM011ATTENNUATOR/SWITCHH PHP11713A2508A10595 11/06/99 EM012PRE-AMPLIFIERH PHP8449B3008A00262 11/06/99 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE H P H P H P HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM016ANTENNAARA INC.LPB-2513/A1047 30/12/97 EM072SIGNAL GENERATORHP8640B1948A11892 30/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A 25/02/99 EM145EMI TEST RECEIVERR & SESCS30830245/021 10/05/99 ABBREVIATIONS: CM = Corrective Maintenance N/A = Not Applicable
