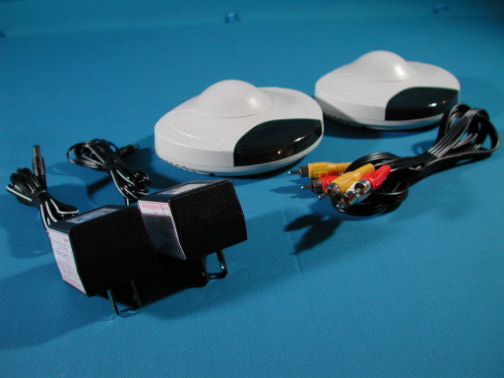

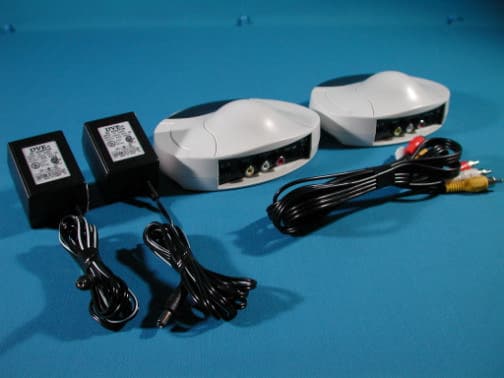

QuieTek Corporation Page: 1 of 9 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

FCC ID.: NGVAWV315TX FCC ID Label Sampel Video Sender Model No.: AWV315 F F C C C C I I D D : : N N G G V V A A W W V V 3 3 1 1 5 5 T T X X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

FCC ID.: NGVAWV315TX FCC ID

QuieTek Corporation Page: 2 of 9 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 9 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (5) EUT Photo (6) EUT Photo QuieTek Corporation Page: 4 of 9 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (7) EUT Photo QuieTek Corporation Page: 5 of 9 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (8) EUT Photo QuieTek Corporation Page: 6 of 9 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (9) EUT Photo QuieTek Corporation Page: 7 of 9 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (10) Adapter Photo (11) Adapter Photo QuieTek Corporation Page: 8 of 9 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (12) Adapter Photo (13) Adapter Photo QuieTek Corporation Page: 9 of 9 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (14) Adapter Photo

QuieTek Corporation Page: 6 of 14 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1.3 EUT Configuration 1.4 EUT Exercise Software The EUT exercise program used during conducted testing was designed to exercise the EUT in a manner similar to a typical use. The exercise sequence is listed as below: 1.4.1 Setup the EUT and simulators as shown on 1.3. 1.4.2 Turn on the power of all equipment. 1.4.3 The EUT will transmit the radio signal form transmitter. 1.4.4 Repeat the above procedure 1.4.2 to 1.4.3 1.5 Test performed Conducted emissions were invested over the frequency range from 0.15MHz to 30MHz using a receiver bandwidth of 9kHz. Radiated emissions were invested over the frequency range from 30MHz to 1000MHz using a receiver bandwidth of 120kHz and the frequency range from 1GHz to 24GHz using a receiver bandwidth of 1MHz. Radiated testing was performed at an antenna to EUT distance of 3 meters. RX Power Adapter DVD EUT Power Adapter Television

1234 1234 D C B A B C D A PAGE REV.DWG TITLE DWG NO. SIZE DRAW BY ENG. BY ISSUED BY AIRWAVE TECHNOLOGIES INC. ENGINEERDATEDESCRIPTIONECN NO. REV. REVISIONS of C1610P C9 1NF R6 56KR Q3 3904 R7 1KR 5V C7 1uF C26 1NF 5V R11 0R R12 680R R21 120R C29 33P L5 18uH R19 910R C25 100p Video IN XTAL 4MHz C15 33PF C17 22PF C24 1UF 5V R42 10K R40 10K R41 10K R50 10K CH4CH1 CHANNEL 5V ANTENNA C2 2.2P C13 0.1uF C11 100p R8 100R 5V C11 1uF C8 6PF R5 470R 5V R3 3.9KR R1 910R C3 0.1u C4 6PF D1 SMV1233-011 C5 3PF R4 270KR C14 1uF R2 N/A C1 10P Q1 BFG540 Q2 BFG425 L3 18uH C22 33pF C22 0.1uF Q5 3904 R2551KR R30 150R C3439pF R26 2KR C23 0.1uF 3V C39 6pF R16 24K C31 0.1uF Q7 3904 R39 91KR R38 82KR C45 100P C44 1NF L7 12uH C48 330pF R48 910KR D4 BB153 C37 470PF R14 3.9KR C47 100p R28 N/A RTH1 47KR D2 3V R9 220KR R10 200R 5V R47 100K R35 5.1K R34 30K R C36 470P CTR2 20pF C12 4.7UF R20 47R R17 30R R49 1.2K R51 9.1R VR500 VR1 R62 3KR 5V PD 1 osc.in 2 N/A 3 SDA 4 SCK 5 N/A 6 N/A 7 N/A 8 VD 16 GND 15 N/A 9 N/A 10 N/A 11 Vcc 12 RF in1 13 RF in2 14 SP5055GS IC1 CH4 1 CH2 18 CH1 17 4M.in 16 4M.out 15 Vcc 14 Vcc 4 CH3 2 N/A 3 GND 5 N/A 6 N/A 7 GND 8 Vcc 9 N/A 10 N/A 11 SCK 12 SDA 13 ICT0600-0008 IC2 12/25/2000 2.4GHz TX RF Module 1 1 A

1234 1234 D C B A B C D A PAGE REV.DWG TITLE DWG NO. SIZE DRAW BY ENG. BY ISSUED BY AIRWAVE TECHNOLOGIES INC. ENGINEERDATEDESCRIPTIONECN NO. REV. REVISIONS of LED1 LED C7 470u/16V C6 470u/16V C5 470u/25V C4 470u/25V CON1 DC-JACK/IN D1 IN4002 R6 470R Vin 1 GND 3 +5V 2 REG1 7805 ( Audio-R ) ( Audio-L ) ( Video ) CH1 CH2 CH4 1 2 3 4 R W Y CON3 RCA-3 CH3 1 2 3 45 6 7 8 CON4 SW-2P4T R8 1K R9 N/A NC 10 CH1 9 CH2 8 CH3 7 CH4 6 VIDEO 5 +5V 4 AUDIO L 3 AUDIO R 2 GND 1 TX-RF-MODULE C1 33uF/10V C2 N/A C3470uF/10V (For 315TX) (For 315TX) AWV315 TX-03 CON2 SW SPDT R10 0R () () AWV315 TX-03 A 1 1 R5 0R R4 0R R3 0R R7 0R R2 0R R1 0R 12/18/2000

QuieTek Corporation Page: 1 of 14 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : AIRWAVE TECHNOLOGIES INC. Equipment Type : Video Sender Model : AWV315 FCC ID : NGVAWV315TX Report No. : 011H013FI QuieTek Corporation Page: 3 of 14 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION.................................................................................................................................................4 1.1 EUT Description...........................................................................................................................................................................4 1.2 Tested System Details..................................................................................................................................................................5 1.3 EUT Configuration.......................................................................................................................................................................6 1.4 EUT Exercise Software...............................................................................................................................................................6 1.5 Test performed..............................................................................................................................................................................6 1.6 Test Facility...................................................................................................................................................................................7 2. CONDUCTED EMISSION.....................................................................................................................................................8 2.1 Test Equipment List.....................................................................................................................................................................8 2.2 Test Setup.......................................................................................................................................................................................8 2.3 Limits..............................................................................................................................................................................................8 2.4 Test Procedure...............................................................................................................................................................................9 2.5 Test Results....................................................................................................................................................................................9 3. RADIATED EMISSION.........................................................................................................................................................10 3.1 Test Equipment...........................................................................................................................................................................10 3.2 Test Setup.....................................................................................................................................................................................10 3.3 Limits............................................................................................................................................................................................11 3.4 Test Procedure.............................................................................................................................................................................12 3.5 Test Results..................................................................................................................................................................................12 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING.....................................................................13 5. ATTACHMENT........................................................................................................................................................................14 Attachment 1: Summary of Test Results Attachment 2: EUT Test Photographs Attachment 3: EUT Detailed Photographs QuieTek Corporation Page: 4 of 14 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : AIRWAVE TECHNOLOGIES INC. Address 3F, No.9, Industry E. Rd. IX, Science-Based Industrial Park, Hsin Chu, Taiwan, R.O.C. Equipment Type : Video Sender Model : AWV315 FCC ID : NGVAWV315TX Operation Voltage : 120Vac/60Hz Frequency Range : 2410 MHz to 2483.5MHz Channel Number : 4 Frequency of each Channel : Working Frequency Channel 1: 2414MHz, Channel 2: 2432MHz, Channel 3: 2450MHz, Channel 4: 2468MHz Type of Modulation : FM Operator Selection of : Operating Frequency Manual Switch RCA Cable (3-3) : Non-shielded, 1.2m Power Adapter : DVE, DV-9300S Cable Out: Non-shielded, 1.8m×2 Remark : 1. This device is a 2.4GHz Video Sender included a 2.4GHz transmitting function. 2. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. 3. This device is a composite device in accordance with Part 15 regulations. The function receiving was measured and made a test report that the report number is 011H013F under Verification. QuieTek Corporation Page: 5 of 14 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1.2 Tested System Details The types for all equipment, plus descriptions of all cables used in the tes…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 3 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test Back View of Conducted Test QuieTek Corporation Page: 2 of 3 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test Back View of Radiated Test QuieTek Corporation Page: 3 of 3 FCC Report No.: 011H013FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test-HORN
