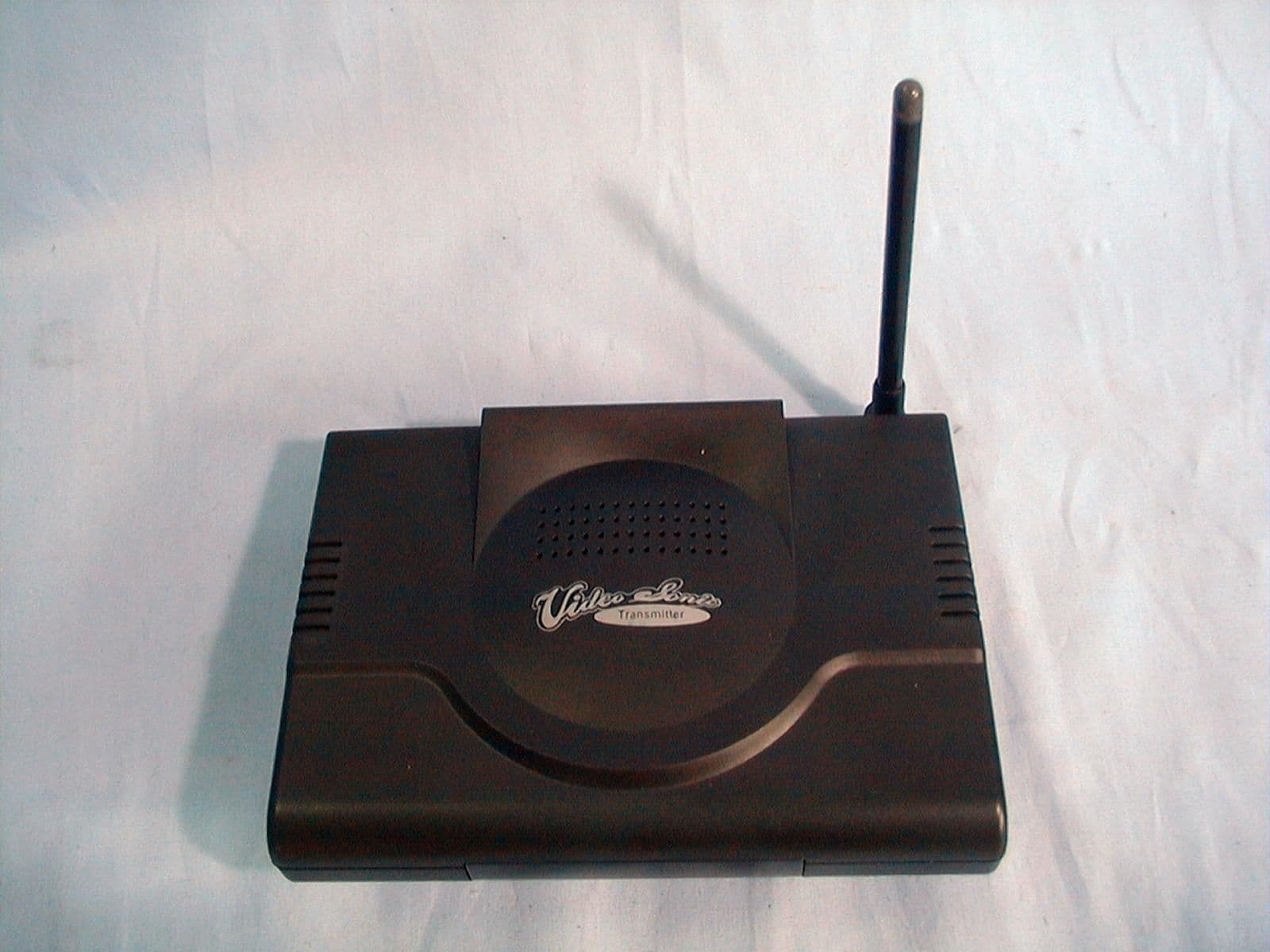

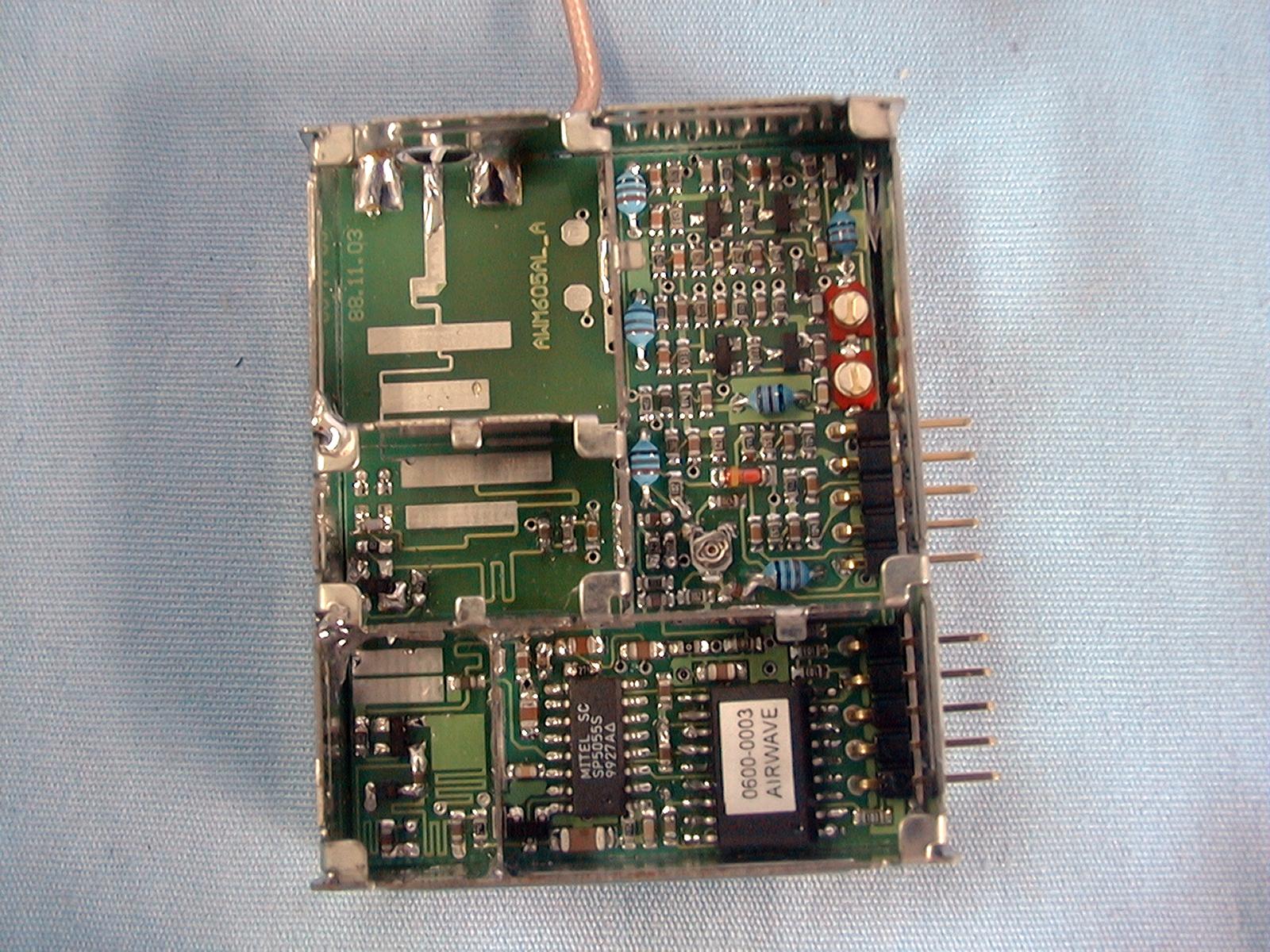

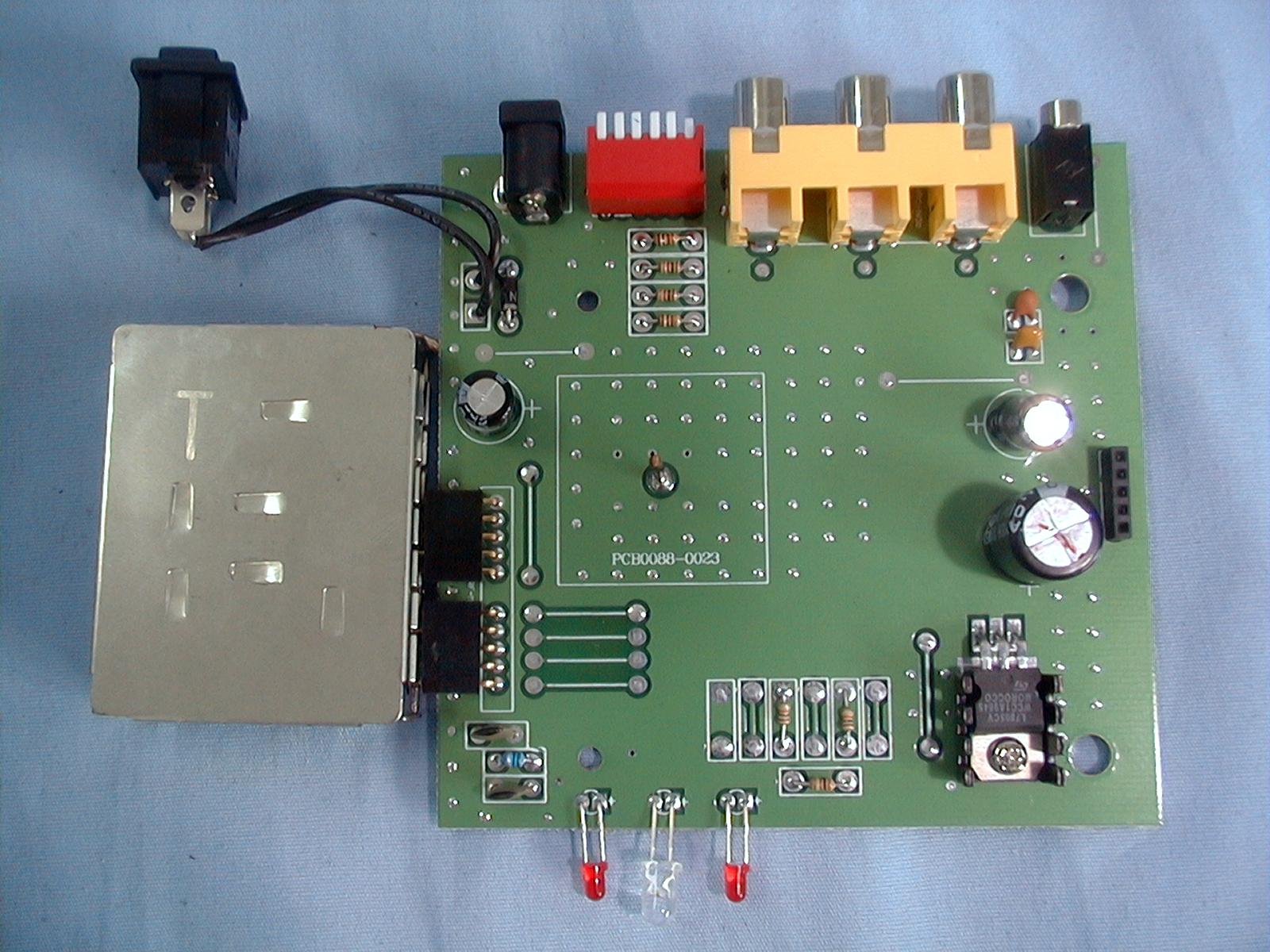

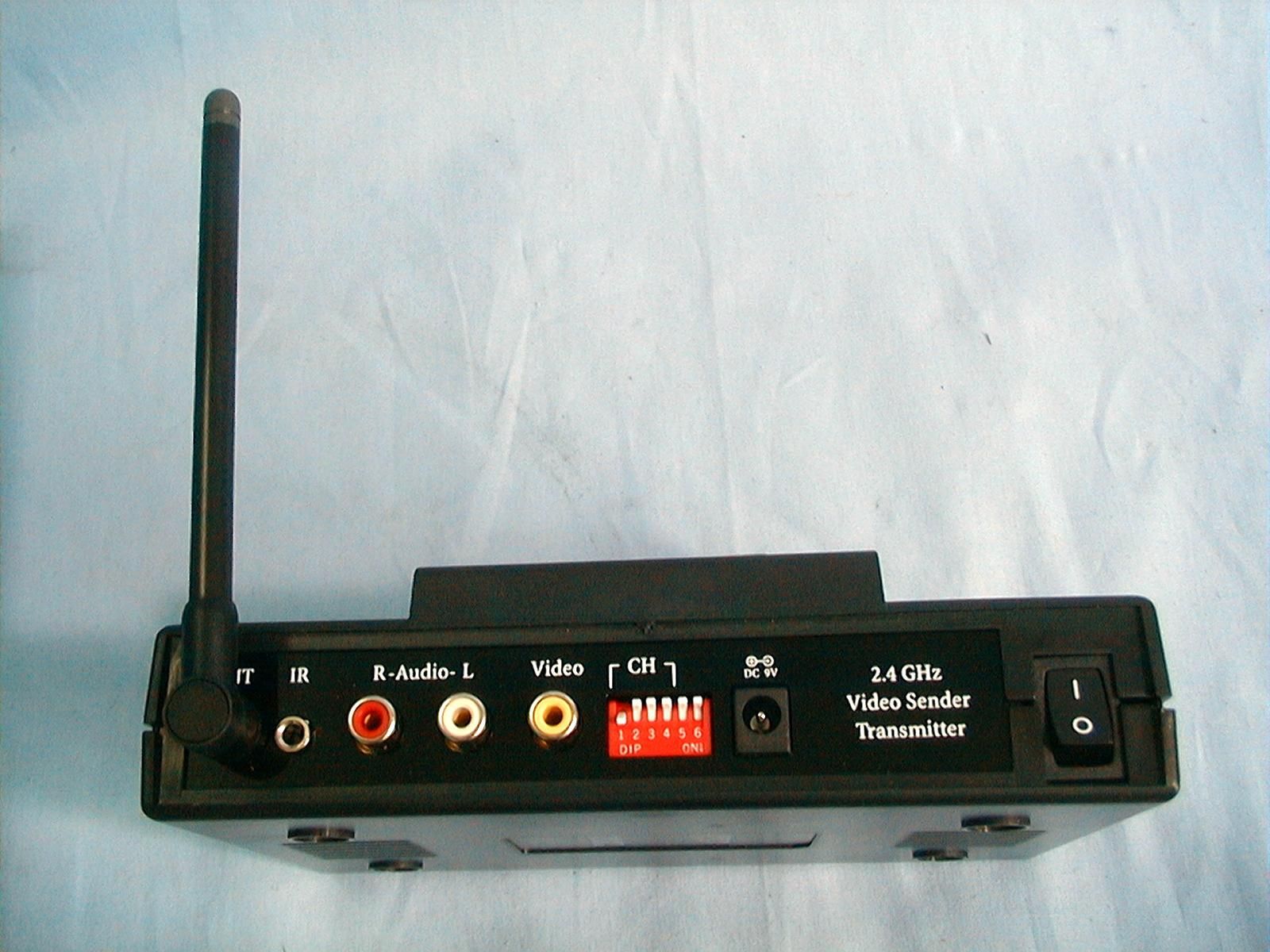

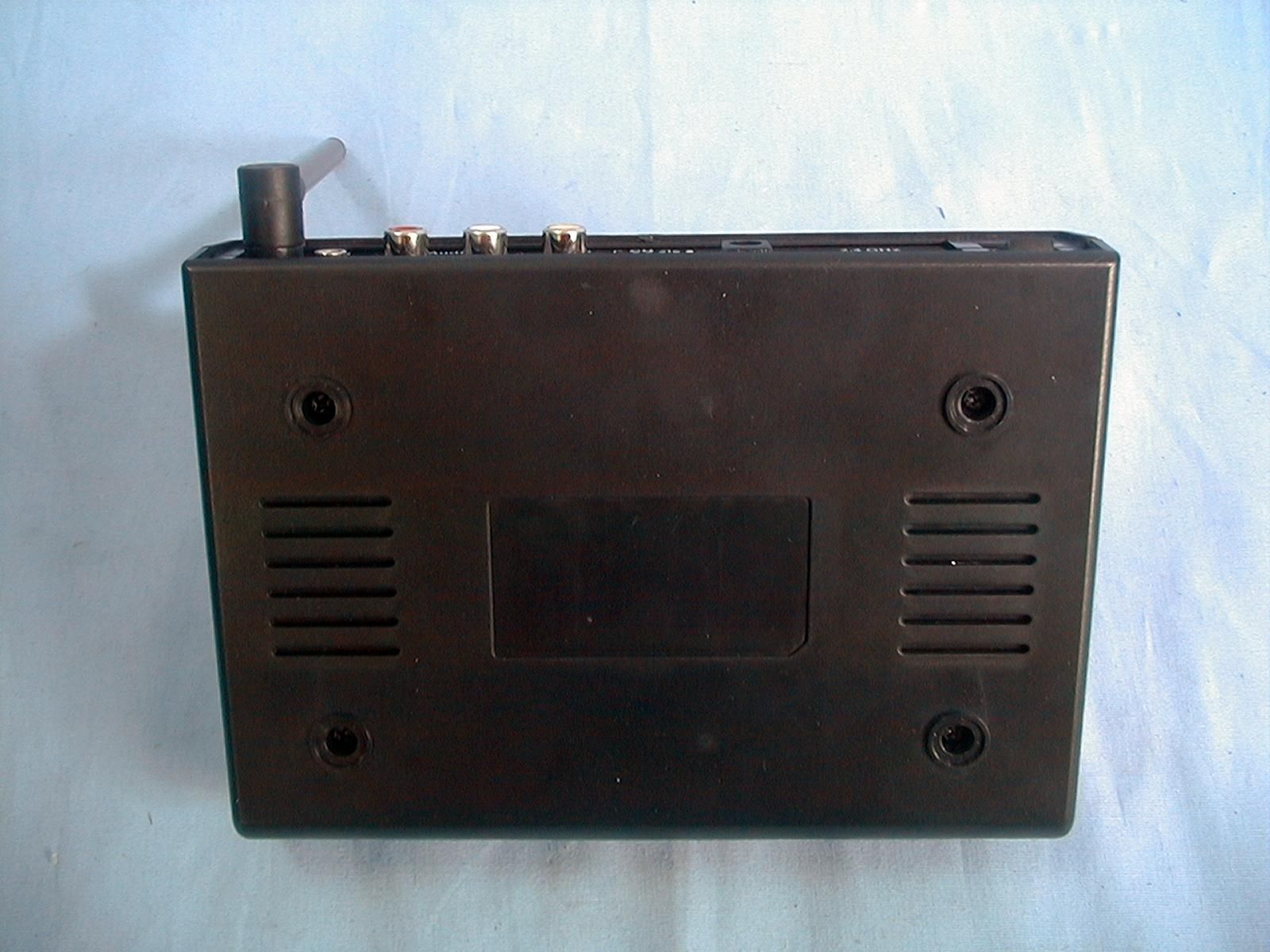

NGVAWV326TA/V TX

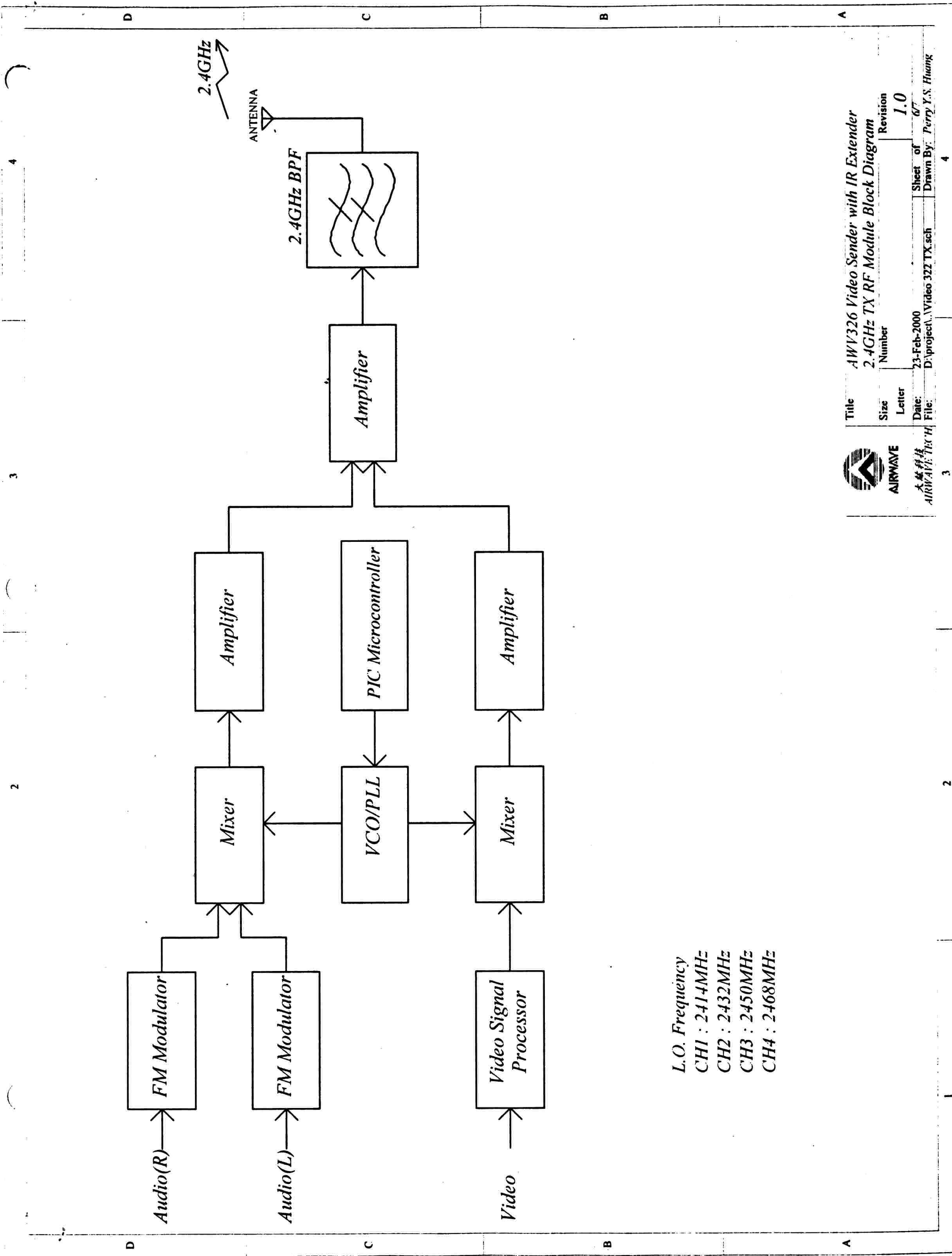

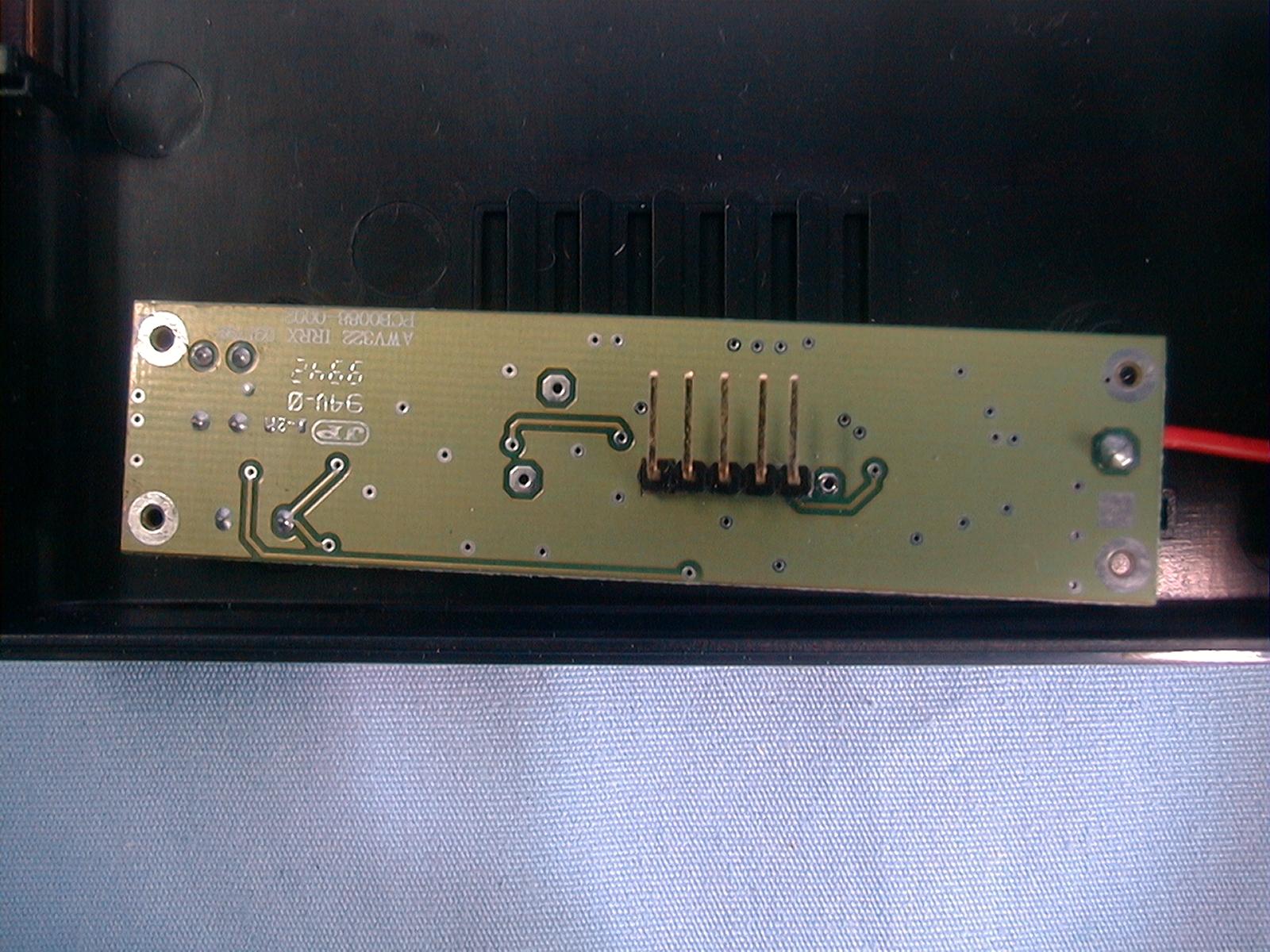

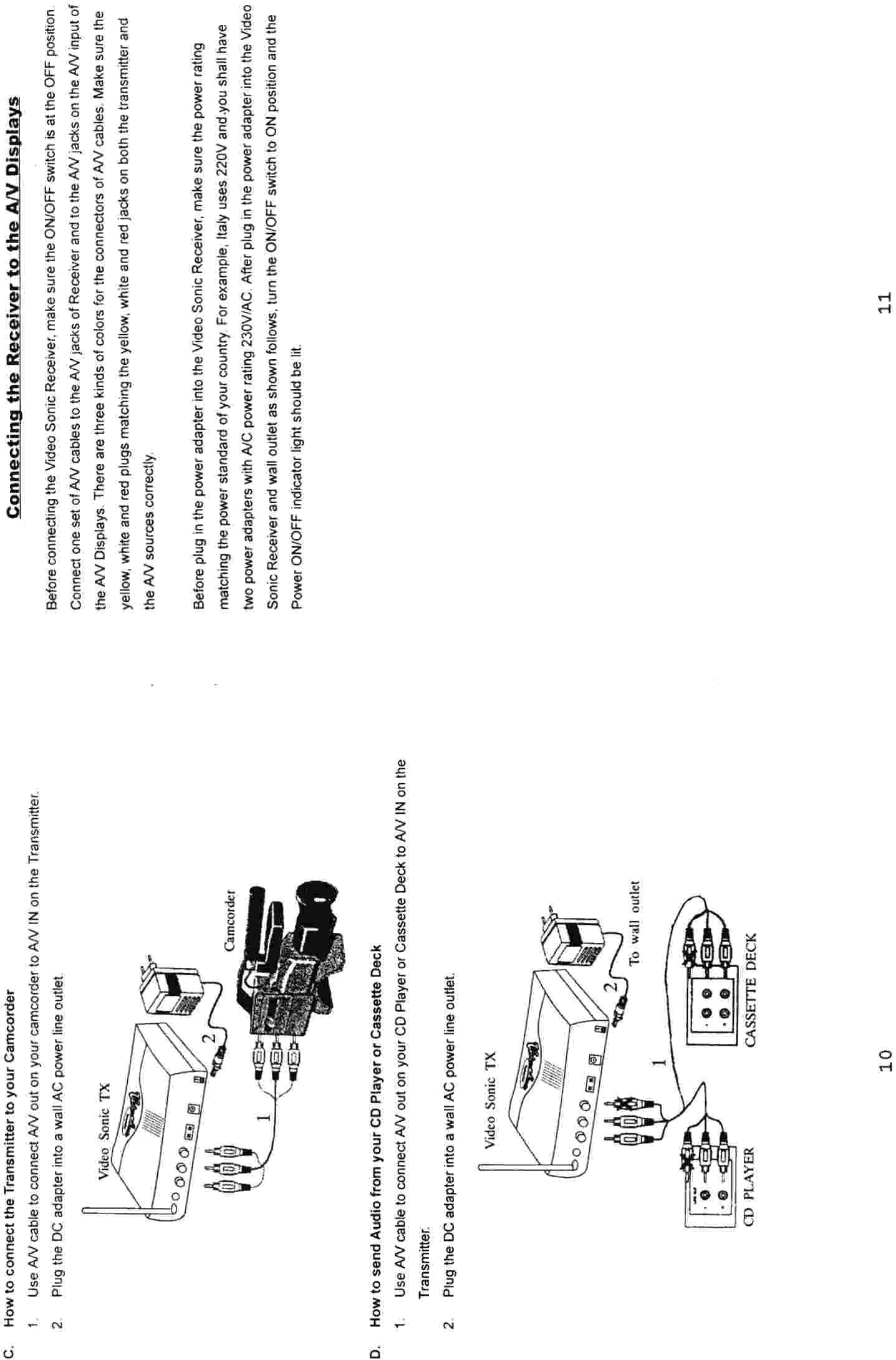

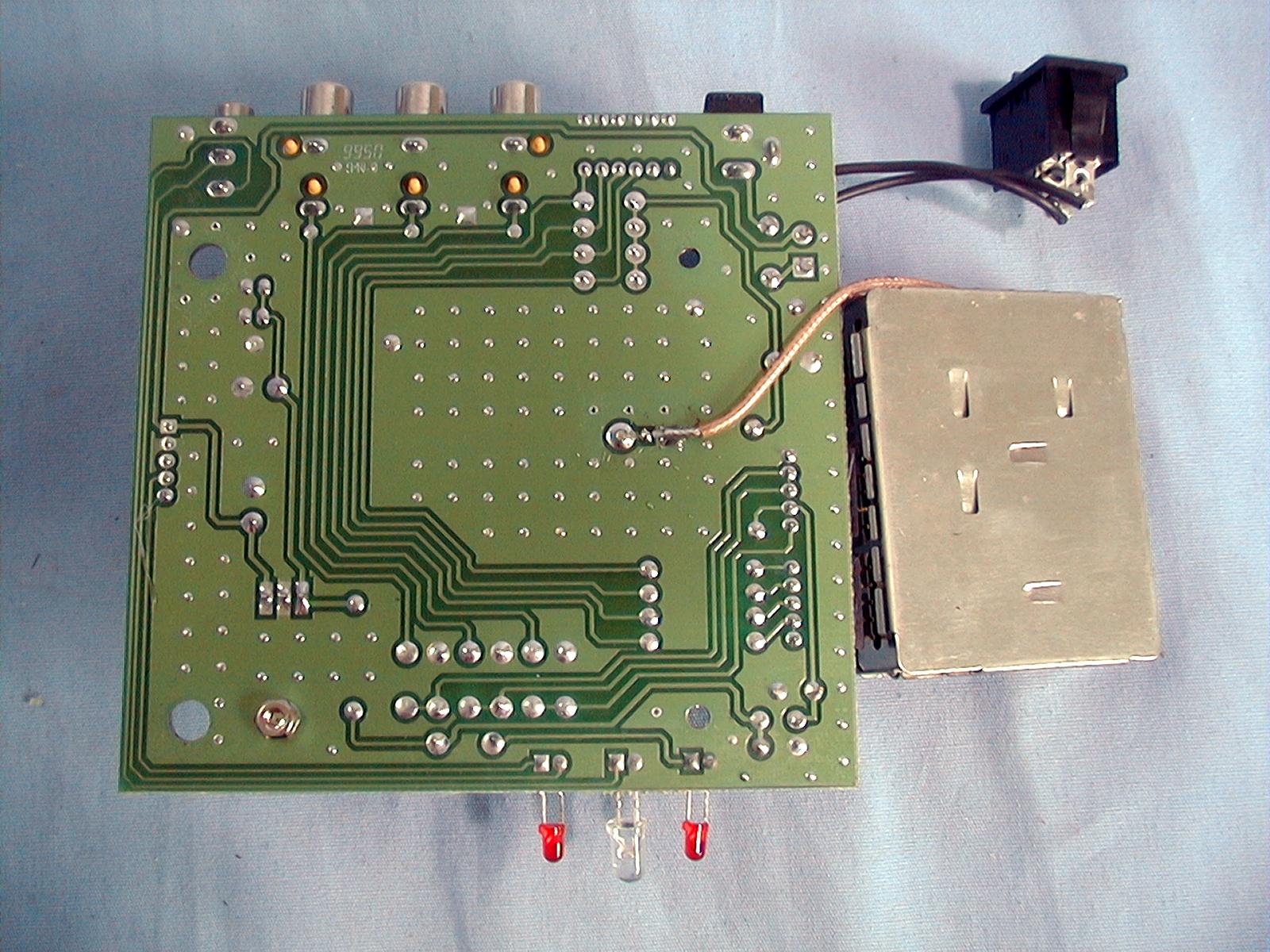

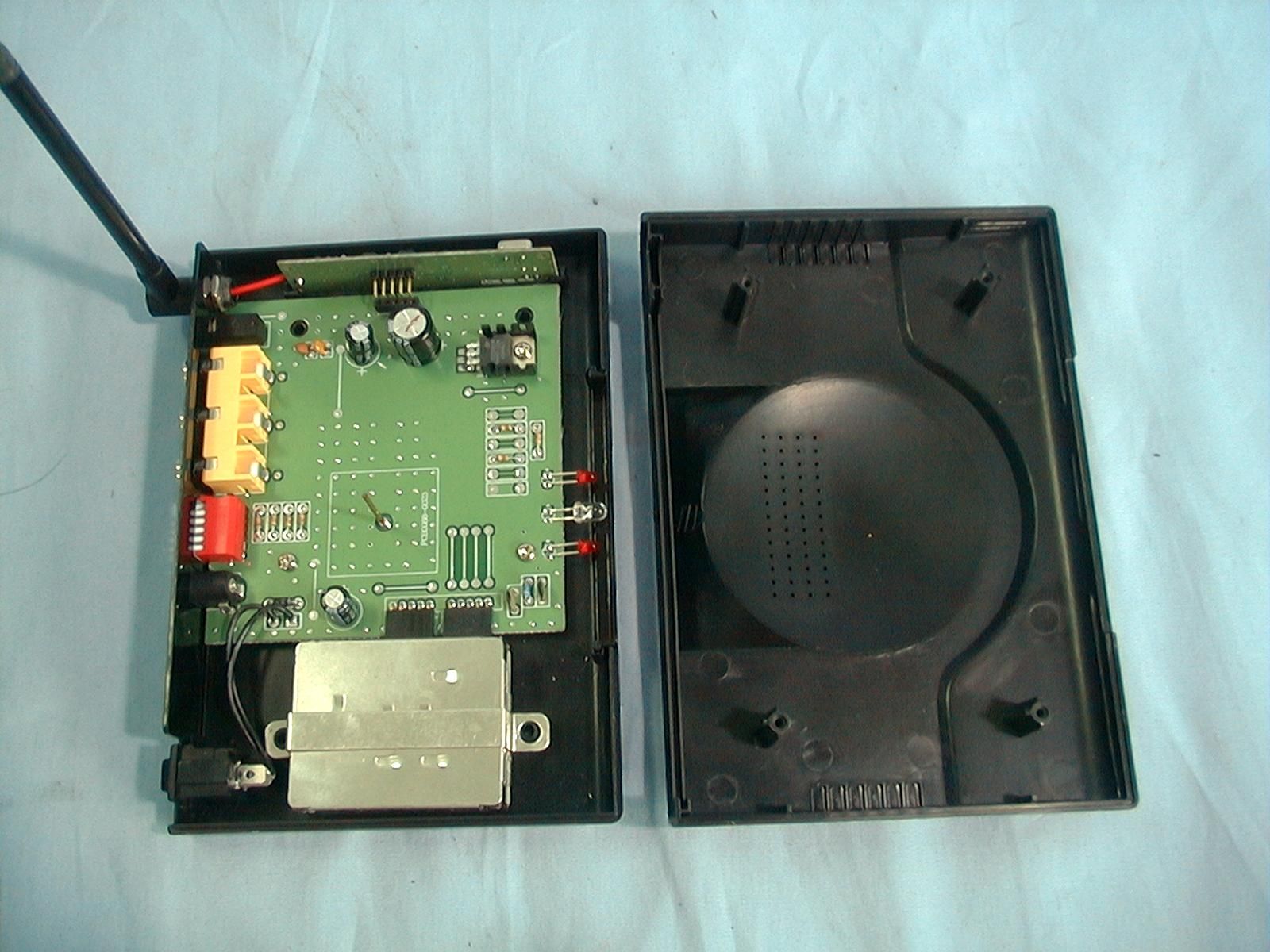

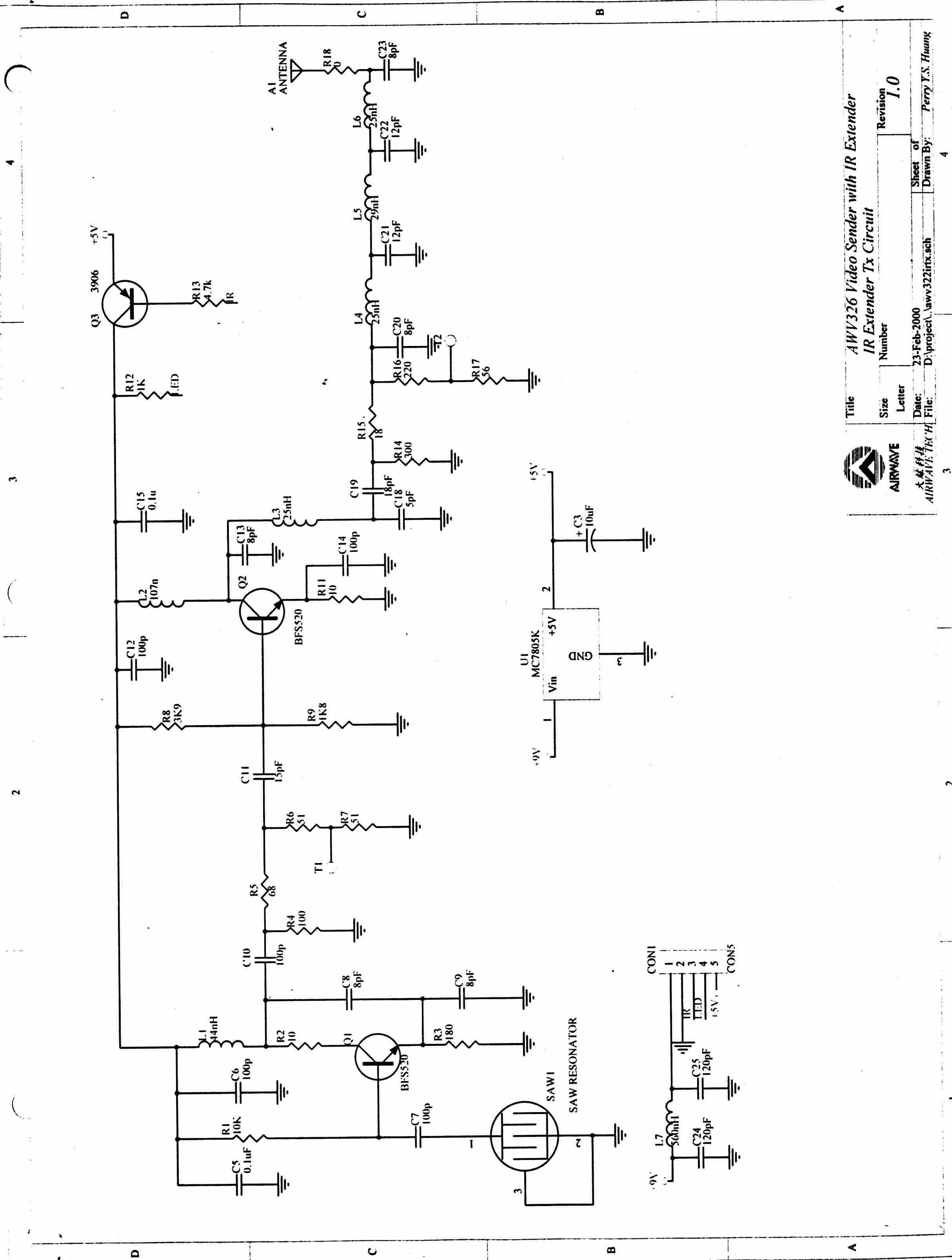

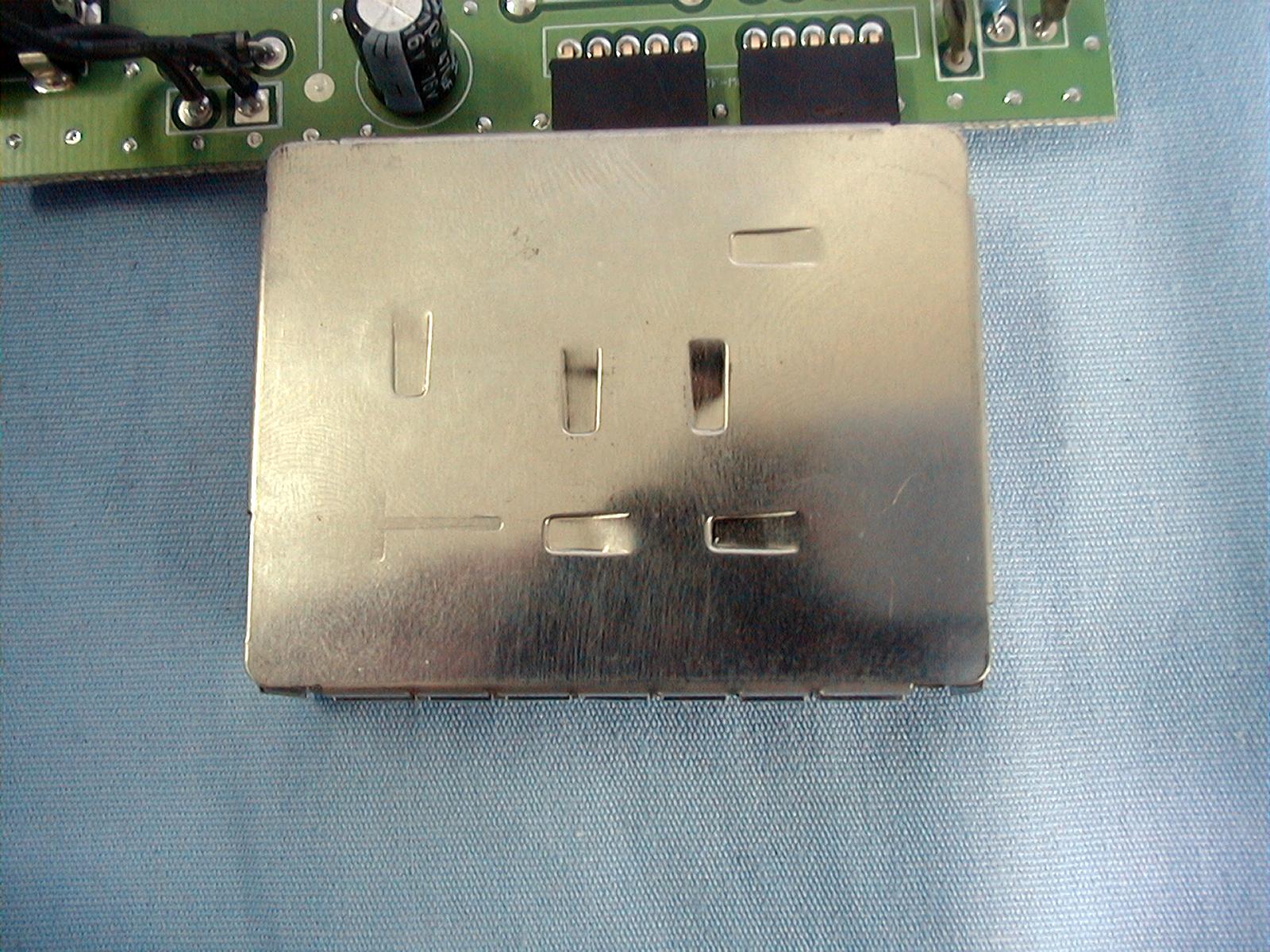

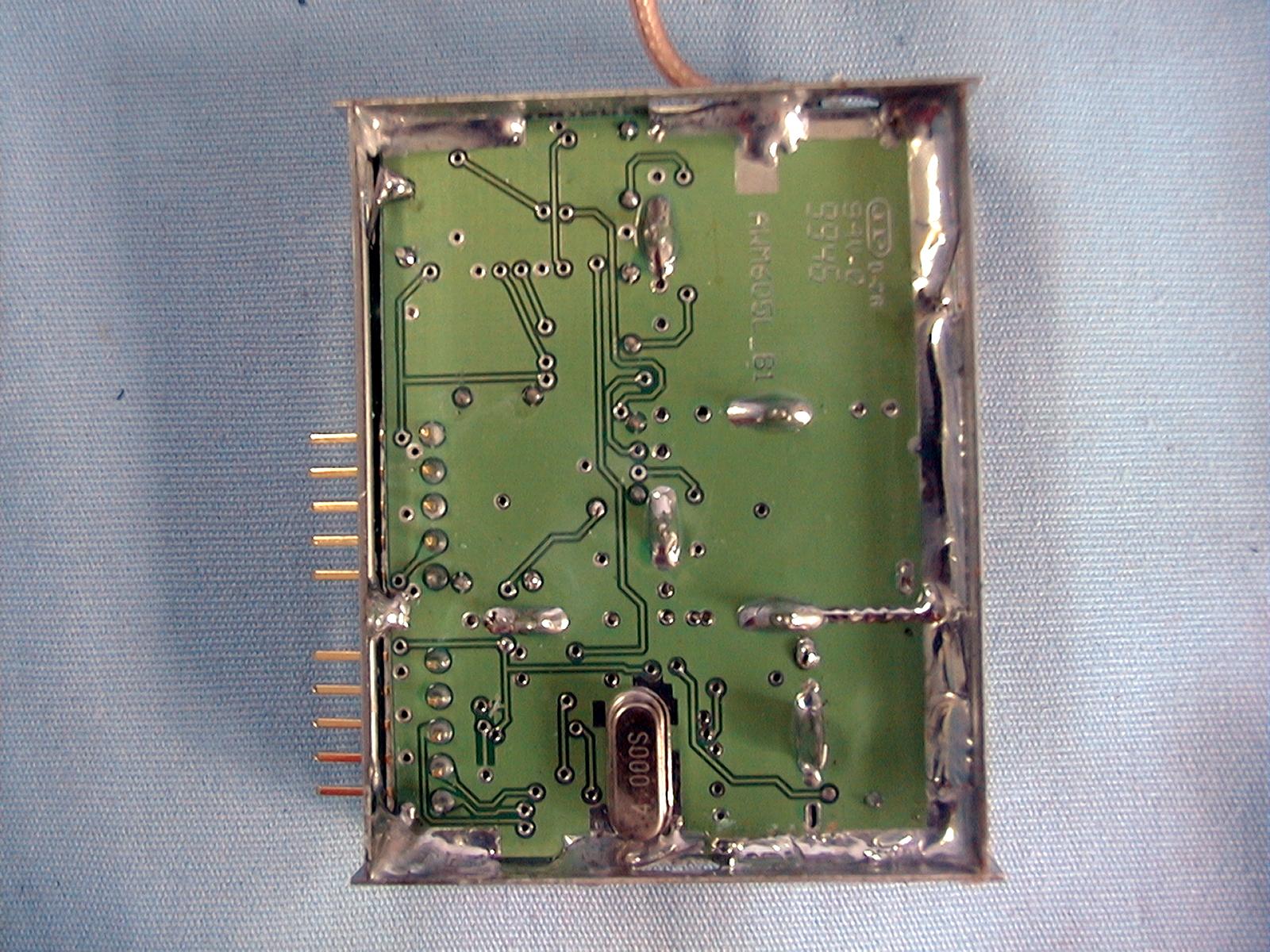

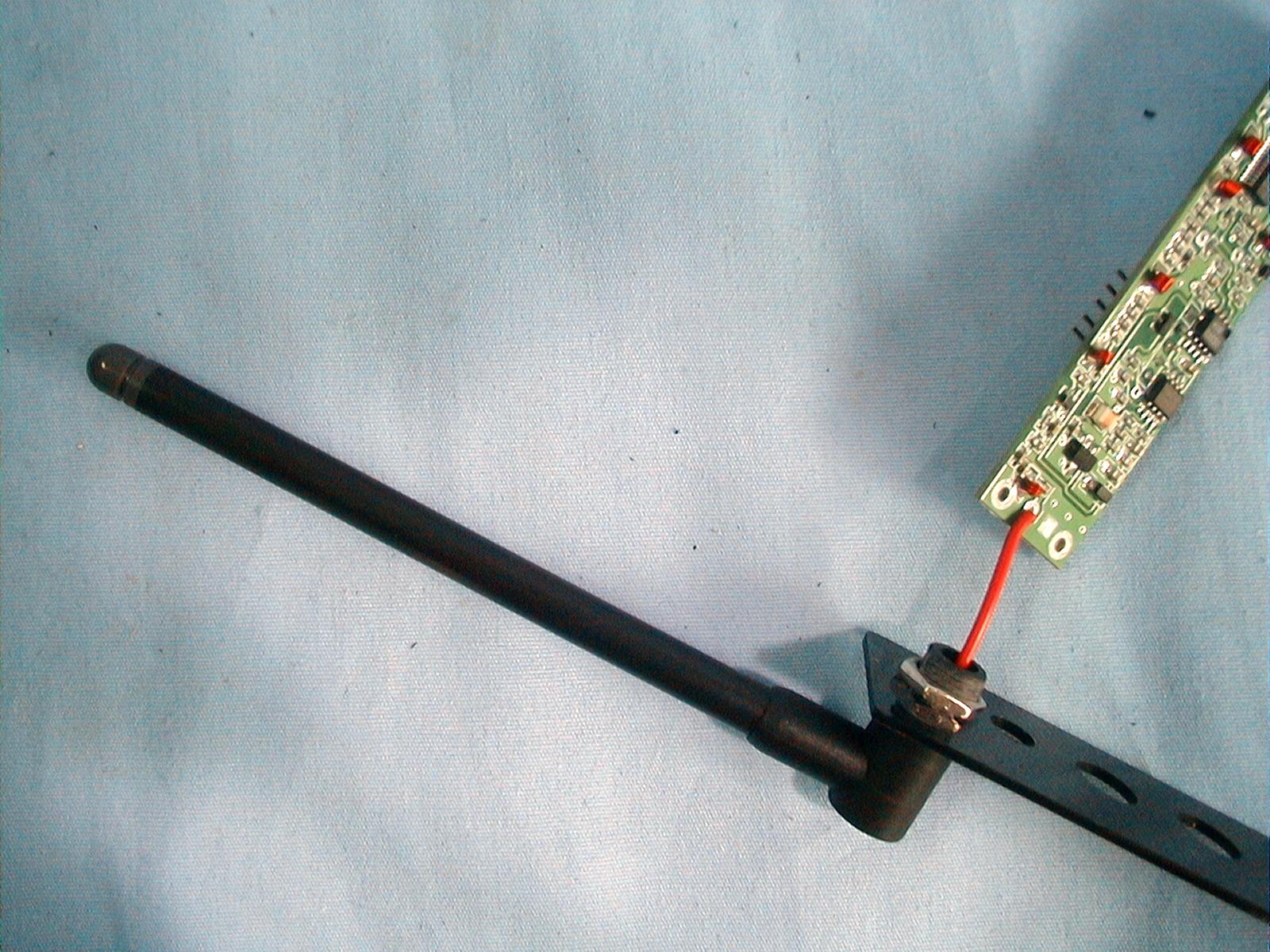

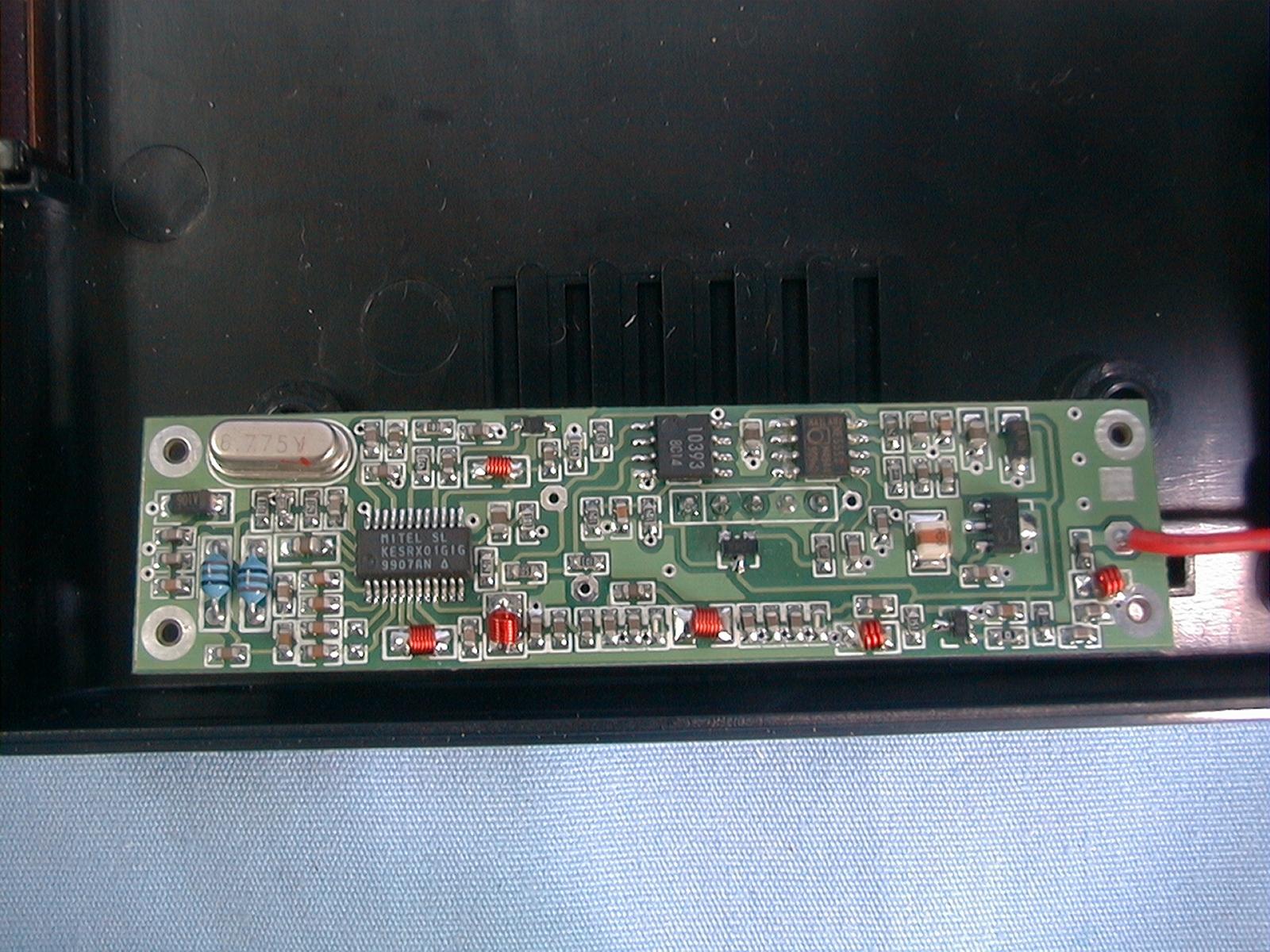

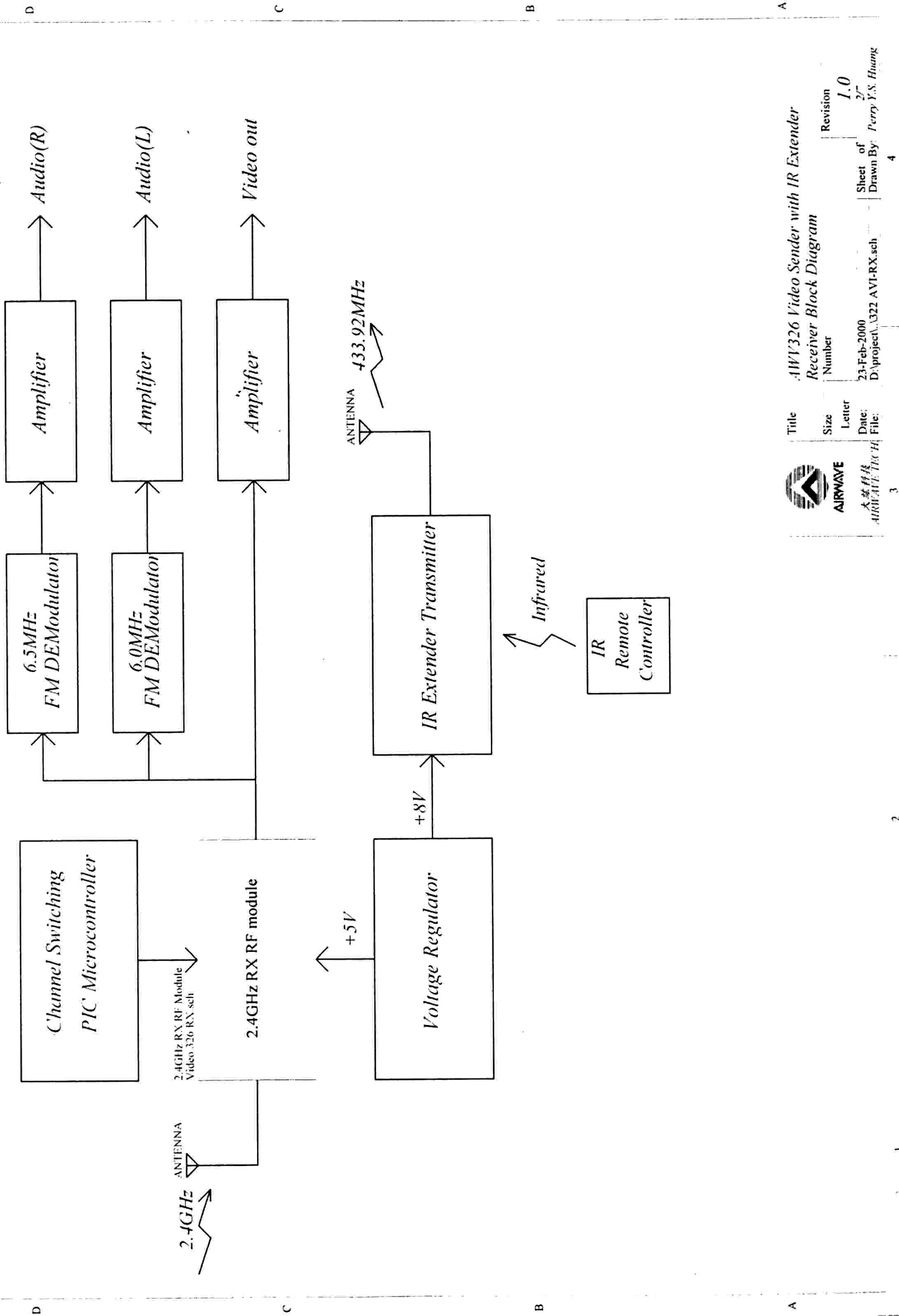

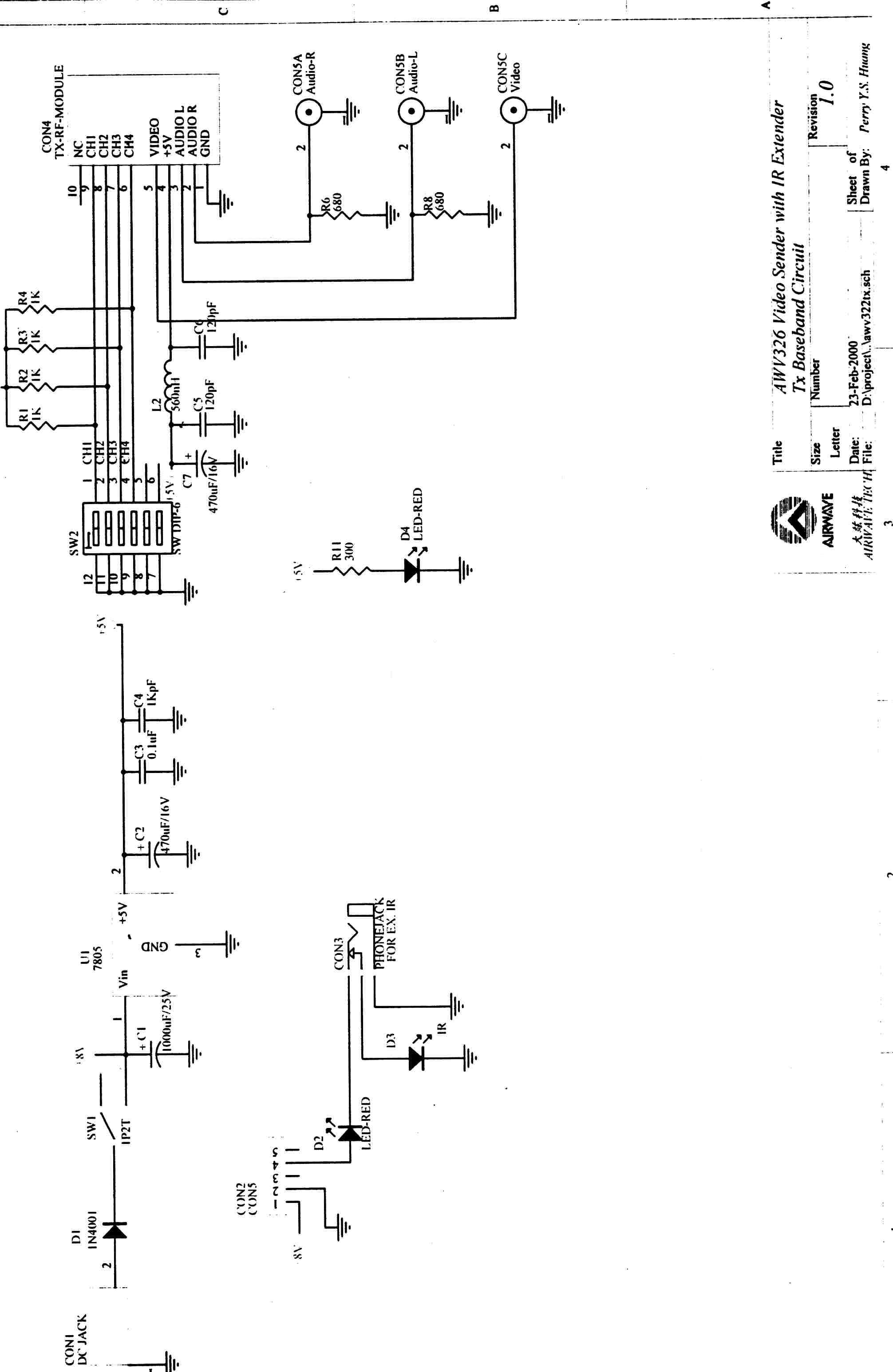

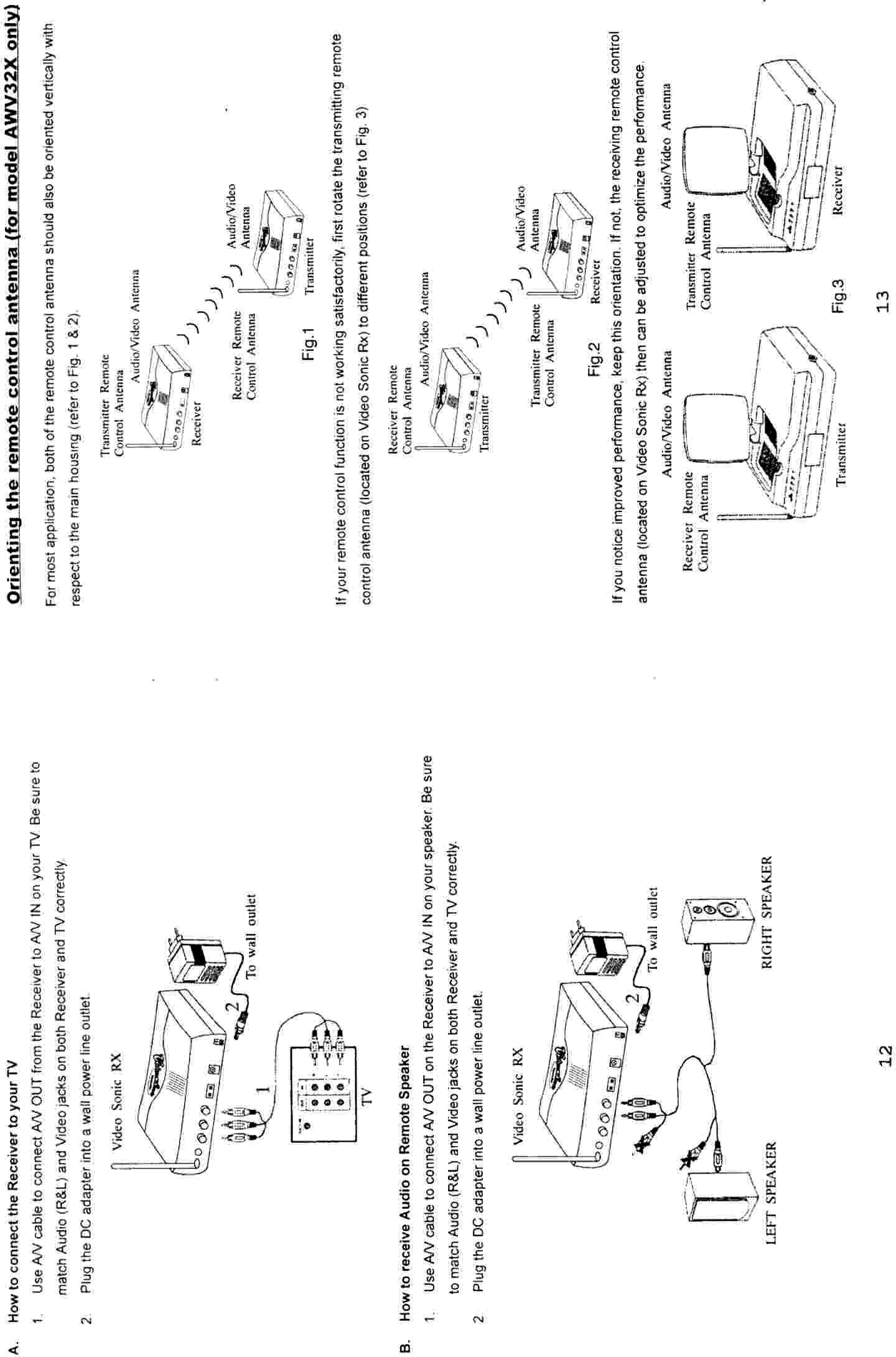

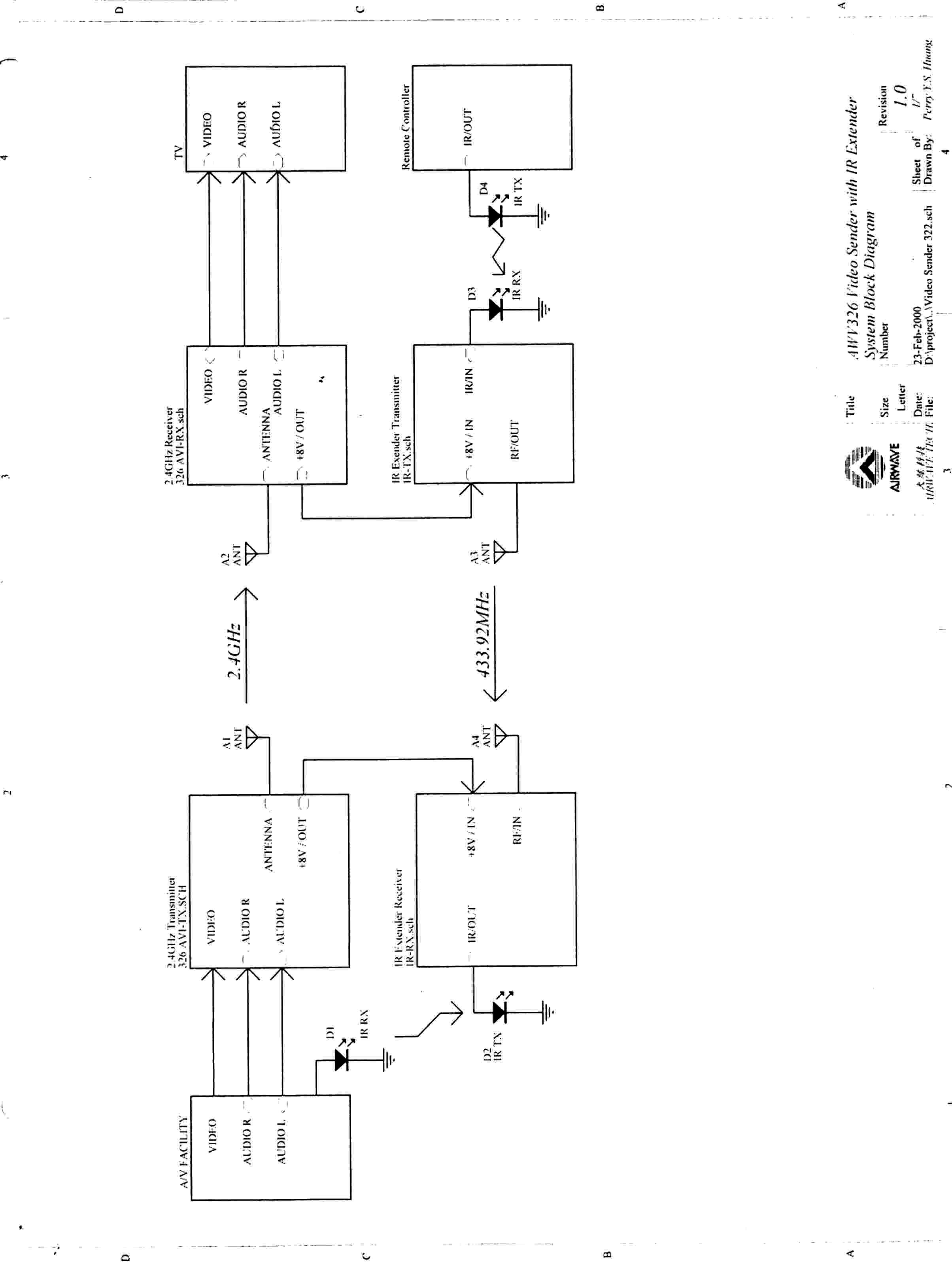

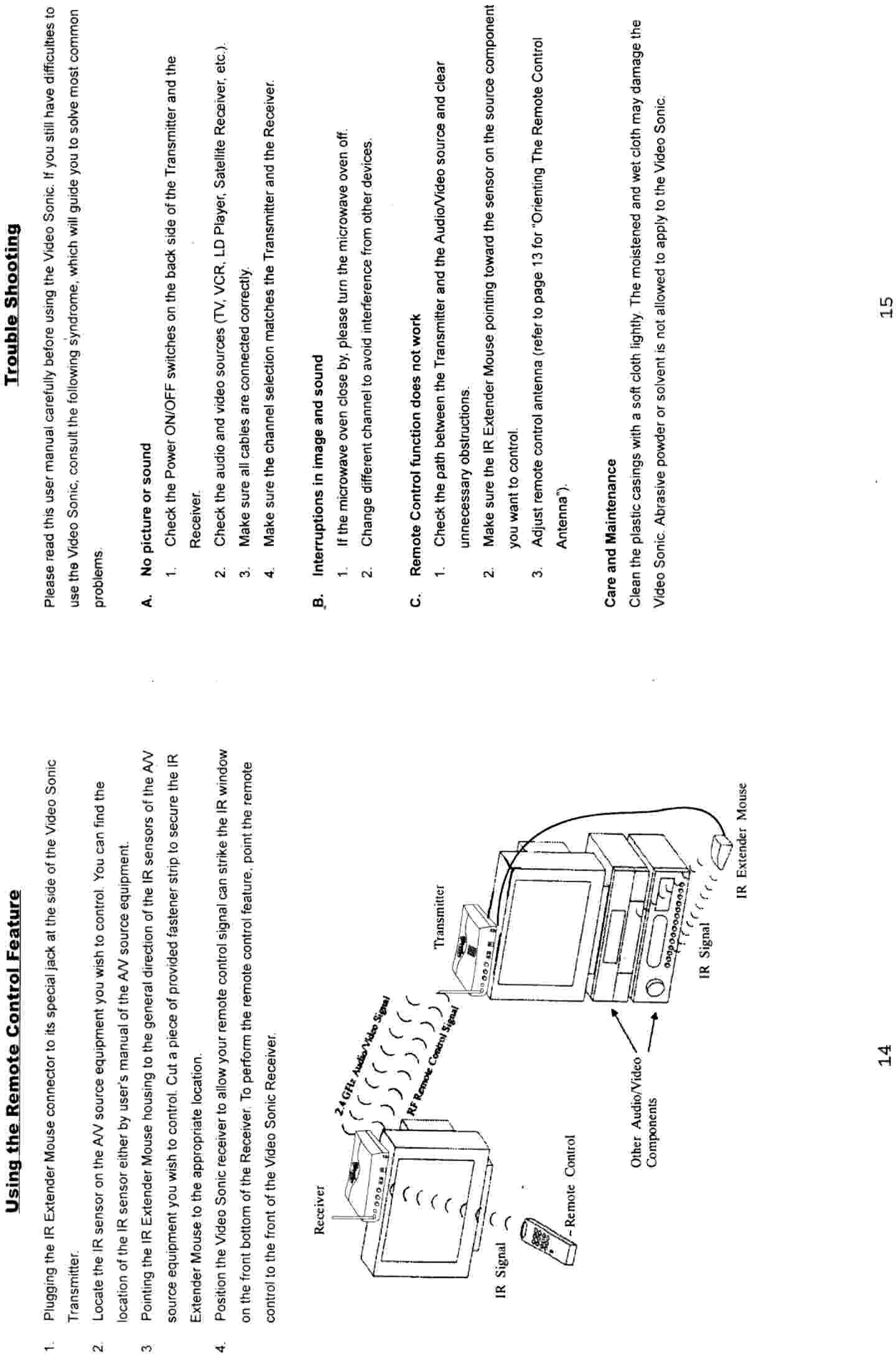

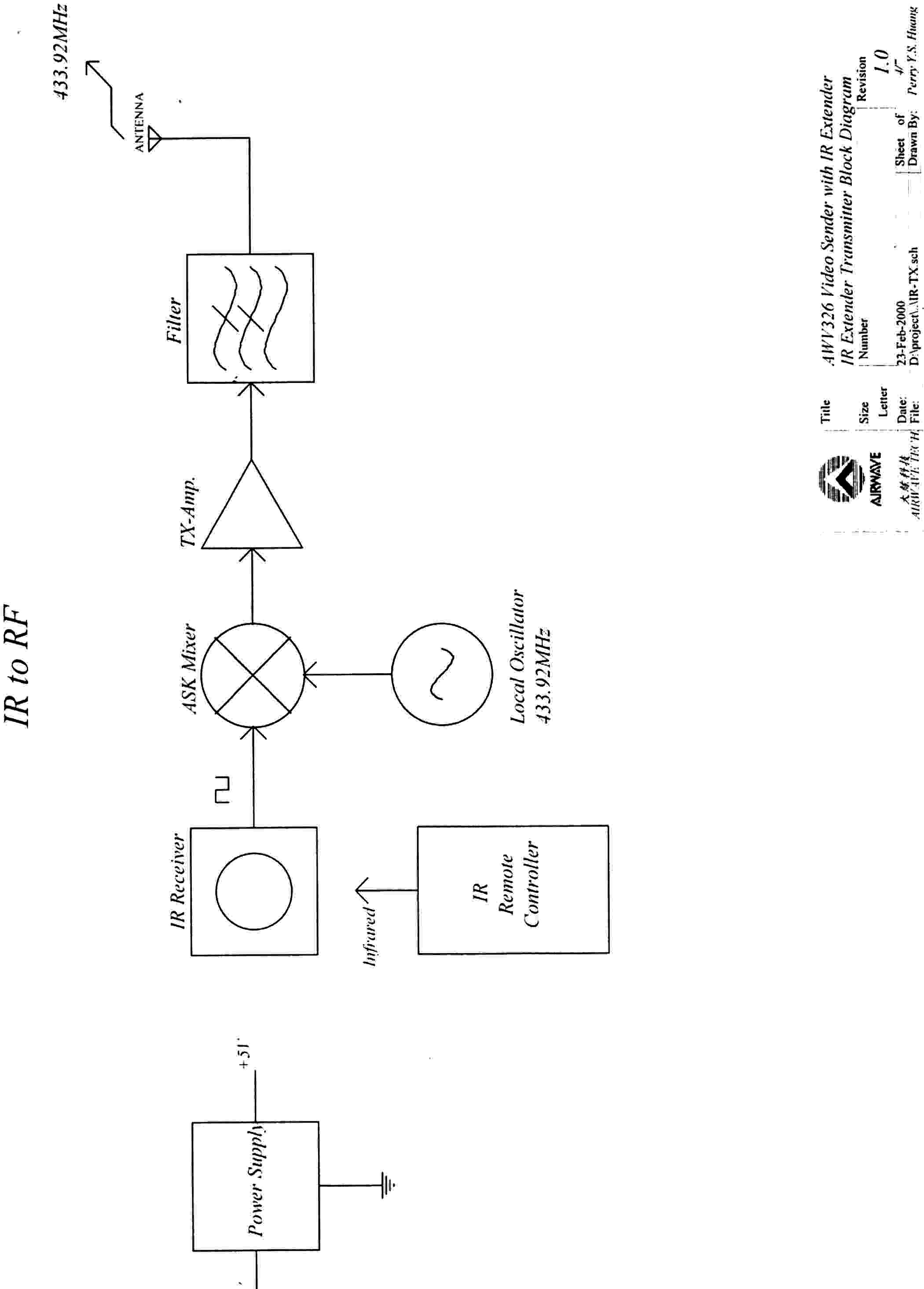

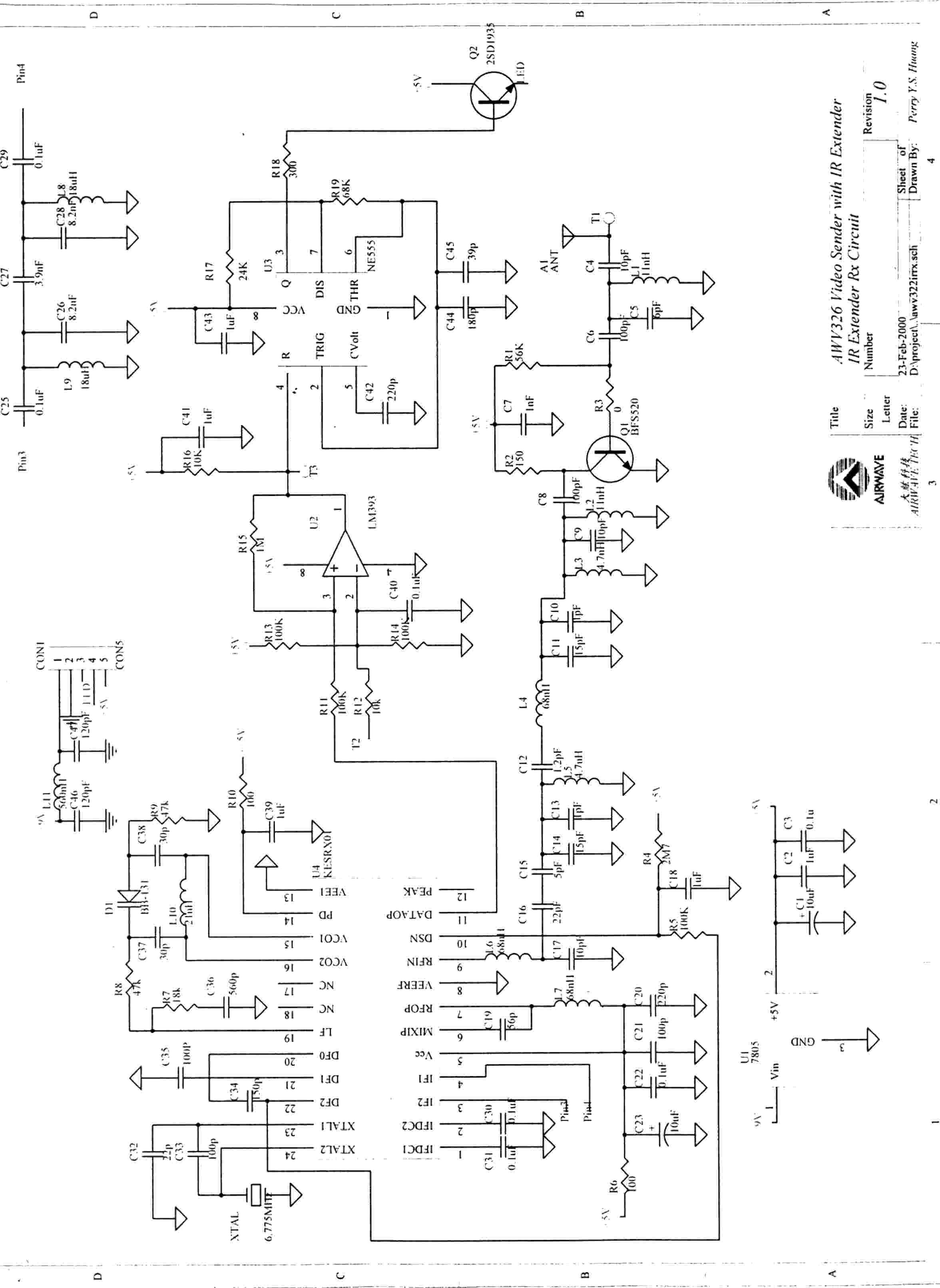

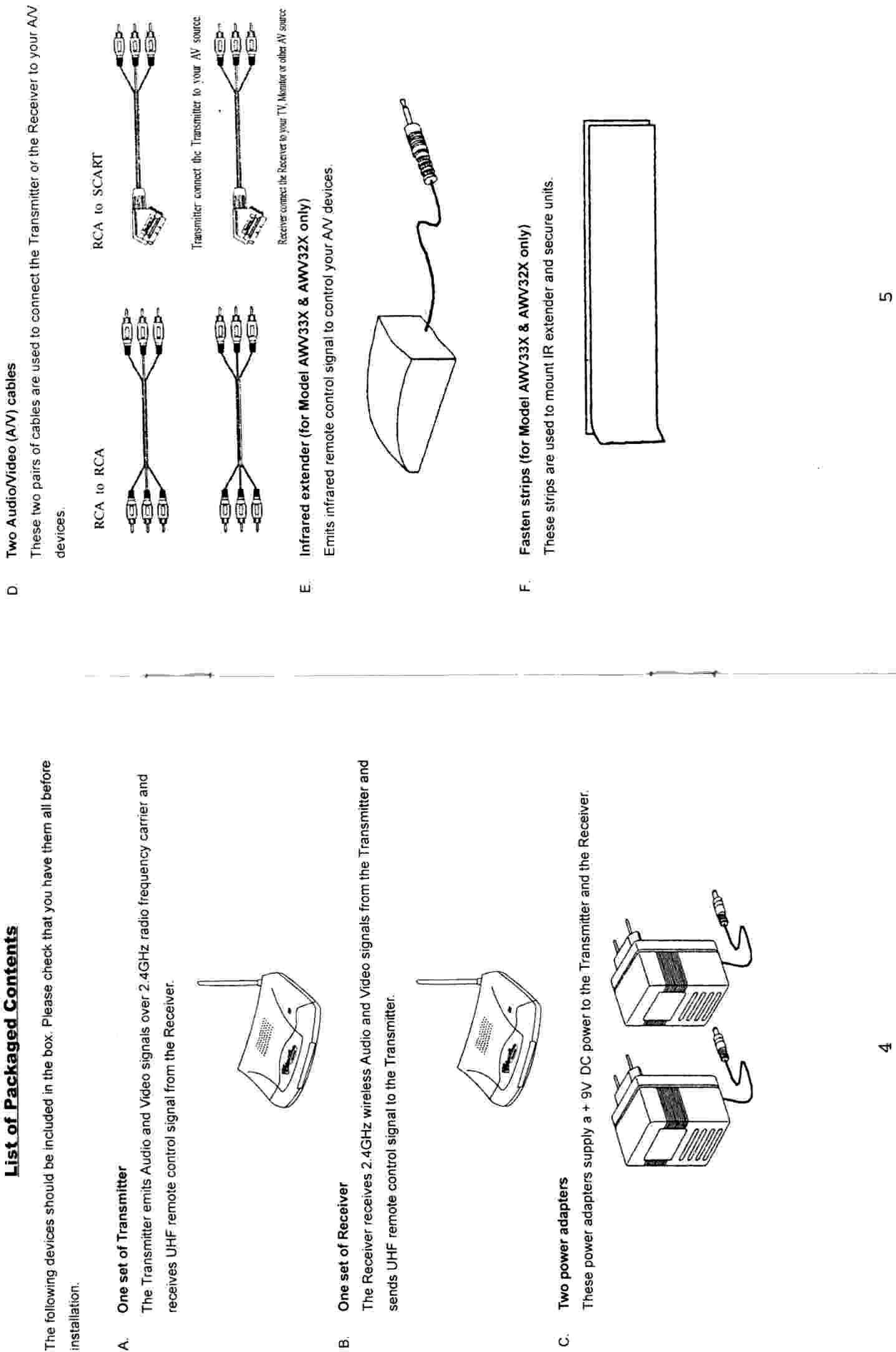

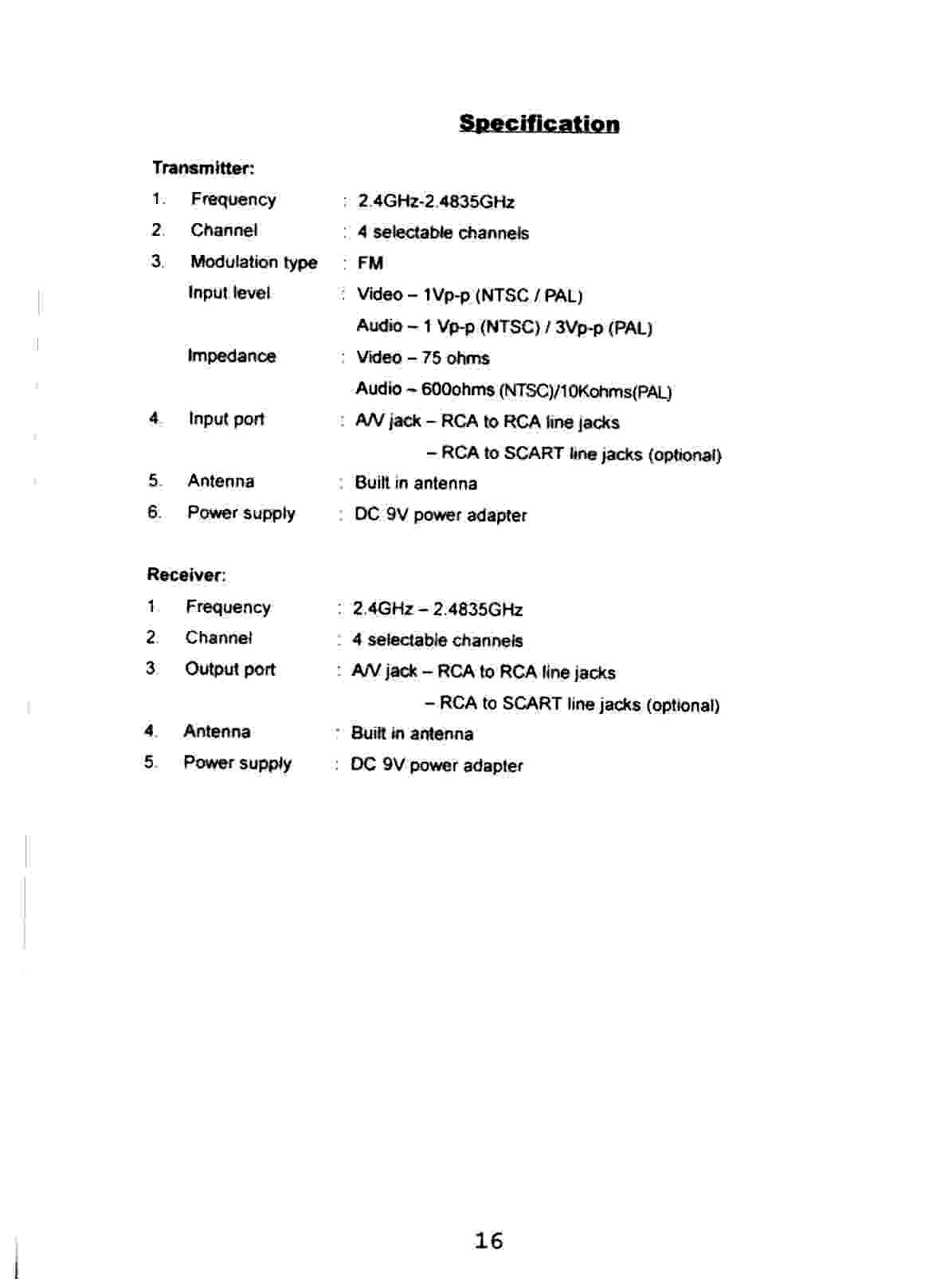

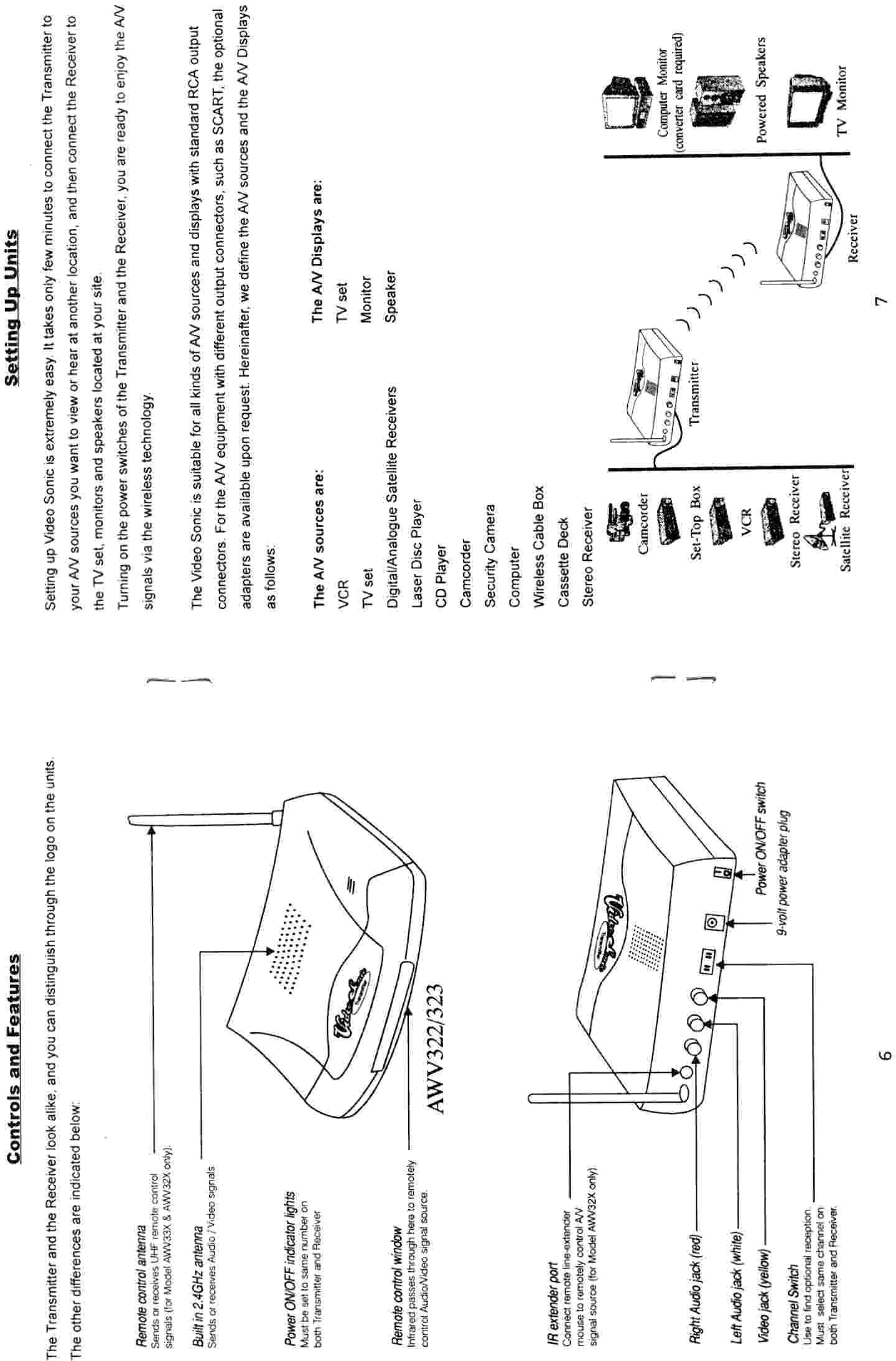

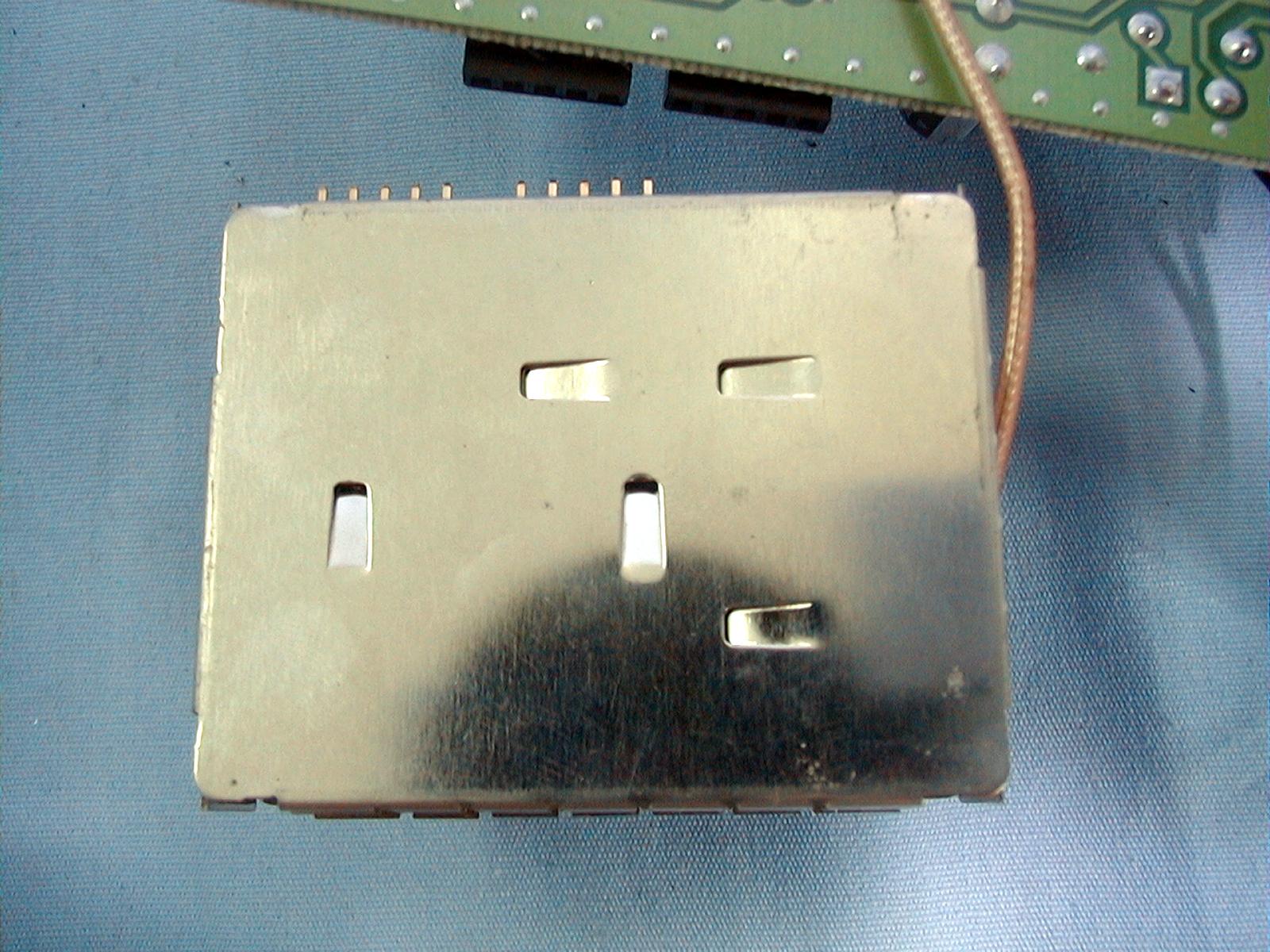

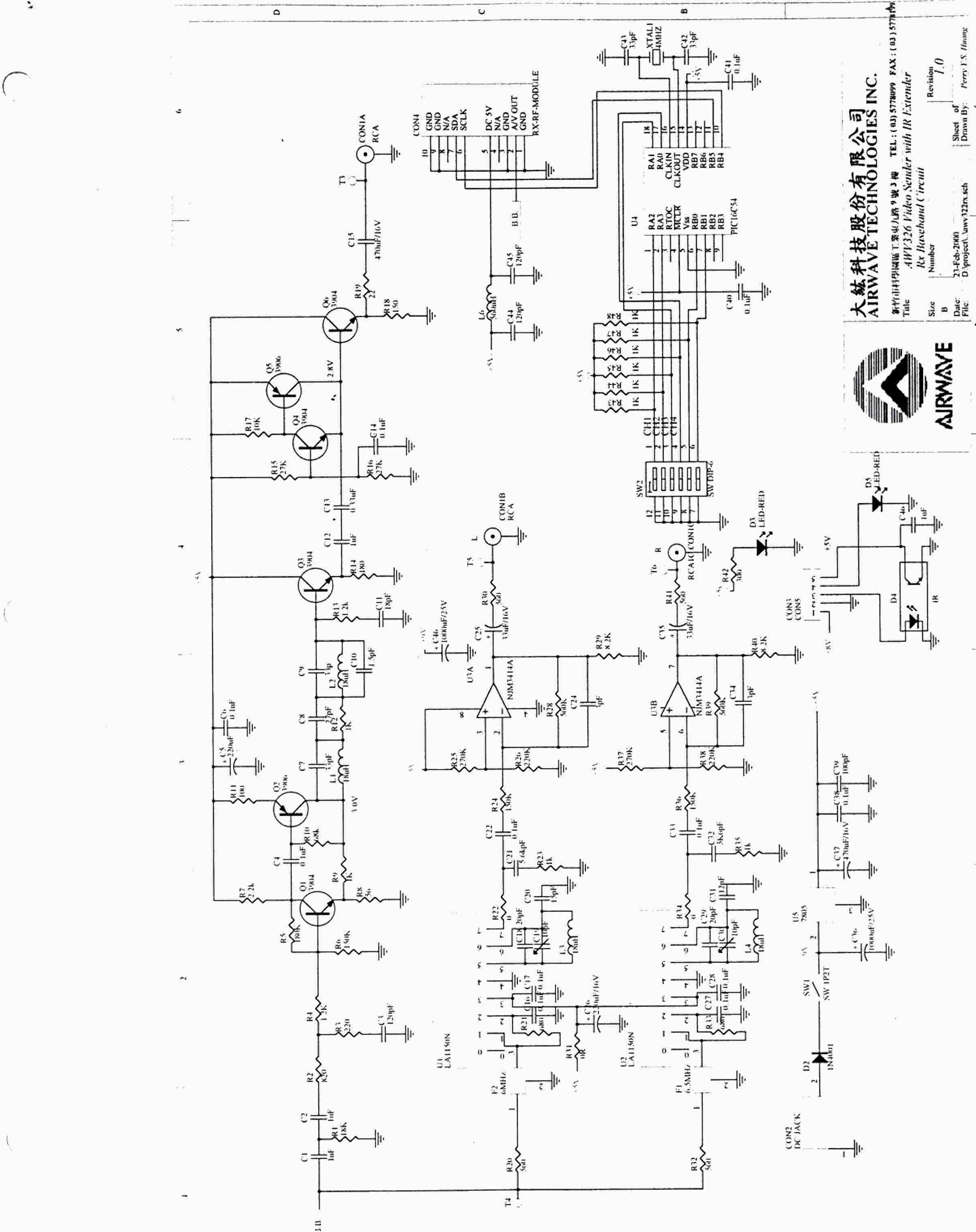

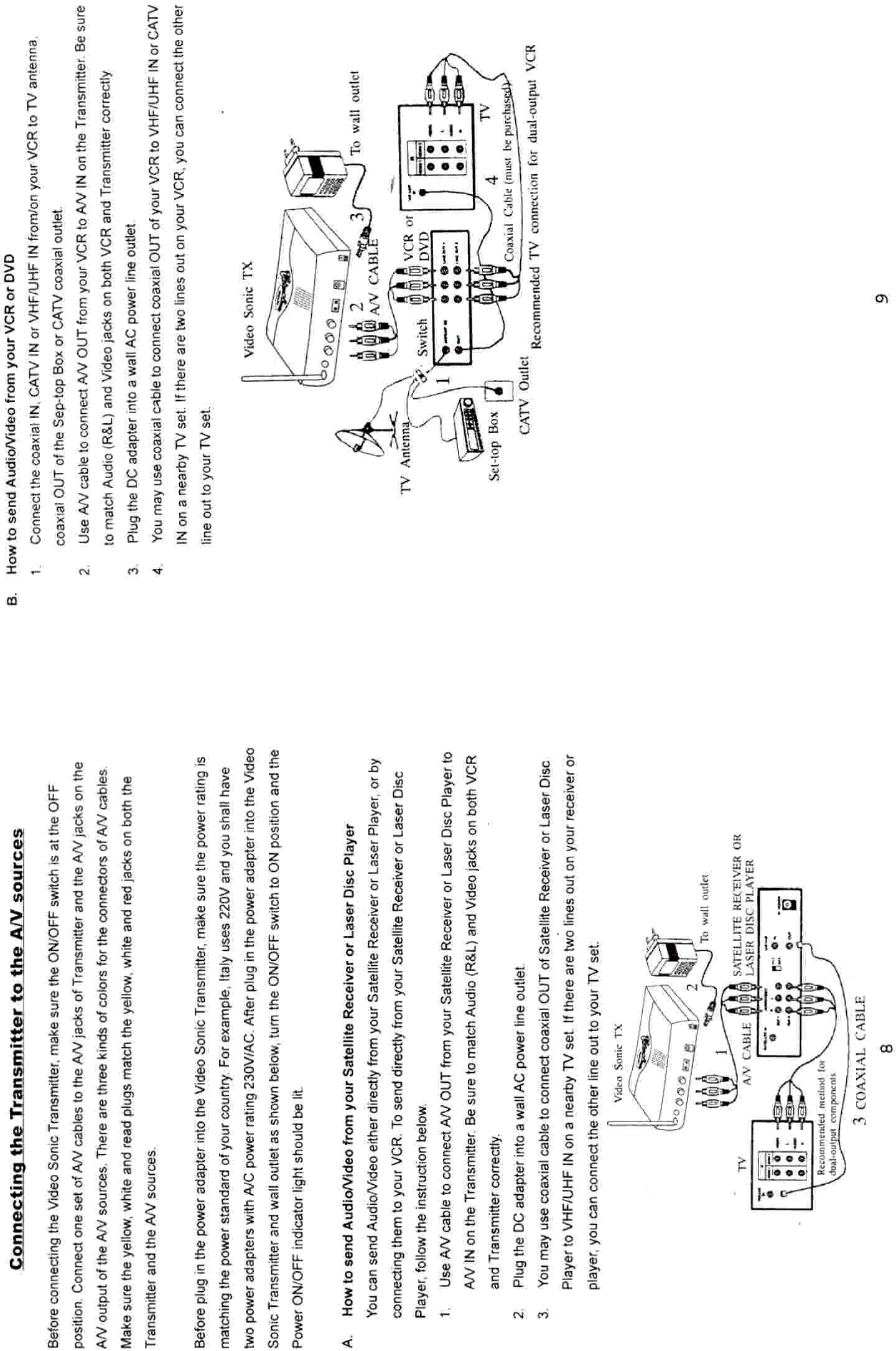

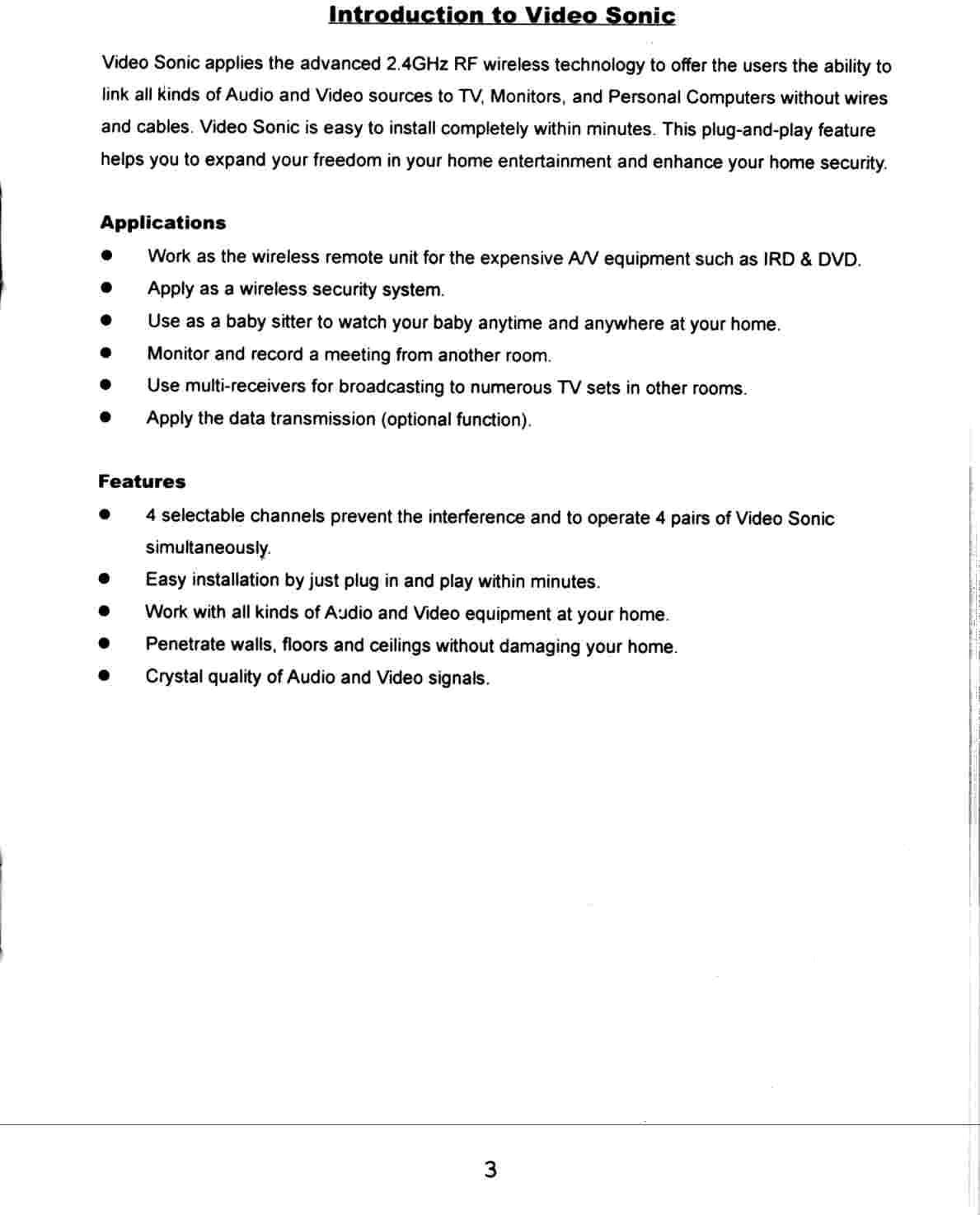

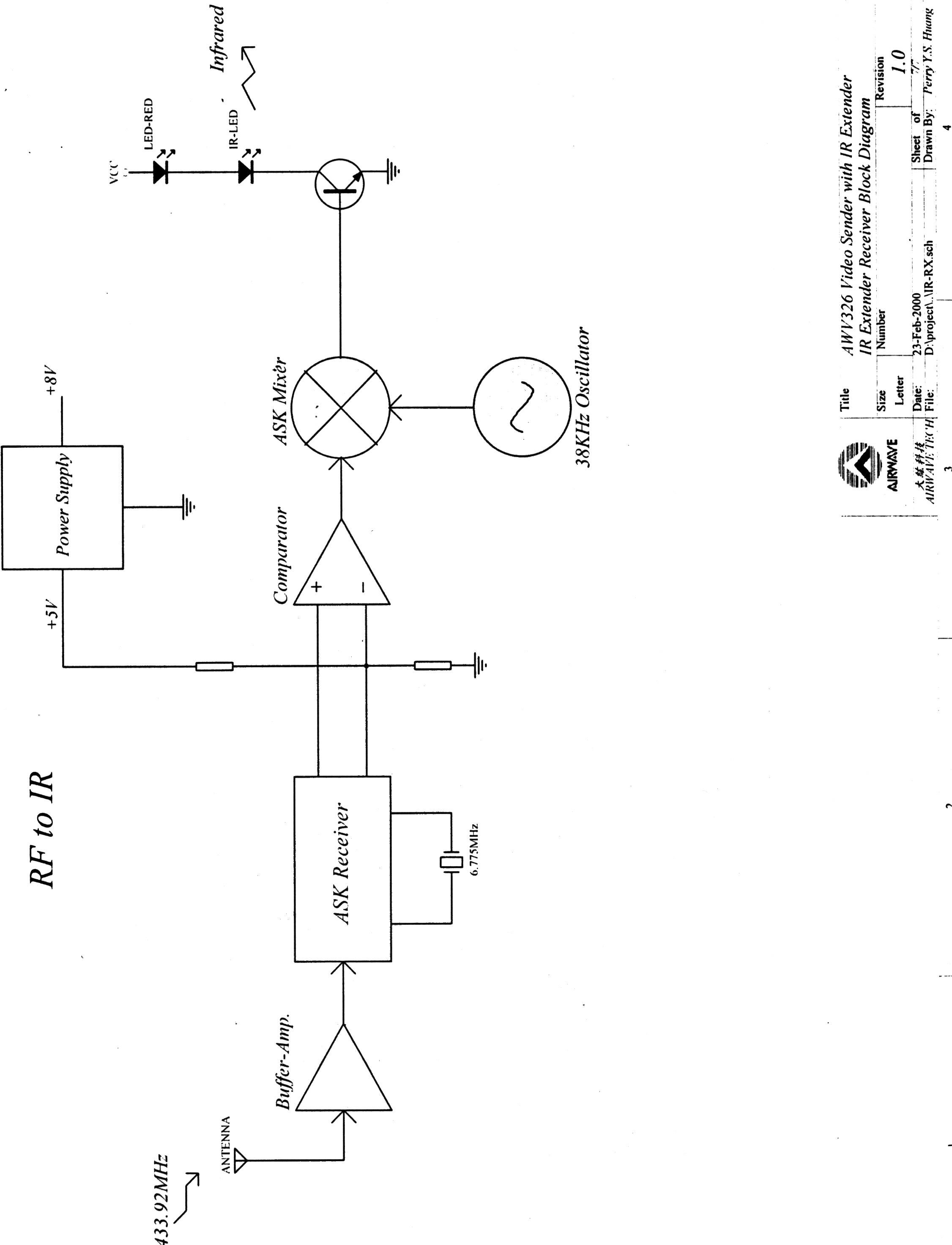

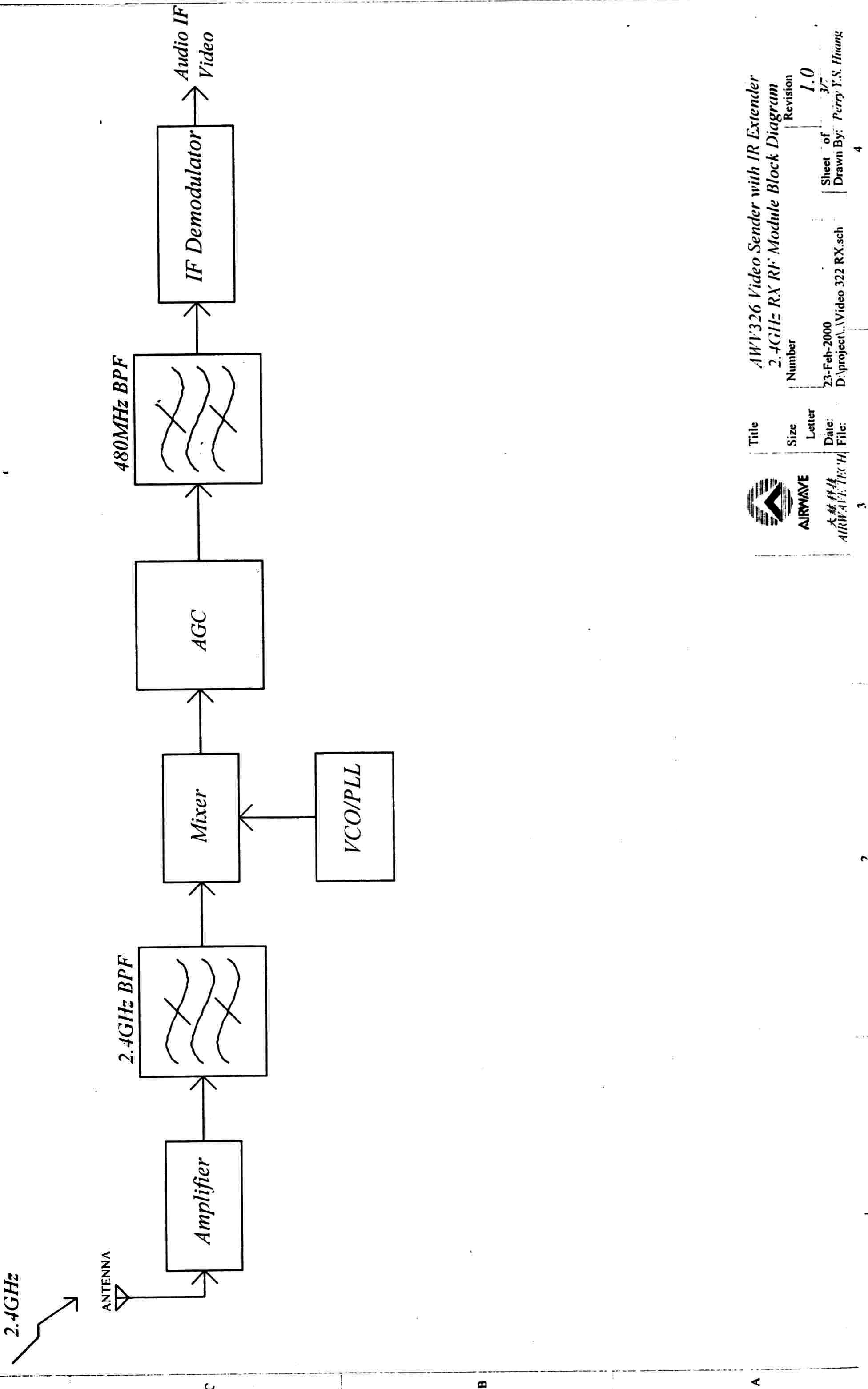

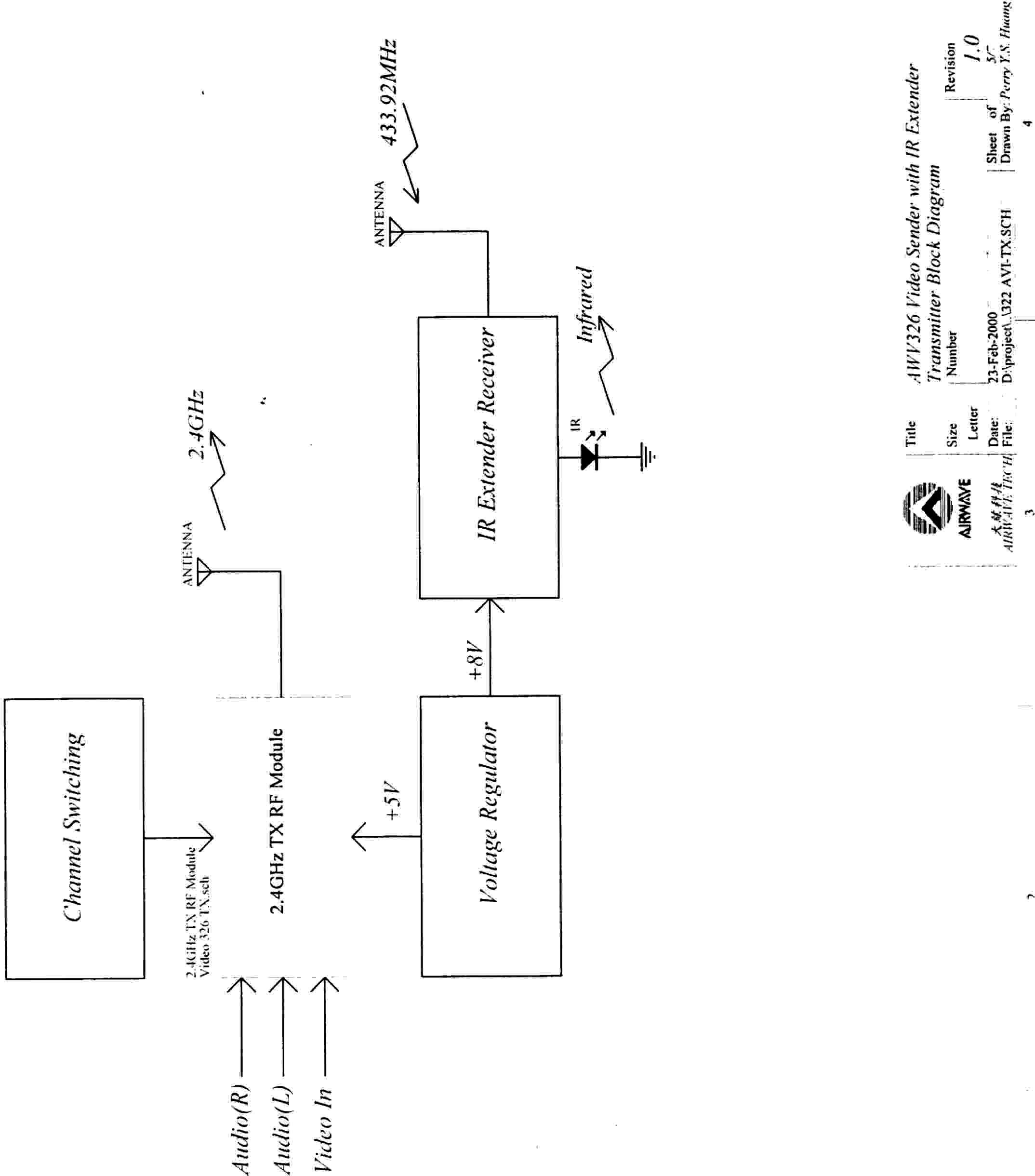

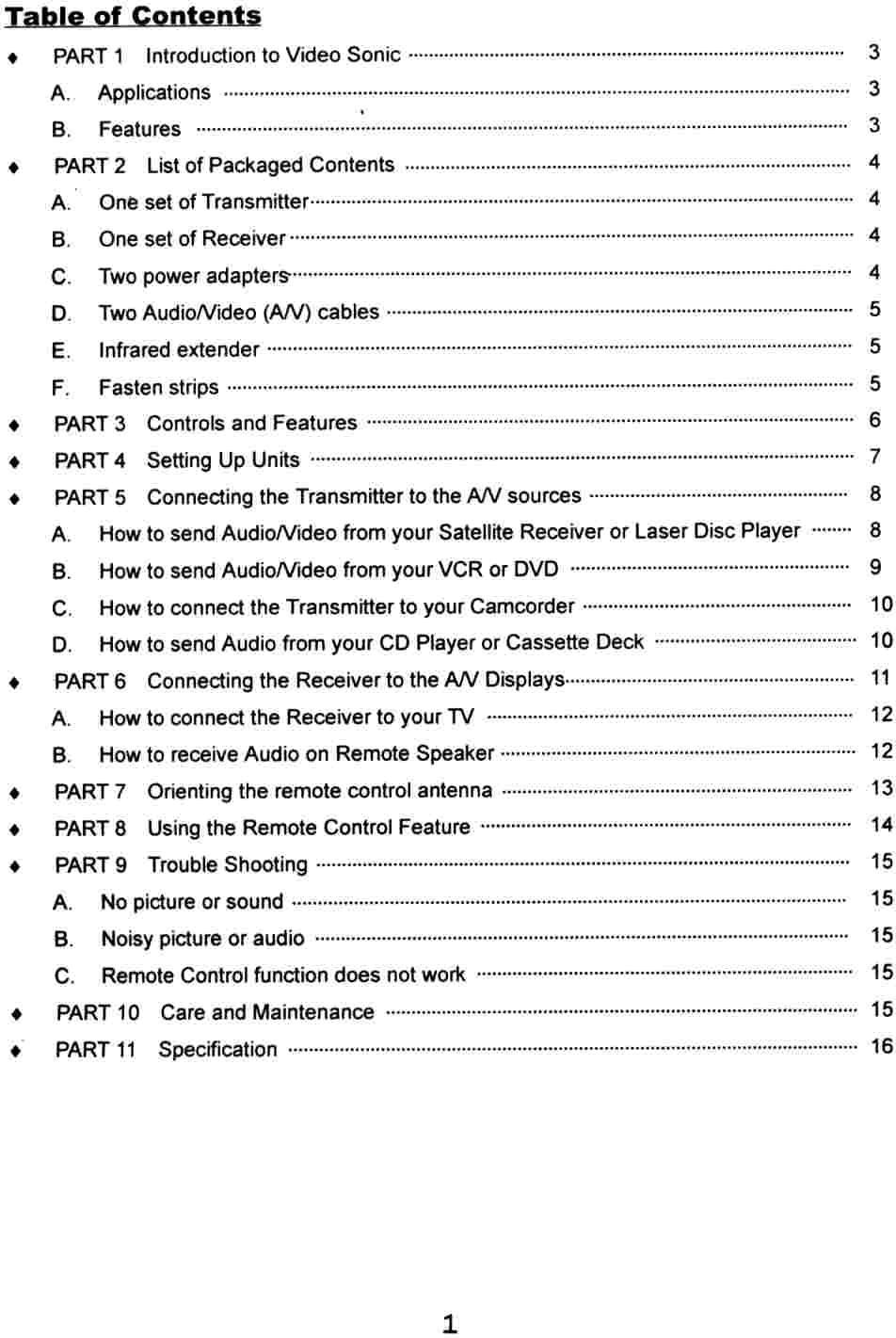

The POWERFUL AV SENDER system is designed for reception of CATV signals and transmission of video and audio signals. It can work like a CATV BOX and cable free transmitting the signal to receiver side connected with monitor screen. (There are four channels for operation, and the used transmitting frequencies are 2416, 2432, 2450 and 2470 MHz.) The type of modulation is FM technique and the emission bandwidth is about 50 kHz. The emission designation with this transmitter is F3E.

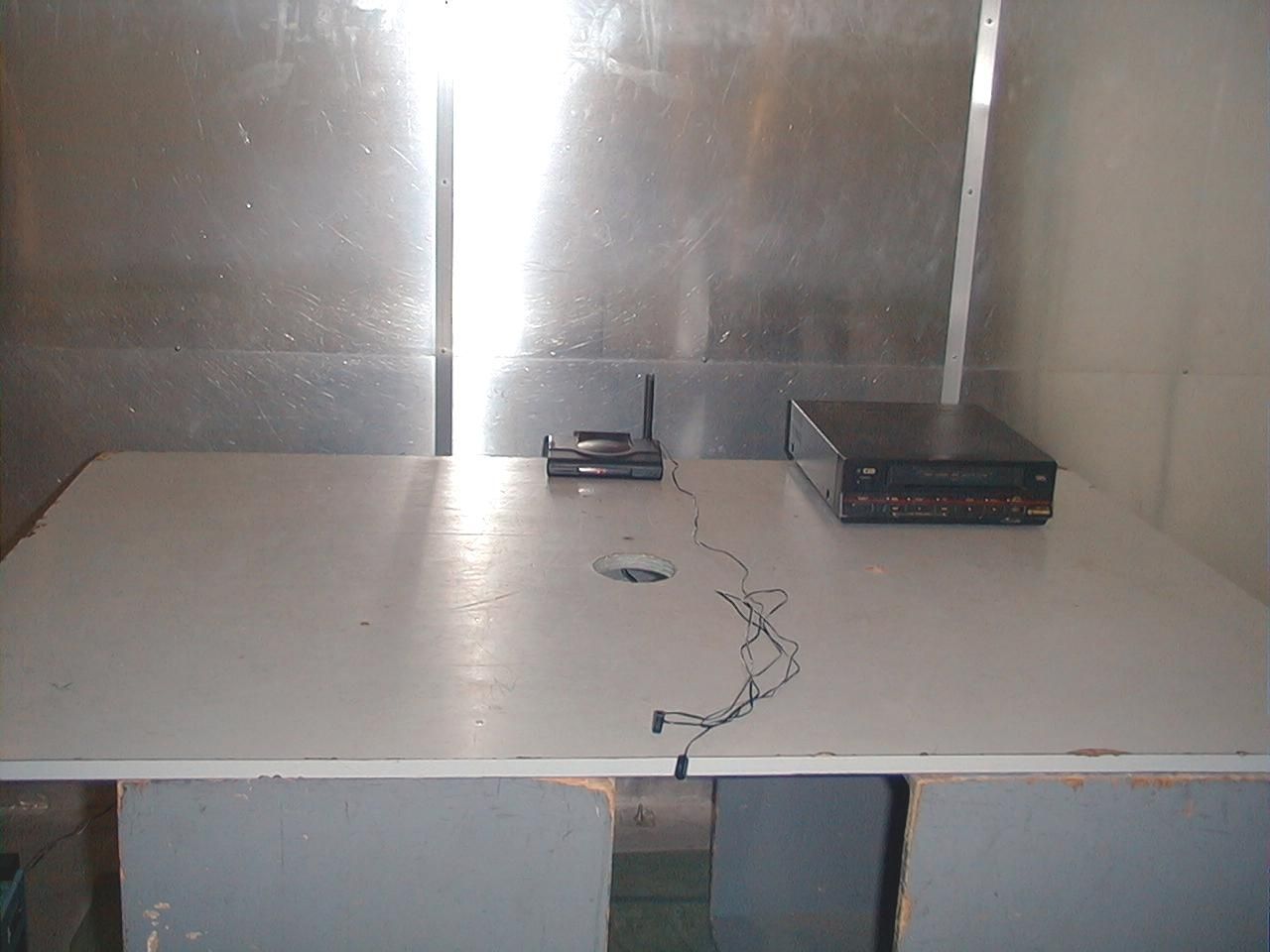

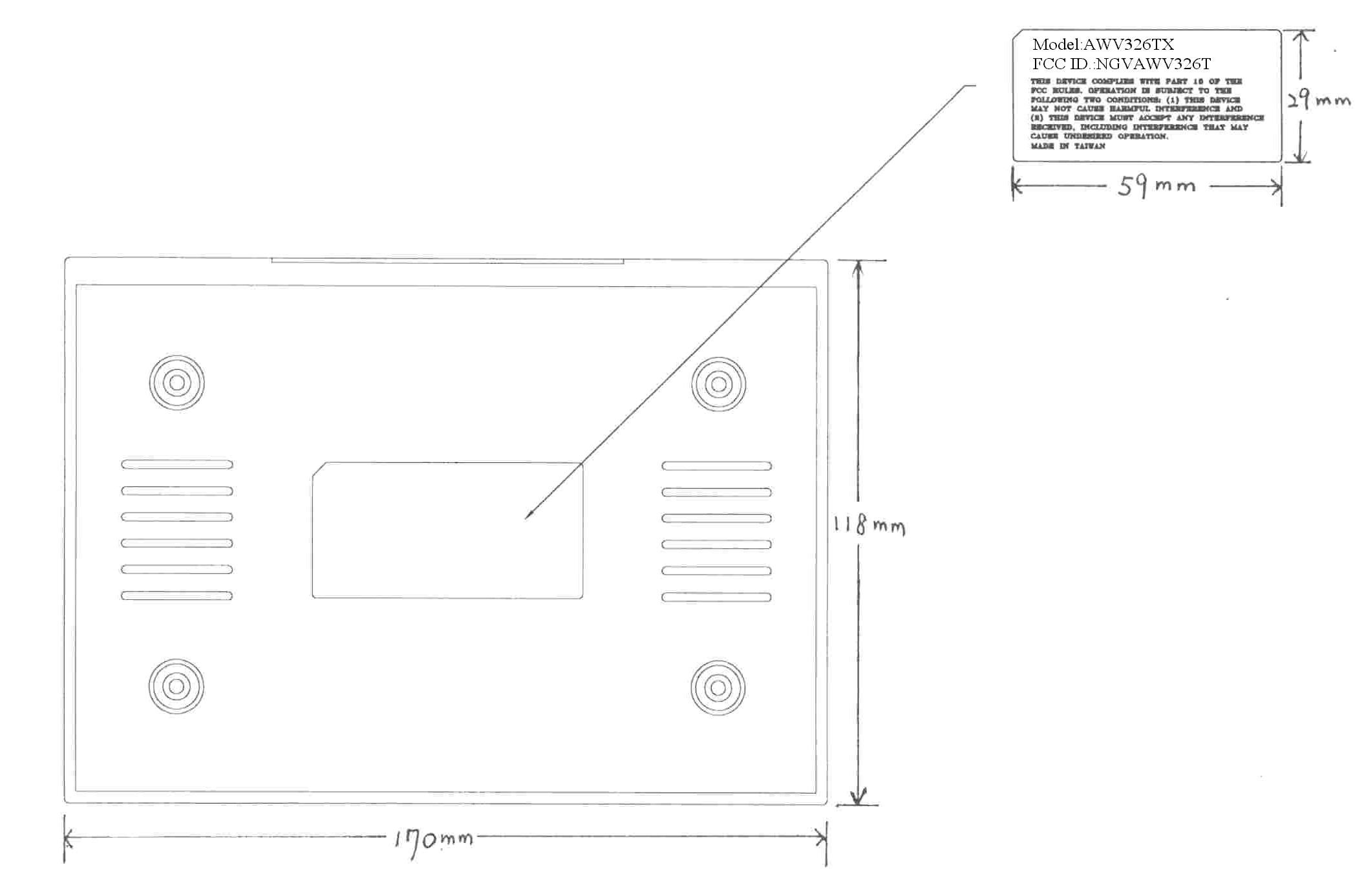

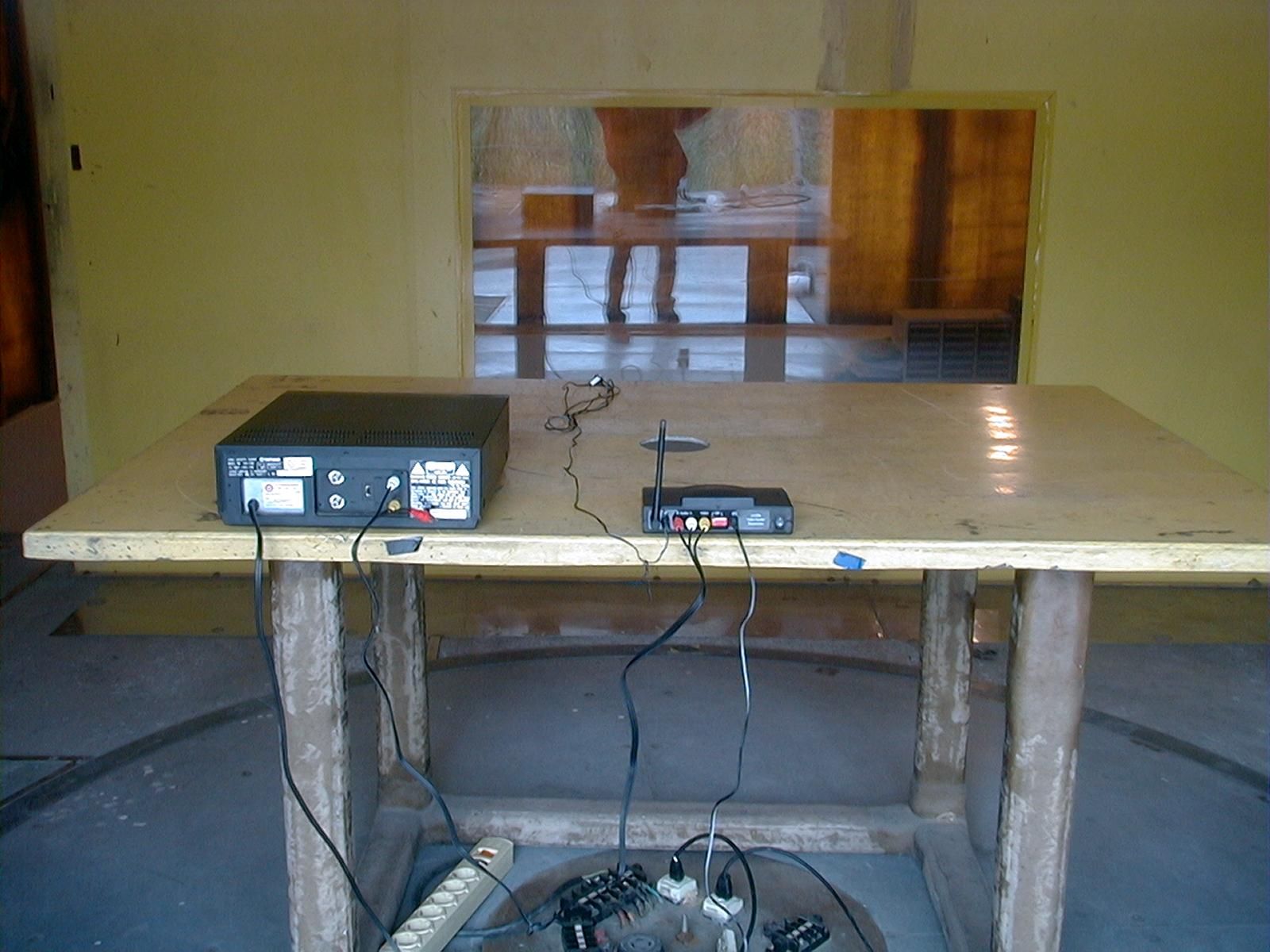

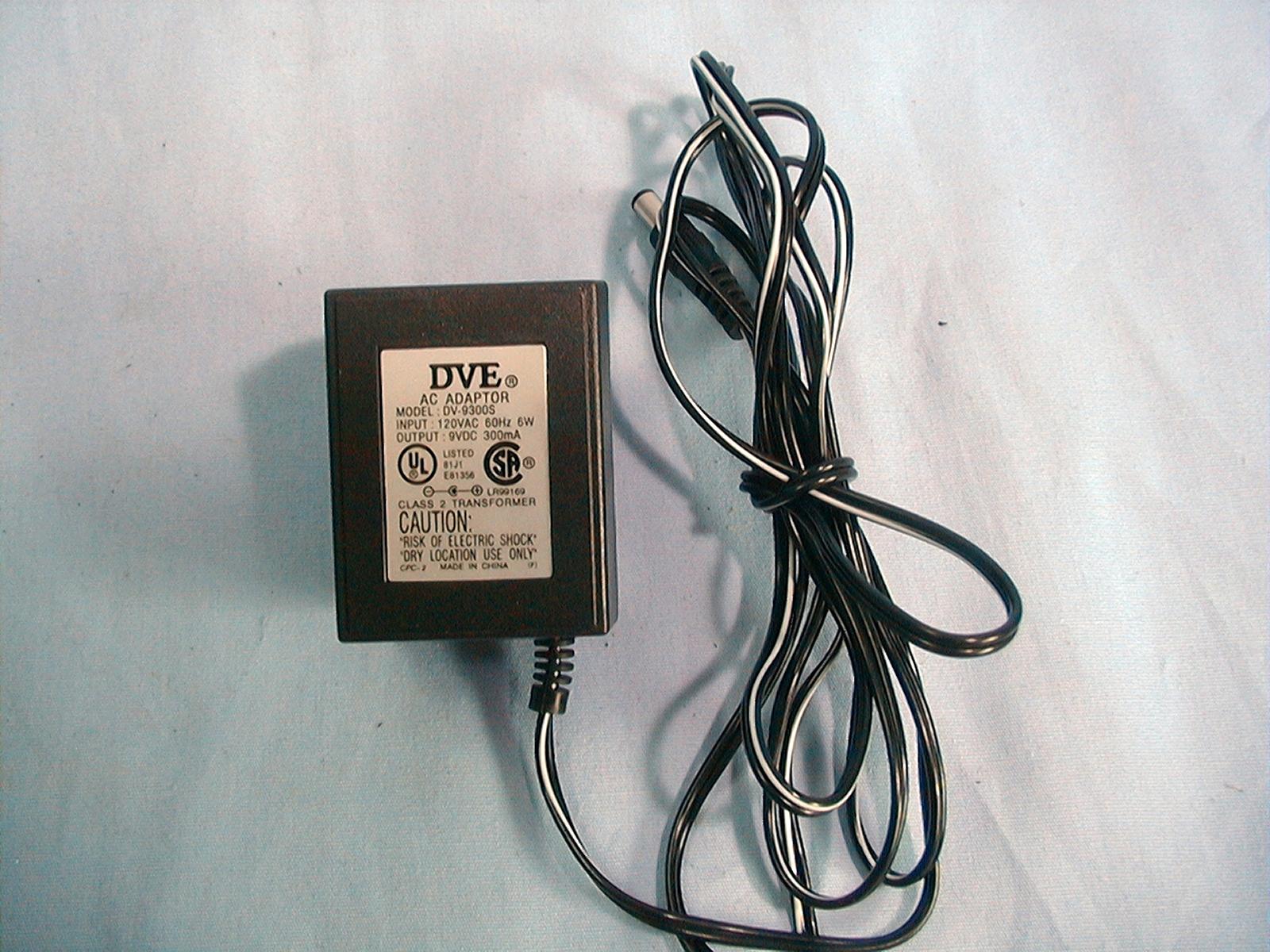

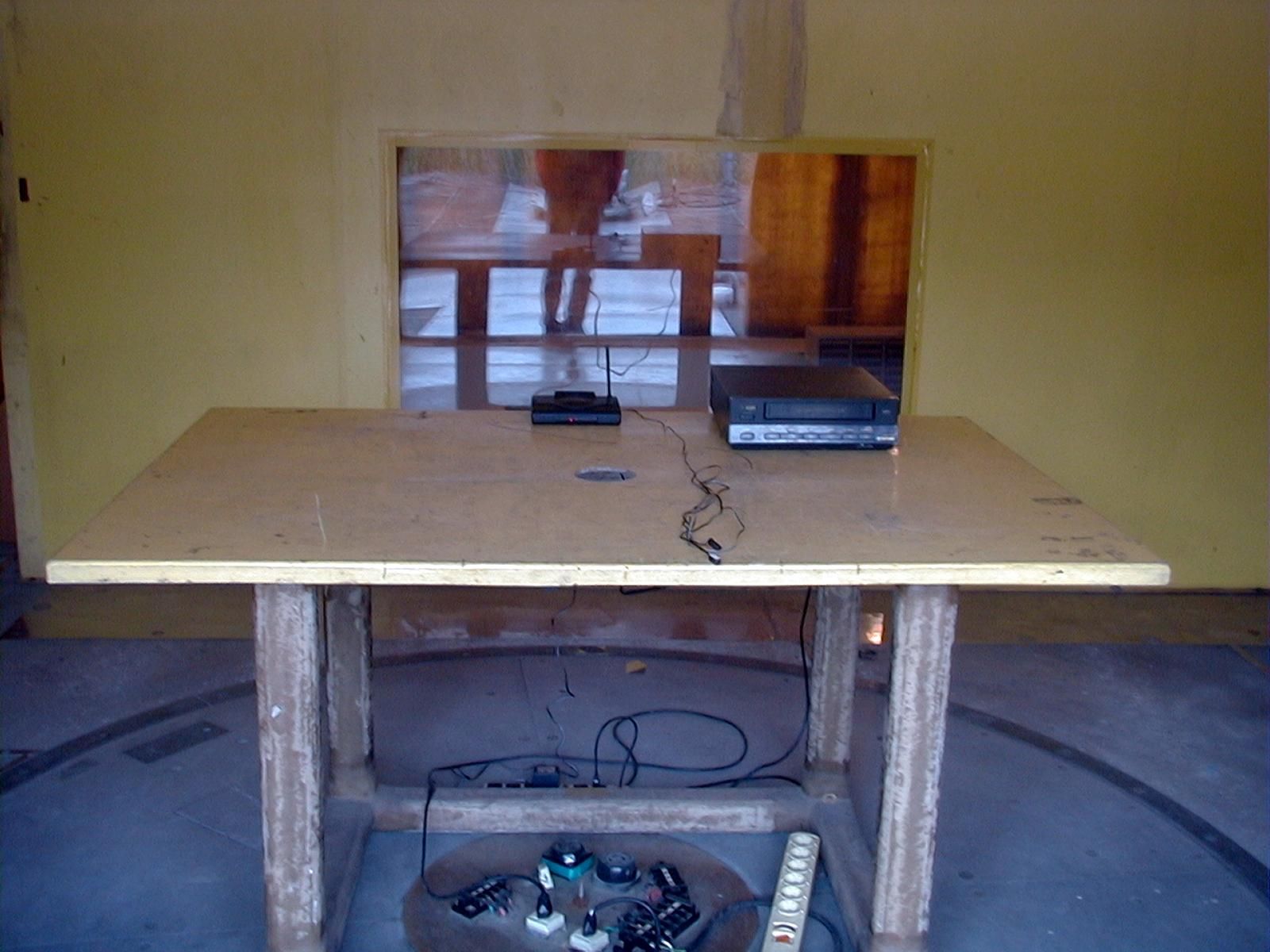

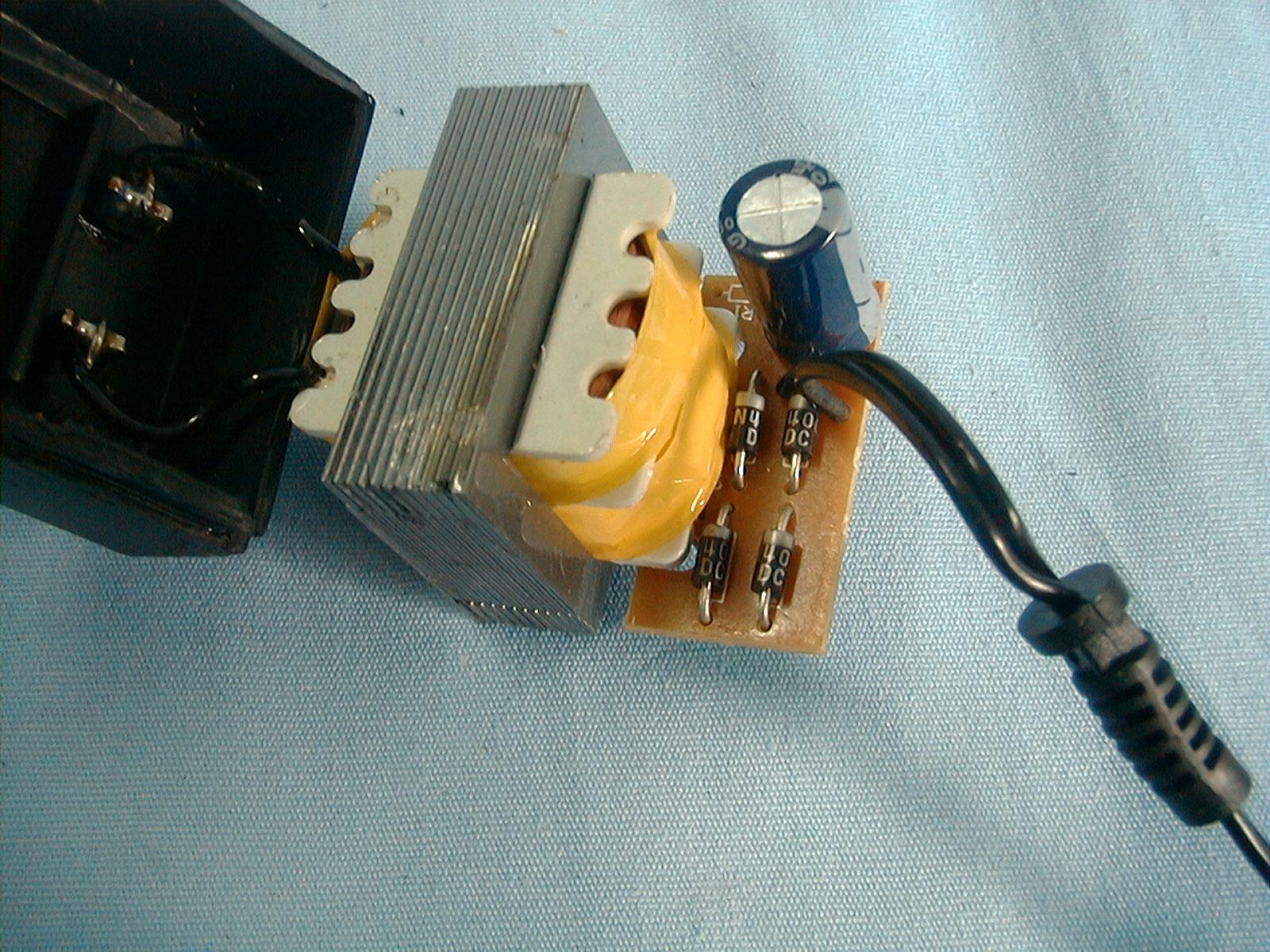

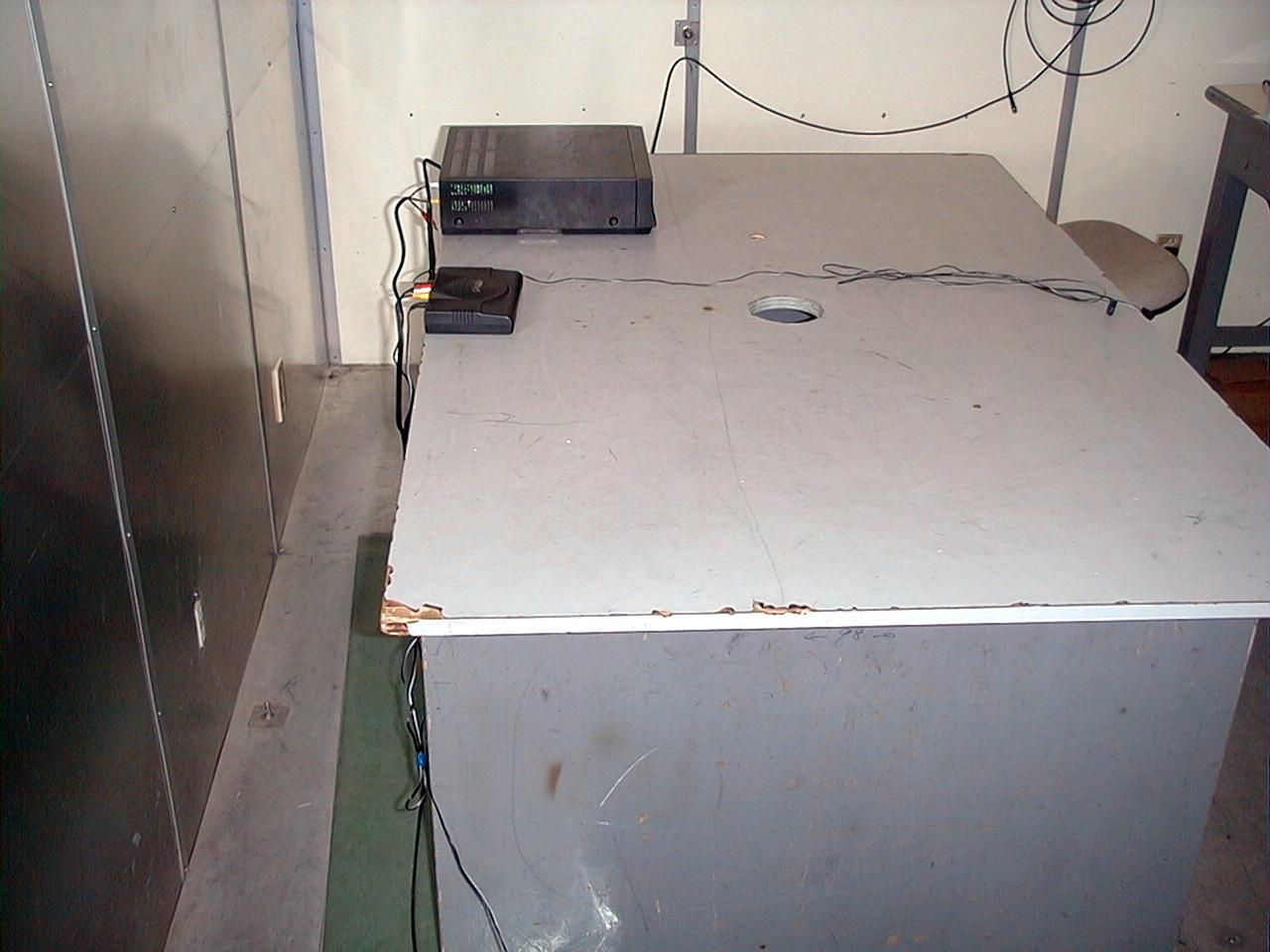

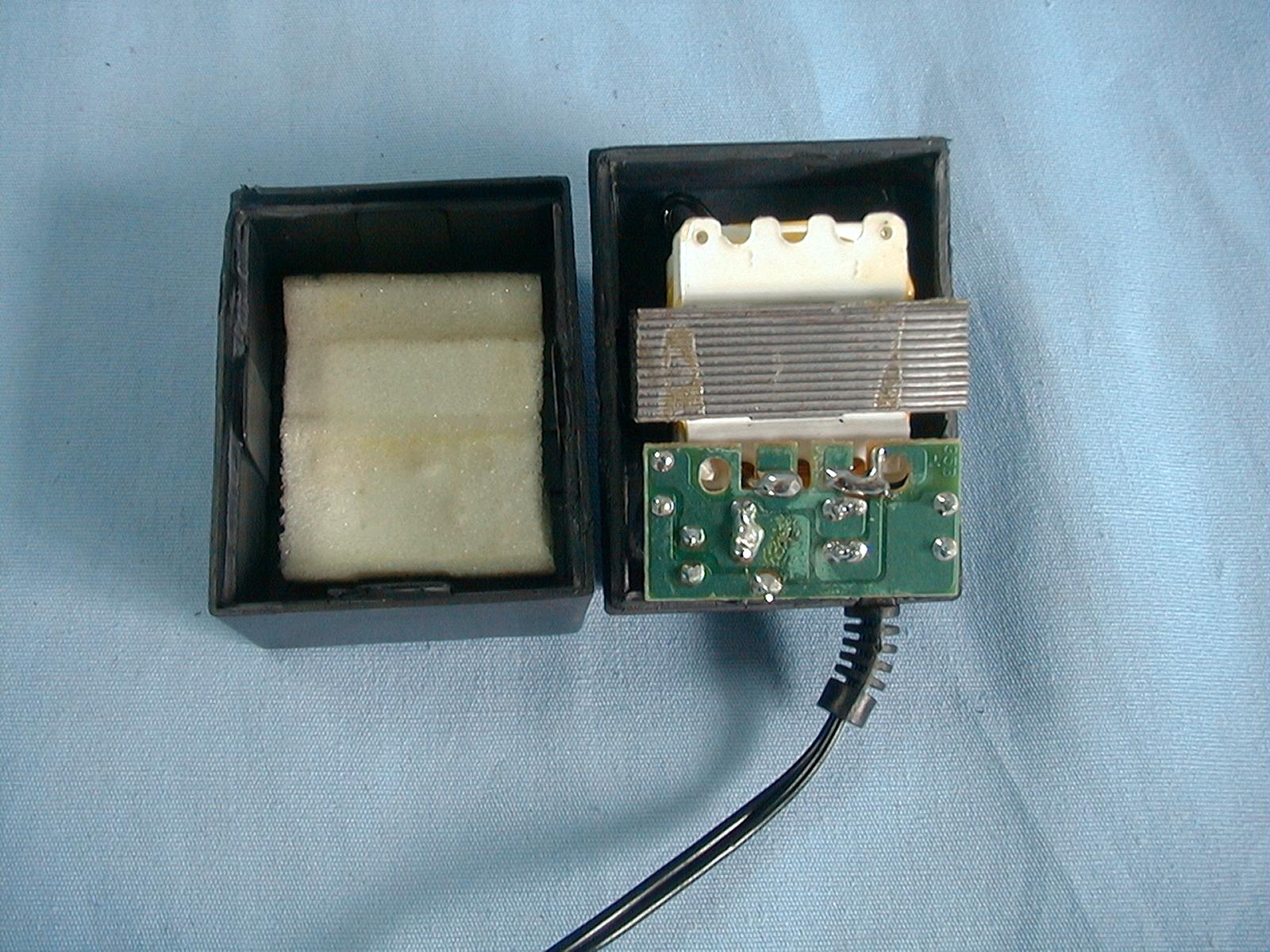

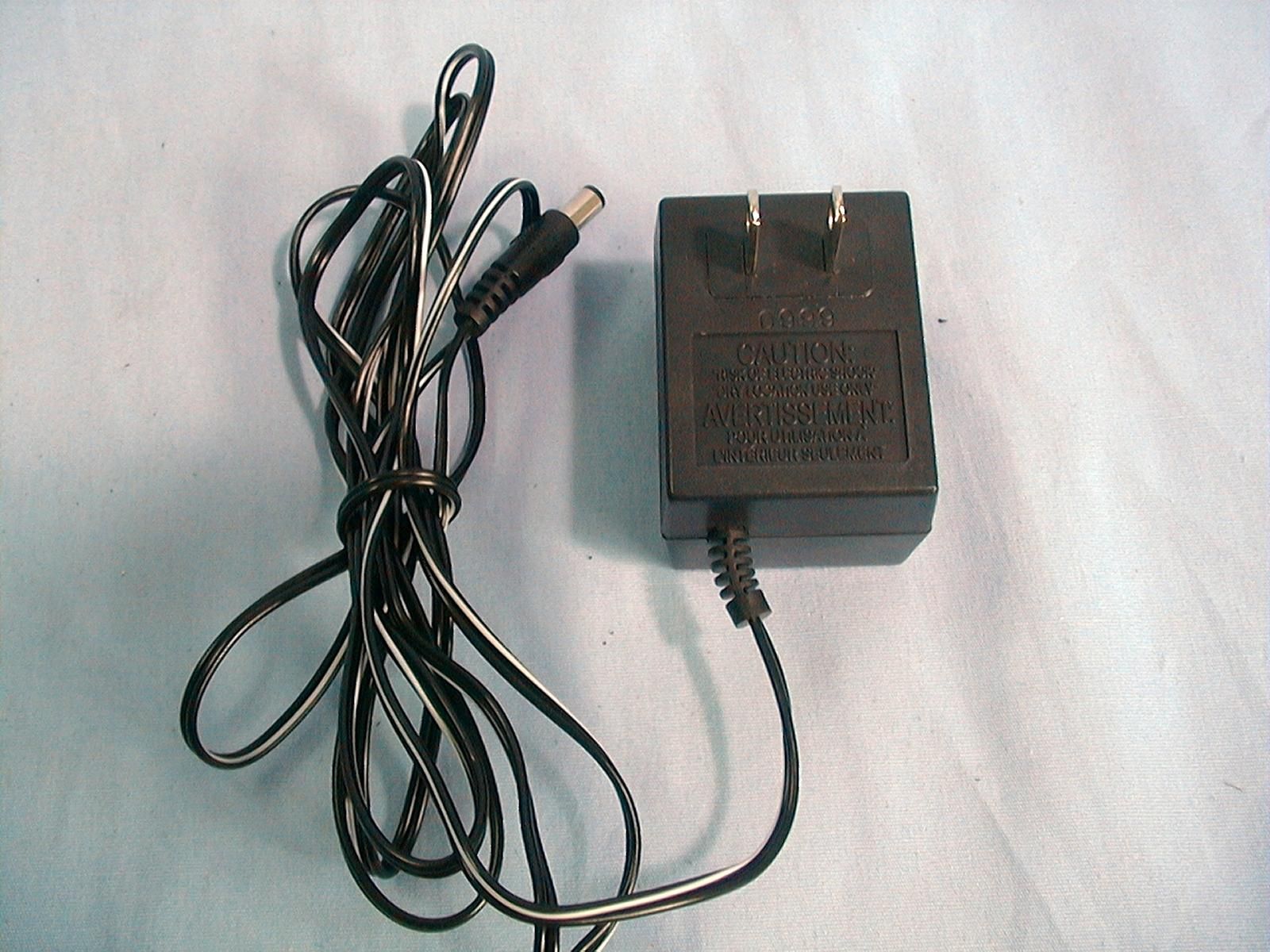

FCC ID. :NGVAWV326T Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : POWERFUL AV SENDER MODEL : AWV326TX FCC ID. : NGVAWV326T for APPLICANT : AIRWAVE TECHNOLOGIES INC. ADDRESS: 3F, NO. 9, INDUSTRY E. RD. IX SCIENCE- BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET89R-02-090-01 ETC Report No. : ET89R-02-090-01FCC ID. : NGVAWV326T Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: AIRWAVE TECHNOLOGIES INC. 3F, NO. 9, INDUSTRY E. RD. IX SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Manufacturer: AIRWAVE TECHNOLOGIES INC. 3F, NO. 9, INDUSTRY E. RD. IX SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: POWERFUL AV SENDER b) Trade Name: AIRWAVE c) Model No.: AWV326TX d) Power Supply: I/P: 120VAC, 60Hz, O/P: DC 9V Regulation Applied: FCC Rules and Regulations Part 15 Subpart C(1998 ) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :MAR. 20, 2000 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET89R-02-090-01FCC ID. : NGVAWV326T Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION ............................................................................................................ 1 1.1 Product Description ........................................................................................................................... 1 1.2 Characteristics of Device................................................................................................................... 1 1.3 Test Methodology .............................................................................................................................. 1 1.4 Test Facility....................................................................................................................................... 1 2 PROVISIONS APPLICABLE ........................................................................................................... 2 2.1 Definition ........................................................................................................................................... 2 2.2 Requirement for Compliance............................................................................................................. 3 2.3 Restricted Bands of Operation........................................................................................................... 5 2.4 Labeling Requirement........................................................................................................................ 5 2.5 User Information ................................................................................................................................ 6 3 SYSTEM TEST CONFIGURATION................................................................................................ 7 3.1 Justification ........................................................................................................................................ 7 3.2 Devices for Tested System................................................................................................................. 7 4 RADIATED EMISSION MEASUREMENT.................................................................................... 8 4.1 Applicable Standard........................................................................................................................... 8 4.2 Measurement Procedure .................................................................................................................... 8 4.3 Measuring Instrument ...................................................................................................................... 10 4.4 Radiated Emission Data................................................................................................................... 11 4.4.1 RF Portion....................................................................................................................................11 4.4.2 Other Emission .............................................................................................................................14 4.5 Field Strength Calculation................................................................................................................ 14 4.6 Photos of Radiation Measuring Setup.............................................................................................. 15 5 CONDUCTED EMISSION MEASUREMENT............................................................................. 16 5.1 Standard Applicable......................................................................................................................... 16 5.2 Measurement Procedure .................................................................................................................. 16 5.3 Conducted Emission Data................................................................................................................ 17 5.4 Result Data Calculation ................................................................................................................... 19 5.5 Conducted Measurement Equipment .............................................................................................. 19 5.6 Photos of Conduction Measuring Setup ...............................................................................…
