NGVAWV398RXA/V Sender

Airwave Technologies Inc

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Oct 23, 2001
Application Purpose: Original Equipment
Date of Application: Oct 23, 2001
Equipment Note: A/V Sender
Frequency Range: 417.50000000 - 418.50000000
Company: Airwave Technologies Inc
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

AWV398 SYSTEM BLOCK DIAGRAM Video in Video out Audio （ L ） in Audio （ L ） out Audio （ R ） in Audio （ R ） out RF output Infrared LED Infrared Sender Receiver 2.4 GHz Transmitter module 418 MHz Receiver module Regulator Power 2.4 GHz Receiver module 418 MHz Transmitter module Power regulator TV Modulator Infrare d sensor

External Photos

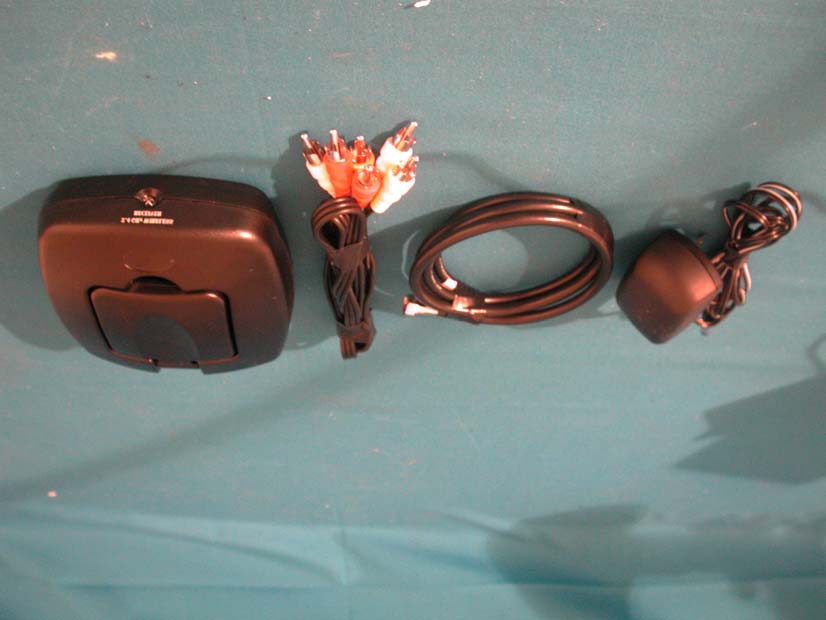

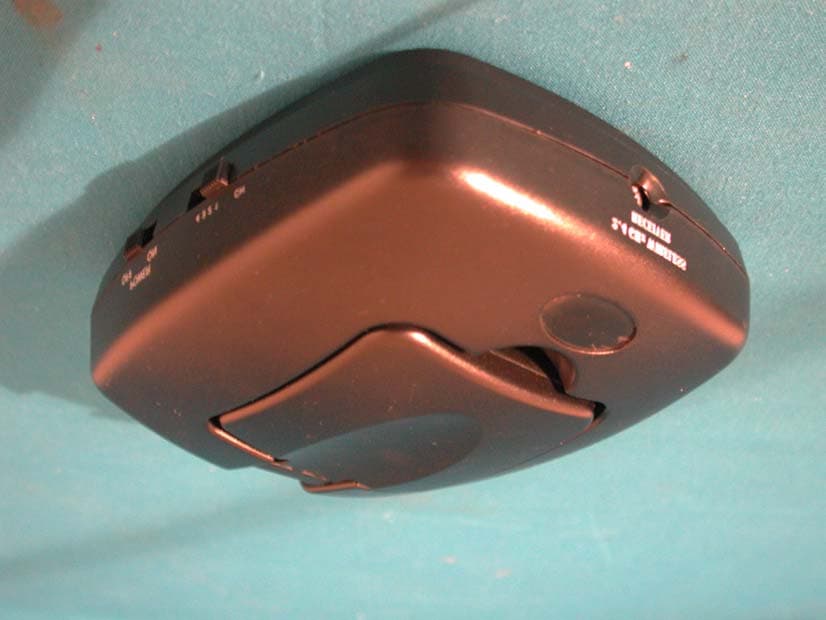

Report No.: 019H017-1FI Page : 1 of 9 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ID Label/Location Info

FCC ID.: NGVAWV398RX FCC ID The FCC ID Label will be placed on the equipment as shown in the photograph below. A/V Sender Model No.: AWV398, V111, D111 F F C C C C I I D D : : N N G G V V A A W W V V 3 3 9 9 8 8 R R X X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Internal Photos

Report No.: 019H017-1FI Page : 2 of 9 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 019H017-1FI Page : 3 of 9 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 019H017-1FI Page : 4 of 9 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 019H017-1FI Page : 5 of 9 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 019H017-1FI Page : 6 of 9 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 019H017-1FI Page : 7 of 9 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 019H017-1FI Page : 8 of 9 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 019H017-1FI Page : 9 of 9 Version:1.0 (17) EUT Photo (18) EUT Photo

Operational Description

Report No. 019H017-1FI Page : 4 of 22 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : A/V Sender Trade Name : AIRWAVE, Lorex, Sylvania FCC ID. : NGVAWV398RX Model No. : AWV398, V111, D111 Working Frequency : 418MHz Channel Number : 1 Type of Modulation : ASK Operator Selection of Operating Frequency : Manual Switch Coaxial Cable : Shielded, 1.0m RCA Cable (3*3) : Non-shielded, 1.2m Power Adapter : DVE, DV-0930-4109 Cable Out: Non-shielded, 1.8m Note: 1. This device is a 418MHz A/V Sender with an Infrared Remote function. 2. The different between model names was for different brand name. 3. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.231. 4. This device is a composite device in accordance with Part 15 regulations. The function for the receiver was, measured and made a test report that the report number is 019H017-1F, certified under verification. 1.2. Operation Description The EUT is a 418MHz transmitter. The infrared remote control signal can be transferred to 418MHz radio frequency in ASK modulation. The transmission antenna is soldered on the EUT. The super generations type receiver was used. An external excitation was used when the test of receiver was performed.

Test Report

Report No. 019H017-1FI Page : 1 of 22 Version:1.0 Test Report Product Name : A/V Sender Model No. : AWV398, V111, D111 FCC ID.: NGVAWV398RX Applicant : AIRWAVE TECHNOLOGIES INC. Address : 3F, No.9, Industry E. Rd. IX, Science-Based Industrial Park, Hsin Chu, Taiwan, R.O.C. Date of Receipt : Sep. 6, 2001 Date of Test : Oct. 2, 2001 Report No. : 019H017-1FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 019H017-1FI Page : 3 of 22 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION..............................................................................................................4 1.1. EUT Description ....................................................................................................................................4 1.2. Operation Description ............................................................................................................................4 1.3. Tested System Details ............................................................................................................................5 1.4. Configuration of Tested System.............................................................................................................5 1.5. EUT Exercise Software..........................................................................................................................6 1.6. Test Facility ............................................................................................................................................6 2. Conducted Emission ............................................................................................................................7 2.1. Test Equipment List ...............................................................................................................................7 2.2. Test Setup ...............................................................................................................................................7 2.3. Limits .....................................................................................................................................................7 2.4. Test Procedure ........................................................................................................................................8 2.5. Test Result of Conducted Emission .......................................................................................................9 3. Radiated Emission..............................................................................................................................10 3.1. Test Equipment ....................................................................................................................................10 3.2. Test Setup .............................................................................................................................................10 3.3. Limits ...................................................................................................................................................11 3.4. Test Procedure ......................................................................................................................................12 3.5. Test Result of Radiated Emission ........................................................................................................13 4. Occupied Bandwidth of Raidated Emission ....................................................................................16 4.1. Test Equipment ....................................................................................................................................16 4.2. Test Setup .............................................................................................................................................16 4.3. Test Condition ......................................................................................................................................16 4.4. Limits ...................................................................................................................................................16 4.5. Test Procedure ......................................................................................................................................16 4.6. Test Result of Occupied Bandwidth of Raidated Emission .................................................................17 5. Duty Cycle Measurement ..................................................................................................................18 5.1. Test Equipment ....................................................................................................................................18 5.2. Test Setup .............................................................................................................................................18 5.3. Test Condition ......................................................................................................................................18 5.4. Test Proceudre ......................................................................................................................................18 5.5. Test Result of Duty Cycle Measurement..............................................................................................19 6. EMI Reduction Method During Compliance Testing .....................................................................20 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 019H017-1FI Page : 4 of 22 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : A/V Sender Trade Name : AIRWAVE, Lorex, Sylvania FCC ID. : NGVAWV398RX Model No. : AWV398, V111, D111 Working Frequency : 4…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 019H017-1FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 019H017-1FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 019H017-1FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn)
