NGVAWV398TXA/V Sender

AWV398 SYSTEM BLOCK DIAGRAM Video in Video out Audio （ L ） in Audio （ L ） out Audio （ R ） in Audio （ R ） out RF output Infrared LED Infrared Sender Receiver 2.4 GHz Transmitter module 418 MHz Receiver module Regulator Power 2.4 GHz Receiver module 418 MHz Transmitter module Power regulator TV Modulator Infrare d sensor

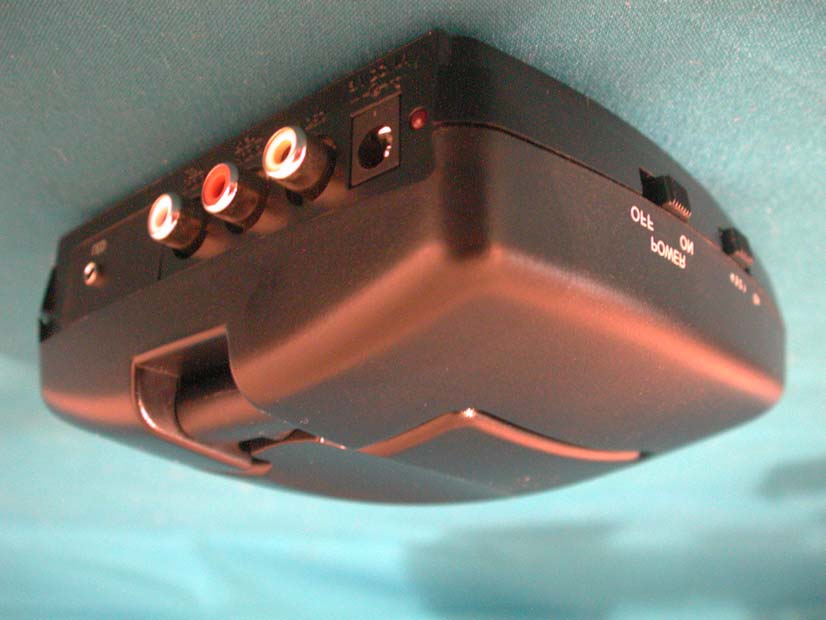

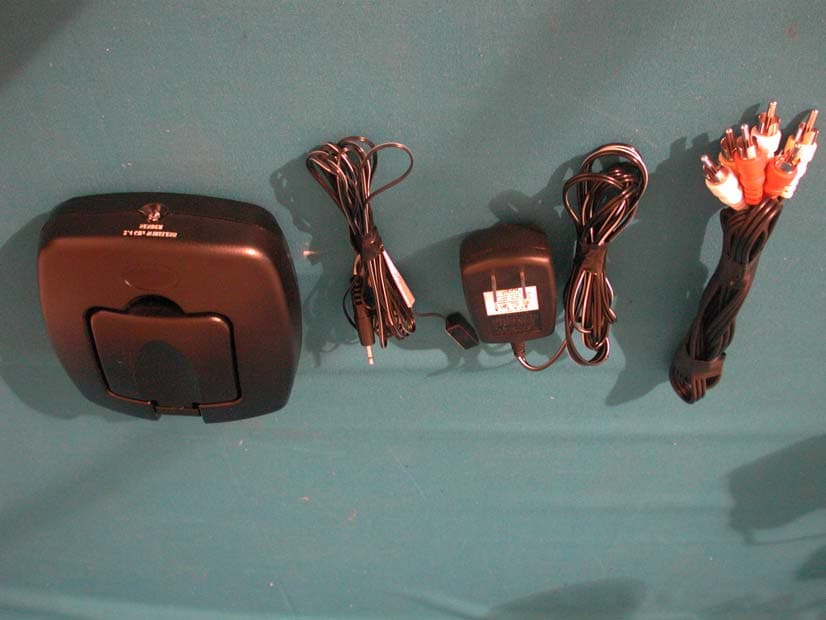

Report No.: 019H017FI Page : 1 of 8 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

FCC ID.: NGVAWV398TX FCC ID The FCC ID Label will be placed on the equipment as shown in the photograph below. A/V Sender Model No.: AWV398, V111, D111 F F C C C C I I D D : : N N G G V V A A W W V V 3 3 9 9 8 8 T T X X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 019H017FI Page : 2 of 8 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 019H017FI Page : 3 of 8 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 019H017FI Page : 4 of 8 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 019H017FI Page : 5 of 8 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 019H017FI Page : 6 of 8 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 019H017FI Page : 7 of 8 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 019H017FI Page : 8 of 8 Version:1.0 (15) EUT Photo (16) EUT Photo

Report No. 019H017FI Page : 4 of 25 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : A/V Sender Trade Name : AIRWAVE, Lorex, Sylvania FCC ID. : NGVAWV398TX Model No. : AWV398, V111, D111 Frequency Range : 2400 MHz to 2483.5MHz Channel Number : 3 Frequency of each Channel : Channel 1: 2468MHz, Channel 2: 2432MHz, Channel 3: 2450MHz Type of Modulation : FM Operator Selection of Operating Frequency : Manual Switch RCA Cable (3*3) : Non-shielded, 1.2m IR Cable : Non-shielded, 3m Power Adapter : DVE, DV-0930-4109 Cable Out: Non-shielded, 1.8m Note: 1. This device is an A/V Sender included a 2.4GHz transmitting function, a 418MHz receiving function, an Audio/Video port and an IR-remote output. 2. The different between model names was for different brand name. 3. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. 4. This device is a composite device in accordance with Part 15 regulations. The function for the receiver was, measured and made a test report that the report number is 019H017F, certified under verification. 1.2. Operation Description The EUT is wireless videos sender. The operation frequency is from 2.4GHz to 2.4835GHz with FM modulation. Four manually selectable channels were built in the EUT. The signal can be sent to the EUT through A/V signal input. Them, the signal will be transmitted through 2.4 GHz FM RF signal from the patch antenna soldered on PCB from EUT to receiver. Two audio jacks and one video jack are built for EUT I/O connection DC 9V shall be provided for EUT operation

Report No. 019H017FI Page : 1 of 25 Version:1.0 Test Report Product Name : A/V Sender Model No. : AWV398, V111, D111 FCC ID.: NGVAWV398TX Applicant : AIRWAVE TECHNOLOGIES INC. Address : 3F, No.9, Industry E. Rd. IX, Science-Based Industrial Park, Hsin Chu, Taiwan, R.O.C. Date of Receipt : Sep. 6, 2001 Date of Test : Oct. 2, 2001 Report No. : 019H017FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 019H017FI Page : 3 of 25 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION..............................................................................................................4 1.1. EUT Description ....................................................................................................................................4 1.2. Operation Description ............................................................................................................................4 1.3. Tested System Details ............................................................................................................................5 1.4. Configuration of Tested System.............................................................................................................5 1.5. EUT Exercise Software..........................................................................................................................5 1.6. Test Facility ............................................................................................................................................6 2. Conducted Emission ............................................................................................................................7 2.1. Test Equipment List ...............................................................................................................................7 2.2. Test Setup ...............................................................................................................................................7 2.3. Limits .....................................................................................................................................................7 2.4. Test Procedure ........................................................................................................................................8 2.5. Test Result of Conducted Emission .......................................................................................................9 3. Radiated Emission..............................................................................................................................10 3.1. Test Equipment ....................................................................................................................................10 3.2. Test Setup .............................................................................................................................................10 3.3. Limits ...................................................................................................................................................11 3.4. Test Procedure ......................................................................................................................................12 3.5. Test Result of Radiated Emission ........................................................................................................13 4. Band Edge ...........................................................................................................................................20 4.1. Test Equipment ....................................................................................................................................20 4.2. Test Setup .............................................................................................................................................20 4.3. Test Condition ......................................................................................................................................20 4.4. Standard Reqirement ............................................................................................................................20 4.5. Test Result of Band Edge .....................................................................................................................21 5. EMI Reduction Method During Compliance Testing .....................................................................23 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 019H017FI Page : 4 of 25 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : A/V Sender Trade Name : AIRWAVE, Lorex, Sylvania FCC ID. : NGVAWV398TX Model No. : AWV398, V111, D111 Frequency Range : 2400 MHz to 2483.5MHz Channel Number : 3 Frequency of each Channel : Channel 1: 2468MHz, Channel 2: 2432MHz, Channel 3: 2450MHz Type of Modulation : FM Operator Selection of Operating Frequency : Manual Switch RCA Cable (3*3) : Non-shielded, 1.2m IR Cable : Non-shielded, 3m Power Adapter : DVE, DV-0930-4109 Cable Out: Non-shielded, 1.8m Note: 1. This device is an A/V Sender included a 2.4GHz transmitting function, a 418MHz receiving function, an Audio/Video port and an IR-remote output. 2. The different between model names was for different brand name. 3. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. 4. This device is a composite device in accordance with Part 15 regulations. The function for the receiver was, measured and made a test report that the report number is 019H017F, certified under verification. 1.2. Operation Description The EUT is wireless videos sender. The operation frequency is from 2.4…

Text truncated - open the document above for the full version.

Report No.: 019H017FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 019H017FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 019H017FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn)
