NGVAWW698RX5.8GHz Video Sender

Photo A: Power Switch 433MHz ID Channel Tack switch (only AWV698C applicable) Photo B.: Channel Indicator: CH1 ~ CH7 Remote Control Indicator Photo C.: (Receiver) Audio R Audio L Video Power Plug (9V) (Transmitter) plug for IR cable LED (transmitter) Photo D.: (Shown above is the antenna direction for application.) Specification Transmitter: 1. Frequency: 5.725GHz – 5.875GHz 2. Channel: 7 selectable channels 3. Modulation: FM-FM Input level: Video - 1 Vp-p (PAL) Audio - 3 Vp-p Impedance: Video - 75 ohms (PAL) Audio - 10K ohms 4. Input port: SCART line cable 5. Antenna: Built in antenna 6. Power supply: DC 9V power adapter Receiver: 1. Frequency: 5.725GHz – 5.875GHz 2. Channel: 7 selectable channels 3. Output port: SCART line cable 4. Antenna: Built in antenna 5. Power supply: DC 9V power adapter Trouble Shooting If a problem occurs, first refe r to this information before you take the device for repair. If you are unable to rectify the fault using the information given here, contact your local dealer or service specialist. Under no circumstances should you attempt to repair the device yourself, as this would invalidate the warranty. PROBLEM POSSIBLE CAUSE REMEDY The transmission channels for the transmitter/receiver do not correspond. Set the transmission channel on the transmitter/receiver The transmission distance is too great. Reduce the distance. Connecting cable. Check the EURO-AV plug and the cinch plug. No picture/sound transmission Transmitter or receiver not switched on. Switch on the transmitter or receiver Wrong direction of patch antenna Adjust the antenna to the right position. See photo D. Move the transmitter or receiver a few centimeters Interference. Change the transmission channel on the transmitter/receiver Microwave units and the use of the so-called ”blue tooth function” (W LAN) on mobile phones or notebooks. Change channel to find better channel to receive. Poor picture/sound quality Infrared module. Check the connection and position of the infrared module. The remote control of the signal source does not respond. A wireless transmitter in the 433MHz range (e.g. a baby-phone) is interfering with the transmission. Switch this device off. DOC0000-0269 Transmitter Receiver FCC Notices This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 2.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

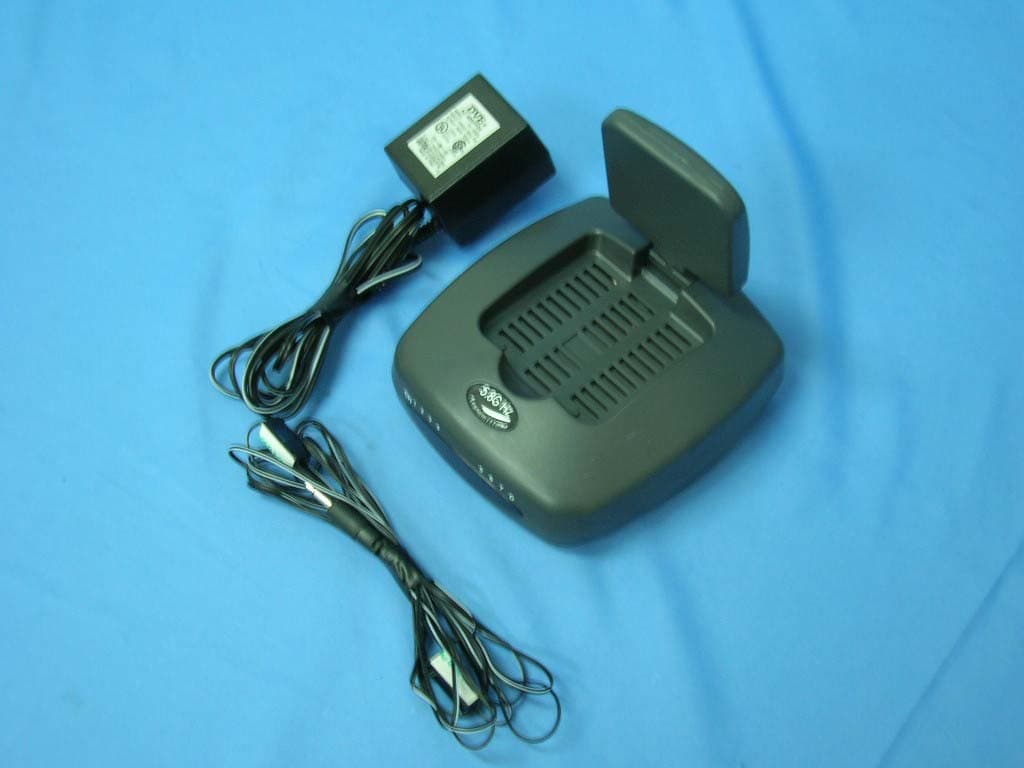

Report No： 072H002-RFUSP04V01 Page : 29 of 33 Version:1.0 Attachement ¾ EUT Photograph (1) EUT Photo (2) EUT Photo

AIRWAVE TECHNOLOGIES INC. Address: 4F, NO.9, INDUSTRY E. RD. IX, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Tel: +886-3-577-8099 FCC ID.: NGVAWW698RX FCC ID The FCC ID will be placed on the equipment as shown in the photograph below. 5.8GHz Video Sender Model No.: AWV698, AWV602, AWV603, AWV604 F F C C C C I I D D : : N N G G V V A A W W W W 6 6 9 9 8 8 R R X X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

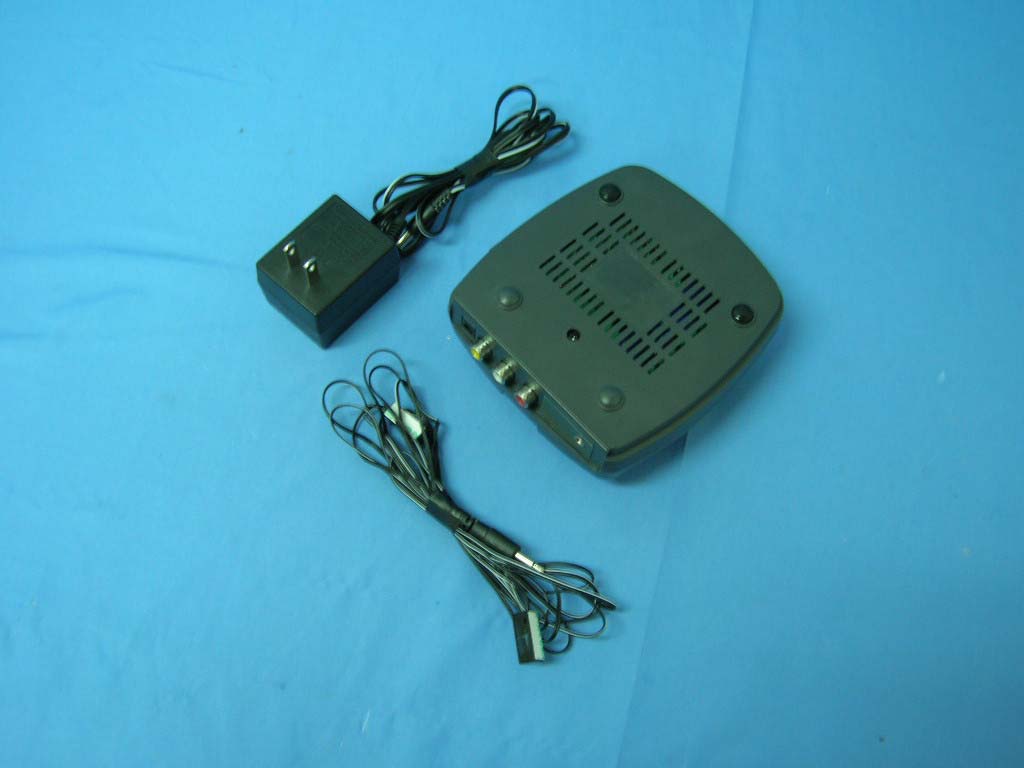

Report No： 072H002-RFUSP04V01 Page : 30 of 33 Version:1.0 (3) EUT Photo (4) EUT Photo Report No： 072H002-RFUSP04V01 Page : 31 of 33 Version:1.0 (5) EUT Photo (6) EUT Photo Report No： 072H002-RFUSP04V01 Page : 32 of 33 Version:1.0 (7) EUT Photo (8) EUT Photo Report No： 072H002-RFUSP04V01 Page : 33 of 33 Version:1.0 (9) EUT Photo

Report No： 072H002-RFUSP04V01 Page : 6 of 33 Version:1.0 1.2. Operation Description The EUT is a 433MHz transmitter. The infrared remote control signal can be transferred to 433MHz radio frequency in ASK modulation. The transmission antenna is soldered on the EUT. 1.3. Tested System Details QuieTek has verified the construction and function in typical operation. All the test modes were carried out with the EUT in normal operation, which was shown in this test report and defined as: Pre-Test Mode EMI Mode 1: Transmit Final Test Mode TX Mode 1: Transmit

Report No： 072H002-RFUSP04V01 Page : 1 of 33 Version:1.0 Test Report Product Name : 5.8GHz Video Sender Model No. : AWV698, AWV602, AWV603, AWV604 FCC ID.: NGVAWW698RX Applicant : AIRWAVE TECHNOLOGIES INC. Address : 4F, NO.9, INDUSTRY E. RD. IX, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Date of Receipt : 2007/01/26 Issued Date : 2007/03/21 Report No. : 072H002-RFUSP04V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 072H002-RFUSP04V01 Page : 2 of 33 Version:1.0 Test Report Certification Issued Date : 2007/03/21 Report No. : 072H002-RFUSP04V01 Product Name : 5.8GHz Video Sender Applicant : AIRWAVE TECHNOLOGIES INC. Address : 4F, NO.9, INDUSTRY E. RD. IX, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Manufacturer : AIRWAVE TECHNOLOGIES INC. Model No. : AWV698, AWV602, AWV603, AWV604 FCC ID. : NGVAWW698RX Rated Voltage : AC 120V/60Hz Trade Name : AIRWAVE Measurement Standard : FCC Part 15 Subpart C Paragraph 15.231 Measurement Procedure : ANSI C63.4:2003 Test Result : Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : (Demi Chang ) Tested By : (Eric Lee ) Approved By : (Roy Wang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200347-0 Report No： 072H002-RFUSP04V01 Page : 3 of 33 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information..........................................................................................................................4 1.1. EUT Description...................................................................................................................................4 1.2. Operation Description.........................................................................................................................5 1.3. Tested System Details........................................................................................................................5 1.4. Configuration of tested System.........................................................................................................6 1.5. EUT Exercise Software.......................................................................................................................7 1.6. Test Facility...........................................................................................................................................8 2. Conducted Emission........................................................................................................................9 2.1. Test Equipment....................................................................................................................................9 2.2. Test Setup.............................................................................................................................................9 2.3. Limits.....................................................................................................................................................9 2.4. Test Procedure...................................................................................................................................10 2.5. Test Specification...............................................................................................................................10 2.6. Uncertainty.........................................................................................................................................10 2.7. Test Result..........................................................................................................................................11 2.8. Test Photo...........................................................................................................................................13 3. Radiated Emission..........................................................................................................................14 3.1. Test Equipment..................................................................................................................................14 3.2. Test Setup...........................................................................................................................................14 3.3. Limits...................................................................................................................................................15 3.4. Test Procedure...................................................................................................................................16 3.5. Test Specification...............................................................................................................................16 3.6. Uncertainty.........................................................................................................................................16 3.7. Test Result..........................................................................................................................................17 3.8. Test Photo...........................................................................................................................................20 4. Occupied Bandwidth......................................................................................................................21 4.1. Test Equipment..................................................................................................................................21 4.2. Test Setup...........................................................................................................................................21 4.3. Limits..........................................................................................…

Text truncated - open the document above for the full version.

Report No： 072H002-RFUSP04V01 Page : 13 of 33 Version:1.0 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 072H002-RFUSP04V01 Page : 20 of 33 Version:1.0 3.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log)
