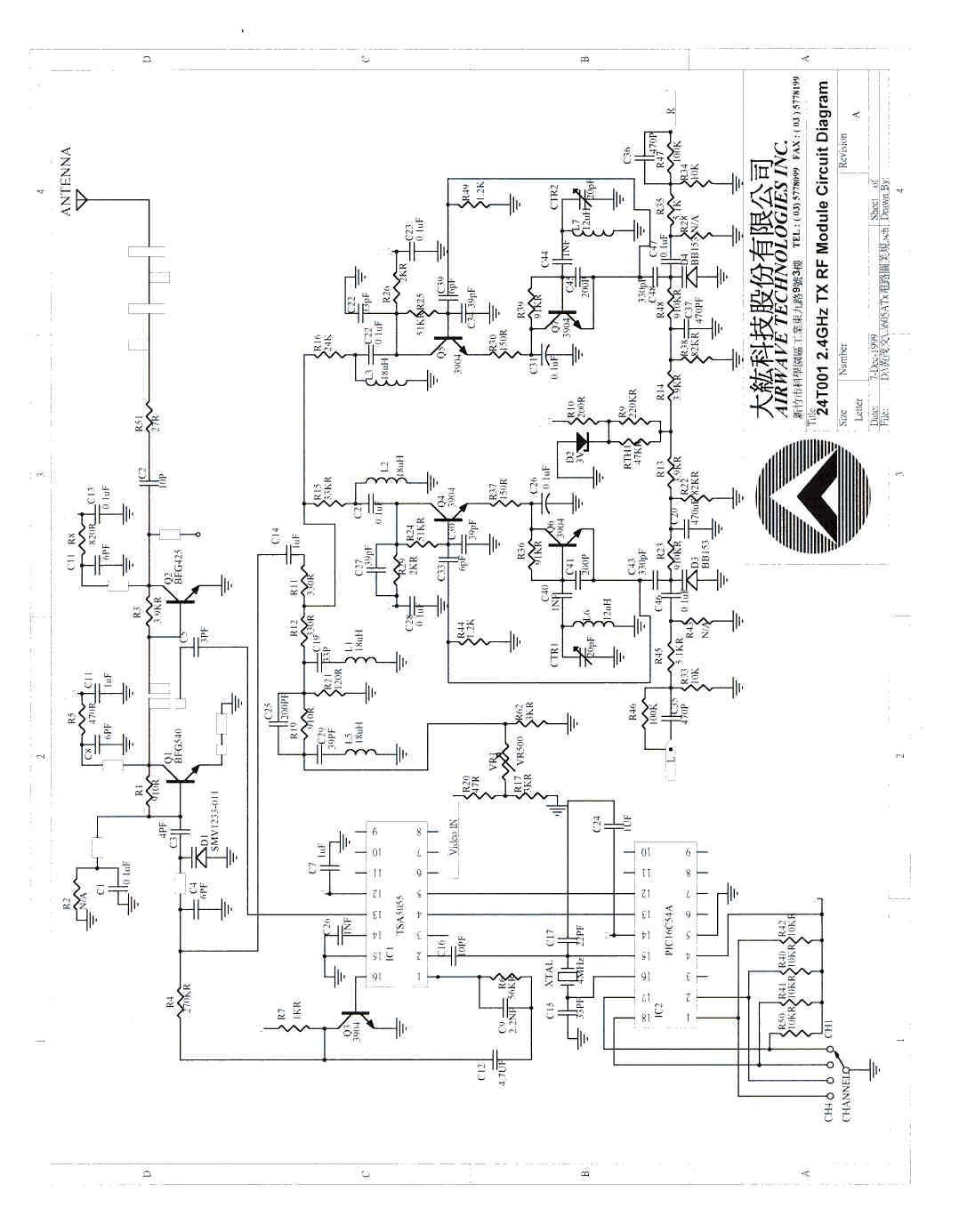

NGVAWW9XXTXWireless Camera Transmitter

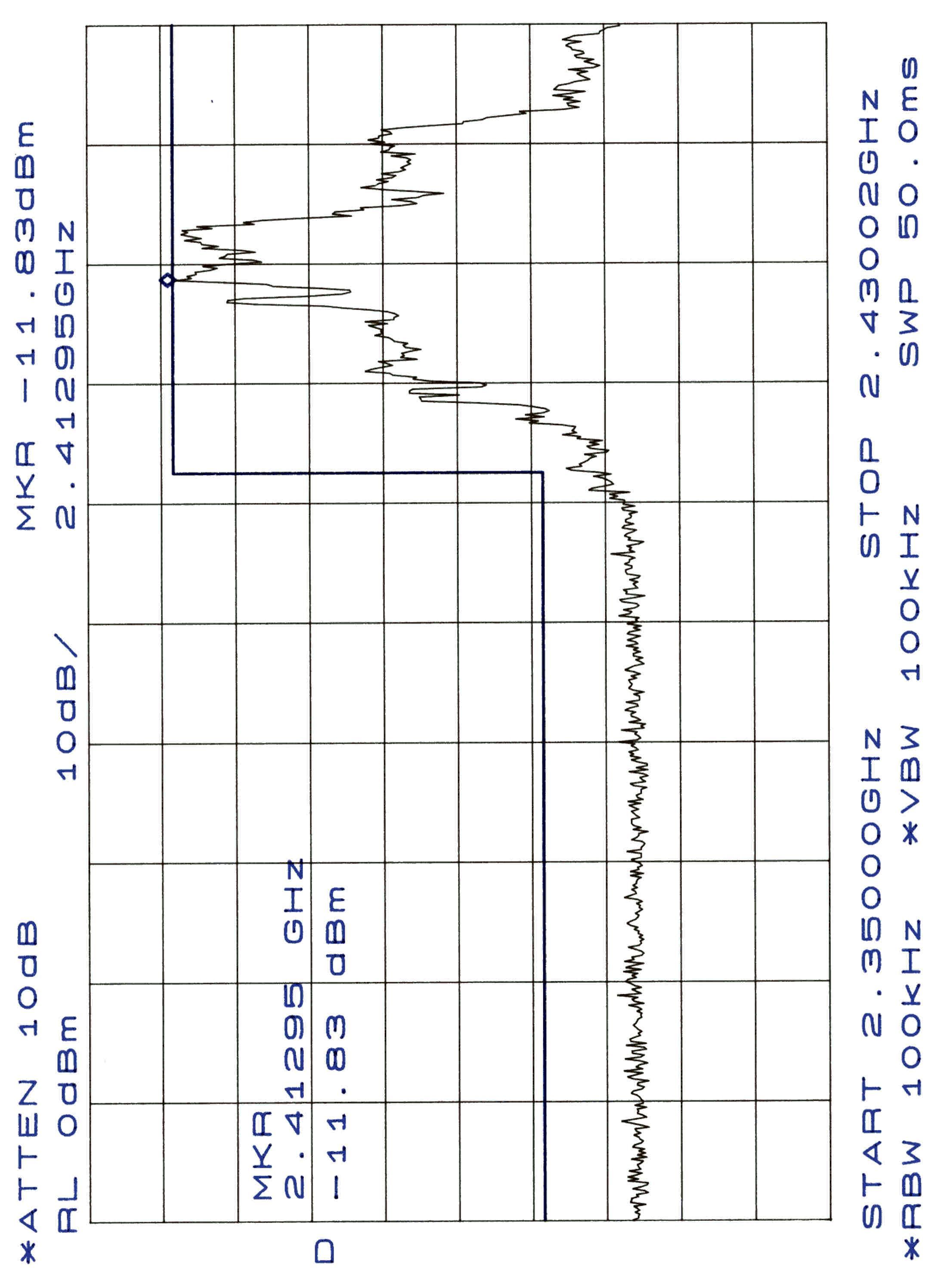

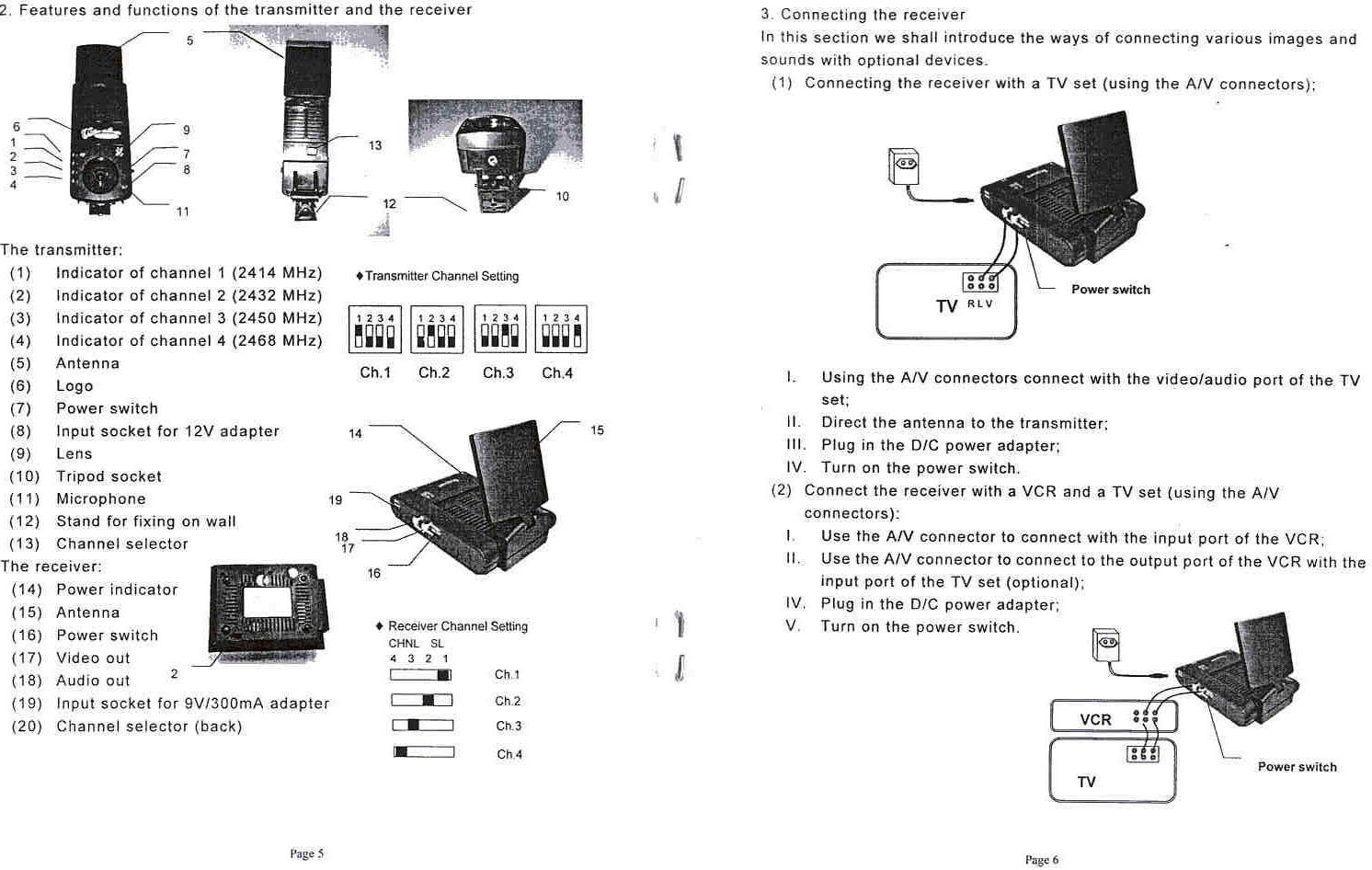

2.4GHz Wireless Camera Transmitter, using FM method for Audio/Video signal modulation. It has better signal to noise ratio than Amplitude Modulation. There are four channels to relative to the following frequences : CH 1 : 2414 MHz, CH 2 : 2432 MHz, CH 3 : 2450 MHz, CH 4 : 2468 MHz, this device is used for surveying enviromenet sitnation or similar applications of Audio and Video signals transmission.

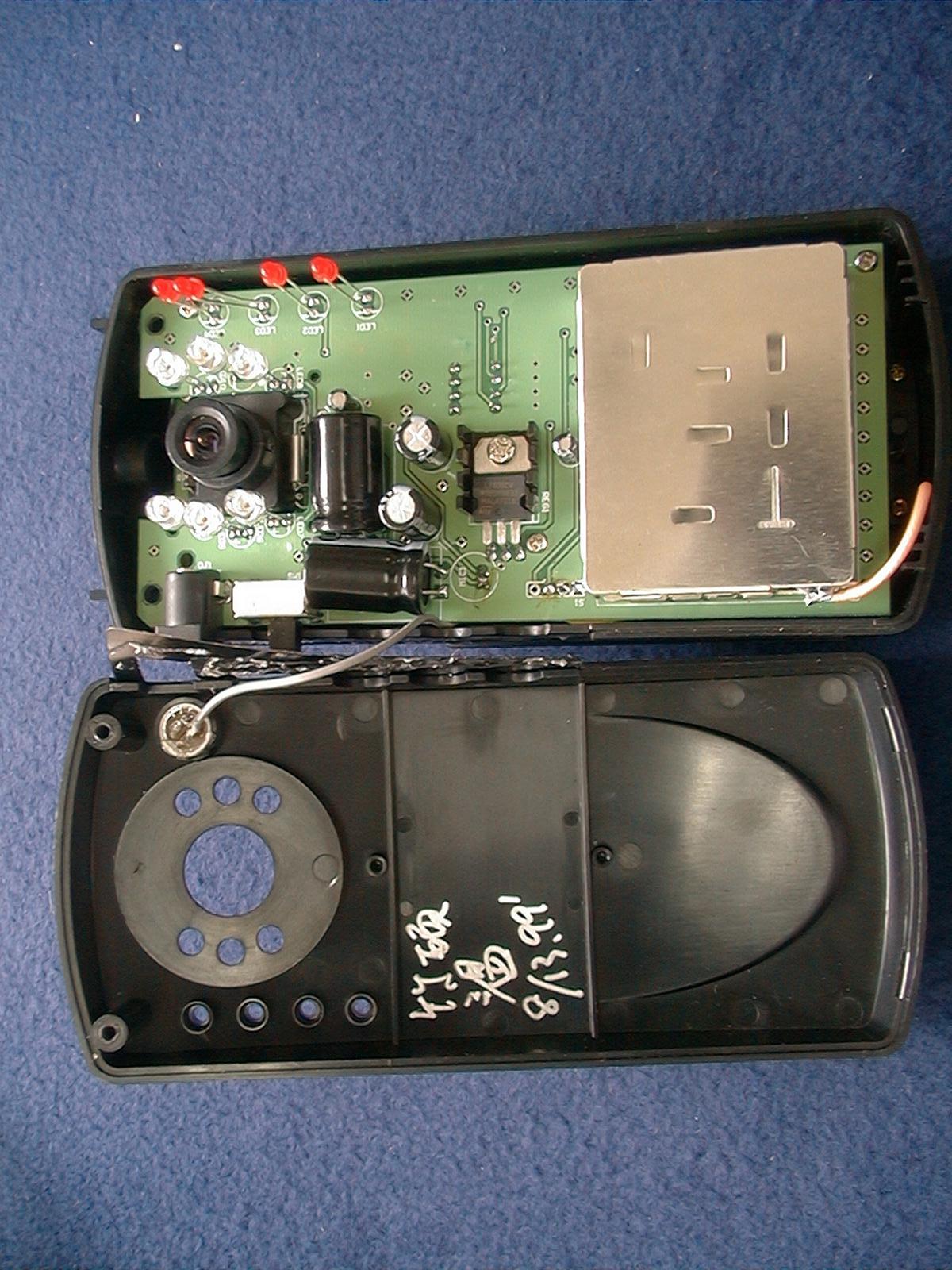

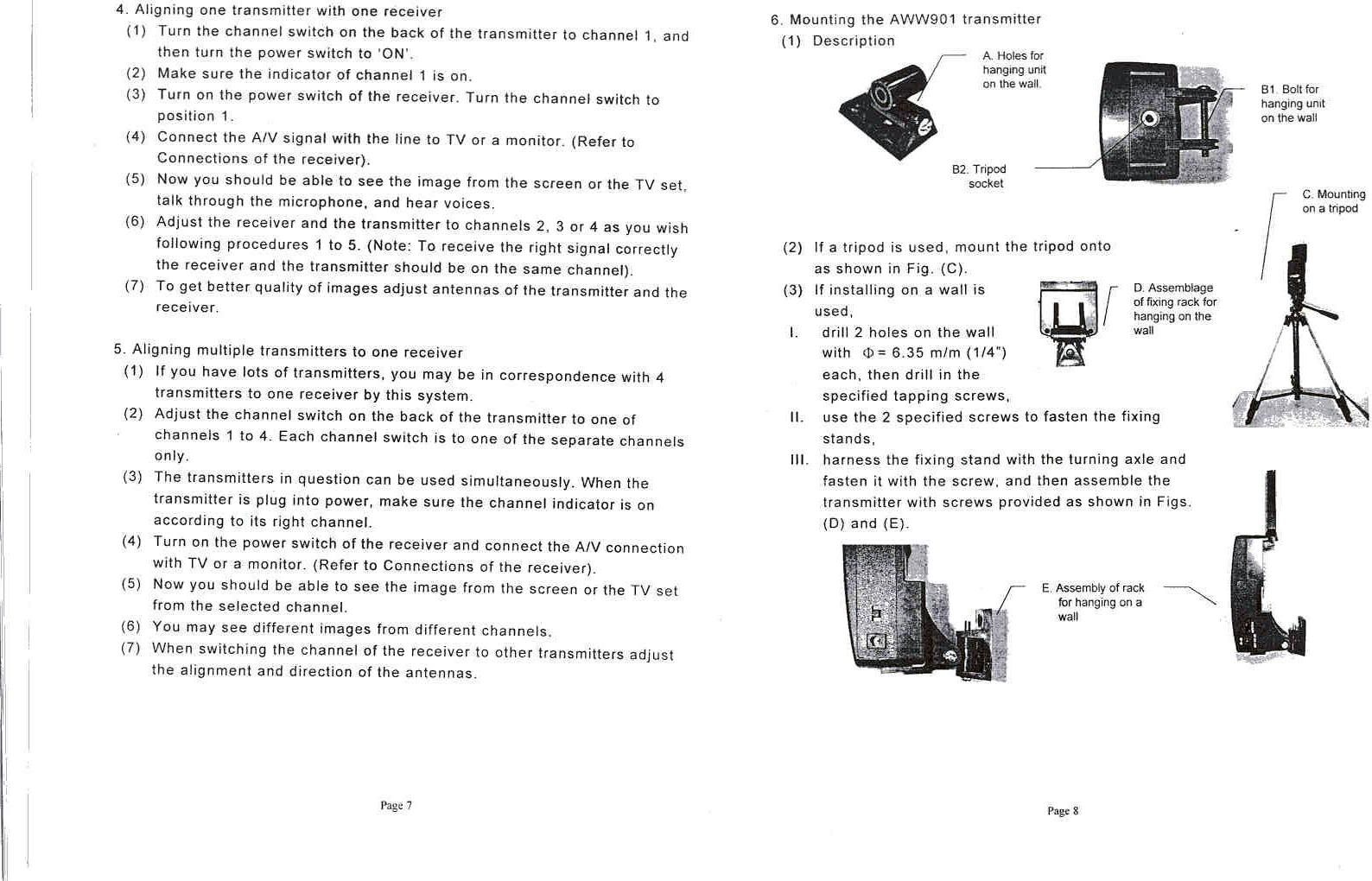

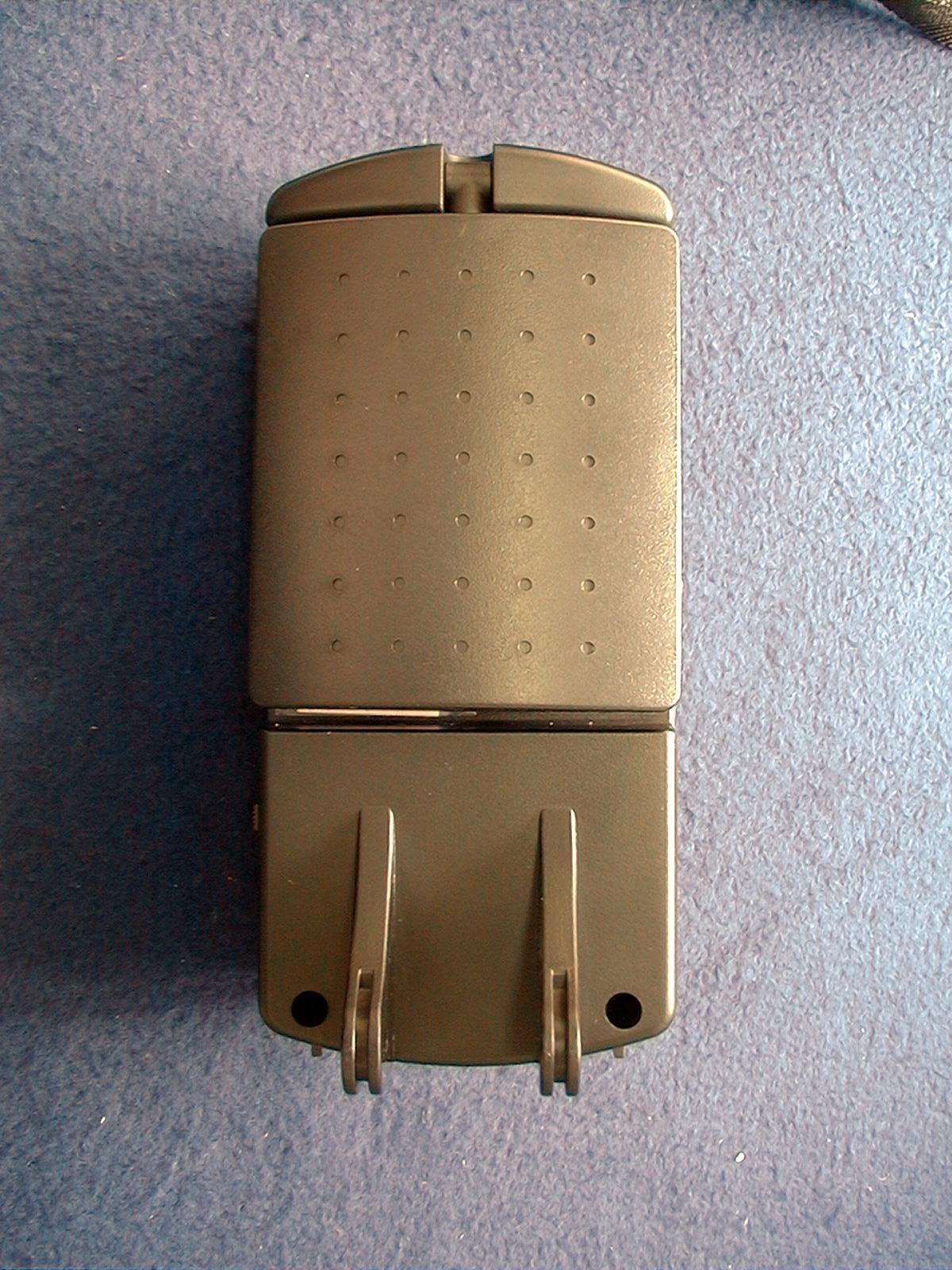

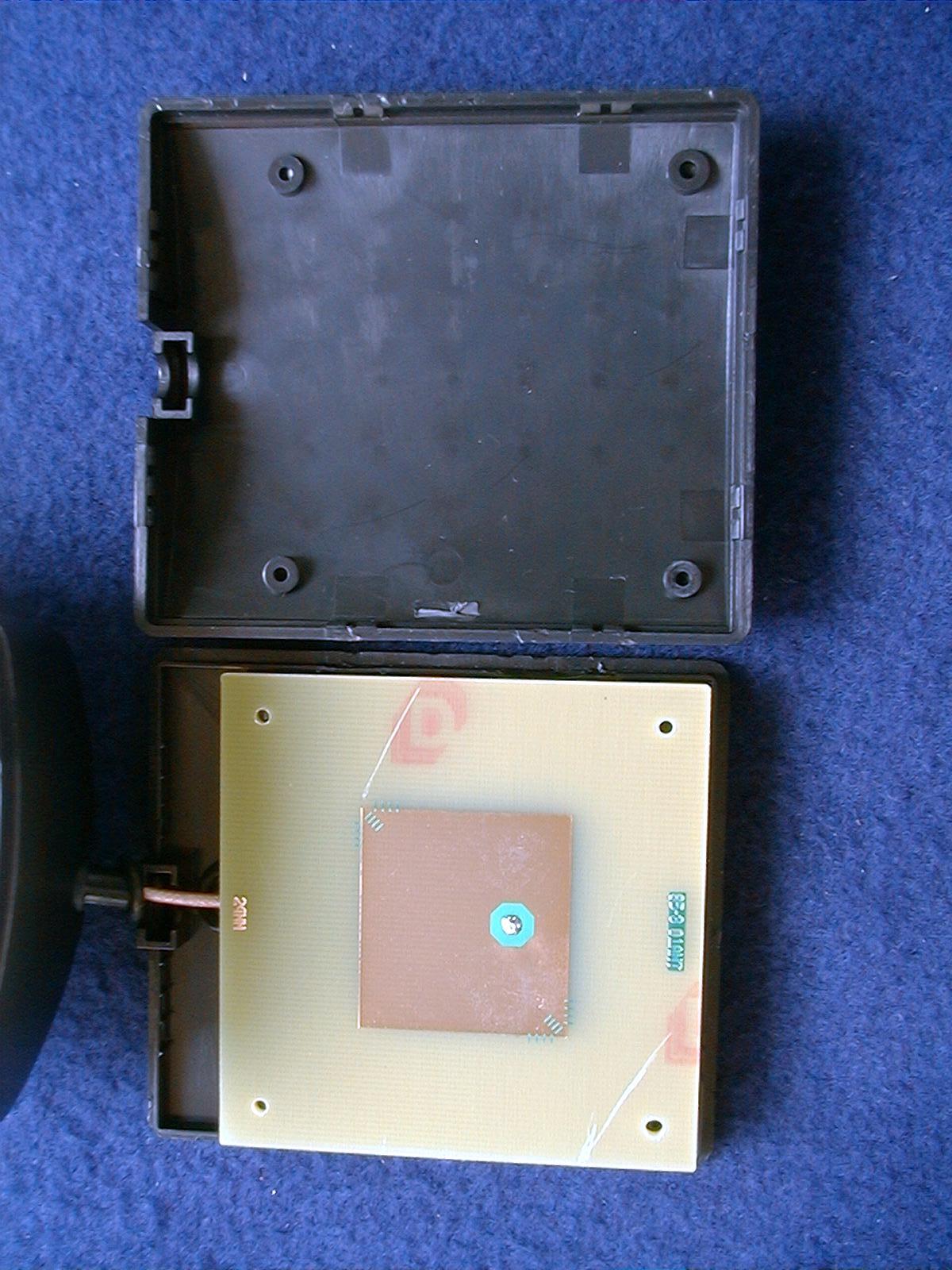

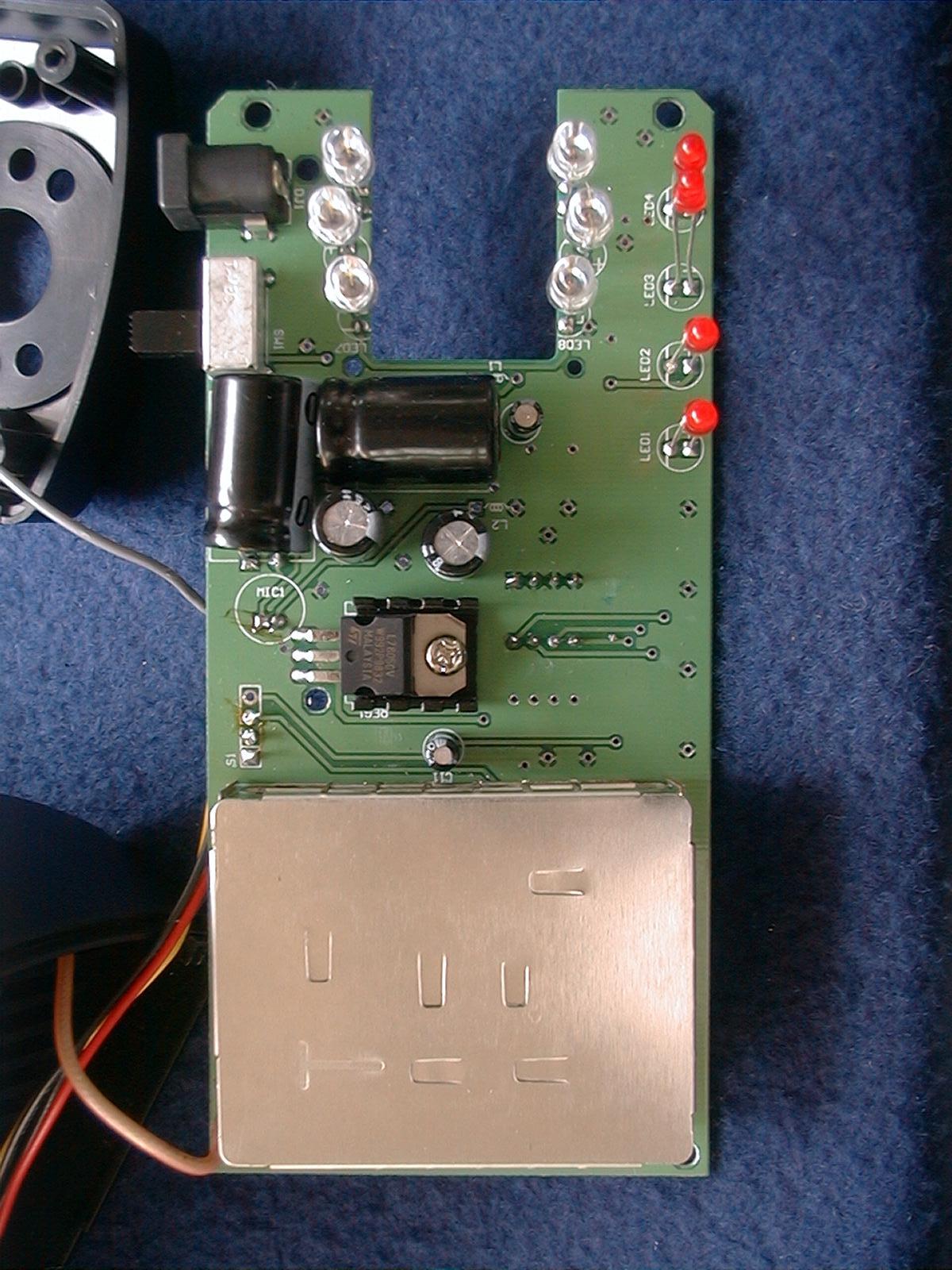

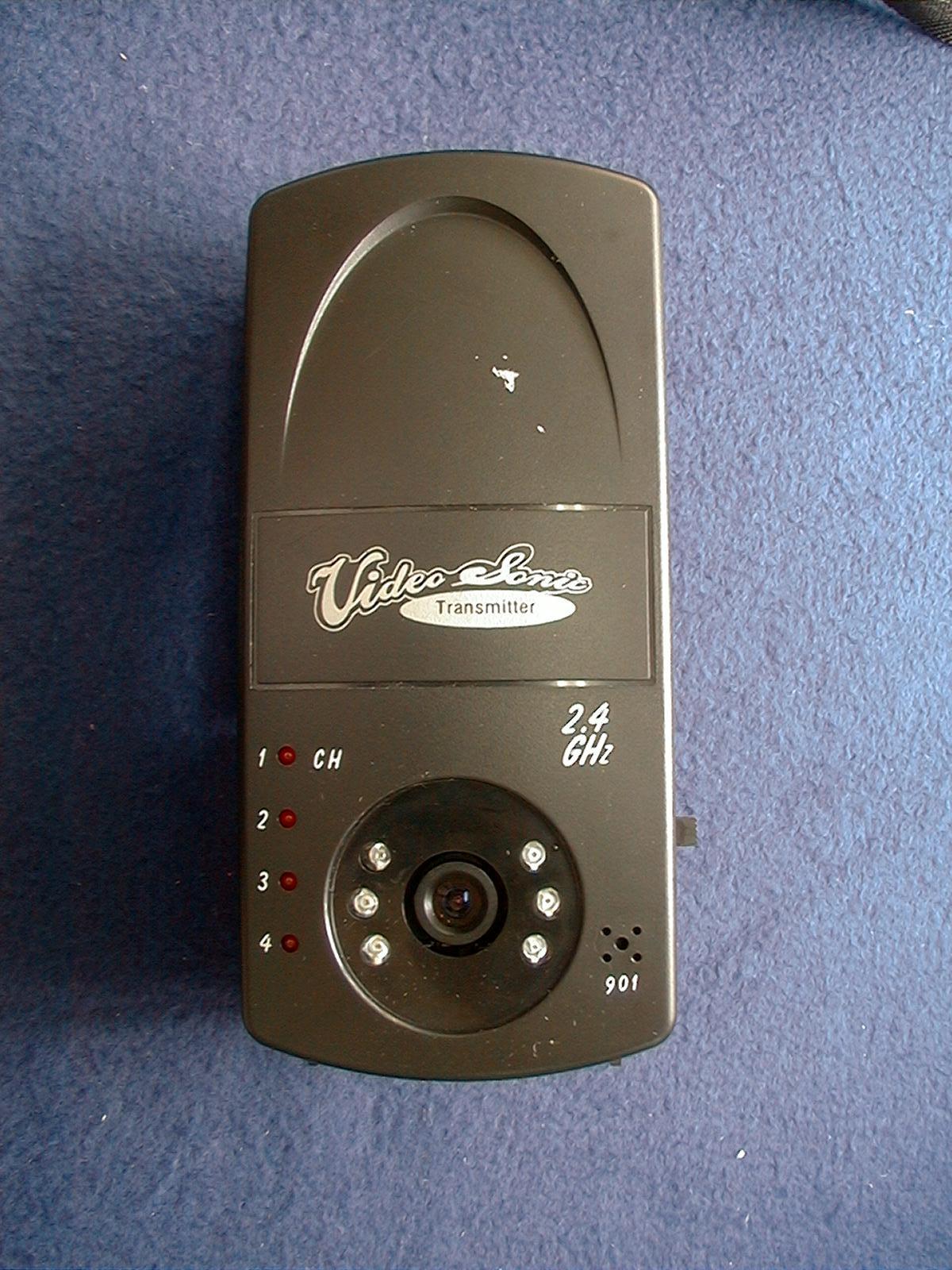

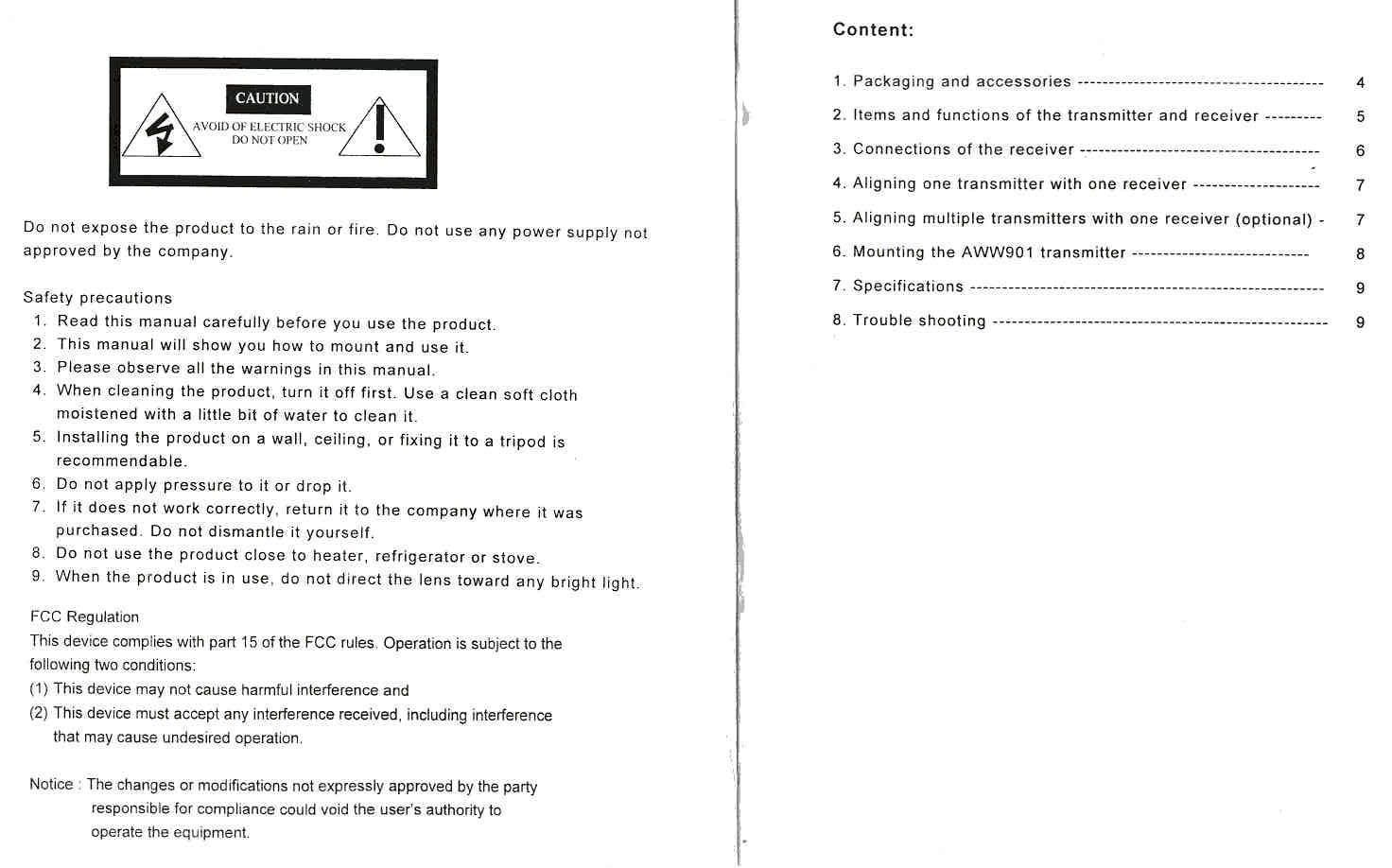

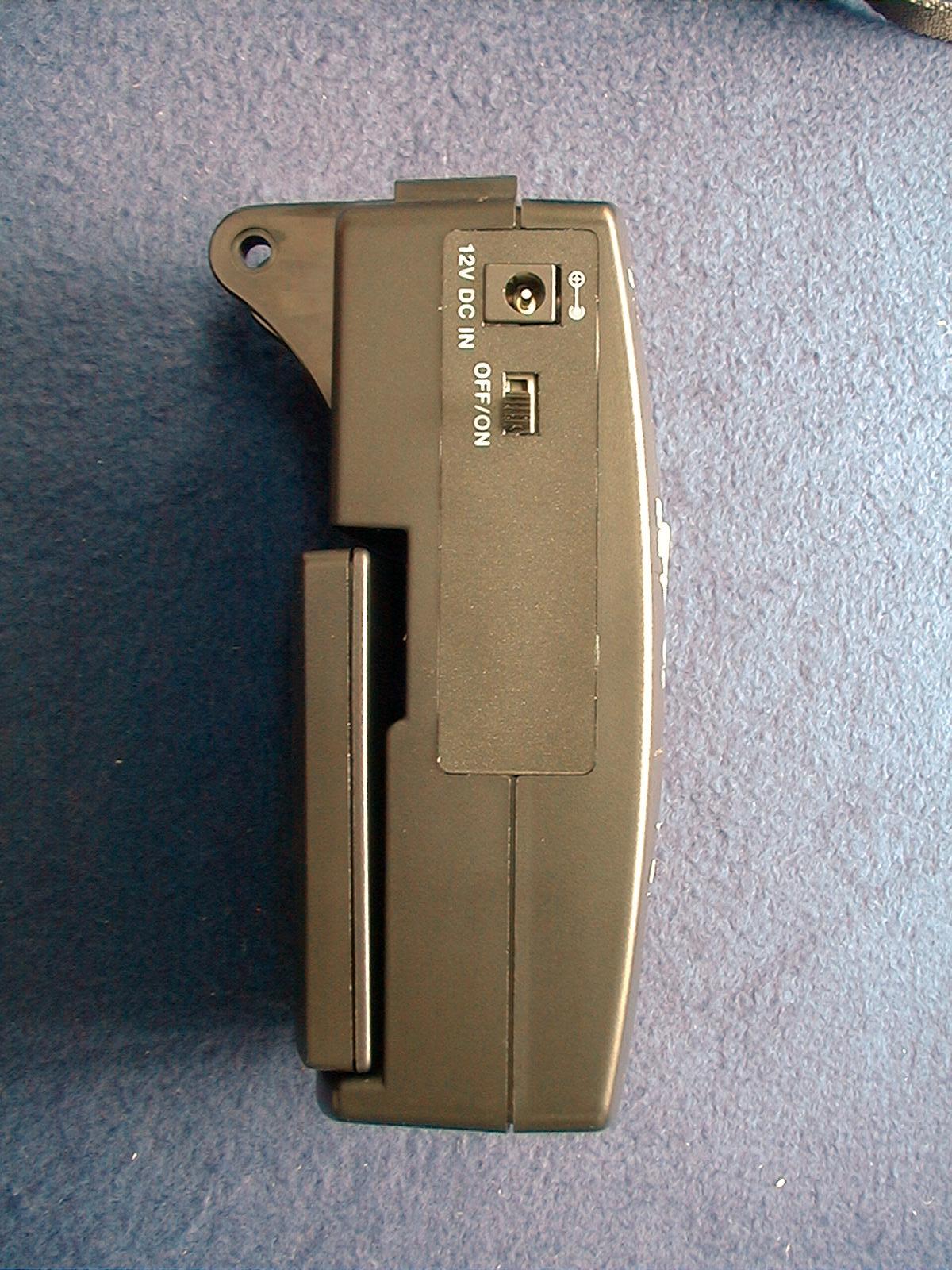

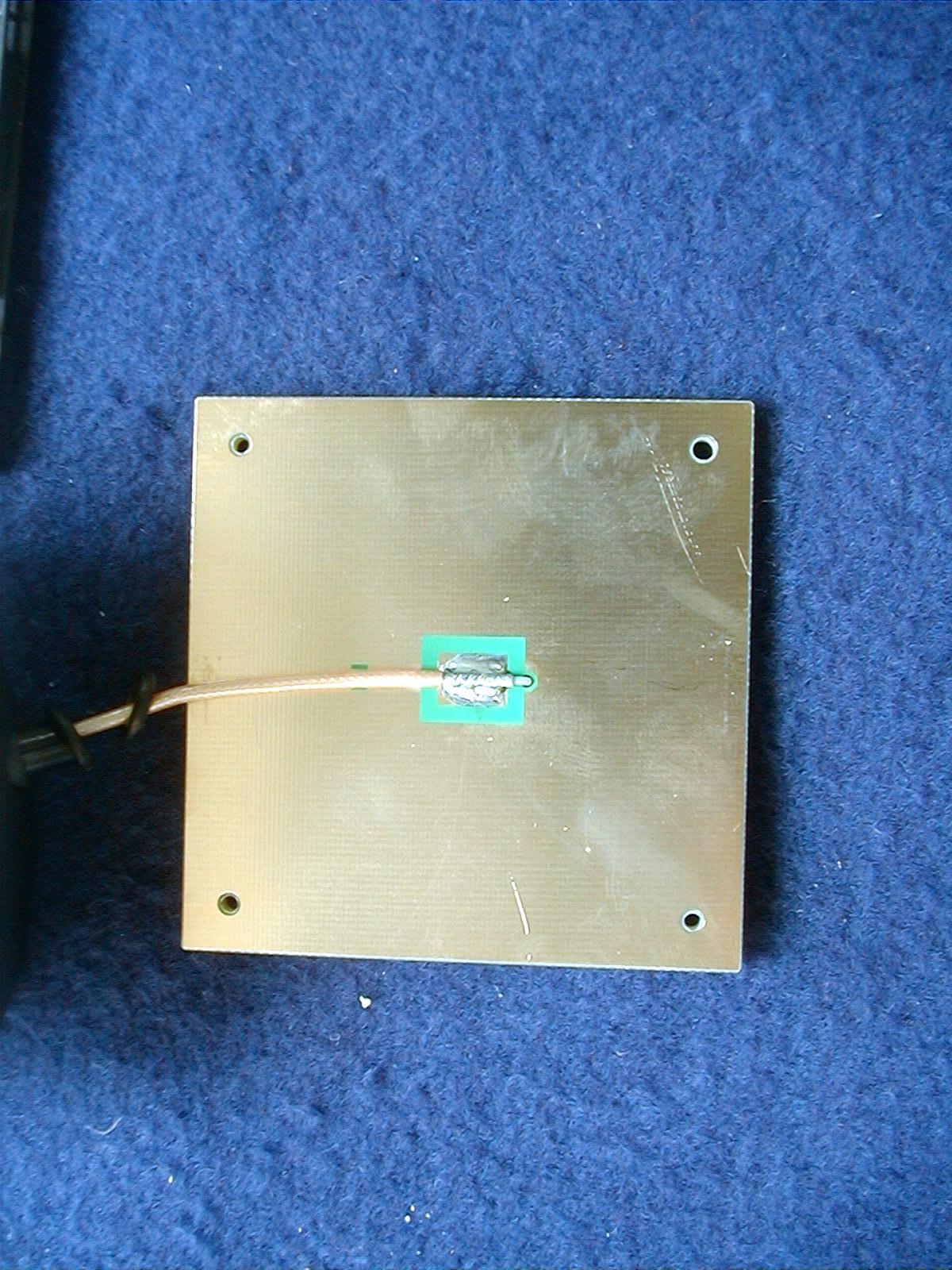

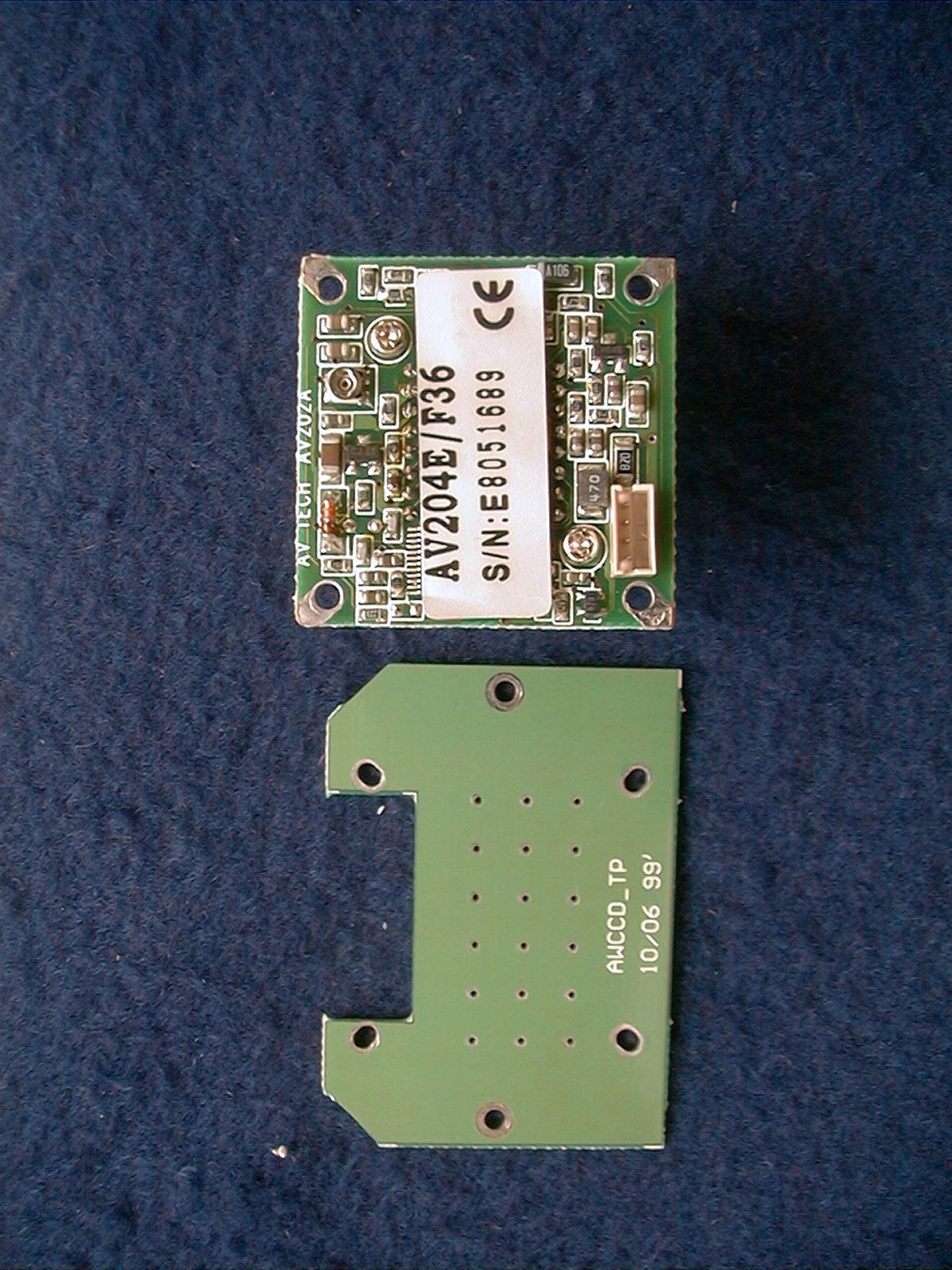

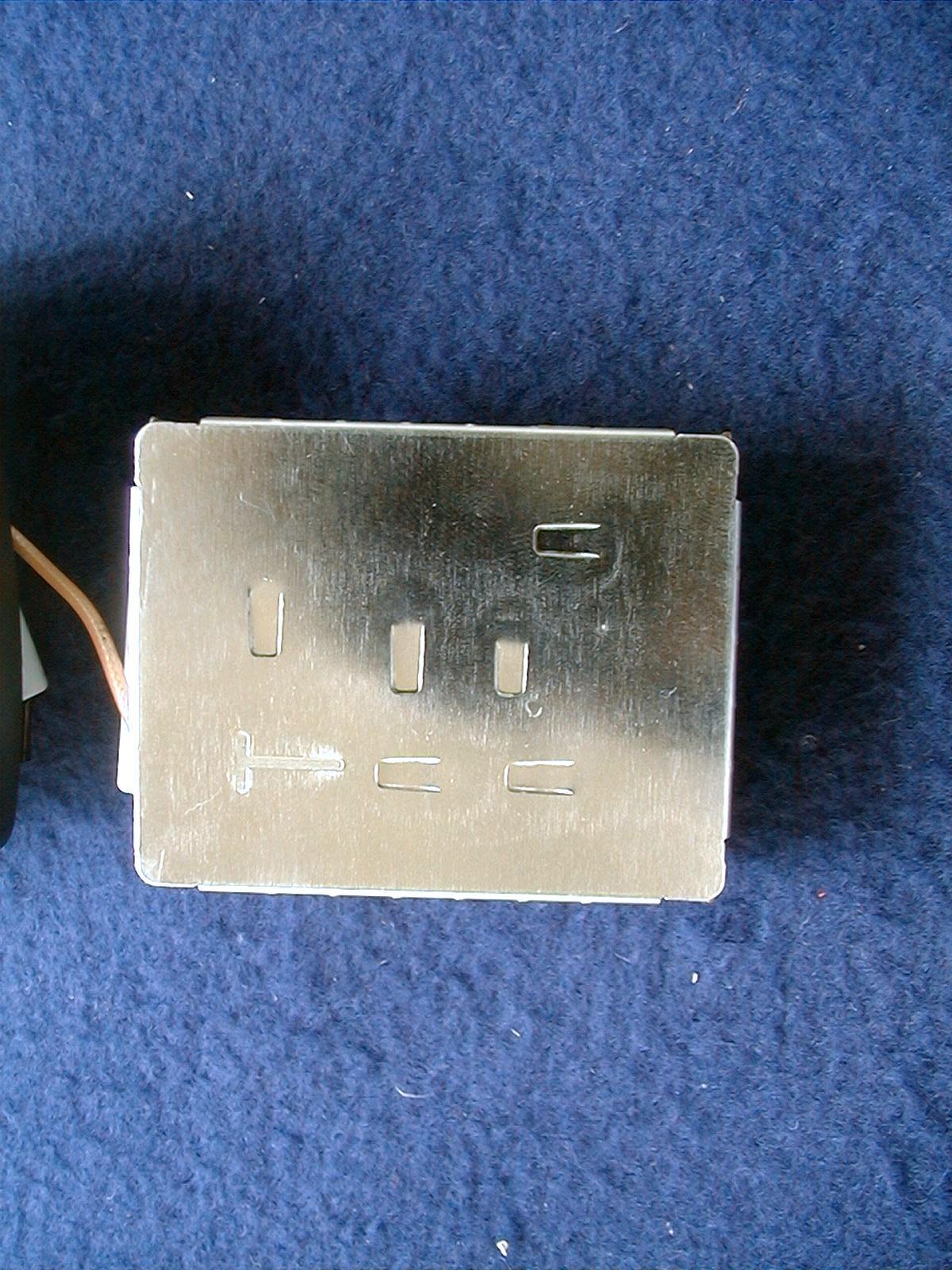

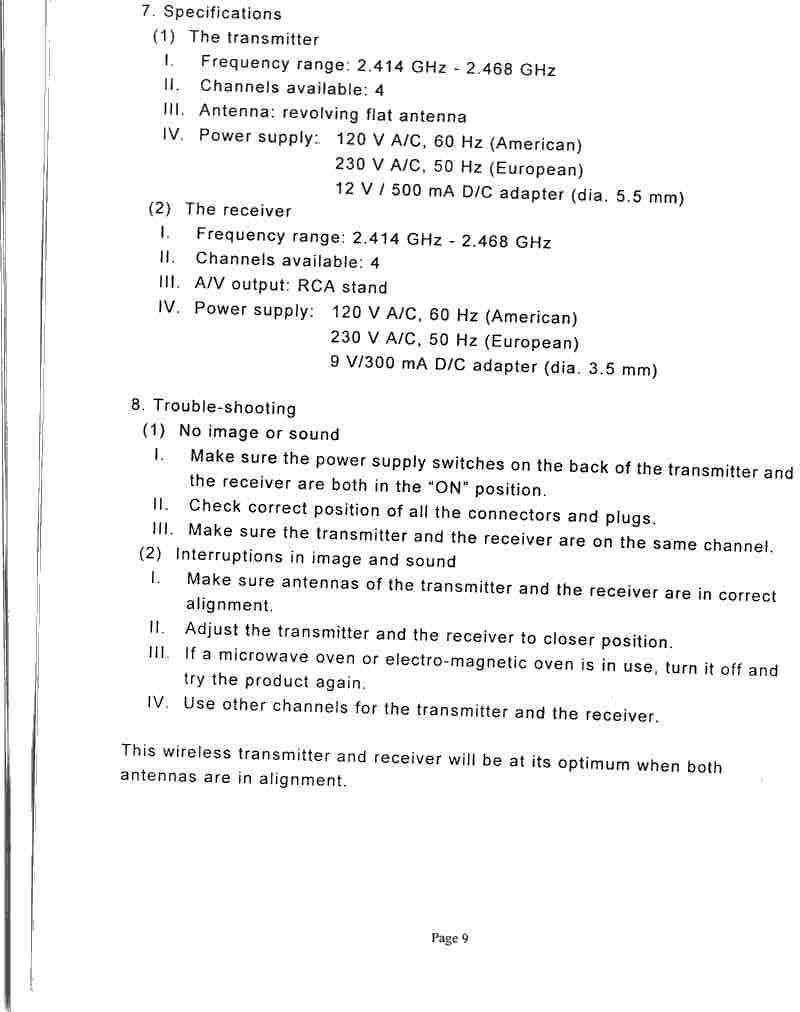

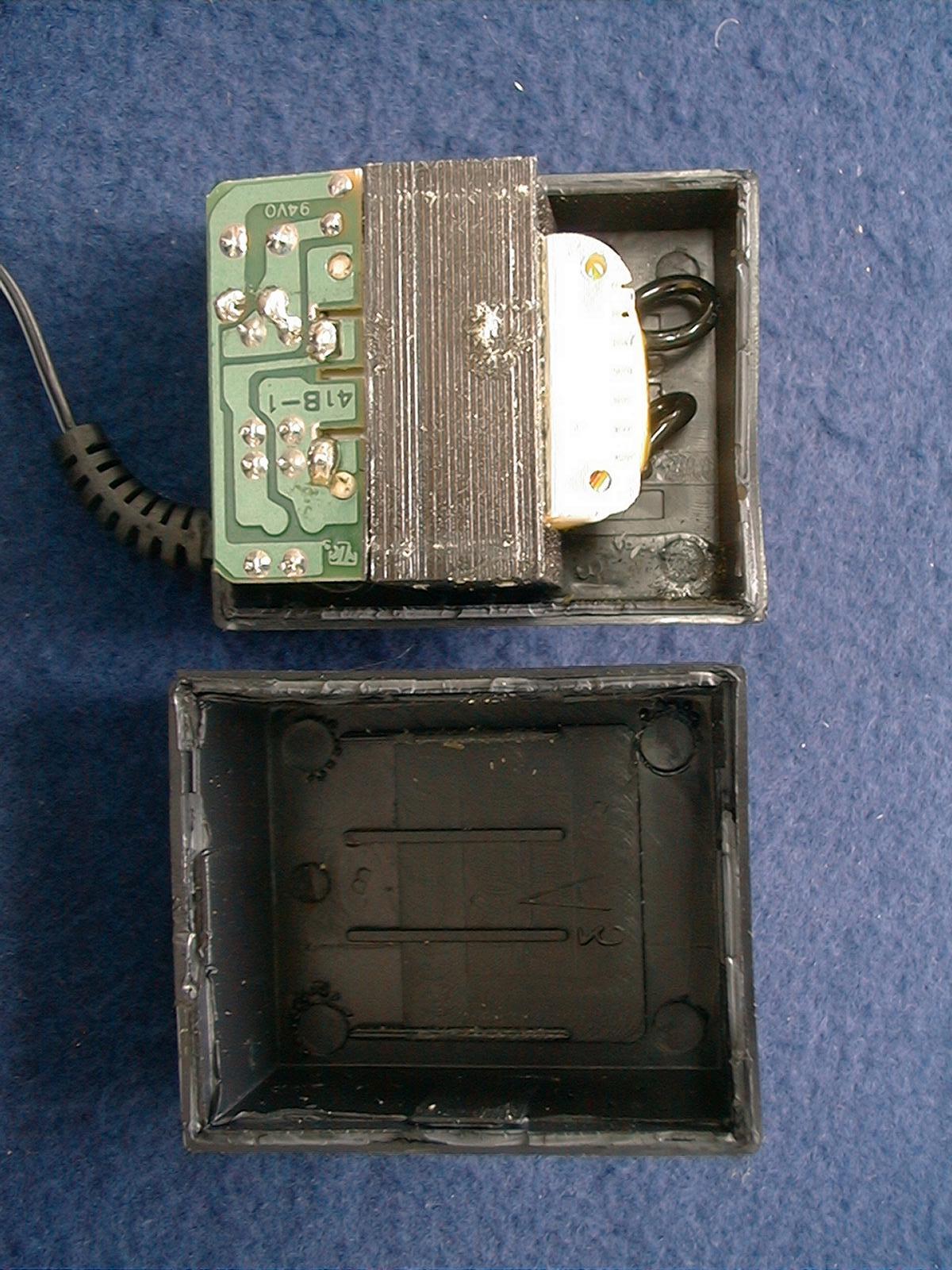

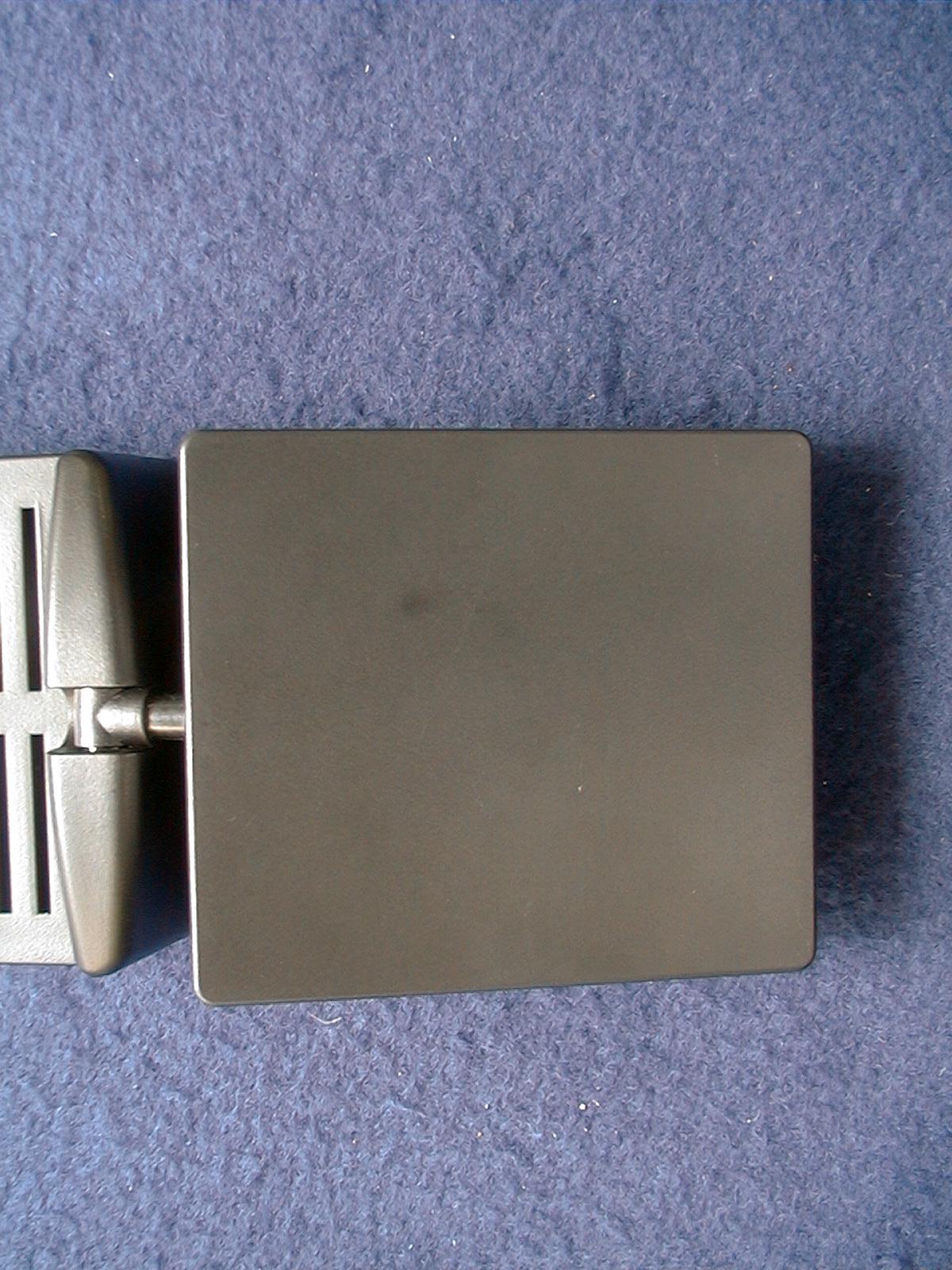

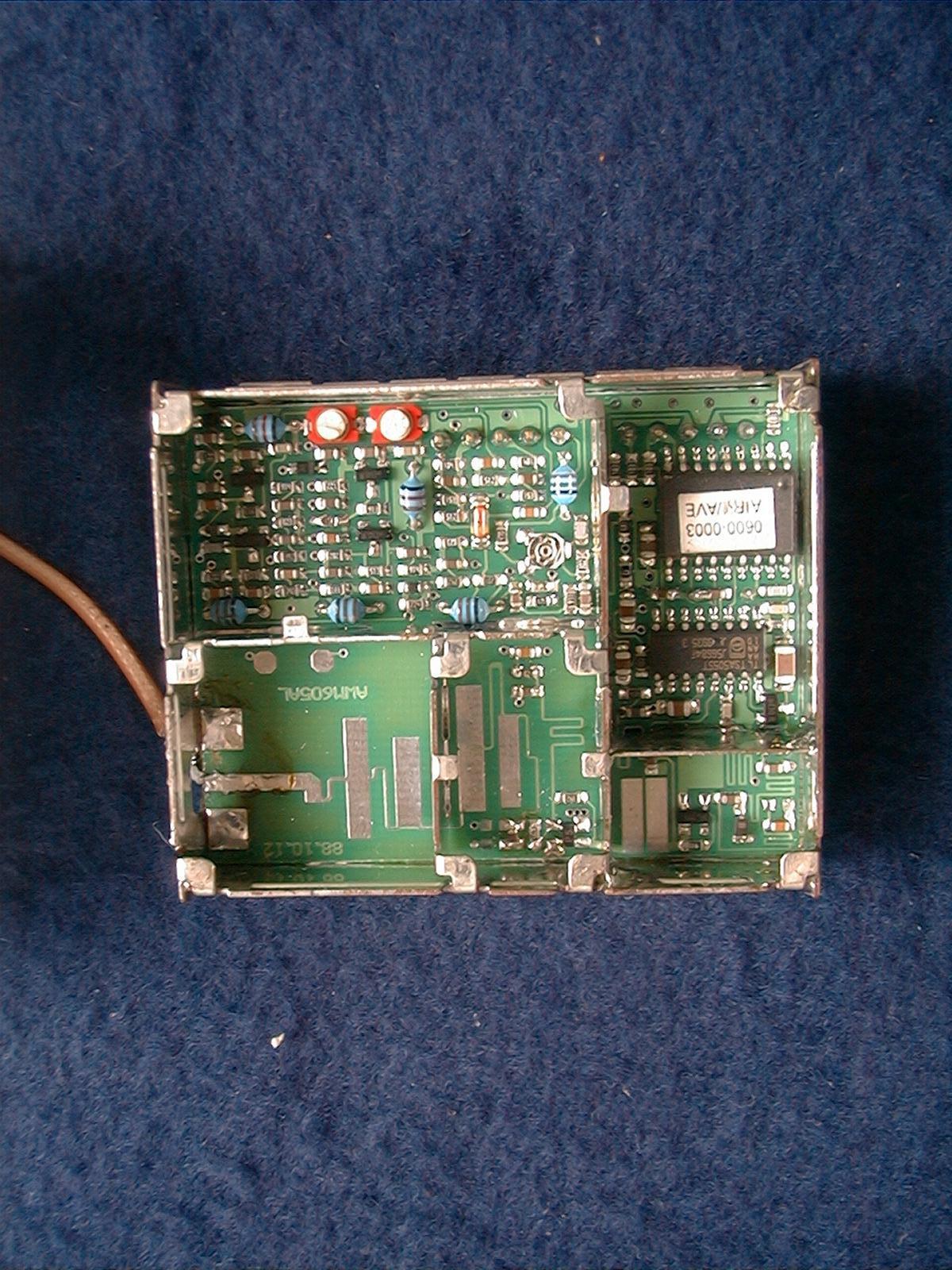

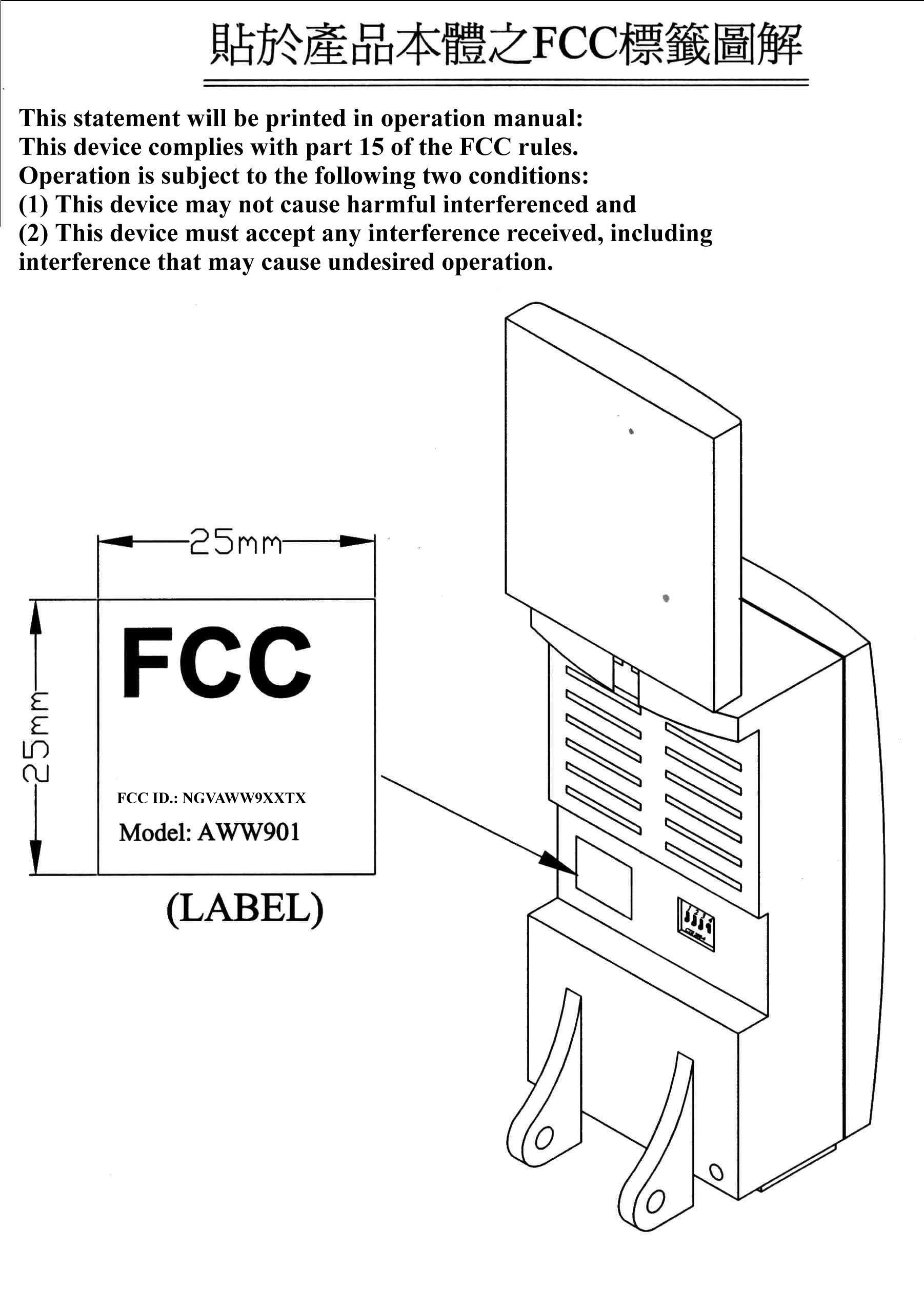

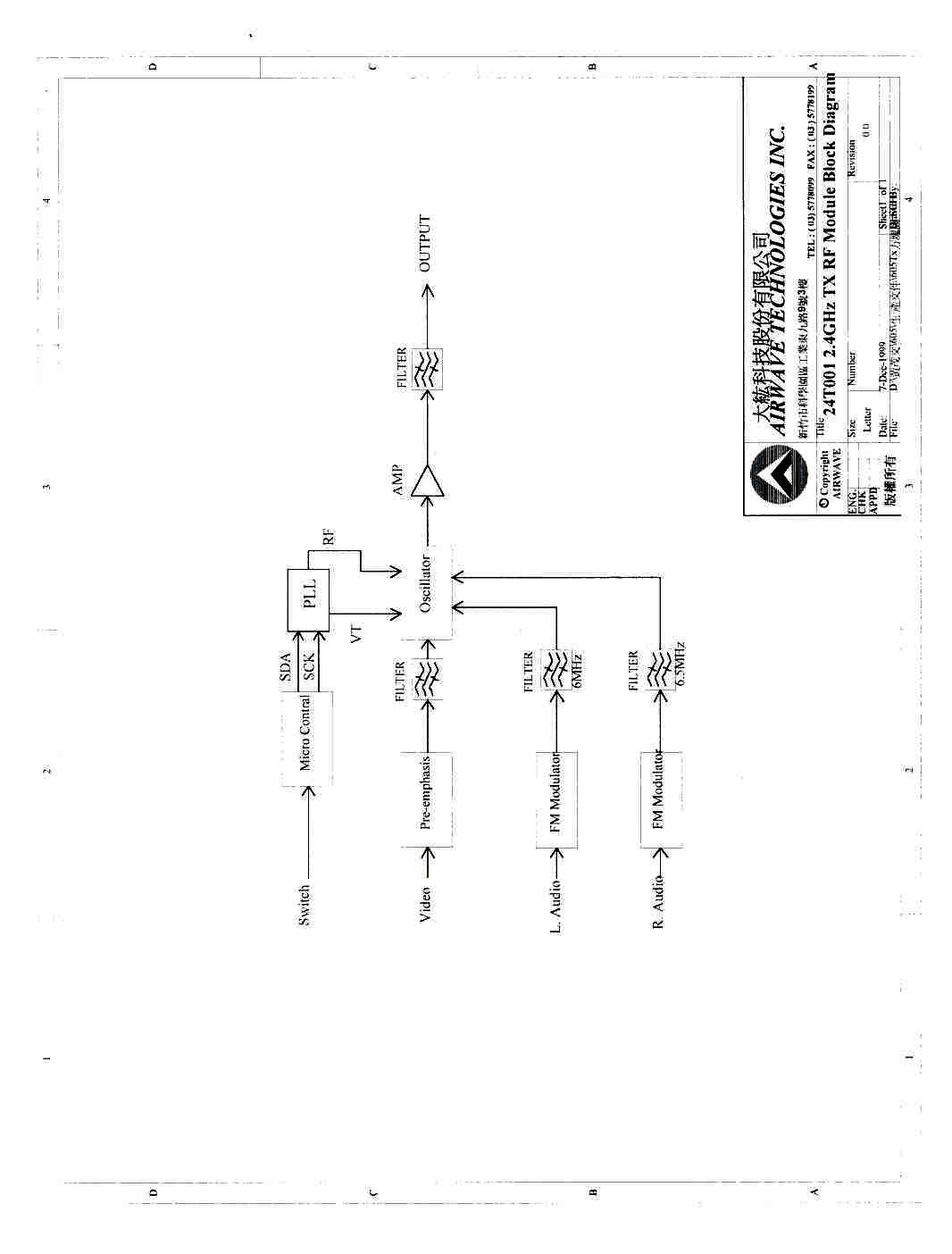

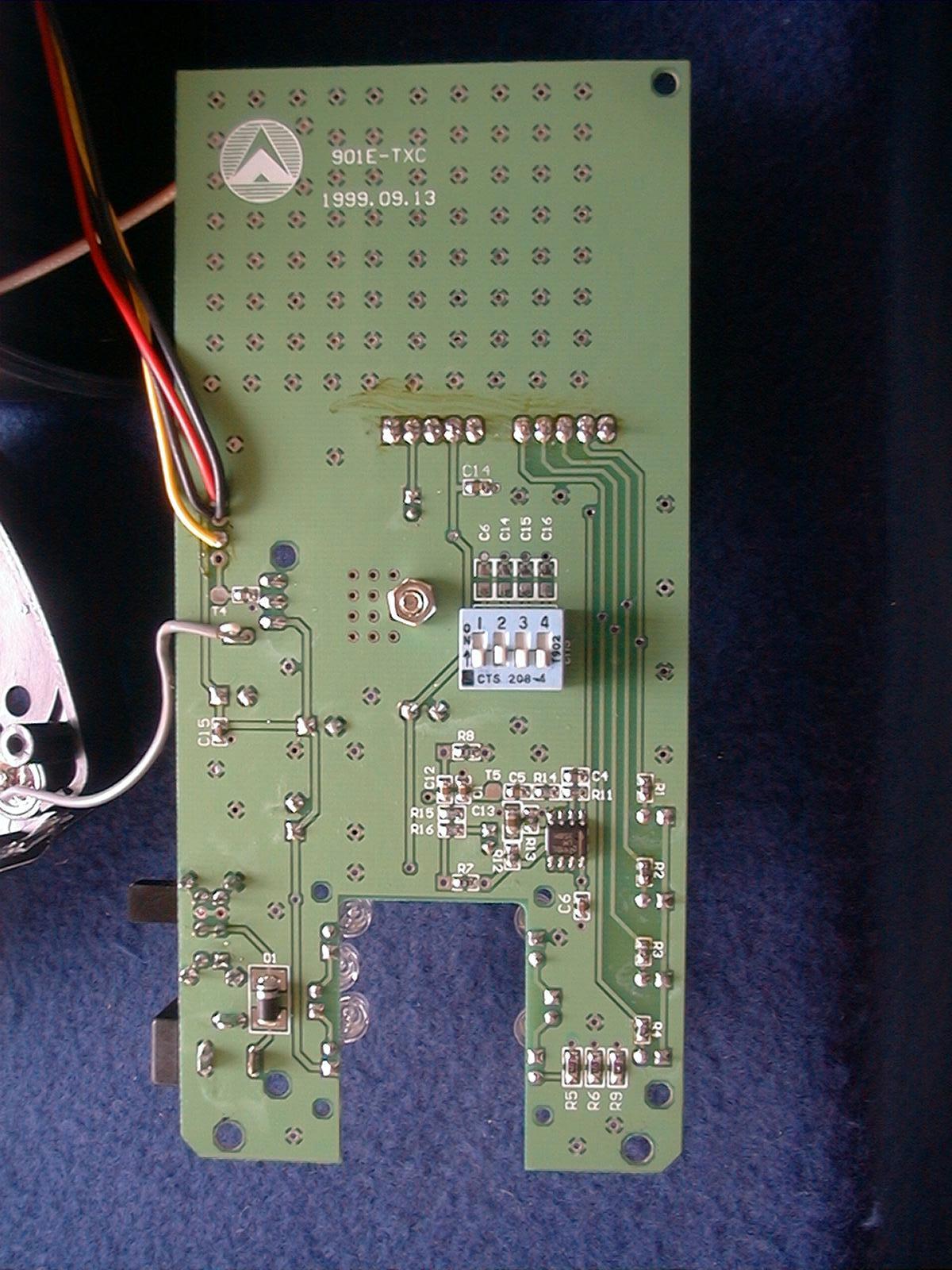

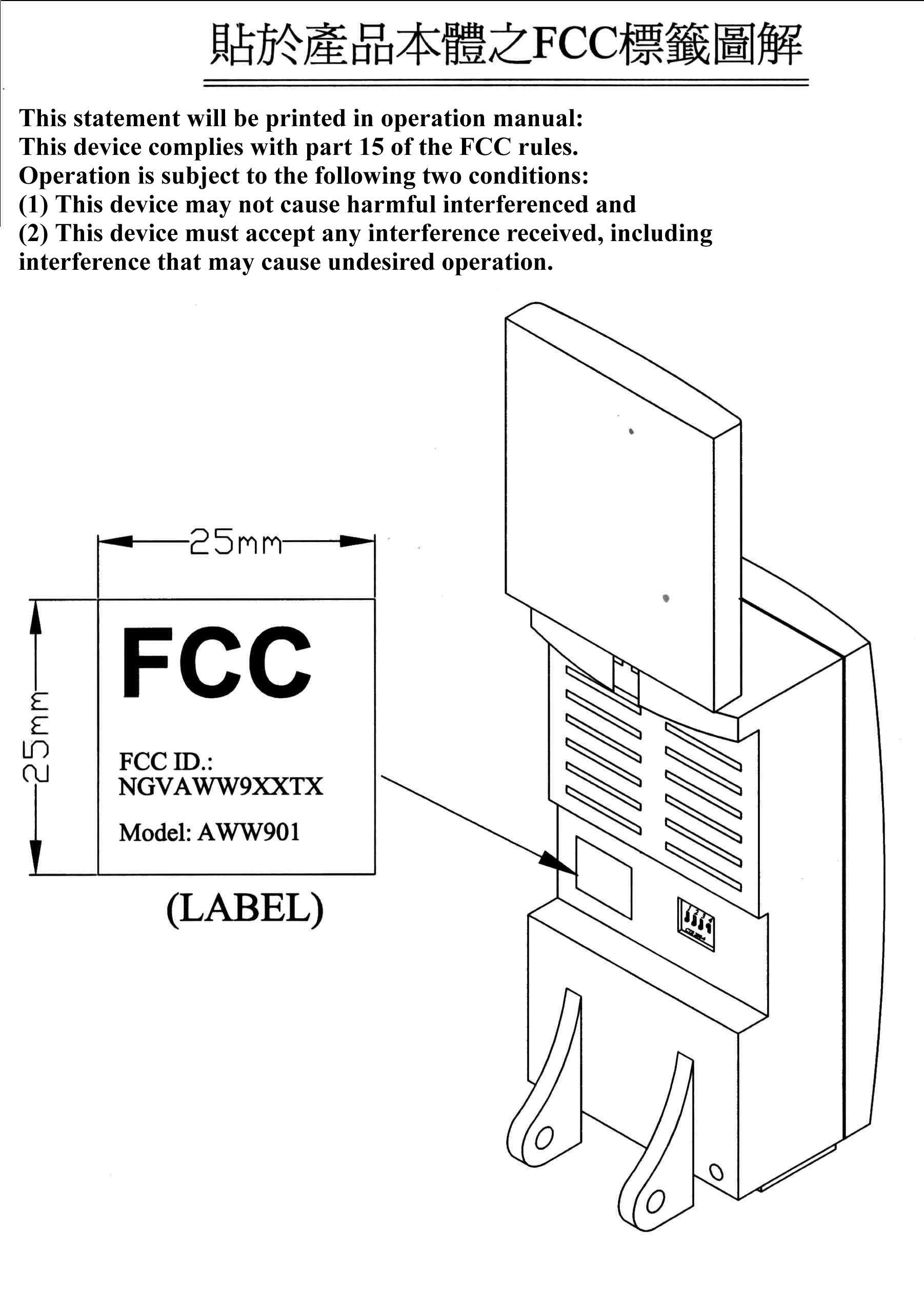

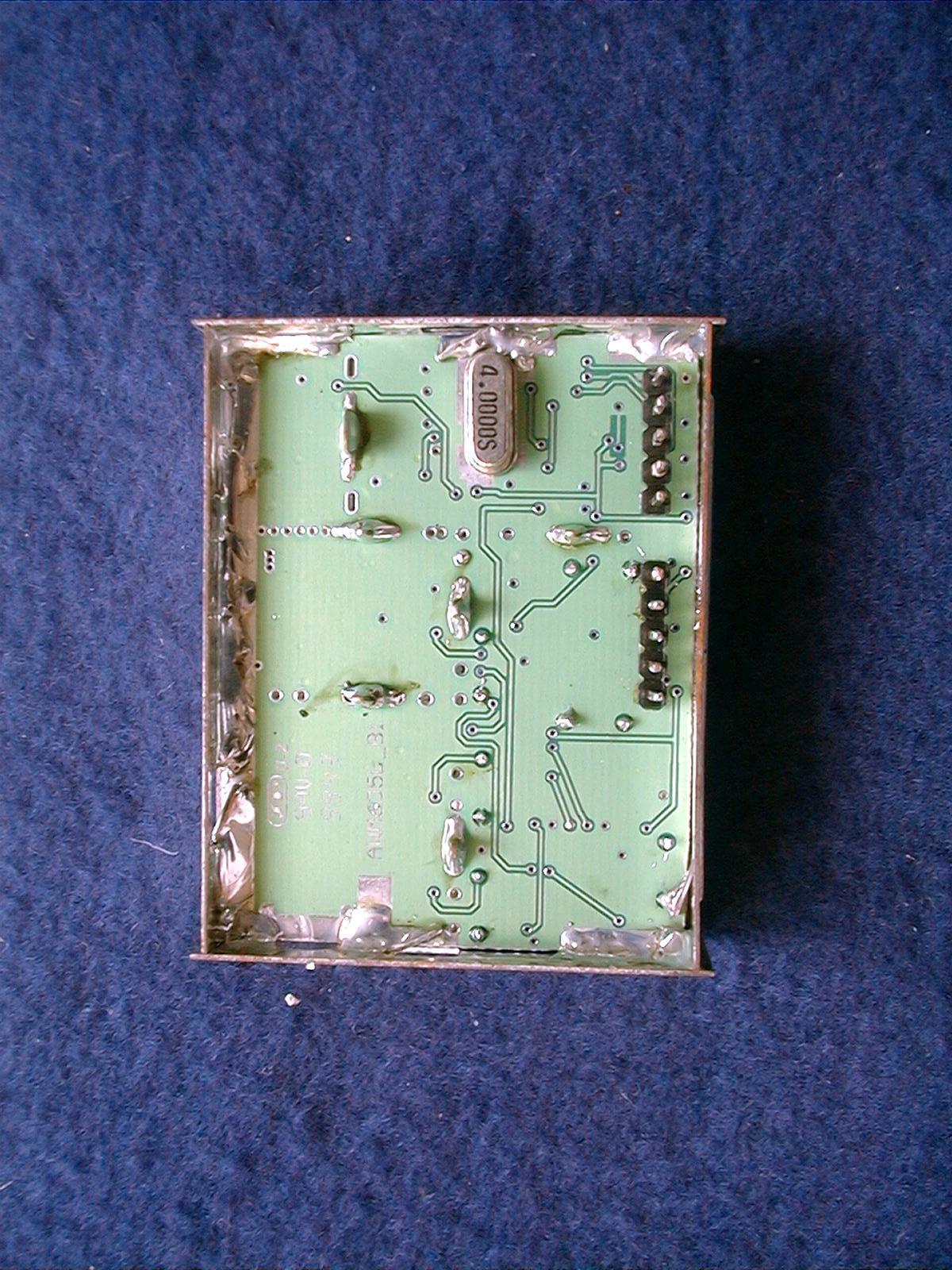

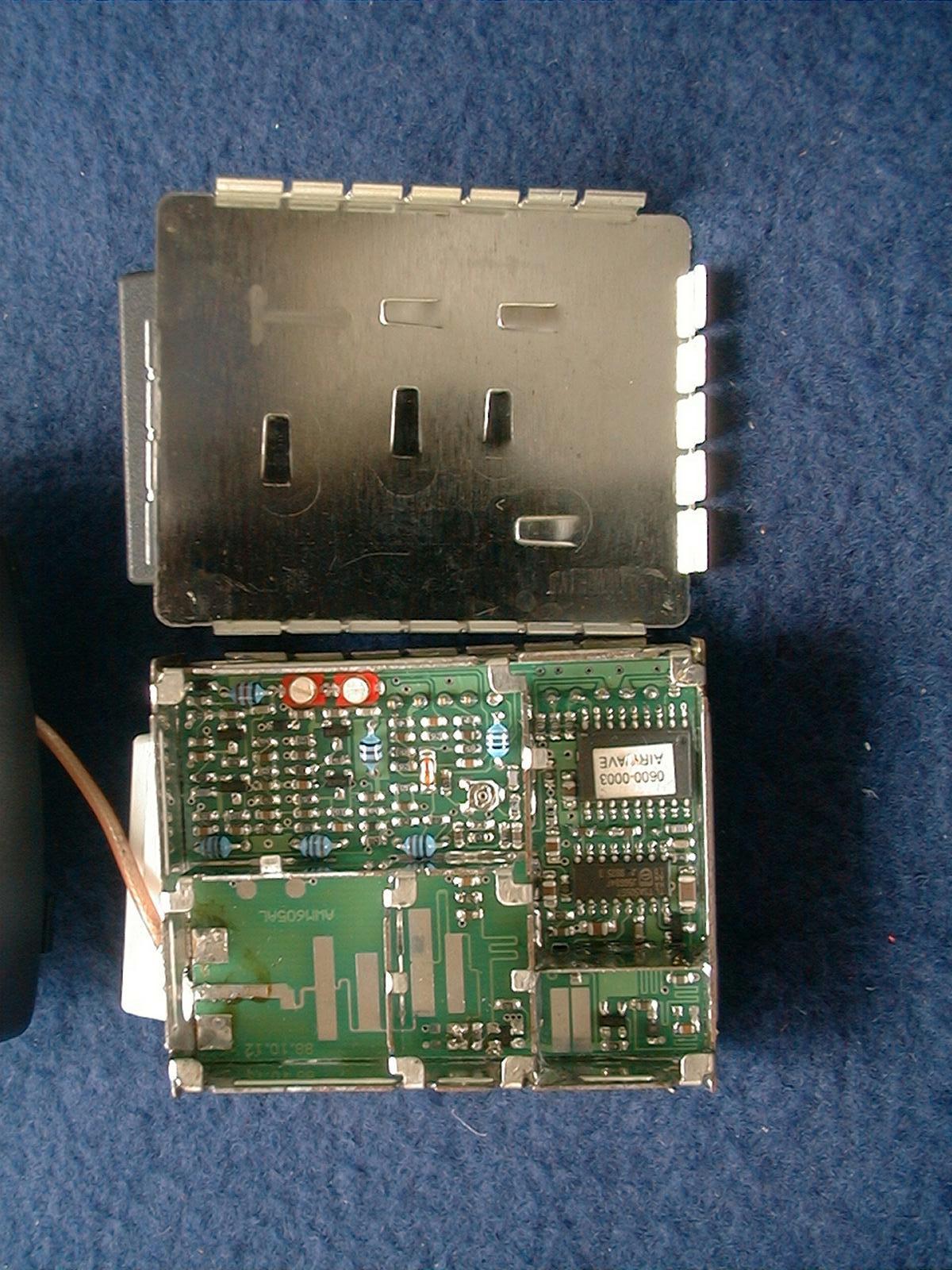

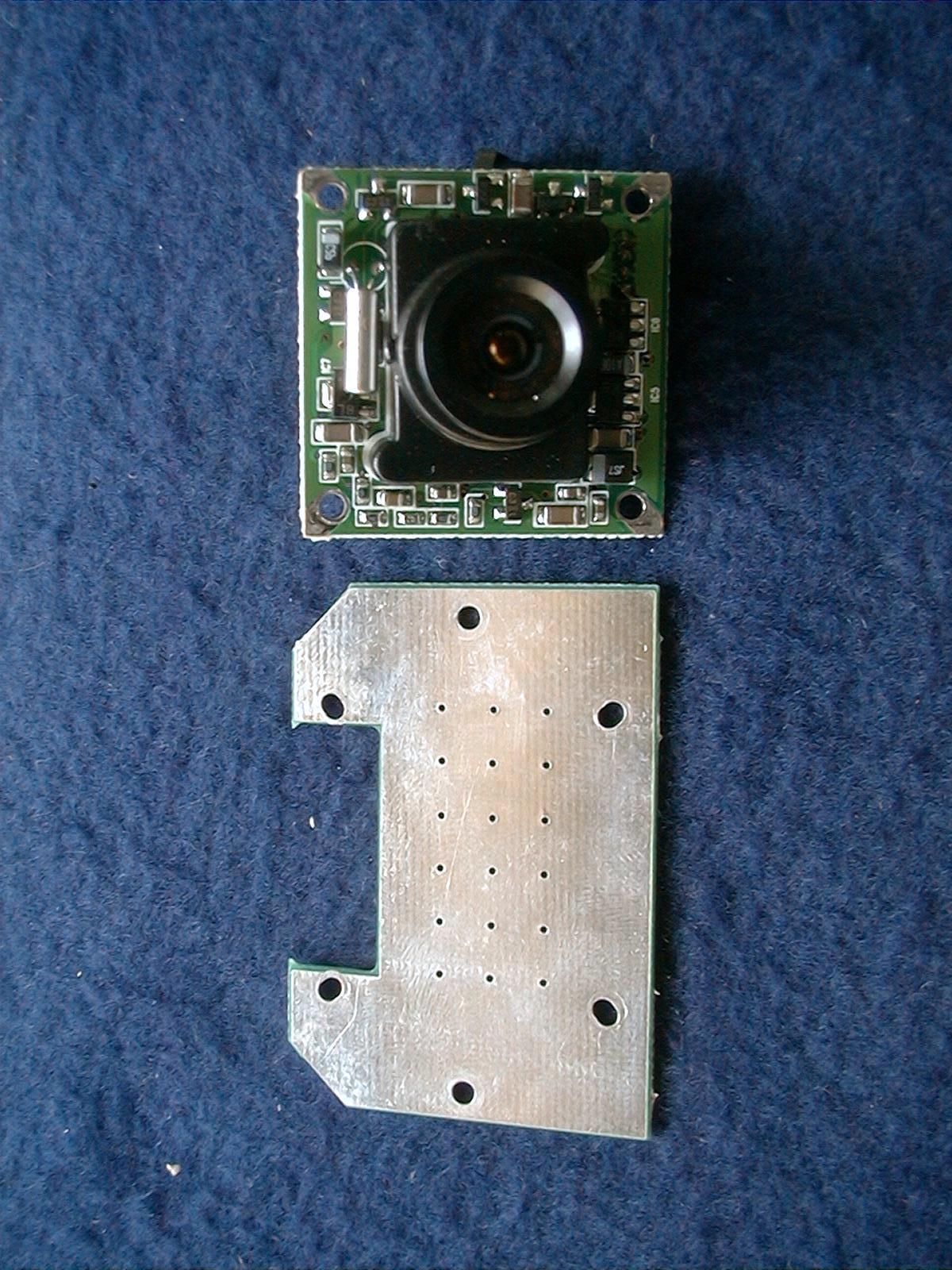

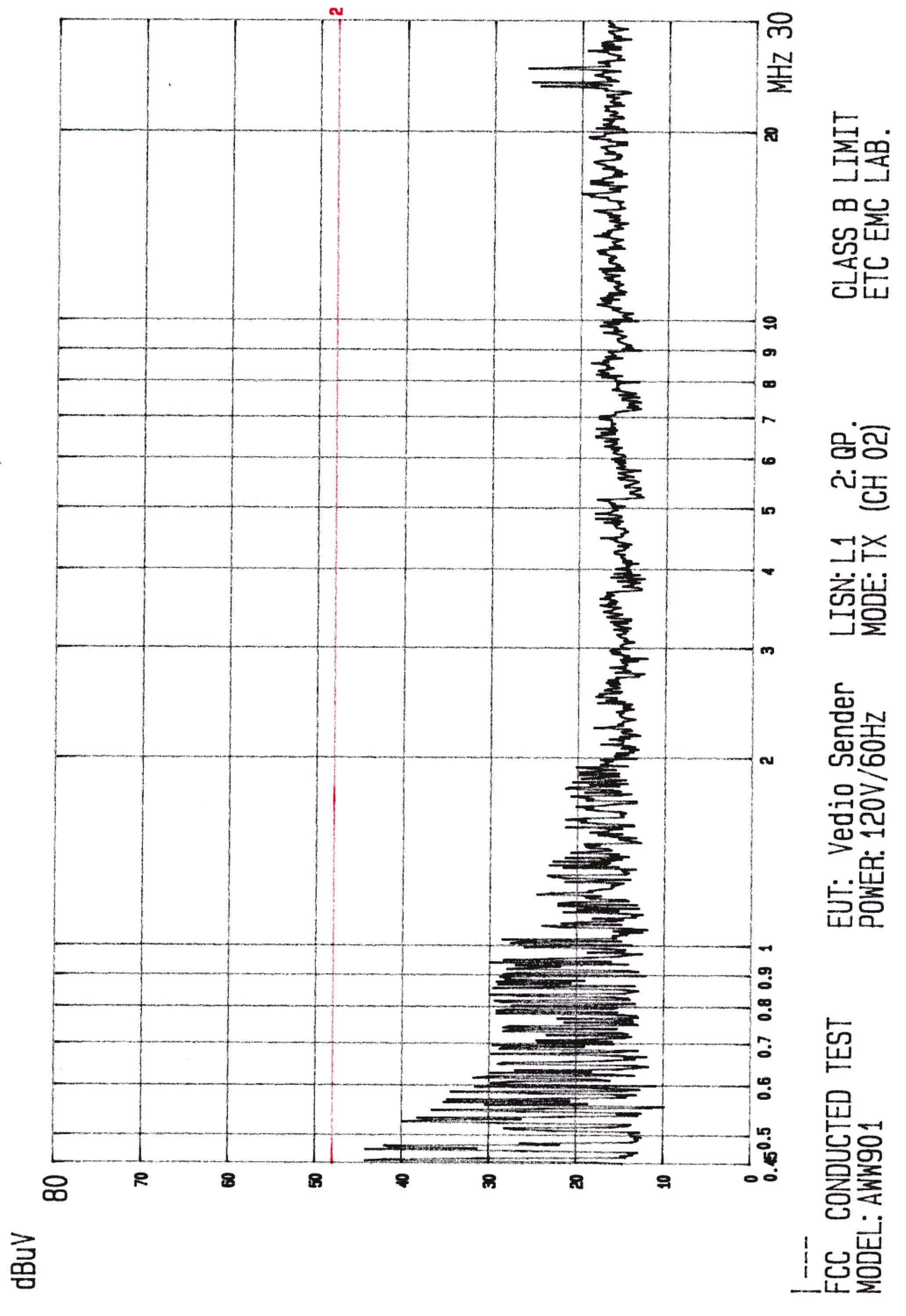

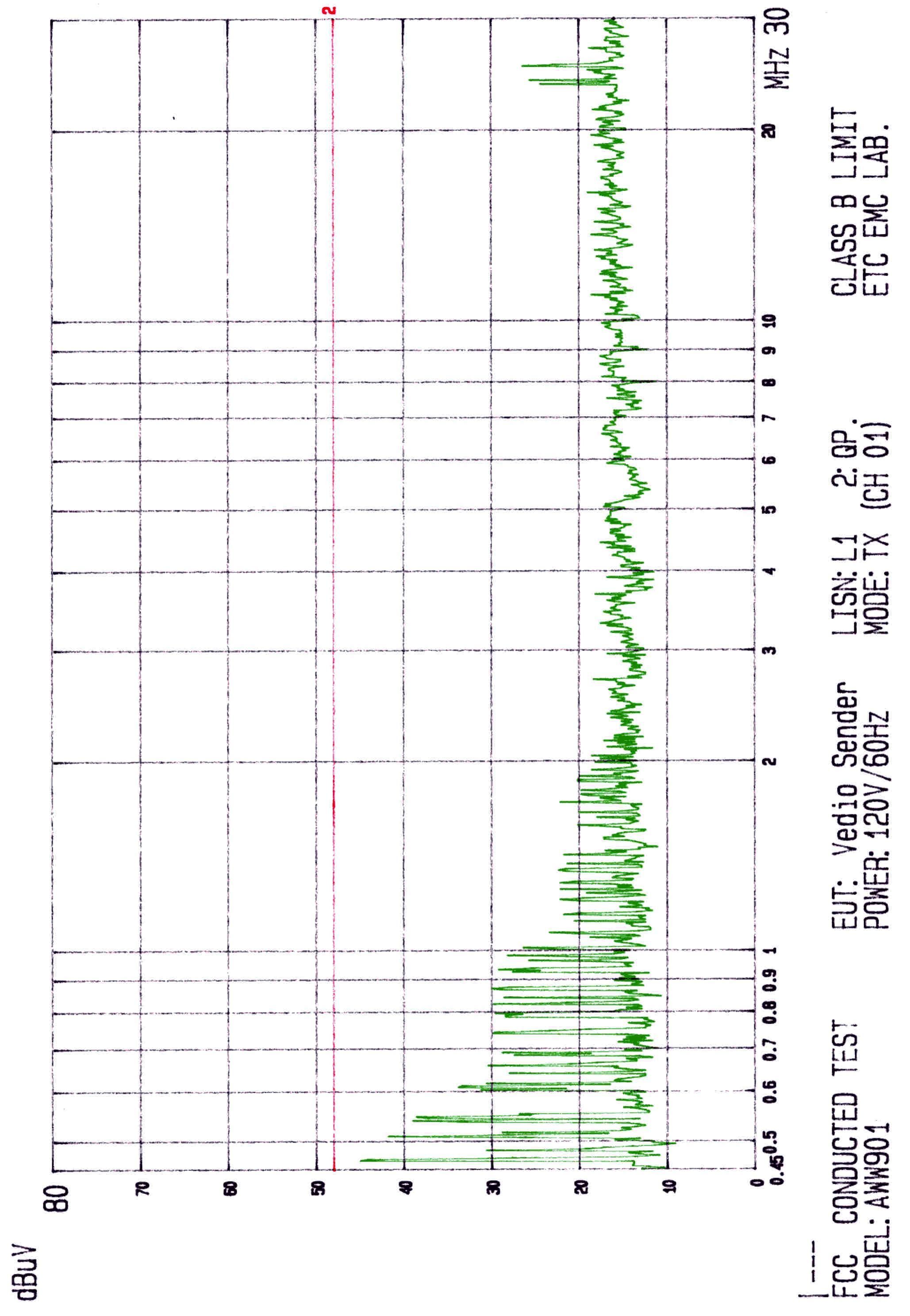

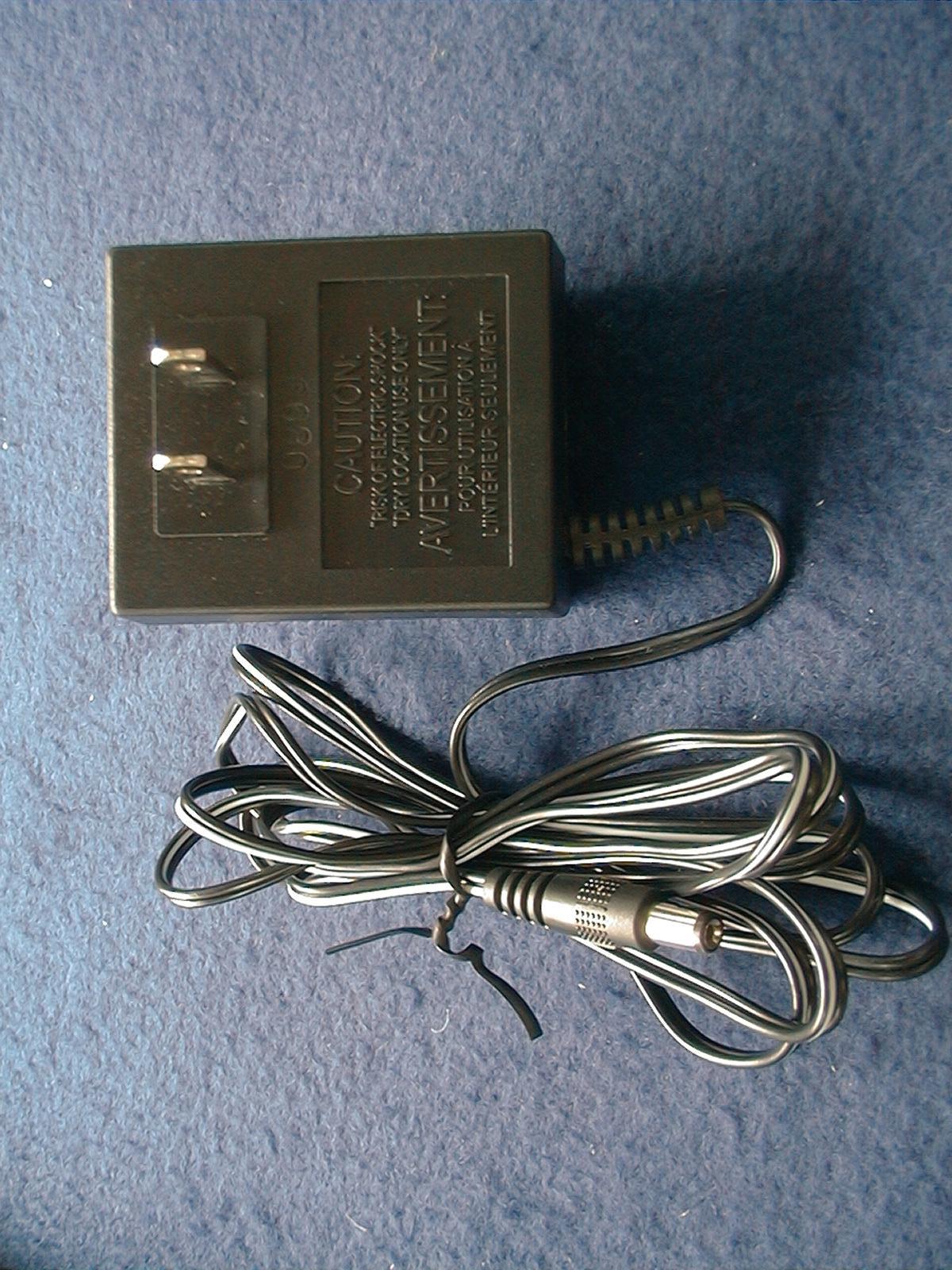

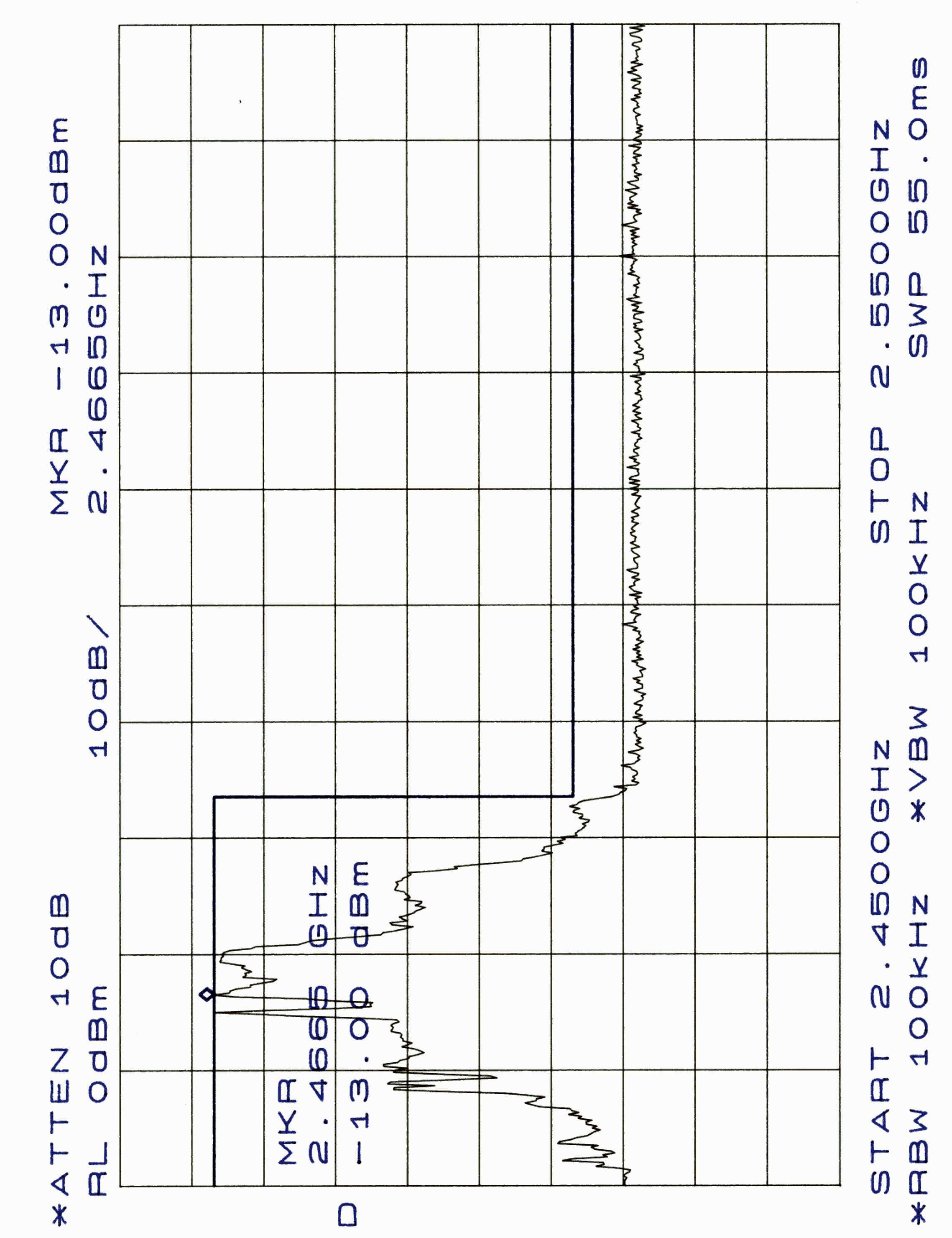

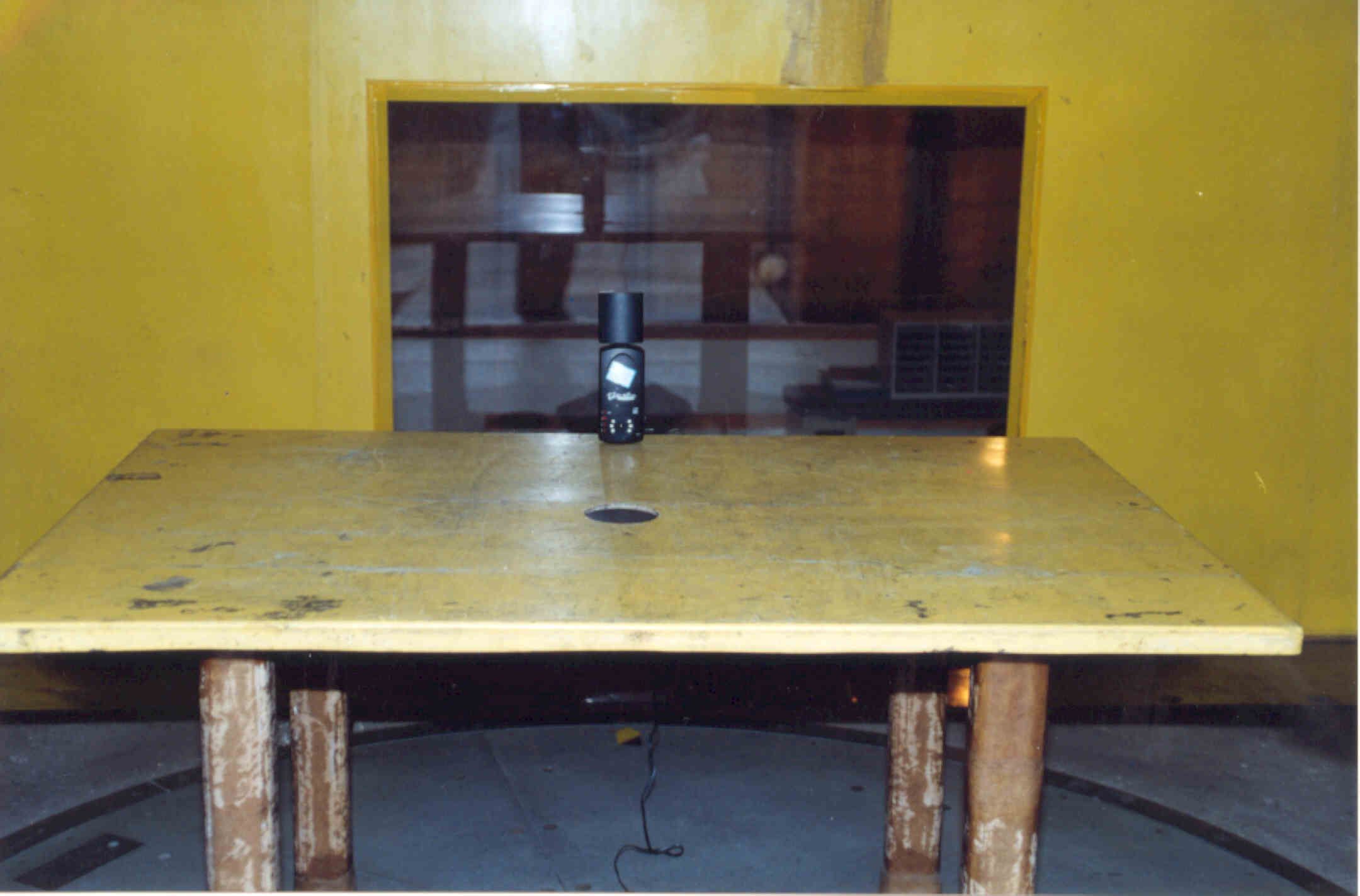

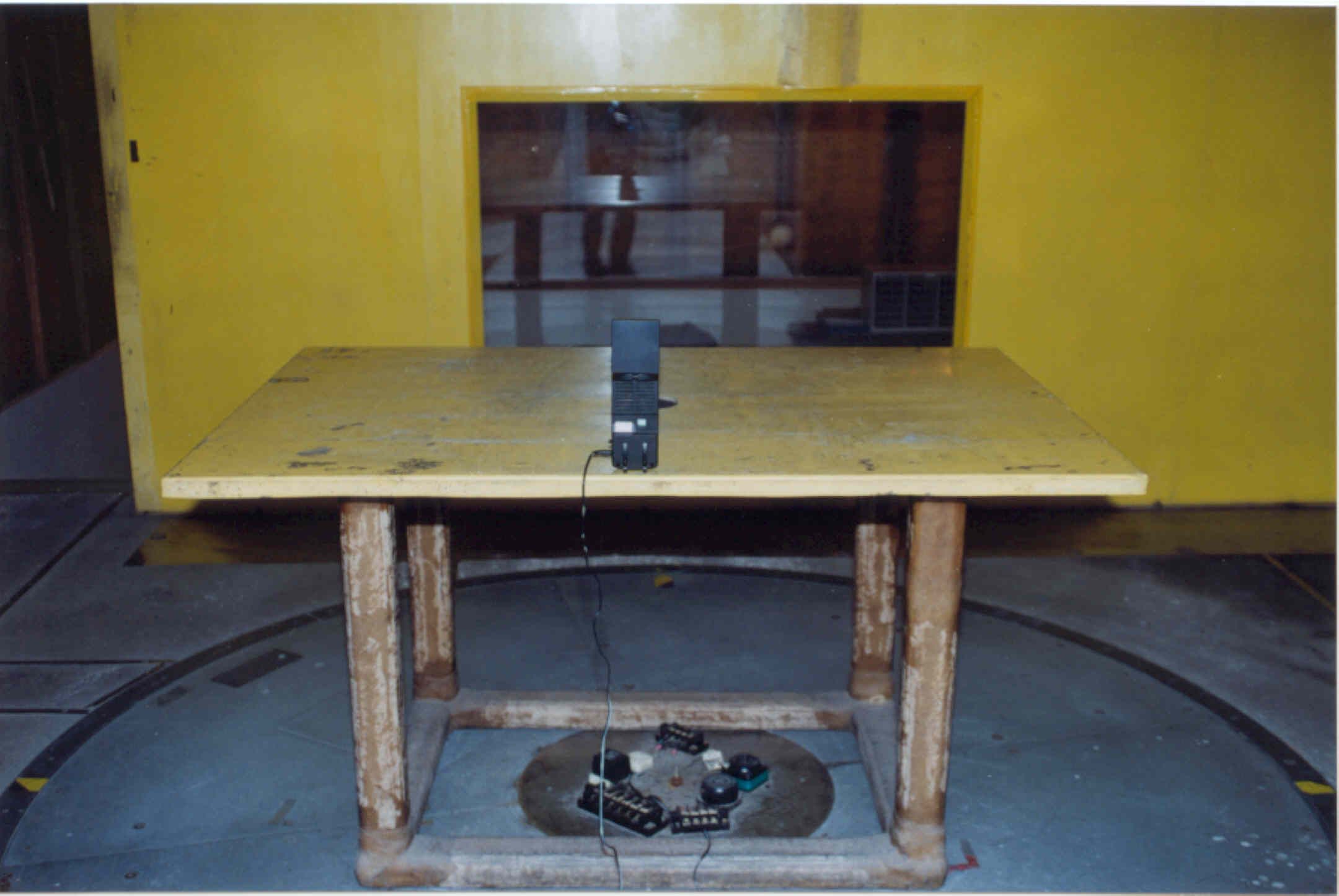

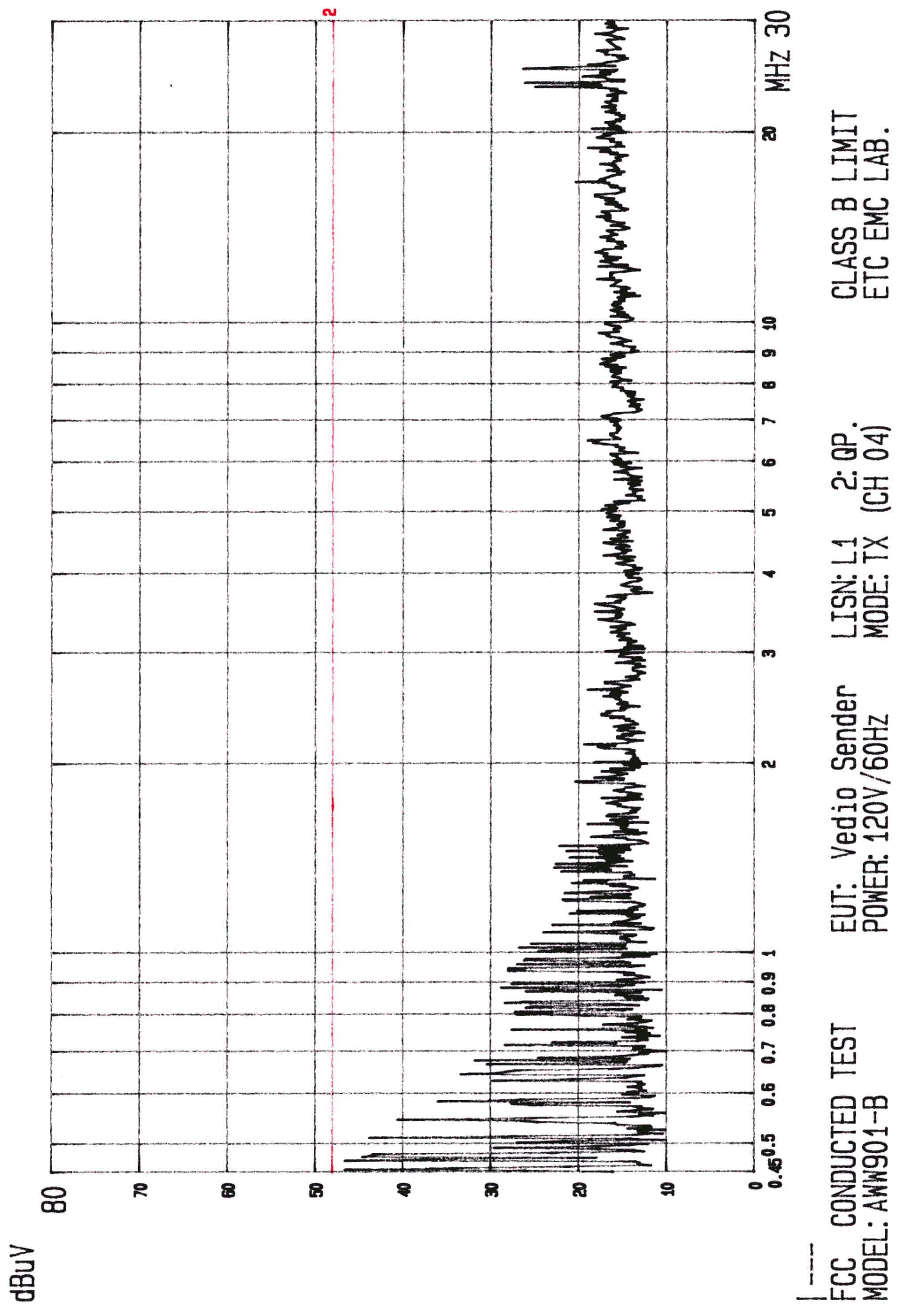

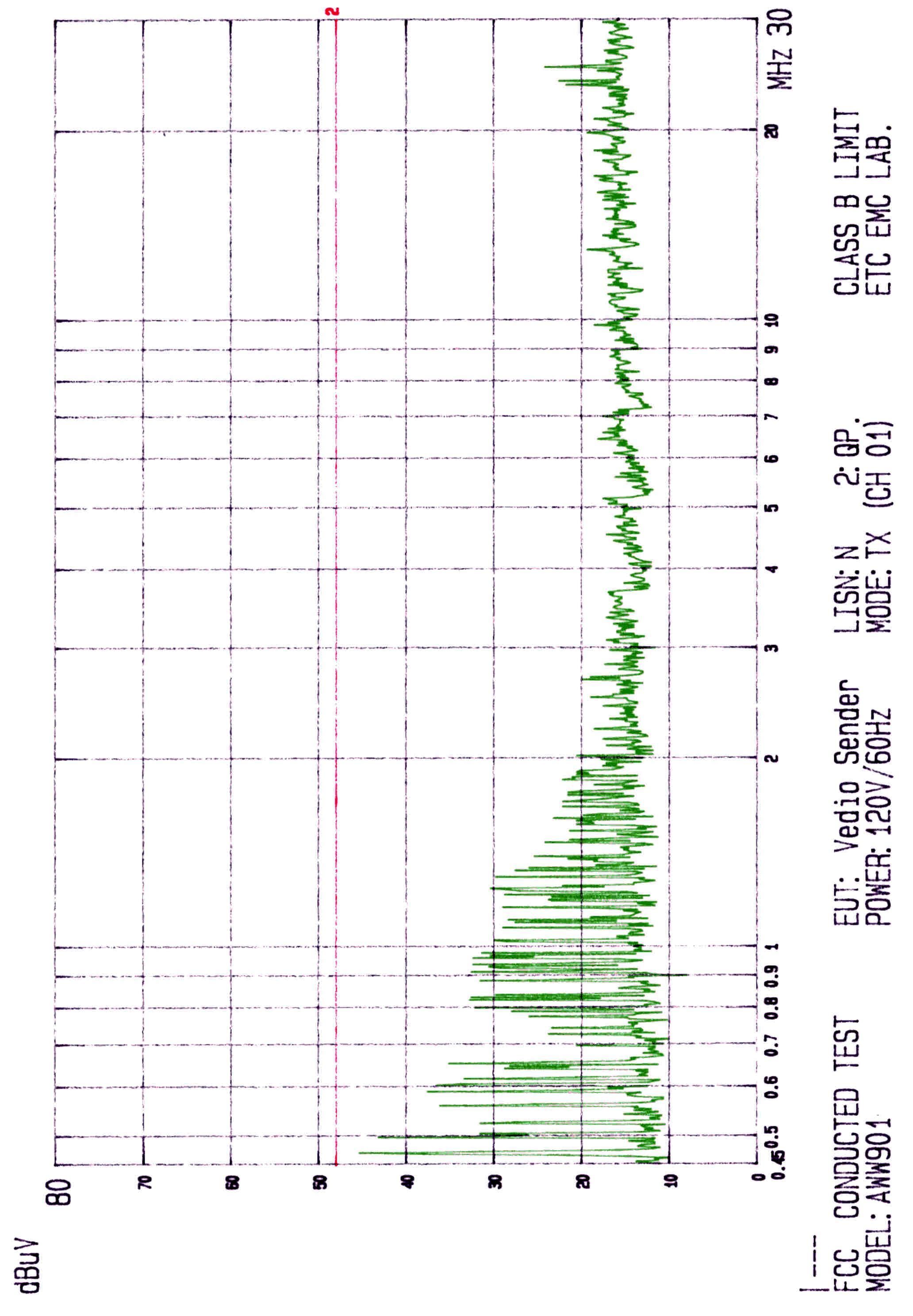

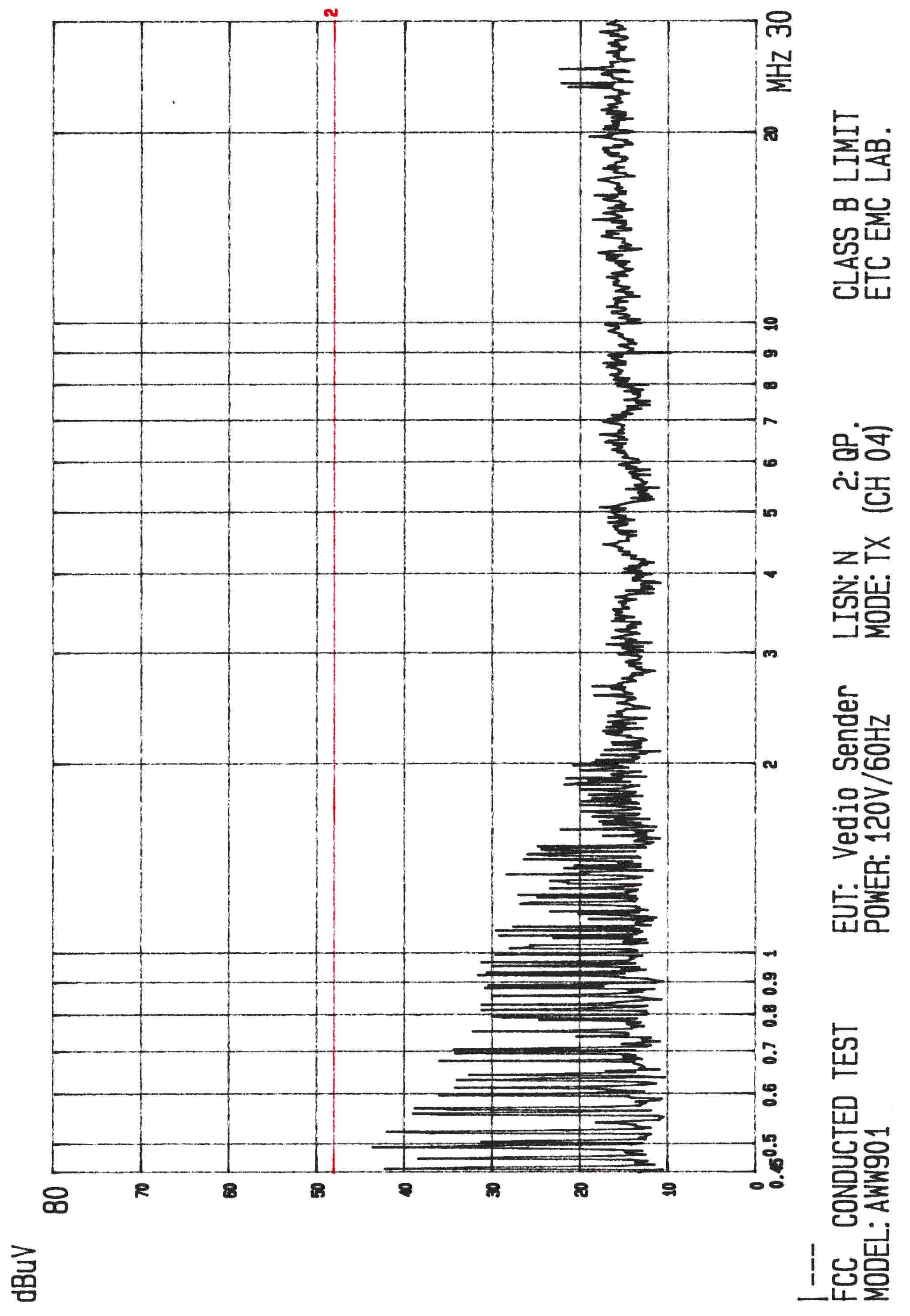

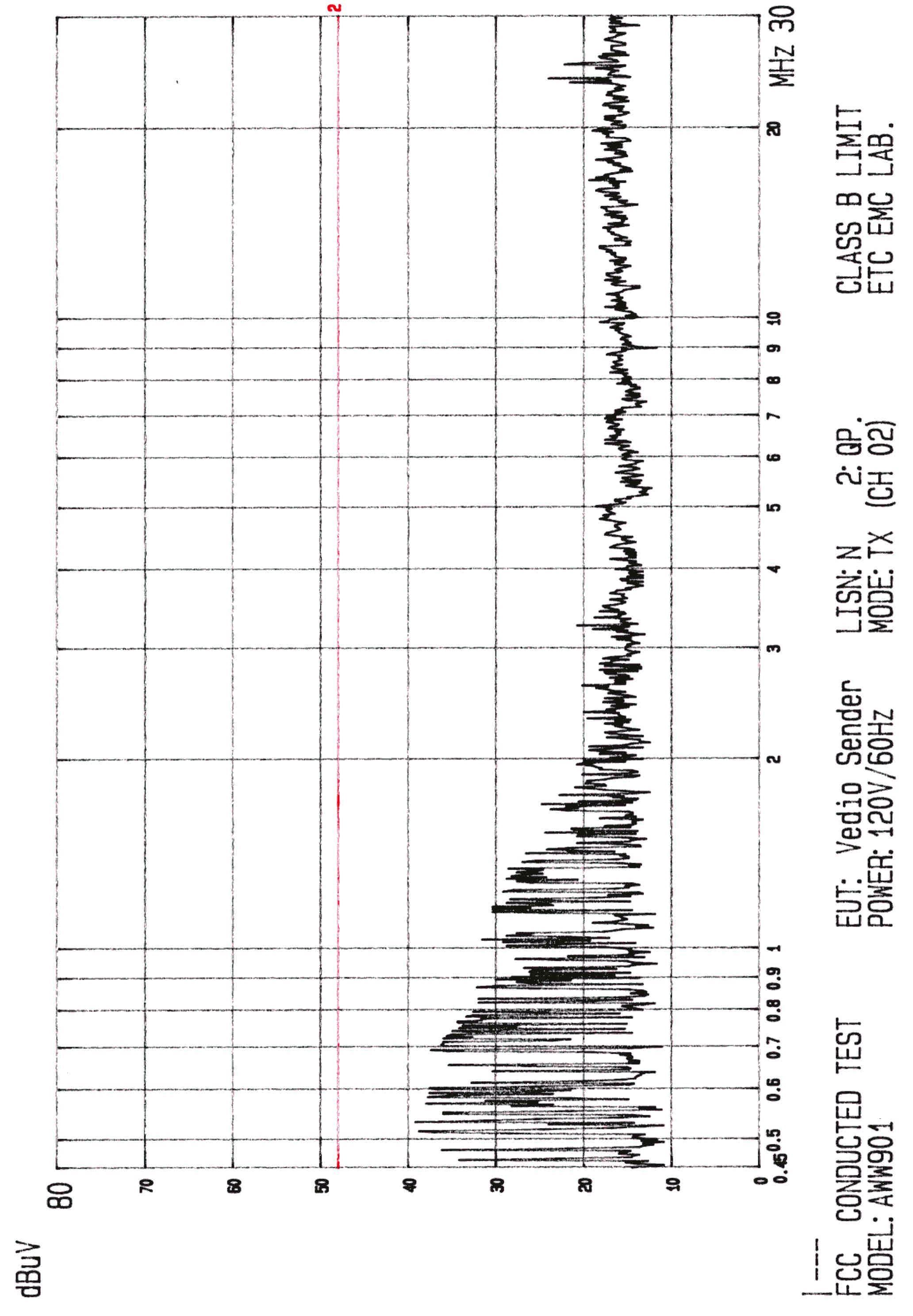

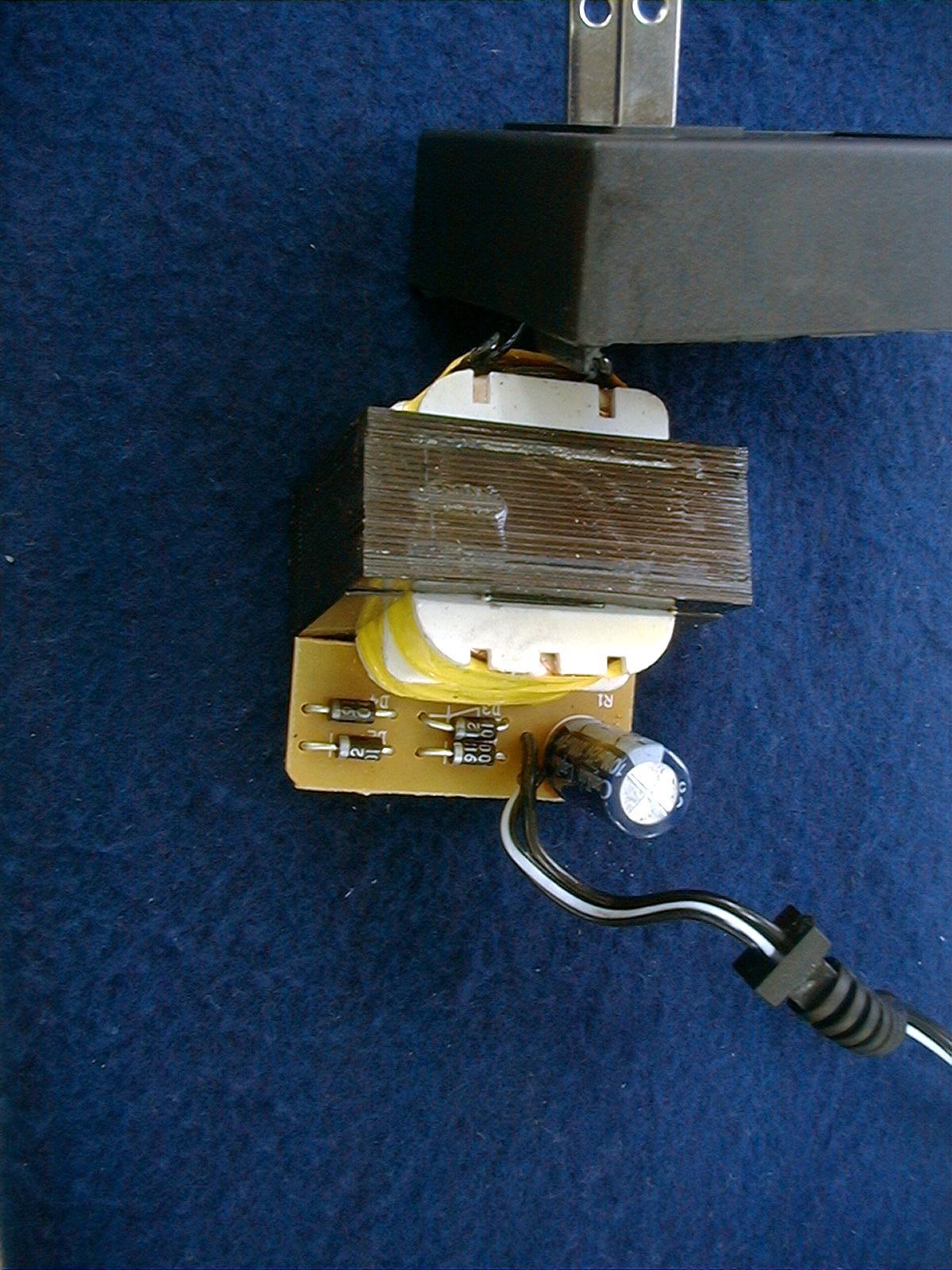

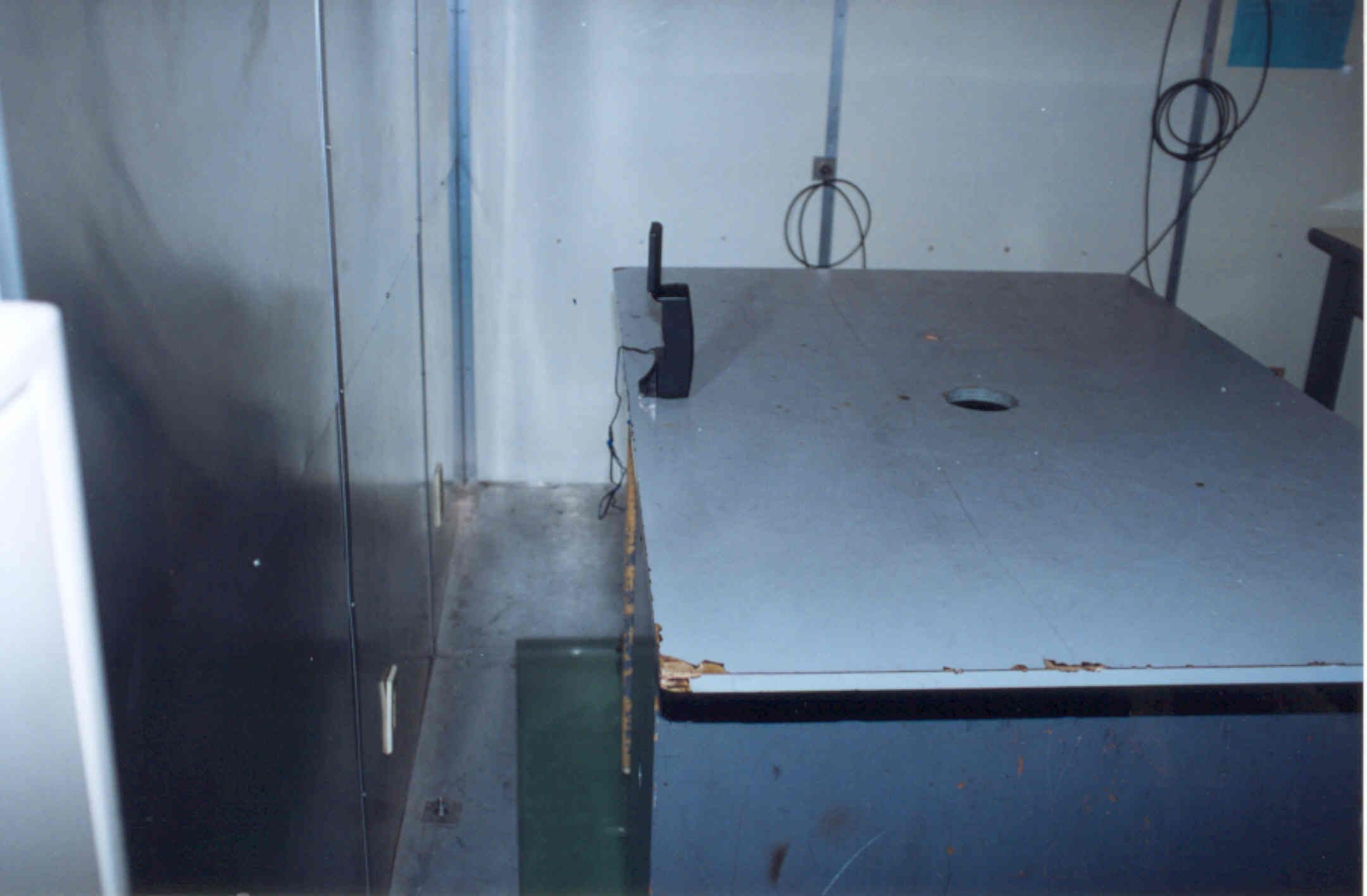

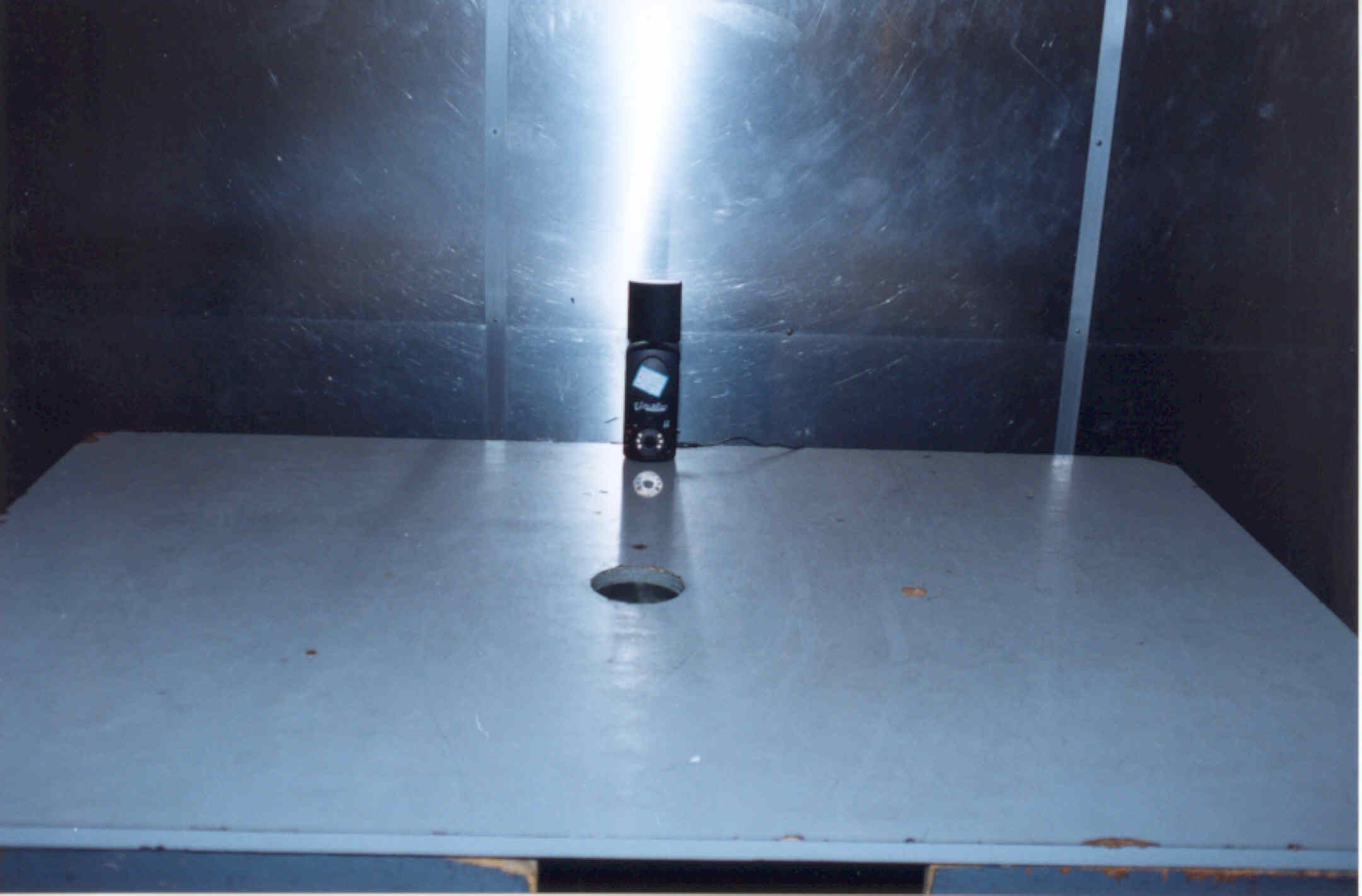

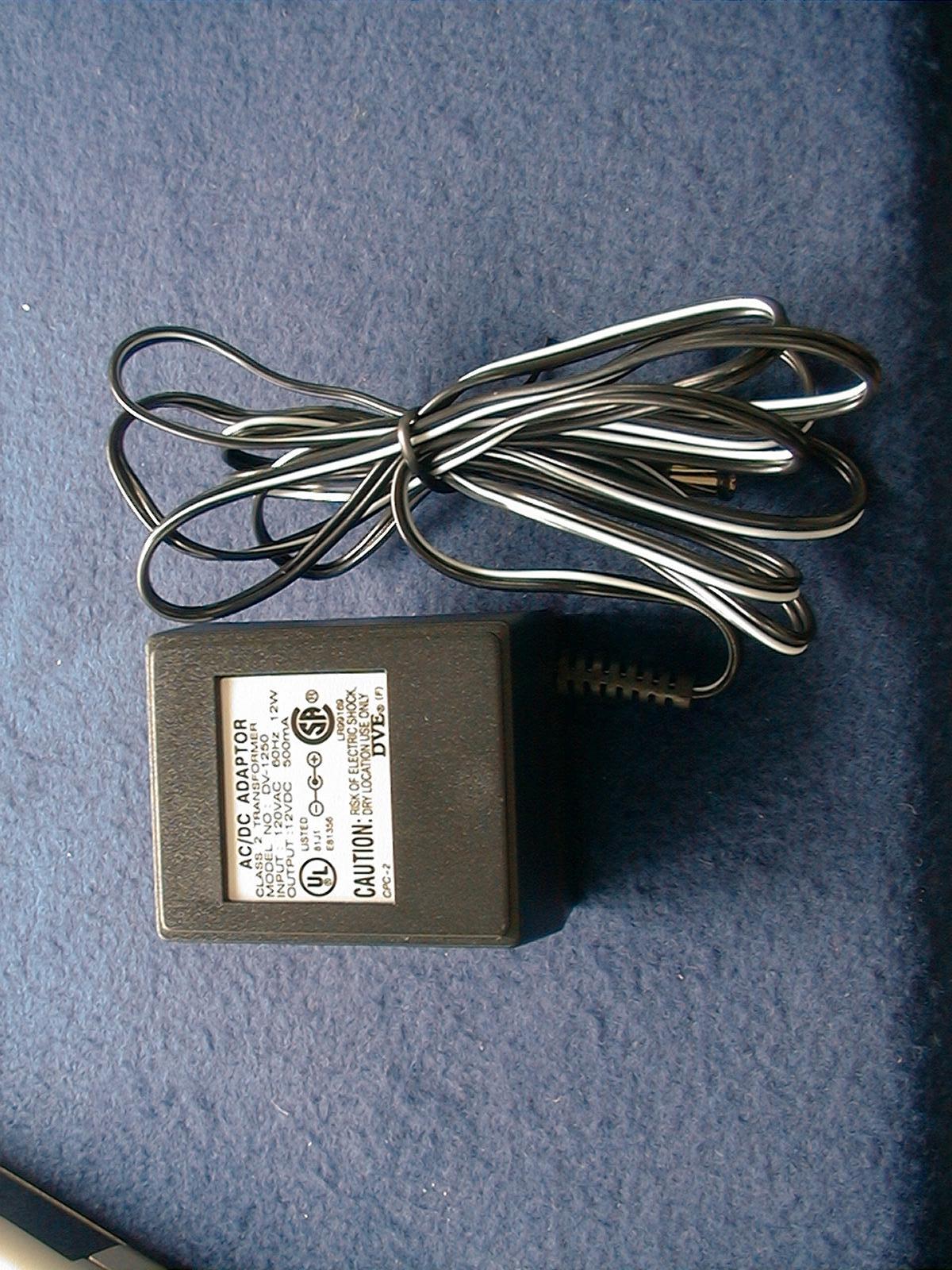

FCC ID. : NGVAWW9XXTX Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 2.4GHz Wireless Camera Transmitter MODEL : AWW901 FCC ID. : NGVAWW9XXTX for APPLICANT: AIRWAVE TECHNOLOGIES INC. ADDRESS: 3F, NO. 9, INDUSTRY E. RD. IX, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-11-077-01 ETC Report No. : ET88R-11-077-01FCC ID. : NGVAWW9XXTX Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: AIRWAVE TECHNOLOGIES INC. 3F, NO. 9, INDUSTRY E. RD. IX, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Manufacturer: AIRWAVE TECHNOLOGIES INC. 3F, NO. 9, INDUSTRY E. RD. IX, SCIENCE-BASED INDUSTRIAL PARK, HSINCHU, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: 2.4GHz Wireless Camera Transmitter b) Trade Name: AIRWAVE c) Model No.: AWW901 d) AC Power Adaptor: Model : DV-1250 I/P: 120V,60Hz; O/P: DC 12V, 500mA Regulation Applied: FCC Rules and Regulations Part 15 Subpart C(1998) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :DEC. 10, 1999 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET88R-11-077-01FCC ID. : NGVAWW9XXTX Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION.............................................................................................................1 1.1 Product Description.............................................................................................................................1 1.2 Characteristics of Device......................................................................................................................1 1.3 Modist List..........................................................................................................................................1 1.4 Test Methodology................................................................................................................................1 1.5 Test Facility.........................................................................................................................................1 2 PROVISIONS APPLICABLE.............................................................................................................2 2.1 Definition.............................................................................................................................................2 2.2 Requirement for Compliance................................................................................................................3 2.3 Restricted Bands of Operation..............................................................................................................5 2.4 Labeling Requirement...........................................................................................................................5 2.5 User Information..................................................................................................................................6 3 SYSTEM TEST CONFIGURATION.................................................................................................7 3.1 Justification..........................................................................................................................................7 3.2 Devices for Tested System...................................................................................................................7 4 RADIATED EMISSION MEASUREMENT....................................................................................8 4.1 Applicable Standard.............................................................................................................................8 4.2 Measurement Procedure......................................................................................................................8 4.3 Measuring Instrument.........................................................................................................................10 4.4 Radiated Emission Data......................................................................................................................11 4.4.1 Tx Portion.....................................................................................................................................11 4.4.2 Other Emissions............................................................................................................................14 4.5 Field Strength Calculation...................................................................................................................14 4.6 Photos of Radiation Measuring Setup.................................................................................................15 5 CONDUCTED EMISSION MEASUREMENT..............................................................................16 5.1 Standard Applicable...........................................................................................................................16 5.2 Measurement Procedure....................................................................................................................16 5.3 Conducted Emission Data..................................................................................................................17 5.4 Result Data Calculation......................................................................................................................18 5.5 Conducted Measurem…
