NHS-A02AMobile Accessory - Breathalyzer

Breeze User instruction manual Contents: Introduction What’s the deal with alcohol? How does alcohol affect my driving? Specifications Mobile app Using Breeze How to interpret the results? Product Maintenance Warranty Disclaimer 3 3 4 5 7 8–11 12 13 14 14 Introduction: Breeze™ is a portable, wireless Breathalyzer that detects the pres- ence of alcohol on your breath. Using the Breathometer app on your supported smartphone; a simple 5 second blow through the mouthpiece on Breeze is all that is required to obtain your estimated blood alcohol level in seconds. Breeze is designed to detect and measure alcohol (ethanol) in hu- man breath through the use of an Electrochemical Fuel Cell sensor and patented software. These results are represented through the Breathometer app on your smartphone using the following ratio of breath alcohol to blood alcohol 2,100:1. This means that 2,100ml of alveolar air contains the same amount of alcohol as 1ml of blood. This is the same ratio law enforcement agencies and hospitals use when a blood sample is not available. Using this ratio, measure- ments from the breath can be used to calculate a respective level of intoxication. Breeze will detect levels between 0.00% - 0.20% BAC with law enforcement grade accuracy. What’s the deal with alcohol? Millions of people consume alcohol on a daily basis, so many feel they understand how it impacts them. We wanted to provide a little more detailed information to explain why knowing your BAC level might be very important. Beyond understanding yourself a little better, you can also start to learn that what you eat, what you are drinking and how fast you may be consuming alcohol may effect you in different ways. With every sip consumed, alcohol is absorbed by your body and makes its way through your mouth, stomach, small intestine, heart, brain, liver, kidneys, lungs and skin. 3 Alcohol is a depressant. It has a relaxing effect on the muscles in your body. The muscles of your eyes relax and lose focus. Your eyesight will become fuzzy and you may experience double vision. As we’ve said, your brain is affected. Brain activity is slowed. Your judgment, reflexes and coordination are all negatively affected. Some vision impairments that occur when you have been drinking include: -Narrowing of your field of vision -Reduction in your depth perception -Decreased ability to see in darkness -Increased sensitivity to glare and a longer time for your eyes to re-adjust from glare Some mental (brain) impairments that occur when you have been drinking include: -Reduced awareness of danger -Becoming over-confident and reckless -Decision-making becomes difficult -Reduction in balance -Slowed reflexes -Impaired judgement How does alcohol affect my driving? “We can’t emphasize enough how dangerous it is for you to drink and drive. Your vision and your brain are the most important factors to driving safely. If you jeopardize either one by drinking and driving, you are likely to be involved in a serious or fatal collision.” From California Department of Motor Vehicles (http://www.dmv.ca.gov) 4 Specifications: Size: 2.3”D x 1.88” W x 0.59” H Weight: .97 oz Warm up time: No Warm Up Time- Sensor response to 5 seconds Recovery time: 40 to 60 Seconds after test Blowing time: 5 seconds Battery life: Approximately 15 months, or 2,500 tests BAC range: 0.000 – 0.250% BAC Operating temp: 32F – 90F (0C – 32C) Calibration: Not Required prior to 5,000 tests Sensor: Electrochemical Fuel Cell 5 Accessories: Your Breeze™ package included three optional accessories: Mouthpiece fits over the blow-tube opening on the Breeze and is provided for times when you may want to share the product with another person, or may be wearing lip gloss, lipstick or topical mate- rial that you do not wish to have remaining on your Breeze product. The Mouthpiece, when removed from Breeze, can be washed with soap and water, or run through a dishwasher safely. Keychain attachment can be used to assist in carrying Breeze, so you know you will have it with you when needed. The Keychain attachment must be removed prior to using the Breeze, as it covers the blow-tube opening on the product. The Keychain attachment can also help protect the blow-tube opening by keeping it covered and more protected from contaminants or debris between uses. Clip attachment provides for another useful way to carry the Breeze. Attach Breeze to your pocket, purse or use it as a money clip. Another convenient way to keep Breeze with you wherever you go. The Clip attachment can also help protect the blow-tube opening by keeping it covered and more protected from contam- inants or debris between uses. Clip must be removed prior to using the product, as it covers the blow tube. 6 Mobile App: In order to use Breeze, you will need to download the Breathometer App for your Smartphone. Once you have done this, open the app, pair your Breeze with your smartphone and you are ready to start using Breeze. Following are the steps to operate your Breathometer Breeze: Setup process: 1) Download the Breathometer App from the App Store or Google Play. 2) Launch the App and power on the Breeze by pressing the button on the bottom side of the product 3) The first time you use Breeze, you will need to pair it with your smartphone. This is only required once. To pair your Breeze with your smartphone press the power button and follow the instructions on your Smartphone screen. 4) To take a test- simply launch the Breathometer app on your smartphone, power on your Breeze and when the app instructs you, simply blow. Results are shown in 5 seconds on your smartphone in the Breathometer app. 7 Using Breeze: To ensure that you receive an accurate reading, please wait 20 minutes after drinking, eating or smoking before taking a test. 8 Using Breeze: Open the Breathometer App on your smartphone and turn on Breeze. Confirm Breeze is paired with your smartphone. press 9 Using Breeze: Blow into the mouthpiece for 5 seconds and see your re…

Text truncated - open the document above for the full version.

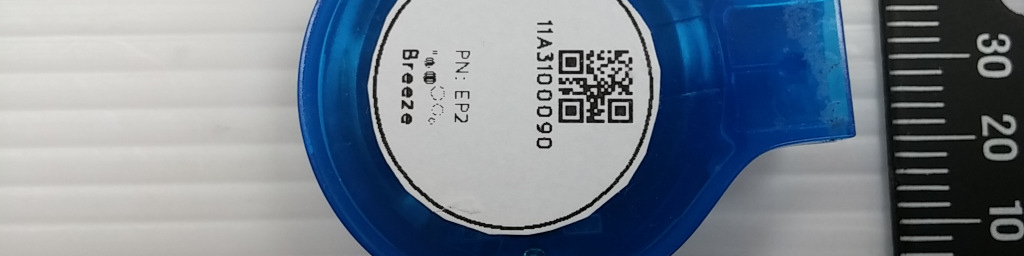

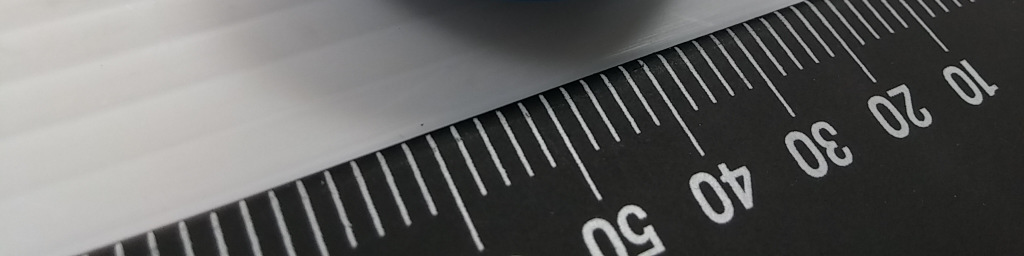

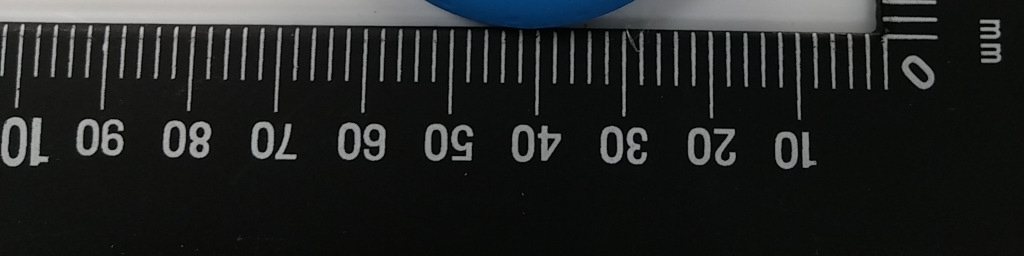

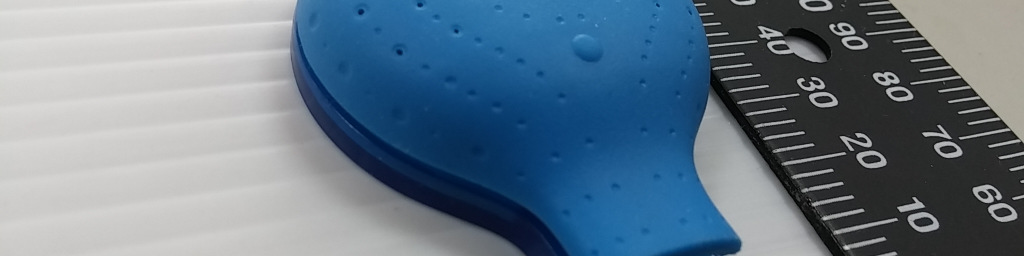

Appendix P Photo Documentation Page 1 of 2 10042740 001 Product: Bluetooth Meridian Type Identification: A02A Appendix P Photo Documentation Page 2 of 2 10042740 001 Product: Bluetooth Meridian Type Identification: A02A

FCC ID NHS-A02A IC 3653A-A02A Label: Label Position: FCC ID NHS-A02A IC 3653A-A02A Label on outside of the Device:

Appendix P Photo Documentation Page 1 of 2 10042740 001 Product: Bluetooth Meridian Type Identification: A02A Appendix P Photo Documentation Page 2 of 2 10042740 001 Product: Bluetooth Meridian Type Identification: A02A

Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 20 von 24 Page 20 of 24 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 D01 v05 The maximum peak output power of the transmitter is 1.8 mW. Hence the EUT is excluded from SAR evaluation. Please also refer to FCC KDB publication 447498 D01 v05: Mobile Portable RF Exposure Please also refer to Bluetooth Module test report for details, FCC ID: QDS-BRCM1078 ; IC:4324A-BRCM1078

Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 2 von 24 Page 2 of 24 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 6DB BANDWIDTH RESULT: Passed 5.1.4 POWER DENSITY RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 3 von 24 Page 3 of 24 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITIES ..................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 7 2.3 TRACEABILITY ........................................................................................................ 8 2.4 CALIBRATION ......................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 8 3. GENERAL PRODUCT INFORMATION ........................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 9 3.3 INDEPENDENT OPERATION MODES ......................................................................... 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 10 3.5 SUBMITTED DOCUMENTS ....................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................... 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 11 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 12 4.5 TEST SETUP DIAGRAM .......................................................................................... 12 5. TEST RESULTS ..................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 14 5.1.1 Antenna Requirement ................................................................................................................ 14 5.1.2 Peak Output Power .................................................................................................................... 15 5.1.3 6dB Bandwidth ........................................................................................................................... 16 5.1.4 Power Density ............................................................................................................................ 17 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 18 5.1.6 Spurious Emission ..................................................................................................................... 19 6. SAFETY HUMAN EXPOSURE ................................................................................... 20 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 20 6.1.1 Electromagnetic Fields ............................................................................................................... 20 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 21 Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 4 von 24 Page 4 of 24 8. LIST OF TABLES ................................................................................................... 24 9. LIST OF PHOTOGRAPHS......................................................................................... 24 Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 5 von 24 Page 5 of 24 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation internal view (File Name: 10042740APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10042740APPENDIX D) Test Specifications The following standards were applied. Table 1: Applied Standard and Test Levels Radio FCC CFR47 Part 15: Subpart C Section 15.247 RSS-210 Issue 8, December 2010 RSS-Gen, Issue 4, November 2014 ANSI C63.10:2009, KDB558074 D01 DTS Meas Guidance v02 Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 6 von 24 Page 6 of 24 2. Test Sites 2.1 Test Facilities TUV Rheinland Taiwan Ltd. 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) FCC Registration No.: 365730 IC Canada Registration No.: 9465A-1 TAF Accredited NCC Test Lab. No.:0759 TAF ISO17025 Certification effective periods: 2013-Jul-1st to 2016-Jun-30th Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 7 von 24 Page 7 of 24 2.2 List of Test and Measurement Instruments Table 2: List of Test and Measurement Equipment K…

Text truncated - open the document above for the full version.

Test Report No.10042740 001 Appendix D: Radiated Spurious Emission Data (File: 10042740AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ....................................................................................................... 6 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 12 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 18 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 6 Spurious Emissions, TX Mode, 1-18G Service No.: 114026471 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/9/23 15:02:06 Applicant: Powertech Test Rating: DC 5V Product: Bluetooth Meridian Temp.( °C °C°C °C)/Hum.(%): 24(°C °C°C °C)/55% Model No.: A02A Test Engineer: Hugo Chang Test Mode: CH2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.59 49.10 46.51 74.00 -27.49 peak 2 6012.820 3.75 46.77 50.52 74.00 -23.48 peak 100 336 3 7206.000 5.44 44.09 49.53 74.00 -24.47 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 7 Service No.: 114026471 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/9/23 15:03:08 Applicant: Powertech Test Rating: DC 5V Product: Bluetooth Meridian Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/55% Model No.: A02A Test Engineer: Hugo Chang Test Mode: CH2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.59 48.92 46.33 74.00 -27.67 peak 2 6067.308 3.94 47.28 51.22 74.00 -22.78 peak 100 230 3 7206.000 5.44 45.03 50.47 74.00 -23.53 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 8 Service No.: 114026471 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/9/23 15:06:00 Applicant: Powertech Test Rating: DC 5V Product: Bluetooth Meridian Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/55% Model No.: A02A Test Engineer: Hugo Chang Test Mode: CH2442 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3560.897 -5.60 52.28 46.68 74.00 -27.32 peak 100 285 2 4884.000 -2.38 50.03 47.65 74.00 -26.35 peak 3 7326.000 5.78 44.20 49.98 74.00 -24.02 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 9 Service No.: 114026471 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/9/23 15:07:02 Applicant: Powertech Test Rating: DC 5V Product: Bluetooth Meridian Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/55% Model No.: A02A Test Engineer: Hugo Chang Test Mode: CH2442 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4884.000 -2.38 49.48 47.10 74.00 -26.90 peak 2 6121.795 4.13 46.83 50.96 74.00 -23.04 peak 100 1 3 7326.000 5.78 43.85 49.63 74.00 -24.37 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 10 Service No.: 114026471 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/9/23 14:56:57 Applicant: Powertech Test Rating: DC 5V Product: Bluetooth Meridian Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/55% Model No.: A02A Test Engineer: Hugo Chang Test Mode: CH2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4960.000 -2.19 48.13 45.94 74.00 -28.06 peak 2 6176.282 4.33 46.37 50.70 74.00 -23.30 peak 100 56 3 7440.000 6.09 44.45 50.54 74.00 -23.46 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114026471 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/9/23 14:57:59 Applicant: Powertech Test Rating: DC 5V Product: Bluetooth Meridian Temp.(°C °C°C °C)/Hum.(%): 24(°C °C°C °C)/55% Model No.: A02A Test Engineer: Hugo Chang Test Mode: CH2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 3806.090 -5.43 52.03 46.60 74.00 -27.40 peak 100 264 2 4960.000 -2.19 47.90 45.71 74.00 -28.29 peak 3 7440.000 6.09 44.35 50.44 74.00 -23.56 peak Tel:+886-2-2172-7000 Fax:+886-2-2528-0018 11F.,No.758,Sec. 4,Bade Rd.,Songshan Dist.,Taipei 105,Taiwan TUV Rheinland Taiwan Spurious Emissions, TX Mode, 18-26G 12 Spurious Emissions, TX Mode, 18-26G Service No.: 114026471 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/9/23 15:19:24 Applicant: Pow…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 BLUETOOTH LOW ENERGY CERTIFICATION TEST REPORT FOR BROADCOM BLUETOOTH MODULE MODEL NUMBER: BCM20732S FCC ID: QDS-BRCM1078 IC: 4324A-BRCM1078 REPORT NUMBER: 13U15716-1, Revision C ISSUE DATE: NOVEMBER 05, 2013 Prepared for BROADCOM CORPORATION 190 MATHILDA PLACE SUNNYVALE, CA 94086, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 13U15716-1C DATE: NOVEMBER 05, 2013 FCC ID: QDS-BRCM1078 IC: 4324A-BRCM1078 Page 2 of 52 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 09/30/2013 Initial Issue G. Quizon A 10/11/2013 Revised 8.2 with correct standard reference. G. Quizon B 11/04/2013 Added 8.4 and 8.5 – Tx BE, Spurious and Harmonics (without shielding) G. Quizon C 11/05/2013 Section 8 – Remove radiated BE, Tx Spurious and Harmonics G. Quizon REPORT NO: 13U15716-1C DATE: NOVEMBER 05, 2013 FCC ID: QDS-BRCM1078 IC: 4324A-BRCM1078 Page 3 of 52 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.2. MAXIMUM OUTPUT POWER...................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................10 7. ANTENNA PORT TEST RESULTS ...................................................................................11 7.1. DUTY CYCLE .............................................................................................................11 7.2. 6 dB BANDWIDTH ......................................................................................................13 7.3. 99% BANDWIDTH ......................................................................................................16 7.4. OUTPUT POWER.......................................................................................................19 7.5. AVERAGE POWER ....................................................................................................22 7.6. POWER SPECTRAL DENSITY ..................................................................................23 7.7. CONDUCTED SPURIOUS EMISSIONS .....................................................................26 8. RADIATED TEST RESULTS .............................................................................................30 8.1. LIMITS AND PROCEDURE ........................................................................................30 8.2. WORST-CASE BELOW 1 GHz ...................................................................................31 8.3. TX ABOVE 1 GHz FOR BLUETOOTH LOW ENERGY MODE ...................................33 8.4. WORST-CASE BELOW 1 GHz ...................................................................................43 9. AC POWER LINE CONDUCTED EMISSIONS ..................................................................45 10. SETUP PHOTOS ...........................................................................................................49 REPORT NO: 13U15716-1C DATE: NOVEMBER 05, 2013 FCC ID: QDS-BRCM1078 IC: 4324A-BRCM1078 Page 4 of 52 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: BROADCOM CORPORATION 190 MATHILDA PLACE SUNNYVALE, CA 94086, U.S.A. EUT DESCRIPTION: BROADCOM BLUETOOTH MODULE MODEL: BCM20732S SERIAL NUMBER: 5 (Radiated) & 52 (Conducted) DATE TESTED: September 25 to 30, 2013 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass INDUSTRY CANADA RSS-210 Issue 8 Annex 8 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL Verification Services Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Verification Services Inc. based on interpretations and/or observatio…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 21 von 24 Page 21 of 24 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 22 von 24 Page 22 of 24 Photograph 2: Set-up for Spurious Emissions (Back View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 10042740 001 Seite 23 von 24 Page 23 of 24 Photograph 3: Set-up for Spurious Emissions (Back View 2)

REPORT NO: 13U15716-1C DATE: NOVEMBER 05, 2013 FCC ID: QDS-BRCM1078 IC: 4324A-BRCM1078 Page 49 of 52 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 10. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 13U15716-1C DATE: NOVEMBER 05, 2013 FCC ID: QDS-BRCM1078 IC: 4324A-BRCM1078 Page 50 of 52 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (BELOW 1 GHz) RADIATED FRONT PHOTO (BELOW 1 GHz) RADIATED BACK PHOTO (BELOW 1 GHz) REPORT NO: 13U15716-1C DATE: NOVEMBER 05, 2013 FCC ID: QDS-BRCM1078 IC: 4324A-BRCM1078 Page 51 of 52 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) RADIATED FRONT PHOTO (ABOVE 1 GHz) RADIATED BACK PHOTO (ABOVE 1 GHz) REPORT NO: 13U15716-1C DATE: NOVEMBER 05, 2013 FCC ID: QDS-BRCM1078 IC: 4324A-BRCM1078 Page 52 of 52 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701I 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO
