NHS-R9P627APPS Power Control Timer Strip

1 APPS Power R9P627 Near Field Control Timer Strip MANUAL (iOS) V1.3 2 TABLE OF CONTENTS 1........ INTRODUCTION .................................................... 3 2........ Hardware FEATURES ........................................... 4 3........ App installation and setting ................................ 5 4........ Operation Guide ................................................... 8 4.1 Basic Control ..................................................... 8 4.2 Near Field Control.............................................. 9 4.3 Schedule Timer ................................................ 10 4.3.1 Add New Timer ................................................................ 11 4.3.2 Edit Timer ......................................................................... 12 4.4 Setting............................................................... 12 4.4.1 Device Name .................................................................... 12 4.4.2 Setting Password ............................................................ 13 3 1 INTRODUCTION APPS Power is a perfect product for smart home concept and power management idea, without complex setup and operation, home automation becomes convenient for everyone. You don't need to kneel down to find your device and set the timer. Timer setting can be easily completed on the devices in few steps. Simple and clever schedule timer helps you turn off appliances to save energy and money. Following are three major aspects 1. Convenience - Base on the wireless technology of Bluetooth, when you enter the place where APPS Power is equipped, you can easily control the electronic appliance “ON” and “OFF” without the need finding the power switch or even unplug from wall outlet, means power can be “ON” and “OFF” automatically in few seconds. 2. Smart home automation is highly integrated with friendly UI. You can use the APPS Power Bluetooth feature on your smart phone / tablet device, by guiding form our friendly user interface 3. Multi-function timer to reduce to cost of your home electricity bill Another advance function in our APPS Power is the multi-function timer, consumer can scheduling the timer setup on their smart phone device and turn on or off the power of the outlet. In addition, with integrating NFControl (Near Field Control) technology, you can also trigger device by follow the “Master”/“Slave” scenario, which is when you (Master) near the APPS Power, Slave outlet will be power “ON”, when you leave the APPS Power, the APPS Power “OFF”. 4 2 Hardware FEATURES Bluetooth SMART STRIP
Electrical rating: 15A, 120VAC, 60Hz, 1800 Watts
Always on Outlet : 1
NFControl Outlet : 3
Timer Outlet : 2
AC power surge protection (1080J)
Bluethooth： ：： ：Bluethooth 3.0 EDR compliant
App Support OS : iOS 5.0 or higher
Near Field Control (NFControl) Function
Wireless Range : 10 Meter in open space
Multi-Function Timer : Weekly/Daily/Hourly NFControl Outlets Timer Outlets Always On Outlets Bluetooth/Power Indicator 2 in 1 Power Switch Manual On/Off Button (Reset) 5 3 App installation and setting 3.1 Download Software from App Store Search and download Apps from App Store with key word “APPSPower” You can see the download page as below and install Apps for free. 3.2 Setting Bluetooth Connection Step1 Go to setting 6 Step2 Select Bluetooth Step3 Select APPS Power device named “AppsPower_XX” 7 Step4 Connected. Step5 Open apps and you will see APPS Power devices list. PS. You also can see the setting instructions on help pages. 8 4 Operation Guide 4.1 Basic Control You can directly do the ON/OFF control by clicking the “INSTANT NFControl” button for NFControl outlets, and “INSTANT Timer” button for Timer outlets showed on display. OFF NFControl outlet ON Timer outlet ON 9 4.2 Near Field Control Click NFControl button to enter NFControl Setting page. When the NFControl (Near Field Control) Feature is enabled, the APPS plug will automatically turn on as iDevices connected via Bluetooth and turn off as iDevice is out of access range. The range of NFControl is able to be set by slide bar. 10 4.3 Schedule Timer Click Timer button to enter Timer setting page. APPS Power provides schedulable Timers for flexible use. User can set several timers for different requirements. Click the slide button to turn on/off the preconfigured timers 11 4.3.1 Add New Timer To create a timer, please click “New” button . Enter Timer name, Start Time and Stop Time. Select days which you want to enable timer regularly. 12 4.3.2 Edit Timer Click Edit button to change the settings of timers or delete them. 4.4 Setting 4.4.1 Device Name The device name is able to be edited on setting page. Just tap the column of Device name to enter new name. 13 4.4.2 Setting Password (PIN Code) The Password feature protects connection safety. The Password is required before entering control page. Click Setting button to enter setting page. You also can disable this feature by turning off “Enable” button. 14 Turn on “Enable” button then Security Setup page is shown as below. Please key in 4 digital number as password. Note : Default PIN code is “1234” Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Part 15B compliance statement: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipmen…

Text truncated - open the document above for the full version.

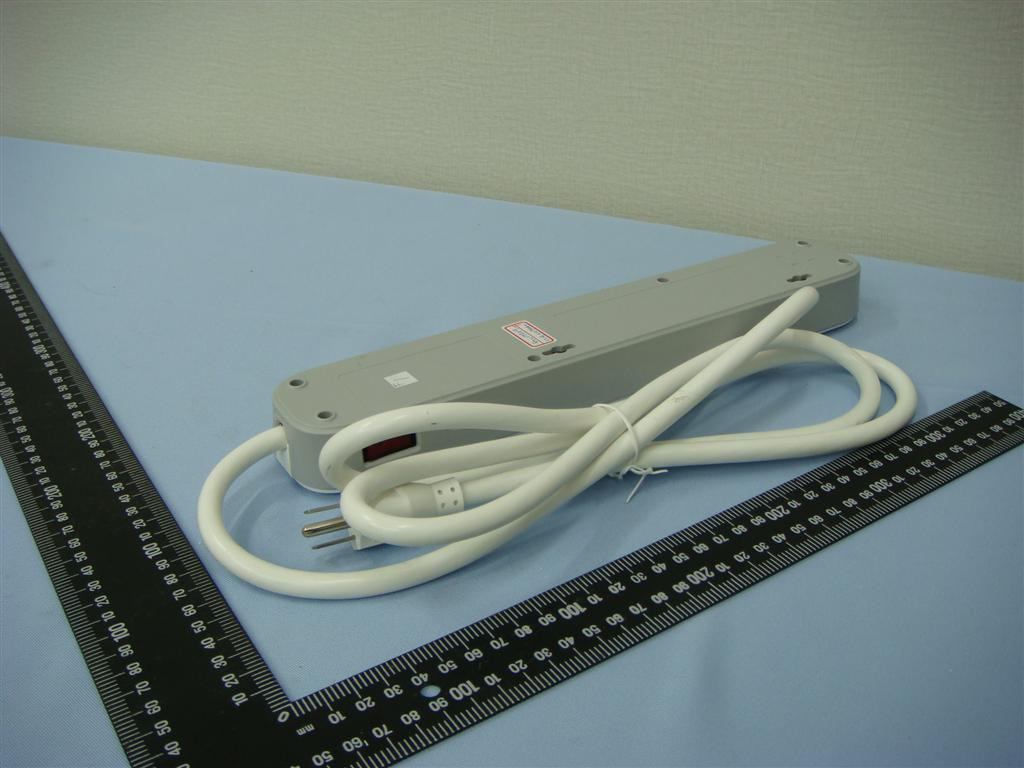

ATTACHMENT Photo Documentation Page 1 of 6 Product: Wireless power strip Type Identification: NHS-R9P627

ATTACHMENT Photo Documentation Page 2 of 6 Product: Wireless power strip Type Identification: NHS-R9P627 ATTACHMENT Photo Documentation Page 3 of 6 Product: Wireless power strip Type Identification: NHS-R9P627 ATTACHMENT Photo Documentation Page 4 of 6 Product: Wireless power strip Type Identification: NHS-R9P627 ATTACHMENT Photo Documentation Page 5 of 6 Product: Wireless power strip Type Identification: NHS-R9P627 ATTACHMENT Photo Documentation Page 6 of 6 Product: Wireless power strip Type Identification: NHS-R9P627

Produkte Products Prüfbericht - Nr.: Test Report No. 10041843 001 Seite 37 von 41 Page 37 of 41 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is <1mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure.

Produkte Products Prüfbericht - Nr.: Test Report No. 10041843 001 Seite 2 von 41 Page 2 of 41 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 S PURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10041843 001 Seite 3 von 41 Page 3 of 41 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. T EST SITES ...................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 6 2.4 CALIBRATION ................................................................................................................... 6 2.5 M EASUREMENT UNCERTAINTY........................................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 R ATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 I NDEPENDENT OPERATION MODES .................................................................................... 8 3.4 N OISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 9 3.5 SUBMITTED DOCUMENTS .................................................................................................. 9 4. TEST SET-UP AND OPERATION MODES ............................................................................ 10 4.1 P RINCIPLE OF CONFIGURATION SELECTION ...................................................................... 10 4.2 T EST OPERATION AND TEST SOFTWARE .......................................................................... 10 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ........................................................ 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 11 4.5 T EST SETUP DIAGRAM .................................................................................................... 11 5. TEST RESULTS ............................................................................................................... 13 5.1 T RANSMITTER REQUIREMENT & TEST SUITES .................................................................. 13 5.1.1 Antenna Requirement ................................................................................................................ 13 5.1.2 Peak Output Power .................................................................................................................... 14 5.1.3 20dB Bandwidth ......................................................................................................................... 18 5.1.4 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth .. 22 5.1.5 Spurious Emission ..................................................................................................................... 28 5.1.6 Frequency Separation ................................................................................................................ 29 5.1.7 Number of hopping frequency .................................................................................................... 31 5.1.8 Time of Occupancy .................................................................................................................... 33 5.2 M AINS EMISSIONS........................................................................................................... 36 5.2.1 Mains Conducted Emissions ...................................................................................................... 36 6. SAFETY HUMAN EXPOSURE ............................................................................................. 37 6.1 R ADIO FREQUENCY EXPOSURE COMPLIANCE ................................................................... 37 6.1.1 Electromagnetic Fields ............................................................................................................... 37 7. P HOTOGRAPHS OF THE TEST SET-UP .............................................................................. 38 8. LIST OF TABLES ............................................................................................................. 41 9. L IST OF PHOTOGRAPHS .................................................................................................. 41 Produkte Products Prüfbericht - Nr.: Test Report No. 10041843 001 Seite 4 von 41 Page 4 of 41 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation (File Name: 10041843APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10041843APPENDIX D) Test Specifications The following standards were applied (in bold: product standards, otherwise: basic sta…

Text truncated - open the document above for the full version.

Test Report No.10041843 001 Appendix D: Radiated Spurious Emission Data (File: 10041843AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ................................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ......................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ....................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ..................................................................................................... 34 Spurious Emissions, Mains, 150kHz - 30MHz ............................................................................................ 36 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (QPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (QPSK) Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114007440-R9P627 Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/5/16 PM 03:15:27 Applicant: Powertech Test Rating: AC 120V/60Hz Product: Wireless power strip/APPS Power Temp.(°C °C°C °C)/Hum.(%): 23(°C °C°C °C)/61% Model No.: R9P627 Test Engineer: Hugo Chang Test Mode: BT CH2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4323.718 -4.22 50.91 46.69 74.00 -27.31 peak 2 4759.615 -2.86 50.67 47.81 74.00 -26.19 peak 3 6557.692 5.37 44.91 50.28 74.00 -23.72 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114007440-R9P627 Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/5/16 PM 03:16:41 Applicant: Powertech Test Rating: AC 120V/60Hz Product: Wireless power strip/APPS Power Temp.(°C °C°C °C)/Hum.(%): 23(°C °C°C °C)/61% Model No.: R9P627 Test Engineer: Hugo Chang Test Mode: BT CH2402 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4323.718 -4.22 52.12 47.90 74.00 -26.10 peak 2 6040.064 3.82 45.41 49.23 74.00 -24.77 peak 3 7919.872 6.02 45.61 51.63 74.00 -22.37 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114007440-R9P627 Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/5/16 PM 03:18:00 Applicant: Powertech Test Rating: AC 120V/60Hz Product: Wireless power strip/APPS Power Temp.(°C °C°C °C)/Hum.(%): 23(°C °C°C °C)/61% Model No.: R9P627 Test Engineer: Hugo Chang Test Mode: BT CH2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4269.231 -4.44 51.67 47.23 74.00 -26.77 peak 2 6149.039 4.21 45.67 49.88 74.00 -24.12 peak 3 7266.026 5.59 45.38 50.97 74.00 -23.03 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114007440-R9P627 Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/5/16 PM 03:19:18 Applicant: Powertech Test Rating: AC 120V/60Hz Product: Wireless power strip/APPS Power Temp.(°C °C°C °C)/Hum.(%): 23(°C °C°C °C)/61% Model No.: R9P627 Test Engineer: Hugo Chang Test Mode: BT CH2441 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 2879.808 -6.71 51.84 45.13 74.00 -28.87 peak 2 5958.333 3.39 45.77 49.16 74.00 -24.84 peak 3 6693.910 5.22 45.94 51.16 74.00 -22.84 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114007440-R9P627 Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2013/5/16 PM 03:21:04 Applicant: Powertech Test Rating: AC 120V/60Hz Product: Wireless power strip/APPS Power Temp.(°C °C°C °C)/Hum.(%): 23(°C °C°C °C)/61% Model No.: R9P627 Test Engineer: Hugo Chang Test Mode: BT CH2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 5576.923 0.76 45.46 46.22 74.00 -27.78 peak 2 7211.539 5.44 46.32 51.76 74.00 -22.24 peak 3 7729.167 6.13 44.42 50.55 74.00 -23.45 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 15 Service No.: 114007440-R9P627 Test Distance: 3M Test Standard: FCC above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2013/5/16 PM 03:22:28 Applicant: Powertech Test Rating: AC 120V/60Hz Product: Wireless power strip/APPS Power Temp.(°C °C°C °C)/Hum.(%): 23(°C °C°C °C)/61% Model No.: R9P627 Test Engineer: Hugo Chang Test Mode: BT CH2480 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. He…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10041843 001 Seite 38 von 41 Page 38 of 41 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Photograph 2: Set-up for Spurious Emissions (Back View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 10041843 001 Seite 39 von 41 Page 39 of 41 Photograph 3: Set-up for Spurious Emissions (Back View 2) Photograph 4: Set-up for Conducted testing Produkte Products Prüfbericht - Nr.: Test Report No. 10041843 001 Seite 40 von 41 Page 40 of 41 Photograph 5: Set-up for for Mains Conducted testing Back Photograph 6: Set-up for for Mains Conducted testing Front
