NHS-M9PG01Green Powerlink Gateway

Enterprise Energy Management Gateway Automatic Energy Saving & Monitoring The GREEN POWERLINK Enterprise Series provides in-office energy display for administrator to track and monitor entire office and appliances energy consumption with CO2 emissions www.power-tech.com.tw Powertech Industrial Co., Ltd 1 0 F, N o . 4 0 7 , C h u n g S h a n R d . , S e c 2 , C h u n g H o C i t y, 2 3 5 5 8 Ta i p e i C o u n t y, Ta i w a n T : + 8 8 6 - 2 - 8 2 2 1 - 5 5 8 8 F : + 8 8 6 - 2 - 8 2 2 1 - 5 6 8 0 E : s a l e s @ p o w e r - t e c h . c o m . t w Features Remote IE Web Browsing Management & Power On/Off Control Remote real time CO2, KW/h usage and Cost information display RF data Receive & Transmit. Support up to 9 power strip or wall tap devices easy for learning Link Energy Management Software easy upgrade to large system Analysis and Prediction future CO2, KW/h usage and Cost for each device Budget cost control for each device Real time remote device power on/off control Scheduling regular device power on/off control Device Decaying analysis and control Budget cost over, Device decaying and surge protected warning via email, or SMS with event log for event process and management History of CO2, KW/h and Cost data search for analysis and management Enterprise Management Gateway WIRE 2-Way RF Internet Track Individual appliance electricity usage Track Area appliances electricity usage ROUTER Smart Phone/ iPhone/ iPad PC/ Notebook/ Tablet Online IE Web Browser PT001PT002PT003PT004PT005 400 350 200 300 250 150 50 100 Energy Management Gateway Setup Guide M9PG01 Browse and access Gateway within intranet network On IE browser, user can browse the energy consumption of the appliances connected to the PowerLink Wall Tap or power strip, and control outlet power on/off. 1. Enter the Control Panel of PC 2. Select and double click Network Connections 3. Select Local Area Connection 4. Right-click the mouse and select Properties 5. Select Internet Protocol(TCP/IP) 6. Select the “Use the following IP address” option and key in the following IP address information in the area, then press OK to exit. IP address: 192.168.1.100 Subnet Maske: 255.255.255.0 Default gateway: 192.168.1.1 7. Connect one end of RJ45 Internet cable to the gateway (M9PG01), and the other end of internet cable to PC. 8. Connect the included AC/DC adaptor to the gateway (M9PG01). Network connection is working when you see the connection icon. 9. Open Internet Explorer web browser and key in “Http://192.168.1.168 to enter the gateway operating page. 10. To set up Internet Explorer to work with the gateway, click on tools and select internet options 11. Select Settings in internet options page to setup temporary internet files option. 12. To check for newer version of stored pages, check on “Every visit to the page” option then press OK to exit. Operating Instructions: Please confirm the following items are well-prepared before entering the operating page. ( I ) Connect M9PG01 with PC Internet cable, and check if you can see the icon of ”Connected” at lower right corner of screen. ( II ) Prepare PowerLink Wall Tap (R9P125) or Power strip (R9P602), and connect to AC power to be paired up with the gateway (M9PG01). 1. When entering the operating page, click ”Channel Setup” at the left side of screen. 2. Press the Learning Key of PowerLink Wall Tap (R9P125) or power strip (R9P60203) for 3 seconds to enter the learning mode and the light on the learning key will be flashing. 3. On the channel setup page, select Channel and press connect to pair up the PowerLink Wall Tap (R9P125NI) or power strip (R9P602) with the gateway. 4. When learning is completed, the learning key will stop flashing. 5. Then select “Run Time Status” at the left side of screen. If the connection is up and running, you can see the power consumption information of the PowerLink Wall Tap or Power strip. You can also control the power on/off on the operating page by pressing power on or off. Browse and access Gateway from internet Anywhere and anytime, user can browse energy consumption of the connected appliances and control power on/off from internet. In order for user to browse and access Gateway from internet, the following requirements are needed  Fix public IP address provided by internet service provider (ISP)  Router with Network Address Translation (NAT) service User will first be required to obtain a fix IP address provided by internet service provider, then enable and setup the network address translation (NAT) service in the router. Please refer to the Network Address Translation (NAT) instruction in your router manual. Once the NAT service is enable and setup, user can access the gateway (M9PG01) anywhere from internet by opening IE web browser and key in the fix public IP address provided by your internet service provider. The NAT service of the router will redirect your access request to the corresponding gateway (M9PG01). A typical example of Network Address Translation (NAT) setup is provided in the following example instruction. 1. Login the router 2. Select Advanced setup and choose the language 3. Enter “NAT” setup page. 4. Enable Network Address Translation (NAT) service. 5. Select “Application” 6. In the application page, key in the Gateway (M9PG01) IP address information as following example.  Select “HTTP” as Service Name.  Select Port 80 as your Gateway port selection  Key in the IP address of the gateway  Press apply to finish NAT setup 7. Once NAT service of the router is setup, user can access the gateway anywhere from internet by opening IE web browser and key in the fix public IP address provided by your internet service provider 8. The NAT service of the router will redirect your access request to the corresponding Gateway (M9PG01). FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits…

Text truncated - open the document above for the full version.

For the following information Ref. File No.: C1M1103061 Product Green Powerlink Gateway Model Number M9PG01 Applicant Powertech Industrial Co Ltd Standards FCC 47 CFR Part 15 Subpart B/Oct. 2010 (Class B Limit) We hereby certify that the above product has been tested by us and complied with the FCC official limits. These products might be marketed at the US accordance to FCC Rule based on the standard 47 CFR Part 2 and Part 15 Class B Equipment Regulations. The test was performed accordance to the procedures from ANSI C63.4-2009. The test data & results are issued on the test report no. EM-F1000405. Signature _____________________________ Ben Cheng/Manager Date: Apr. 28, 2011 Test Laboratory: AUDIX Technology Corporation, EMC Department NVLAP Lab. Code: 200077-0 FCC OET Designation: TW1004 Web Site: www.audixtech.com The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. Lab. Code: 200077-0

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 April, 29, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Powertech Industrial Co Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Green Powerlink Gateway Model Name: M9PG01 We affirm that between SIEMIC and Powertech Industrial Co Ltd any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, George Lee / Director Powertech Industrial Co Ltd 10F, No. 407, Chung Shan Rd., Sec 2 Chung Ho City Taipei Hsien, 235 Taiwan

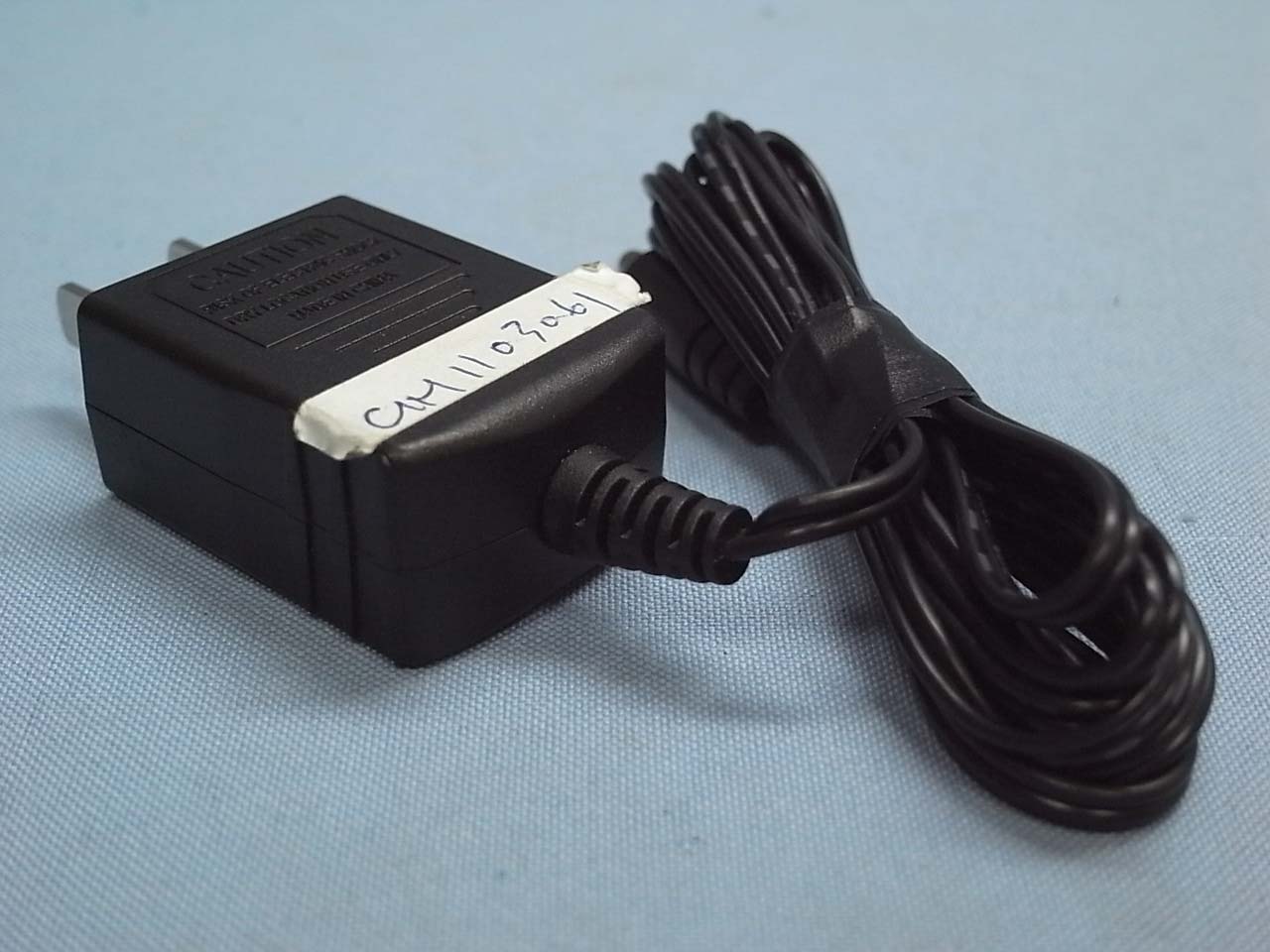

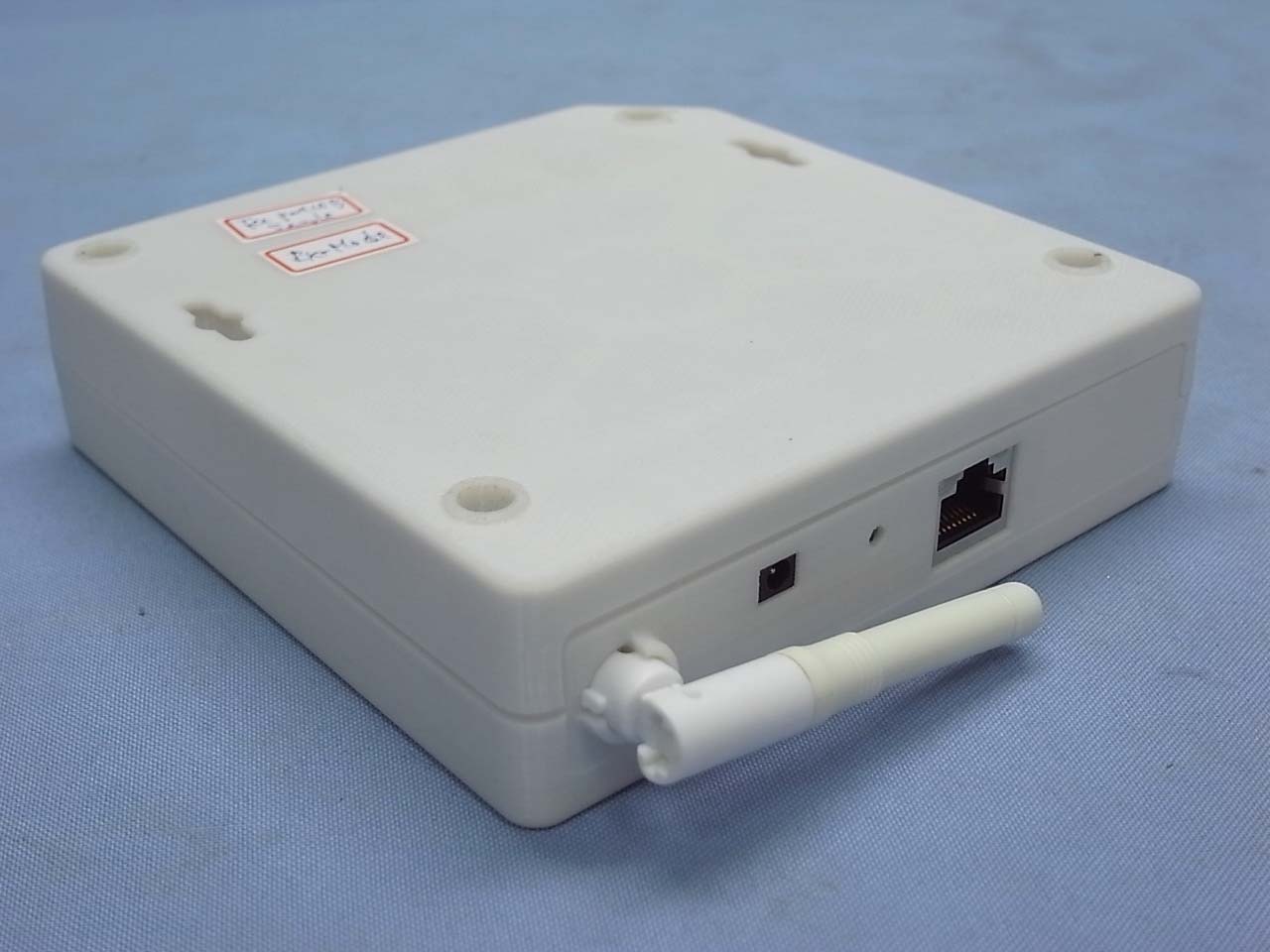

Powertech Industrial Co Ltd Green Powerlink Gateway FCC ID : NHS-M9PG01 EUT External Photos Figure 1 General Appearance (Front & Side View) Figure 2 General Appearance (Back & Side View) Powertech Industrial Co Ltd Green Powerlink Gateway FCC ID : NHS-M9PG01 Figure 3 I.T.E Power Supply, General Appearance (Front & Side View) Figure 4 I.T.E Power Supply, General Appearance (Label View)

Powertech Industrial Co Ltd Green Powerlink Gateway FCC ID : NHS-M9PG01 ID Label Location z Label Placement Location ID Label Placement Location z FCC Label Format FCC ID: NHS-M9PG01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

Powertech Industrial Co Ltd Green Powerlink Gateway FCC ID : NHS-M9PG01 EUT Internal Photos Figure 5 Internal View (Removed Cover) Figure 6 Internal View (Main Board, Front View) Powertech Industrial Co Ltd Green Powerlink Gateway FCC ID : NHS-M9PG01 Figure 7 Internal View (Main Board, Back View) Figure 8 Internal View (Internal Board, Front View) Powertech Industrial Co Ltd Green Powerlink Gateway FCC ID : NHS-M9PG01 Figure 9 Internal View (Internal Board, Back View) Figure 10 Internal View (LED Display Board, Front View) Powertech Industrial Co Ltd Green Powerlink Gateway FCC ID : NHS-M9PG01 Figure 11 Internal View (LED Display Board, Back View) Figure 12 I.T.E Power Supply, Internal View (Removed Covers and Main Board, Front View) Powertech Industrial Co Ltd Green Powerlink Gateway FCC ID : NHS-M9PG01 Figure 13 I.T.E Power Supply, Internal View (Main Board, Back View)

FCC ID: NHS-M9PG01 Page 1 of 23 AUDIX Technology Corporation Report No.: EM-F1000406 APPLICATION FOR CERTIFICATION On Behalf of Powertech Industrial Co Ltd Green Powerlink Gateway Model No.M9PG01 FCC IDNHS-M9PG01 Prepared for : Powertech Industrial Co Ltd 10F, No. 407, Chung Shan Rd., Sec 2 Chung Ho City, Taipei Hsien, 235 Taiwan Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei Hsien, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1103061 Report Number EM-F1000406 Date of Test Apr. 21 ~ 26, 2011 Date of Report Apr. 28, 2011 FCC ID: NHS-M9PG01 Page 2 of 23 AUDIX Technology Corporation Report No.: EM-F1000406 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................3 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT).................................................................................................................. 4 1.2. Tested Supporting System Details .......................................................................................................... 4 1.3. Description of Test Facility .................................................................................................................... 5 1.4. Measurement Uncertainty....................................................................................................................... 5 2. POWERLINE CONDUCTED EMISSION MEASUREMENT ..................................................6 2.1. Test Equipment ....................................................................................................................................... 6 2.2. Block Diagram of Test Setup.................................................................................................................. 6 2.3. Powerline Conducted Emission Limit (§15.207)....................................................................................6 2.4. Operating Condition of EUT .................................................................................................................. 7 2.5. Test Procedure ........................................................................................................................................ 7 2.6. Powerline Conducted Emission Measurement Results........................................................................... 7 3. RADIATED EMISSION MEASUREMENT ..............................................................................10 3.1. Test Equipment ..................................................................................................................................... 10 3.2. Block Diagram of Test Setup................................................................................................................ 10 3.3. Radiated Emission Limits (§15.209) .................................................................................................... 12 3.4. Fundamental Frequency Limits (§15.249)............................................................................................ 12 3.5. Operating Condition of EUT ................................................................................................................ 12 3.6. Test Procedure ...................................................................................................................................... 13 3.7. Radiated Emission Measurement Test Results .....................................................................................13 4. DEVIATION TO TEST SPECIFICATIONS..............................................................................20 5. PHOTOGRAPHS...........................................................................................................................21 5.1. Photos of Powerline Conducted Emission Measurement ..................................................................... 21 5.2. Photos of Radiated Emission Measurement at Semi-Anechoic Chamber ............................................ 22 FCC ID: NHS-M9PG01 Page 3 of 23 AUDIX Technology Corporation Report No.: EM-F1000406 TEST REPORT CERTIFICATION Applicant Powertech Industrial Co Ltd EUT Description Green Powerlink Gateway FCC ID NHS-M9PG01 (A) Model No. M9PG01 (B) Serial No. N/A (C) Power Supply DC 5V (D) Test Voltage AC 120V/60Hz (Via I.T.E Power Supply) Measurement Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C, October 2010 AND ANSI C63.4/2003 (FCC CFR 47 Part 15C, §15.207, §15.249, §15.209) The device described above was tested by AUDIX Technology Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 subpart C limits. The measurement results are contained in this test report and AUDIX Technology Corporation is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of AUDIX Technology Corporation. Date of Test : Apr. 21 ~ 26, 2011 Date of Report : Apr. 28, 2011 Producer : (Tina Huang/Administrator) Reviewer : (Henning Chang/Supervisor) Signatory: (Ben Cheng/Manager) FCC ID: NHS-M9PG01 Page 4 of 23 AUDIX Technology Corporation Report No.: EM-F1000406 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Description Green Powerlink Gateway FCC ID NHS-M9PG01 Model Number M9PG01 Applicant Powertech Industrial Co Ltd 10F, No. 407, Chung Shan Rd., Sec 2 Chung Ho City, Taipei Hsien, 235 Taiwan Fundamental Frequency 915MHz I.T.E Power Supply HON-KWANG, M/N HK-S-050A050-US Input: 100-240V~, 50/60Hz, 0.2A Output: DC 5V, 0.5A DC Power Cord: Non-Shielded, …

Text truncated - open the document above for the full version.

FCC ID: NHS-M9PG01 Page 21 of 23 AUDIX Technology Corporation Report No.: EM-F1000406 5. PHOTOGRAPHS 5.1. Photos of Powerline Conducted Emission Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID: NHS-M9PG01 Page 22 of 23 AUDIX Technology Corporation Report No.: EM-F1000406 5.2. Photos of Radiated Emission Measurement at Semi-Anechoic Chamber 5.2.1. For Frequency Range 30MHz~1GHz FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT FCC ID: NHS-M9PG01 Page 23 of 23 AUDIX Technology Corporation Report No.: EM-F1000406 5.2.2. For Frequency Above 1GHz FRONT VIEW OF RADIATED MEASUREMENT BACK VIEW OF RADIATED MEASUREMENT
