NHS-R1G107RF Repeater

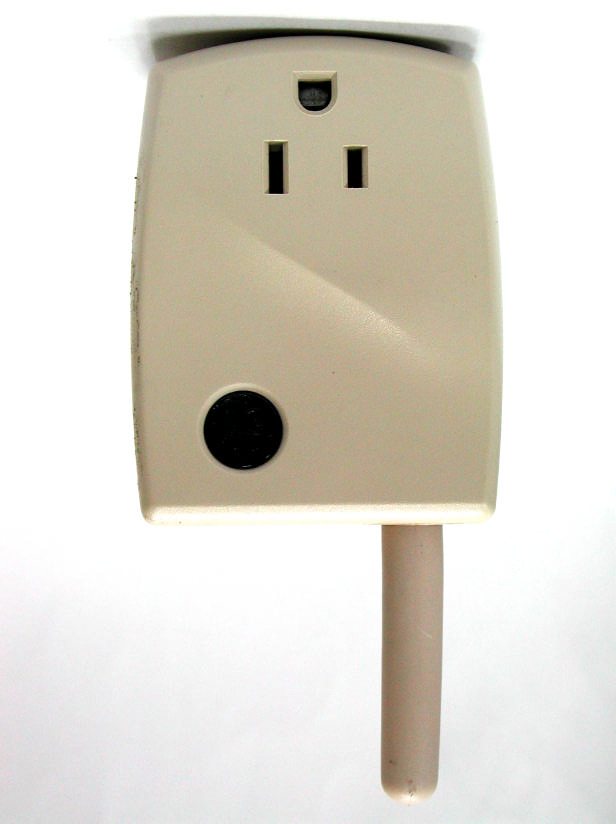

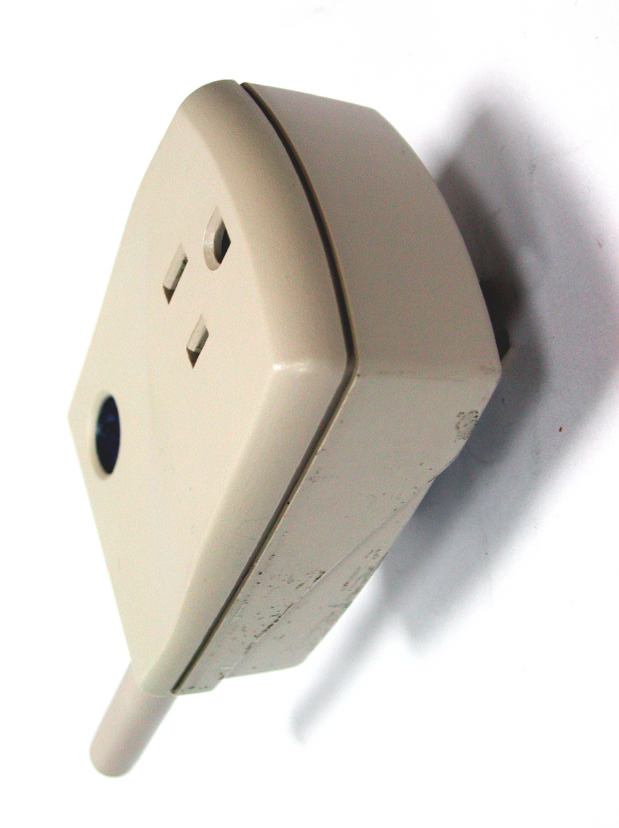

RF Repeater User’s Manual Introduction The product is an one outlet wall tap .It will be connected into an AC outlet and used with the same series receiver and transmitter .It include receiver and transmitter . After it receive a 319.5MHz signal from the transmitter , it will transmit the same signal to control the other receiver.The repeater is a relay between transmitter and receiver when transmitter’s and receiver’s distance are to exceed 150ft. How to use: 1. The applied electrical rating .AC100V~125V/60Hz. 2. Plug the AC plug of the device into the outlet. 3. Repeater will be also controlled by transmitter . 4. Push the “ON” key on transmitter and indicator led will be “on” on the front panel .The transmitter is under proper working status. 5. The repeater indicator light will also be “on” 1.5 sec to show the transmitter is working. 6. Receiver will be also controlled by repeater’s transmitter .The receiver indicator light will also be “on” to show the outlet of receiver with AC power output. 7. Push on the “OFF” key on transmitter and the indicator light of repeater will be “ON ” 1.5sec.It means the repeater is transmit “OFF” code to control the receiver. Than the indicator light of receiver will be “OFF”.It means no AC power output from the outlet of receiver. CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the users authority to operate the equipment.

LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation FCC ID : NHS-R1G107 LABEL Size: 30 x 25 mm LABEL Position: Tested to Comply With FCC Standard FOR HOME OR OFFICE USE

Test Report ------------------------------------------------------------------------------- 1/23 Report No.: G2115283 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Report No. G2115283 Specifications FCC Part 15.231, Certification Test Method ANSI C63.4 1992 Applicant POWERTECH INDUSTRIAL CO., LTD. Applicant 10F, No. 403, Chang Shan Road, Sec. 2, Chung Ho City, address Taipei Hsien, Taiwan, R.O.C. Items tested RF Repeater Model No. R1G107 (Sample # G21280) Results Compliance (As detailed within this report) Date 01/17/2003 (month / day / year) (Sample received) 01/17/2003 (month / day / year) (Test) Prepared by Project Engineer Authorized by General Manager (Frank Tsai) Issue date January 25, 2003 (month / day / year) Modifications None Tested by Training Research Co., Ltd. Office at 1F, No. 255, Nan Yang Street, Hsichih, Taipei Hsien 221, Taiwan Chamber at 1F, No. 255, Nan Yang Street, Hsichih, Taipei Hsien 221, Taiwan Conditions of issue: (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 FCC ID: NHS−R1G107 Test Report ------------------------------------------------------------------------------- 2/23 Report No.: G2115283 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Table of Contents CHAPTER 1 GENERAL..........................................................................3 1.1 INTRODUCTION...............................................................3 1.2 DESCRIPTION OF EUT......................................................3 1.3 TEST METHOD.................................................................3 1.4 DESCRIPTION OF SUPPORT EQUIPMENT............................4 1.5 TEST PROCEDURE...........................................................5 1.6 LOCATION OF THE TEST SITE...........................................5 1.7 GENERAL TEST CONDITION.............................................5 CHAPTER 2 SECTION 15.101(A): EQUIPMENT AUTHORIZATION OF UNINTENTIONAL RADIATORS................................6 CHAPTER 3 TRANSMITTER DUTY CYCLE MEASUREMENTS.....7 3.1 TEST CONDITION AND SETUP..........................................7 3.2 LIST OF TEST INSTRUMENTS.............................................7 3.3 TEST INSTRUMENTS CONFIGURATION...............................8 3.4 TEST RESULT..................................................................8 CHAPTER 4 TRANSMITTER BANDWIDTH MEASUREMENTS, FCC PART 15.231(C)......................................................10 4.1 TEST CONDITION & SETUP............................................10 4.2 TEST RESULT................................................................10 CHAPTER 5 CONDUCTED EMISSIONS MEASUREMENTS..........12 5.1 TEST CONDITION AND SETUP..........................................12 5.2 LIST OF TEST INSTRUMENT.............................................12 5.3 TEST RESULT................................................................13 CHAPTER 6 RADIATED EMISSIONS MEASUREMENTS...............15 6.1 GENERAL CONFIGURATION............................................15 6.2 TEST CONDITION AND SETUP........................................15 6.3 LIST OF TEST INSTRUMENTS...........................................17 6.4 TEST INSTRUMENTS CONFIGURATION (TX MODE)............18 6.5 TEST INSTRUMENTS CONFIGURATION (RX MODE)...........19 6.6 TEST RESULT OF RADIATED EMISSIONS..........................20 Test Report ------------------------------------------------------------------------------- 3/23 Report No.: G2115283 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Chapter 1 GENERAL 1.1 Introduction The following measurement report is submitted on behalf of applicant in support of an International Periodic Radiator certification with Part 2 Subpart J and Part 15 Subpart A, Subpart B and C of the Commission's Rules and Regulations. 1.2 Description of EUT Product Name : RF Repeater Model No. : R1G107 FCC ID : NHS−R1G107 Frequency Range : 319.10MHz ~ 319.90MHz Power Type : Powered by AC Source 1.3 Test method Tx mode: The fundamental frequency of transmitter emitted is due to a press on button of the EUT. The emitting time of fundamental frequency is less than 5 seconds pursuant to FCC Part 15.231(a). There are security codes for avoiding the possibility of duplicating codes in adjacent systems. The coding must be matching with the companion receiver. While testing the EUT was adjusted at a position, which transmits the maximum emission. Test Report ------------------------------------------------------------------------------- 4/23 Report No.: G2115283 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Rx mode: During testing, make sure the EUT operating at “receiving” mode. There is a near field probe placed approximately to the EUT to radiate an unmodulated continuous wave (CW) signal to EUT at its operating frequency in order to “cohere” from such a receiver. The signal level may need to be increased for this to occur pursuant to FCC ANSI C63.4 Section 12.1.1.1. The amplitude and frequency of the signal was varied to yield the maximum emission. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) Statement of transition provision for compliance with the rules. The EUT receives the signal that only sends from the remote controller. The EUT won’t be influenced by the transition provision, it will be continuous comply with the regulations of the FCC Part 15. 1.4 Description of Support Equipment Field Probe : HP Field Probe 30MHz ~ 1GHz Model No. : HP11940A Serial No…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------- 1/2 FCC ID: NHS-R1G107 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (Photographs) Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------- 2/2 FCC ID: NHS-R1G107 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement:
