NHS-R6G001WIRELESS REMOTE OUTLET FOR TRANSMITTER

User’s Manual for Wireless On/Off AC outlets for FCC VER: X 1. Product description: This product is a wireless remote outlet. It will be connected into an AC outlet and the transmitter will control the output to ON/Off the outlets. 2. How to use: 2.1 The applied electrical rating AC110V~125V / 60Hz. 2.2 Plug in the AC plug of the device into the outlets of receiver. 2.3 Open the battery cover to install the 12V/23A battery. Note not to reverse the polarity during installation of battery. 2.4 Push the “ON” key on transmitter and indicator led will be “on” on the front panel. The transmitter is under proper working status. 2.5 Receiver will be also controlled by transmitter. The receiver indicator light will also be “on” to show the outlet of receiver with AC power output. 2.6 Push on the “OFF” key on transmitter and the indicator light of receiver will be “OFF”. It means there is no AC power output from the outlet of receiver. 2.7 Caution: The max consumption current of the controlled devices can not be beyond 12A. CAUTION: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes of modifications not expressly approved by the grantee of this device Could void the users authority to operate the equipment.

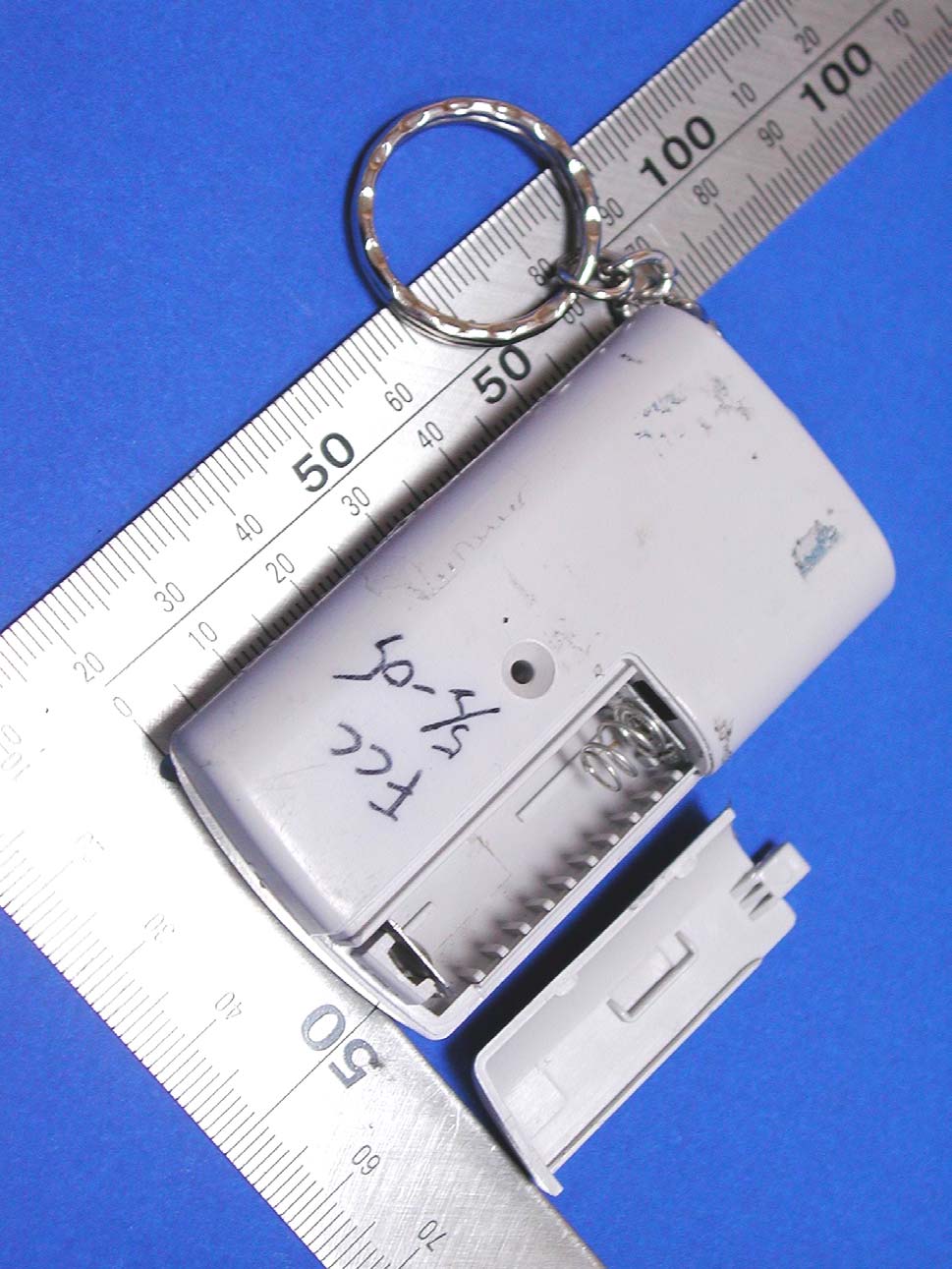

External Photos of Transmitter --------------------------------------------------------- 1/5 Applicant: POWERTECH INDUSTRIAL CO., LTD. FCC ID: NHS-R6G001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Transmitter --------------------------------------------------------- 2/5 Applicant: POWERTECH INDUSTRIAL CO., LTD. FCC ID: NHS-R6G001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location Information ------------------------------------------------ 1/2 Applicant: POWERTECH INDUSTRIAL CO., LTD. FCC ID: NHS-R6G001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Format: LABEL Size: 18 x 13 mm POWERTECH R6G001 FCC ID: NHS-R6G001 The device complies with Part15 of the FCC Rules. See instruction manual. LABEL Sample and Location Information ------------------------------------------------ 2/2 Applicant: POWERTECH INDUSTRIAL CO., LTD. FCC ID: NHS-R6G001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position:

Internal Photos of Transmitter ---------------------------------------------------------- 3/5 Applicant: POWERTECH INDUSTRIAL CO., LTD. FCC ID: NHS-R6G001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Transmitter ---------------------------------------------------------- 4/5 Applicant: POWERTECH INDUSTRIAL CO., LTD. FCC ID: NHS-R6G001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Transmitter ---------------------------------------------------------- 5/5 Applicant: POWERTECH INDUSTRIAL CO., LTD. FCC ID: NHS-R6G001 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Test Report -------------------------------------------------------------------------------1/17 Report No.: G2115050321, FCC Part15.231 (TX) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Report No. G2115050321 SpecificationsFCC Part 15.231, Certification Test MethodANSI C63.4 2003 ApplicantPOWERTECH INDUSTRIAL CO., LTD. Applicant10F, No. 407, Chang Shan Road, Sec. 2, Chung Ho City, addressTaipei Hsien, Taiwan, R.O.C. Items testedTransmitter Model No.R6G001 EUT Condition Engineering sample; Pre-production;Final production (Sample # G21050321) ResultsCompliance (As detailed within this report) Date05/05/2005 (month / day / year)(Sample received) 05/30/2005 (month / day / year)(Test) Prepared byProject Engineer (Jack Tsai) Authorized byGeneral Manager (Frank Tsai) Issue dateMay 31, 2005(month / day / year) ModificationsNone Tested by Training Research Co., Ltd. Office atNo. 255, Nan Yang Street, Shijr, Taipei Hsien 221, Taiwan Chamber at1F, No. 255, Nan Yang Street, Shijr, Taipei Hsien 221, Taiwan Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. ϪʳNVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------2/17 Report No.: G2115050321, FCC Part15.231 (TX) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Table of Contents CHAPTER 1GENERAL..........................................................................3 1.1 I NTRODUCTION............................................................. 3 1.2 D ESCRIPTION OF EUT.................................................... 3 1.3 D ESCRIPTION OF SUPPORTEQUIPMENT.......................... 3 1.4 T ESTPROCEDURE.......................................................... 4 1.5 L OCATION OF THE TESTSITE......................................... 4 1.6 G ENERALTESTCONDITION........................................... 4 CHAPTER 2TRANSMITTER DUTY CYCLE MEASUREMENTS.....5 2.1 T ESTCONDITION AND SETUP......................................... 5 2.2 L IST OF TESTINSTRUMENTS........................................... 5 2.3 T ESTINSTRUMENTSCONFIGURATION............................. 6 2.4 T ESTRESULT................................................................ 6 CHAPTER 3TRANSMITTER BANDWIDTH MEASUREMENTS, FCC PART 15.231(C)........................................................9 3.1 T ESTCONDITION&SETUP............................................ 9 3.2 T ESTRESULT................................................................ 9 CHAPTER 4CONDUCTED EMISSIONS MEASUREMENTS..........11 4.1 T ESTCONDITION......................................................... 11 4.2 T ESTRESULT.............................................................. 11 CHAPTER 5RADIATED EMISSIONS MEASUREMENTS ..............12 5.1 G ENERALCONFIGURATION.......................................... 12 5.2 T ESTCONDITION AND SETUP....................................... 12 5.3 L IST OF TESTINSTRUMENTS......................................... 15 5.4 T ESTINSTRUMENTSCONFIGURATION........................... 16 5.5 T ESTRESULT OF RADIATEDEMISSIONS........................ 17 Table 1 Radiated Emissions of Horizontal for 30MHz to 4.5GHz [X-plane] ..................17 Table 2 Radiated Emissions of Vertical for 30MHz to 4.5GHz [Z-plane].......................17 Test Report -------------------------------------------------------------------------------3/17 Report No.: G2115050321, FCC Part15.231 (TX) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 1GENERAL 1.1 Introduction The following measurement report is submitted on behalf of applicant in support of an International Periodic Radiator certification with Part 2 Subpart J and Part 15 Subpart A and C of the Commission's Rules and Regulations. 1.2 Description of EUT EUT:Transmitter Model No. : R6G001 FCC ID : NHS-R6G001 Frequency Range:319.00MHz ~ 319.95MHz Operating Frequency:319.5MHz Modulation Skill : AM/FM Power Type:Powered by 12V/23A battery (L1028 battery * 1) The fundamental frequency of transmitter emitted is due to a EUT is sensor by light. The emitting time of fundamental frequency is less than 5 seconds pursuant to FCC Part 15.231(a). There are security codes for avoiding the possibility of duplicating codes in adjacent systems. The coding must be matching with the companion receiver. The device is setting test mode by applicant. During testing, the EUT was operated at continuoustransmission mode. The EUT was adjusted at a position, which transmits the maximum emission. 1.3 Description of Support Equipment No support equipment: The EUT itself forms a system. No support equipment is requited for its normal operation Test Report -------------------------------------------------------------------------------4/17 Report No.: G2115050321, FCC Part15.231 (TX) Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 1.4 Test Procedure All measurements contained in this report were performed according to the techniques described in measurement procedure of ANSI C63.4 2003section 13 1.5 Location of the Test Site The radiated emissions measurements required by the rules were performed on the three-meter,Anechoic Chamber (FCC Registration Number: 93906)maintained by Training Research Co., Ltd. 1F, No. 255, Nan Yang Street, Hsi-chih, Taipei Hsien 221, Taiwan, R.O.C. Complete description and measurement data have been placed on file with the commission. The conducted power line emissions tests and other test items were performed in a anechoic chamber also located at Training Research Co., Ltd. 1F, No. 255, Nan Yang Street, Hsi-chih, Tai…
