NHS-R9P602NISurge Protective Devices

User Manual All Versions © Copyright 2012 The information contained herein is subject to change without notice. The information contained herein is subject to change without notice. This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent. August 2012 R9P014 / R9P125A6Z8 / R9P602NIZ8 GREEN POWERLINK Smart Energy Monitoring & Surge Protecting Solution TABLE OF CONTENTS INTRODUCTION........................................................................... 2 FEATURES AND FUNCTIONS ...................................................... 3 INSTALLATION............................................................................ 8 Wireless Setup Range................................................................... 8 Install Wall Tap Surge Protector................................................... 8 Install Strip Surge Protector ........................................................ 8 INITIAL SETUP ........................................................................... 9 Install Battery in Energy Monitor ................................................ 9 Use an AC/DC Adapter (Included)................................................ 10 Wall Mount the Energy Monitor................................................... 10 Perform Energy Monitor Initial Setup ........................................ 10 Currency and Electricity Setup ................................................................... 10 Carbon Emission Setup .............................................................................. 11 OPERATION................................................................................ 12 Energy Monitor Display and Control............................................ 12 Change channel to monitor different surge protectors............................... 13 Turn ON/OFF the energy saver outlets on the surge protector .................. 14 View real time and projection energy consumption .................................... 15 View Real Time energy information for the channel ................................... 16 View projection energy information for the channel.................................... 16 View accumulation energy consumption...................................................... 17 View total day energy accumulation for the selected channel.................... 18 View total month energy accumulation for the selected channel............... 18 View total year energy accumulation for the selected channel .................. 19 Exit energy accumulation mode for the selected channel.......................... 19 Surge events counter with sound alert........................................................ 20 Add Channels to the Energy Monitor by Learning....................................... 20 Add Channels to the Energy Monitor by Learning........................ 20 Reset the Energy Monitor to Factory Default ............................... 21 INTRODUCTION Thank you for purchasing the GREEN POWERLINK Energy Saving Solution, an innovative product which is designed to manage home electricity usage efficiently and reduce home electricity bill. In an effort to reduce your electricity bills, why not first check out what appliance uses most energy in your home. The New GREEN POWERLINK Energy Monitor allows you to take control of home electricity usage while saving you money in the process. With GREEN POWERLINK, you can see how much electricity you are using and with greater awareness you’ll become more energy efficient. Fully educated with the critical energy information, you are naturally motivated to adopt new energy saving habits and reduce harmful carbon emission for our environment. Besides energy conservation, the GREEN POWERLINK surge protectors are also equipped with fireproof Surge MOV technology and this ensures your home appliances are well protected and free of fire hazard during catastrophic surge events. The GREEN POWERLINK is the total solution for green inspiration, energy conservation, and surge protection for your everyday life. GREEN POWERLINK Manual All Versions V1.0 1 GREEN POWERLINK Manual All Versions V1.0 2 FEATURES AND FUNCTIONS “•††•‰”†•‘„••• 3 GREEN POWERLINK Manual All Versions V1.0 4 Smart Energy Monitor Features Top ViewFront ViewSide ViewBack View 1. RESET Key : restore factory default 2. LEARNING Key: add new channel 3. Channel indicator 4. Indicates ON/OFF status of CH’s energy saver outlets 5. Energy Monitor low battery indicator 6. Wireless Signal indicator 7. Surge event counter display 8. Real time and projection energy display mode 9. Energy Consumption display 10. Energy Cost display 11. CO2 emission display 12. Real Time and accumulative energy usage indicator: the plug icon flashes according to energy usage. The more energy you use, faster the icon flashes 13. Embedded alarm speaker 14. CH & cursor selector key 15. MODE Key : switch between real time, projection and accumulation energy display 16. ON/OFF Key : turn on/off the energy saver outlet SET Key : confirmation button 17. AC/DC power adaptor input 18. Battery compartment Smart Energy Monitor Specification Radio Frequency 915MHz Wireless Range LCD Dimension Replaceable Battery AC/DC Adaptor Input Operating Temperature Storage Temperature 915MHz Up to 100 Ft Ye s Ye s Up to 9 Channels Ye s Ye s 45mm x 55mm AA Battery X4 9V AC/DC adaptor included 5~45 at 85% relative humidity ‐5~60 at 85% relative humidity Control Energy Saver outlets ON/OFF Audible Alarm Alert Channels control and monitoring Learning Function Wall Mountable Functions               R9P014 GREEN POWERLINK Manual All Versions V1.0 5 GREEN POWERLINK Manual All Versions V1.0 6 Strip Type Surge Protector Features 1. Wireless Antenna - External antenna for better reception 2. AC Power Cord 3. Overload Resettable Circuit Breaker - Protects a…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Aug. 15, 2012 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Powertech Industrial Co Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Surge Protective Devices Model Name: R9P602NIZ8 We affirm that between SIEMIC and Powertech Industrial Co Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, George Lee / Director Powertech Industrial Co Ltd. 10F, No. 407, Chung Shan Rd., Sec 2 Chung Ho City, Taipei Hsien, 235 Taiwan

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Aug. 15, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: NHS-R9P602NI We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, George Lee / Director Powertech Industrial Co Ltd. 10F, No. 407, Chung Shan Rd., Sec 2 Chung Ho City, Taipei Hsien, 235 Taiwan

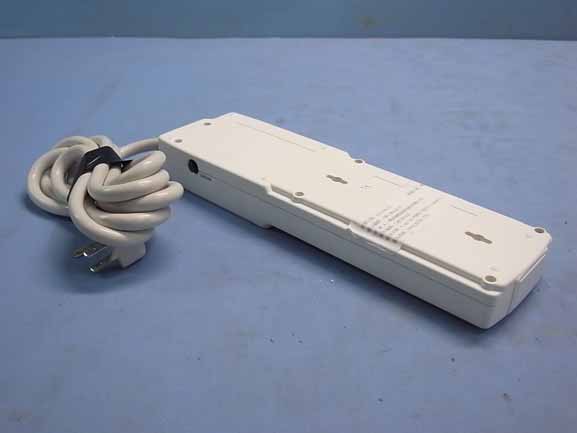

Powertech Industrial Co Ltd Surge Protective Devices FCC ID : NHS-R9P602NI EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View) Powertech Industrial Co Ltd Surge Protective Devices FCC ID : NHS-R9P602NI Photo 3 General Appearance (Side View) Photo 4 General Appearance (Side View)

Powertech Industrial Co Ltd Surge Protective Devices FCC ID : NHS-R9P602NI ID Label Location z Label Placement Location (Back View of EUT) ID Label Placement Location Powertech Industrial Co Ltd Surge Protective Devices FCC ID : NHS-R9P602NI z ID Label Format

Powertech Industrial Co Ltd Surge Protective Devices FCC ID : NHS-R9P602NI EUT Internal Photos Photo 5 Internal View (Removed Cover) Photo 6 Internal View (Power Board, Front View) Powertech Industrial Co Ltd Surge Protective Devices FCC ID : NHS-R9P602NI Photo 7 Internal View (Power Board, Back View) Photo 8 Internal View (Control Board, Front View) Powertech Industrial Co Ltd Surge Protective Devices FCC ID : NHS-R9P602NI Photo 9 Internal View (Power Board, Back View)

FCC ID: NHS-R9P602NI Page 1 of 23 AUDIX Technology Corporation Report No.: EM-F1010539 APPLICATION FOR CERTIFICATION On Behalf of Powertech Industrial Co Ltd Surge Protective Devices Model No.R9P602NIZ8 FCC IDNHS-R9P602NI Prepared for : Powertech Industrial Co Ltd 10F, No. 407, Chung Shan Rd., Sec 2 Chung Ho City, Taipei Hsien, 235 Taiwan, R.O.C. Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1206218 Report Number EM-F1010539 Date of Test Jul. 02 ~ 03, 2012 Date of Report Aug. 15, 2012 FCC ID: NHS-R9P602NI Page 2 of 23 AUDIX Technology Corporation Report No.: EM-F1010539 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION .......................................................................................................3 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT).................................................................................................................. 4 1.2. Tested Supporting System Details .......................................................................................................... 4 1.3. Description of Test Facility .................................................................................................................... 5 1.4. Measurement Uncertainty....................................................................................................................... 5 2. POWERLINE CONDUCTED EMISSION MEASUREMENT ..................................................6 2.1. Test Equipment ....................................................................................................................................... 6 2.2. Block Diagram of Test Setup.................................................................................................................. 6 2.3. Powerline Conducted Emission Limit (§15.207)....................................................................................6 2.4. Operating Condition of EUT .................................................................................................................. 7 2.5. Test Procedure ........................................................................................................................................ 7 2.6. Powerline Conducted Emission Measurement Results........................................................................... 7 3. RADIATED EMISSION MEASUREMENT ..............................................................................10 3.1. Test Equipment ..................................................................................................................................... 10 3.2. Block Diagram of Test Setup................................................................................................................ 10 3.3. Radiated Emission Limits (§15.209) .................................................................................................... 12 3.4. Fundamental Frequency Limits (§15.249)............................................................................................ 12 3.5. Operating Condition of EUT ................................................................................................................ 12 3.6. Test Procedure ...................................................................................................................................... 13 3.7. Radiated Emission Measurement Test Results .....................................................................................13 4. DEVIATION TO TEST SPECIFICATIONS..............................................................................21 5. PHOTOGRAPHS...........................................................................................................................22 5.1. Photos of Powerline Conducted Emission Measurement ..................................................................... 22 5.2. Photos of Radiated Emission Measurement at Semi-Anechoic Chamber ............................................ 23 FCC ID: NHS-R9P602NI Page 3 of 23 AUDIX Technology Corporation Report No.: EM-F1010539 TEST REPORT CERTIFICATION Applicant Powertech Industrial Co Ltd Manufacturer Dongguan Quan Sheng Electric Co., Ltd. EUT Description Surge Protective Devices FCC ID NHS-R9P602NI (A) Model No. R9P602NIZ8 (B) Serial No. N/A (C) Power Supply AC 120V/60Hz (D) Test Voltage AC 120V/60Hz Measurement Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C, Oct. 2011 AND ANSI C63.4/2003 (FCC CFR 47 Part 15C, §15.207, §15.249, §15.209) The device described above was tested by AUDIX Technology Corporation to determine the maximum emission levels emanating from the device. The maximum emission levels were compared to the FCC Part 15 subpart C limits. The measurement results are contained in this test report and AUDIX Technology Corporation is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of AUDIX Technology Corporation. Date of Test : Jul. 02 ~ 03, 2012 Date of Report : Aug. 15, 2012 Producer : (Tina Huang/Administrator) Signatory: (Leon Liu/Deputy General Manager) FCC ID: NHS-R9P602NI Page 4 of 23 AUDIX Technology Corporation Report No.: EM-F1010539 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Description Surge Protective Devices FCC ID NHS-R9P602NI Model Number R9P602NIZ8 Applicant Powertech Industrial Co Ltd 10F, No. 407, Chung Shan Rd., Sec 2 Chung Ho City, Taipei Hsien, 235 Taiwan, R.O.C. Manufacturer Dongguan Quan Sheng Electric Co., Ltd. Chu-Tang 2nd Industrial Park Hou-Chieh Town Dong…

Text truncated - open the document above for the full version.

FCC ID: NHS-R9P602NI Page 22 of 23 AUDIX Technology Corporation Report No.: EM-F1010539 5. PHOTOGRAPHS 5.1. Photos of Powerline Conducted Emission Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID: NHS-R9P602NI Page 23 of 23 AUDIX Technology Corporation Report No.: EM-F1010539 5.2. Photos of Radiated Emission Measurement at Semi-Anechoic Chamber 5.2.1. For Frequency Range 30MHz~1GHz 5.2.2. For Frequency Above 1GHz
