  1. Home/
  2. Powertech Industrial Co Ltd/
  3. NHSPT-456

NHSPT-456Remote Control

Powertech Industrial Co Ltd
Remote Control - FCC ID NHSPT-456 - Powertech Industrial Co Ltd
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Dec 10, 2001
Application Purpose
Original Equipment
Date of Application
Dec 10, 2001
Equipment Note
Remote Control
Frequency Range
314.00000000 - 315.00000000
Company
Powertech Industrial Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

โ†—

Block Diagram

โ†—

External Photos

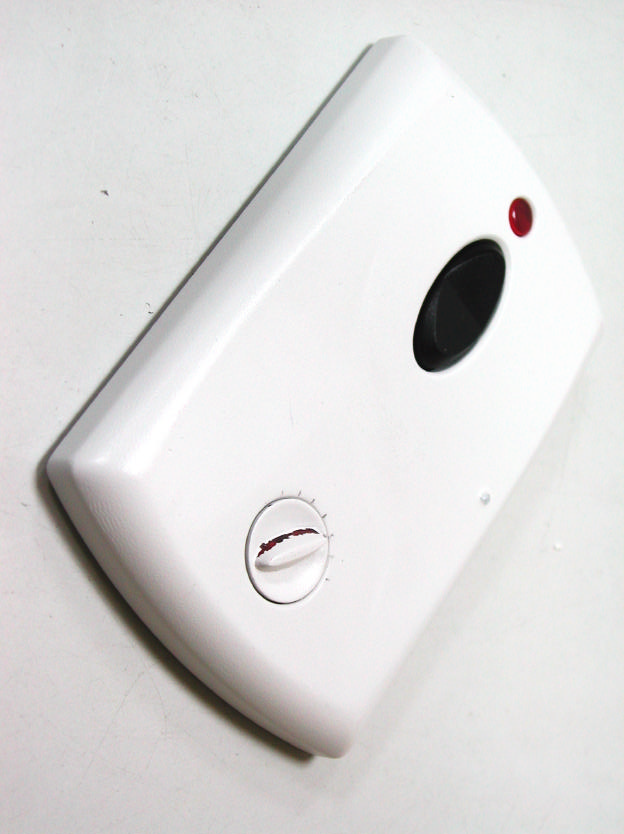

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

Operational Description

โ†—

Schematics

โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the users authority to operate the equipment.

ID Label/Location Info

LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:R1G0040R1A FCC ID:NHSPT-456 LABEL Size: 45 x 20 mm LABEL Position:

Operational Description

C:\WINDOWS\TEMP\Operational Description1 (1).doc Operational Description Section 2.1033(b)(4) of the 47 CFR states: โ€œA brief description of the circuit functions of the device along with a statement describing how the device operates. This statement should contain a description of the ground system and antenna, if any, used with the device.โ€ Transmitter is by battery operation for single alone system. Receiver will using AC power source. What does this mean? Describe the EUT completely. What is it? (in plain English as well as in technical terms). Give functional description. The Users Manual is not a substitute for the Operational Description. Always describe the signal such as modulation type, pulse repetition rate, signal type and information being sent. - A complete functional description of the unit should be submitted. This description should include the intended mounting or use configuration. For example, is the unit (to be) fixed, mobile or portable? The transmitter is portable, the Receiver will be mobile. - Explain any transmit or modulation duty cycles. Itโ€™s belong AM/ASK modulation 100% by Manchester coding 33/66 duty cycle. - Describe the antenna intended for use with device. Transmitter is a PCB loop direction antenna for low power transmit. Receiver is monopole direction antenna - For Spread Spectrum devices, please provide the following information: not spread spectrum device. - Bit Rate - Chipping Rate - Data Rate - Spreading Rate

Test Report

Test Report -------------------------------------------------------------------------------- 2/20 Report No.: G2115770 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Table of Contents Chapter 1 General 1.1 Introduction ................................................................................................................... 3 1.2 Description of EUT ....................................................................................................... 3 1.3 Description of Support Equipment ................................................................................. 3 1.4 Test Procedure .............................................................................................................. 4 1.5 Location of the Test Site ................................................................................................ 4 1.6 General Test Condition .................................................................................................. 4 Chapter 2 Transmitter Duty Cycle Measurements 2.1 Test Condition and Setup .............................................................................................. 5 2.2 List of Instruments ......................................................................................................... 5 2.3 Test Configuration ......................................................................................................... 6 2.4 Test Result .................................................................................................................... 6 Chapter 3 Transmitter Bandwidth Measurements 3.1 Test Condition and Setup .............................................................................................. 9 3.2 Test Result .................................................................................................................... 9 Chapter 4 Conducted Emissions Measurements 4.1 Conducted Emissions Measurements............................................................................. 11 4.2 Test Result ................................................................................................................... 11 Chapter 5 Radiated Emissions Measurements 5.1 General Configuration ................................................................................................... 12 5.2 Test Condition and Setup ............................................................................................. 12 5.3 List of Test Instruments ................................................................................................. 14 5.4 Test Instruments Configuration ...................................................................................... 15 5.5 Test Result of Radiated Emissions ................................................................................. 17 Table Table 1 Open Field Radiated Emissions for 30MHz ~ 1GHz [HORIZONTAL] ...................... 17 Table 2 Open Field Radiated Emissions for 30MHz ~ 1GHz [VERTICAL] ............................. 18 Table 3 Open Field Radiated Emissions for 1GHz ~ 4GHz [HORIZONTAL] ......................... 19 Table 4 Open Field Radiated Emissions for 1GHz ~ 4GHz [VERTICAL] ............................... 20 Test Report -------------------------------------------------------------------------------- 3/20 Report No.: G2115770 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Chapter 1 General 1.1 Introduction The following measurement report is submitted on behalf of applicant in support of an International Periodic Radiator certification with Part 2 Subpart J and Part 15 Subpart A and C of the Commission's Rules and Regulations. 1.2 Description of EUT EUT:Remote Control Appliance (Transmitter) Model No.:R1G0040R1A, R1G0040R2A FCC ID:NHSPT-456 Frequency Range:Operated in 314.925 MHz Power Type:Powered by 12V/23A battery Applicant:Powertech Industrial Co., Ltd. 10F, No. 403, Chung Shan Rd., Sec. 2, Chung Ho City, Taipei Hsien, Taiwan 235, R.O.C. The fundamental frequency of transmitter emitted is due to a press on button of the EUT. The emitting time of fundamental frequency is less than 5 seconds pursuant to FCC Part 15.231(a). There are security codes for avoiding the possibility of duplicating codes in adjacent systems. The coding must be matching with the companion receiver. While testing the EUT was adjusted at a position which transmit the maximum emission. 1.3 Description of Support Equipment The EUT itself forms a system. No support equipment is requited for its normal operation. Test Report -------------------------------------------------------------------------------- 4/20 Report No.: G2115770 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 1.4 Test Procedure All measurements contained in this report were performed according to the techniques described in measurement procedure of ANSI C63.4 1992 section 13 1.5 Location of the Test Site The radiated emissions measurements required by the rules were performed on the three- meter, Anechoic Chamber (Registration Number: 93906) maintained by Training Research Co., Ltd. 1F, No. 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Complete description and measurement data have been placed on file with the commission. The conducted power line emissions tests and other test items were performed in a anechoic chamber also located at Training Research Co., Ltd. No. 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Training Research Co., Ltd. is listed by the FCC as a facility available to do measurement work for others on a contract basis. 1.6 General Test Condition The conditions under which the EUT operates were varied to determine their effect on the equipmentโ€™s emission characteristics. The final configuration of the test system and the mode of operation used during these tests were chosen as that which produced highest emission levels. However, only those conditions thatโ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

Test Report -------------------------------------------------------------------------------- 16/20 Report No.: G2115770 (Tx) Training Research Co., Ltd., TEL: 886-2-26935155,Fax: 886-2-26934440 Radiated Test Placement: (Photographs)

Contact Information

Applicant

George Lee(Manager)
[email protected]886 2-8221-5588Fax: 886 2-8221-5680

Test Firm

Training Research Co., Ltd.Jack Tsai
[email protected]886-2-26935155Fax: 886-2-26934440

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231314 MHz - 315 MHz-
